ZR 1-Channel Class D Amplifier 2000 Watts Rms @ 1-Ohm
Product Overview DS18 ZR2000.1D Class D 1-Channel Monoblock Amplifier 2000 Watts RMS-1 Ohm The ZR Series amps...
- $395.95
- $395.95
- Unit price
- per
Subtotal:
$395.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

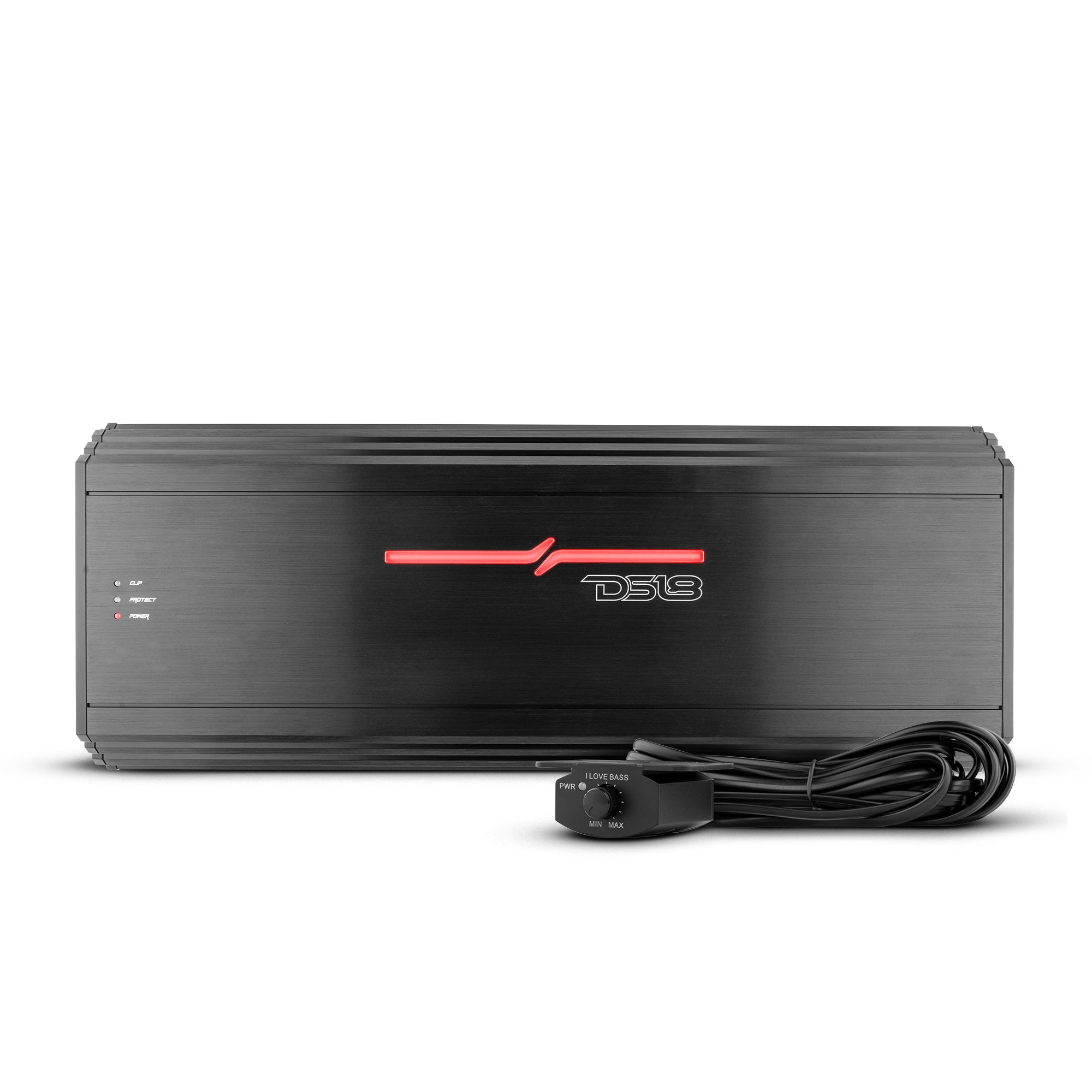

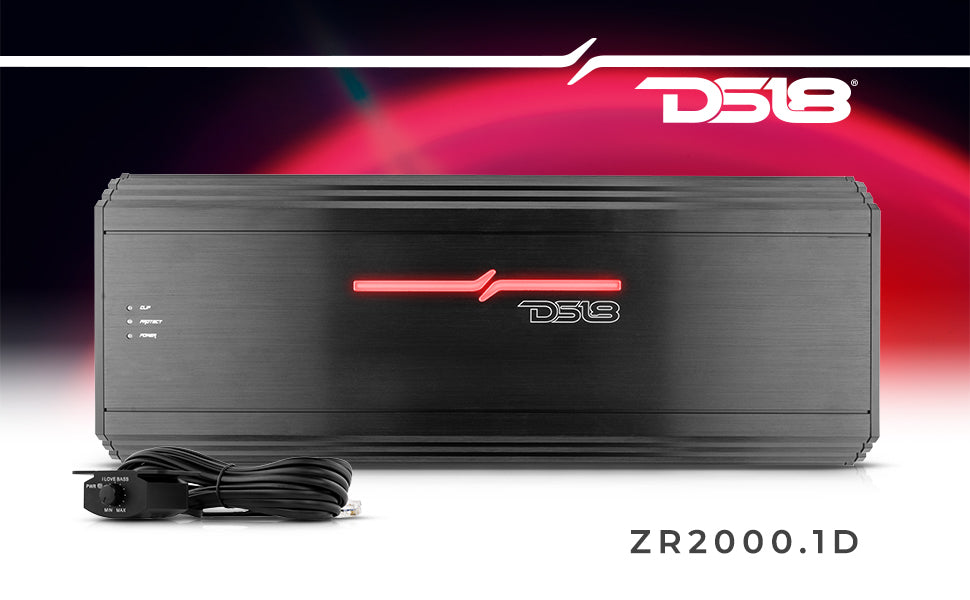

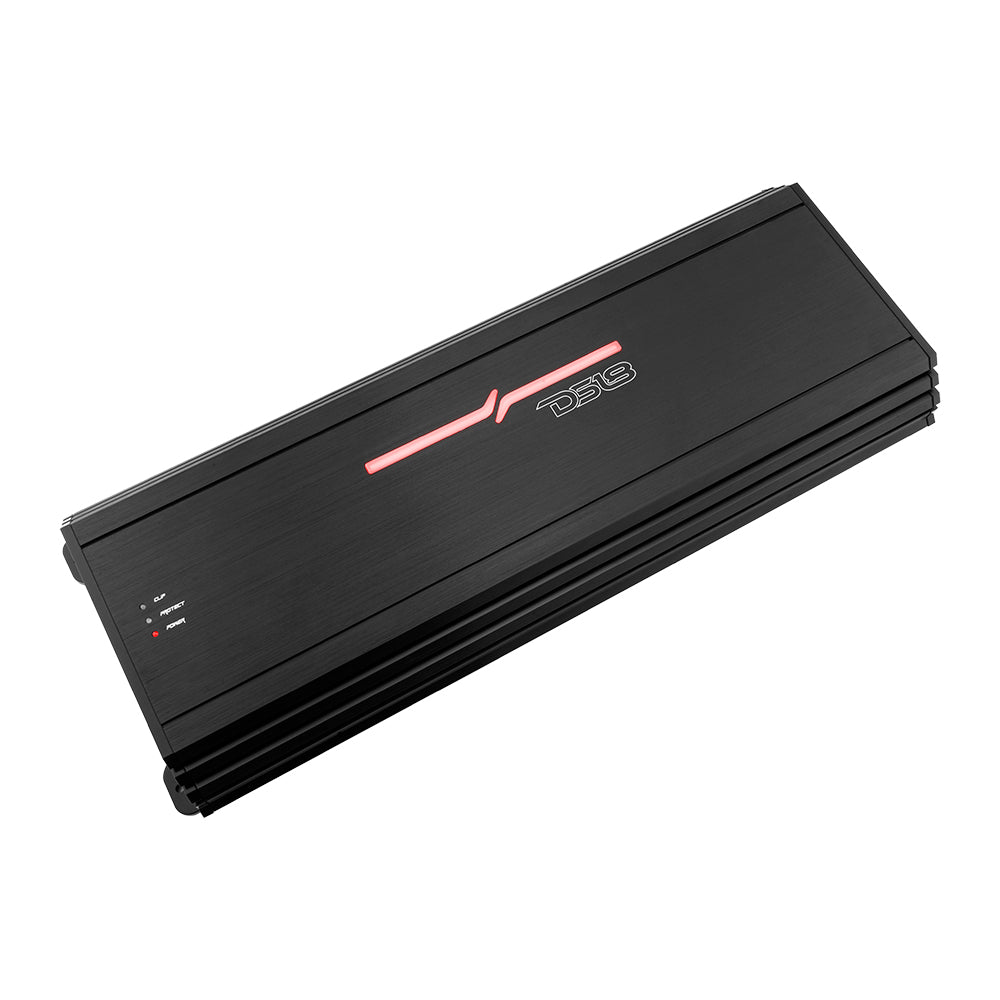

DS18 ZR2000.1D Class D 1-Channel Monoblock Amplifier 2000 Watts RMS-1 Ohm
The ZR Series amps are sure to power all your subwoofers with great sound acuity and massive bass frequency responses.

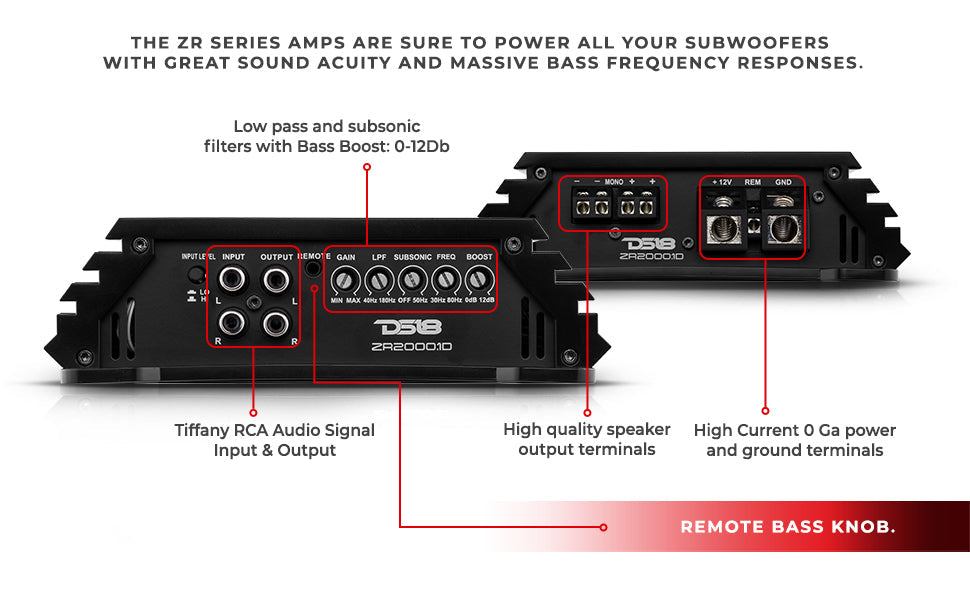

They have been designed to efficiently pump out hard hitting bass and put your subwoofers at their maximum potential. Easily tuned, The ZR2000.1D comes with Lowpass and Subsonic filters to help you set to the perfect frequency for your music preference.

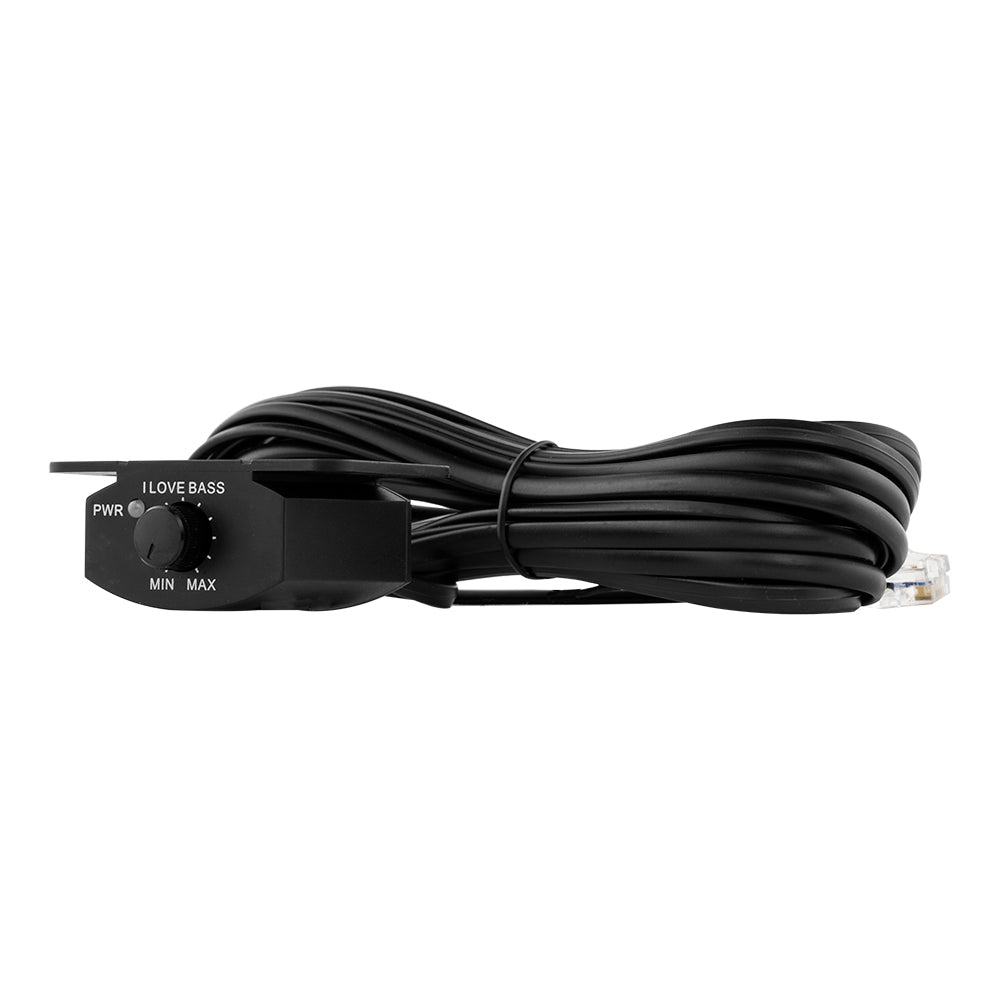

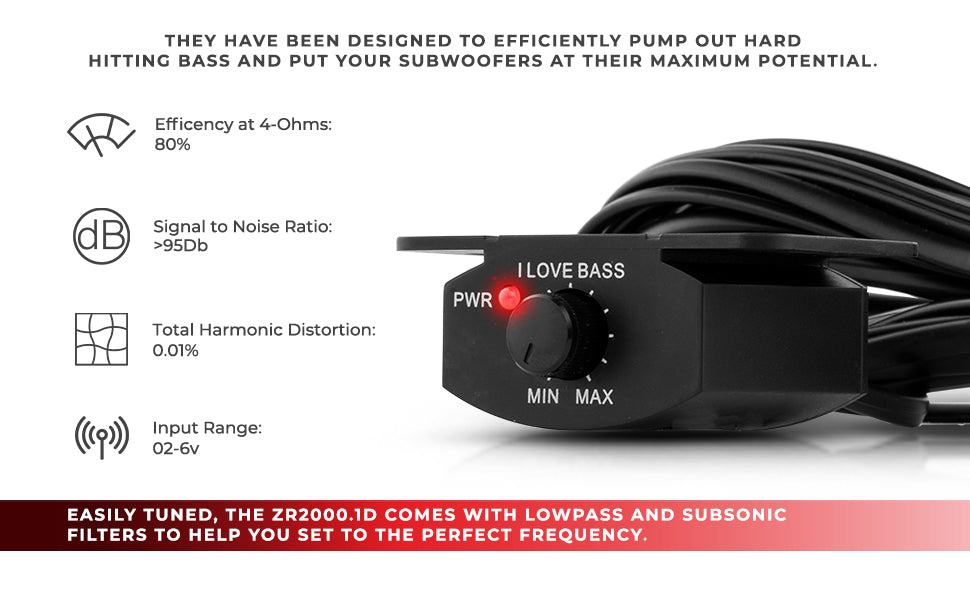

The included bass knob will help you attenuate your bass with a quick turn of the dial to tune in your bass volume with every song you play. The ZR2000.1D is made to deliver 2000 watts RMS @ 1-Ohm, 1300 watts RMS @ 2-Ohms, and 800 watts RMS @ 4 ohms giving you the perfect power for your bass.
Key Features

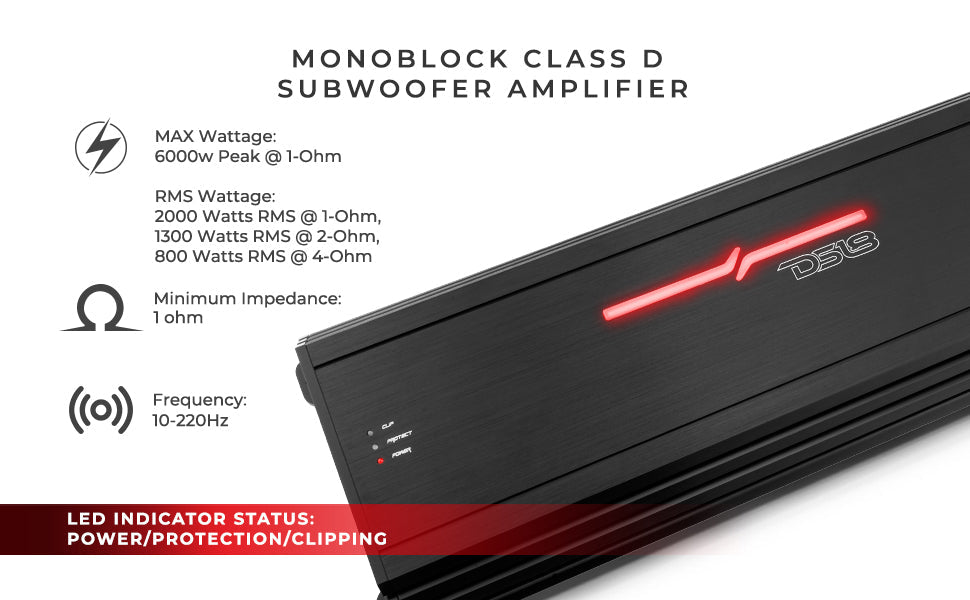

- Digital Class D Subwoofer Monoblock
- MAX Wattage: 6000w Peak @ 1-Ohm
- RMS Wattage: 2000 Watts RMS @ 1-Ohm, 1300 Watts RMS @ 2-Ohms, 800 Watts RMS @ 4-Ohms
- Frequency Response: 10-220 Hz
- Signal to Noise Ratio: >95Db
- Efficiency at 4-Ohms: 85%
- Total Harmonic Distortion: 0.01%
- Input Range: .02-6v

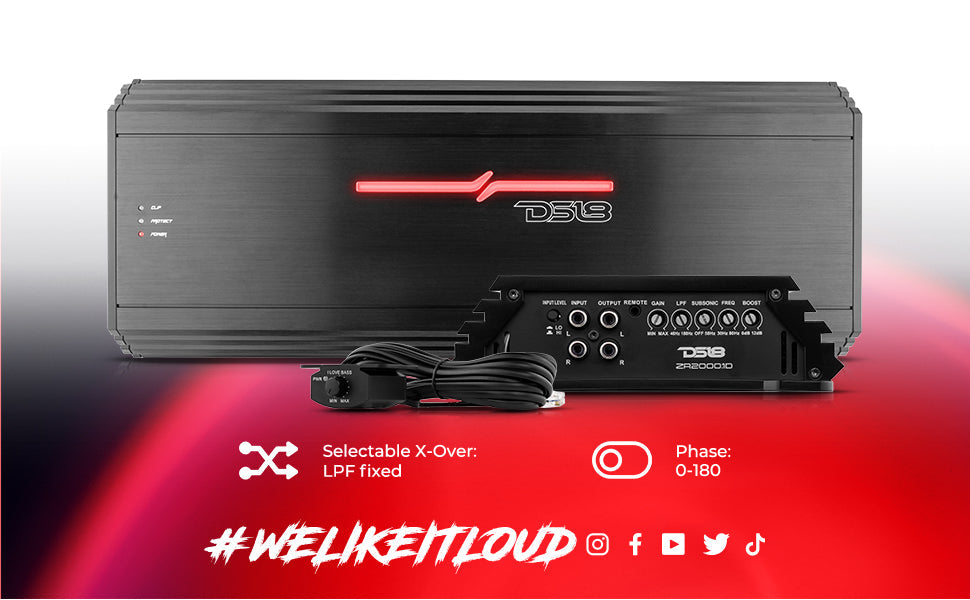

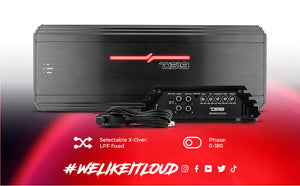

- Selectable X-Over: LPF fixed
- Bass Boost: 0-12Db
- Phase: 0-180
- LED Indicator: Clipping, Power, Protect
- Power and Ground Terminal: 0 Ga
- Minimum Impedance: 1 Ohm
Good For:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Off-Road
- DIY Projects
Technical Details
| POWER | |
| Total Watts (Peak) | 6000W |
| RMS Power @ 4 ohm | 800W |
| RMS Power @ 2 ohm | 1300W |
| RMS Power @ 1 ohm | 2000W |
| AUDIO | |
| Frequency Response | 10-220Hz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4ohm | 80% |
| Damping Factor | 220 |
| Input Impedance | 20K ohm |
| Channel Separation | N/A |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2-6V |
| High Level Input | Yes |

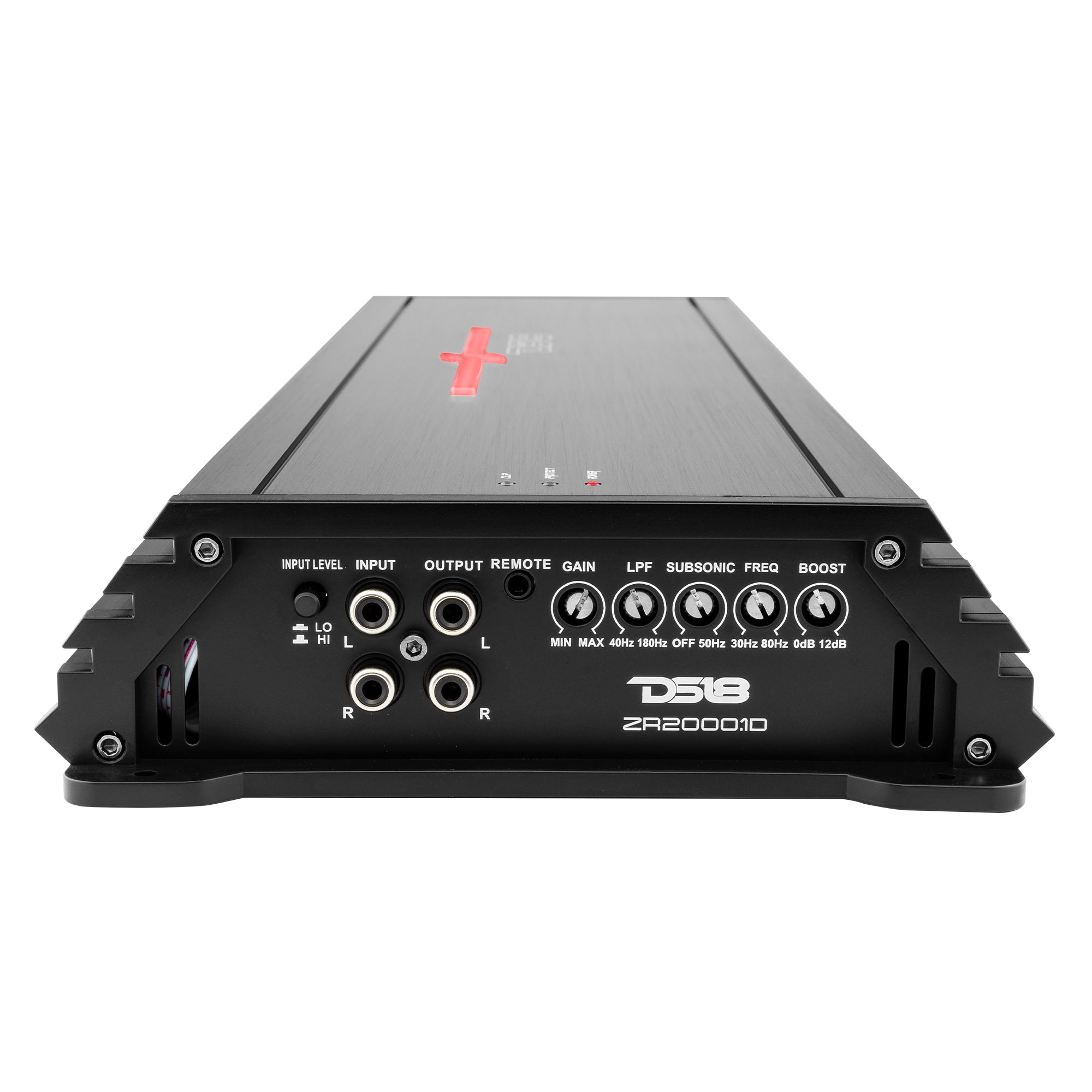

| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 40-180Hz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | 30-80Hz |
| Infrasonic Filter | 10-50Hz |
| Phase Selector | No |
| FEATURES | |
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 ohm |
| Led Indicator | clipping/protect/power |

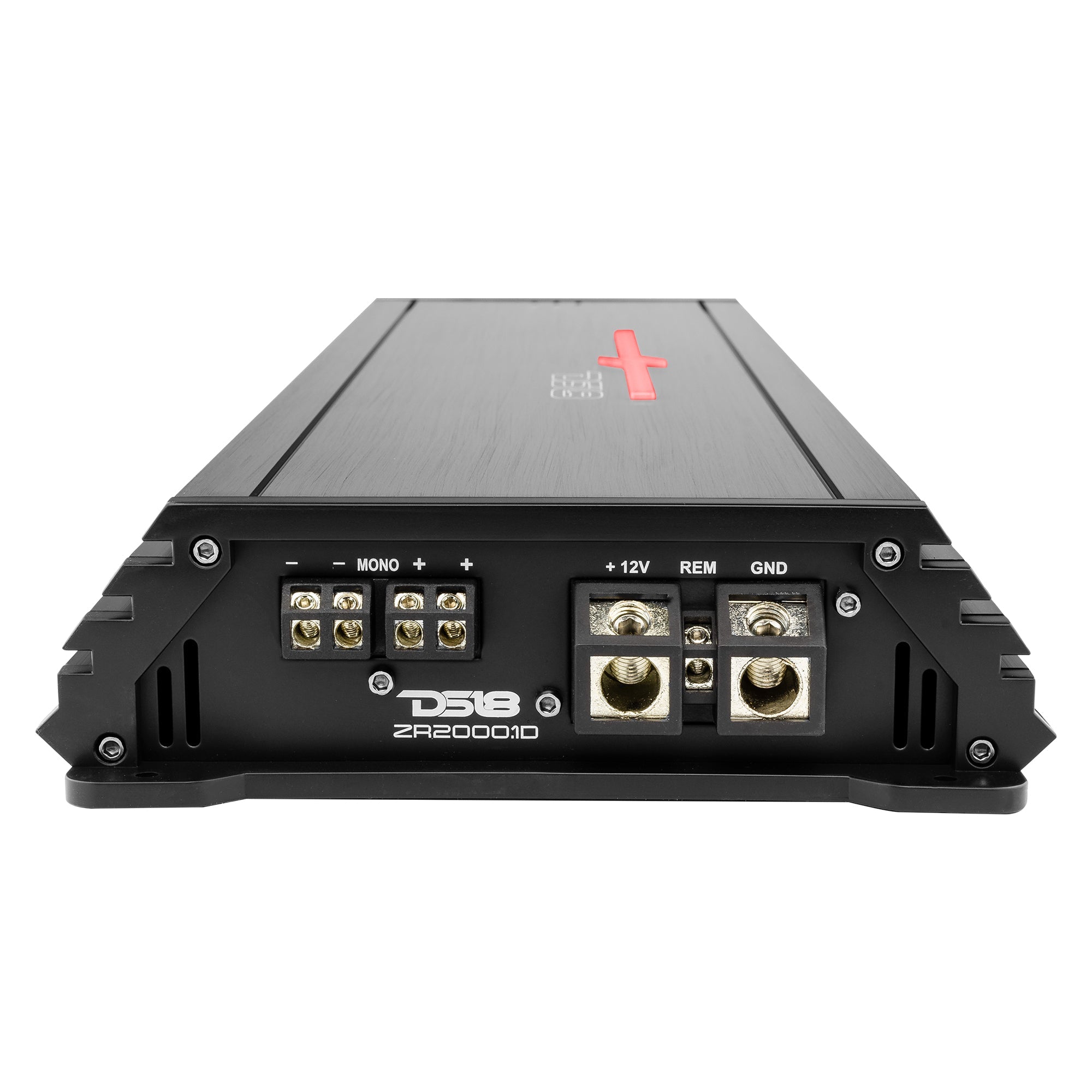

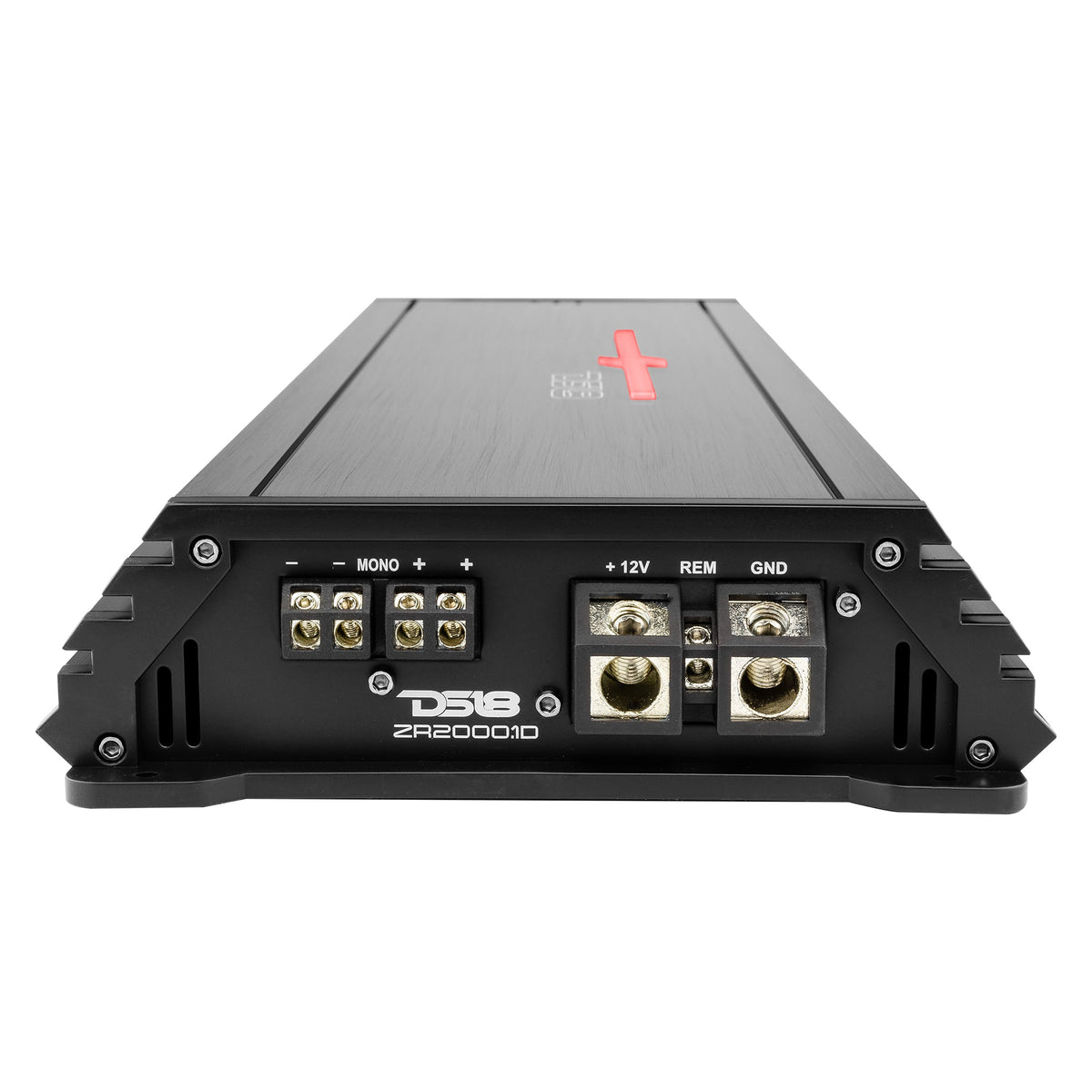

| Power Input Terminal Size | 0ga |
| Fuse Size | 200A |
| Remote Level Control | Yes / Dash Mount |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes <9 / >16 Volts |
| Clipping Protection | Yes |
| Body Color / Finish | Black Aluminum Brush |
| MEASUREMENT | |
| Overall Length | 19.13" / 486mm |
| Overall Wide | 7.24" / 184mm |
| Overall Height | 2" / 53mm |
| Heatsink Length | 17.75" / 451mm |
| Gross Single Unit Weight | 8.1Lb |
Key Features
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 2000 Watts @ 1 Ohm
- Clip/Protection Indicator
- Bass Control Knob
Specifications
| SKU | ZR2000.1D |
|---|---|
| Total Watts (Peak) | 6000W |
| RMS Power @ 4 Ohm | 800W |
| RMS Power @ 2 Ohm | 1300W |
| RMS Power @ 1 Ohm | 2000W |
| Frequency Response | 10-220Hz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4 Ohm | 80% |
| Damping Factor | 220 |
| Input Impedance | 20K ohm |
| Channel Separation | N/A |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2-6V |
| High Level Input | Yes |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 40-180Hz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | 30-80Hz |
| Infrasonic Filter | 10-50Hz |
| Phase Selector | No |
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 Ohm |
| Led Indicator | Clipping/protect/power |
| Power Input Terminal Size | 0 GA |
| Fuse Size | 200 A |
| Remote Level Control | Yes / Dash Mount |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes <9 / >16 Volts |
| Clipping Protection | Yes |
| Body Color / Finish | Black Aluminum Brush |
| Overall Length | 19.13" / 486mm |
| Overall Wide | 7.24" / 184mm |
| Overall Height | 2" / 53mm |
| Heatsink Length | 17.75" / 451mm |
| Gross Single Unit Weight | 8.1Lb |
