ZR 10" Subwoofer 700 Watts Rms DVC 2-Ohm
Product Overview DS18 ZR10.2D 10" Car Subwoofer with 1400 Watts 2-Ohm DVC The ZR subline is an...
- $179.95
- $179.95
- Unit price
- per
Subtotal:
$179.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

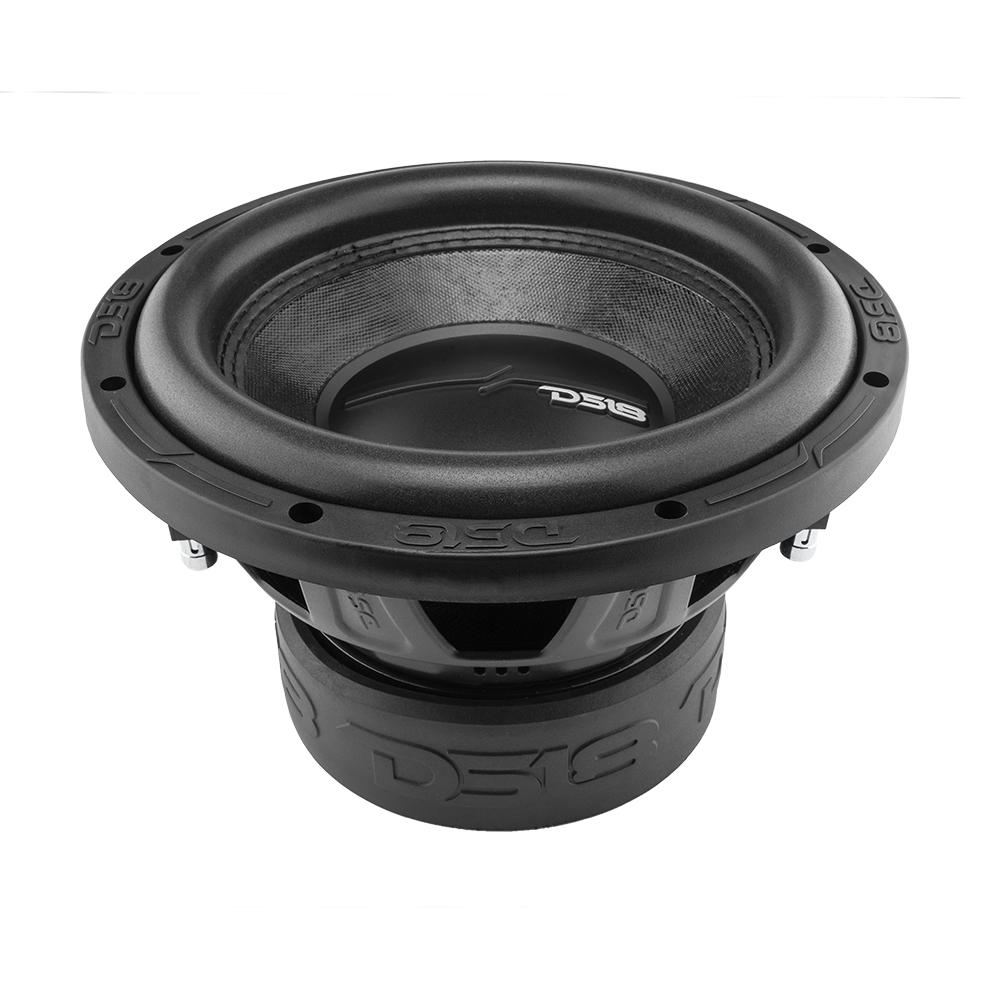

DS18 ZR10.2D 10" Car Subwoofer with 1400 Watts 2-Ohm DVC

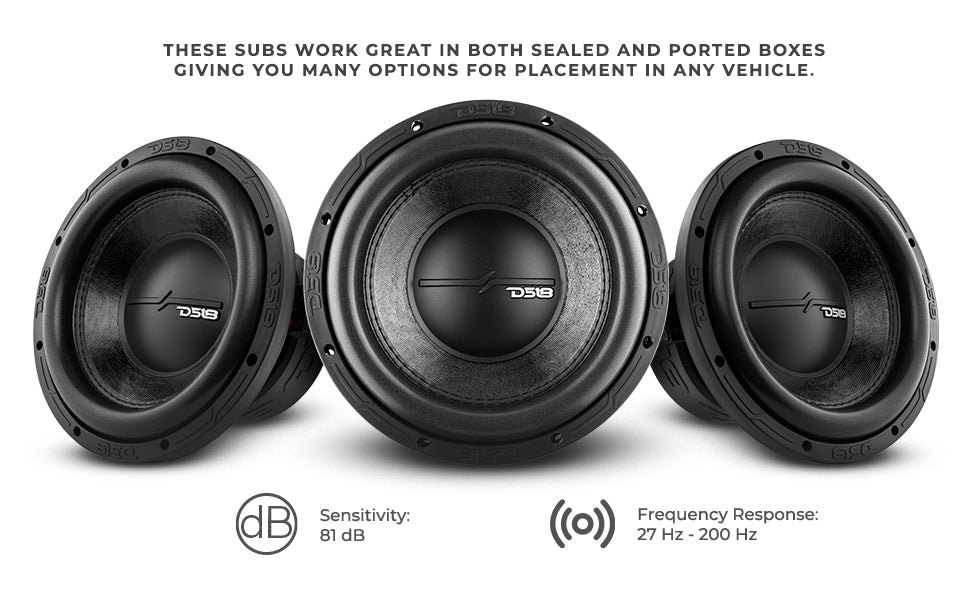

The ZR subline is an amazing entry level subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
This 10 inch model comes in both dual 2 and dual 4 ohms configurations giving you many options to perfectly match your amplifiers optimal impedance. This model comes with a 2.5 inch aluminum voice coil that handles 700w RMS and 1400w Max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout and outside the vehicle.
Highlights

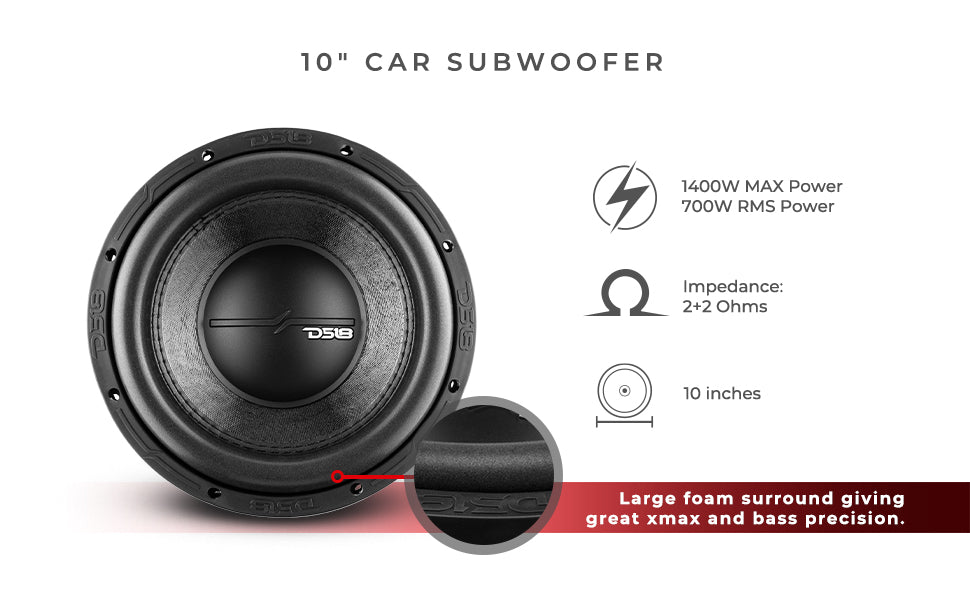

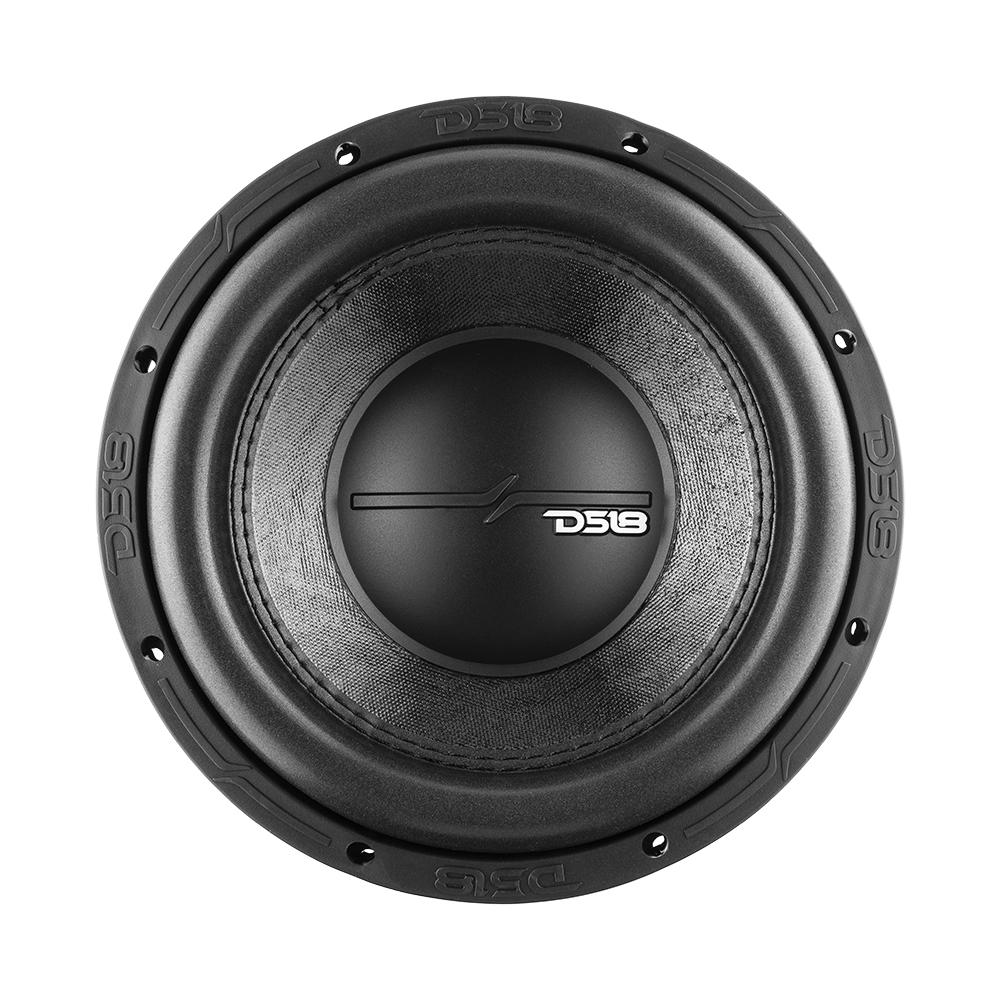

- Large foam surround giving great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 700w RMS and 1400w Max through a high strength 2.5 inch aluminum voice coil.

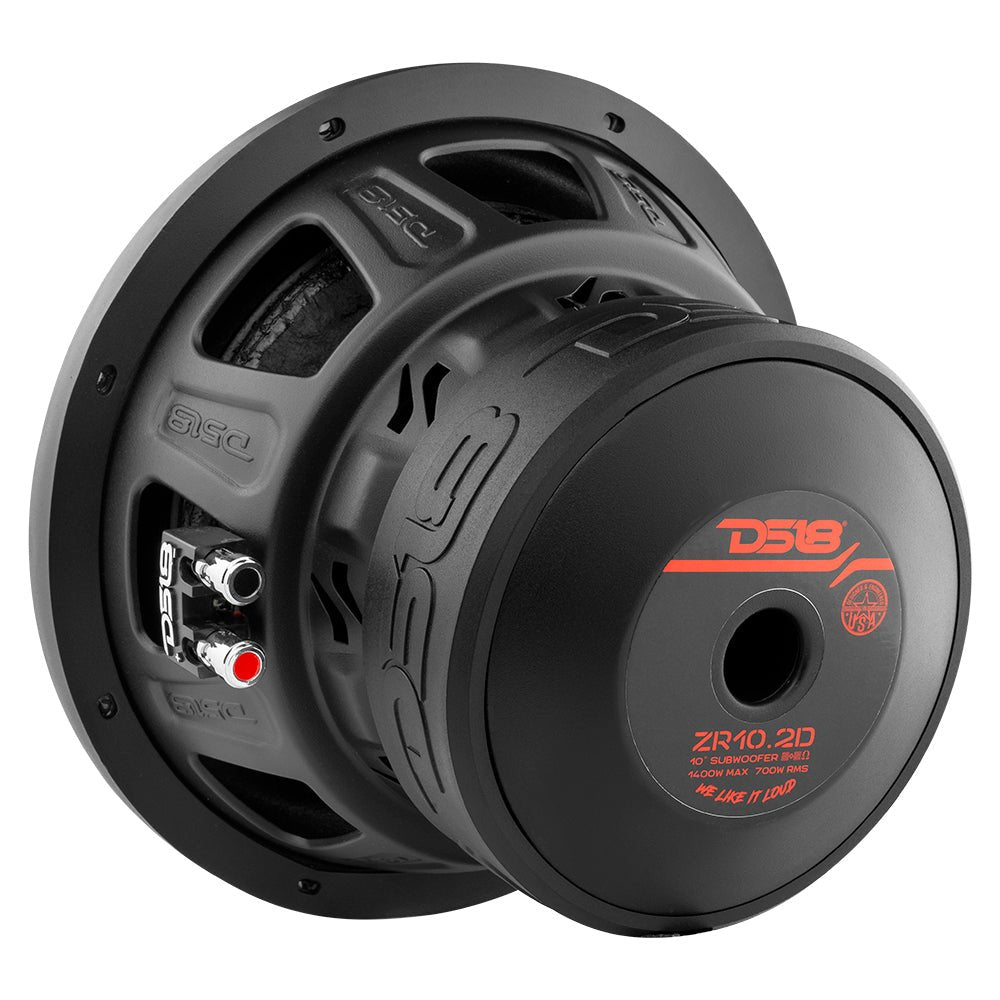

- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, DS18 dust cap, and high quality push terminal connectors.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes making them highly versatile.
Technical Details
SPECIFICATIONS Nominal Diameter 10" Nominal Impedance 2 + 2 Ohms RMS Power Handling 700W MAX Power Handling 1400W Sensitivity (1w/1m) 81 dB Frequency Response 27Hz - 200 Hz Recommended Lo Pass Crossover 100 Hz MOTOR Voice Coil Diameter 2.5" / 61.6mm VC Former Material Aluminum Winding Material Copper Cone Material Non Pressed Paper Dust Cap Material PPI Surround Material Foam Basket Material Steel Basket Color/Finish Matte Black Magnet Material Ferrite Magnet Weight 100 oz Displacement Volume 0.05 ft3 THIELE & SMALL PARAMETERS Equivalent Volume 8.26 L Excursion (one way) 25mm Free Air Resonance 34Hz Mechanical Factor 4.3 Electrical Factor 0.8 Total Factor 0.67 Moving Mass 252g Compliance 53.37µ m/N BL Factor 8.78 Voice Coil Inductance 546.4m mH Cone Area 333.29 Cm2 DC Resistance 1.8 + 1.8 ohm Efficiency Bandwidth Product 42.5 MEASUREMENTS Overall Diameter 10.31” / 262mm Overall Depth 6.92" / 176mm Front Mount Baffle Cutout 9" / 229mm Mounting Depth 6" / 152.3mm Motor Diameter 6.1" / 155mm

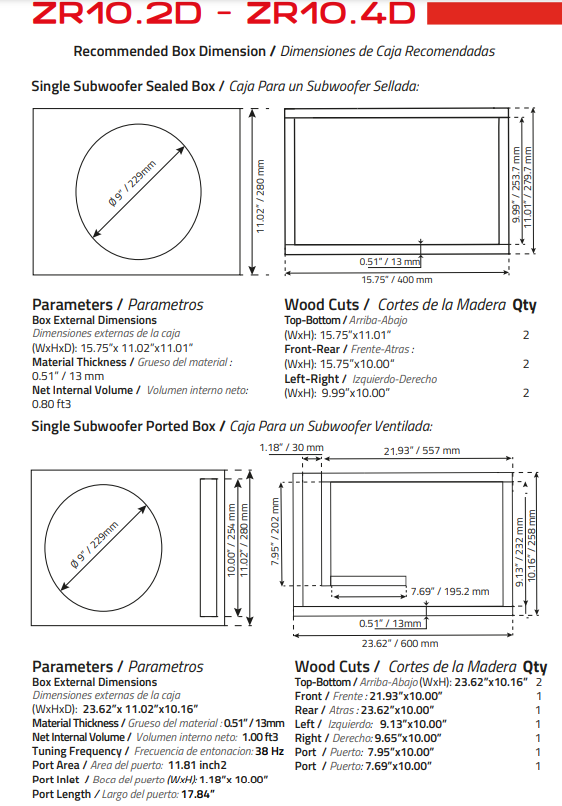

Box Info
Key Features
- 10" Subwoofer
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 2-Ohm 2.5" DVC
- Ferrite Magnet
- 81dB
Specifications
| SKU | ZR10.2D |
|---|---|
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 2 + 2 Ohm |
| RMS Power Handling | 700W |
| Maximum Power Handling | 1400W |
| Sensitivity (1w/1m) | 81 dB |
| Frequency Response | 27Hz-200Hz |
| Recommended Lo Pass Crossover | 100Hz |
| Voice Coil Diameter | 2.5" / 61.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Ferrite |
| Magnet Weight | 100 Oz |
| Displacement Volume | 0.05 ft3 |
| Equivalent Volume Vas | 8.26 L |
| Free Air Resonance Fs | 34 Hz |
| Mechanical Factor Qms | 4.3 |
| Electrical Factor Qes | 0.8 |
| Total Factor Qts | 0.67 |
| Moving Mass Mms | 252g |
| Compliance Cms | 53.37? m/N |
| Bl Factor BI | 8.78 |
| Voice Coil Inductance Le | 546.4m mH |
| Cone Area Sd | 333.29 Cm2 |
| DC Resistance Re | 1.8 + 1.8 Ohm |
| Efficiency Bandwidth Product EBP | 42.5 |

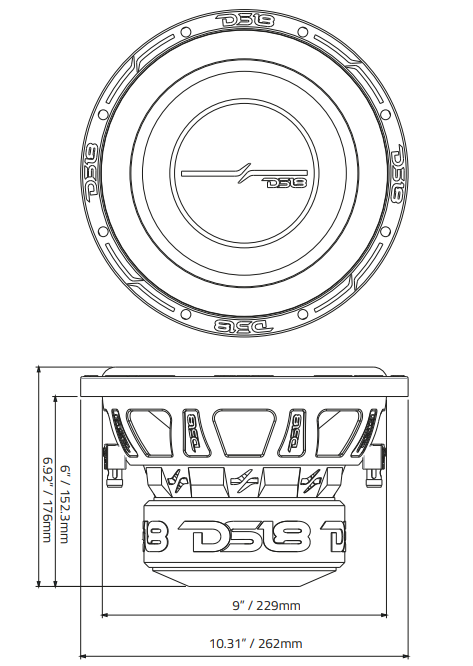

| Overall Diameter | 10.31" / 262mm |
| Overall Depth | 6.92" / 176mm |
| Front Mount Baffle Cutout | 9" / 229mm |
| Mounting Depth | 6" / 152.3mm |
| Motor Diameter | 6.1" / 155mm |
| Gross Single Unit Weight (lb) | 17.5 |
| Dimensions W x L x H (Inches) | 11.5 x 11.5 x 8.25 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight (lb) | 36 |
| M/C Dimensions W x L x H (Inches) | 12.25 x 12.25 x 17.75 |
