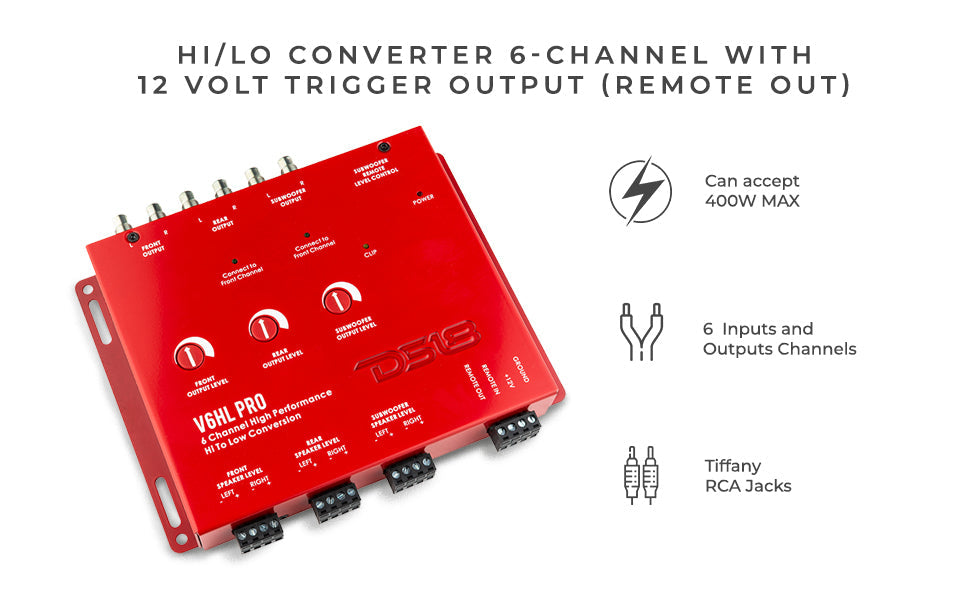

Hi/Lo Converter 6-Channel with 12 Volt Trigger Output (Remote out)
Product Overview

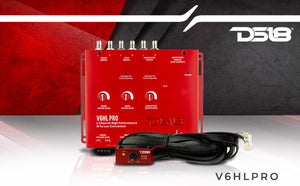

DS18 V6HLPRO Hi/Lo Converter 6-Channel with 12 Volt Trigger Output (Remote out)
| Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic. |
Highlights

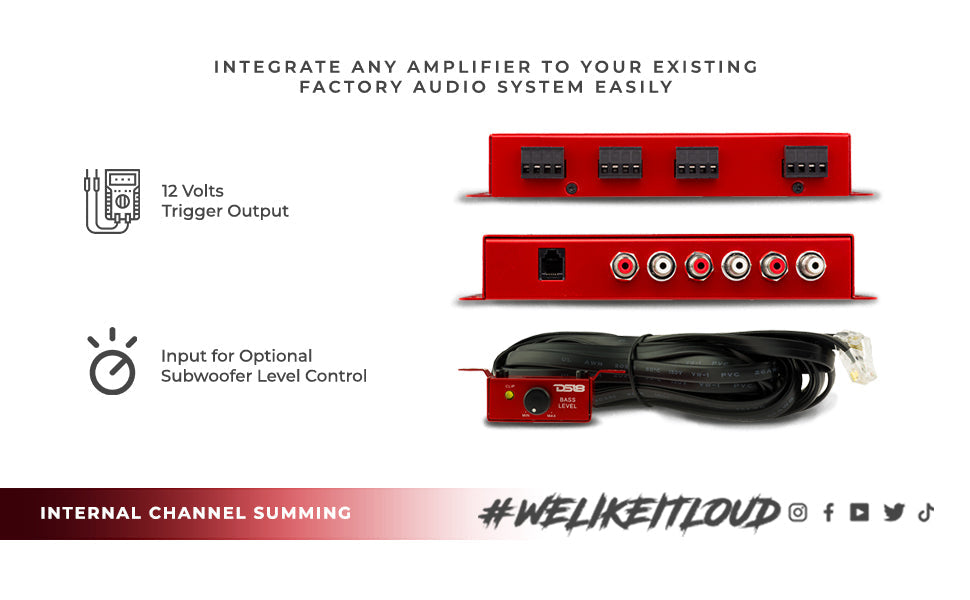

- Integrate any amplifier to your existing factory audio system easily
- 6 channel design that uses Hi/Lo connections to convert signal to RCA which is the typical input for most aftermarket amps.
Technical Details
| Model: | V6HL PRO |
| Input Channels: | 6 Inputs |
| Output Channels: | 6 Outputs |
| Speaker-Level Inputs: | 400W MAX at 4 Ohms |
| Features: | Internal Channel Summing Signal Sensing Inputs Level Matching Controls 12 Volt Trigger Output (remote out) Input for optional Subwoofer level control Tiffany RCA Jacks Remote Out |
Key Features
- Line Output Converter
- 6 Channel
- 6 X Inputs
- 6 X Outputs
- Channel Summed Indicators

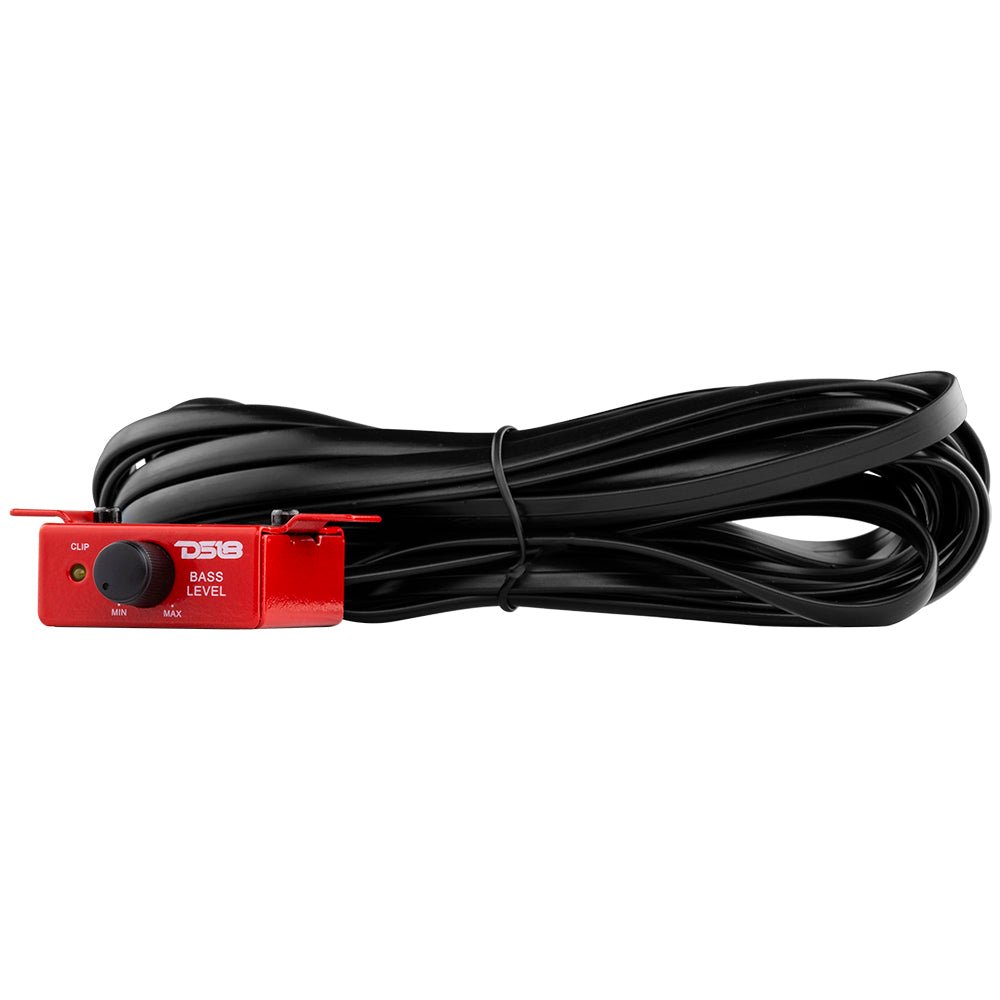

- Bass Knob Control
Specifications
| Maximum Speaker-Level Input | 400 Watts at 4 ohms |
|---|---|
| Max Output Level | 9.5 Vrms |
| Frequency Response | 10 Hz - 22 KHz |
| Output Gain | +/- 12 dB |
| Total Harmonic Distortion | 0.01 % |
| Input Impedance | 20 Kohms |
| Power Supply | High Headroom PWM Switching |
| Power Draw | 200 mA |
| Recommended Fuse Rating | 1 Amp |
| Remote Trigger Output Current | 1 mA |
| Dimensions | 8? W x 6.1? D x 1.25? H |
| Dimensions L x W x H (Inches) | 10.25 x 8.75 x 2.5 |
| Weight (lb) | 3 |
| M/C Dimensions L x W x H (Inches) | 13.25 x 11.25 x 9.5 |
| M/C Weight (lb) | 15 |
| M/C Qty | 5 Pcs |
