Product Overview
DS18 SQBASSX2 7x9" Amplified Under Seat Car Subwoofer with a 4x6" Passive Radiator 1200 Watts
Newly designed for vehicles that want to add some bass but have very little to no room for large subs and boxes. The SQBASSX2 incorporates a 7x9" subwoofer in a compact enclosure that contains a 4x6" passive radiator to help extend and elaborate the bass for your music! This small unit can fit under most conventional car seating, rear cubby, or medium sized storage compartments so you can have clear and vibrant bass even if you have no room. The unit also comes with it's own volume control knob so you can find the perfect bass level for your musical preferences. With 230w RMS power available on tap you will be sure to get goosebumps every time you hear the bass drop.
Highlights
- Compact design allowing you to place in areas with minimal space to get full clear bass in a small package.
- 230w rms and 1200w max power making this small package creating large thumping bass.
- 7x9" woofer paired with a 4x6" passive radiator to help bring out more bass precision and tones.
Technical Details
| Sound | |
| RMS Power/Peak Power | 230W/1200W |
| Frequency Response | 34-400Hz |
| Woofer | |
| Slim Woofer | 7x9" Under Seat Amplified Subwoofer With 4x6" Radiator |
| Unit Dimensions | 308 x 200 x 71mm |
| Net Wight | 4.95Kg |
| Diaphragm Material | Polypropylene |
| Surround | Rubber |
| Amplifier | |
| N-Power / Peak Power | 230w / 1200W |
| Low Pass Crossover | 50-150 Hz |
| Input Sensitivity | 0.1-0.V (RCA Input) 0.5-10.0V (Speaker Level Input) |
| Accessories | |
|

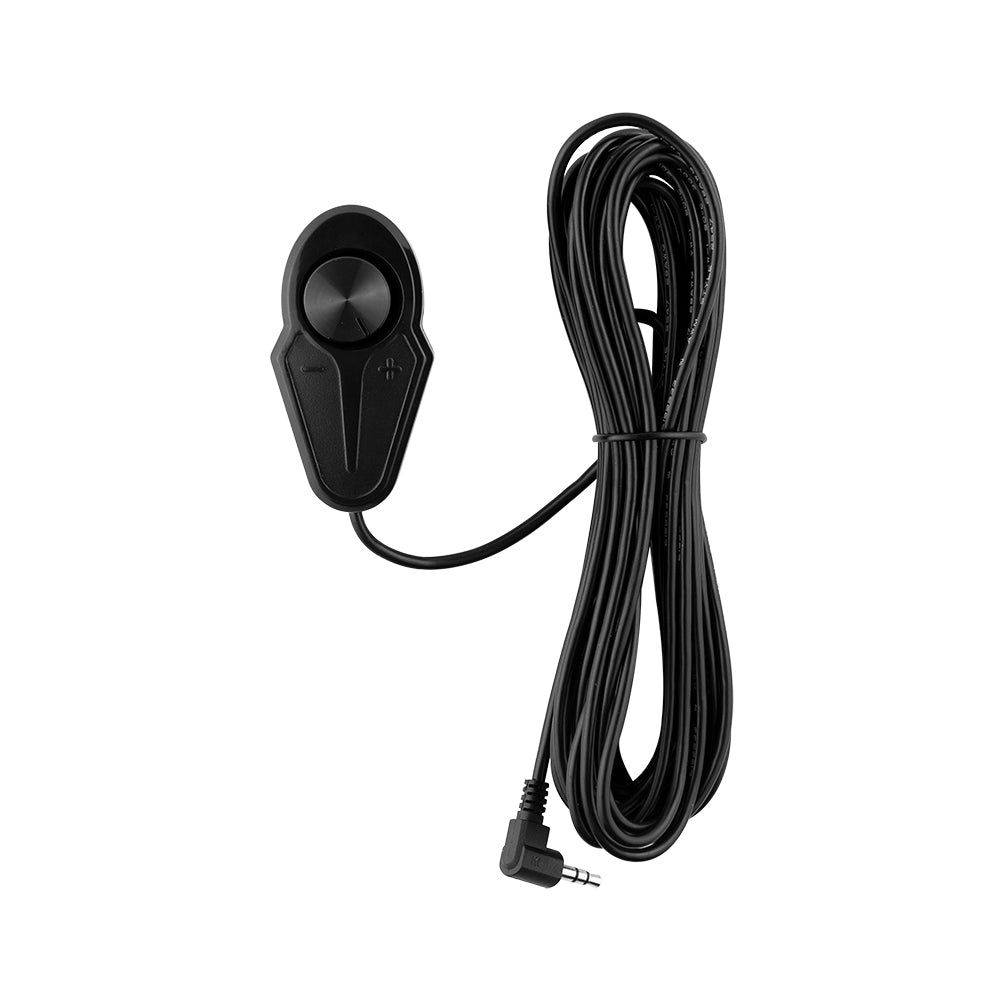

Remote Knob |
Cable Length 5m Adjustment Range 0 To - 30dB |
Key Features
- 7X9" Subwoofer Enclosure
- Amplified with Subwoofer Control Knob
- RMS Power: 230 Watts(1200 Watts Peak)
- Impedance: 2-Ohm
- Under Car Seat
- 80dB
Specifications
| SKU | SQBASSX2 |
|---|---|
| Speaker Type / Size | 7x9" + 4x6" |
| Total RMS Power Handling | 230W |
| Total MAX Power Handling | 1200W |
| Sensitivity (1w/1m) | 80dB |
| Frequency Response | 34-400Hz |
| Remote Knob cable length | 16ft / 5m |
| Remote Knob Adjust Range | 0-30dB |
| Auto Turn-On | Yes, Signal Sensing |
| Cone Material | Polypropylene |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Body / Housing Material | Aluminum |
| Amplifier Class | Digital |
| Amplifier Type | Subwoofer Monoblock |
| Number of Channels | 1Ch |
| Minimum Impedance | 2ohm |
| Signal to Noise Ratio | >80dB |
| Total Harmonic Distortion (THD) | <0.5% |
| Low Level Input Range | 0.1-5 Volts |
| High Level Input | 0.5-10 Volts |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 50-150Hz |
| Phase Selector | 0-180? |
| Led Indicator | Power/Protect |
| Power Input Terminal Size | 12Ga Wired |
| Fuse Size | 15A |
| Remote Level Control | Yes, Included |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |

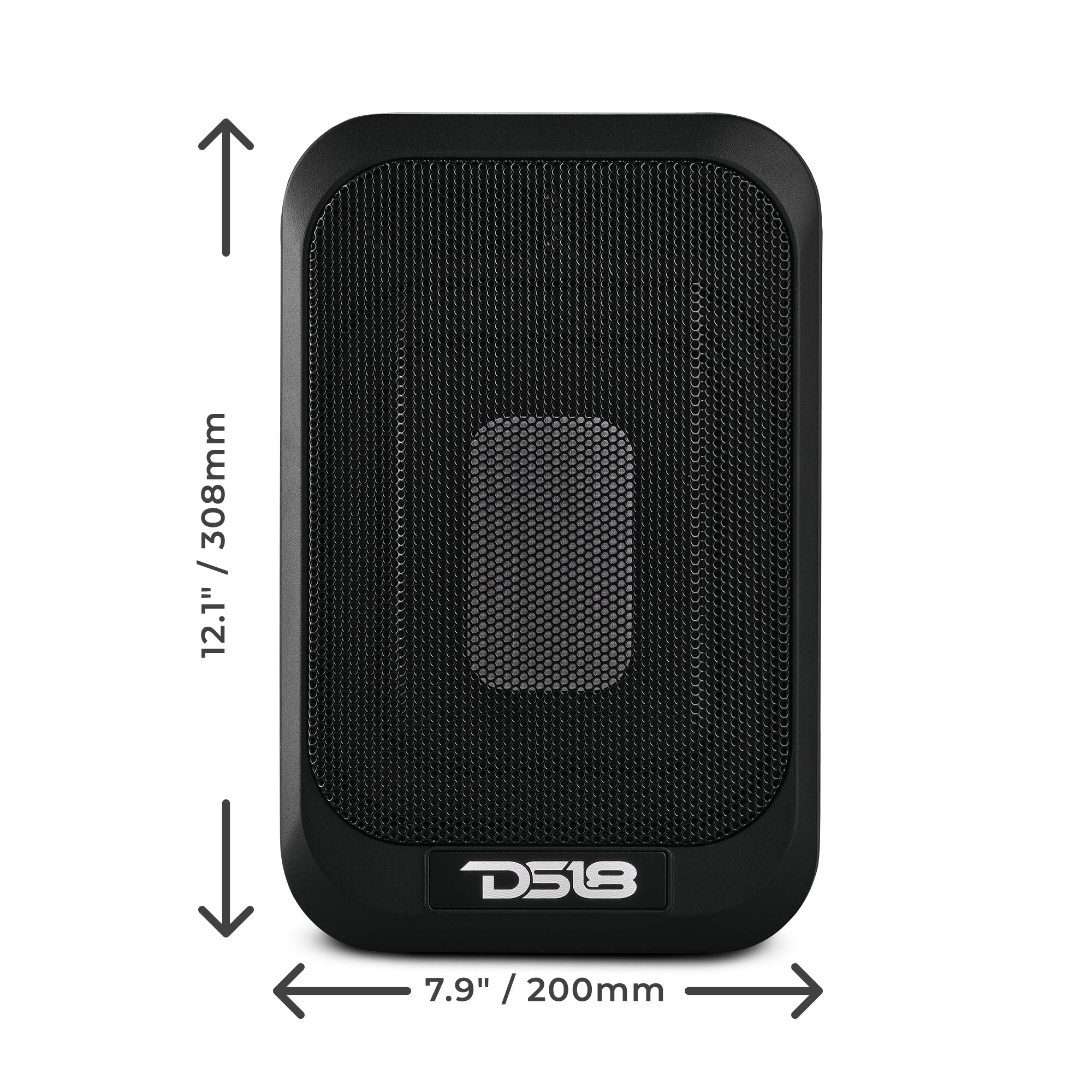

| Overall Height | 2.8" / 71mm |
| Overall Width | 7.9" / 200mm |
| Overall Depth | 12.1" / 308mm |
| Gross Single Unit Weight (lb) | 11 |
| Single Unit Box Dimensions W x L x H (Inches) | 14.75 x 9.75 x 5 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 45 |
| Master Carton Dimensions W x L x H (Inches) | 20.75 x 15.5 x 10.7 |
