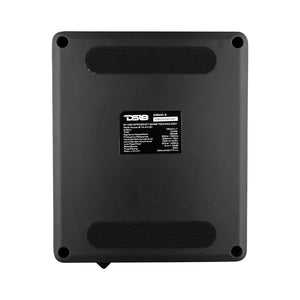

8" Amplified UnderSeat Subwoofer 300 Watts Rms
Product Overview DS18 SQBASS8 8" Amplified Under Seat Car Subwoofer 600 Watts The SQBASS8 is an 8-Inch...
Vendor:
DS18
Manufacturer SKU
SQBASS8
Availability:
Out Of Stock
Product Type:
Speaker Enclosures & Pods
- $275.95
- $275.95
- Unit price
- per
Subtotal:
$275.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview

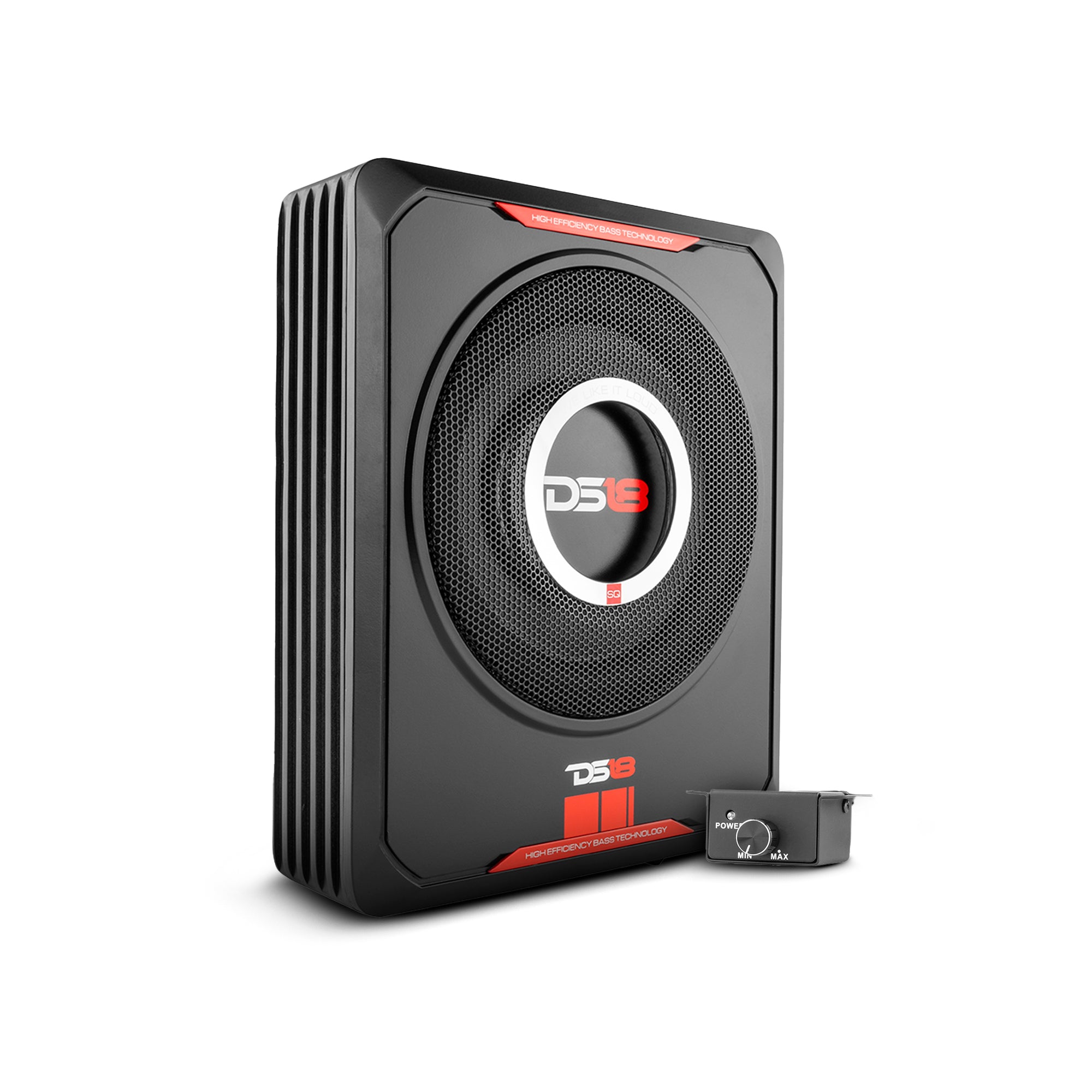

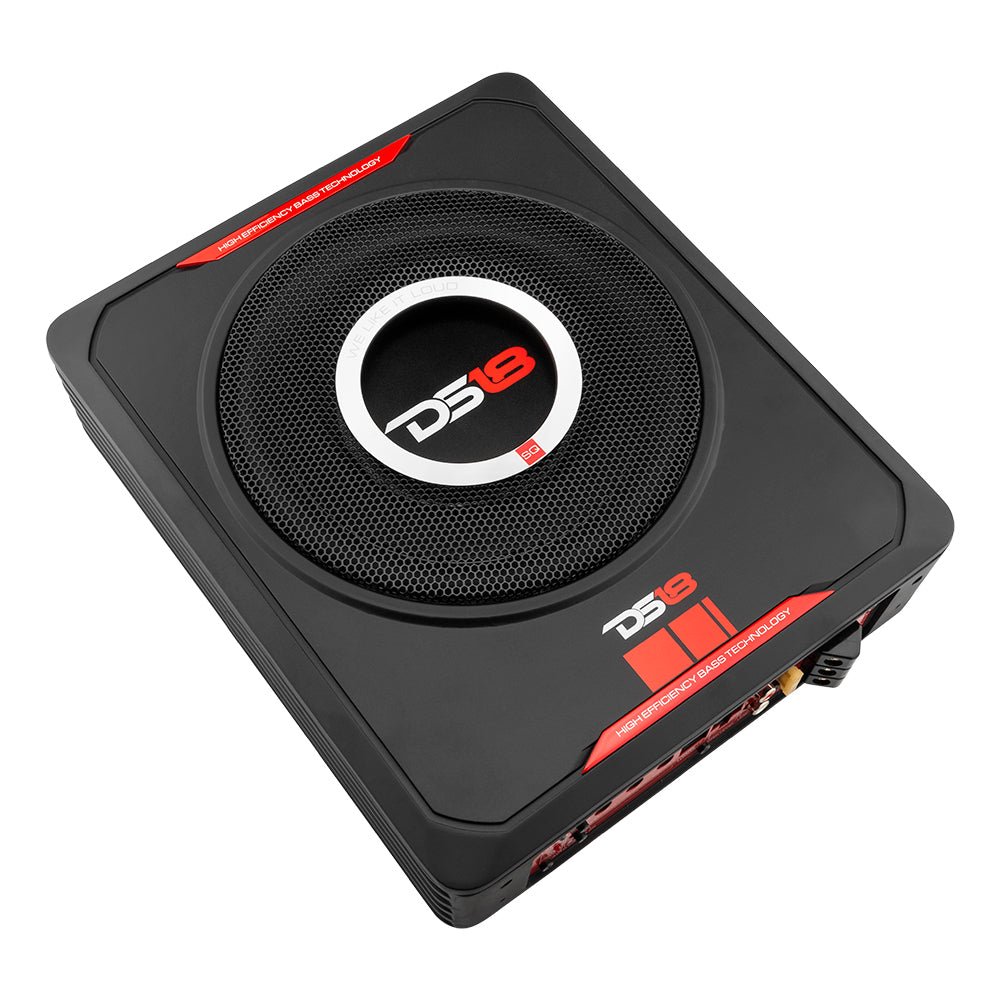

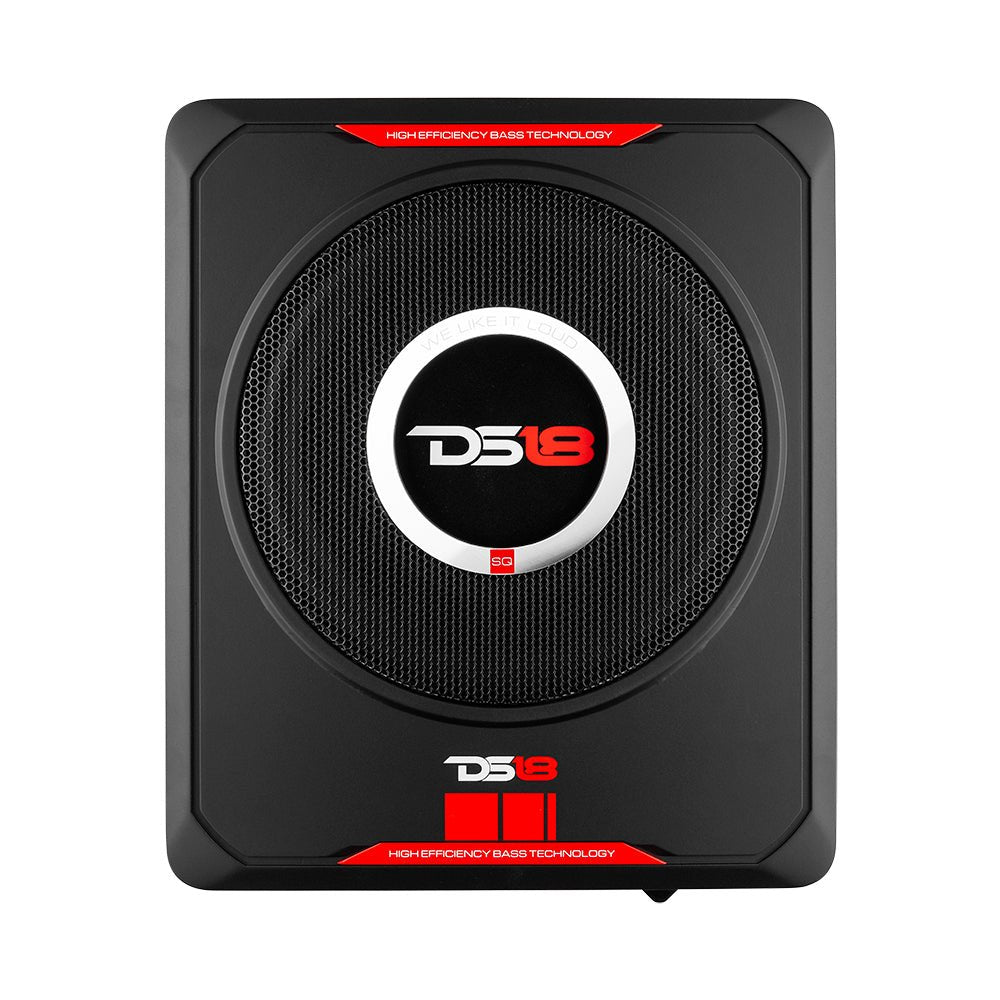

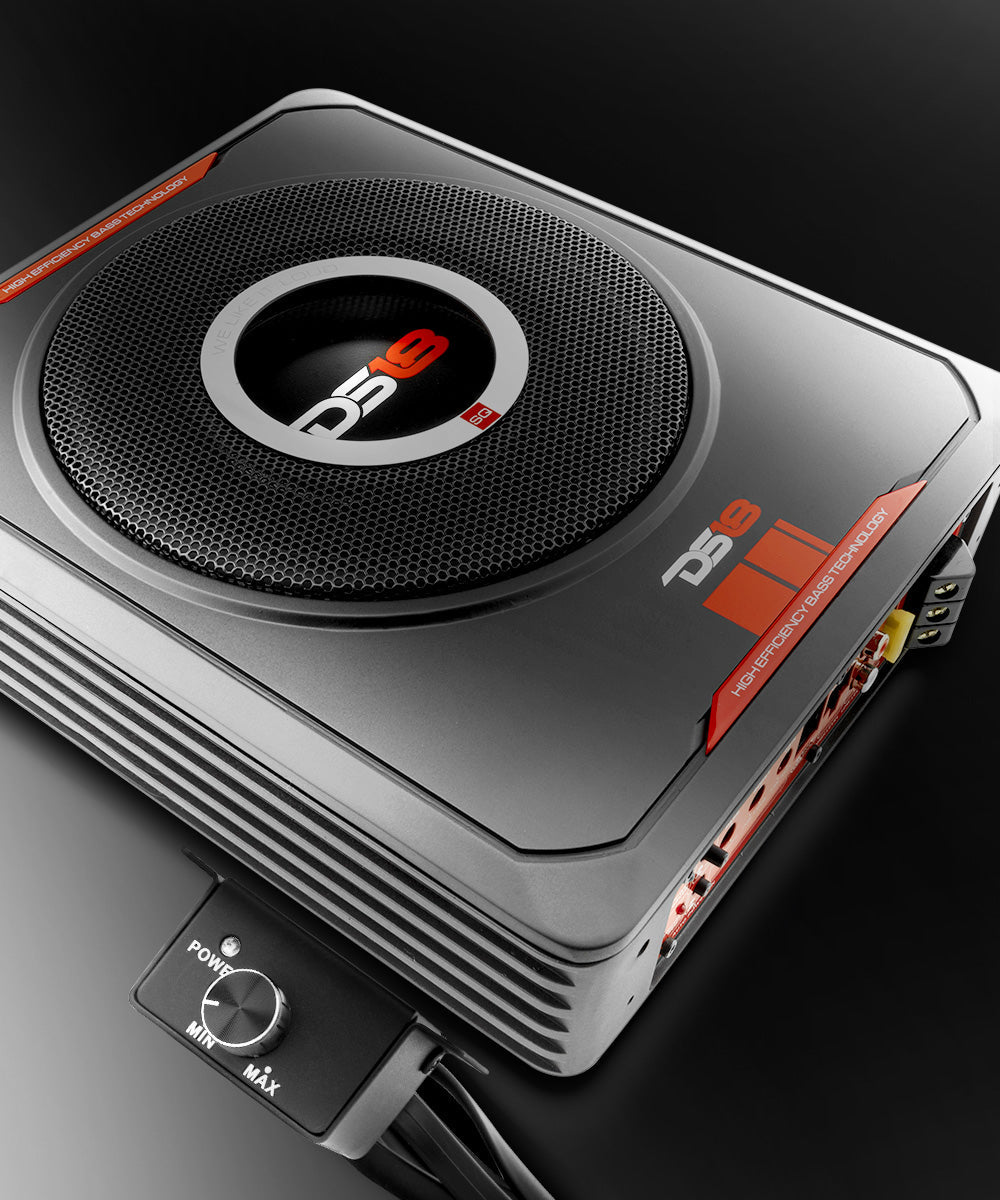

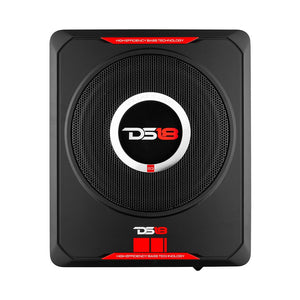

DS18 SQBASS8 8" Amplified Under Seat Car Subwoofer 600 Watts
The SQBASS8 is an 8-Inch Subwoofer with a slim, compact design providing 600 Watts MAX and a frequency response of 20Hz - 150Hz. Low Impedance 2-Ohm subwoofer to bring out the maximum performance of the built-in amplifier. With it's compact size you can fit the SQBASS8 under your vehicle's seat without diminishing sound quality. With your remote bass control take control of your music experience by precisely adjusting the levels of the bass you desire. Digitally optimized subwoofer with built-in amplifier (2-Ohm) for efficient and accurate bass.
Highlights
- Compact design allowing you to place in areas with minimal space to get full clear bass in a small package.
- 150w rms and 600w max power making this small package creating large thumping bass.
- Specially designed 8 inch woofer brings out more bass, precision, and tone

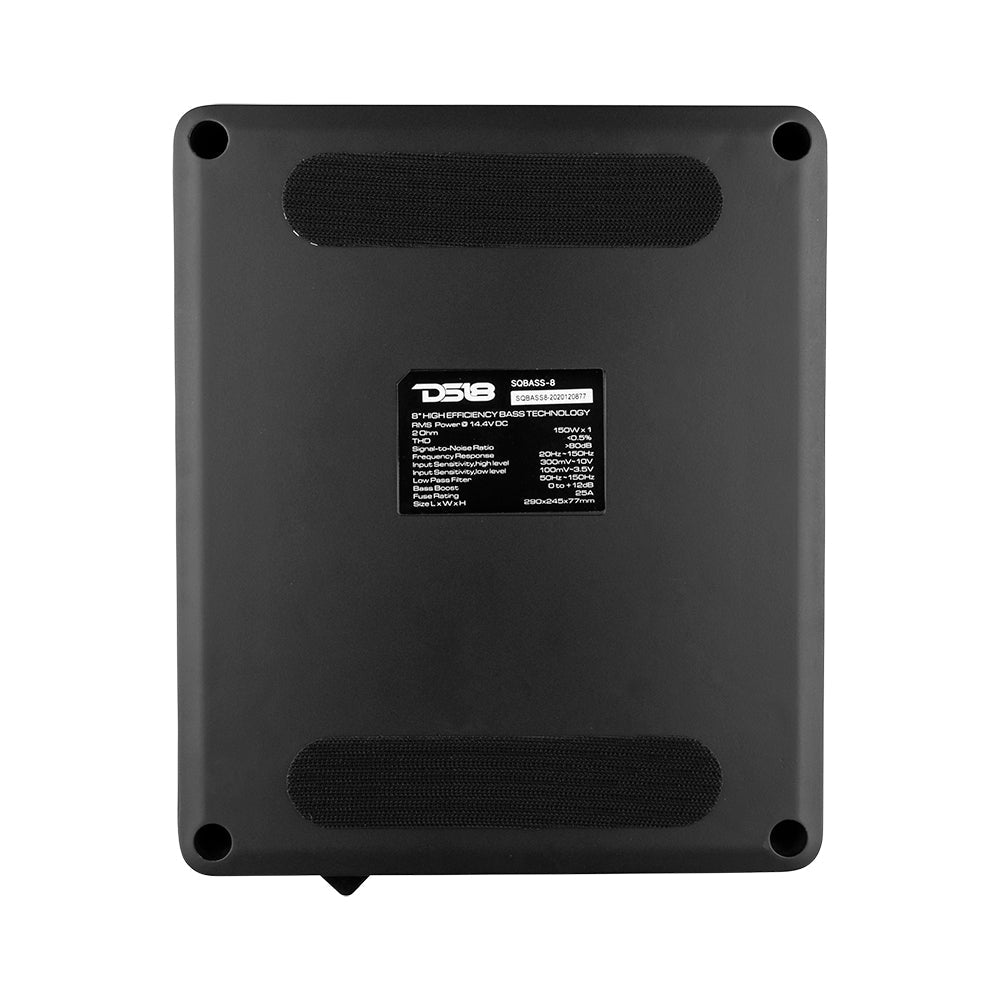

Technical Details
| RMS Power: | 150 Watts |
| Impedance: | 2 Ohms |
| THD: | <0.5% |
| Signal-to-Noise ratio: | >80dB |
| Frequency response: | 20Hz-150Hz |
| Input Sensitivity: | High Level 300mV-10V/ Low Level 100mV-3.5V |
| Low Pass Filter: | 50-150Hz |
| Bass Boost: | 0 to 12dB |
| Subsonic Filter: | 20Hz |
| Fuse rating: | 25A |
| Size (LxWxH): | 290x245x77 mm |
Key Features
- 8" Subwoofer Enclosure
- Amplified with Subwoofer Control Knob
- RMS Power: 150 Watts(800 Watts Peak)
- Impedance: 2-Ohm
- Under Car Seat
- 79dB

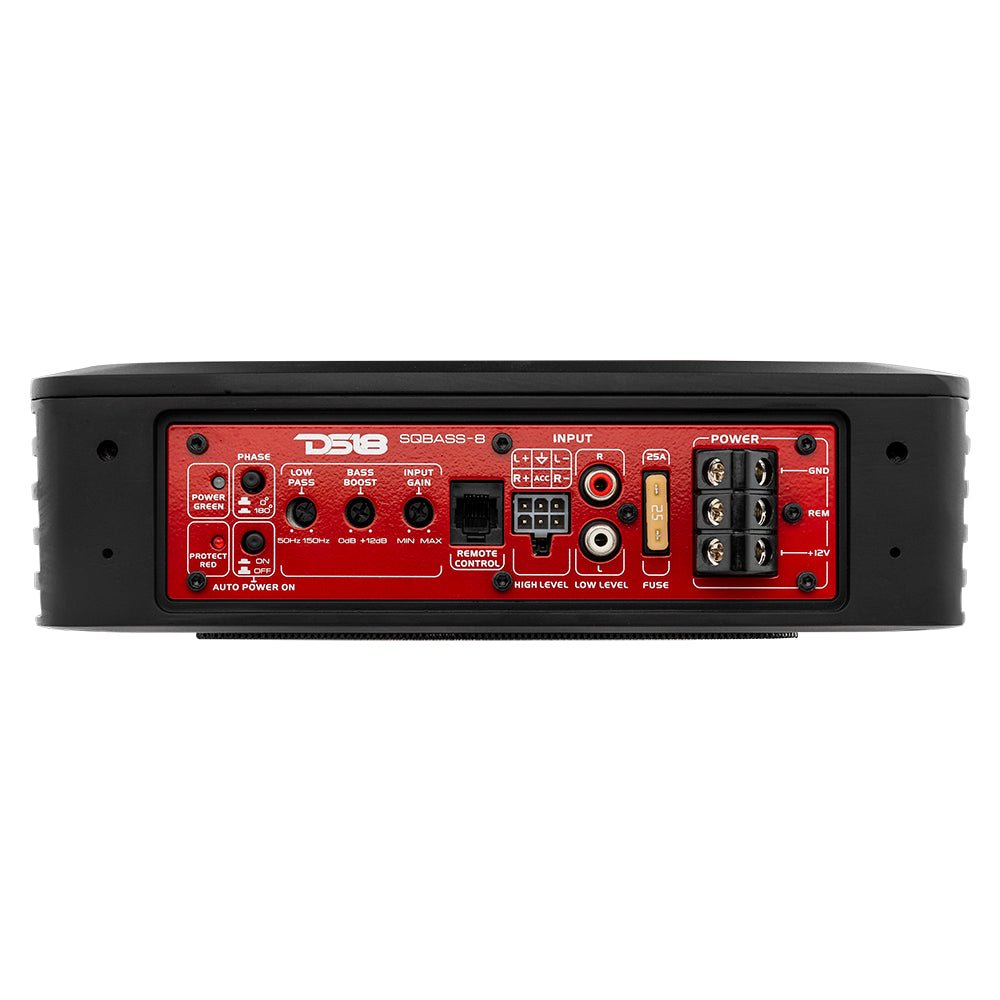

Specifications
| SKU | SQBASS8 |
|---|---|
| Speaker Type / Size | 8" |
| Total RMS Power Handling | 150W |
| Total MAX Power Handling | 800W |
| Sensitivity (1w/1m) | 79dB |
| Frequency Response | 36-300Hz |

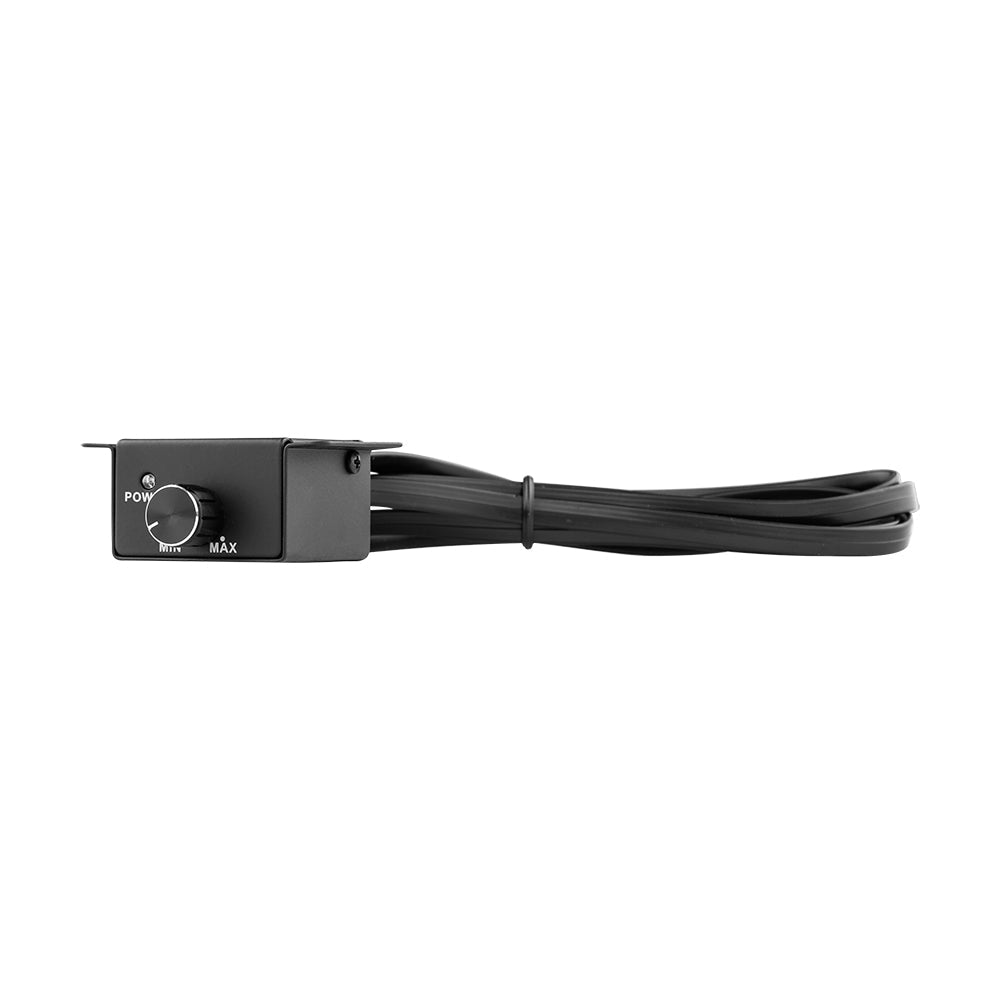

| Remote Knob cable length | 16ft / 5m |
| Remote Knob Adjust Range | 0-30dB |
| Auto Turn-On | Yes, Signal Sensing |
| Cone Material | Polypropylene |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Body / Housing Material | Aluminum |
| Amplifier Class | Digital |
| Amplifier Type | Subwoofer Monoblock |
| Number of Channels | 1Ch |
| Minimum Impedance | 2ohm |
| Signal to Noise Ratio | >80dB |
| Total Harmonic Distortion (THD) | <0.5% |
| Low Level Input Range | 0.1-3.5 Volts |
| High Level Input | 0.3-10 Volts |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 50-150Hz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | 50Hz |
| Infrasonic Filter | 30Hz Fixed |
| Phase Selector | 0-180 |
| Led Indicator | Power/Protect |
| Power Input Terminal Size | 8Ga |
| Fuse Size | 25A |
| Remote Level Control | Yes, Included |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Overall Height | 3" / 77mm |
| Overall Width | 9.64" / 245mm |
| Overall Length | 11.42" / 290mm |
| Gross Single Unit Weight (lb) | 13 |
| Single Unit Box Dimensions W x L x H (Inches) | 16.75 x 12.5 x 5.75 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight (lb) | 27.5 |
| Master Carton Dimensions W x L x H (Inches) | 17.5 x 12.5 x 13.75 |
