6X8" Amplified UnderSeat Subwoofer 150 Watts Rms
Product Overview

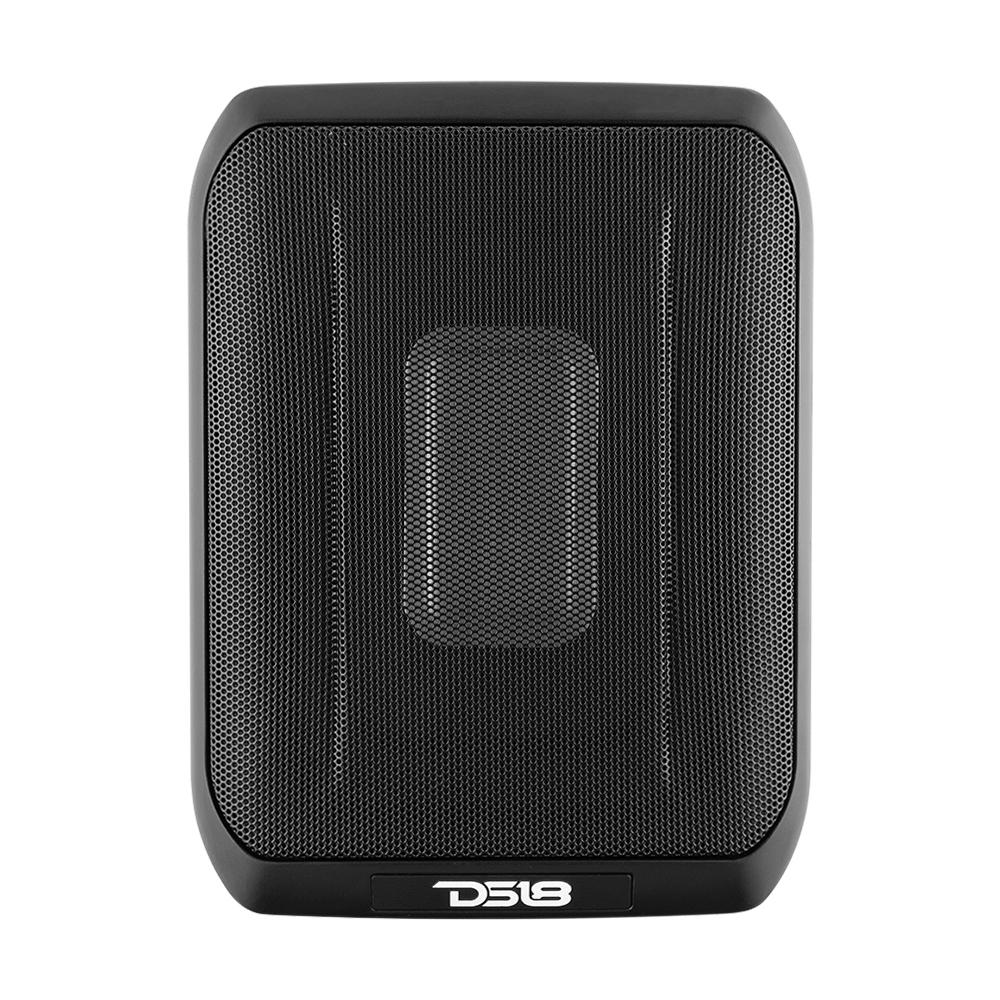

DS18 SQBASS68 6x8" Amplified Under Seat Car Subwoofer 600 Watts
Newly designed for vehicles that want to add some bass but have very little to no room for large subs and boxes.

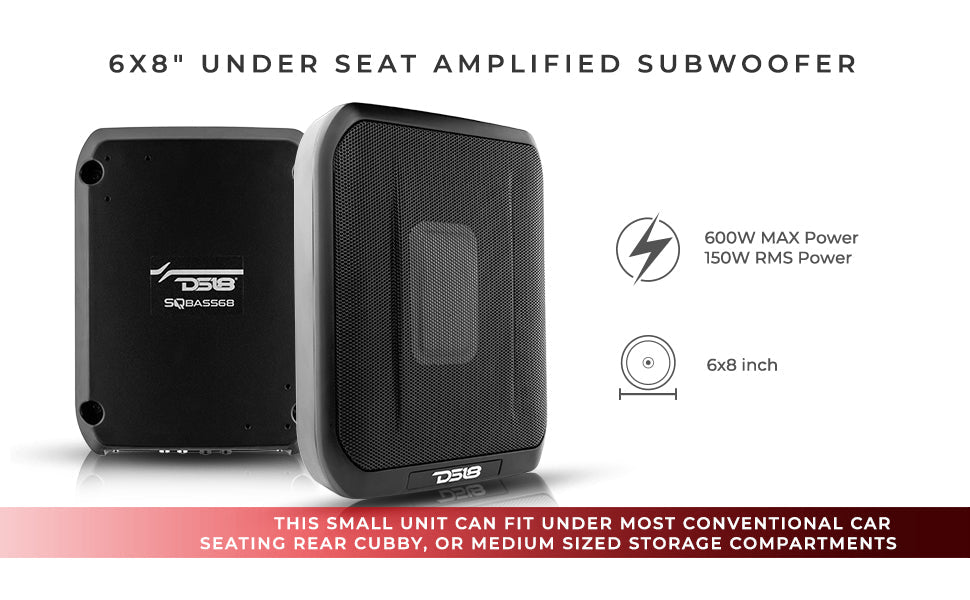

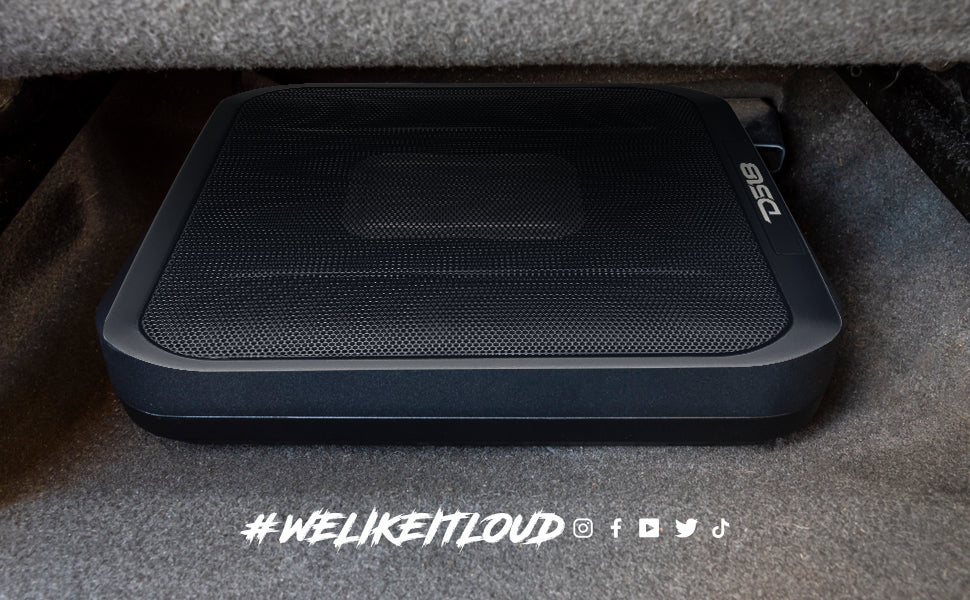

The SQBASS68 incorporate a 6x8" Subwoofer in a compact enclosure that contains a special design to help extend and elaborate the bass for your music! This small unit can fit under most conventional car seating, rear cubby, or medium sized storage compartments so you can have clear and vibrant bass even if you have no room.

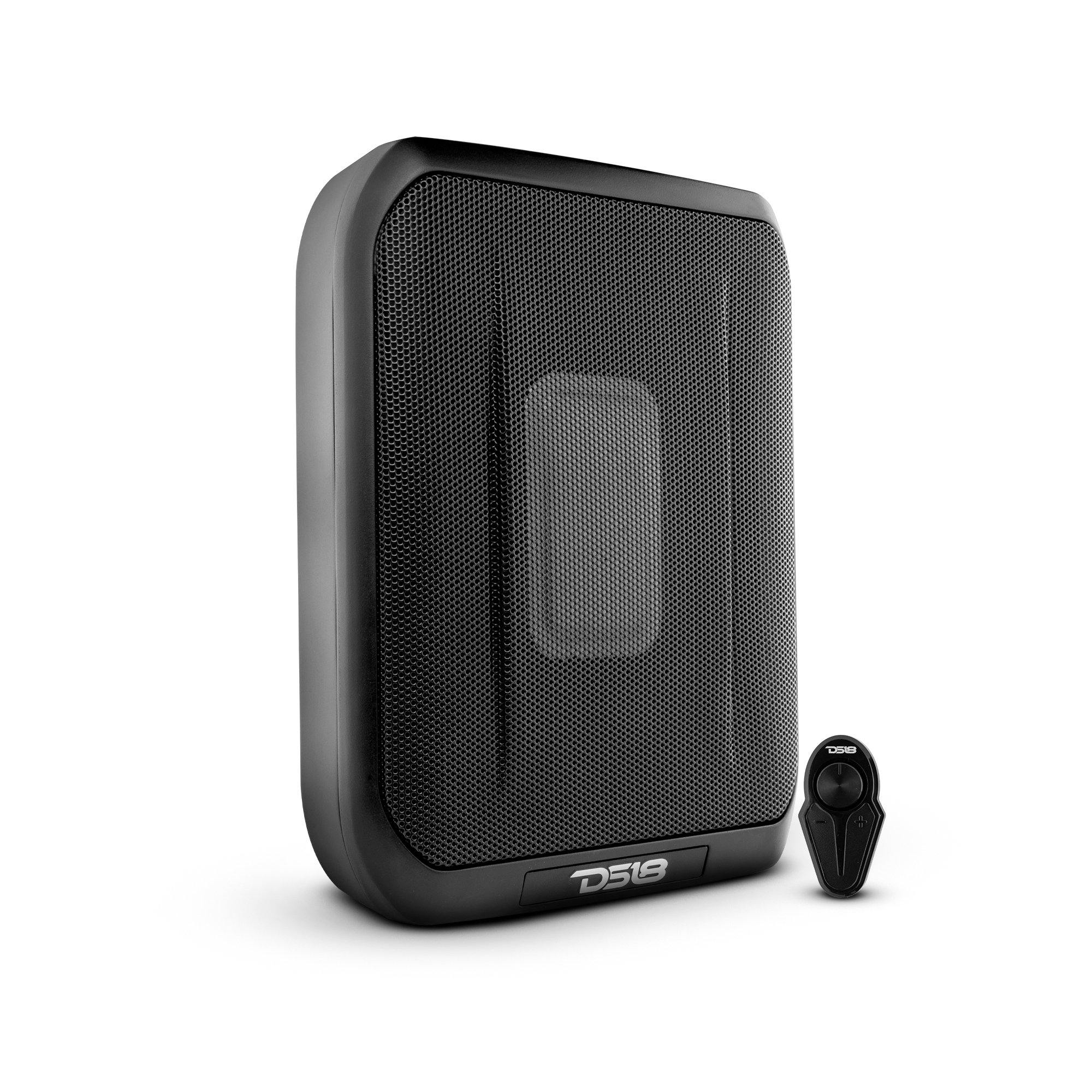

The unit also comes with it's own volume control input so you can find the perfect bass level for your musical preferences. With 150w RMS and 600w MAX power available on tap you will be sure to get goosebumps every time you hear the bass drop.
Highlights
- Add bass where there was none before easily! Compact and slim design that is made to fit under most front or rear seats or wherever there is room. The options are endless!
- Specially designed 6x8" subwoofer made to maximize bass response in spaces that are not typically designed for subwoofers.

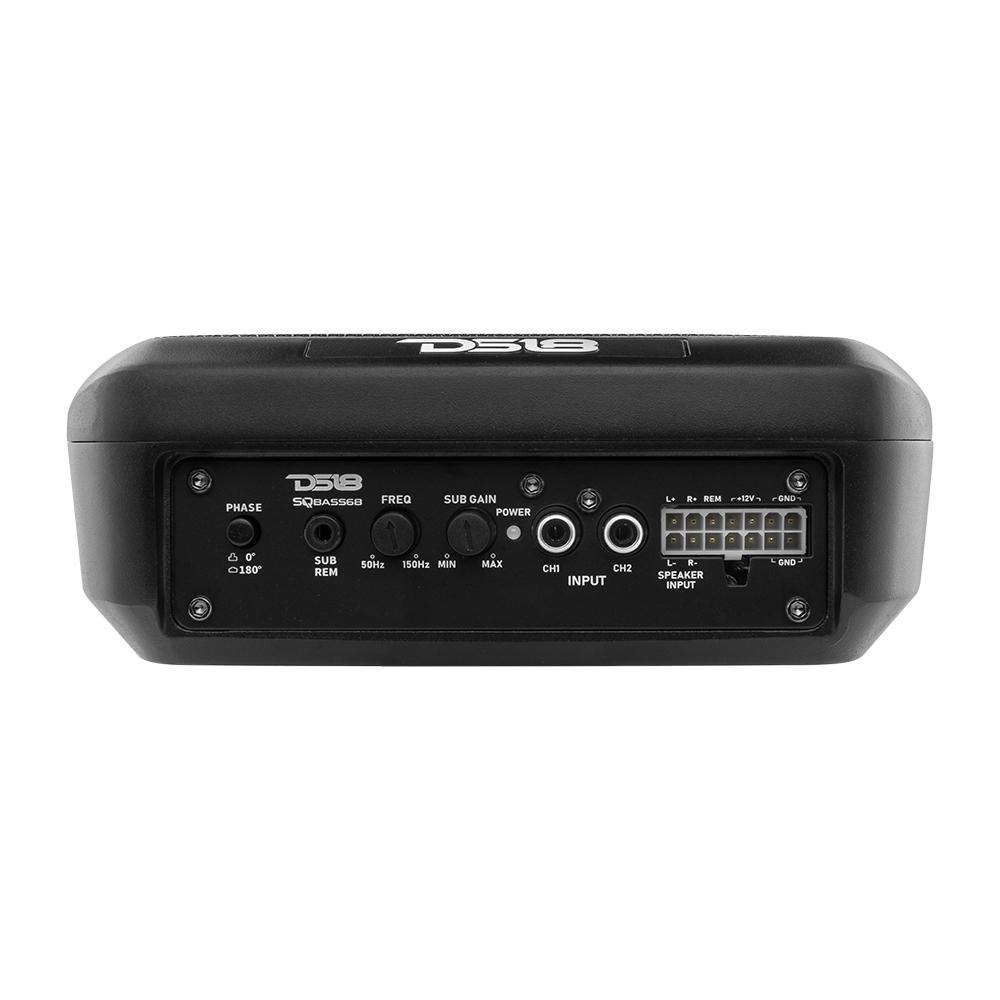

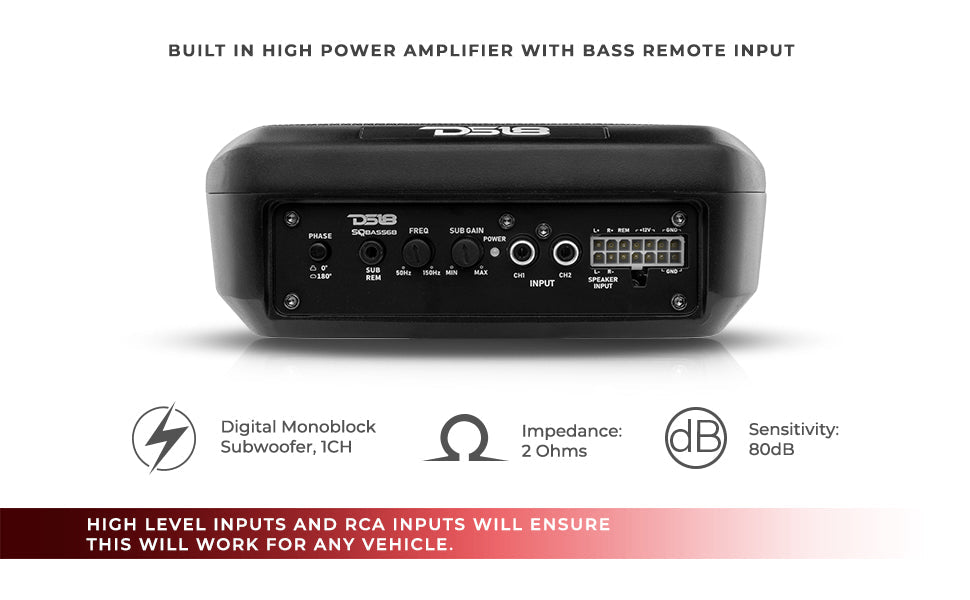

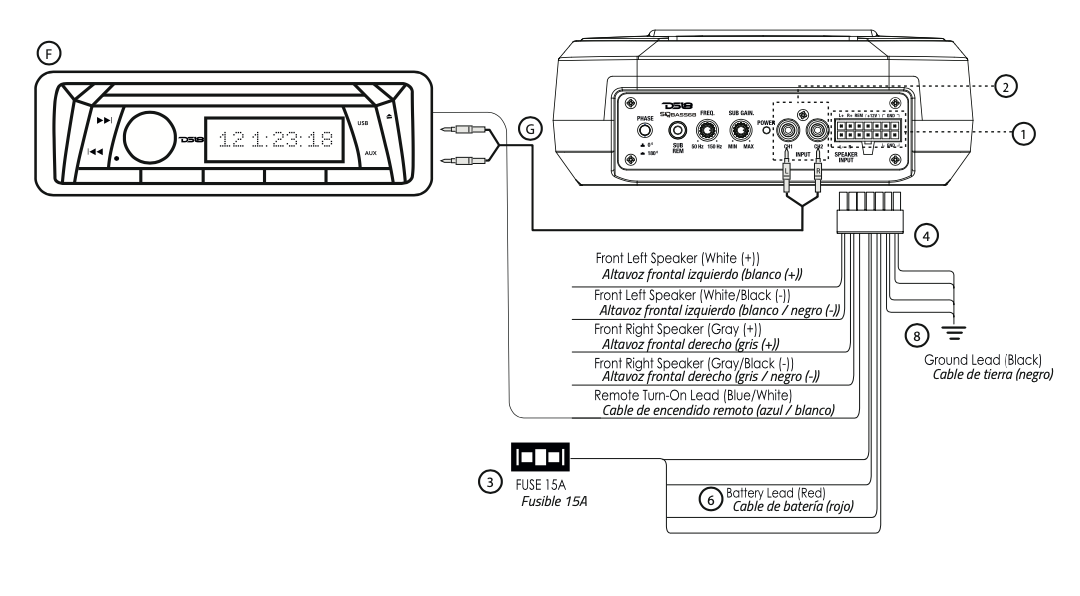

- Built in high power amplifier with bass remote input. High level inputs and RCA inputs will ensure this will work for any vehicle. 150w RMS 600w max output has been engineered to power this under the seat sub and enclosure to it's most optimal output.
Technical Details
| SPECIFICATIONS | |
| Speaker Type / Size | 6x8" |
| Total RMS Power Handling | 150W |
| Total MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 77 dB |
| Frequency Response | 42Hz - 400Hz |
| SPEAKER SPECIFICATIONS | |
| Voice Coil Diameter | 1.2" / 30.6mm |
| Cone Material | Polypropylene |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Body / Housing Material | Aluminum |
| AMPLIFIER SPECIFICATIONS | |
| Amplifier Class | Digital |
| Amplifier Type | Subwoofer Monoblock |
| Number of Channels | 1Ch |
| Minimum Impedance | 2 ohms |
| Signal to Noise Ratio | >80dB |
| Total Harmonic Distortion (THD) | <0.5% |
| Low Level Input Range | 0.1-5 Volts |
| High Level Input | 0.5-10 Volts |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 50-150Hz |
| Infrasonic Filter | 30Hz Fixed |
| Phase Selector | 0-180° |
| Led Indicator | Power/Protect |
| Power Input Terminal Size | 12Ga Wired |
| Fuse Size | 15A |
| Remote Level Control | Yes, Included |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| EXTRA FEATURES | |

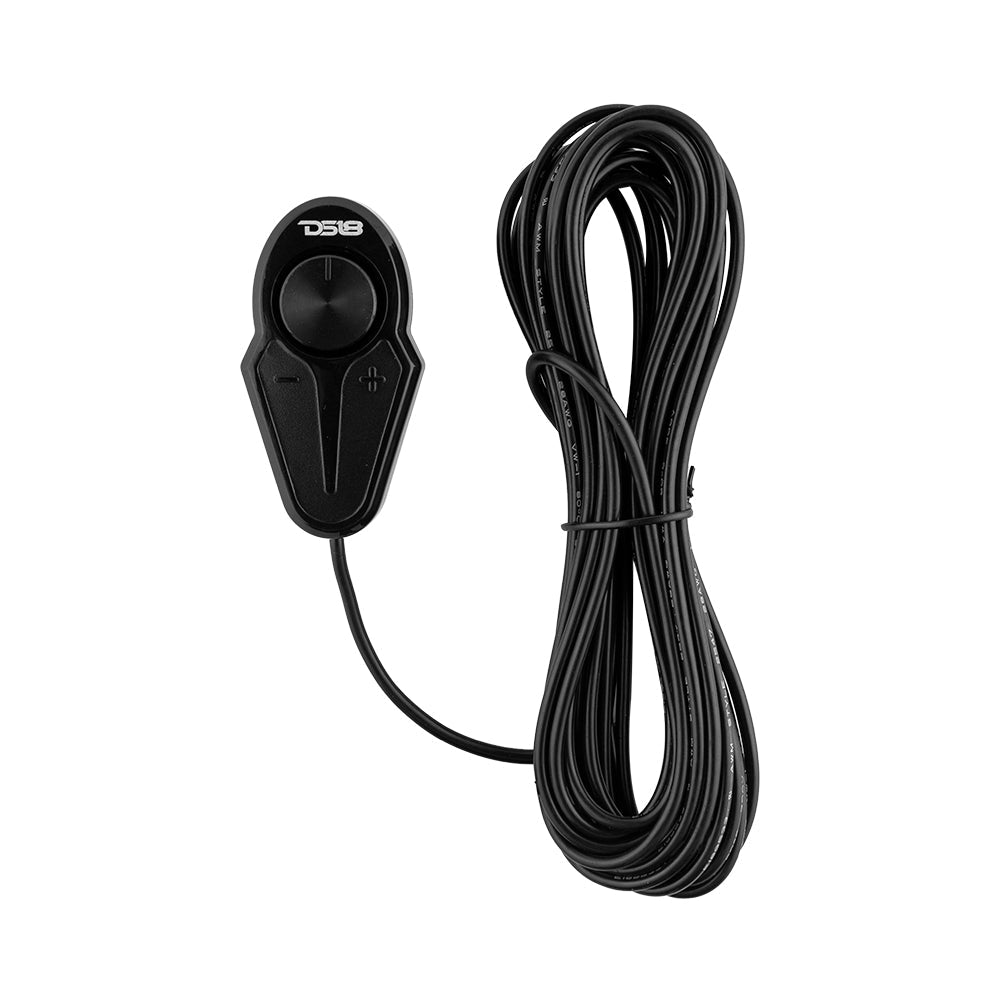

| Remote Knob Cable Length | 16ft / 5m |
| Remote Knob Adjust Range | 0-30dB |
| Auto Turn-On | Yes, Signal sensing |
| MEASUREMENTS: | |
| Overall Height | 2.95" / 75mm |
| Overall Width | 7.67" / 195mm |
| Overall Length | 10.2" / 260mm |
Key Features
- 6x8" Subwoofer Enclosure
- Amplified with Subwoofer Control Knob
- RMS Power: 150 Watts(600 Watts Peak)
- Impedance: 2-Ohm
- Under Car Seat
- 77dB
Specifications
| SKU | SQBASS-68 |
|---|---|
| Speaker Type / Size | 6x8" |
| Total RMS Power Handling | 150W |
| Total MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 77dB |
| Frequency Response | 42-400Hz |
| Remote Knob cable length | 16ft / 5m |
| Remote Knob Adjust Range | 0-30dB |
| Auto Turn-On | Yes, Signal Sensing |
| Voice Coil Diameter | 1.2" / 30.6mm |
| Cone Material | Polypropylene |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Body / Housing Material | Aluminum |
| Amplifier Class | Digital |
| Amplifier Type | Subwoofer Monoblock |
| Number of Channels | 1Ch |
| Minimum Impedance | 2ohm |
| Signal to Noise Ratio | >80dB |
| Total Harmonic Distortion (THD) | <0.5% |
| Low Level Input Range | 0.1-5 Volts |
| High Level Input | 0.5-10 Volts |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 50-150Hz |
| Infrasonic Filter | 30Hz Fixed |
| Phase Selector | 0-180? |
| Led Indicator | Power/Protect |
| Power Input Terminal Size | 12Ga Wired |
| Fuse Size | 15A |
| Remote Level Control | Yes, Inlcuded |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Overall Height | 2.95" / 75mm |
| Overall Width | 7.67" / 195mm |
| Overall Length | 10.2" / 260mm |
| Gross Single Unit Weight (lb) | 8.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 13.25 x 9.75 x 5.25 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 35 |
| Master Carton Dimensions W x L x H (Inches) | 21.5 x 13.75 x 10.5 |
