Product Overview
DS18 SQ82 8" Car Audio Subwoofer plus 8" Passive Subwoofer in High End Aluminum Enclosure 1200 Watts

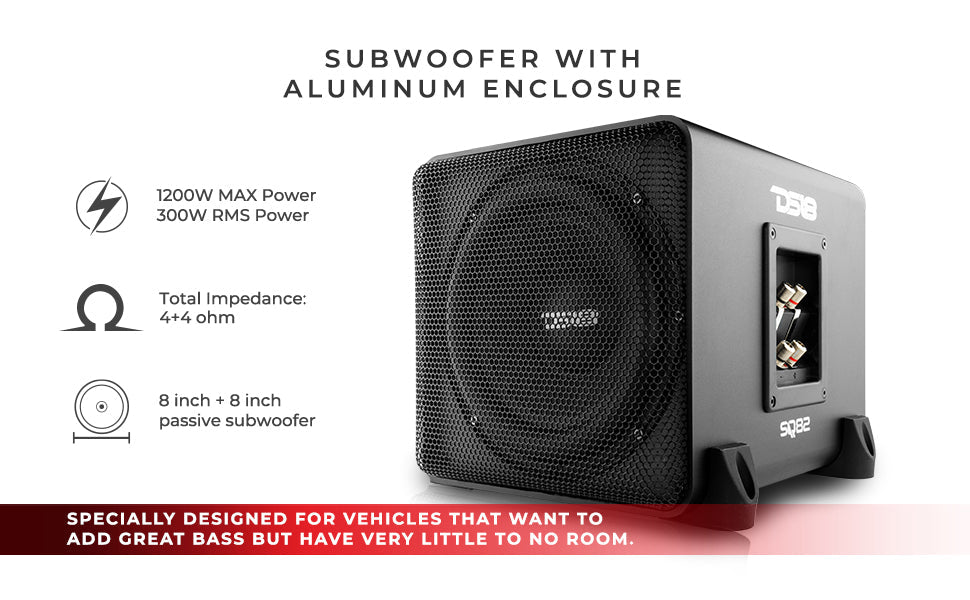

Specially designed for vehicles that want to add great bass but have very little to no room for large subs and boxes.
The SQ82 incorporates a 8 inch subwoofer with an 8 inch passive woofer to help enrich the tone and bass levels in a compact enclosure that contains a special design to help extend and elaborate the bass for your music!

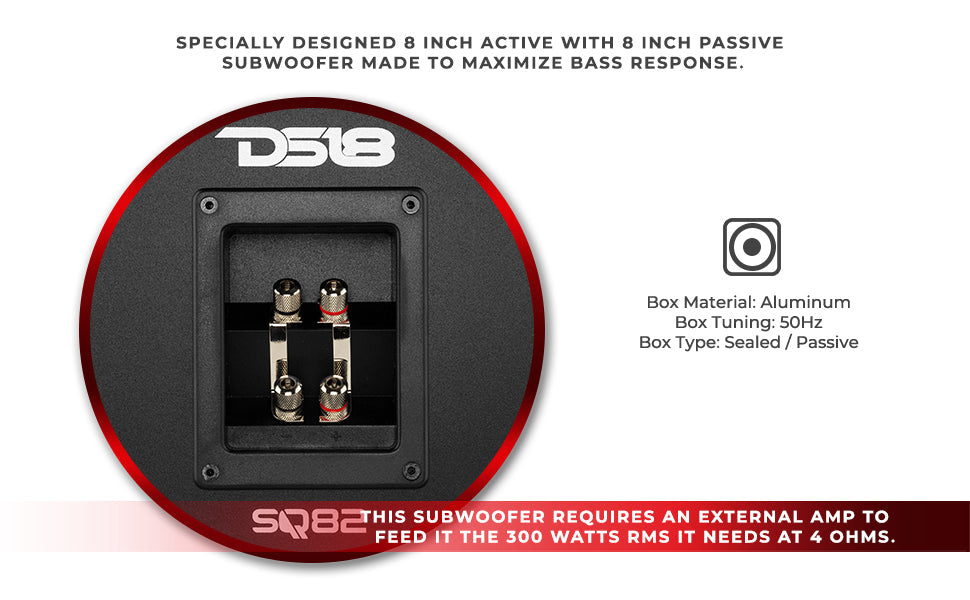

This subwoofer requires an external amp to feed it the 300 watts RMS it needs at 4 ohms.

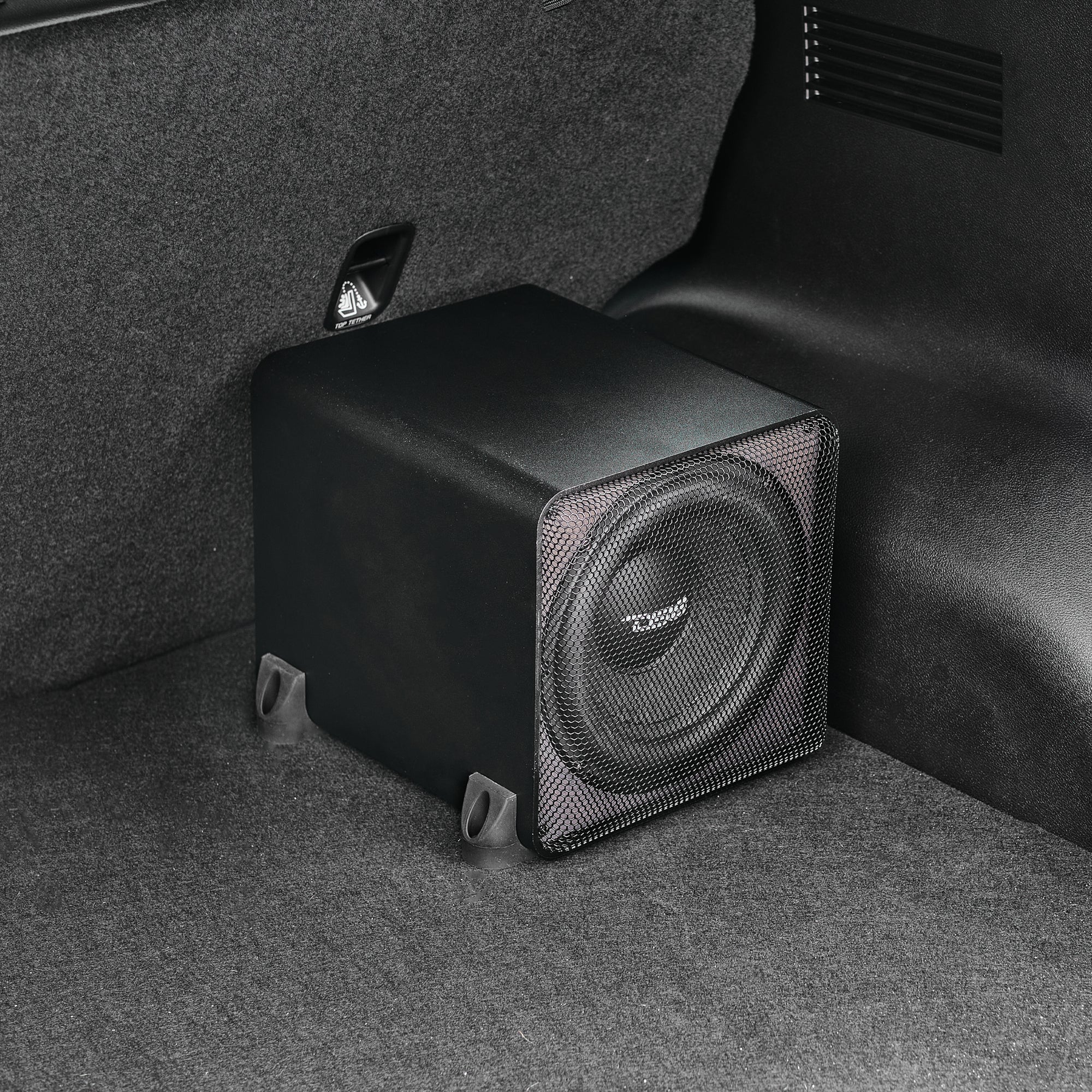

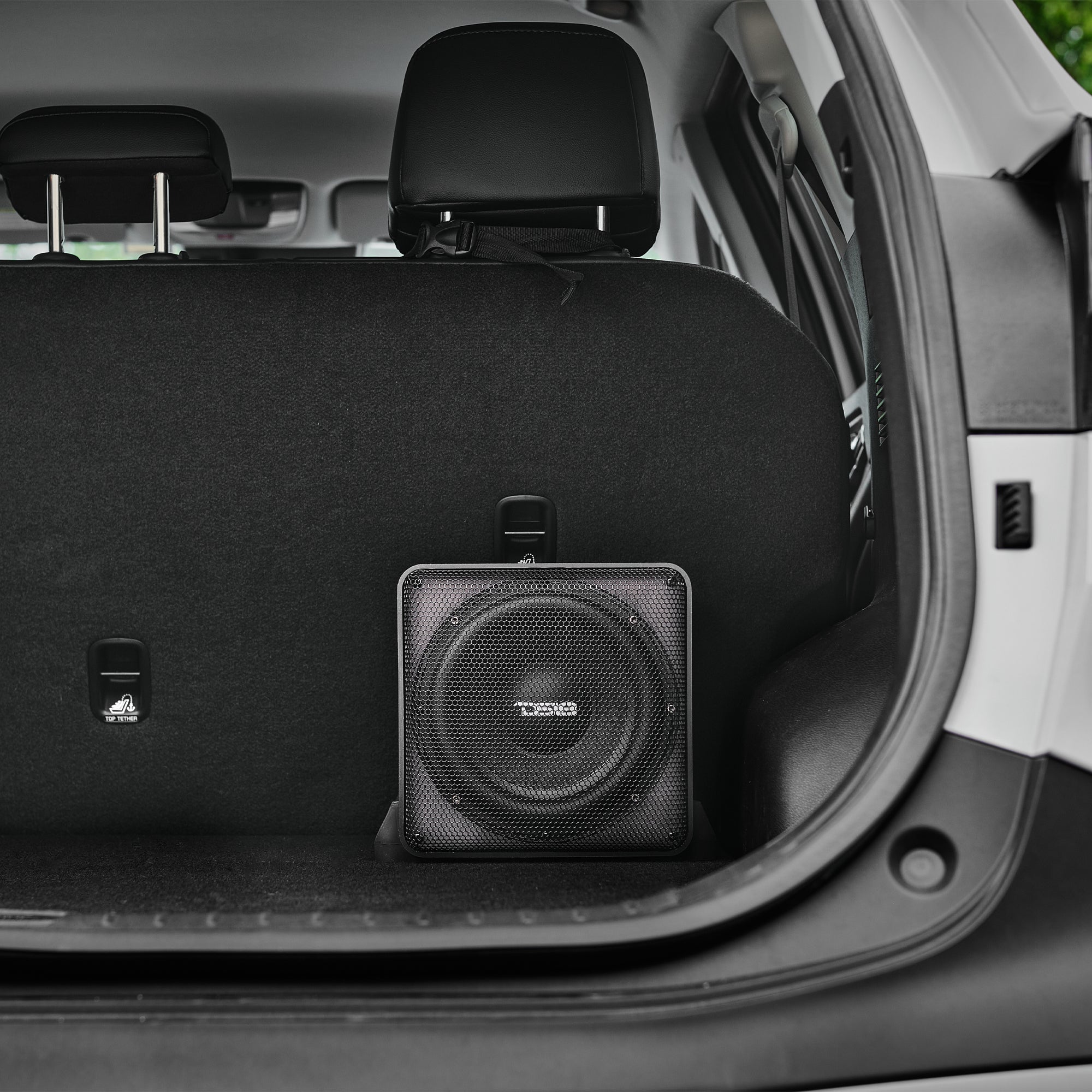

This small unit can fit behind most conventional car seating, rear cubby, or small sized storage compartments so you can have clear and vibrant bass even if you have no room.
When powered with 300w RMS you will be sure to get great vibes every time you hear the bass drop.
Highlights
- Add bass where there was none before easily! Compact design that is made to fit behind most front or rear seats or wherever there is room. The options are endless!
- Specially designed 8 inch active with 8 inch passive subwoofer made to maximize bass response in spaces that are not typically designed for subwoofers.
Key Features
- Subwoofer
- 8" active + 8" passive subwoofer
- Max Power Handling: 1200 watts
- RMS Power Handling: 300 watts
- Frequency Response: 30-350Hz
- Voice Coil Diameter: 1.52"
- Voice Coil Material: Copper
- Impedance: 4 ohms
- Sensitivity: 83 dB
- Magnet Weight: 32 Oz
- Magnet Material: Ferrite
- Box:
- Box Material: Aluminum
- Box Tuning: 50Hz
- Box Type: Sealed / Passive
- Internal Volume: .38 ft3

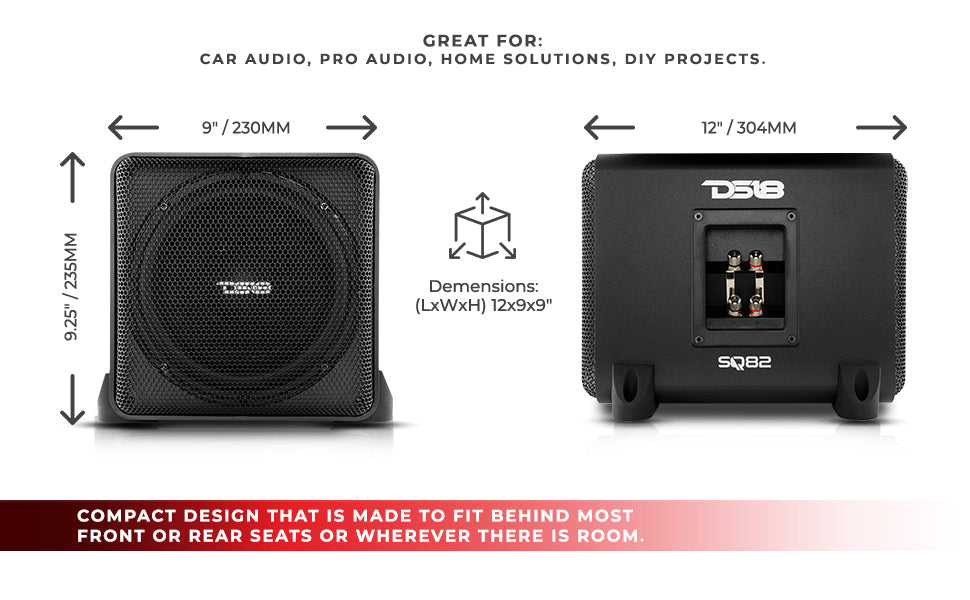

- Dimensions: (LxWxH) 12x9x9"
Good for:
Car Audio
Pro Audio
Home Solutions
DIY Projects
Technical Details
| SPECIFICATIONS | |
| Speaker Type / Size | 8" + 8" Passive |
| Total Impedance | 4 + 4 ohm |
| Total RMS Power Handling | 300W |
| Total MAX Power Handling | 1200W |
| Sensitivity (1w/1m) | 83dB |
| Frequency Response | 30-350Hz |
| SPEAKER SPECIFICATIONS | |
| Voice Coil Diameter | 1.52" / 38.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non-Press Cone |
| Dust Cap Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 32 Oz / 914 g |
| MEASUREMENT | |
| Overall Height | 9" / 230mm |
| Overall Width | 9" / 230mm |
| Overall Depth | 12" / 304mm |
Key Features
- Subwoofer Enclosure
- 1 X 8" Active & 1 X 8" Passive
- RMS Power: 300 Watts(1200 Watts Peak)
- Impedance: 4 + 4 Ohm
- Black Aluminum Enclosure
- 83dB
Specifications
| SKU | SQ82 |
|---|---|
| Speaker Type / Size | 8" + 8" Passive |
| Total Impedance | 4 + 4 Ohm |
| Total RMS Power Handling | 300W |
| Total MAX Power Handling | 1200W |
| Sensitivity (1w/1m) | 83dB |
| Frequency Response | 30-350Hz |
| Voice Coil Diameter | 1.52" / 38.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non-Press Cone |
| Dust Cap Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 32 Oz / 914.0g |
| Internal Volume | 10.8L / 0.38ft3 |
| Box Tune FB | 50Hz |
| Load Configuration | parallel In |
| Box Type | Passive active (Sealed) |
| Box Material | Aluminum |
| Finish Material | Anodic Black |
| -3Db Dropping Point F3 | 35Hz |

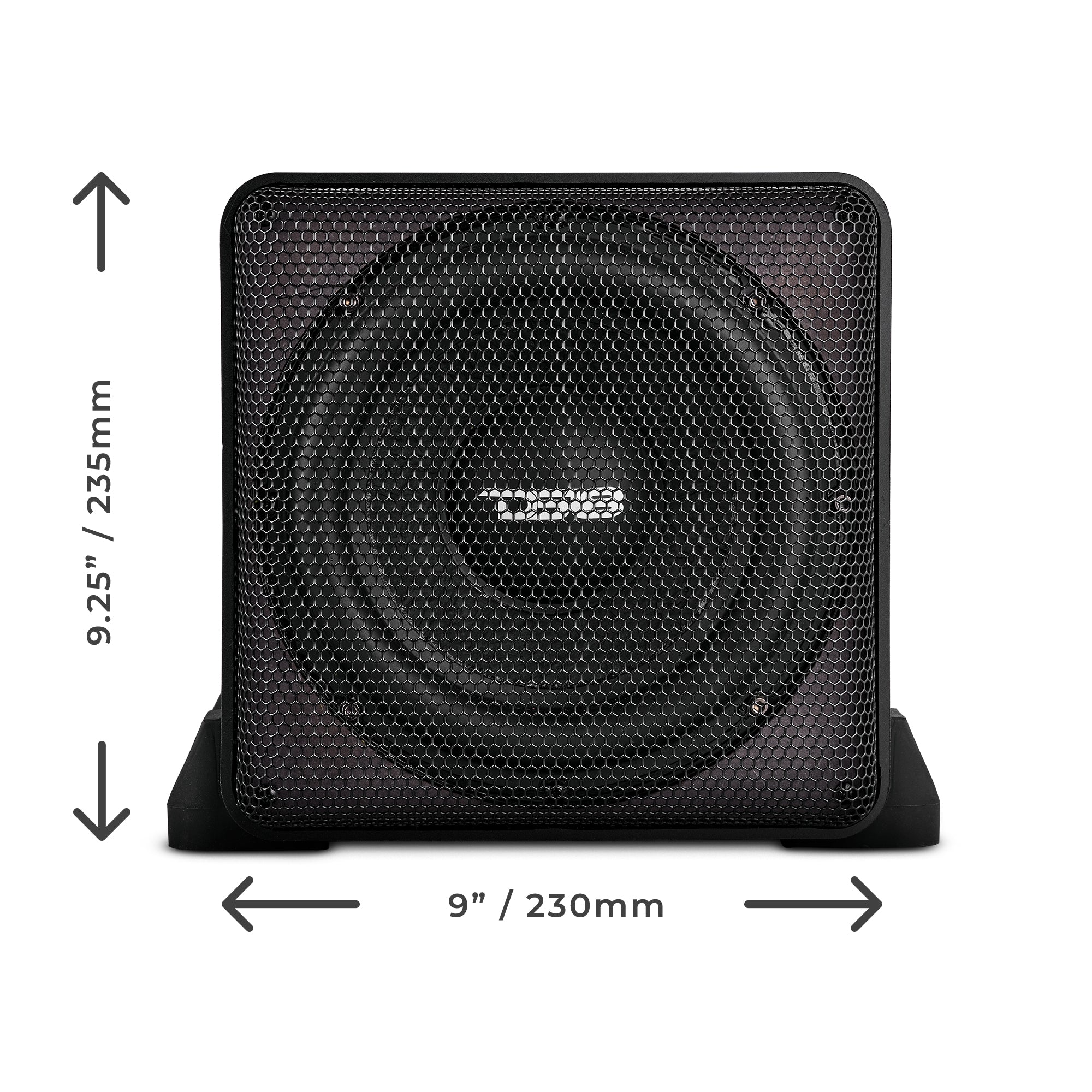

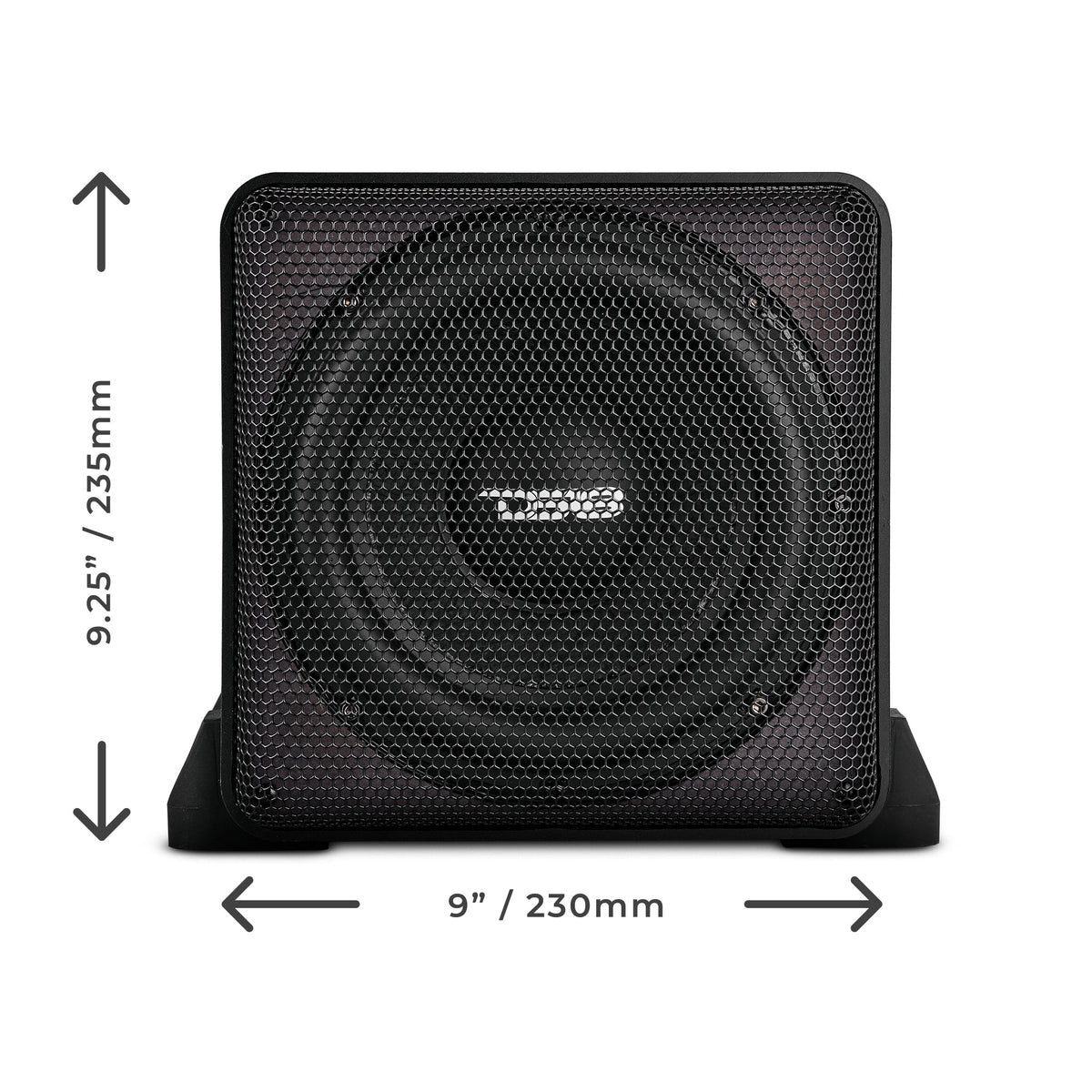

| Overall Height | 9" / 230mm |
| Overall Width | 9" / 230mm |
| Overall Depth | 12" / 304mm |
| Gross Single Unit Weight | 7.8KG |
| Single Unit Box Dimensions W x L x H | 336mm x 282mm x 262mm |
| Quantity of Units in Master Carton | 1PCS/CTN |
| Gross Master Carton Weight | 9.0KG |
| Master Carton Dimensions W x L x H | 352mm x 298mm x 282mm |
| Very Strong Aluminum Box for better sound, heat dissipation and lightweight construction | Yes |
| High Efficiency Digital Amplifier Built-In | No |
| Auto Turn-On Function when using Hi-Level Input for easier installation | No |
| Remote Level Knob to get easy amount of Bass control | No |
| Passive Radiator Design for deeper and louder sound output in a smaller enclosure | Yes |
