SELECT 10" Subwoofer 220 Watts Rms SVC 4-Ohm
SELECT 10" Subwoofer 220 Watts Rms SVC 4-Ohm
SELECT 10" Subwoofer 220 Watts Rms SVC 4-Ohm
Product Overview

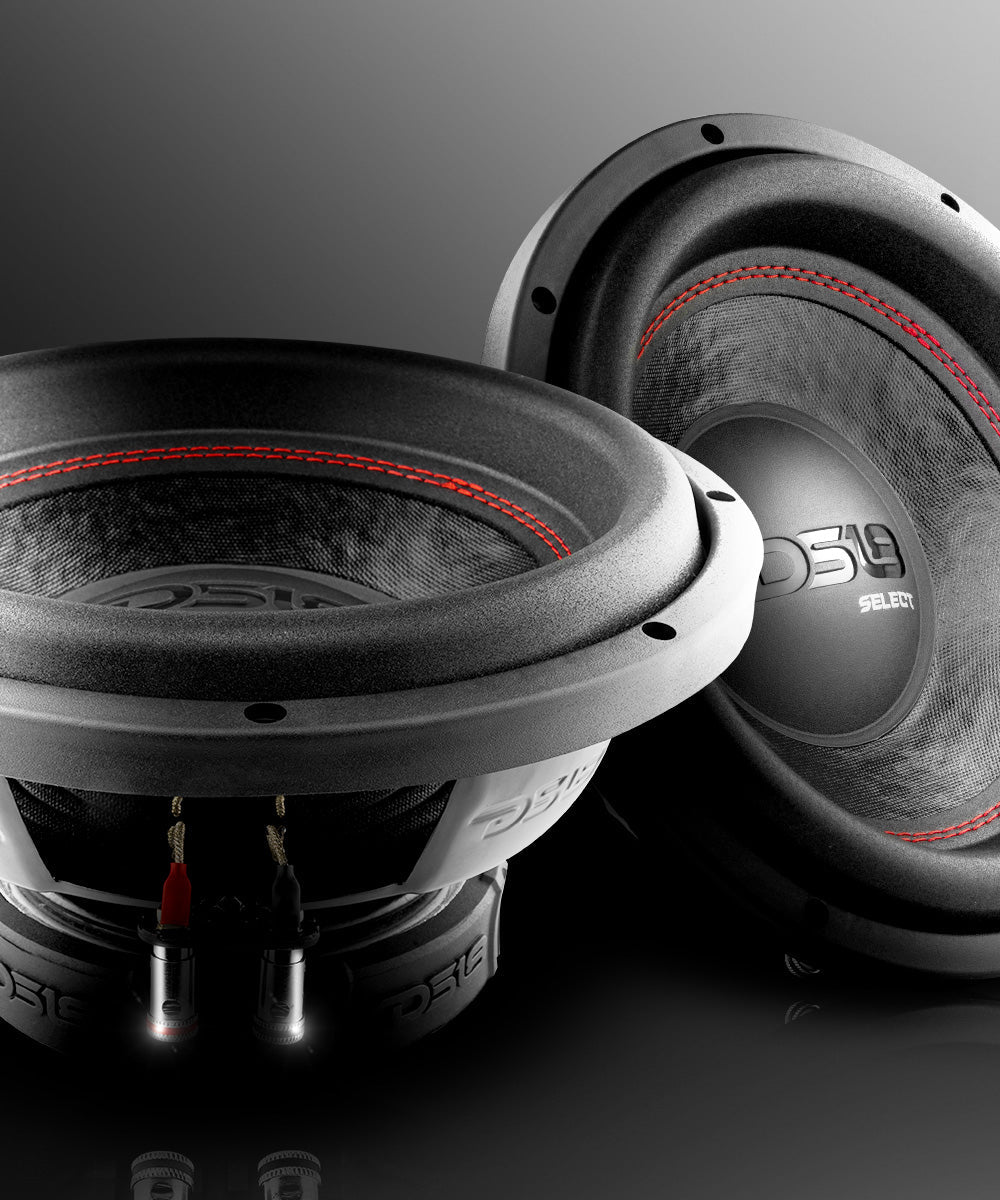

DS18 SLC10S 10" Select Car Subwoofer 440 Watts 4-Ohm SVC
| The Select Series Subwoofers come in 8", 10", and 12" in black steel baskets. DS18 understands the demands of many inexperienced car audiophiles and fiscally responsible deal-finders. These subwoofers' success relies in their ability to deliver better quality and RMS power than all other entry level offerings of their competition. |
Highlights
- Loud booming bass with an amazing price point that will shake the ground around you.
- High Quality ferrite motor with aluminum coils for very high power to DB efficiency and loudness.
- Great DS18 design that never let's you down and gives you loud bass on demand.
Technical Details
Download SLC10S Product Manual
| Model: | SLC-10S |
| Type: | Subwoofer |
| Size: | 10" |
| RMS Power: | 220W |
| MAX Power: | 440W |
| Impedance: | 4 Ohms |
| Voice Coil Size: | 2"/50.8mm |
| Magnet: | Ferrite |
| Magnet Weight: | 45 oz |
| Frequency Response: | 30Hz - 4.5KHz |
| Materials | |
| Frame: | Steel Basket |
| Cone: | Paper with Glass Fiber |
| Surround: | Foam Edge |
| Voice Coil Former Material: | Black Aluminum |
| Diameters | |

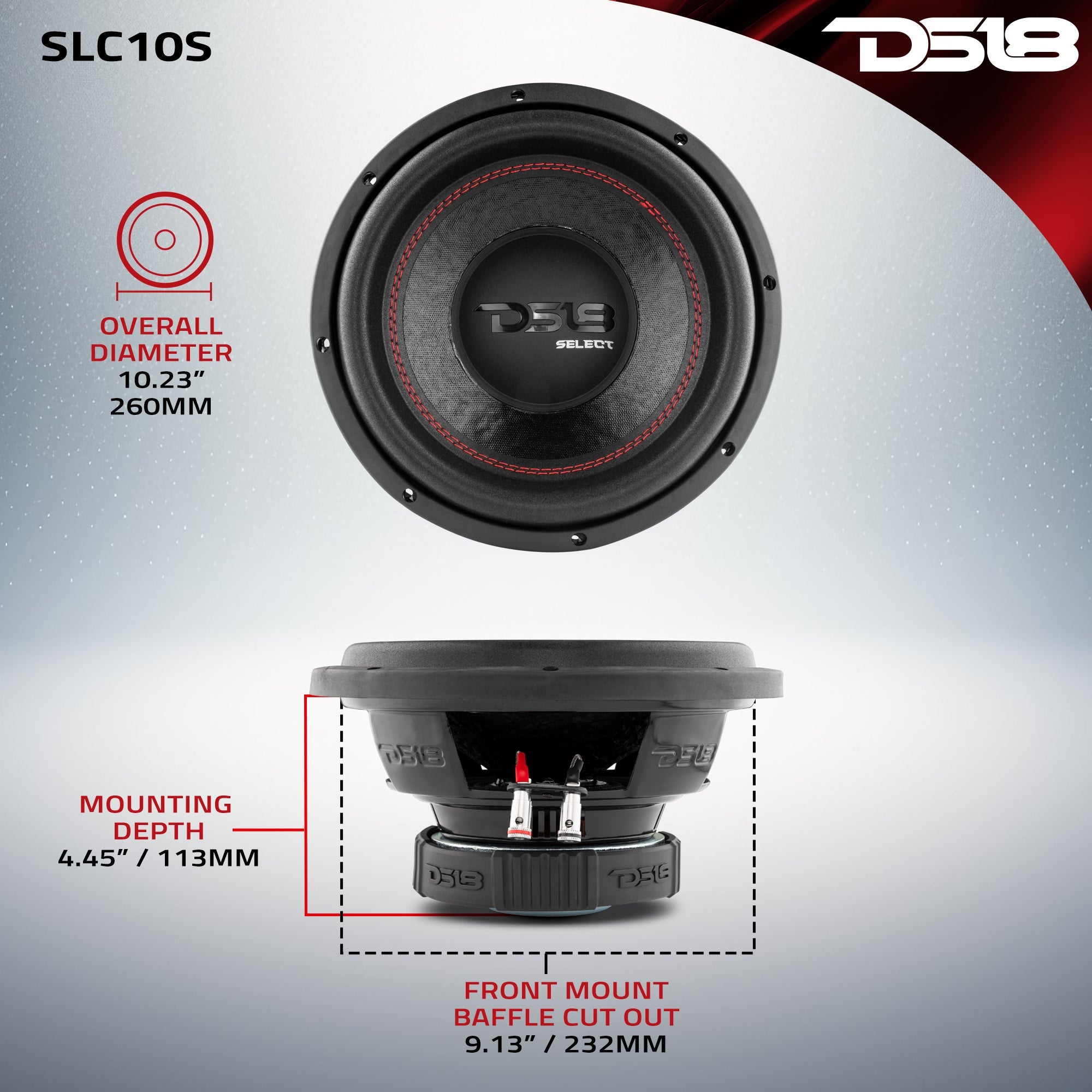

| Mounting Cut-Out: | 9.13" /232mm |
| Mounting Depth: | 4.45" /113mm |
| Overall Diameter: | 10.23" /260mm |
| Overall Depth: | 5.71"/145mm |
Key Features
- 10" Subwoofer
- MAX Power: 440 Watts
- RMS Power: 220 Watts
- Impedance: 4-Ohm 2" SVC
- Ferrite Magnet
- 88dB
Specifications
| SKU | SLC-10S |
|---|---|
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 220 W |
| Maximum Power Handling | 440 W |
| Sensitivity (1w/1m) | 88 dB |
| Frequency Response | 30Hz-4.5KHz |
| Recommended Lo Pass Crossover | 100Hz |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color/Finish | Gloss black |
| Magnet Material | Ferrite |
| Magnet Weight | 45 Oz |
| Equivalent Volume Vas | 29.26L / 1.03ft3 |
| Free Air Resonance Fs | 40 Hz |
| Mechanical Factor Qms | 5.878 |
| Electrical Factor Qes | 0.891 |
| Total Factor Qts | 0.774 |
| Moving Mass Mms | 131.624 g |
| Compliance Cms | 0.042 mm/H |
| Bl Factor Bl | 11.472 |
| Voice Coil Inductance Le | 0.998 mH |
| Diaphragm Area Sd | 365.25 cm2 |
| DC Resistance Re | 3.6 ohms |
| Efficiency Bandwidth Product EBP | 44.89 |
| Sealed Internal Volume | 14.2L / 0.5ft3 |
| Sealed Box Output Response F3 | 41.5Hz |
| Ported Internal Volume | 35.4L / 1.25ft3 |
| Port Size *Square (W x H x Long) | 1.16" x 10.31" x 24.5" / 29.5 x 262 x 622.1mm |
| Port Tuning Frequency FB | 30Hz |
| Ported Box Output Response F3 | 24Hz |
| Overall Diameter | 10.23" / 260mm |
| Overall Depth | 5.71" / 145mm |
| Front Mount Baffle Cutout | 9.13" / 232mm |
| Mounting Depth | 4.45" / 113mm |
| Motor Diameter | 5.94" / 151mm |
| Gross Single Unit Weight (lb) | 8.5 |
| Dimensions W x L x H (Inches) | 10.75 x 10.75 x 6.25 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 36 |
| Master Carton Dimensions W x L x H (Inches) | 22.25 x 11.5 x 13.25 |
