Product Overview

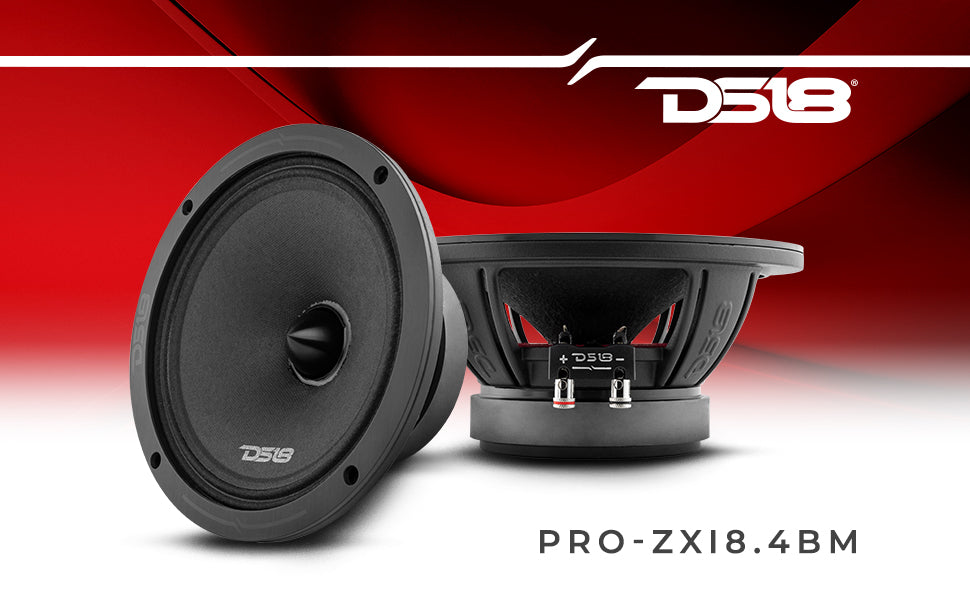

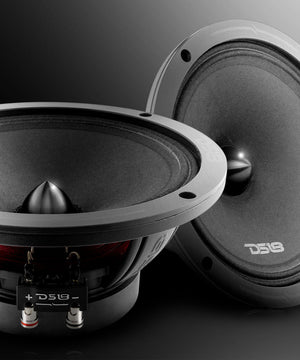

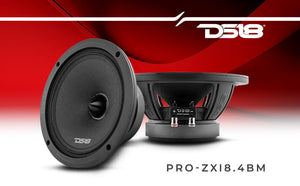

DS18 PRO-ZXI8.4BM 8" Mid-Range Loudspeaker with Bullet 700 Watts 4-Ohm
The ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness.

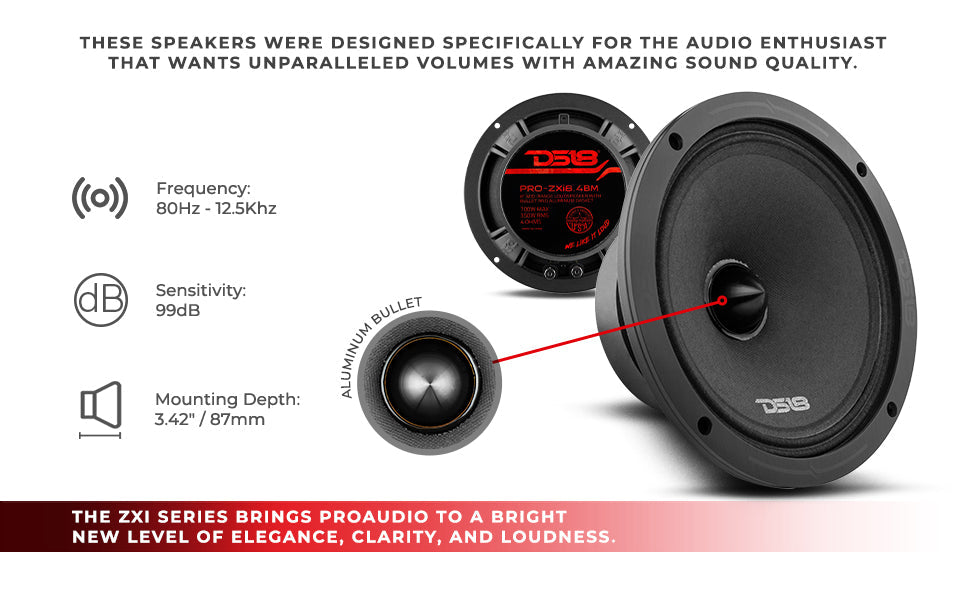

These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.

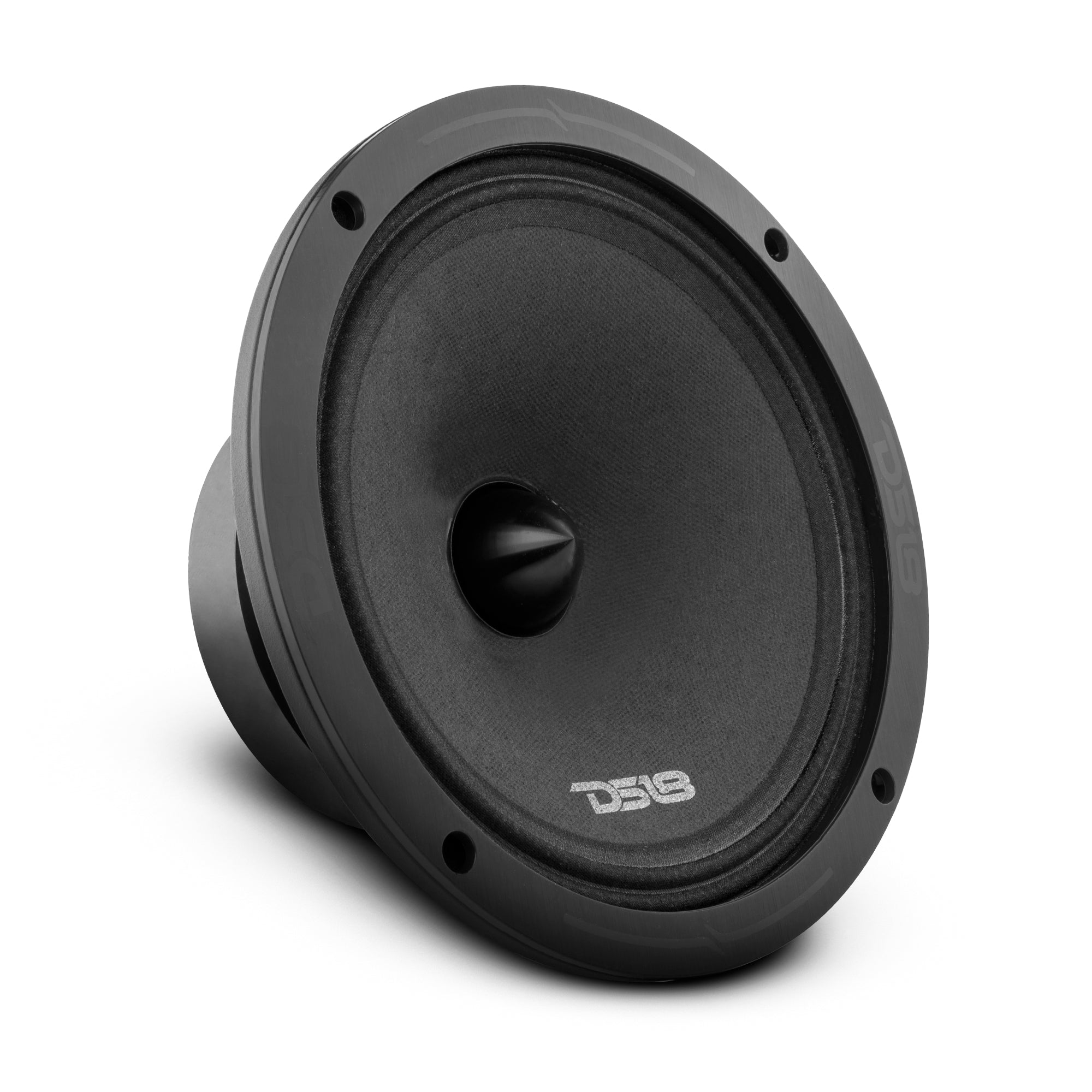

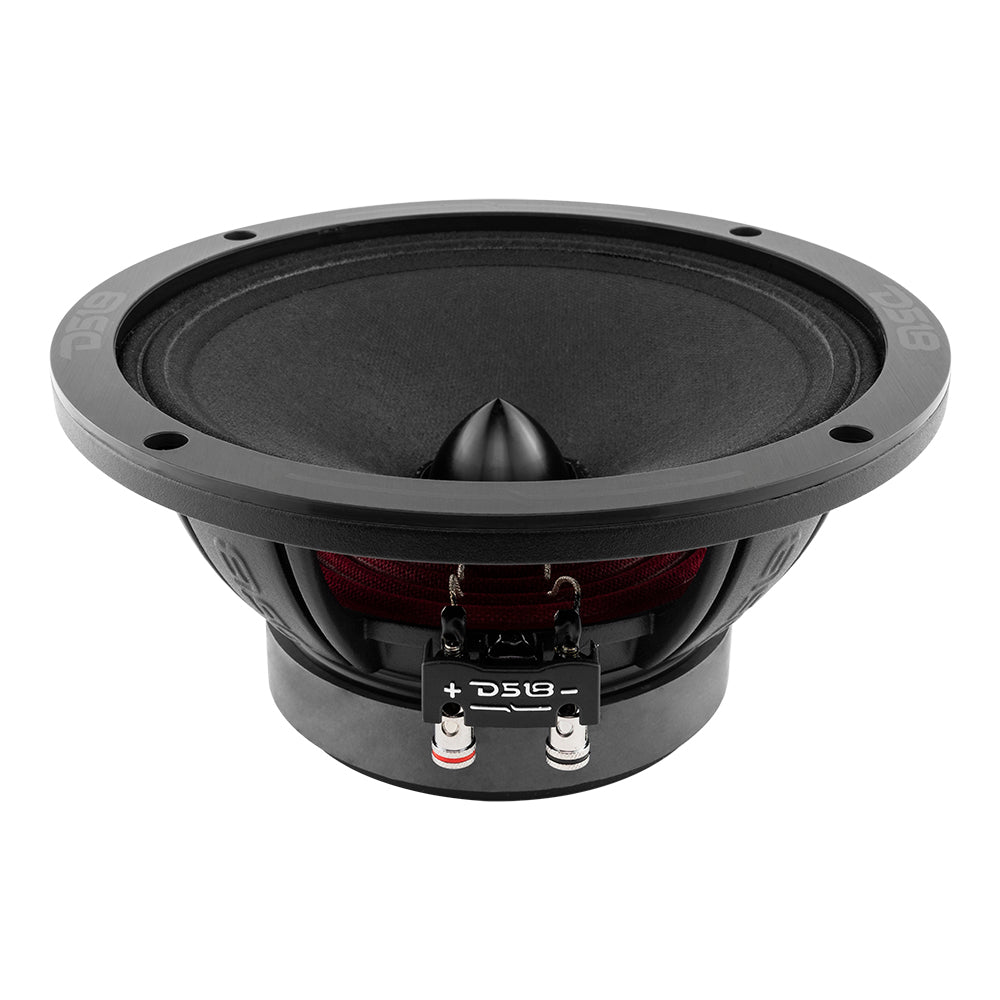

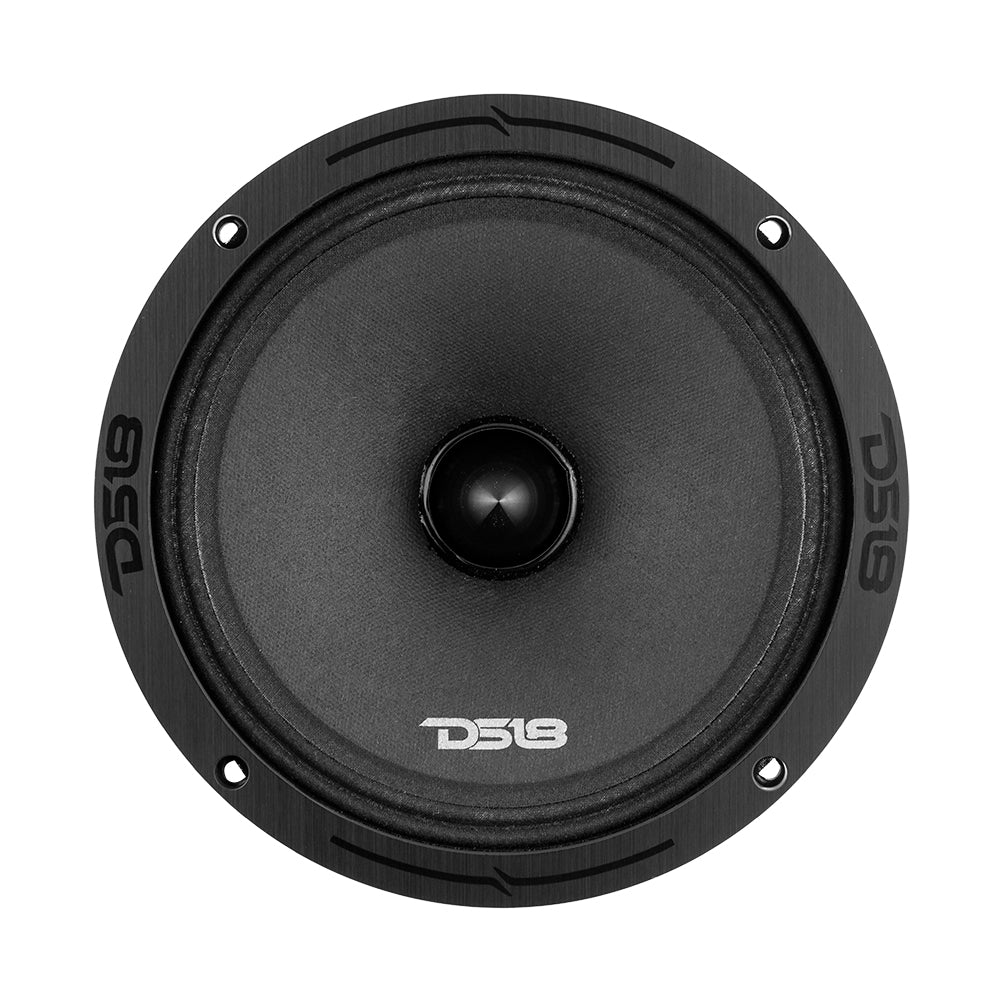

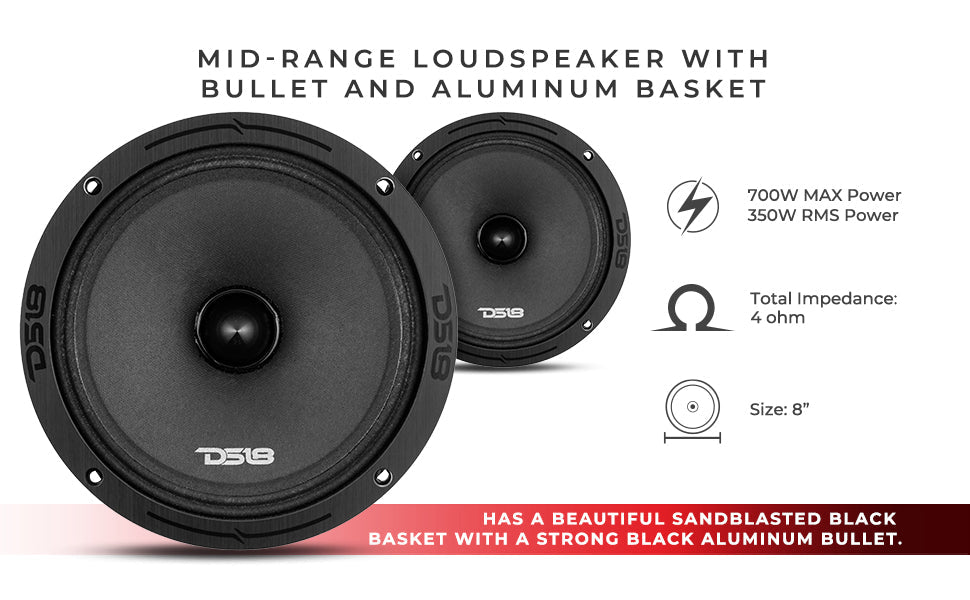

The PRO-ZXi8.4BM has a beautiful black basket face with strong black on black bullet dust cap.
This 4-ohm 8 inch speaker handles an enormous 350 watts RMS and 700 watts MAX power ensuring screaming loud mid and high range frequencies be acute and clear.
Key Features
- 8.4 Bullet black on black Pro-Audio Loudspeaker.
- Max Power Handling: 700 watts
- RMS Power Handling: 350 watts
- Frequency Response: 80Hz-12.5Khz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: Glass Fiber
- Impedance: 4-Ohm
- Sensitivity: 99Db
- Magnet Weight: 30 Oz + 3 Oz
- Magnet Material: Ferrite + Neodymium
- Mounting Depth: 3.42"

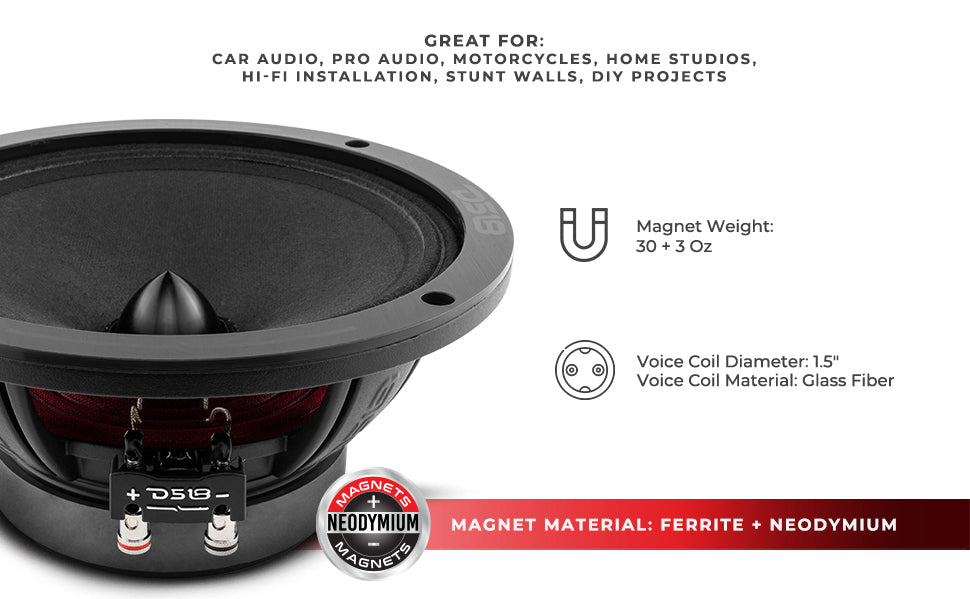

Great for:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- Stunt Walls
- DIY Projects
Technical Details
PRO- ZXI8.4BM Product Manual
| SPECIFICATIONS | |
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 4 ohm |
| RMS Power Handling | 350W |
| MAX Power Handling | 700W |
| Sensitivity (1w/1m) | 99dB |
| Frequency Response | 80Hz - 12.5Khz |
| Recommended HI Pass Crossover | 125Hz |
| Pair or single | Single |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Glass fiber |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | N/A |
| Bullet Material | Aluminum |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color | Black Sandblasted |
| Magnet Material | Ferrite + Neodymium |
| Magnet Weight | 30 + 3 Oz |
| Displacement Volume | 0.63L / 0.022ft3 |

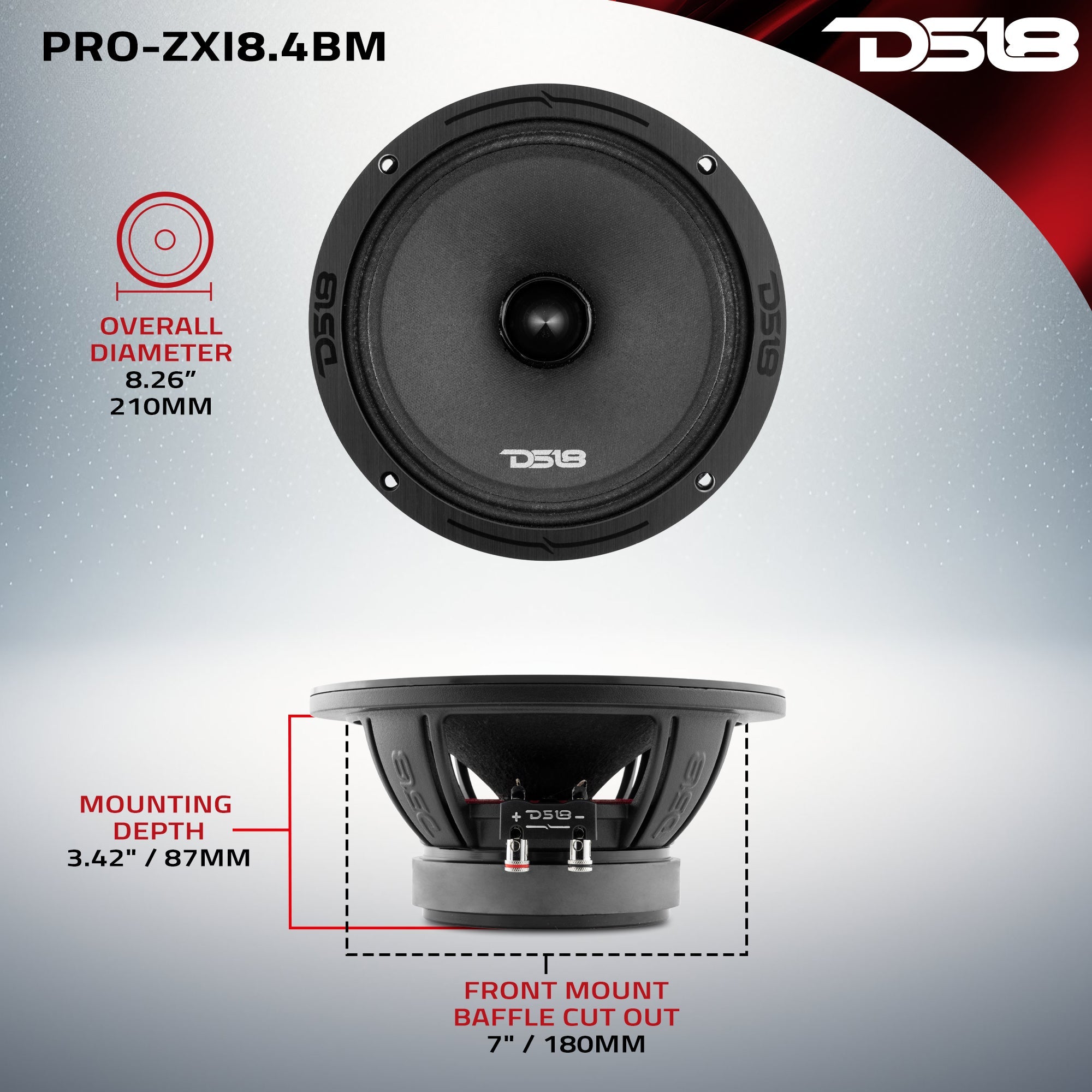

| MEASUREMENT | |
| Overall Diameter | 8.26" / 210mm |
| Overall Depth | 3.77" / 96mm |
| Front Mount Baffle Cutout | 7" / 180mm |
| Mounting Depth | 3.42" / 87mm |
| Motor Diameter | 4.72" / 120mm |
Key Features
- 8" Mid-Range w/Bullet
- MAX Power: 700 Watts
- RMS Power: 350 Watts
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnet
- 99dB
Specifications
| SKU | PRO-ZXI8.4BM |
|---|---|
| Nominal Diameter | 8" |
| Nominal Impedance | 4 OHMS |
| RMS Power Handing | 350 Watts |
| Maximum Power Handing | 700 Watts |
| Sensitivity (1w/1m) | 99dB |
| Frequency Response | 80Hz - 12.5KHz |
| Recommended Hi Pass Crossover | 125Hz |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 30 + 3 Oz |
| Vas | 14.67L / 0.512ft3 |
| Xmax | 7.6mm |
| Fs | 144Hz |
| Qms | 10.07 |
| Qes | 0.823 |
| Qts | 0.761 |
| Re | 3.1 ohm |
| Overall Diameter | 8.26" / 210mm |
| Front Mount Baffle Cutout | 7" / 180mm |
| Mounting Depth | 3.42" / 87mm |
| Overall Depth | 3.77" / 96mm |
| Product Weight | 6 lbs |
| Product Dimensions | 9 x 9 x 4.25 |
| M/C Weight | 51.5 lbs |
| M/C Dimensions | 18.5 x 18.5 x 9.5 |
| M/C QTY | 8 |
| Sold In | Piece |
