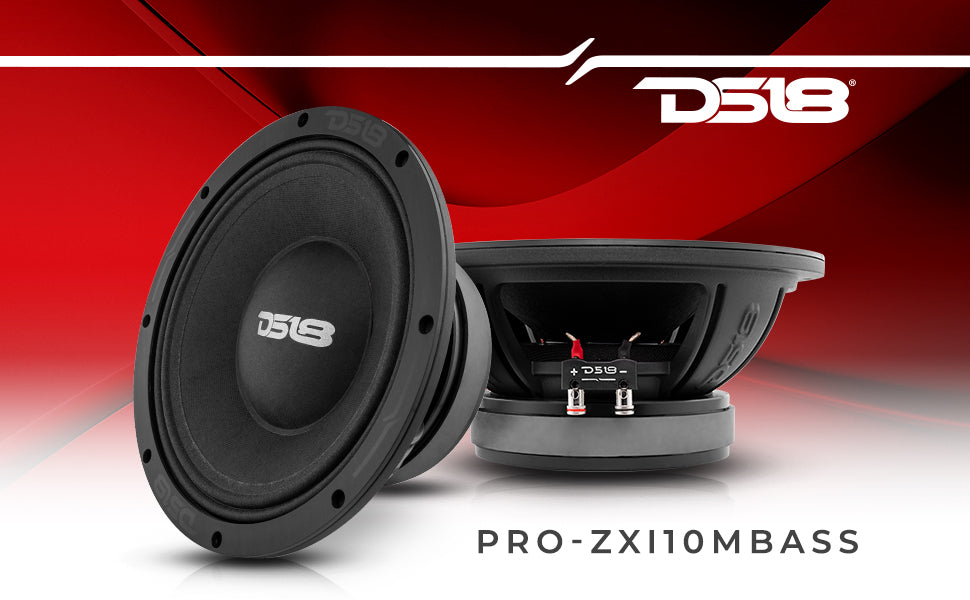

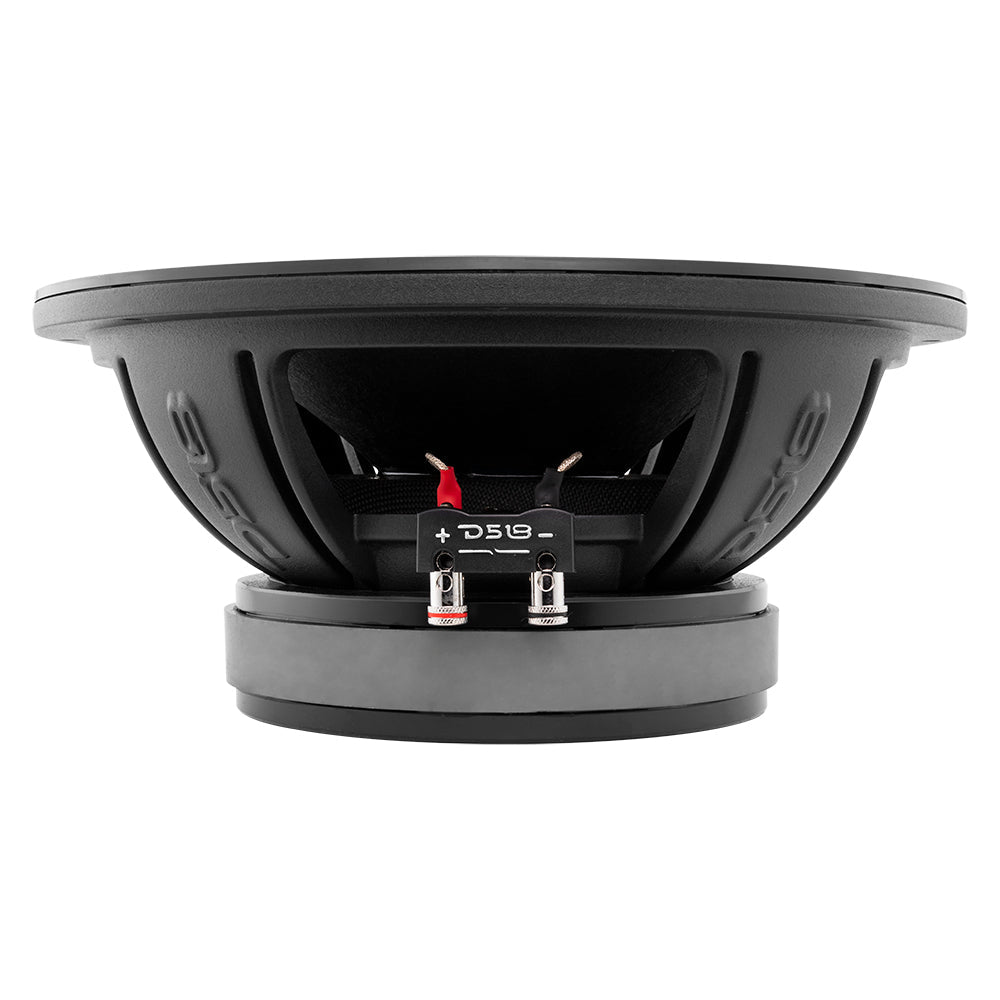

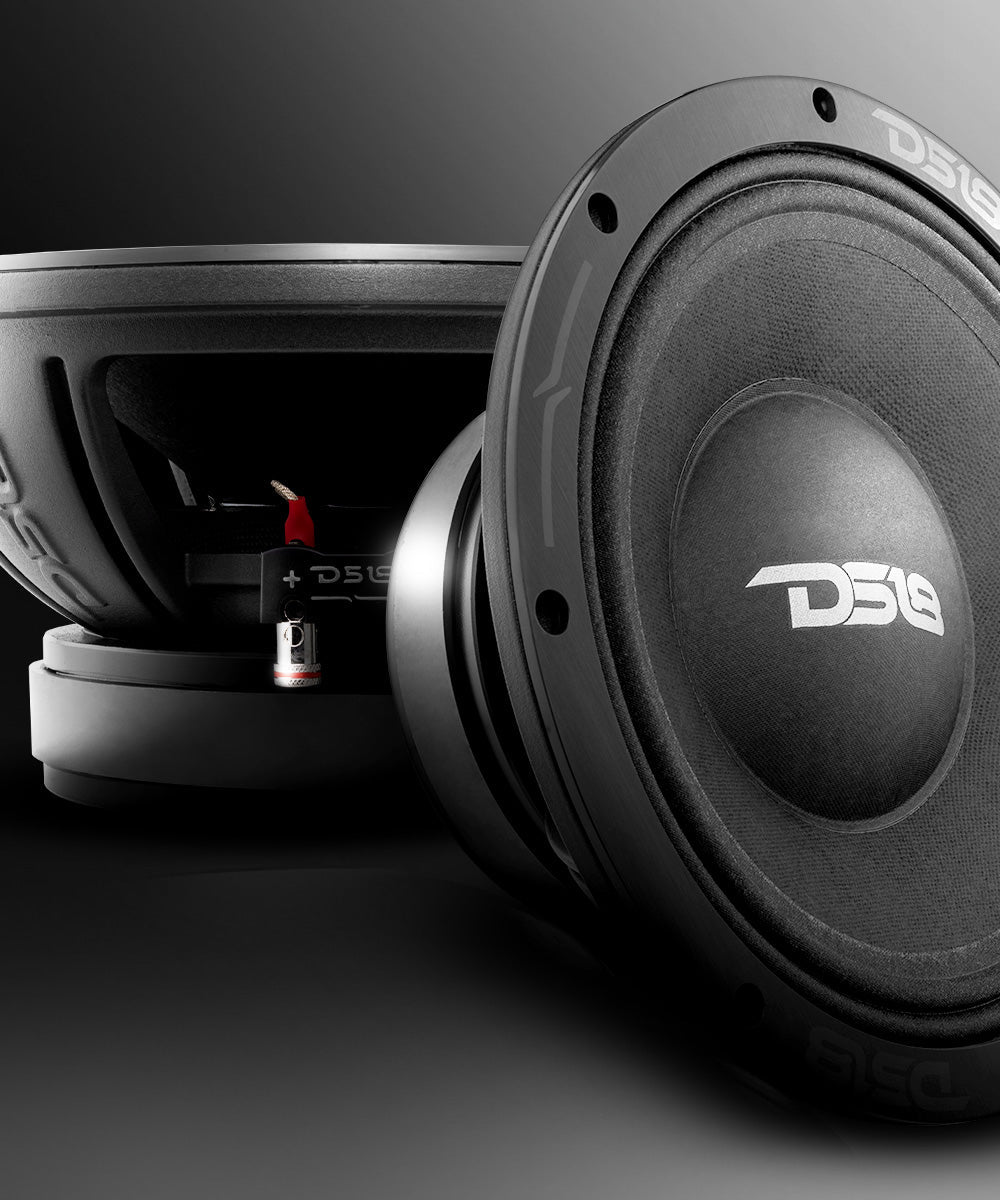

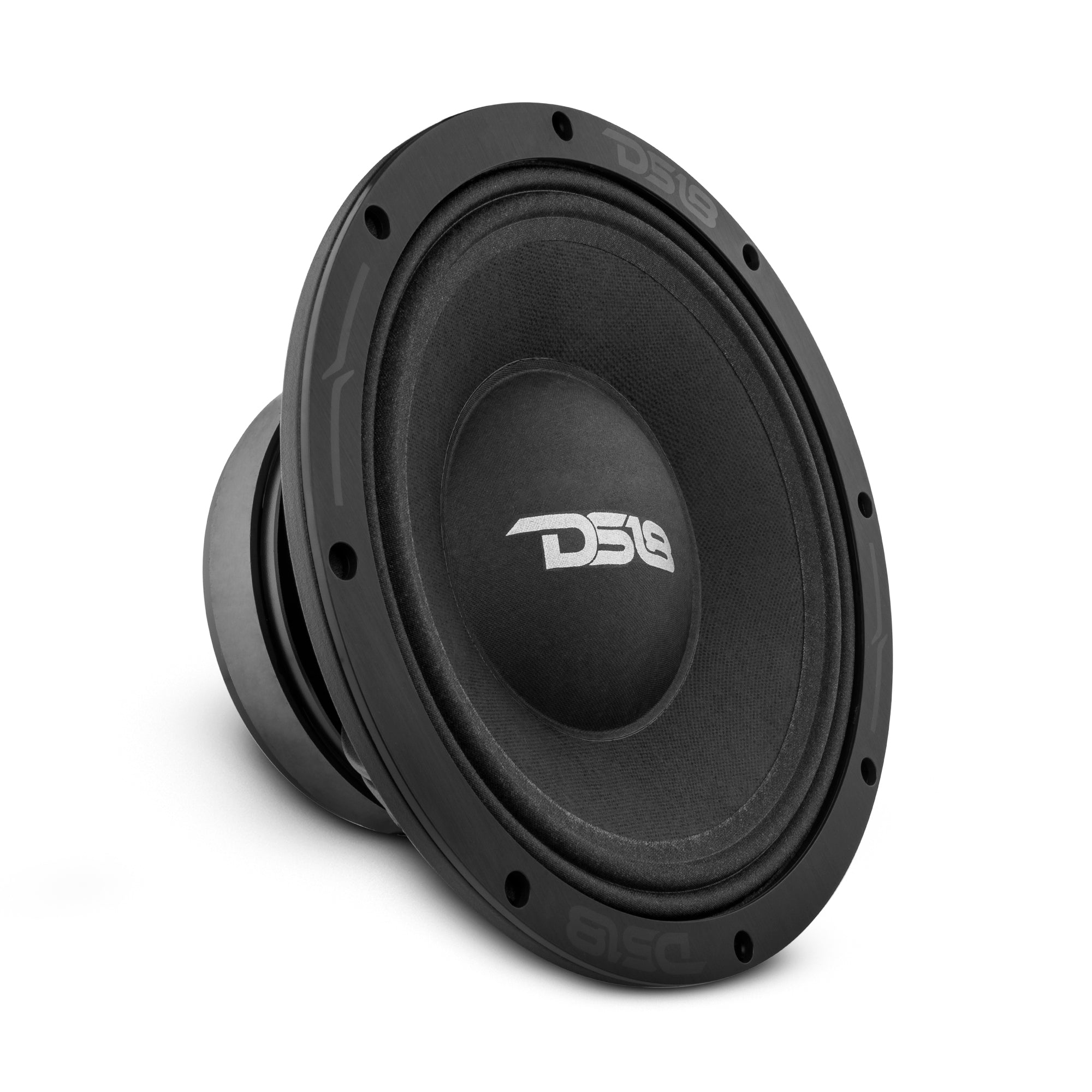

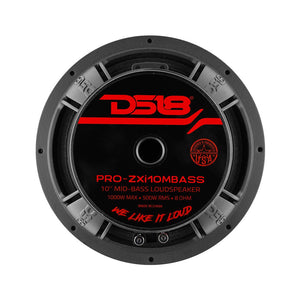

PRO-ZXI 10" Mid-Bass Loudspeaker With Neodymium/Ferrite Magnets 500 Watts Rms 8-Ohm
Product Overview DS18 PRO-ZXI10MBASS 10" Mid-Bass Loudspeaker 1000 Watts 8-Ohm The ZXI series brings Pro Audio to...
Vendor:
DS18
Manufacturer SKU
PRO-ZXI10MBASS
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $179.95
- $179.95
- Unit price
- per
Subtotal:
$179.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 PRO-ZXI10MBASS 10" Mid-Bass Loudspeaker 1000 Watts 8-Ohm

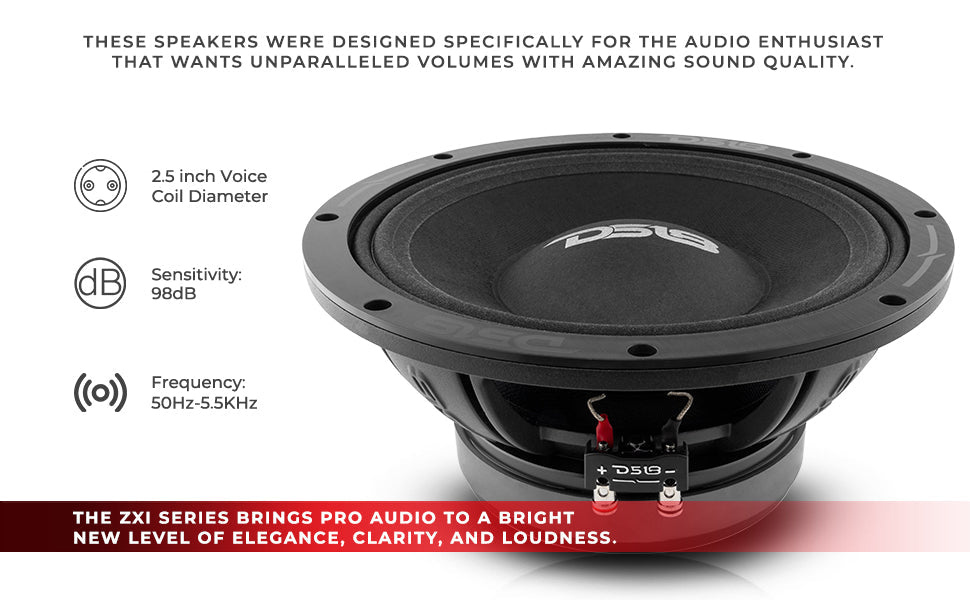

The ZXI series brings Pro Audio to a bright new level of elegance, clarity, and loudness.
These speakers were designed specifically for the car audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.

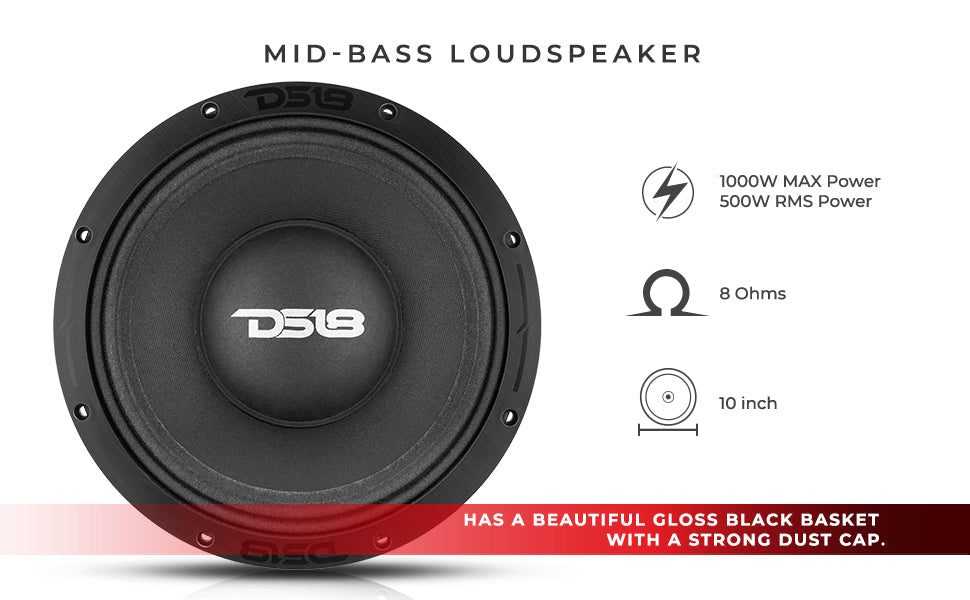

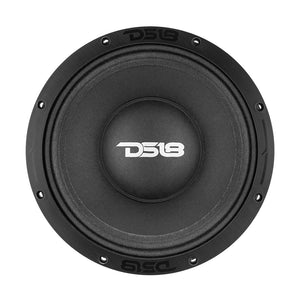

The PRO-ZX10MBASS has a beautiful black basket face with strong black on black solid cone.
This 8-Ohms Mid Bass 10" handles an enormous 500 watts RMS and 1000 watts MAX power ensuring screaming loud Mid Bass frequencies acute and clear.
Highlights
- 10" solid cone black on black Mid Bass Speaker.
- Pro-Audio Mid Bass
- Max Power Handling: 1000 watts
- RMS Power Handling: 500 watts
- Frequency Response: 50Hz - 5.5KHz
- Voice Coil Diameter: 2.5"
- Voice Coil Material: USA Glass Fiber
- Impedance: 8-Ohm
- Sensitivity: 98dB
- Magnet Weight: 68 Oz
- Magnet Material: Ferrite
- Mounting Depth: 4.1"
- Recommended High Pass: 78Hz
Great for:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- Stunt Walls
- DIY Projects
![]()
![]()
Technical Details
PRO- ZXI10MBASS Product Manual
| SPECIFICATIONS |
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500W |
| MAX Power Handling | 1000W |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 50Hz - 5.5KHz |
| Recommended HI Pass Crossover | 78 Hz |
| Pair or single | Single |
| MOTOR | |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | USA Glass fiber |
| Winding Material | JAPAN SV |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 68 Oz |
| Displacement Volume | 1.24L / 0.043ft3 |
| MEASUREMENT | |

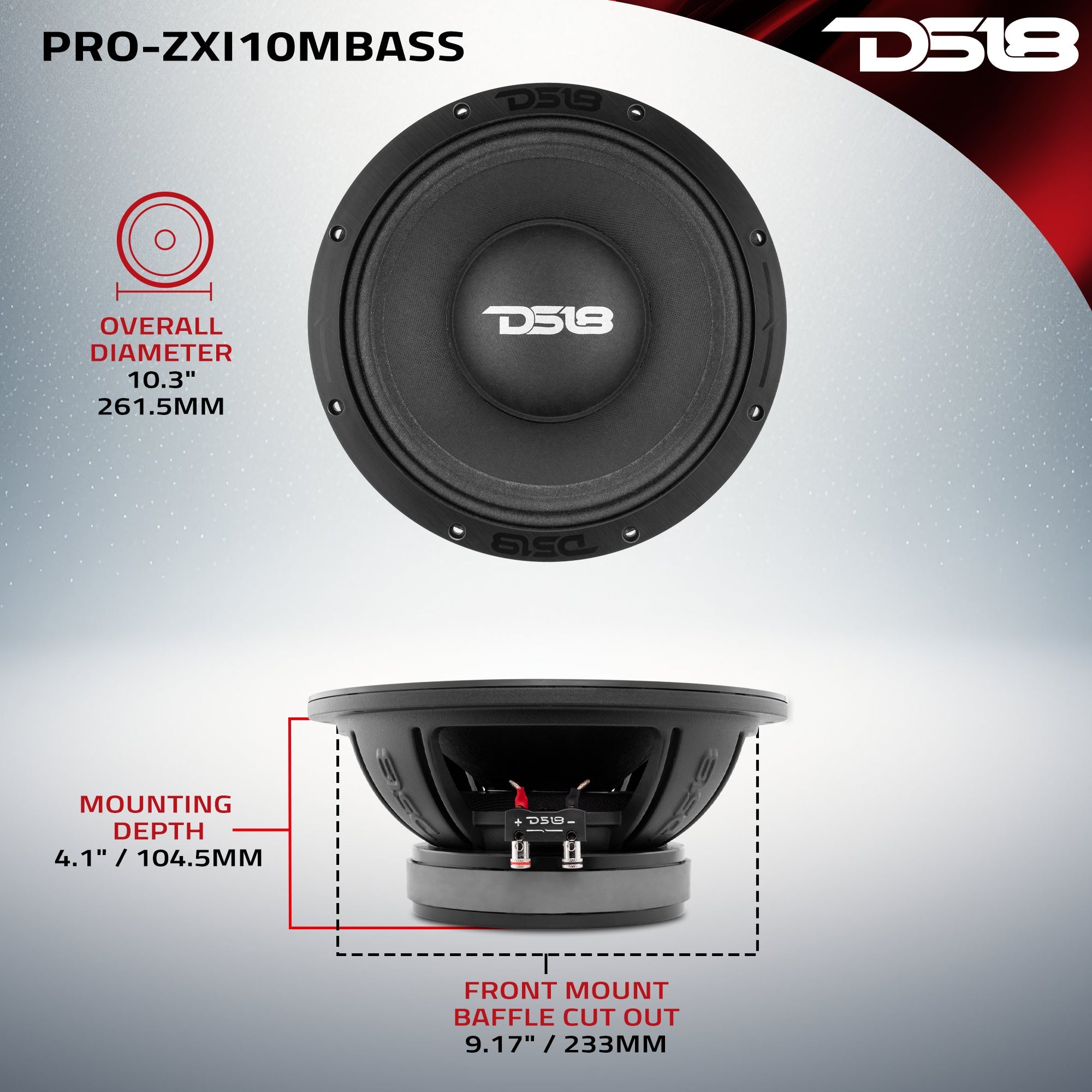

| Overall Diameter | 10.3" / 261.5mm |
| Overall Depth | 4.54" / 115.5mm |
| Front Mount Baffle Cutout | 9.17" / 233mm |
| Mounting Depth | 4.1" / 104.5mm |
| Motor Diameter | 6.3" / 160mm |
Technologies
- .
Wiring Wizard
- .
Key Features
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
Specifications
| SKU | PRO-ZXI10MBASS |
|---|---|
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 8 OHMS |
| RMS Power Handing | 500 Watts |
| Maximum Power Handing | 1000 Watts |
| Sensitivity (1w/1m) | 98dB |
| Frequency Response | 50Hz - 5.5KHz |
| Recommended Hi Pass Crossover | 78 Hz |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Glass Fiber Made in USA |
| Winding Material | SV Made in Japan |
| Basket Material | Aluminum |
| Magnet Weight | 68 Oz |
| Vas | 25.1L / 0.88ft3 |
| Xmax | 11 mm |
| Fs | 78Hz |
| Qms | 8.21 |
| Qes | 0.46 |
| Qts | 0.435 |
| Re | 5.2ohms |
| Overall Diameter | 10.3" / 261.5mm |
| Front Mount Baffle Cutout | 9.17" / 233mm |
| Mounting Depth | 4.1" / 104.5mm |
| Overall Depth | 4.54" / 115.5mm |
| Product Weight | 12.5 lbs |
| Product Dimensions | 11.25 x 11.25 x 5.5 |
| M/C Weight | 51.5 lbs |
| M/C Dimensions | 23 x 12 x 12 |
| M/C QTY | 4 |
| Sold In | Piece |
