3.8" Super Bullet Tweeter | 250W RMS 1.5" Titanium 4-Ohm Vc
Product Overview DS18 PRO-TWX3TI DS18 PRO-TWX3TI 3.8" Super Bullet Compression Tweeter With 1.5" Titanium Voice Coil 500...
- $53.95
- $53.95
- Unit price
- per
Subtotal:
$53.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

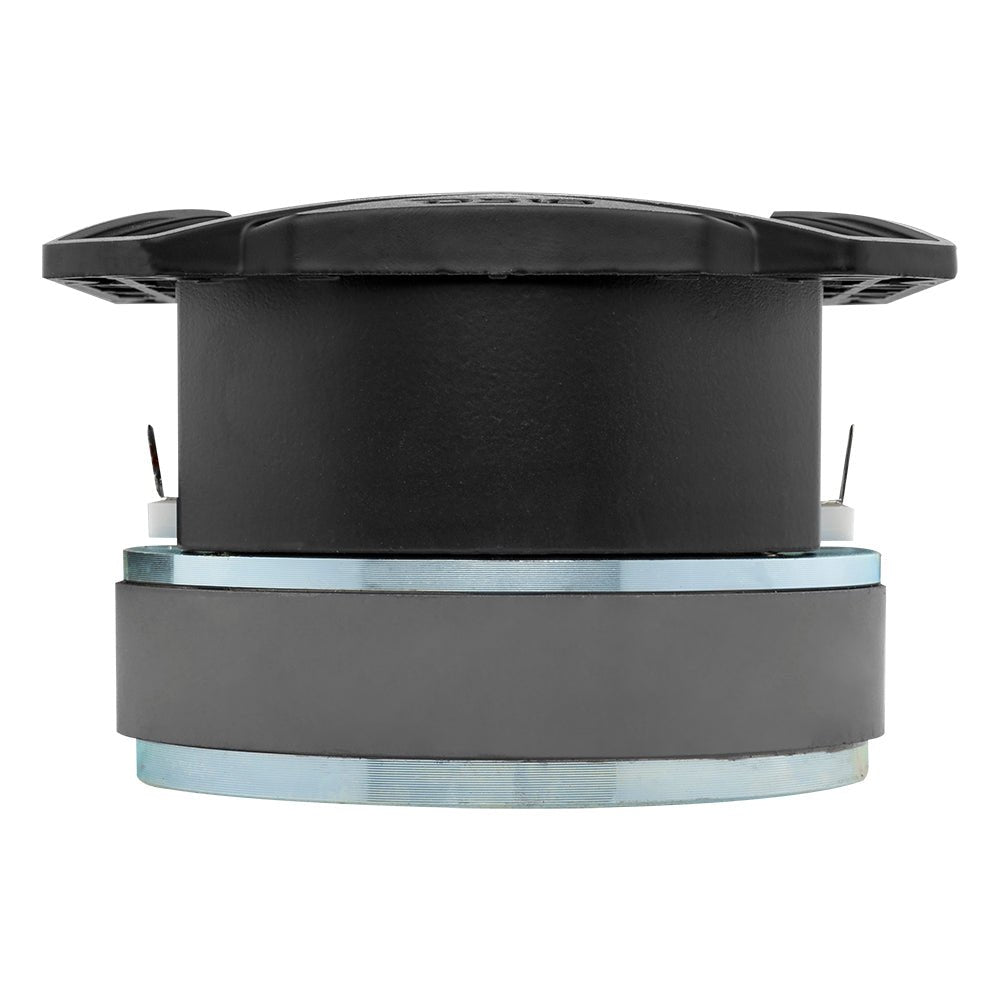

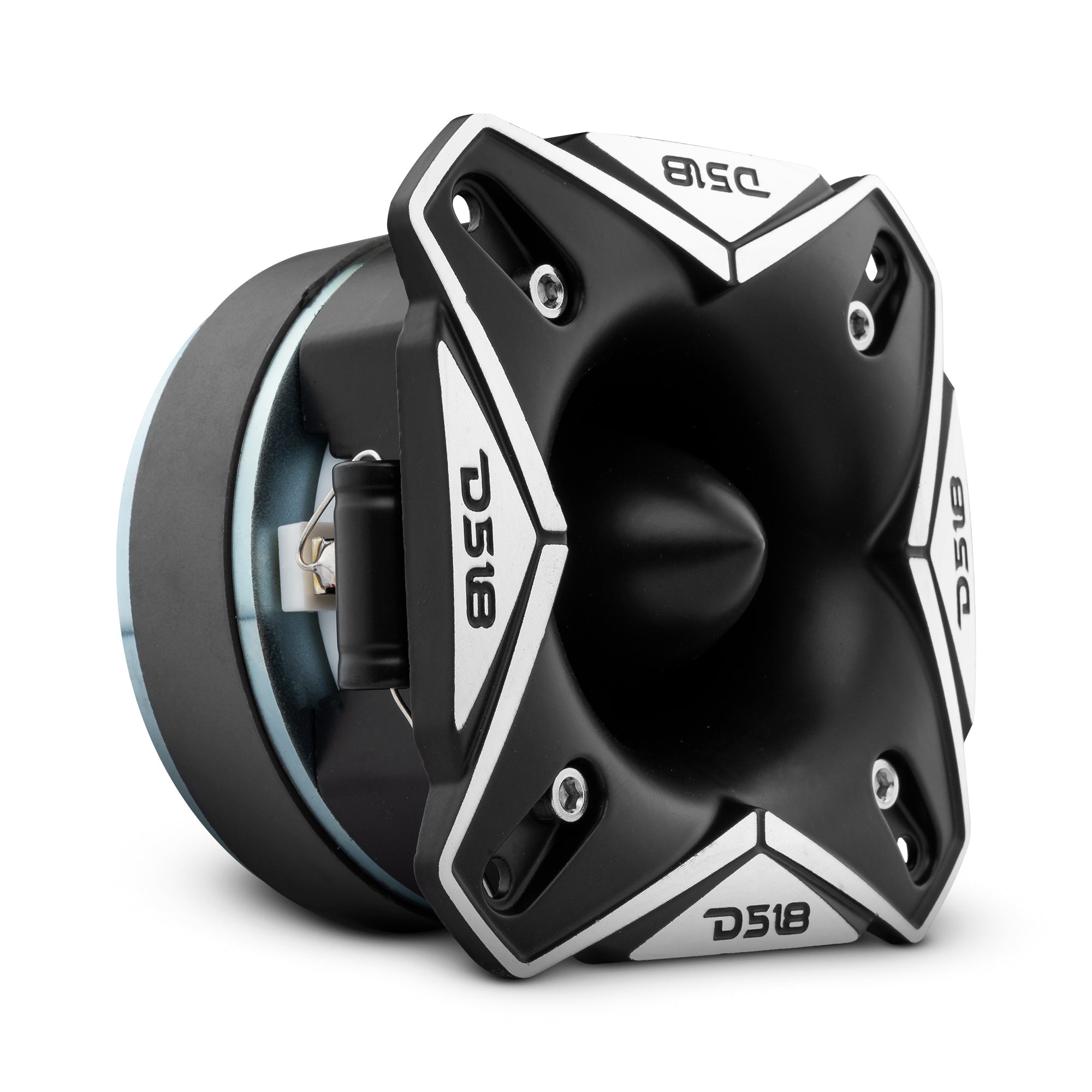

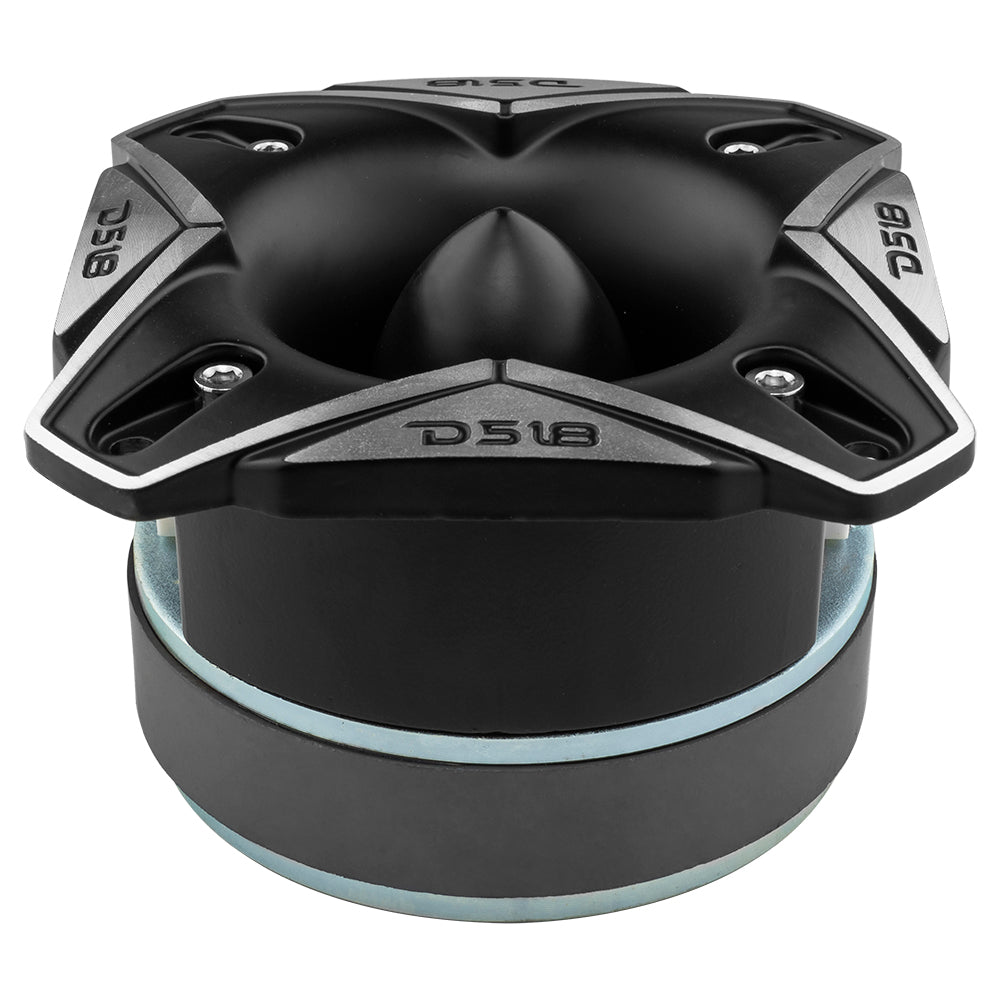

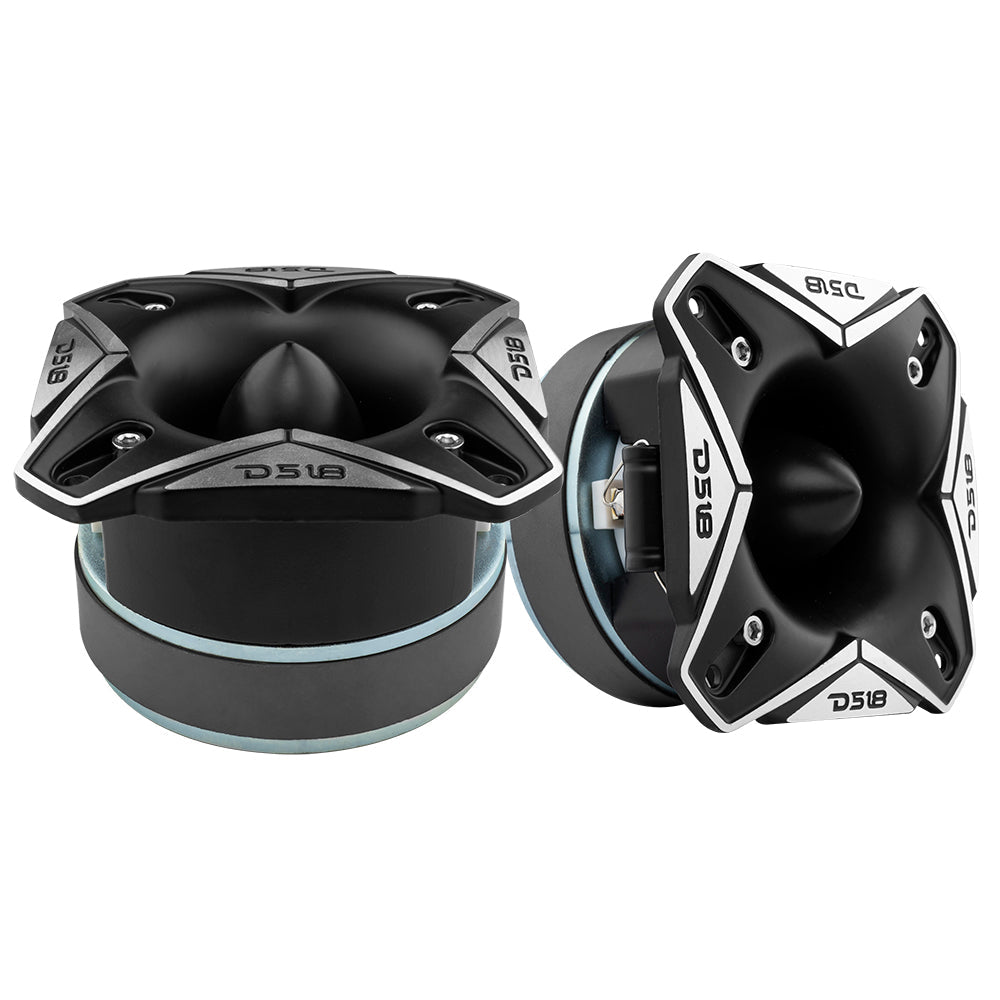

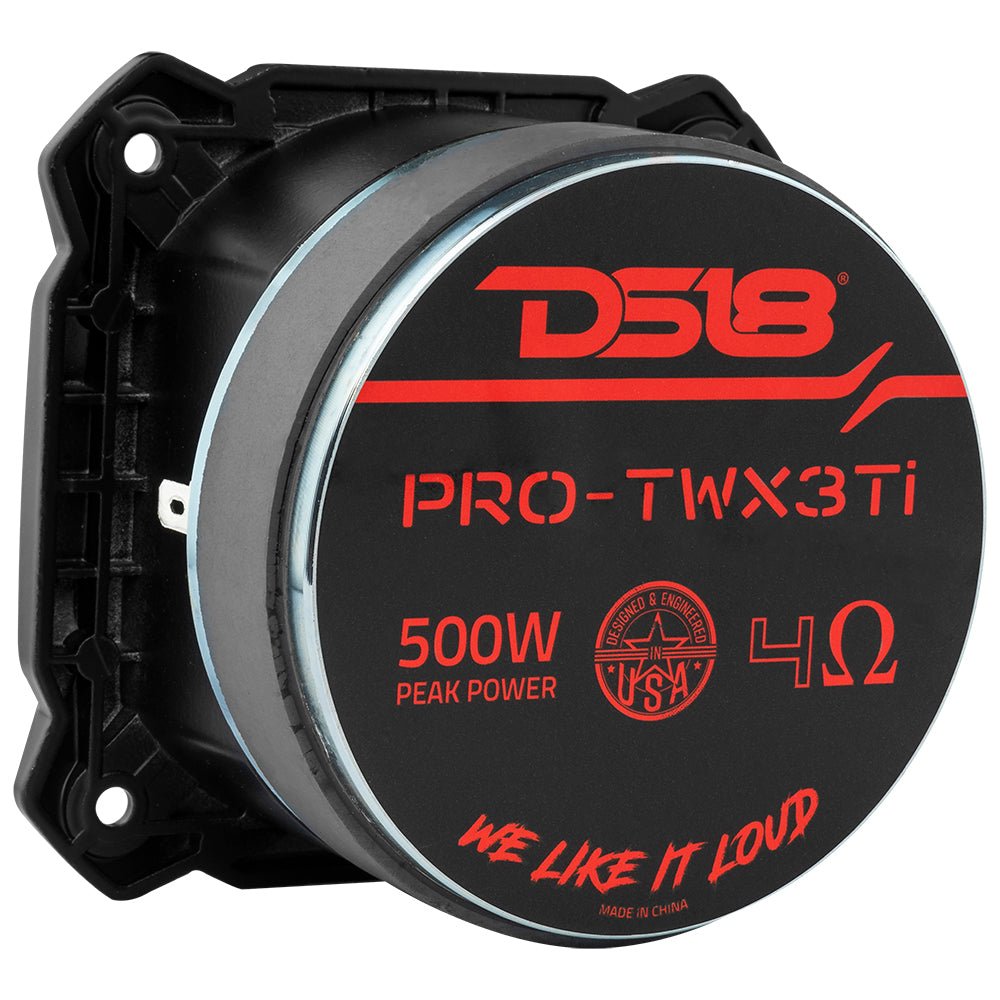

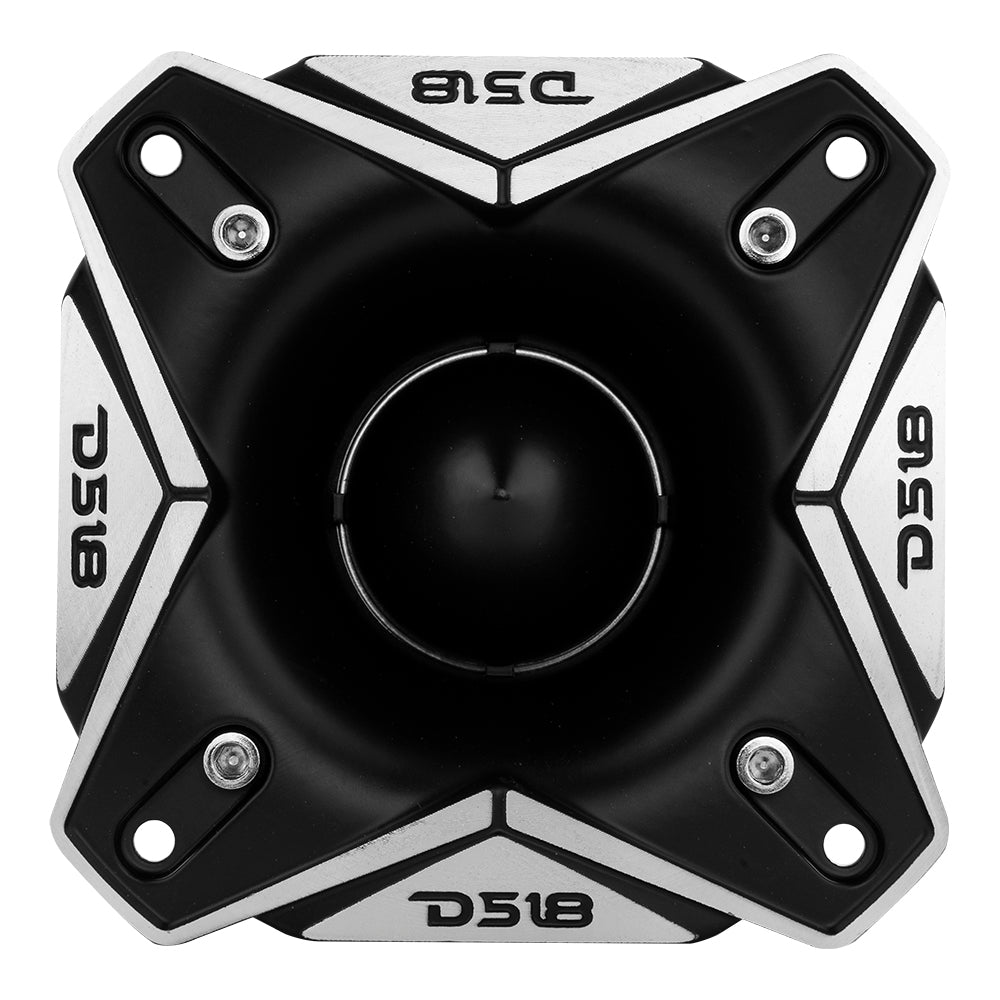

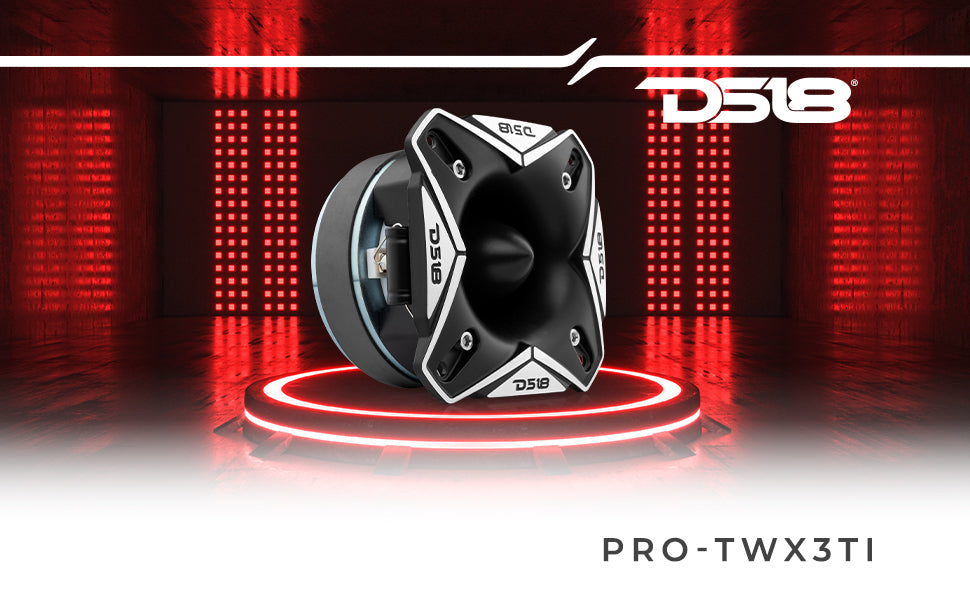

DS18 PRO-TWX3TI DS18 PRO-TWX3TI 3.8" Super Bullet Compression Tweeter With 1.5" Titanium Voice Coil 500 Watts 4 Ohm
DS18’s PRO-TWX3TI builds on the elegance of the PRO-TWX3
Designed to deliver intense volume with unmatched clarity, the PRO-TWX3TI handles power efficiently for extended listening sessions!
This model comes equipped with a titanium voice coil to support this speaker in its production of clear rich highs.
These professional grade super tweeters can handle power as high as 500W and deliver accurate sounds with a high frequency response of 1.6KHz to 20KHz.
The PRO-TWX3TI includes a Bass Blocking Capacitor for a cleaner signal that prevents lower frequencies from being produced; resulting in much brighter highs and added protection for both your speaker and voice coil!
Get the most out of your sound system by upgrading to DS18’s PRO-TWX3TI the concert quality tweeter your system deserves!
Highlights
- Handles high frequencies easily with a high frequency response of 1.6KHz to 20KHz.

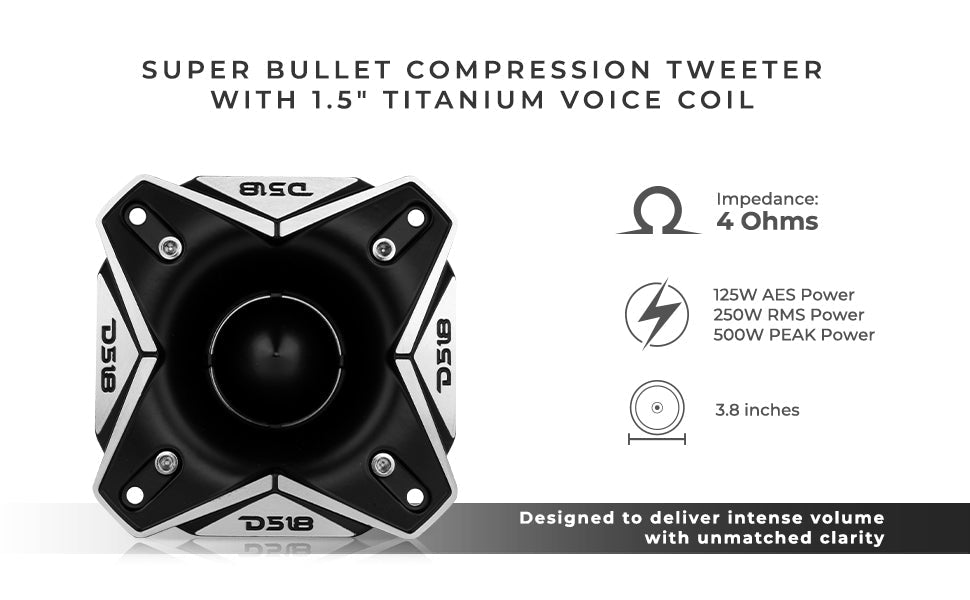

- Powerful and reliable 1.5” Titanium voice coil rated at 125W AES, 250W Program, and 500W Peak power ratings each with a built-in capacitor filter to help prevent failure from harmful frequencies.
- Super tweeter bullet design delivers extremely high range volume that can be heard for great distances with extreme clarity.
- Extremely high 108 dB rating for screaming loud high range frequencies delivered at high volumes with great sound quality.
- The ferrite motor structure, with a mounting depth of only 2.2 inches is robust yet small enough to fit an a wide and almost limitless number of applications.

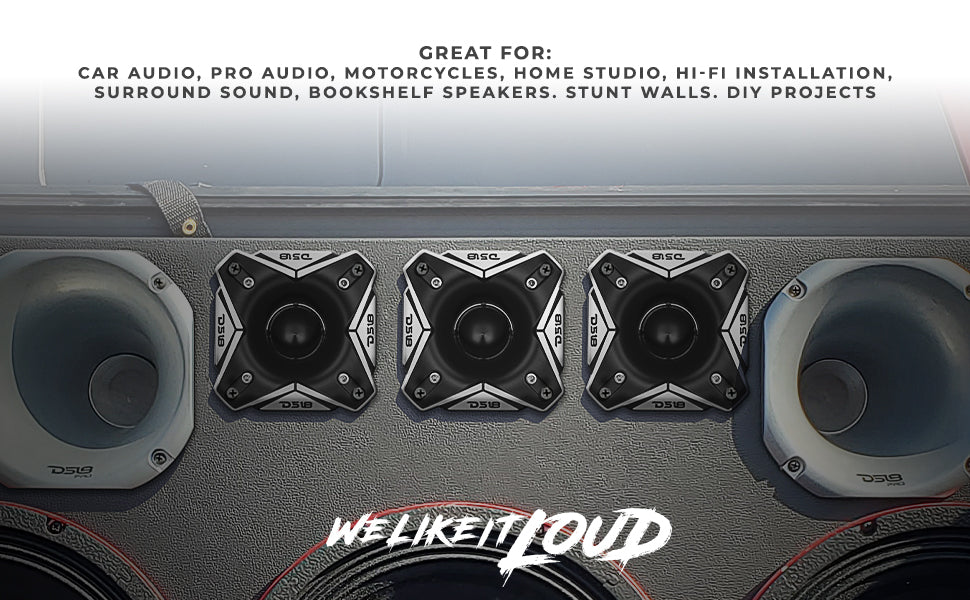

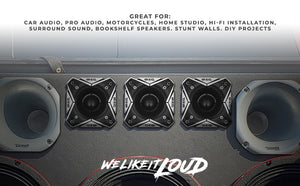

Great For
- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Surround Sound
- Bookshelf Speakers
- Stunt Walls
- DIY Projects
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 3.8" / 96.5mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 125W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 108 dB |
| Frequency Response | 1.6KHz-20KHz |
| Recommended Hi Pass Crossover | 2.5KHz |
| Sold In Pair or Single | Single |
| BODY / FEATURES | |
| Filter (Bass Blocker) | 4.7uf / 50V |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
| MOTOR | |

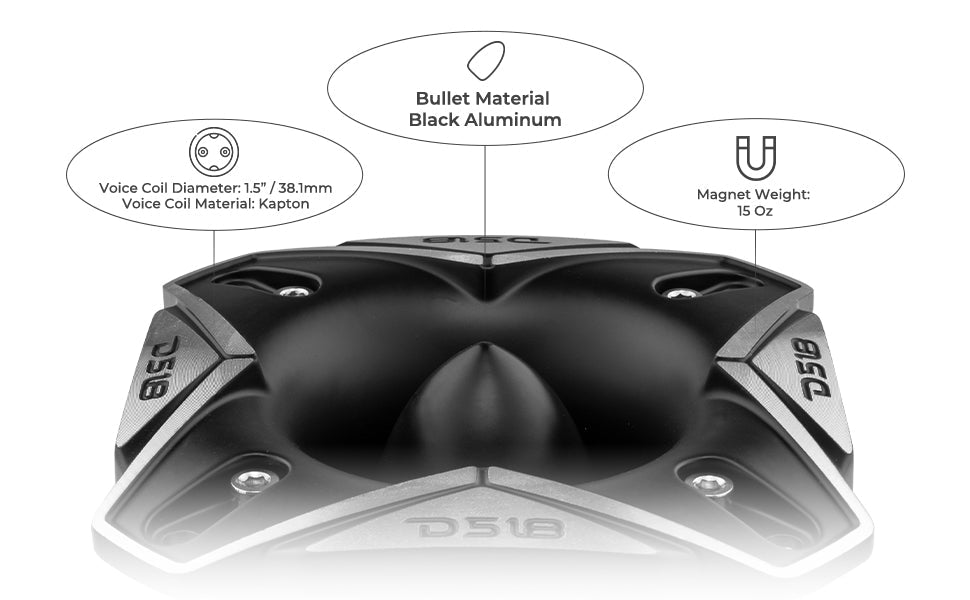

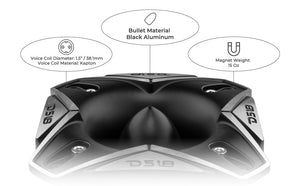

| Voice Coil Diameter | 1.5” / 38.1mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 15 Oz |
| MEASUREMENT | |

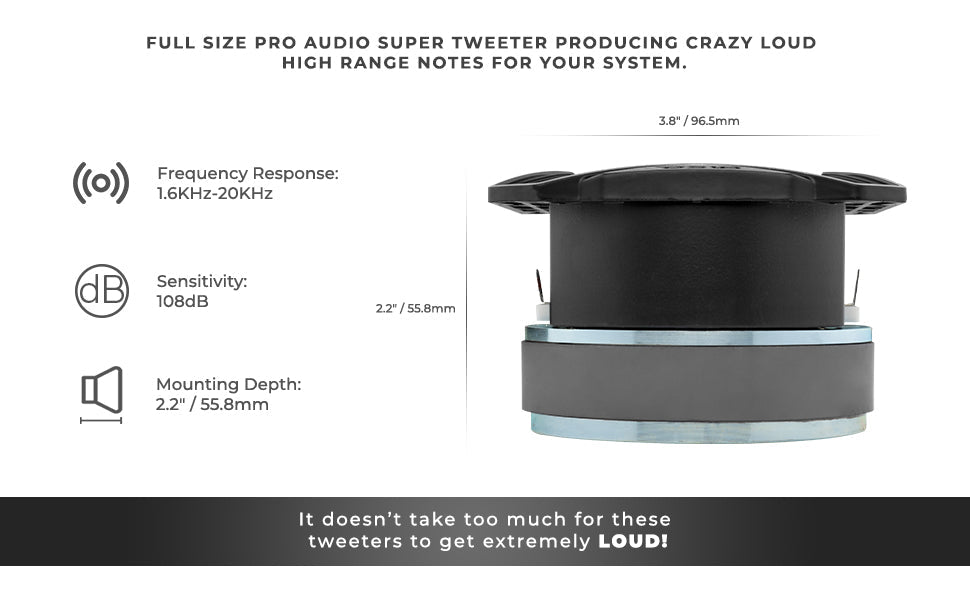

| Overall Diameter | 3.8" / 96.5mm |
| Overall Depth | 2.65" / 67.5mm |
| Front Mount Baffle Cutout | 3.62" / 92mm |
| Mounting Depth | 2.2" / 55.8mm |
| Motor Diameter | 3.5" / 90mm |
Key Features
- 3.8" Super Bullet Compression Tweeter
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4 Ohm ~ 108dB
- Ferrite Magnet
- Easily Repaired With DS18's PRO-TWX3TIVC
Specifications
| SKU | PRO-TWX3Ti |
|---|---|
| Nominal Diameter | 3.8" / 96.5mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 125W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 108 dB |
| Frequency Response | 1.6KHz-20KHz |
| Recommended Hi Pass Crossover | 2.5KHz |
| Sold In Pair or Single | Single |
| Filter (Bass Blocker) | 4.7uf / 50V |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titaninum |
| Magnet Material | Ferrite |
| Magnet Weight | 15 Oz |
| Overall Diameter | 3.8" / 96.5mm |
| Overall Depth | 2.65" / 67.5mm |
| Front Mount Baffle Cutout | 3.62" / 92mm |
| Mounting Depth | 2.2" / 55.8mm |
| Motor Diameter | 3.5" / 90mm |
| Gross Single Unit Weight (lb) | 3 |
| Single Unit Box Dimensions W x L x H (Inches) | 5 x 4.75 x 3.5 |
| Quantity of Units in Master Carton | 12 |
| Gross Master Carton Weight (lb) | 34.5 |
| Master Carton Dimensions W x L x H (Inches) | 14.75 x 10.5 x 7 |
