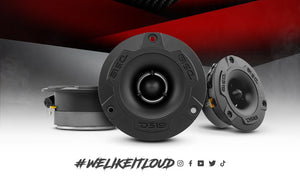

3.8" Super Bullet Tweeter 120W RMS 1" Aluminum 4-Ohm Vc
Product Overview DS18 PRO-TWX1/BK – 1” PRO Aluminum Super Bullet Tweeter VC – 240 Watts with Capacitor Crossover...
- $41.95
- $41.95
- Unit price
- per
Subtotal:
$41.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

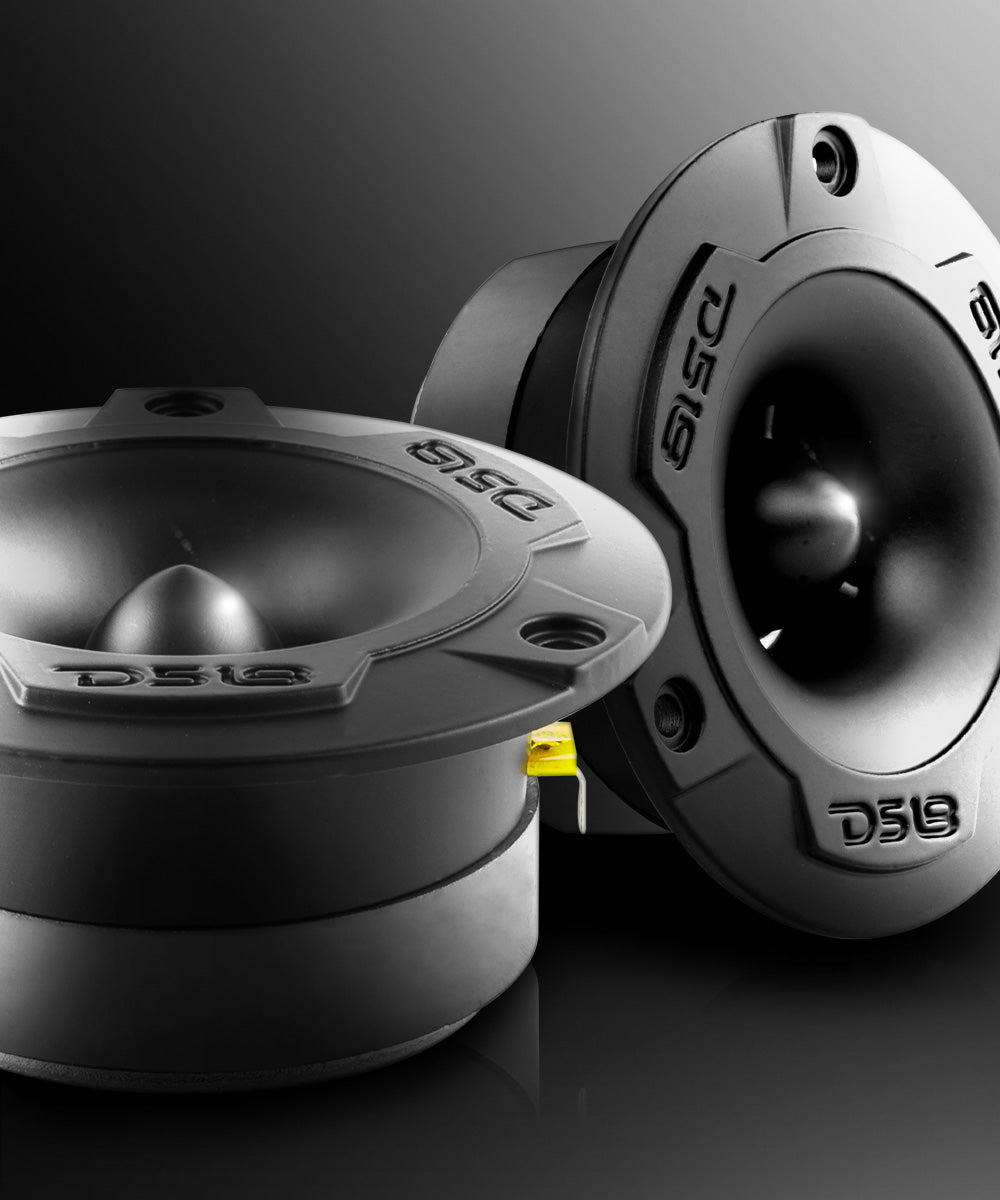

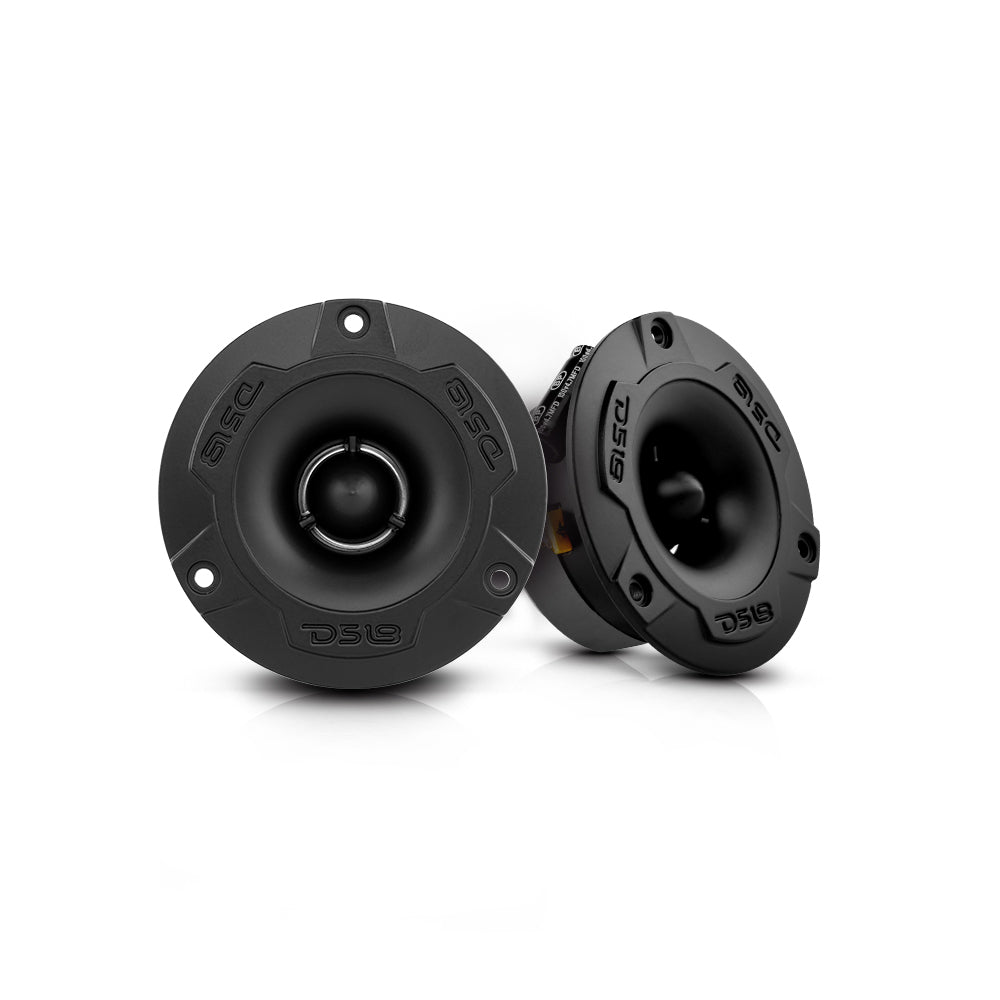

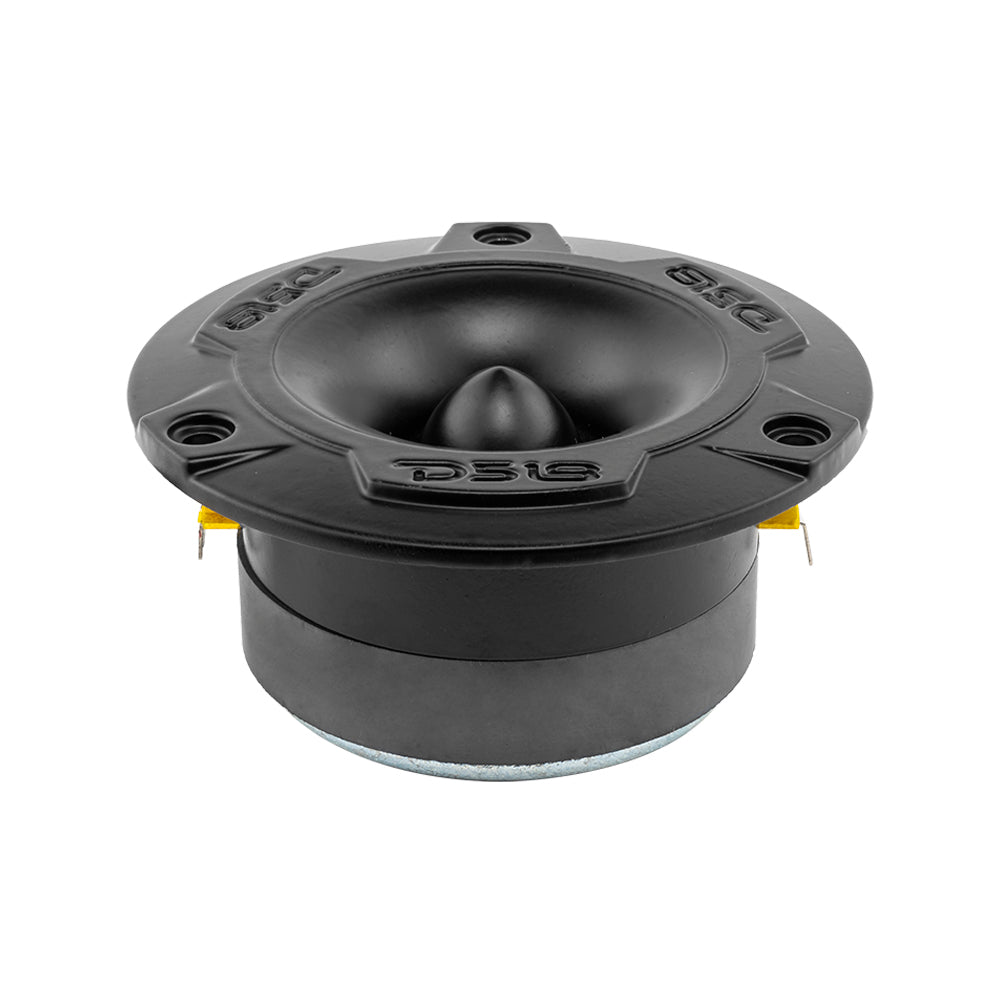

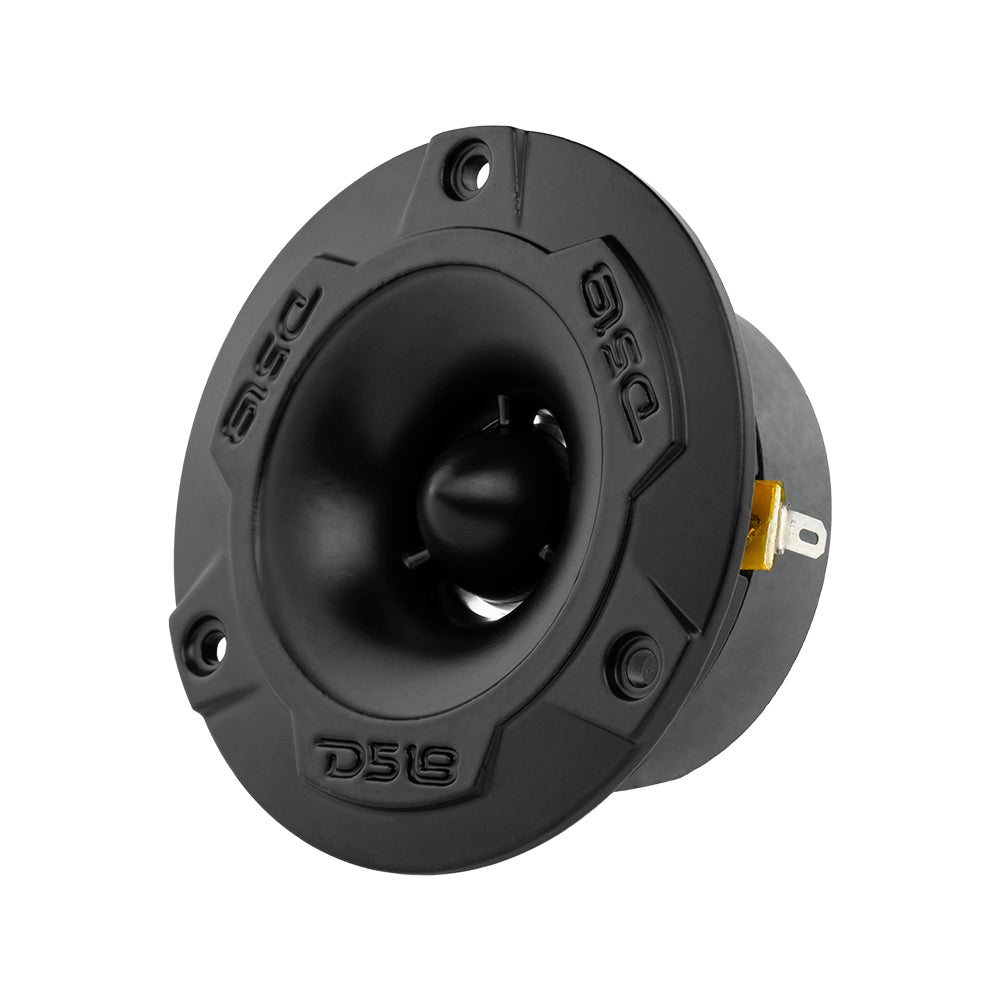

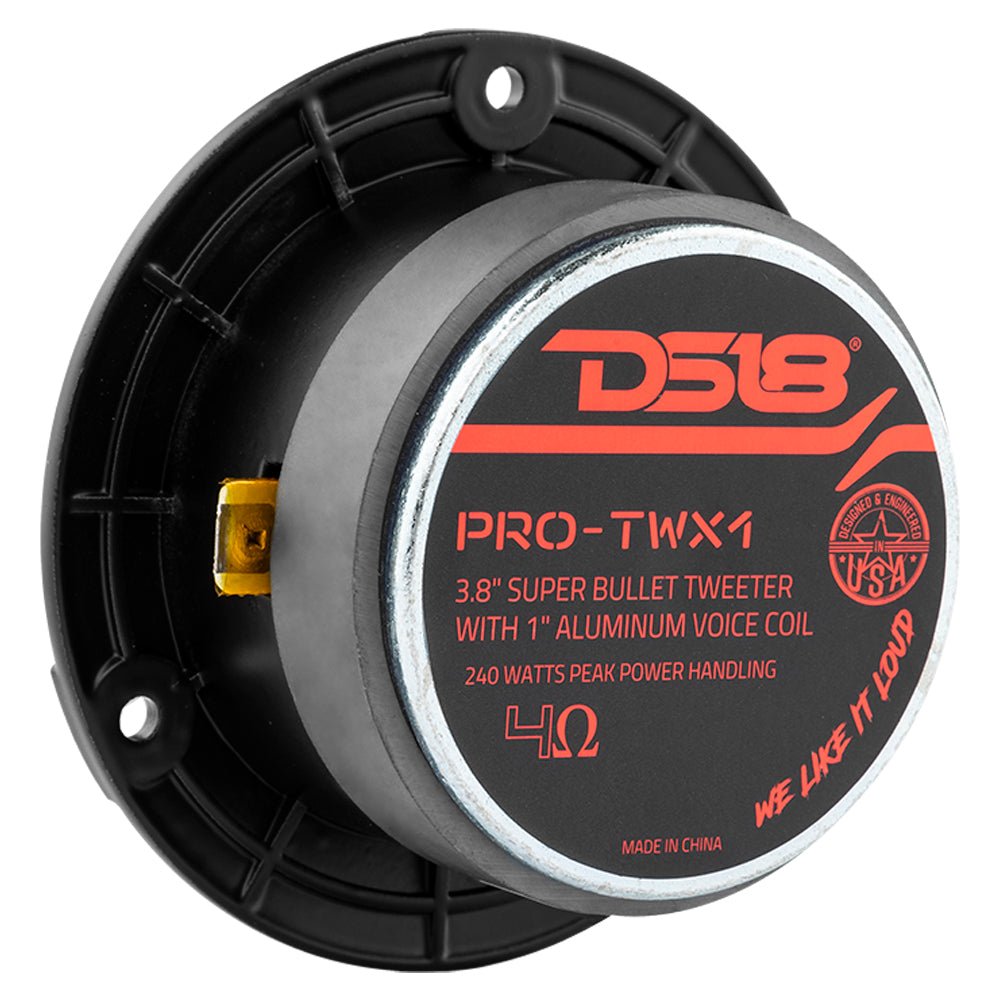

DS18 PRO-TWX1/BK – 1” PRO Aluminum Super Bullet Tweeter VC – 240 Watts with Capacitor Crossover (Pair)
Deliver Loud & Accurate Sounds at High Frequencies
The DS18 PRO-TWX1/BK are out-of-this-world tweeters and for good reason. With 240W peak power handling and a frequency response of 3.5KHz to 20KHz, these professional grade super tweeters deliver accurate sounds at high frequencies––perfect if you like your highs crisp, bright, and loud! Better yet, the Bullet dust cover protects the voice coil and ensures that your highs cut through the noise.
Order the DS18 PRO-TWX1/BK today to upgrade your sound system and produce highs that are loud, crisp, and accurate!
Take Your Sound System to The Next Level!
Upgrading with the DS18 PRO-TWX1/BK lets you make the most out of your sound system because it fills in everything that’s missing from your factory stereo system. Plus, it’s easy to install and gives your favorite music a live-performance feel even if you’re far away. What’s not to love?
Product Highlights
- Handles high frequencies with ease so you can enjoy your favorite music with loudness and sound quality combined.

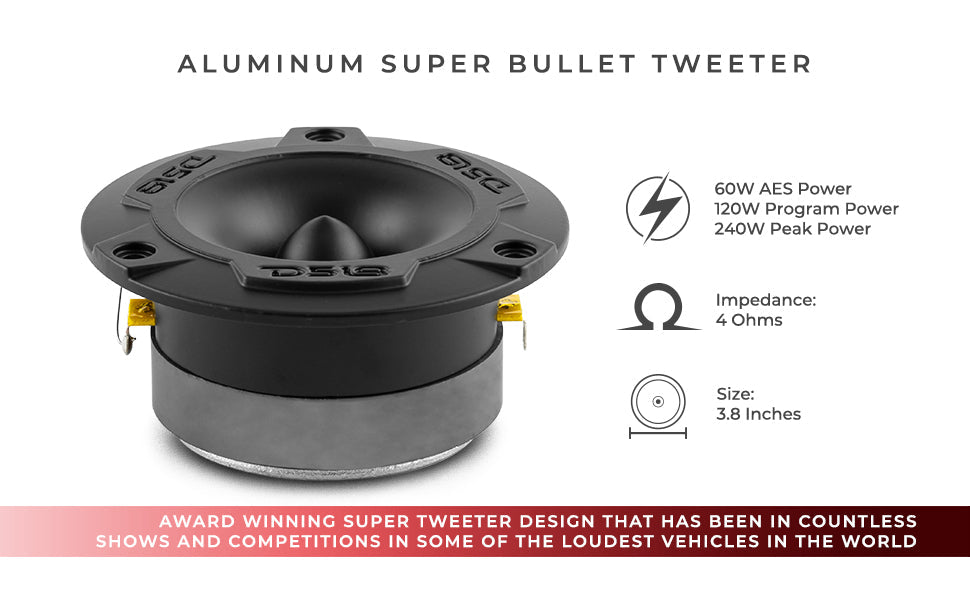

- Powerful and reliable Titanium 4-Ohms 1-inch voice coil rated at 60 watts AES, 120 watts program, and 240 peak power ratings each with a built-in capacitor filter to help prevent failure from harmful frequencies.
- Super tweeter bullet design delivers extremely high range volume that can be heard for great distances with extreme clarity.
- Professional grade Pro-Audio tweeter that takes your sound system to the next level!

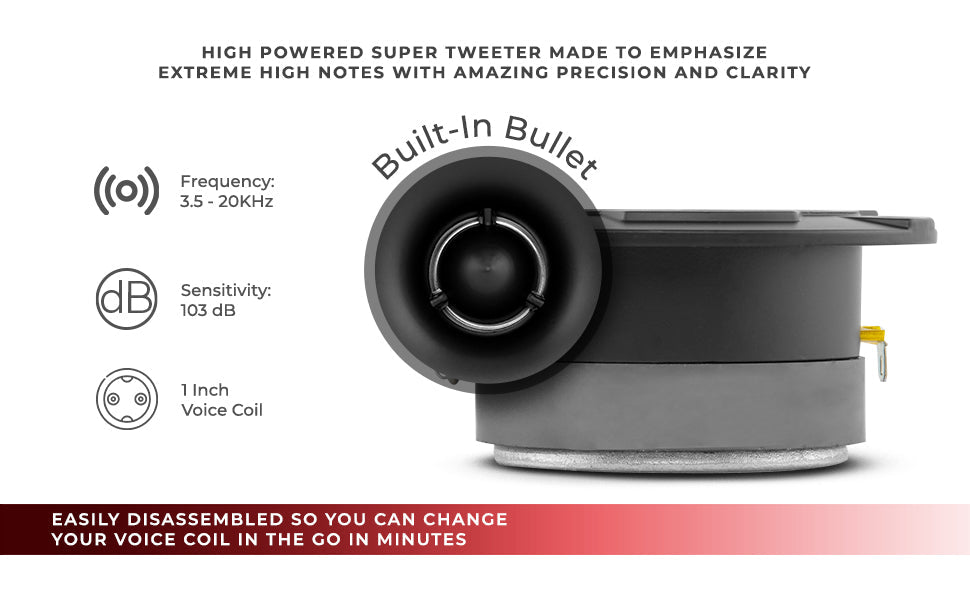

- Designed to be repaired quickly and easily with our drop in voice coil kits that can be installed in less than 5 minutes.
- Extremely high 103 dB rating for screaming loud high range frequencies delivered at high volumes with great sound quality.
- The ferrite motor structure, with a mounting depth of only 1.57 inches is robust yet small enough to fit an a wide and almost limitless number of applications.
Technical Details
| Model: | PRO-TWX1/BK |
| Type: | Super Bullet Tweeter |
| Peak Power Handling | 240 Watts |
| Program Power Handling | 120 Watts |
| AES Power Handling | 60 Watts |
| Diaphragm Material: | Aluminum |
| Sensitivity: | 103dB |
| Impedance: | 4 Ohms |
| Voice Coil Diameter | 1" |

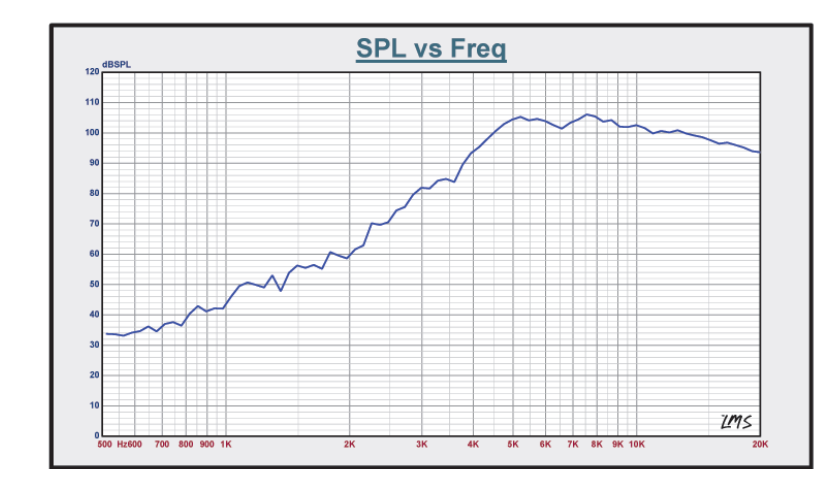

| Frequency Response: | 3.5KHz - 20KHz |
| Package Quantity: | 2 |
| Replacement Diaphragm: | PRO-TW1VC |

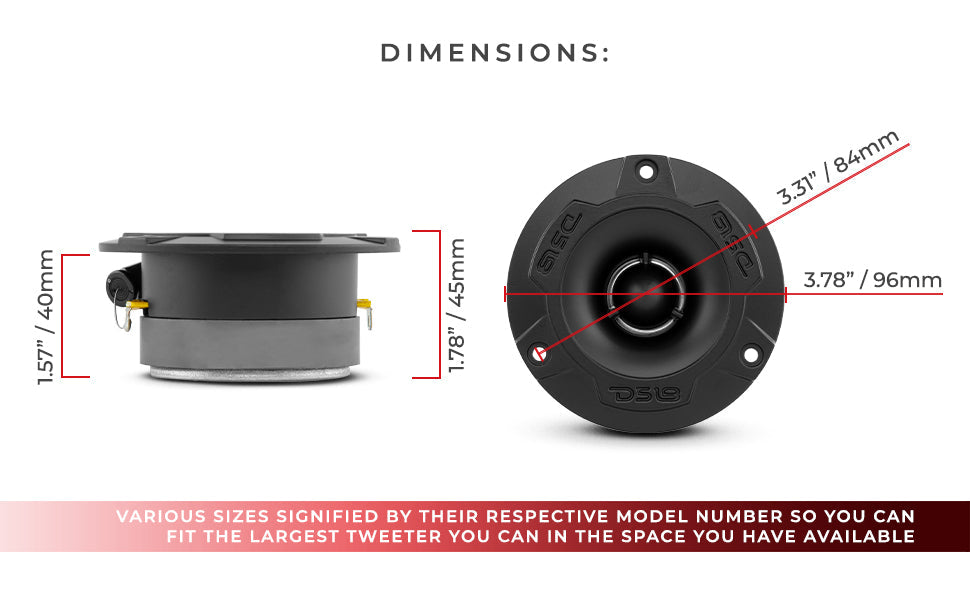

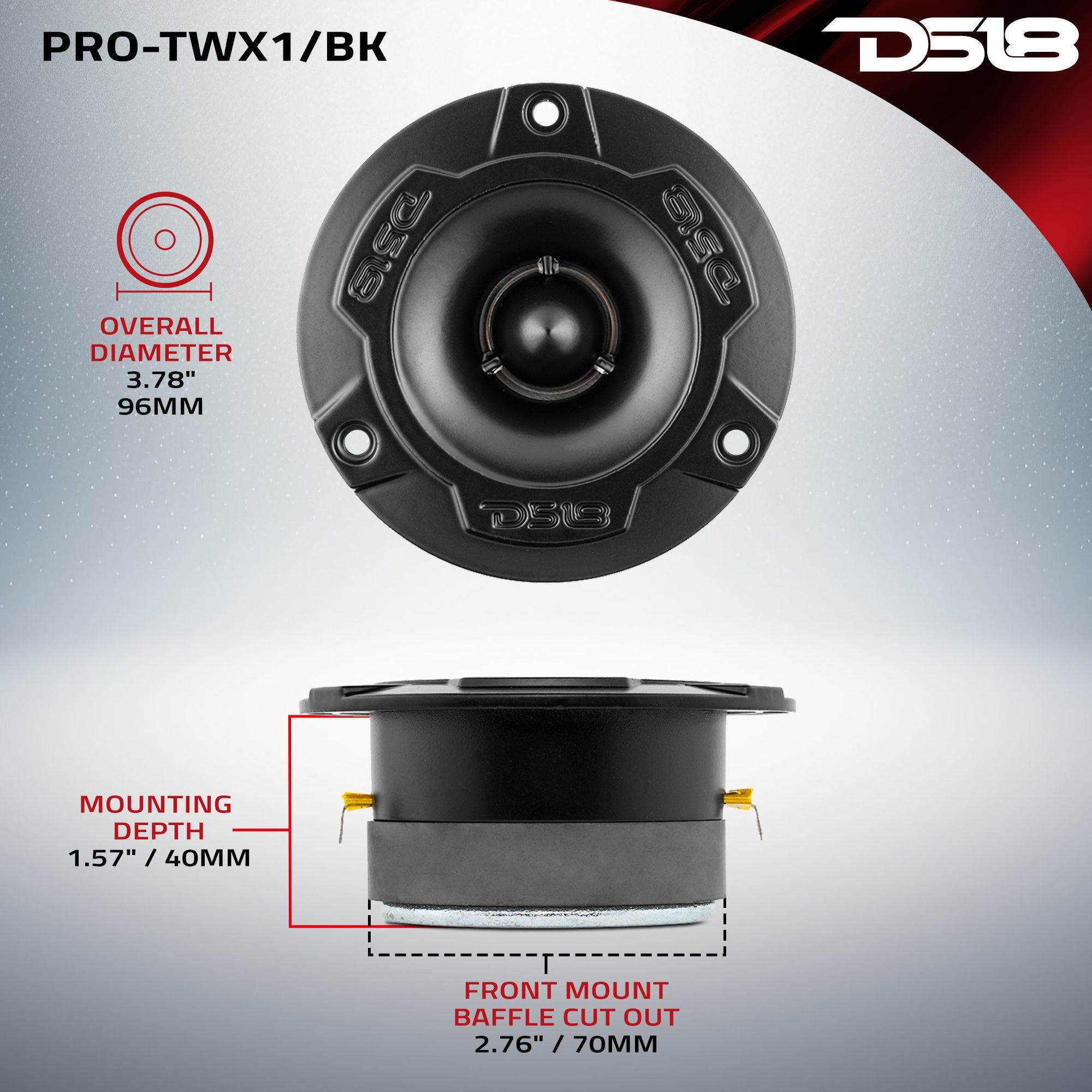

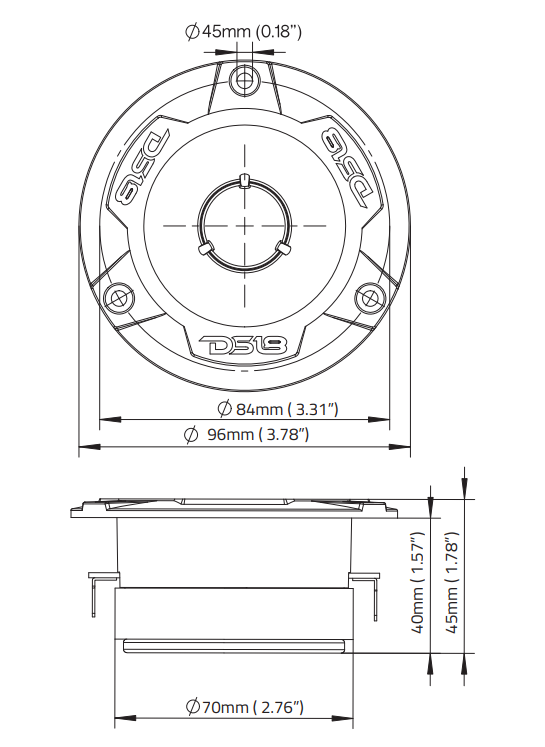

| Measurements: | |
| Overall Diameter | 3.78"/96mm |
| Overall Depth | 1.78"/45mm |
| Front Mount Baffle Cutout | 2.76"/70mm |
| Mounting Depth | 1.57"/40mm |
Key Features
- 3.8" Super Bullet Tweeter
- MAX Power: 240 Watts
- RMS Power: 120 Watts
- Impedance: 4 Ohm ~ 103dB
- Ferrite Magnet
- Pair
Specifications
| SKU | PRO-TWX1/BK |
|---|---|
| Nominal Diameter | 3.8" / 96mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1w/1m) | 103 db |
| Frequency Response | 3.5K-20Khz |
| Recommended Hi Pass Crossover | 2KHz |
| Sold In Pair or Single | Pair |
| Filter (Bass Blocker) | N/A |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
| Voice Coil Diameter | 1" 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 8 Oz |

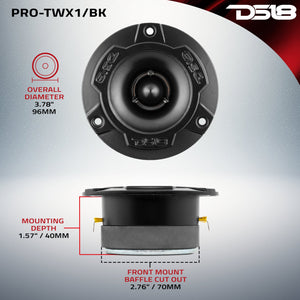

| Overall Diameter | 3.78" / 96mm |
| Overall Depth | 1.78" / 45mm |
| Front Mount Baffle Cutout | 2.76" / 70mm |
| Mounting Depth | 1.57" / 40mm |
| Motor Diameter | 2.76" / 70mm |
| Gross Single Unit Weight (lb) | 3 |
| Single Unit Box Dimensions W x L x H (Inches) | 8.5 x 4.25 x 2.25 |
| Quantity of Units in Master Carton | 12 |
| Gross Master Carton Weight (lb) | 33 |
| Master Carton Dimensions W x L x H (Inches) | 17.25 x 9.25 x 7.5 |
