Product Overview

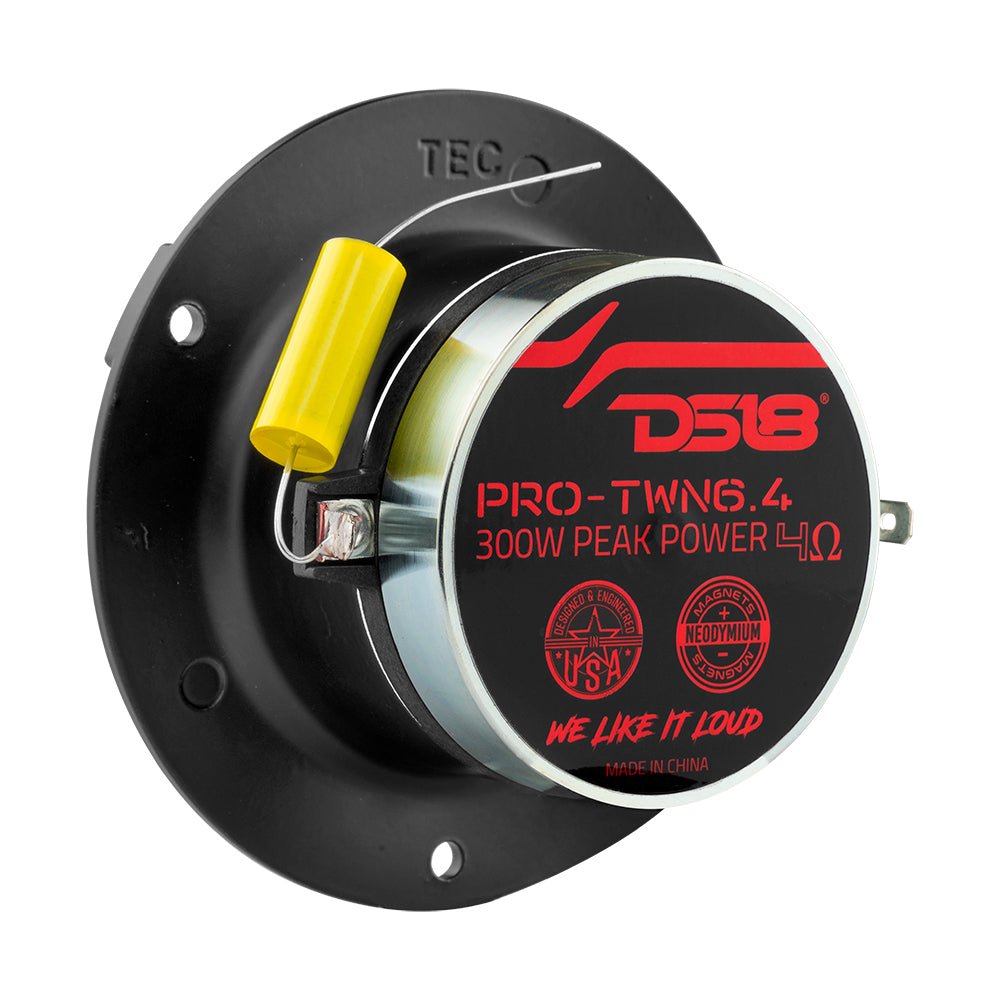

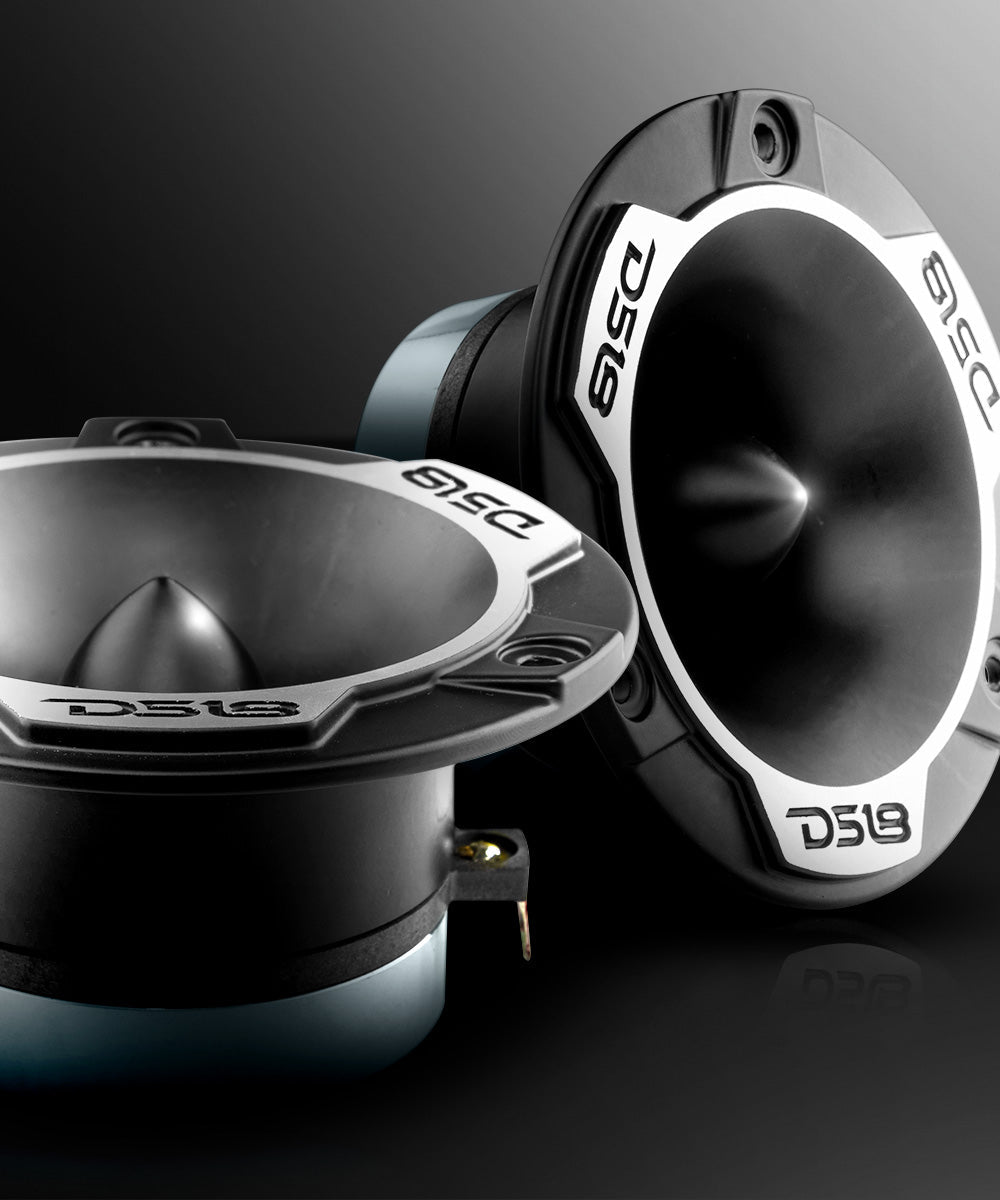

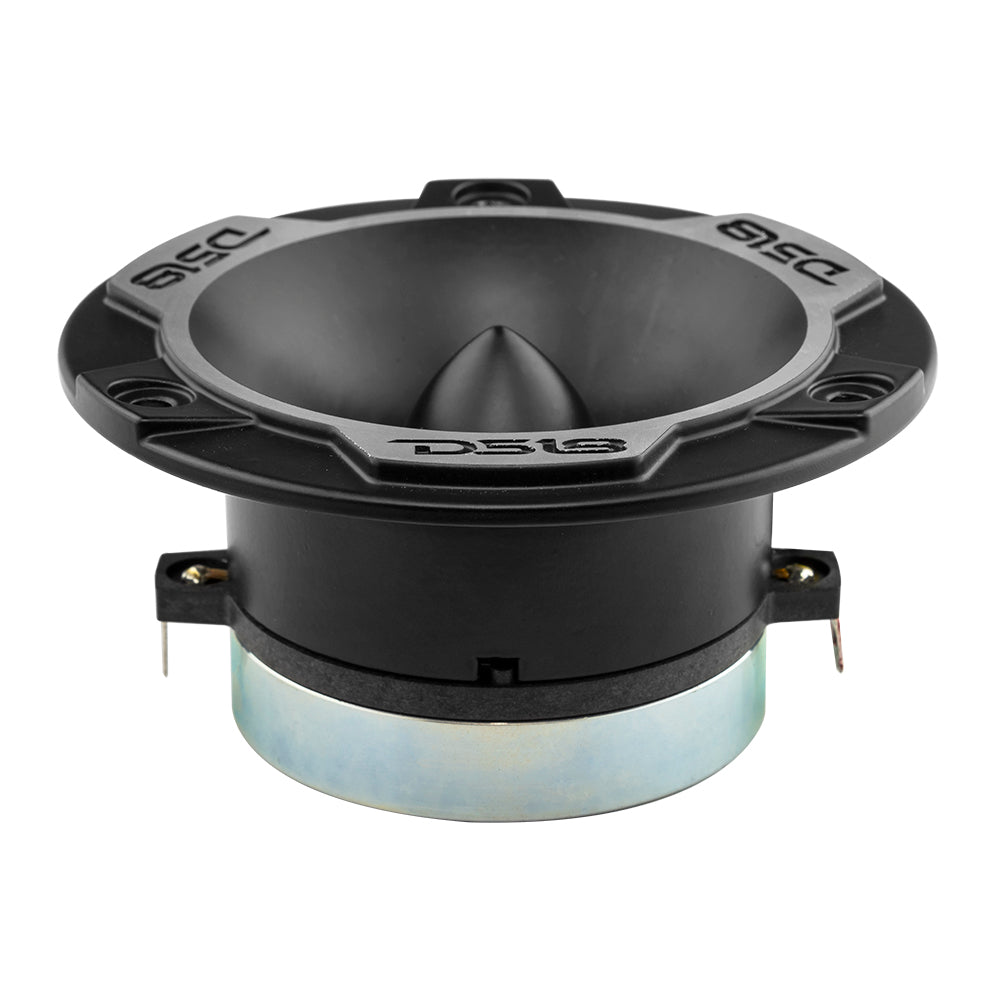

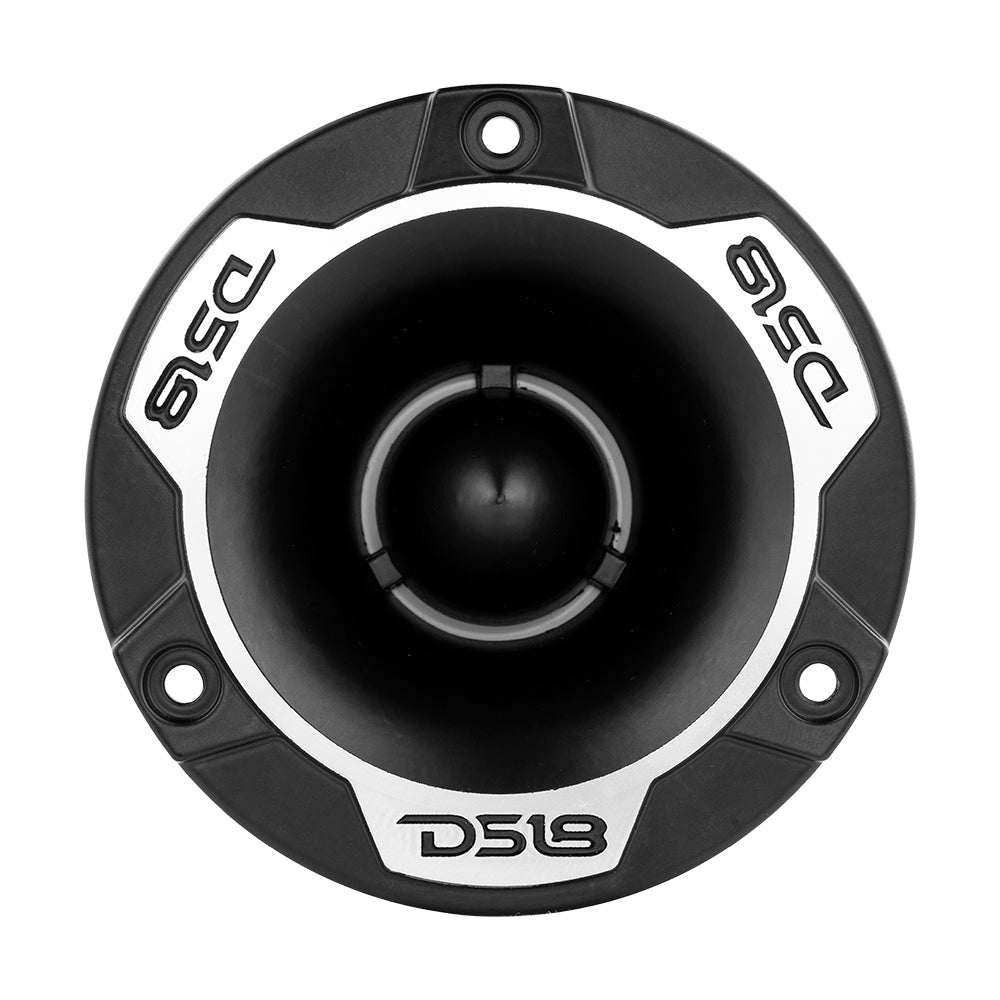

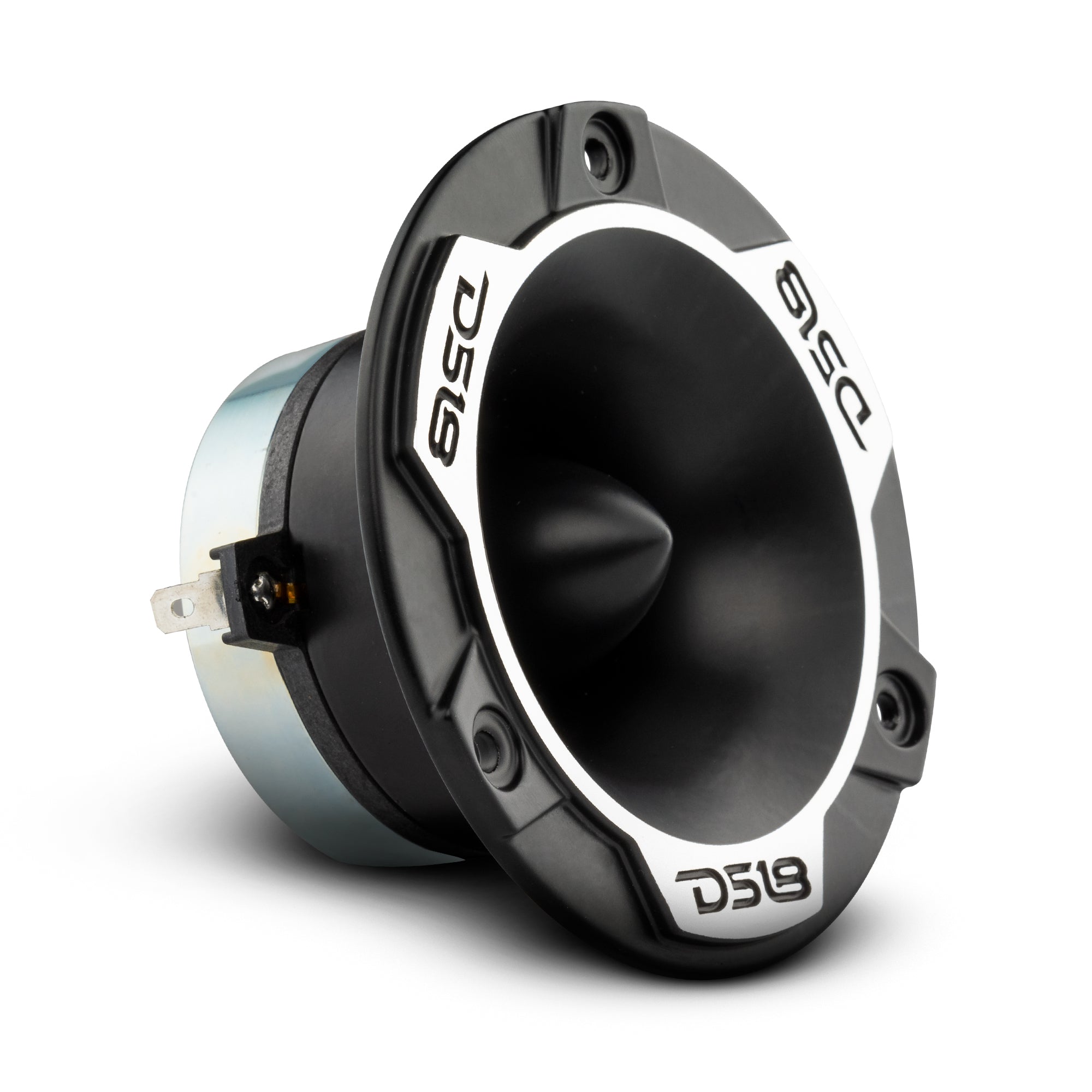

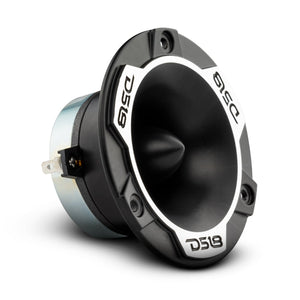

DS18 PRO-TWN6.4 4" PRO High Compression Neodymium Tweeter 1.25" Voice Coil 4 Ohm
The PRO-TWN Series Tweeter, a staple in the competitive professional audio scene, is back with boosted brilliance and clarity.

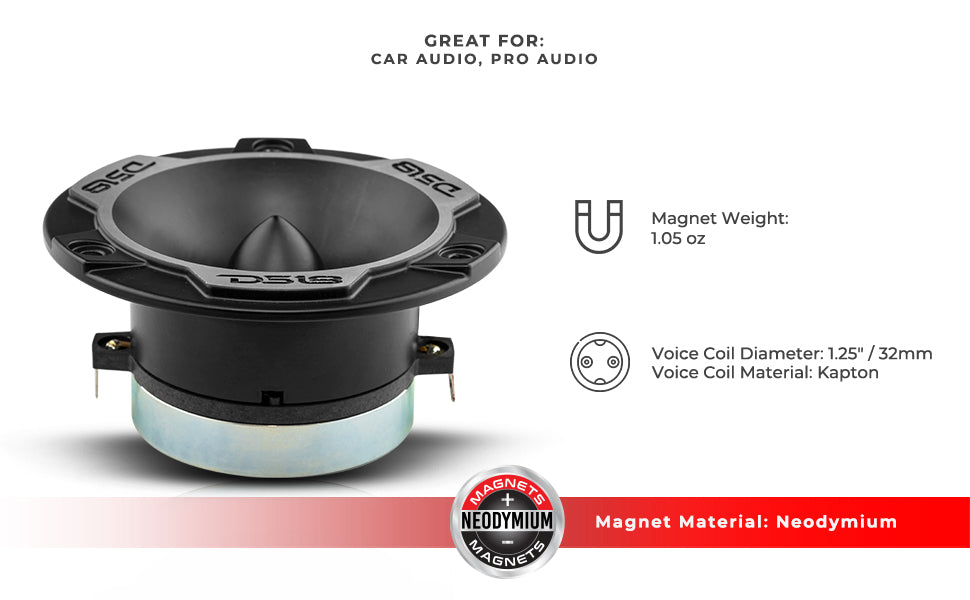

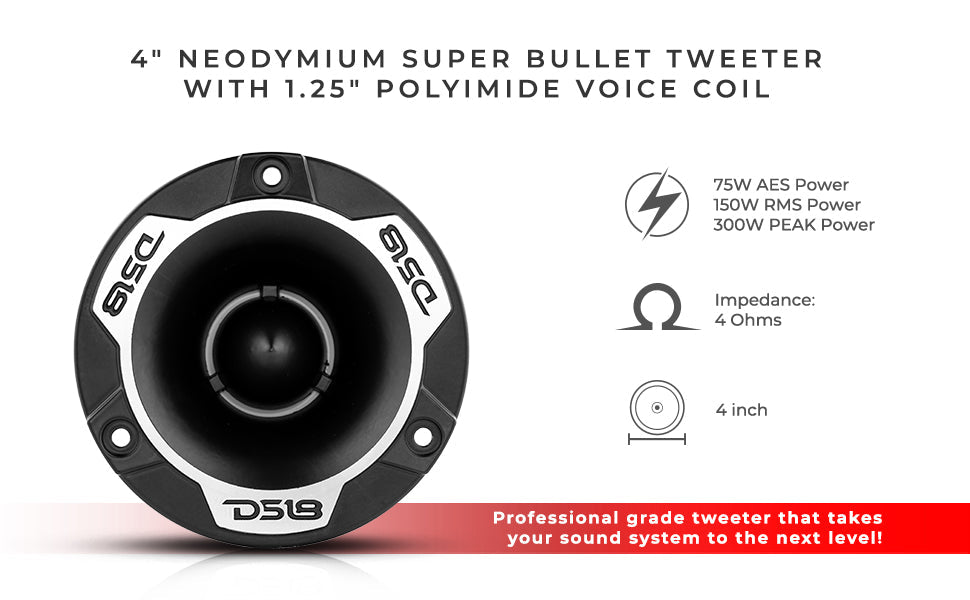

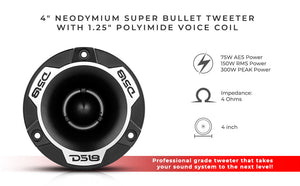

This 4” Neodymium Super Bullet Tweeter is equipped with a 1.25” Voice Coil and handles AES power at 75W, Program Power at 150W, and Peak Power at 300W. The neodymium magnet increases the efficiency of the tweeter and significantly lowers its weight.
With an extremely high sensitivity of 109 dB, it doesn’t take too much for these tweeters to get extremely LOUD! With minimal amounts of power, these tweeters still deliver vibrant highs with endless altitude!
This 4-ohm tweeter is guaranteed to enrich your high frequency response and would be a complement to every sound system!
Highlights

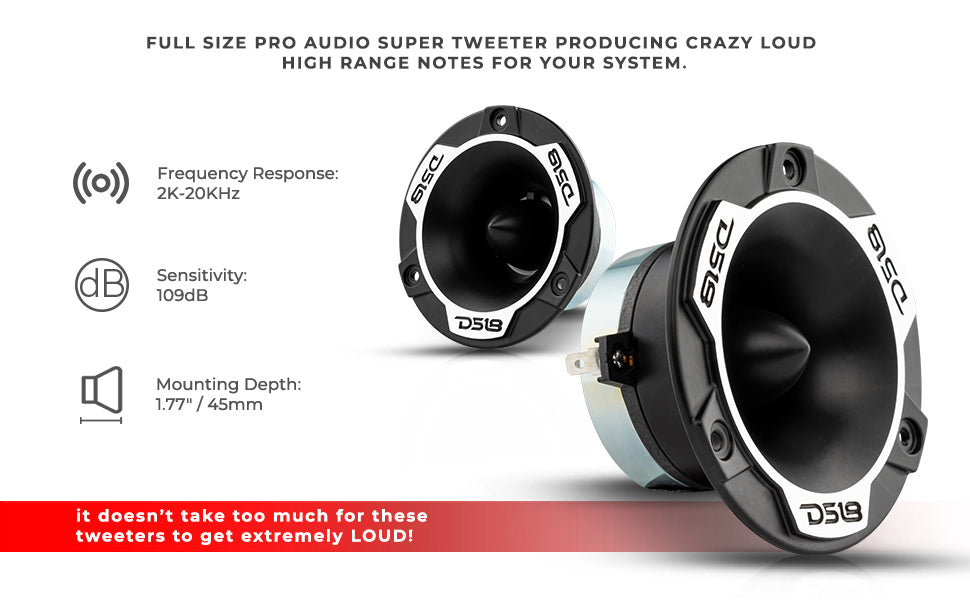

- Full size pro audio super tweeter producing crazy loud high range notes for your system.
- Designed to fit in most spaces with slight modification or fabrication.
Great For

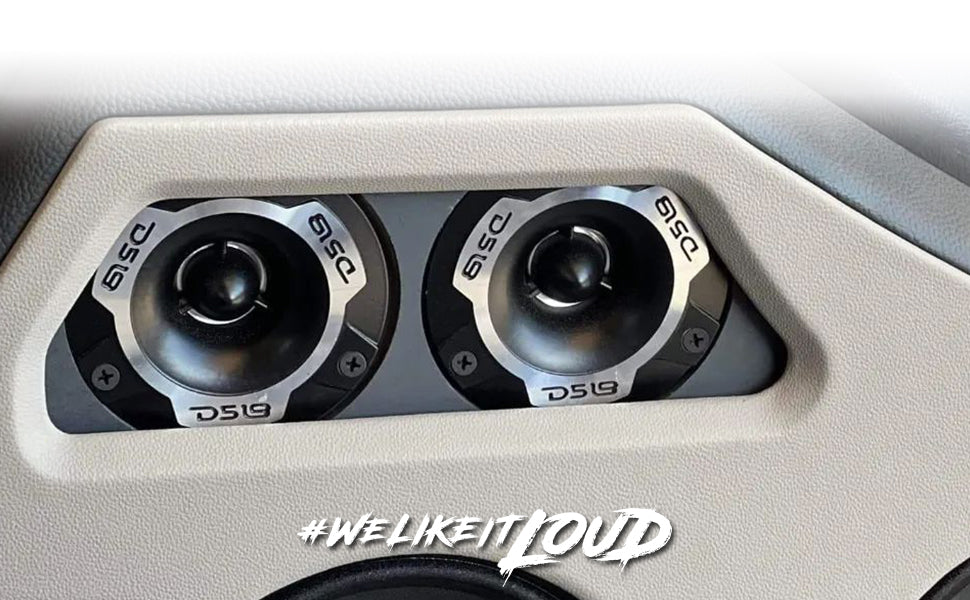

- Car Audio
- Pro Audio
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 4" / 100mm |
| Nominal Impedance | 4 ohms |
| AES Power Handling | 75 Watts |
| Program Power Handling | 150 Watts |
| Peak Power Handling | 300 Watts |
| Sensitivity (1w/1m) | 109 dB |
| Frequency Response | 2K-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
| BODY/ FEATURES | |
| Pair or Single | Single |
| Body Material | Aluminum |
| Body Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
| MOTOR | |
| Voice Coil Diameter | 1.25" / 32mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAR |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium |
| Magnet Weight | 1.05 oz |

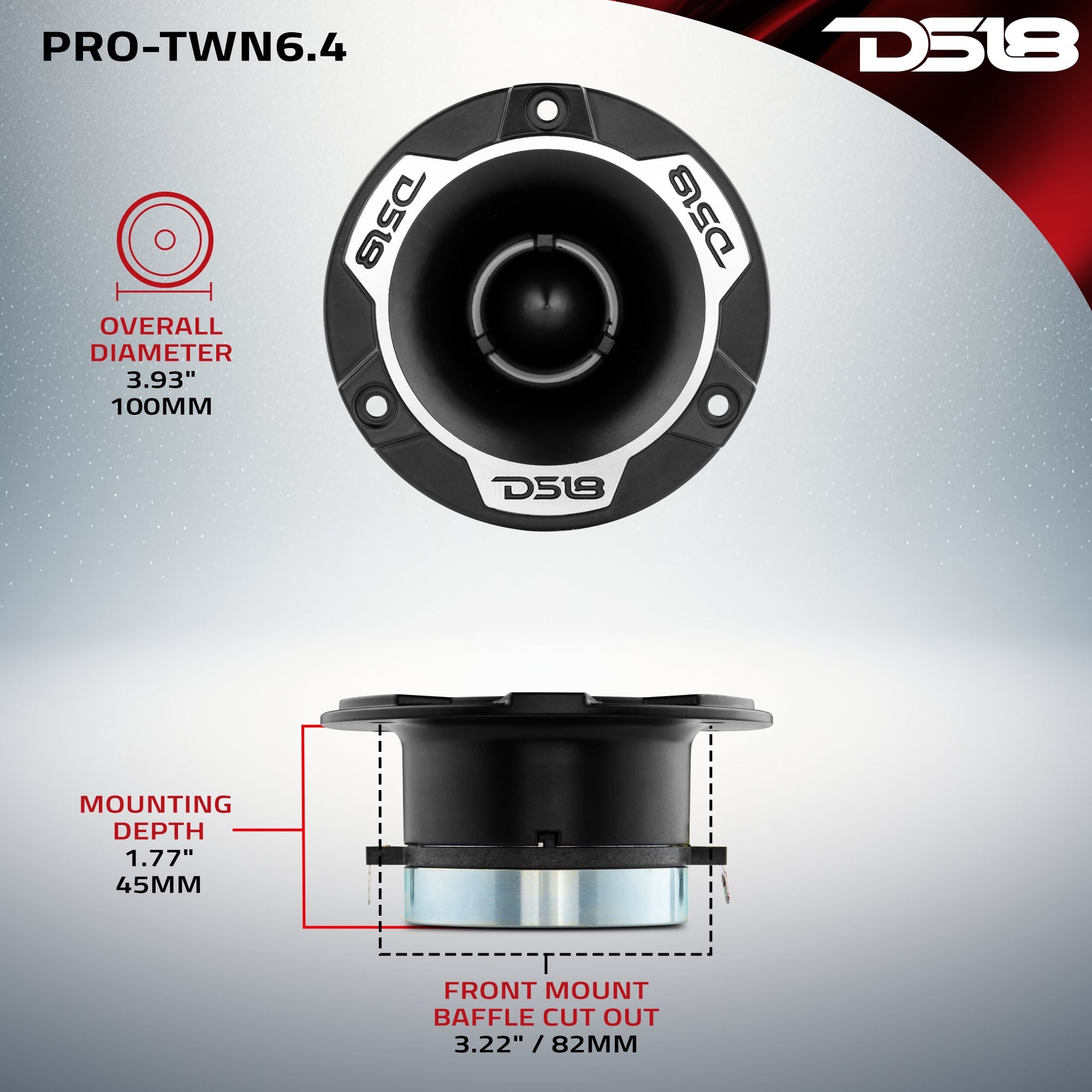

| MEASUREMENT | |
| Overall Diameter | 3.93" / 100mm |
| Overall Depth | 1.96" / 50mm |
| Front Mount Baffle Cutout | 3.22" / 82mm |
| Mounting Depth | 1.77" / 45mm |
Key Features
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN6.4VC
Specifications
| SKU | PRO-TWN6.4 |
|---|---|
| Nominal Diameter | 4" / 100mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 75 Watts |
| Program Power Handling | 150 Watts |
| Peak Power Handling | 300 Watts |
| Sensitivity (1w/1m) | 109 dB |
| Frequency Response | 2K-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
| Voice Coil Diameter | 1.25" / (32mm) |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAR |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium |
| Body Material | 1.05 oz |
| Overall Diameter | 3.93" / 100mm |
| Overall Depth | 1.96" / 50mm |
| Front Mount Baffle Cutout | 3.22" / 82mm |
| Mounting Depth | 1.77" / 45mm |
| Product Weight | 1.28 lbs |
| Product Dimensions | 4.25 x 4.25 x 3 |
| M/C Weight | 32 lbs |
| M/C Dimensions | 17.25 x 13 x 7.75 |
| M/C QTY | 24 |
| Sold as | Single |
