3" High Compression Neodymium Hybrid Driver/Tweeter 100 Watts 1" Polyester 4-Ohm Vc
Product Overview DS18 PRO-TWN2PL 3" High Compression Super Bullet Tweeter With 1" Polyester Voice Coil and Neodymium...
- $52.95
- $52.95
- Unit price
- per
Subtotal:
$52.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

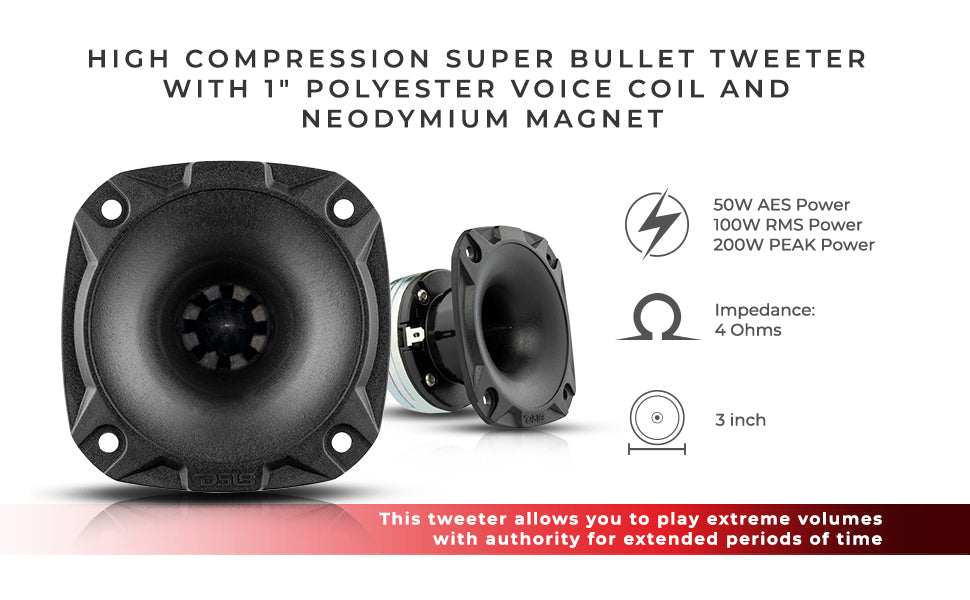

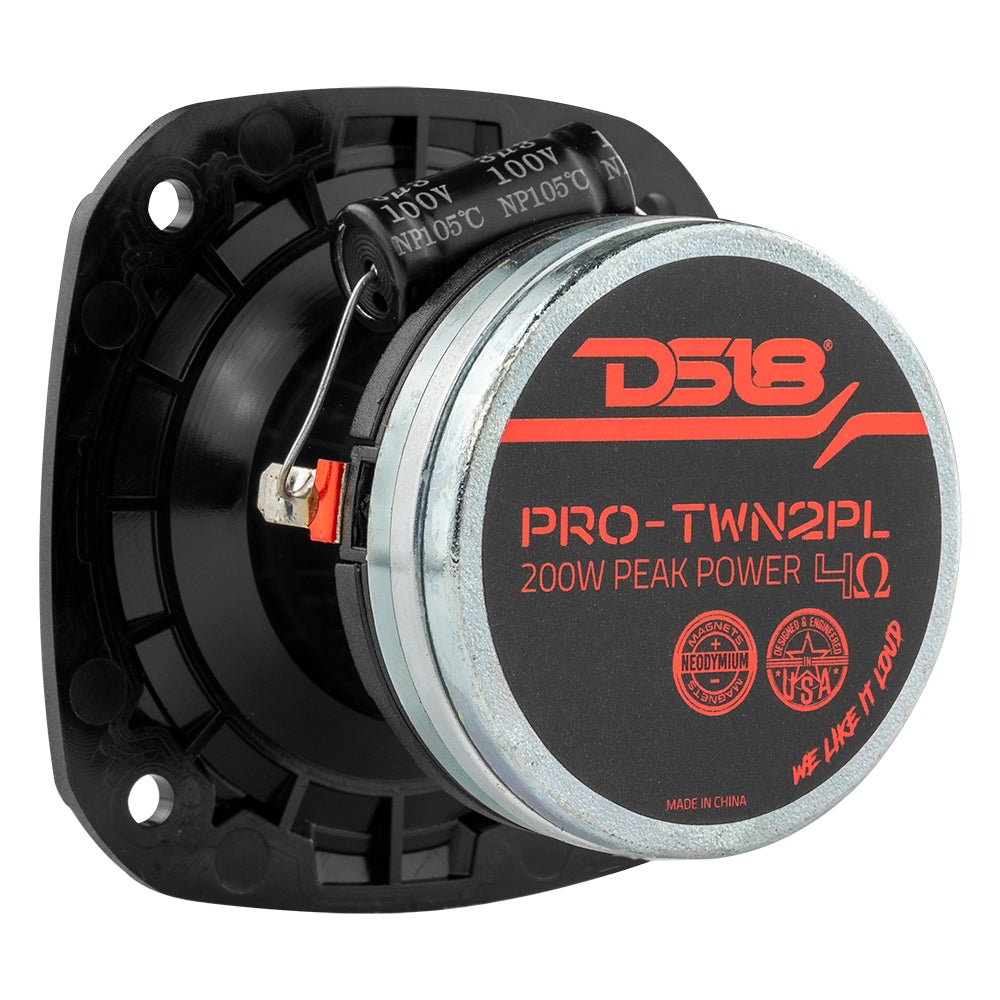

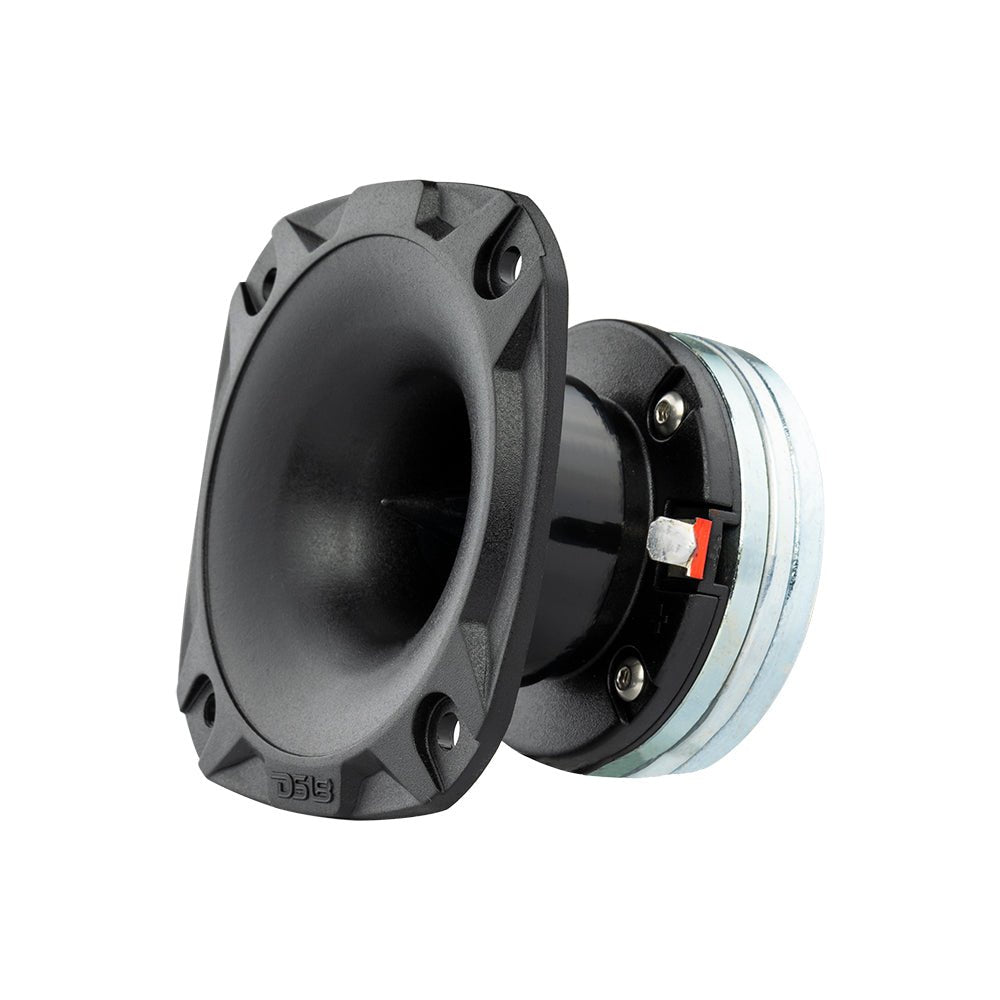

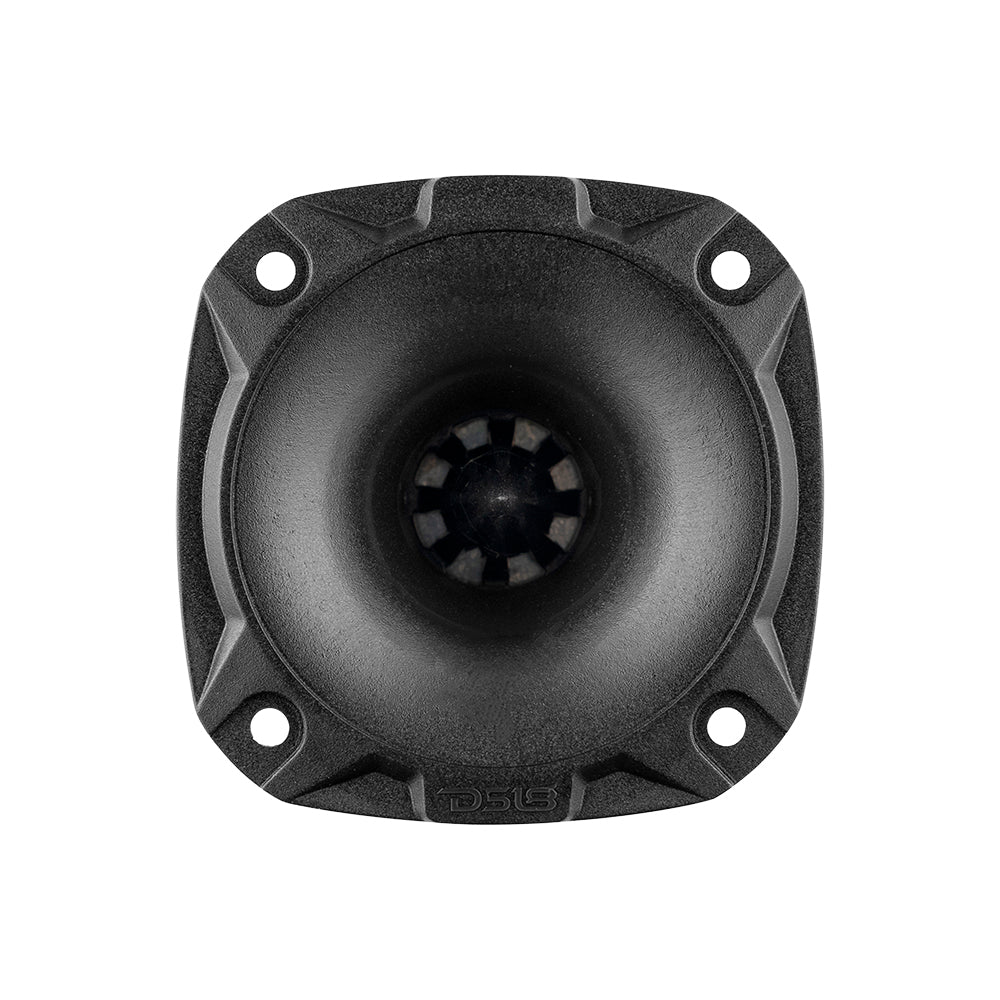

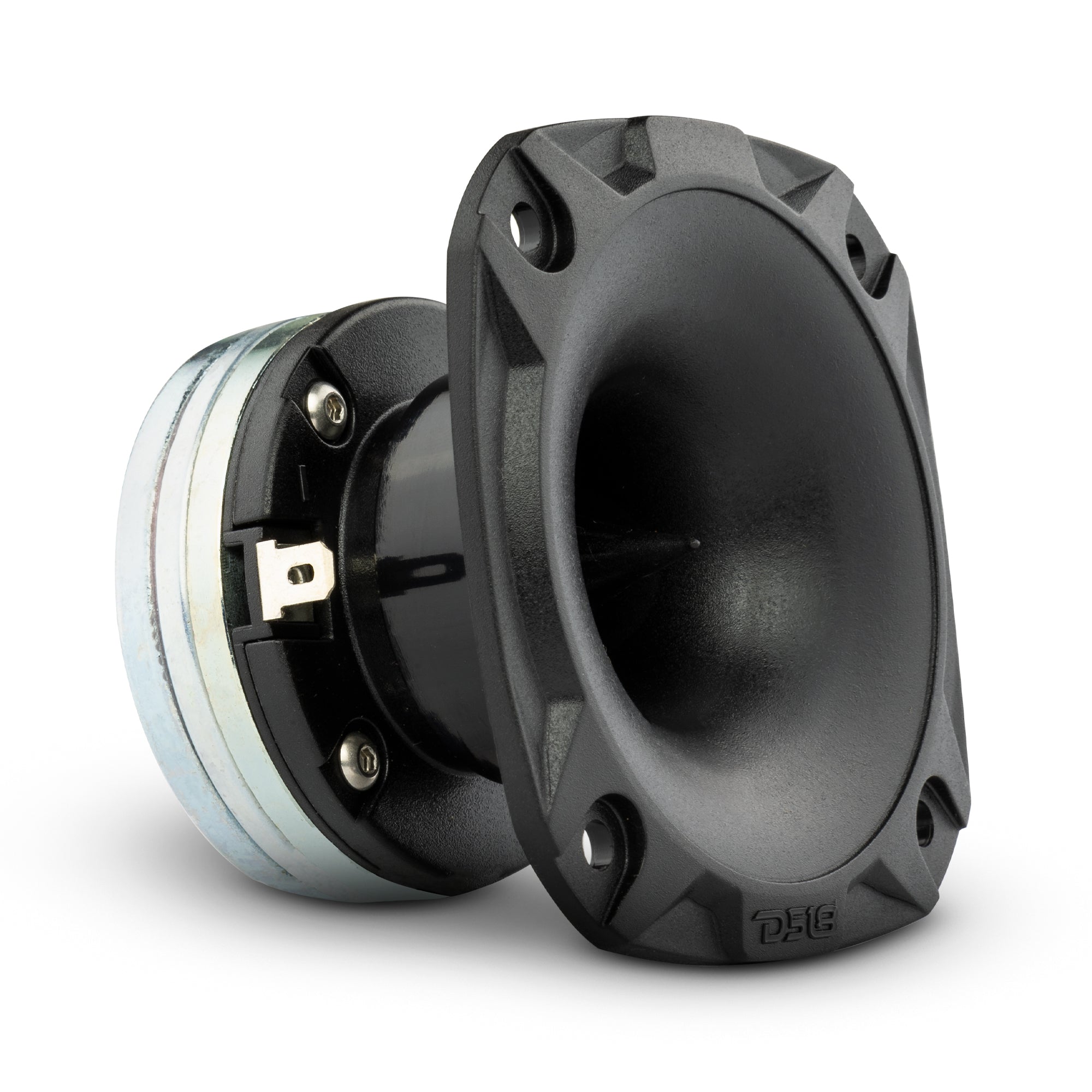

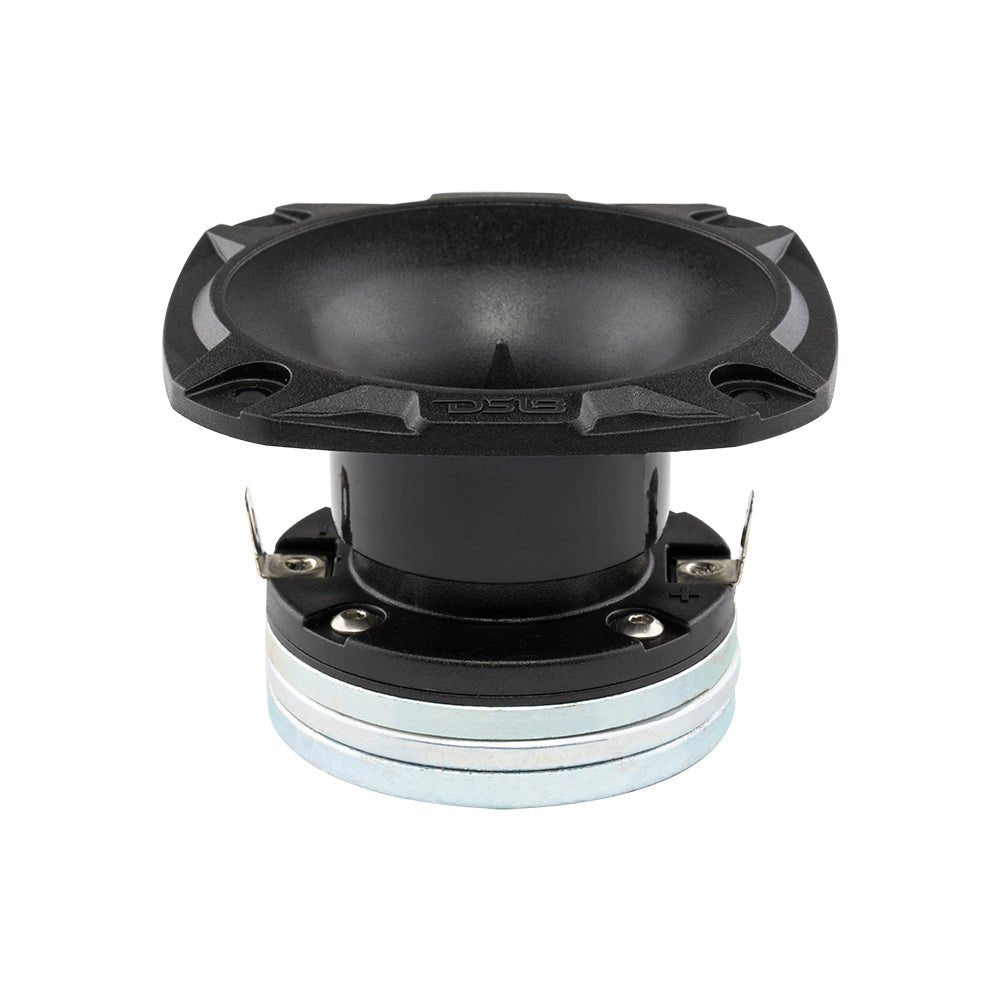

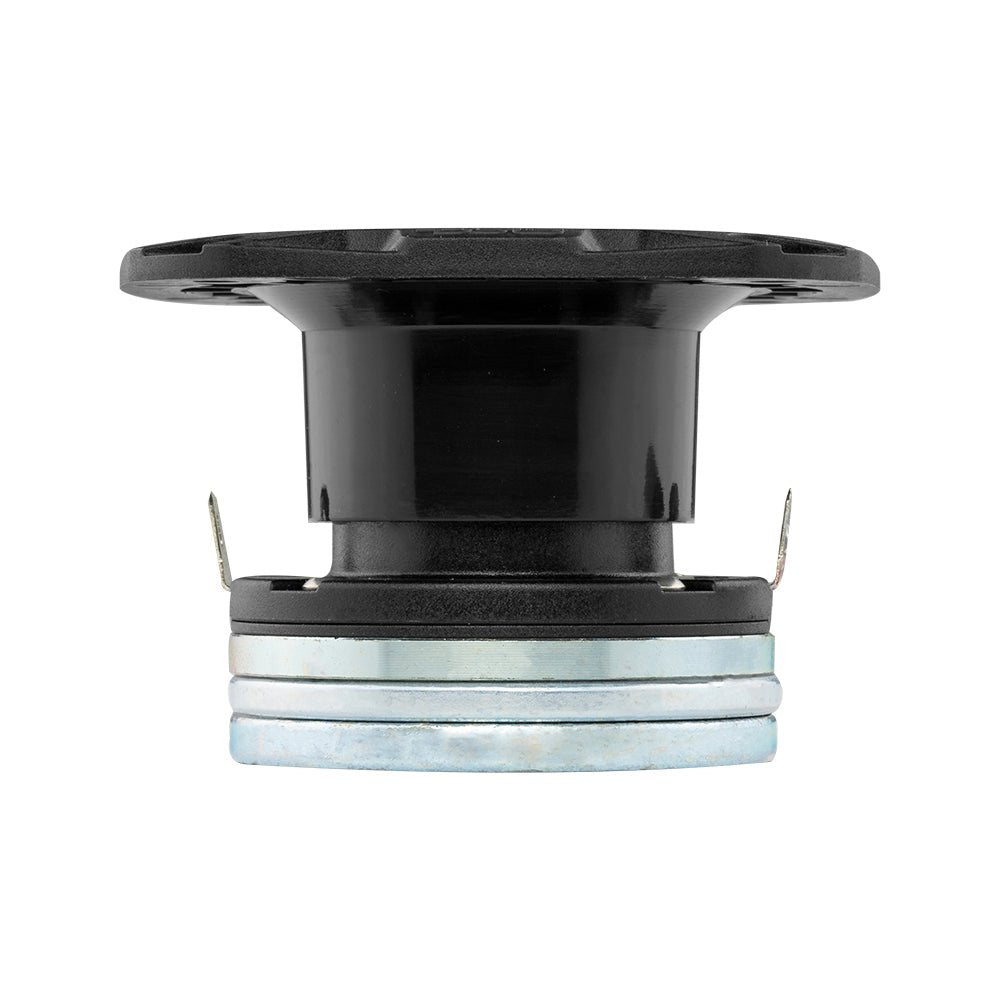

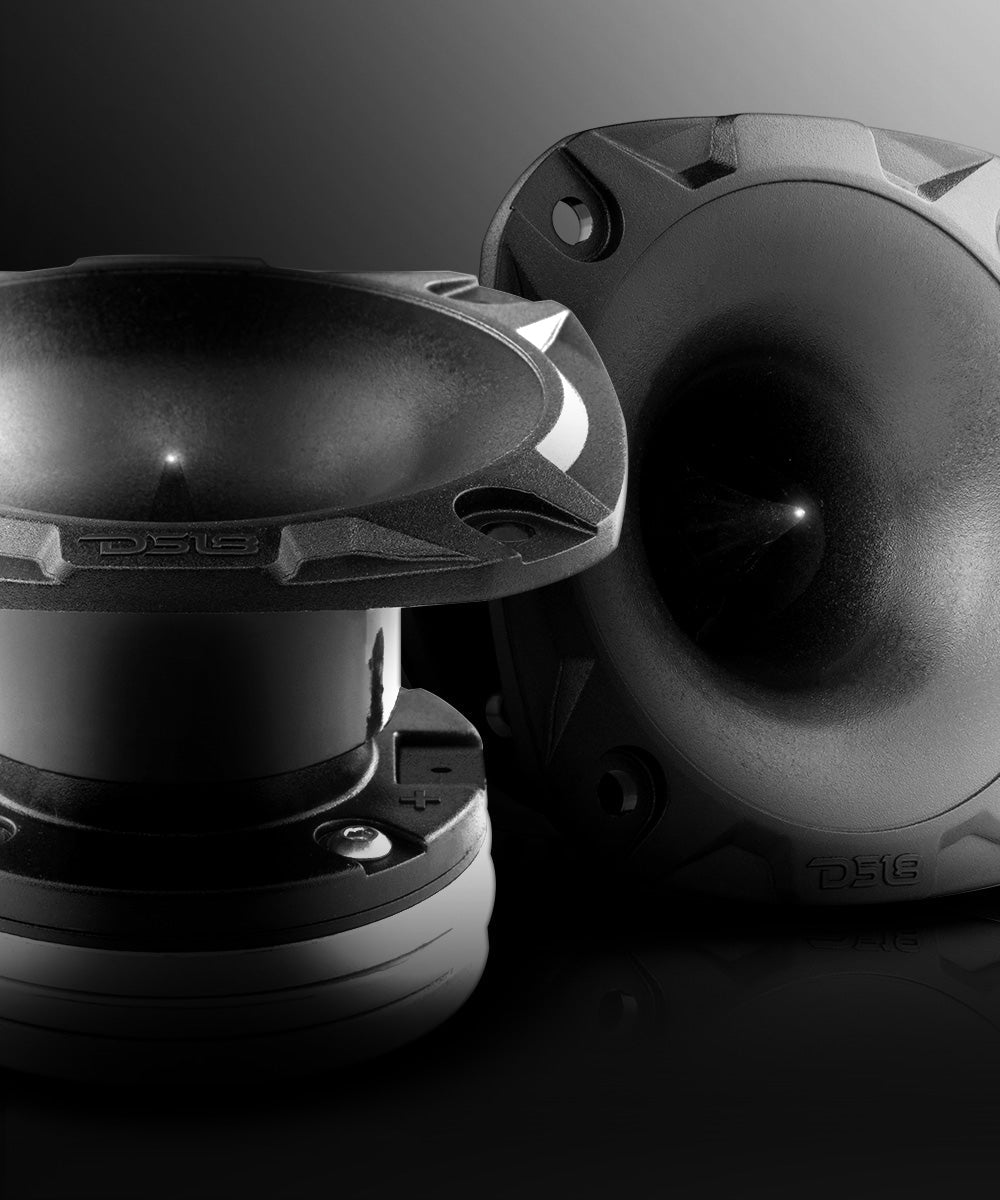

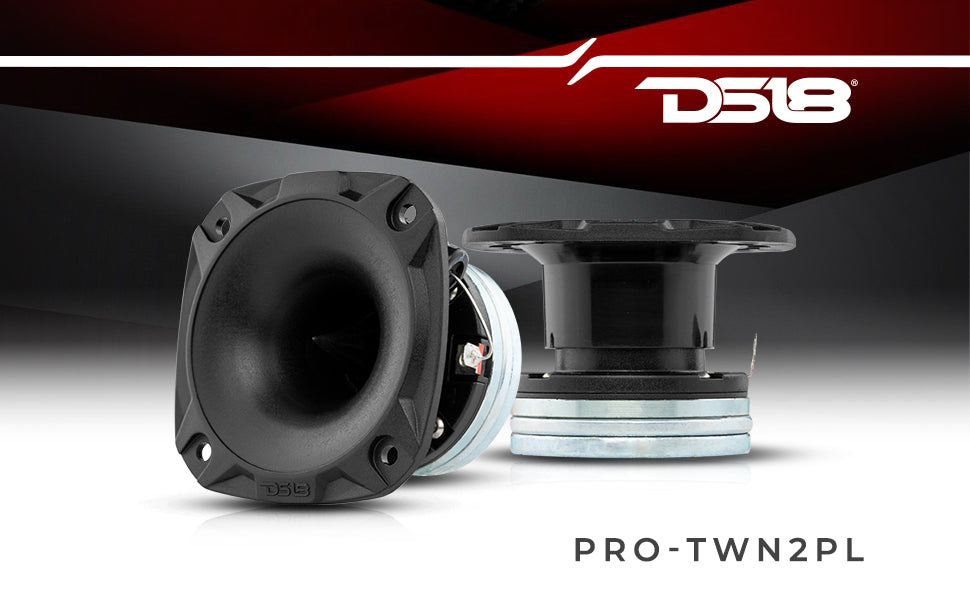

DS18 PRO-TWN2PL 3" High Compression Super Bullet Tweeter With 1" Polyester Voice Coil and Neodymium Magnet
The PRO TWN series brings Pro Audio to a bright new level of elegance, clarity, and loudness.
These speakers are designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power used with amazing efficiency.

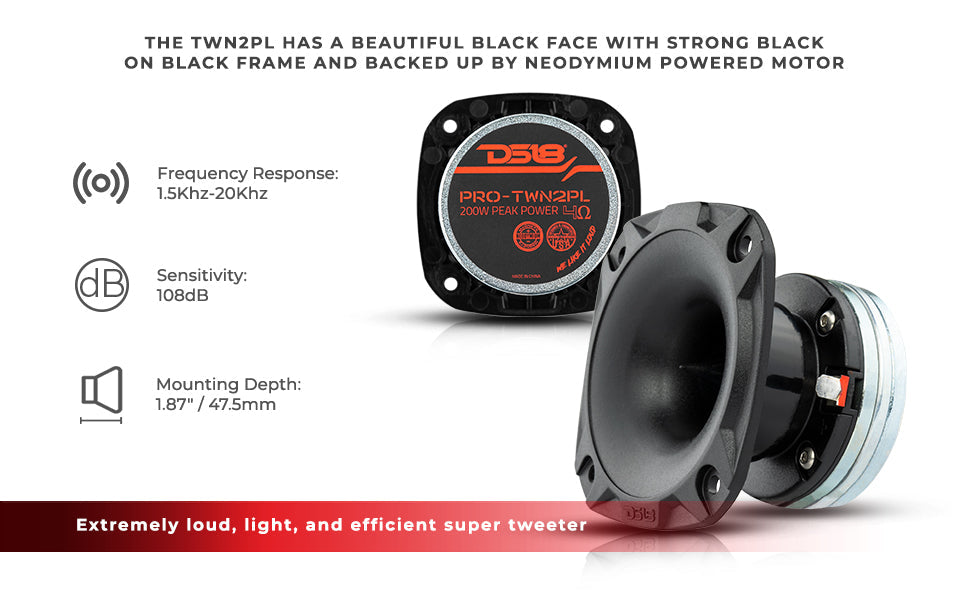

This allows it to play extreme volumes with authority for extended periods of time. The PRO-TWN2PL has a beautiful black face with strong black on black frame and backed up by Neodymium powered motor to make for an extremely loud, light, and efficient super tweeter.
This 4-Ohms Super tweeter handles 50 watts AES handling and 100 Program watts, ensuring screaming loud mid and high range frequencies be acute and clear.
Key Features
- 3" Overall Diameter Bullet Black on Black Pro-Audio Neodymium Super tweeter.
- AES Power Handling: 50W
- Program Power Handling: 100W
- Peak Power Handling: 200W
- Frequency Response: 1.5KHz- 20KHz
- Voice Coil Diameter: 1"
- Voice Coil Material: Aluminum
- Impedance: 4-Ohm
- Sensitivity: 108dB

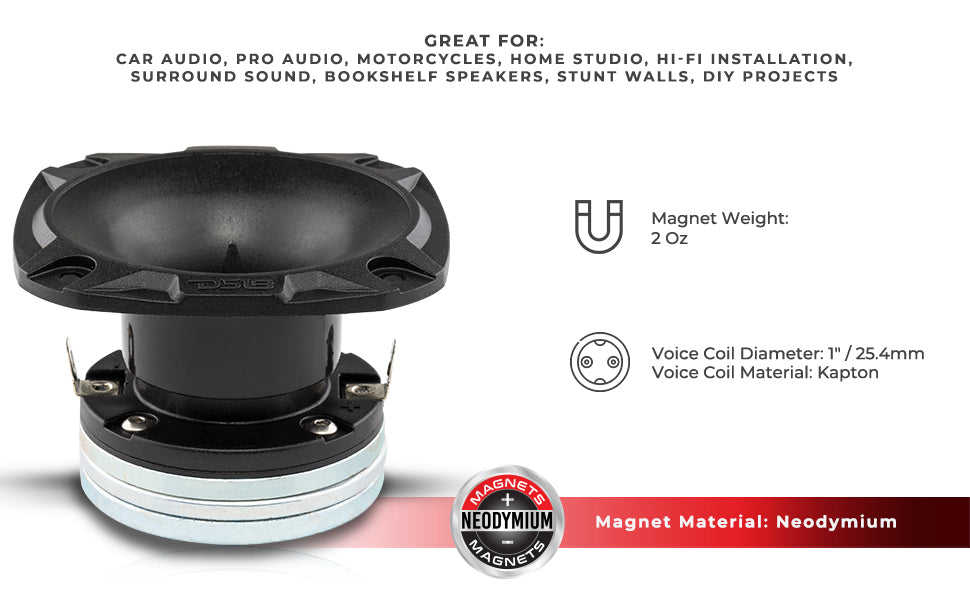

- Magnet Weight: 2 Oz
- Magnet Material: Neodymium
- Mounting Depth: 1.87"
- Recommended High Pass: 2KHz
Great For:

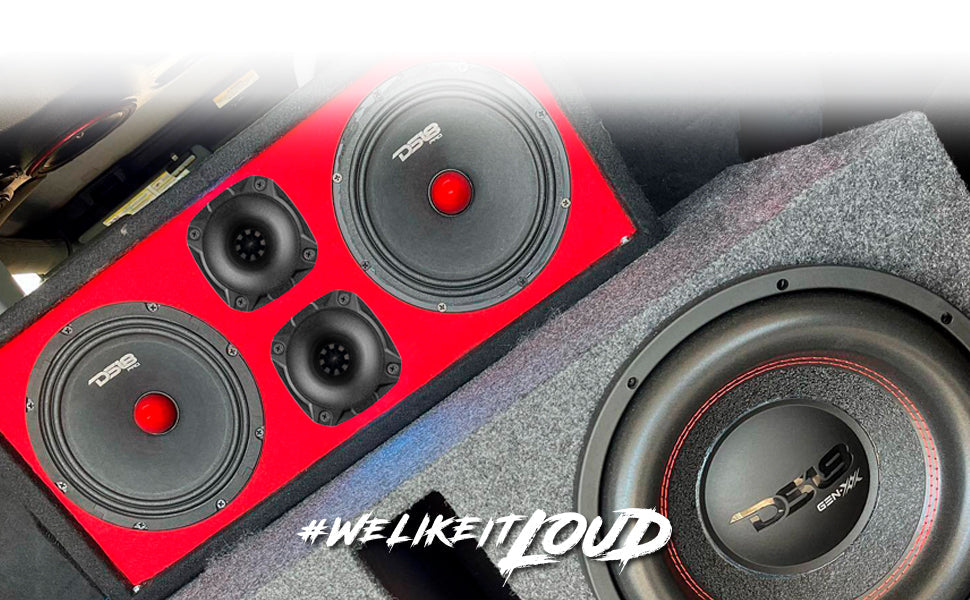

- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Surround Sound
- Bookshelf Speakers
- Stunt Walls
- DIY Projects
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 3" / 77.2mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 50W |
| Program Power Handling | 100W |
| Peak Power Handling | 200W |
| Sensitivity (1w/1m) | 108dB |
| Frequency Response | 1.5KHz-20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Pair or Single | Single |
| MOTOR | |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Polyester |
| Magnet Material | Neodymium |
| Magnet Weight | 2 Oz |
| Body Material | ABS |
| Body Color / Finish | Black Matte |
| MEASUREMENT | |

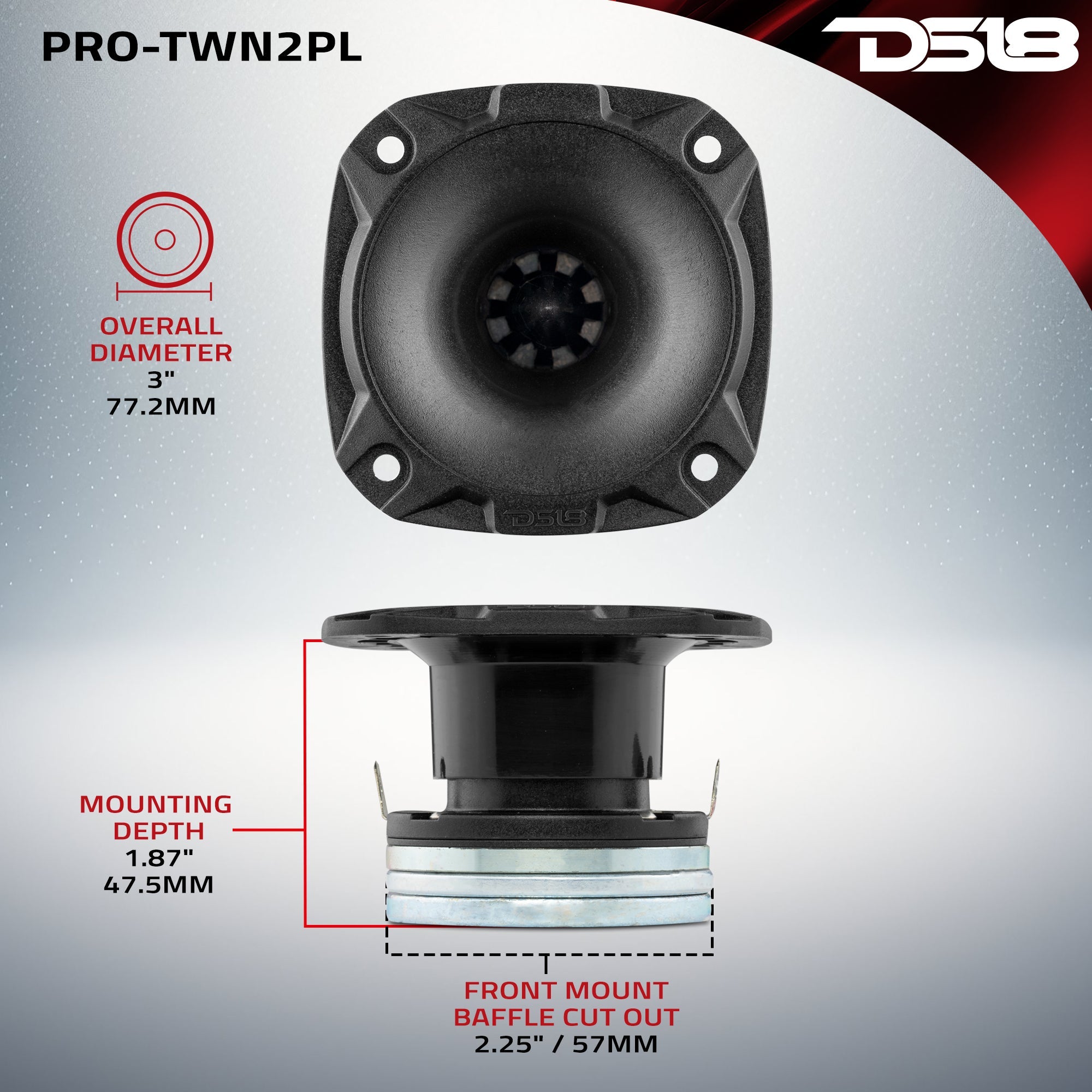

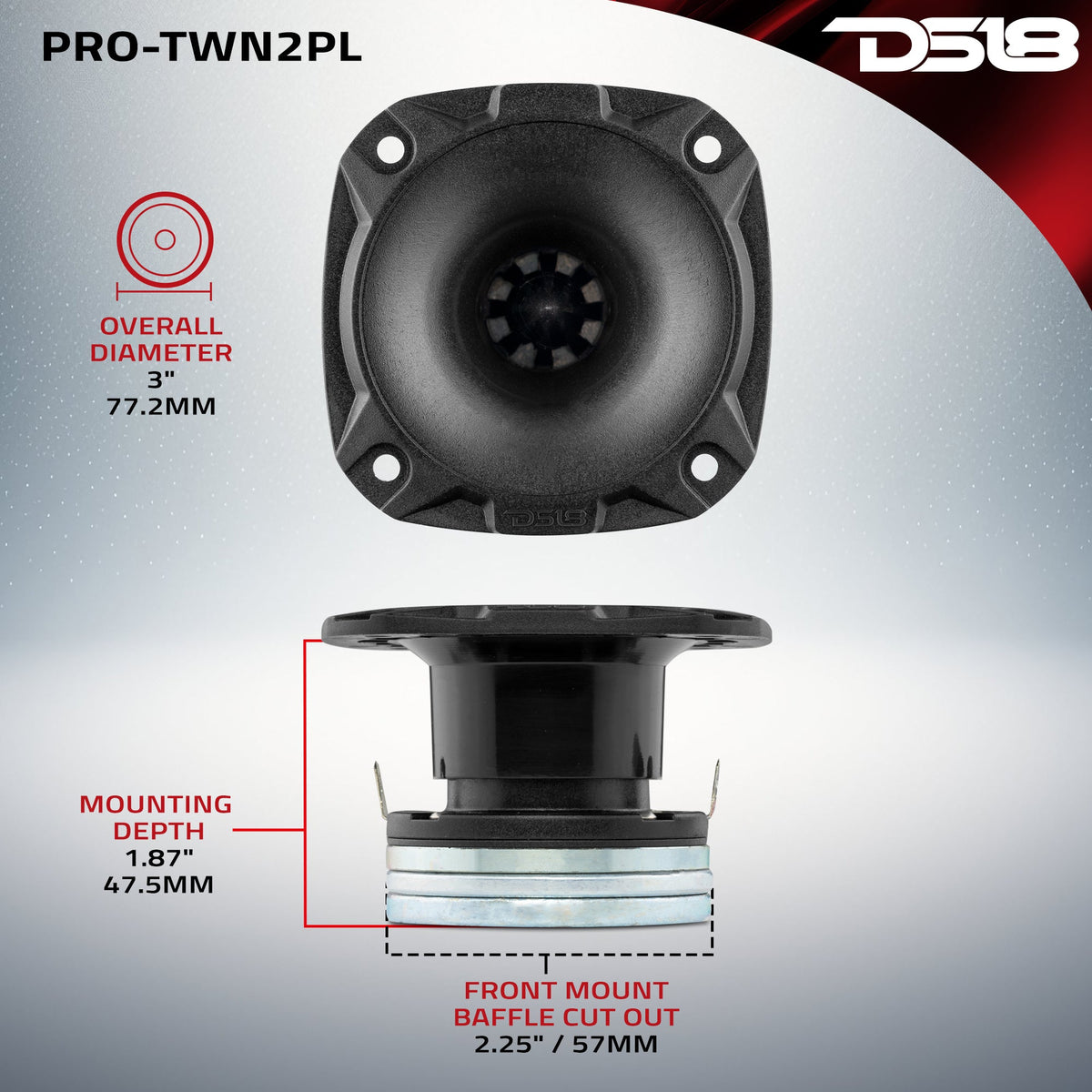

| Overall Diameter | 3" / 77.2mm |
| Overall Depth | 2" / 52.5mm |
| Front Mount Baffle Cutout | 2.25" / 57mm |
| Mounting Depth | 1.87" / 47.5mm |
| Motor Diameter | 2.2" / 56mm |
Key Features
- 3" High Compression Hybrid Driver/Tweeter
- RMS Power: 100 Watts(200 Watts Peak)
- Impedance: 4 Ohm ~ 108dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN2VC
Specifications
| SKU | PRO-TWN2PL |
|---|---|
| Nominal Diameter | 3" /77.2mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 50W |
| Program Power Handling | 100W |
| Peak Power Handling | 200W |
| Sensitivity (1w/1m) | 108 dB |
| Frequency Response | 1.5KHz-20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Pair or Single | Single |
| Body Material | ABS |
| Body Color / Finish | Black Matte |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Polyester |
| Magnet Material | Neodymium |
| Magnet Weight | 2 Oz |
| Magnet Size | 1.86 Oz |
| Overall Diameter | 3" /77.2mm |
| Overall Depth | 2" /52.2mm |
| Front Mount Baffle Cutout | 2.25" /57mm |
| Mounting Depth | 1.87" /47.5mm |
| Motor Diameter | 2.2" / 56mm |
| Product Weight | 1 lbs |
| Product Dimensions | 3.25 x 3.25 x 2.5 |
| M/C Weight | 10.5 lbs |
| M/C Dimensions | 10.75 x 7.25 x 6 |
| M/C QTY | 12 |
| Sold In | Piece |
