Product Overview

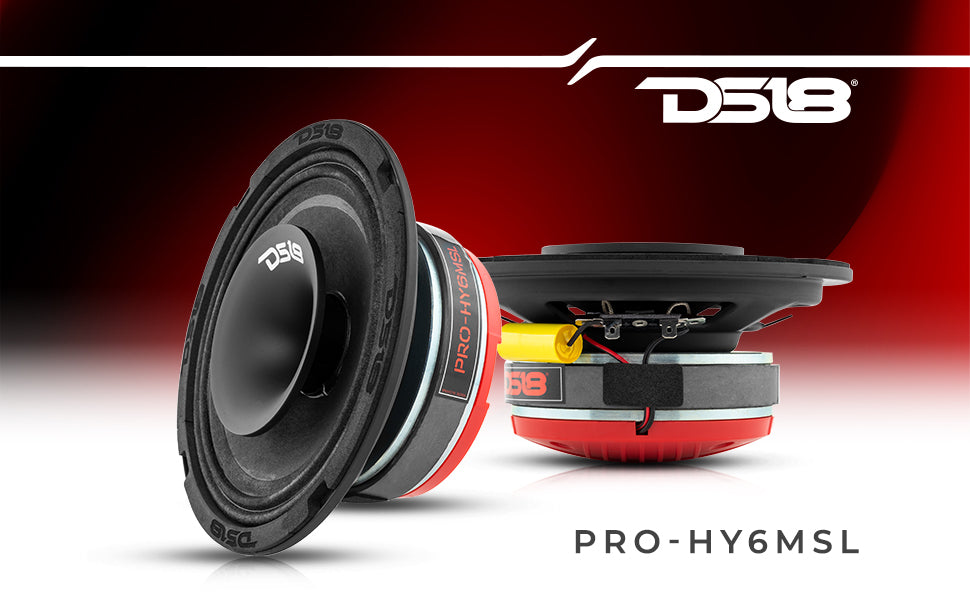

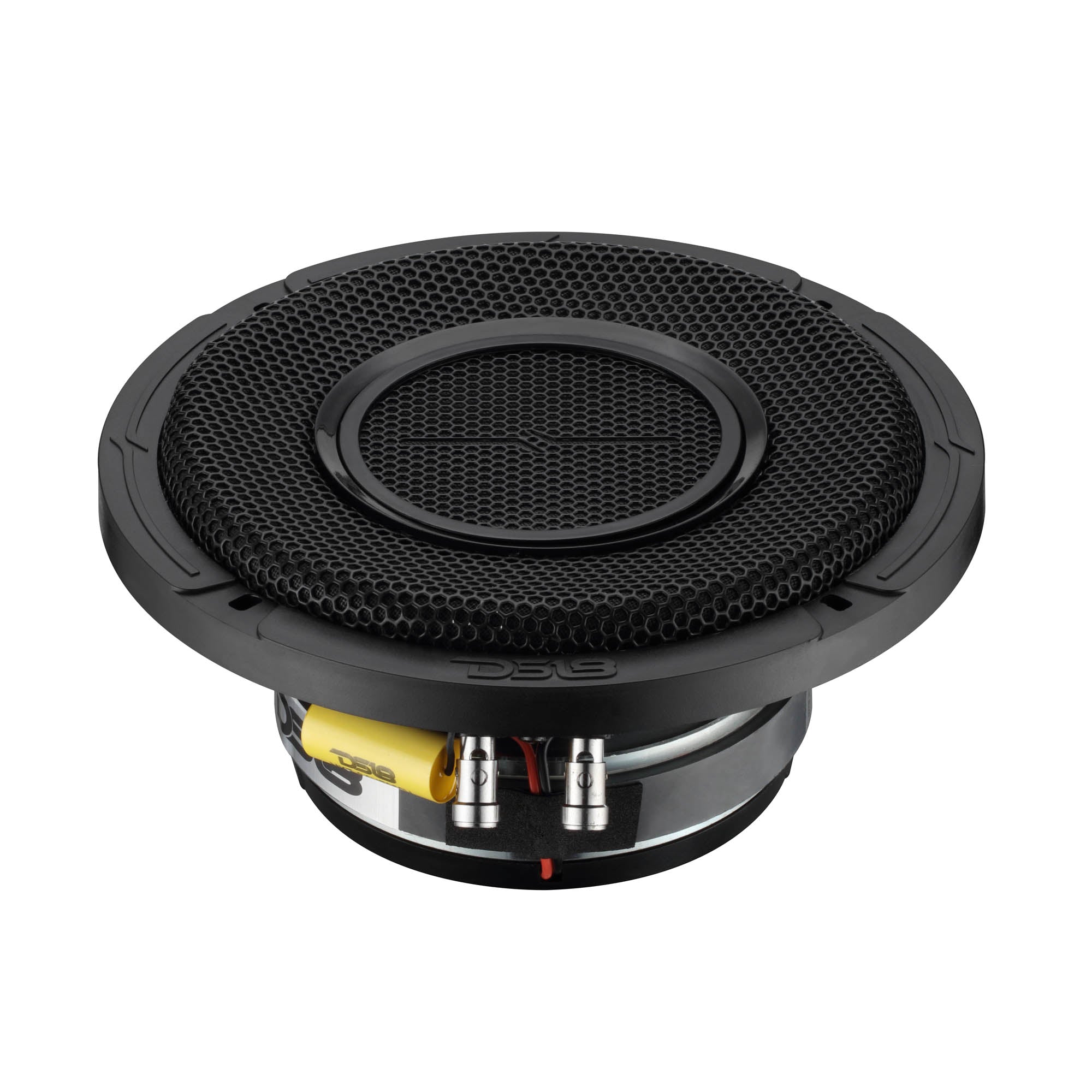

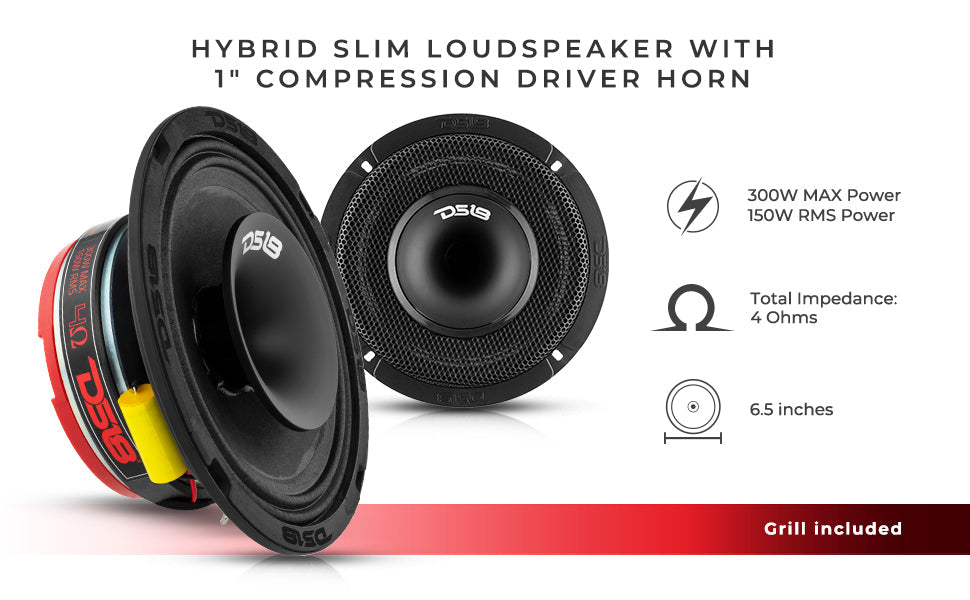

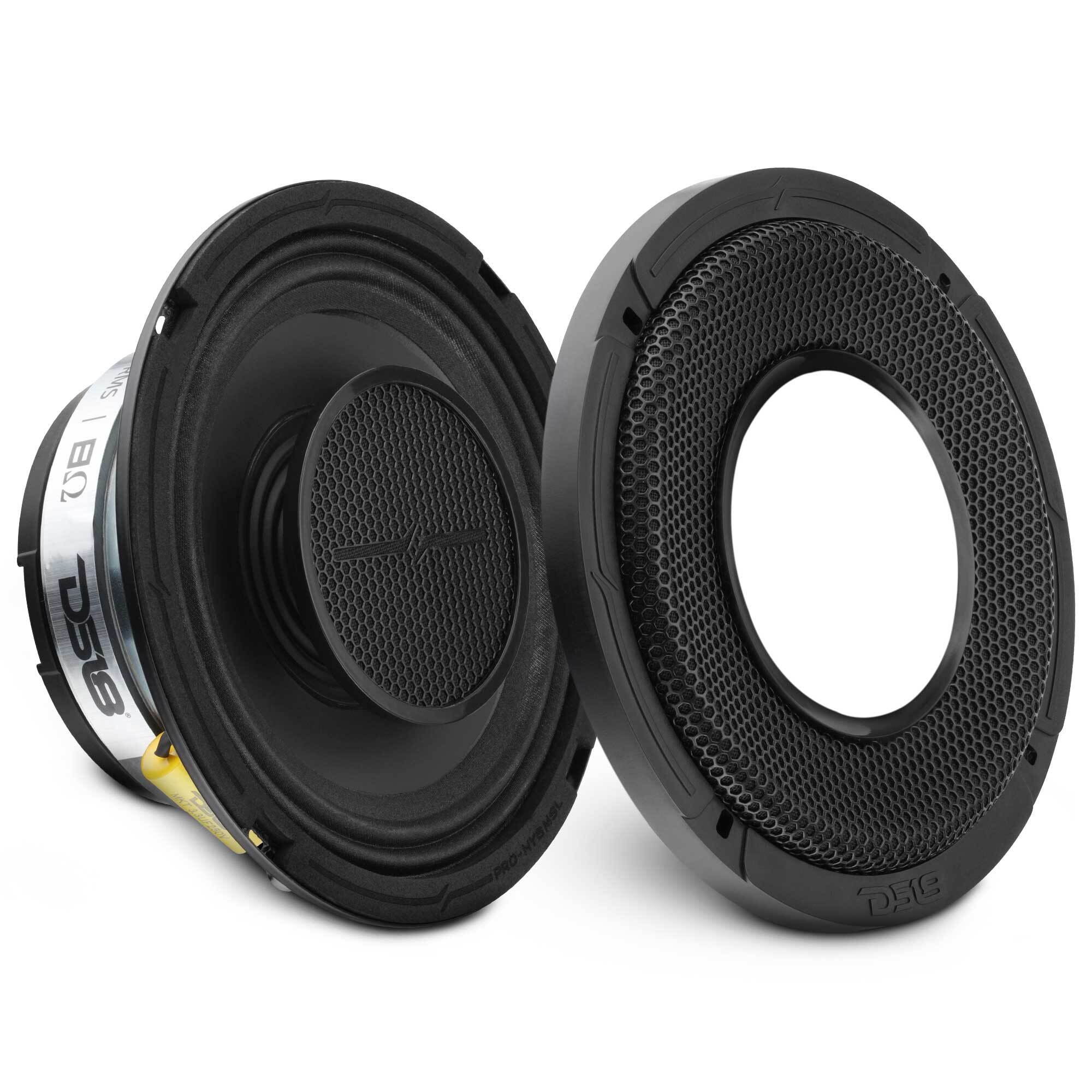

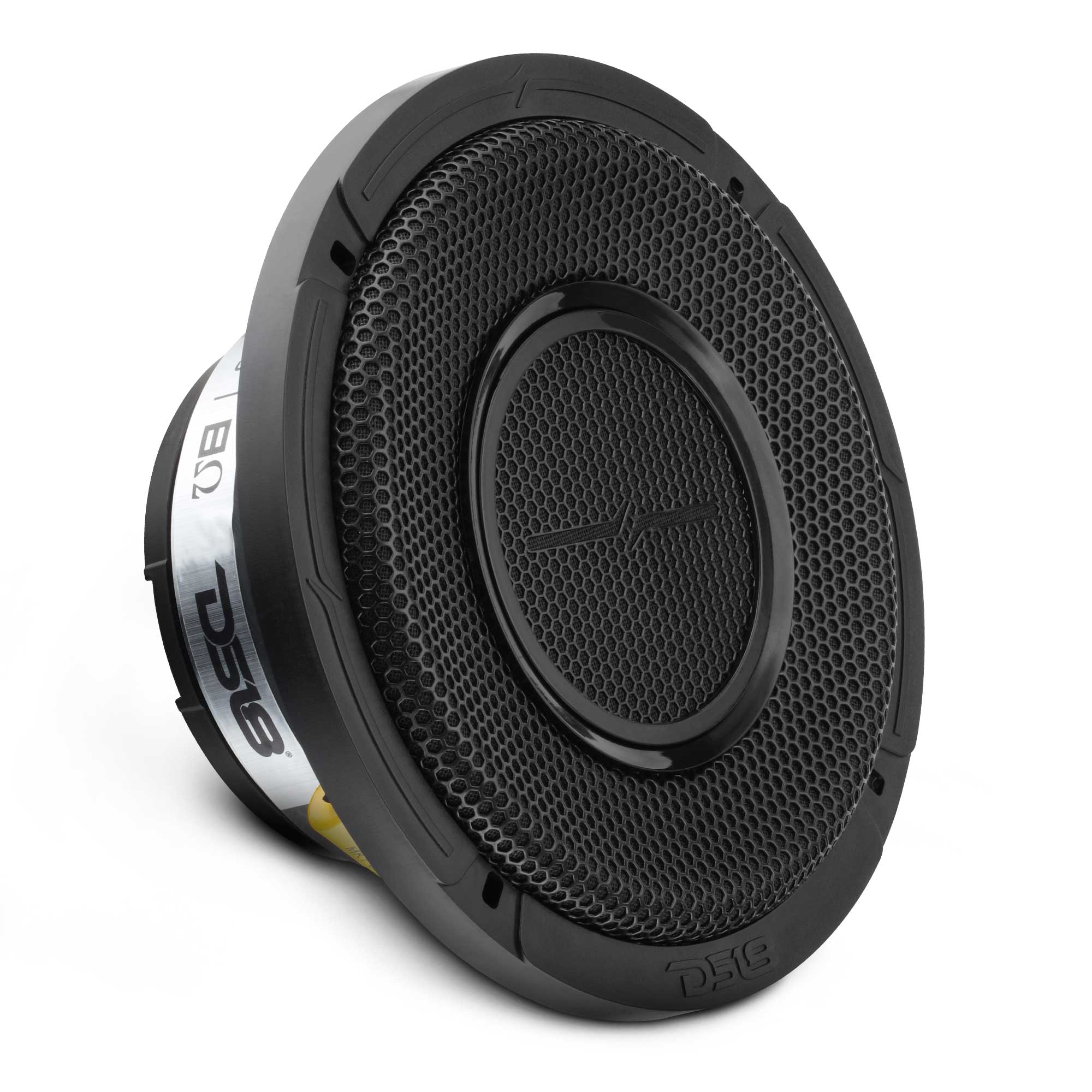

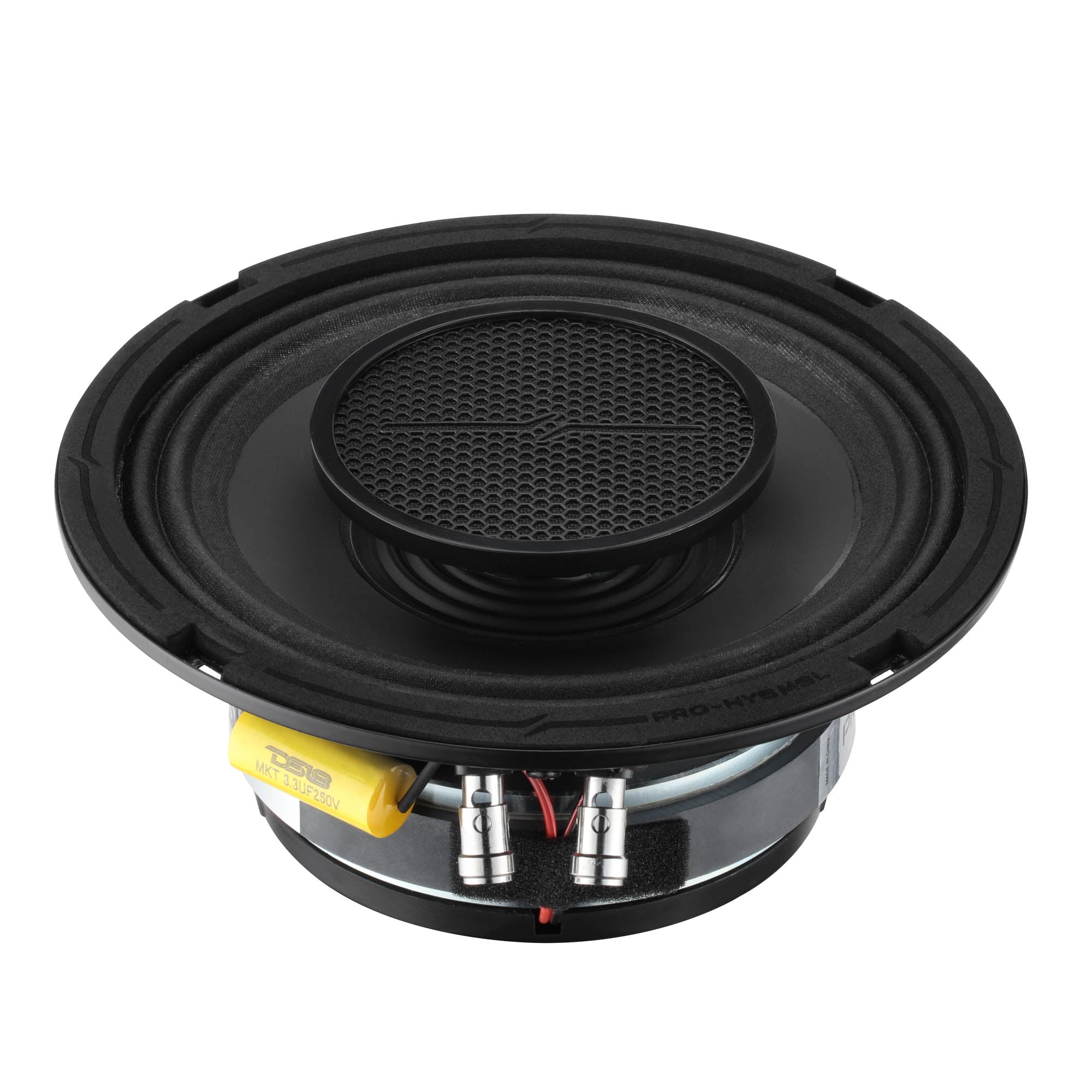

DS18 PRO-HY6MSL PRO 6.5" Shallow Hybrid Mid-Range Ferrite Loudspeaker with Built-in Neodymium Driver 300 Watts 8-Ohm - Grill Included
Your search for the best high-powered audio speakers comes to an end with the DS18 Hybrid Speakers!
These compact Speakers combine the best of both worlds! We have emphasized and carefully combined both our Pro-Audio midrange and a high intensity driver all in a slim package for an endless amount of applications that need Pro-Audio sound in tight spaces where traditional drivers wouldn't fit.

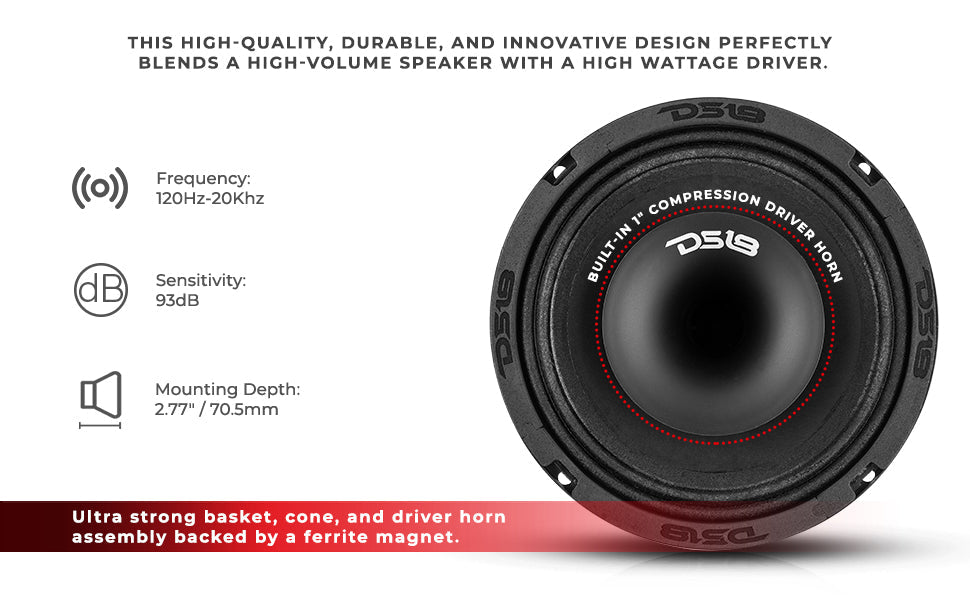

This high-quality, durable, and innovative design perfectly blends a high-volume Speaker with a high wattage driver. These Speakers are the ultimate choice for extreme loudness with amazing clarity at high volumes.
Be sure no other brand can match up to this powerful and durable 6.5" Pro-Audio Speaker and Driver Hybrid. If you are looking for a high-powered Audio Speaker for your car or any other application, this completely customized Speaker will give you the output you need to get the job done.
Highlights:
- With 150 watts RMS Power Handling and 300 watts MAX Power Handling, and a frequency response of 120Hz-20Khz, this is the best Car Audio Loudspeaker you can find that is compact yet getting amazing and rich musical response.
- With an Overall size of 6.92 inches in width and 2.77 inches of mounting depth, this is that you can use in a huge amount of applications with ease.
- Made of titanium, neodymium, ferrite, and featuring a glossy red basket color, this revolutionary Hybrid Loudspeaker is going to last you years!
Key Features
- 6.5" Inch Hybrid Pro-Audio Driver / Speaker Hybrid
- RMS Power Handling: 150W
- MAX Power Handling: 300W
- Frequency Response: 120Hz-20KHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: KSV
- Impedance: 8-Ohms
- Sensitivity: 93dB
- Magnet Weight: 17.5 Oz
- Magnet Material: Ferrite
- Mounting Depth: 2.77"
- Recommended High Pass: 140Hz
Great For:

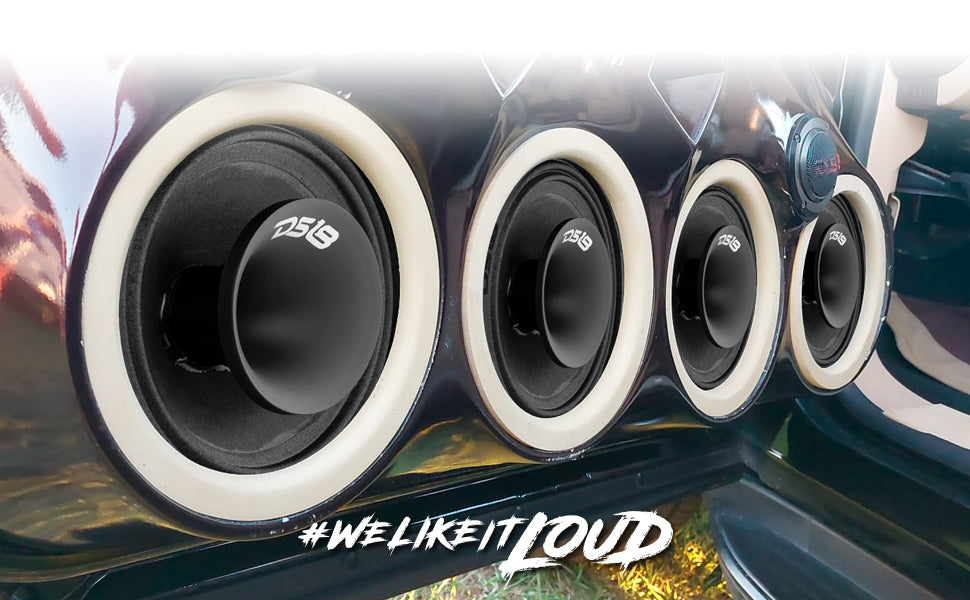

- Car Audio
- Pro Audio
- Home Audio
- Satellite Speakers
- Bookshelf Speakers
- Hi-Fi Installation
- DIY Projects
Technical Details
PRO-HY6MSL Product Manual
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 120Hz-20KHz |
| Recommended HI Pass Crossover | 140Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |

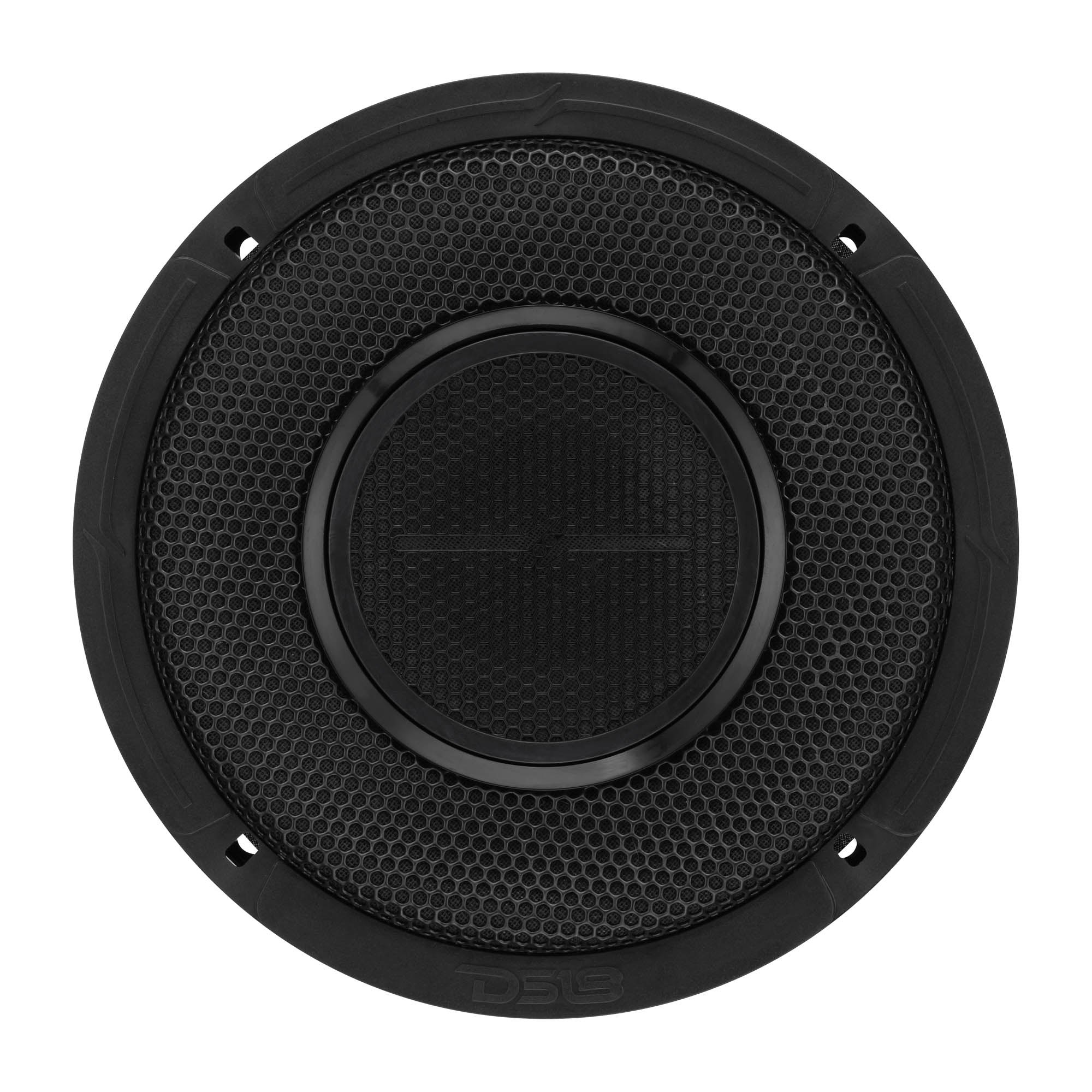

| Grill Included | Yes |
| WOOFER SPECIFICATIONS | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 17.5 Oz |

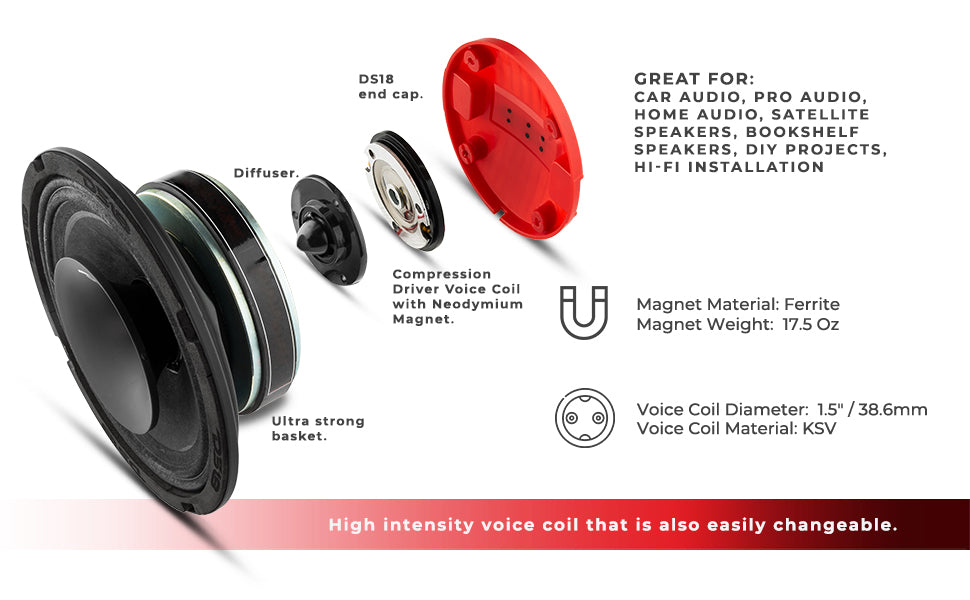

| DRIVER SPECIFICATIONS | |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3" / 76.2mm |
| SPEAKER MEASUREMENT | |

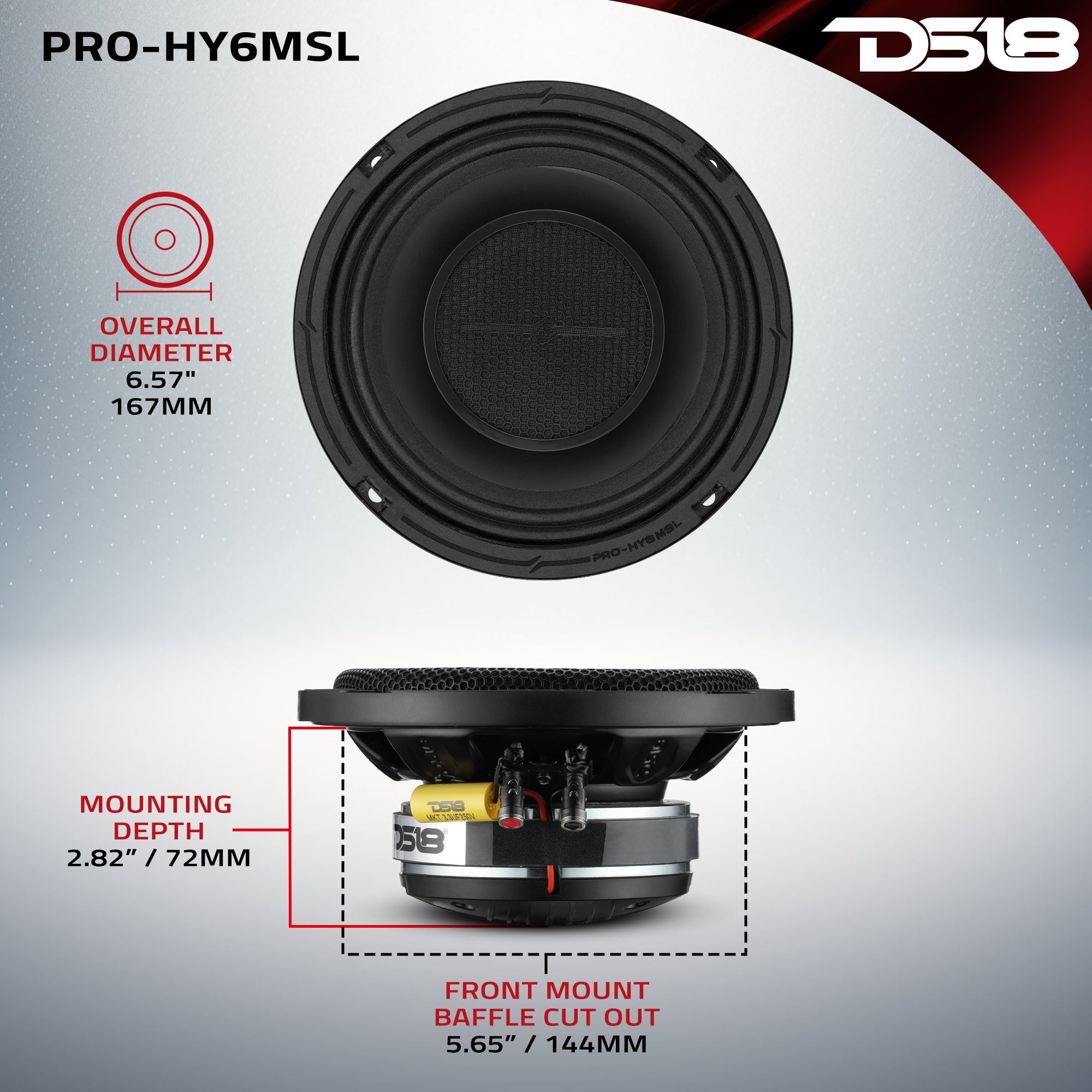

| Overall Diameter | 6.92" / 176mm |
| Overall Depth | 3.52" / 89.5mm |
| Front Mount Baffle Cutout | 5.6" / 142mm |
| Mounting Depth | 2.77" / 70.5mm |
| Motor Diameter | 4.33" / 110mm |
Key Features
- 6.5" Slim Hybrid Loudspeaker
- 150W RMS / 300W MAX
- 1" Titanium Compression Driver
- IP65 Rated + Grille w/ Water/Sun Protection Cloth
- Neodymium Driver Magnet / Ferrite Woofer Magnet
- Mounting Depth: 2.82"
Specifications
| SKU | PRO-HY6MSL |
|---|---|
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 8 Ohm |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 120Hz-20Khz |
| Recommended HI Pass Crossover | 140Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |
| Grill Included | Yes |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | KSV / Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite / Neodymium |
| Magnet Weight | 17.5 Oz |
| Equivalent Volume Vas | 3.45L / 0.121ft3 |
| Excursion (one way) Xmax | 2mm |
| Free Air Resonance Fs | 161Hz |
| Mechanical Factor Qms | 7.653 |
| Electrical Factor Qes | 1.496 |
| Total Factor Qts | 1.252 |
| Mechanical Mass Mms | 6.875g |
| Mechanical Compliance Cms | 129.952 mm/N |
| BL Factor BL | 5.621 |
| Voice Coil Inductance Le | 10.78mH |
| Cone Area Sd | 136.848 Cm2 |
| DC Resistance Re | 6.5 ohm |
| Mechanical Mass w/o air Mmd | 5.955g |
| Diaphragm Material | Titanium |
| Horn Diameter | 3" / 76.2mm |
| Overall Diameter | 6.92" / 176mm |
| Overall Depth | 3.52" / 89.5mm |
| Front Mount Baffle Cutout | 5.6" / 142mm |
| Mounting Depth | 2.77" / 70.5mm |
| Motor Diameter | 4.33" / 110mm |
| Gross Single Unit Weight | 3.75 |
| Single Unit Box Dimensions L x W x H (Inches) | 7.25 x 7.25 x 4.25 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight | 32 |
| Master Carton Dimensions L x W x H (Inches) | 15.25 x 15.25 x 9.5 |
