8" Speaker Grill with Built-in 1.75" Voice Coil Neodymium Bullet Tweeter 250 Watts
8" Speaker Grill with Built-in 1.75" Voice Coil Neodymium Bullet Tweeter 250 Watts
Product Overview

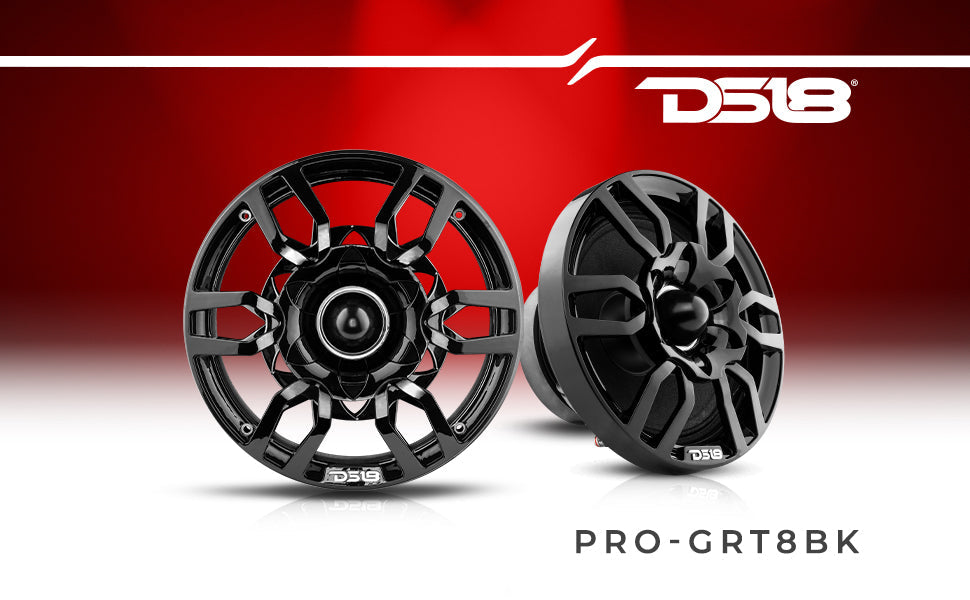

DS18 PRO-GRT8BK PRO 8" Grill with Built-in 1.75" Vc Neodymium Bullet Tweeter a 500 Watts Black

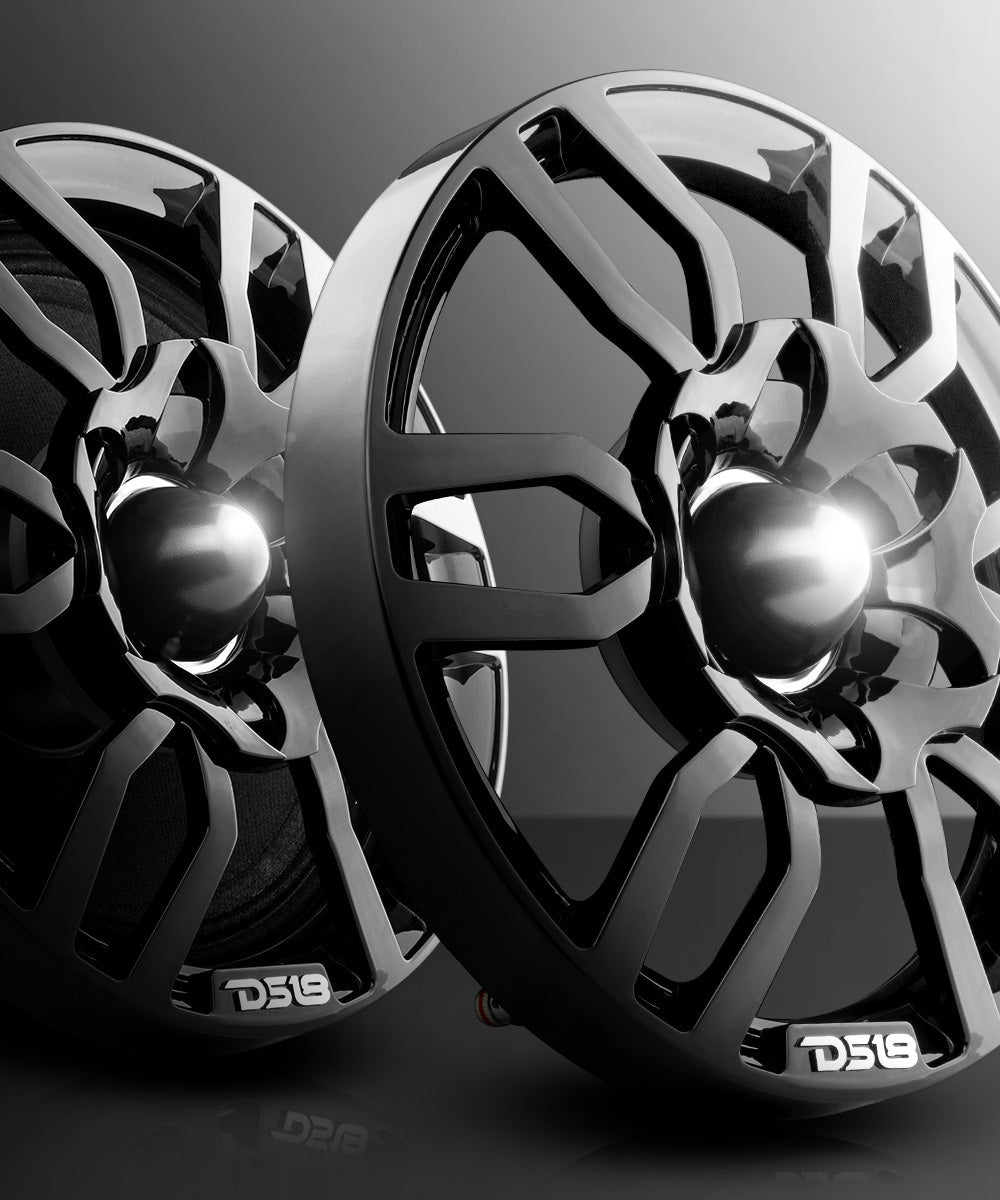

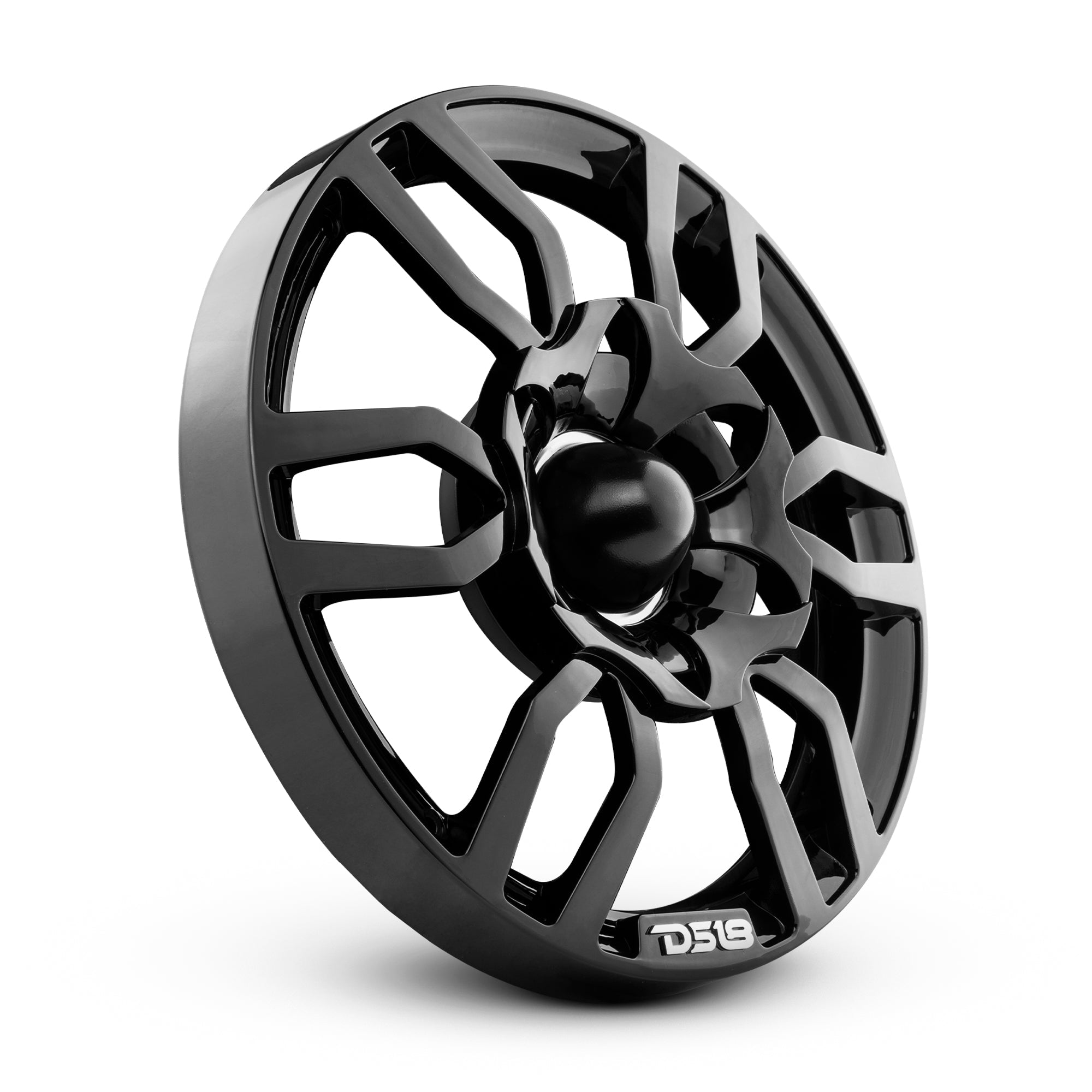

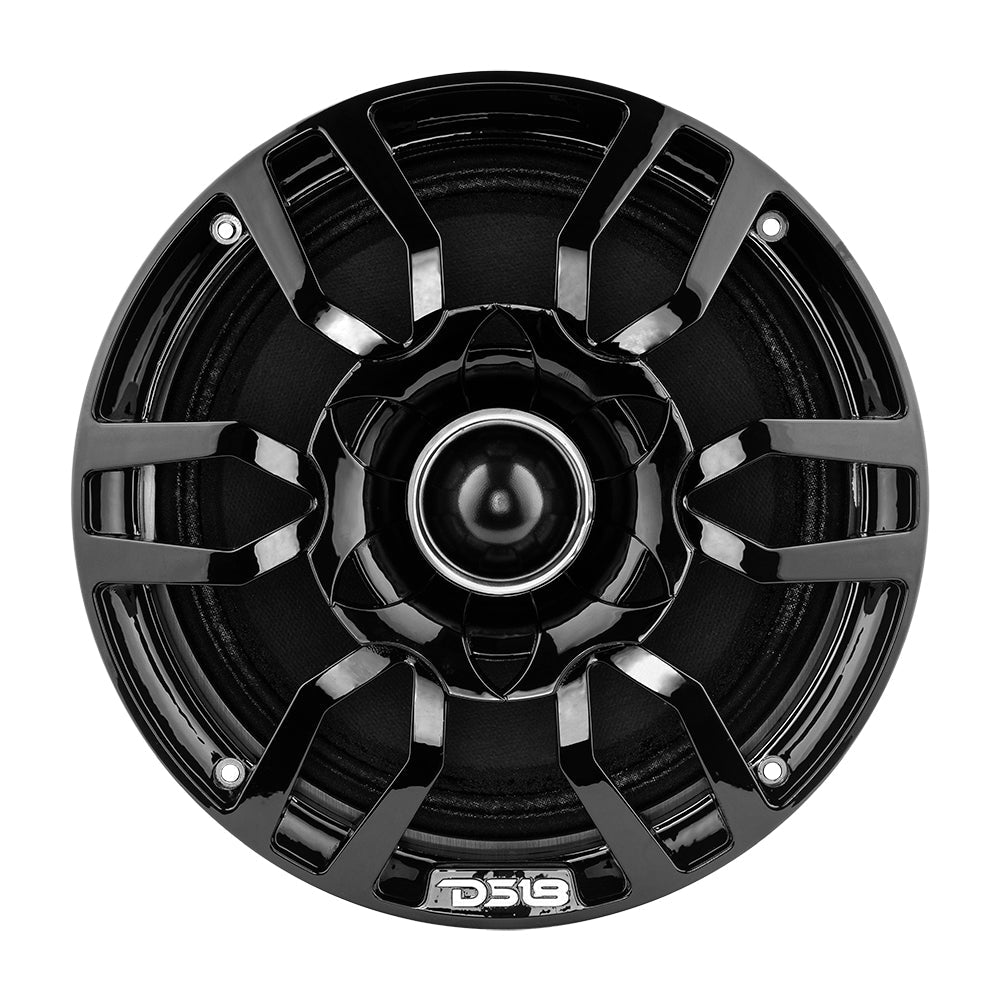

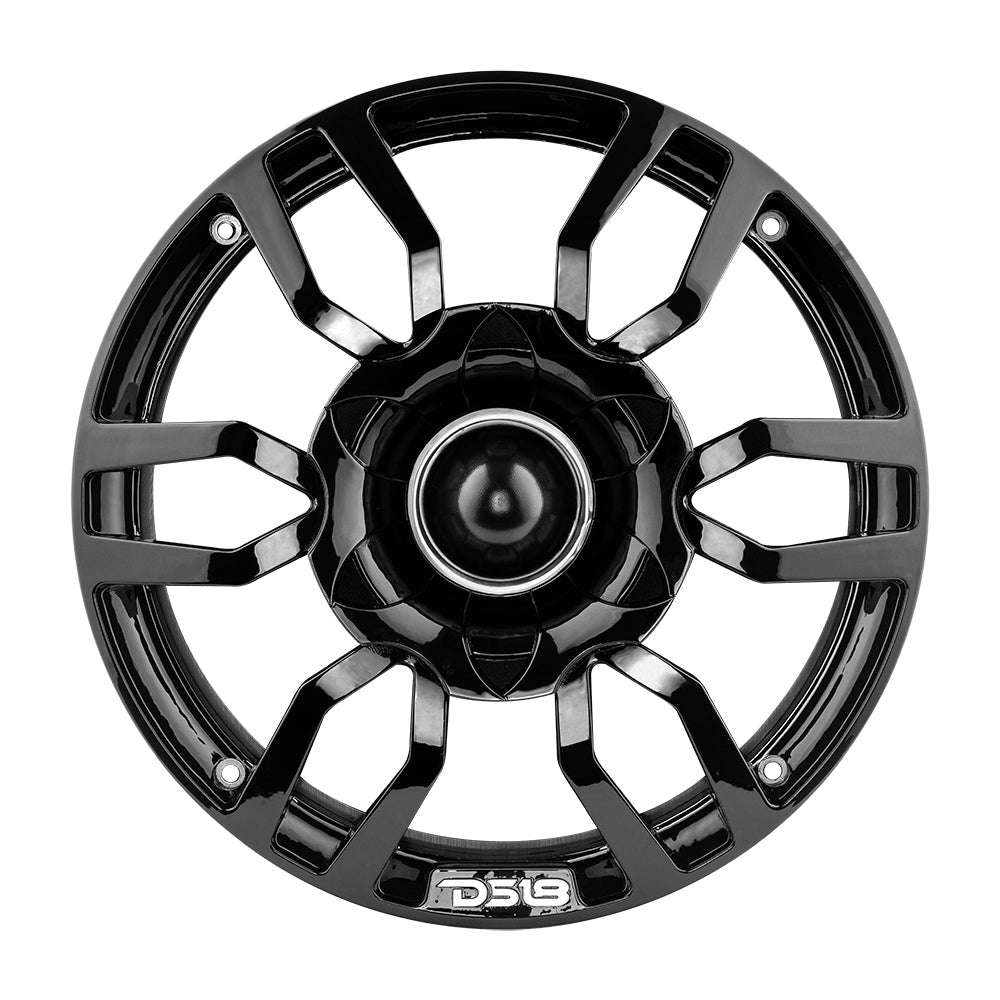

The PRO-GRT8BK 8” speaker grill is the perfect addition to any sound system.

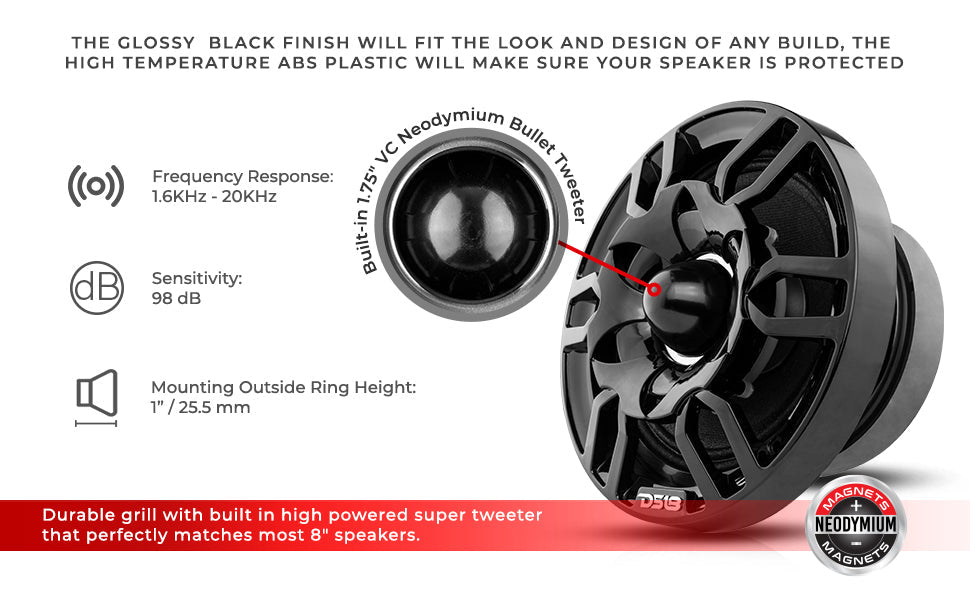

The glossy black finish will fit the look and design of any build, the high temperature ABS plastic will make sure your speaker is protected.

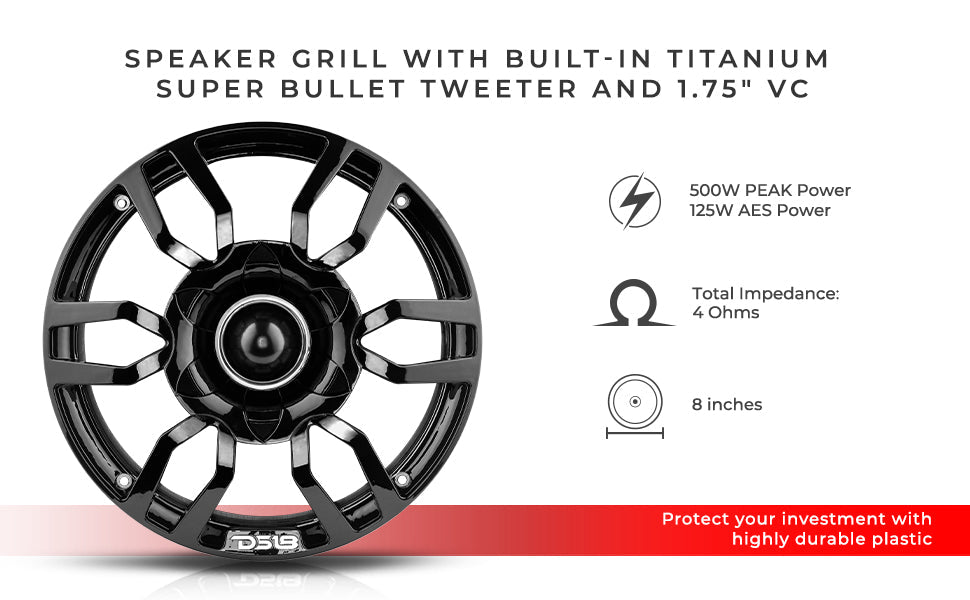

The cone in this grill comes with a built-in high-powered Neodymium Compression Bullet Tweeter that increases the frequency range to a steep 20KHz! The mylar crossover these tweeters come equipped with allows or prevents certain frequencies from passing through based on your listening preference. With power handling of 125 W AES, 250 W Program Power, and 500 W Peak Power powering this tweeter to it’s MAX should be a breeze!

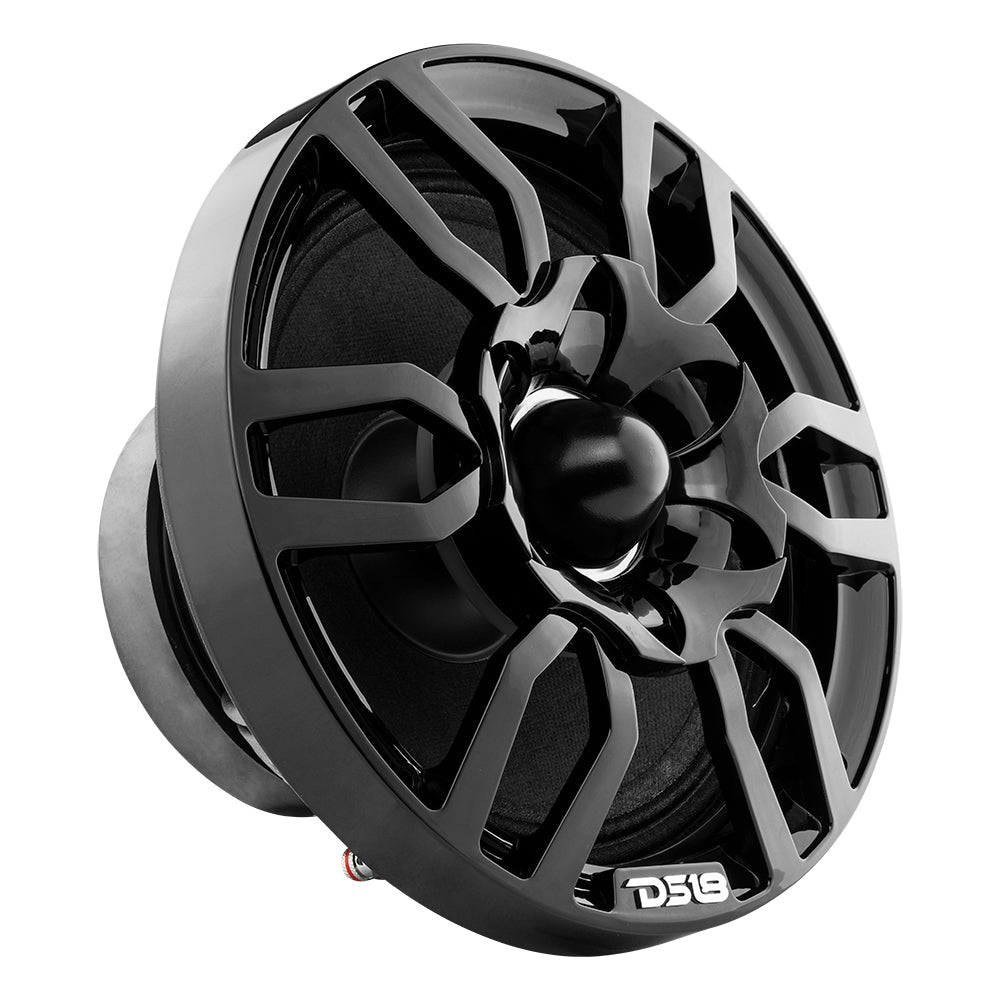

This grill fits standard sized 8" speakers and is the easiest way to expand your range of frequencies and make sure your highs are crisp and clean.
Highlights
- Built in Neodymium tweeter for bright and crisp highs.
- Protect your investment with highly durable plastic.
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 4 ohms |
| AES Power Handling | 125W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 1.6KHz - 20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| BODY / FEATURES | |
| Pair or Single | Single |
| Body (Grill) Material | High Temperature ABS |
| Logo | Hot Stamping (Silver) |
| Body Color / Finish | Black / Gloss |
| TWEETER SPECIFICATIONS | |
| Type | Compression Bullet |
| Voice Coil Diameter | 1.75" / 44.45mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Bullet Material | CNC Aluminum |
| Diaphragm Material | Titanium |

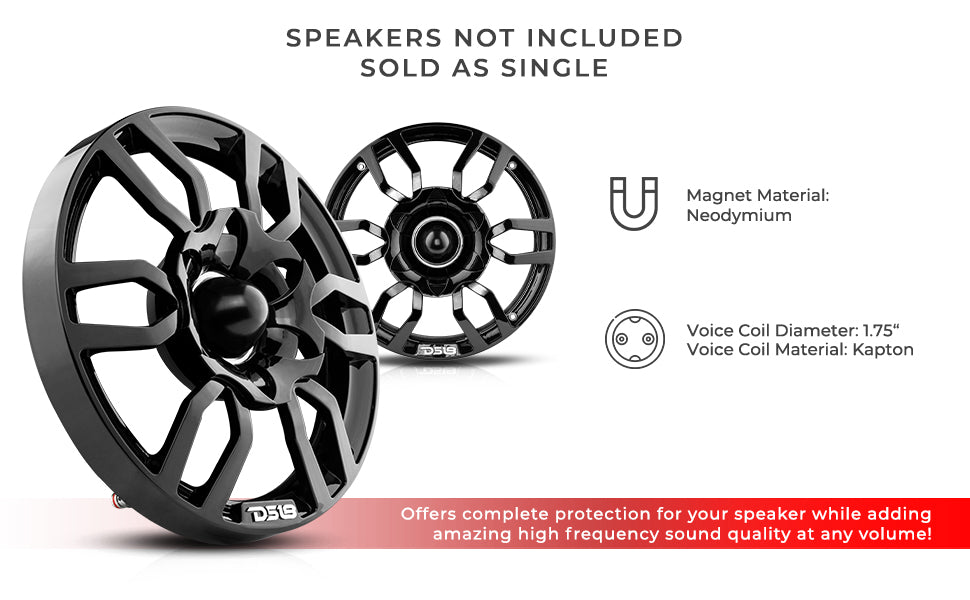

| Magnet Material | Neodymium (N40H) |
| Magnet Weight | |
| Capacitor (Crossover) | Mylar 6 dB/Oct |
| MEASUREMENTS | |
| Overall Diameter | 8.64" / 219mm |
| Overall Depth | 1.87" / 47.5mm |
| Bolt Pattern | 7.76" / 197mm |
| Mounting Inside Ring Height | 0.24" / 6mm |
| Mounting Outside Ring Height | 1" / 25.5mm |
Key Features
- 8" Speaker Grill
- Built-In Compression Bullet Tweeter
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm ~ 98dB
- Neodymium Magnet
- Black ABS / Single
Specifications
| SKU | PRO-GRT8BK |
|---|---|
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 125W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 1.6KHz - 20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Sold in Pair or Single | Single |
| Body (Grill) Material | High Temperature ABS |
| Logo | Hot Stamping (Silver) |
| Body Color / Finish | Black / Gloss |
| Type | Compression Bullet |
| Voice Coil Diameter | 1.75" / 44.45mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Bullet Material | CNC Aluminum |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium (N40H) |
| Capacitor (Crossover) | Mylar 6 dB/Oct |
| Overall Diameter | 8.64" / 219mm |
| Overall Depth | 1.87" / 47.5mm |
| Bolt Pattern | 7.76" / 197mm |
| Mounting Inside Ring Height | 0.24" / 6mm |
| Mounting Outside Ring Height | 1" / 25.5mm |
| Tweeter Wire Length | 2ft / 0.6m |
| Gross Single Unit Weight (lb) | 1.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 9 x 9 x 2.25 |
| Quantity of Units in Master Carton | 20 |
| Gross Master Carton Weight (lb) | 33.5 |
| Master Carton Dimensions W x L x H (Inches) | 23 x 19 x 9.75 |
