Product Overview

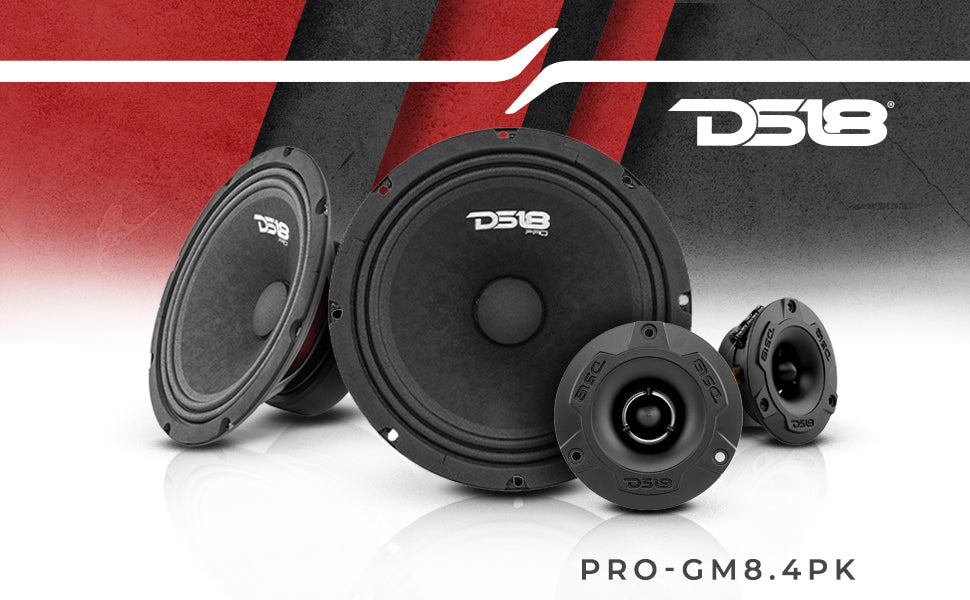

DS18 PRO-GM8.4PK2 Loudspeaker and Tweeter Package Including a Pair of PRO-GM8.4 + a Pair of PRO-TWX1/BK

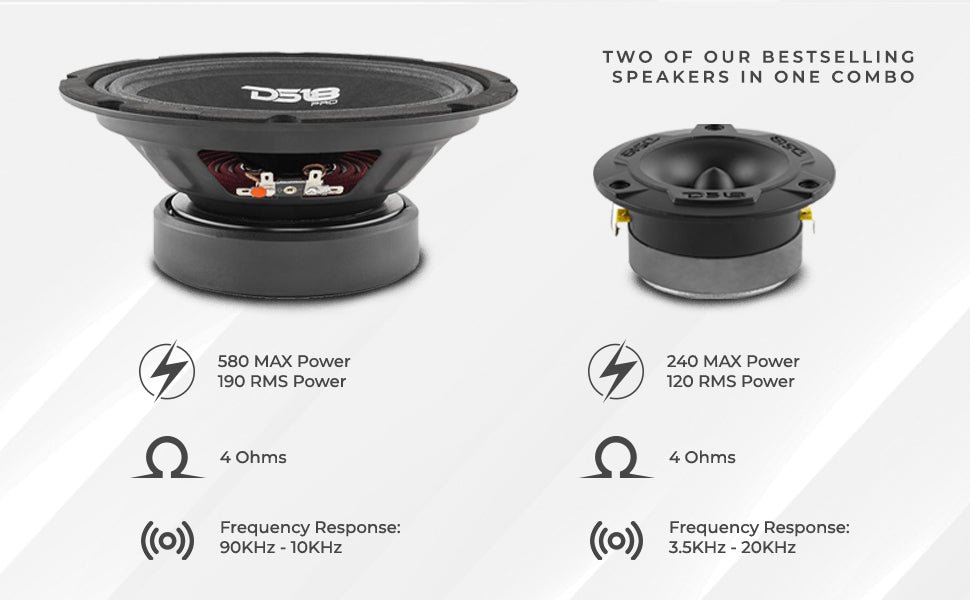

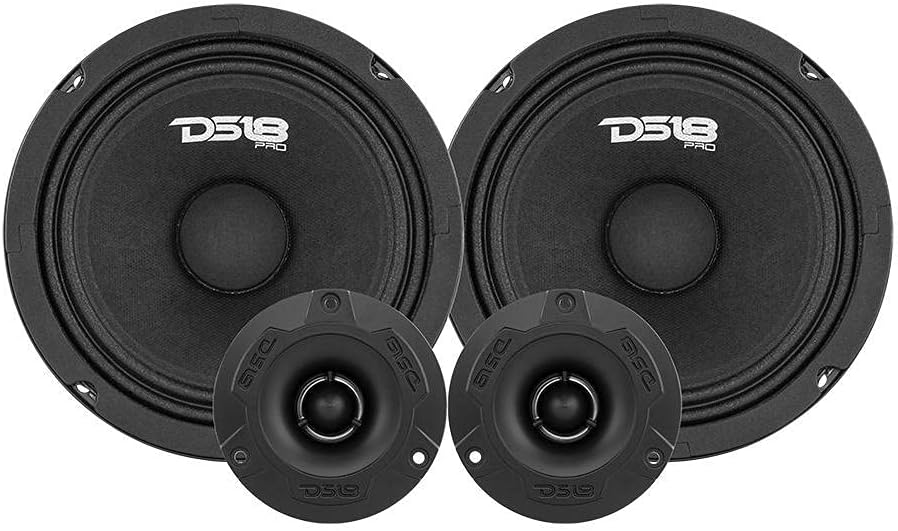

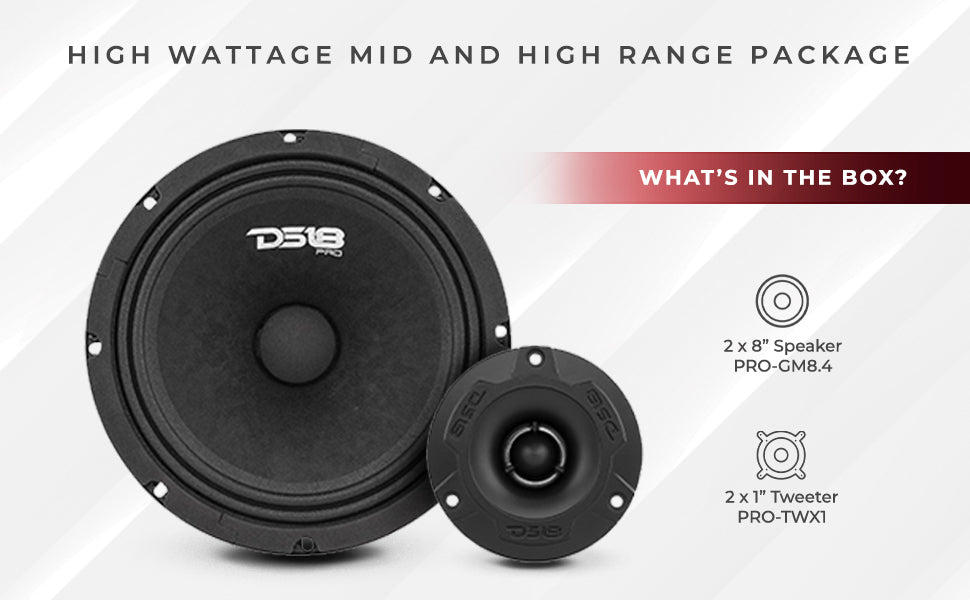

What's in the package?

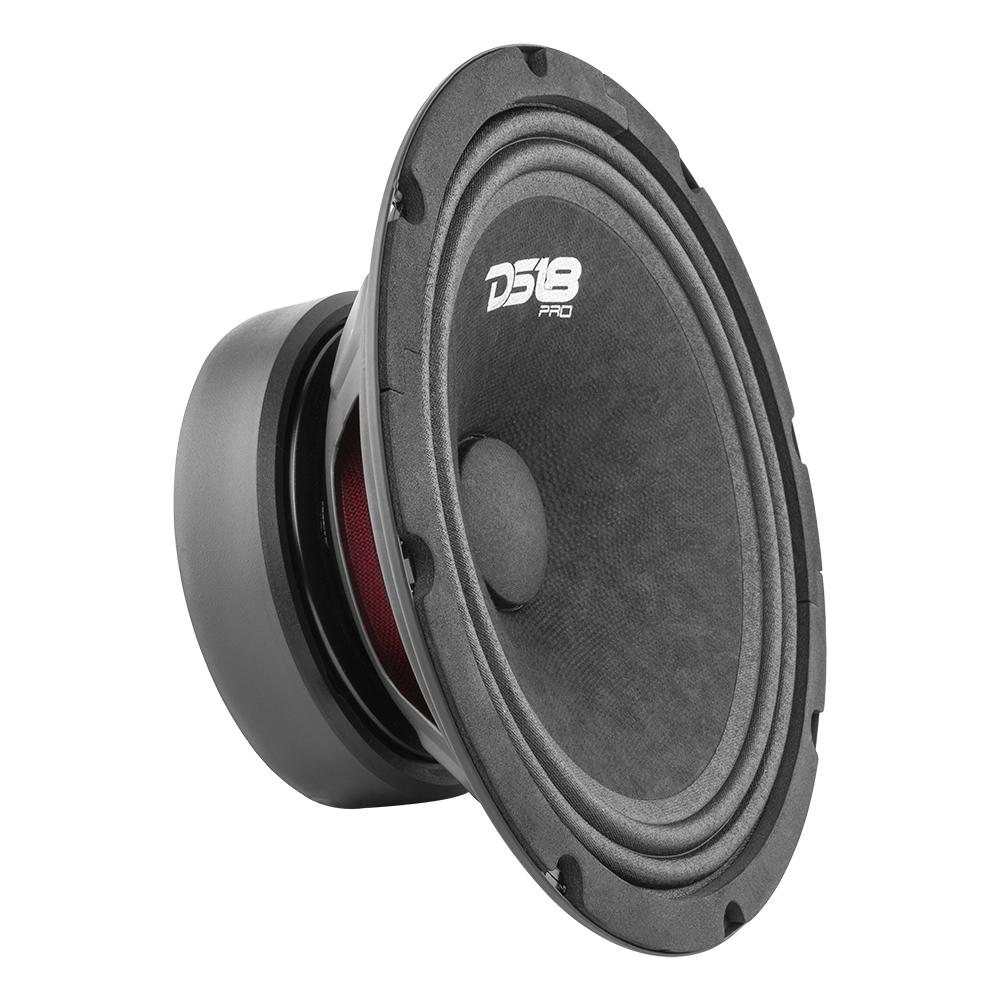

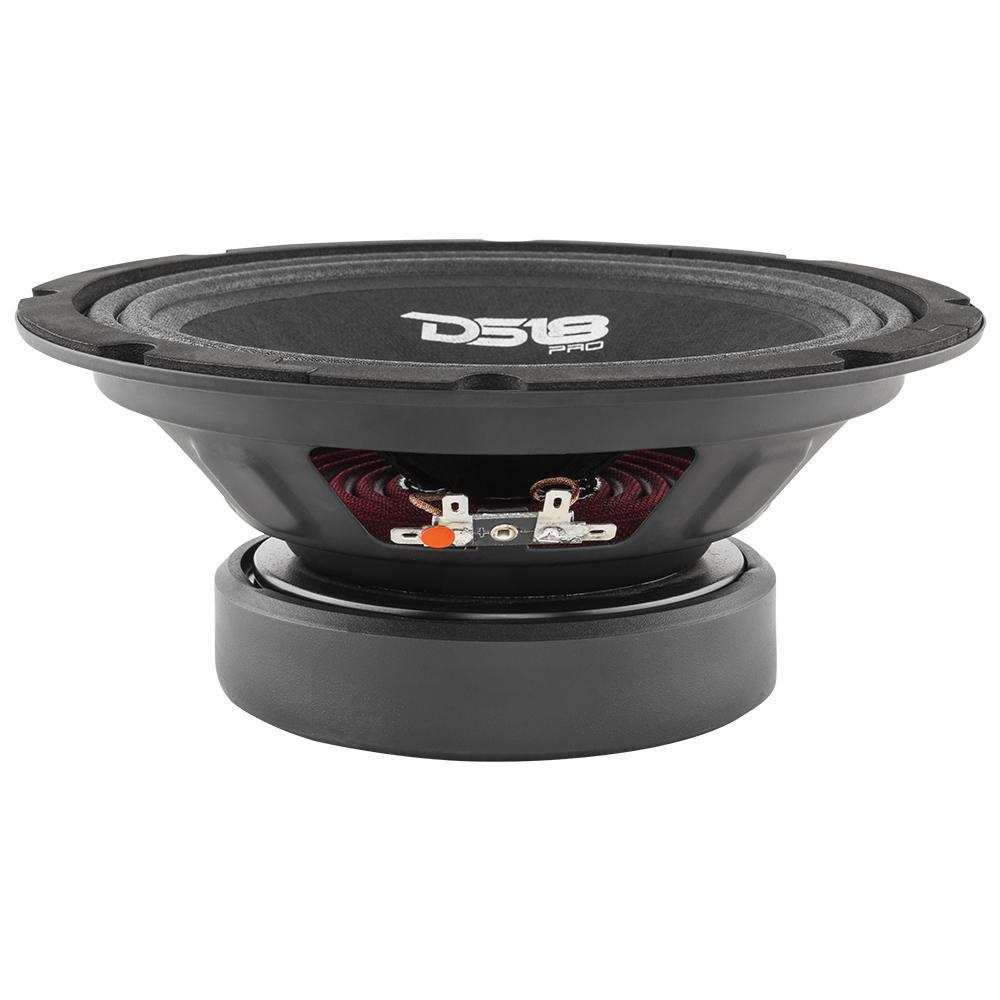

- Pair PRO-GM8.4 - 8" Mid-Range Loudspeaker 580 Watts 4-Ohm

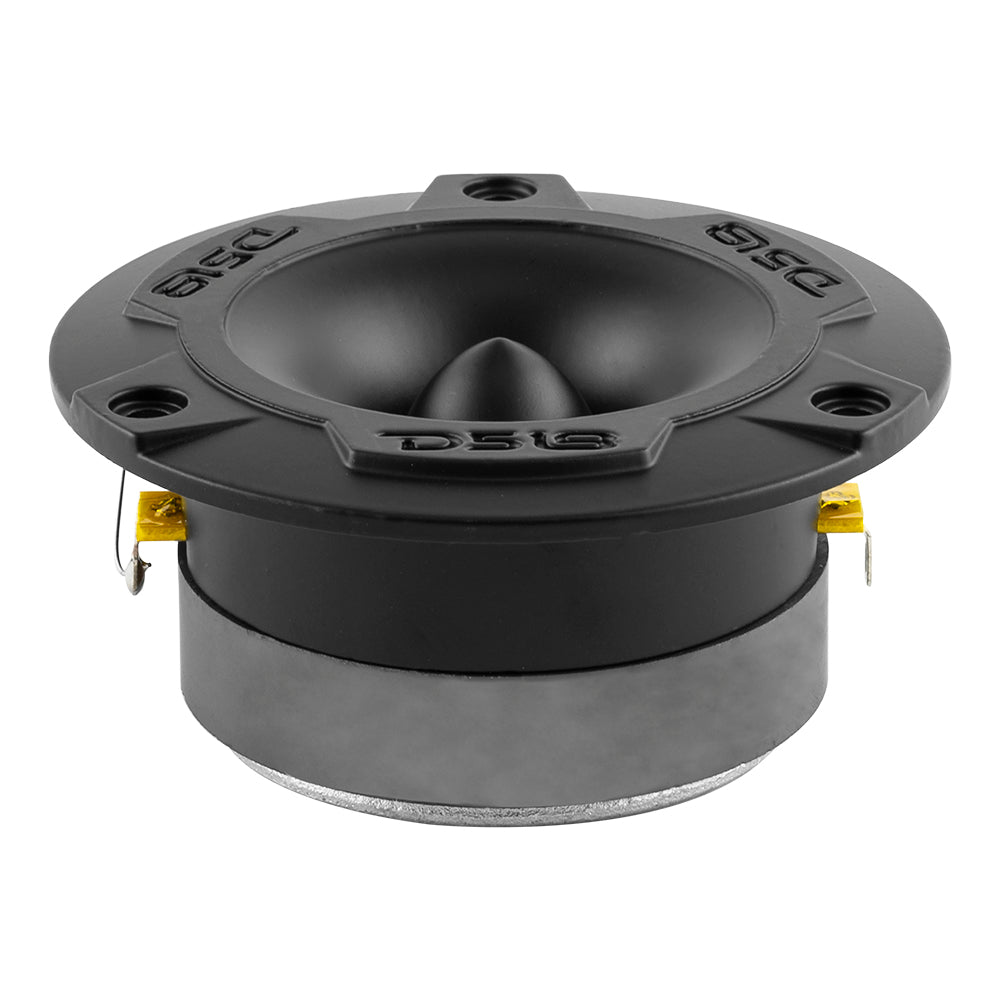

- Pair PRO-TWX1/BK - 3.8" Super Bullet Tweeter 240 Watts 1" Aluminum 4-Ohm Vc
This HIGH WATTAGE speaker combo will no doubt blow you away! Our engineers have rigorously tested and included two of our bestselling speakers in one pack.
Extreme testing has proven these two sets of speakers to be both very durable and able to handle high RMS power to give you maximum loudness!
Highlights
- PRO audio component package including two high powered solid cone mids along with two high powered tweeters.
- These two speakers compliment each other and have been picked by DS18 professionals to produce the greatest sound together.
- With the correct amp, this will be a very loud addition to any audio system easily drowning out the competition.
Technical Details
| Model: | PRO-GM8 |
| Type: | Midrange Loudspeaker |
| Size: | 8" |
| RMS Power: | 190W |
| MAX Power: | 580W |

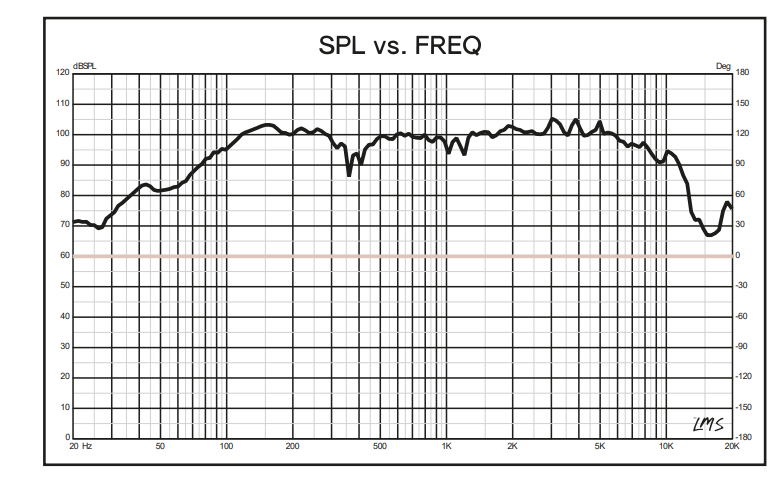

| Frequency Response: | 90Hz - 10KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 95dB |
| Materials | |
| Surround: | Cloth Surround |
| Frame: | Black Stamp Steel Basket |
| Cone: | Black Paper Woofer Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | Kapton |
| Diameters | |
| Voice coil size: | 1.5" |
| Magnet Size: | 30 oz |
| Mounting Depth: | 3.22" / 82mm |
| Cut-Out Dimension: | 7.2" (183mm) |

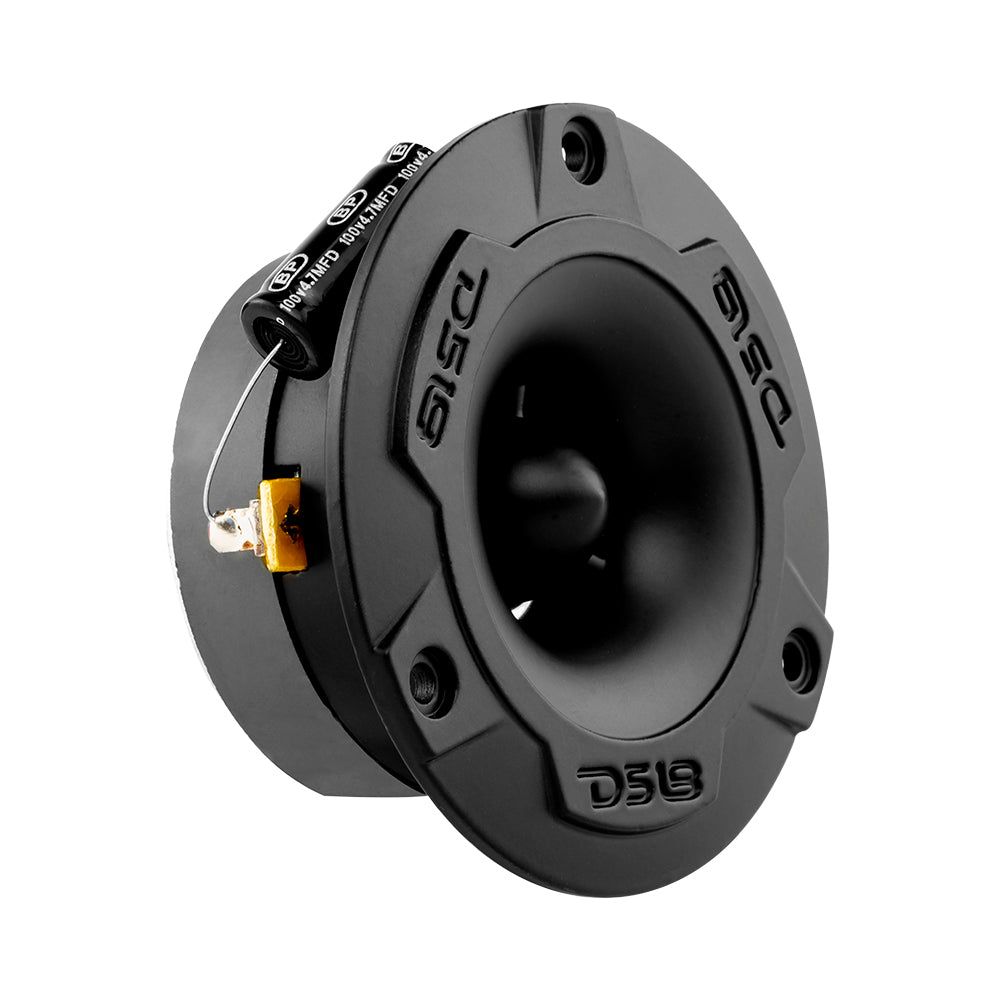

| Model: | PRO-TWX1/BK |
| Type: | Super Bullet Tweeter |
| RMS Power: | 120 Watts |
| MAX Power: | 240 Watts |
| Diaphragm Material: | Aluminum |
| Sensitivity: | 103dB |
| Impedance: | 4 Ohms |

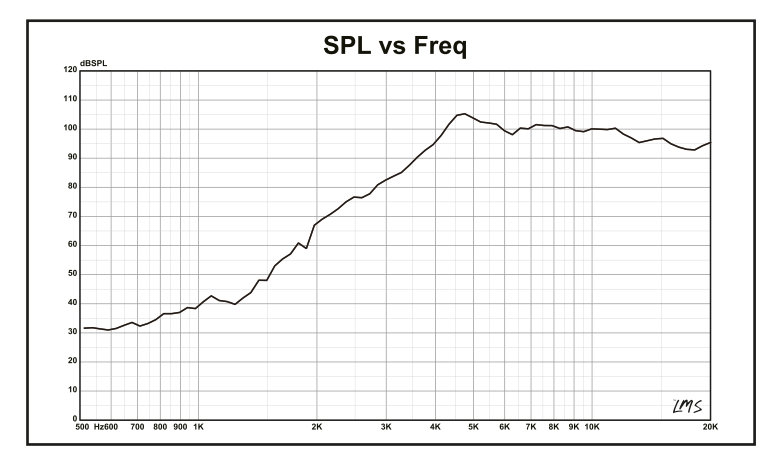

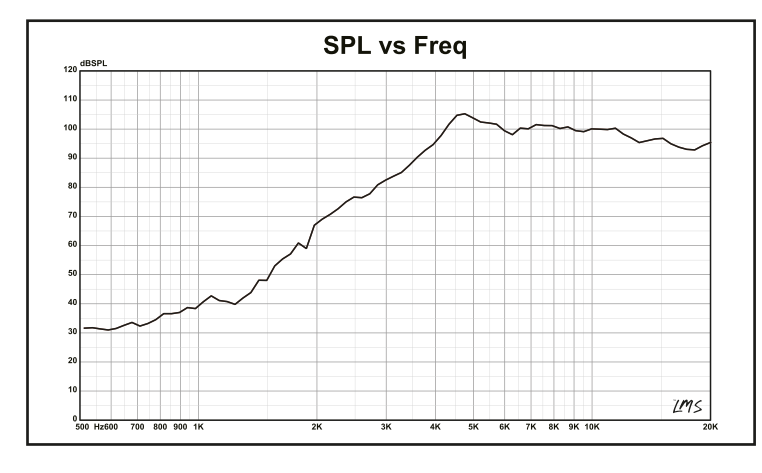

| Frequency Response: | 3.5KHz - 20KHz |
| Package Quantity: | 2 |

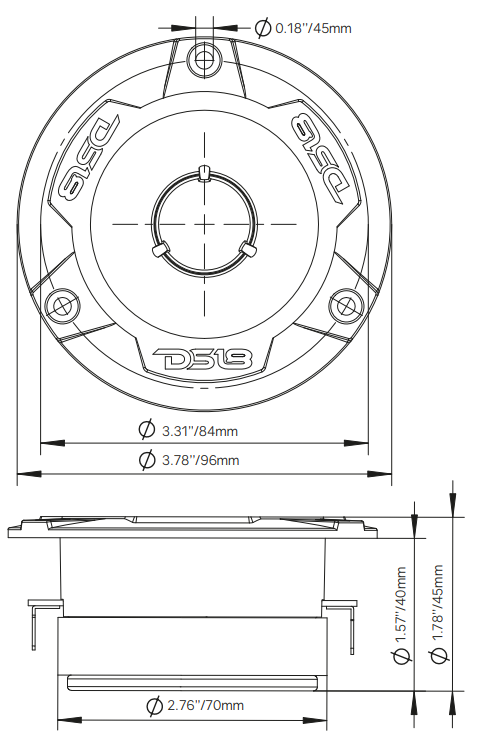

| MEASUREMENTS | |
| Overall Diameter | 3.78 / 96mm |
| Overall Depth | 1.78"/ 45mm |
| Front Mount Baffle cutout | 2.76"/ 70mm |
| Mounting Depth | 1.57"/ 40mm |
Key Features
- 2 X PRO-GM8.4 ~ 8" Mid-Range
- 2 X PRO-TWX1 ~ 3.78" Super Bullet Tweeter
- MAX Power: 580 Watts(W) 240 Watts(T)
- RMS Power: 190 Watts(W) 120 Watts(T)
- Impedance: 4 Ohm
- Ferrite Magnet
Specifications
| Nominal Diameter | 8" / 203.2mm / 3.8" / 96mm |
|---|---|
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 190W |
| MAX Power Handling | 580W |
| Sensitivity (1w/1m) | 94dB / 103 db |
| Frequency Response | 80Hz-10KHz / 3.5K-20Khz |
| Recommended Hi Pass Crossover | 120Hz / 2KHz |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 1.5" / 38.1mm / 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 30 oz / 8 Oz |
| Equivalent Volume Vas | 22.53L / 0.79ft3 |
| Excursion (one way) Xmax | N/A |
| Free Air Resonance Fs | 86Hz |
| Mechanical Factor Qms | 10.462 |
| Electrical Factor Qes | 0.795 |
| Total Factor Qts | 0.739 |
| Mechanical Mass Mms | 9.685g |
| Mechanical Compliance Cms | 0.351mm/N |
| BL Factor BL | 4.71 |
| Voice Coil Inductance Le | 0.431mH |
| Cone Area Sd | 213.82cm2 |
| DC Resistance Re | 3.3 ohm |

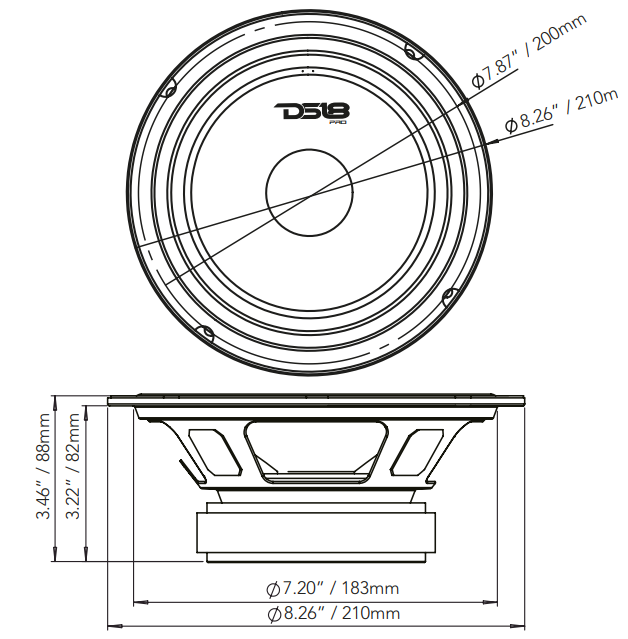

| Overall Diameter | 8.26"/ 210 mm / 3.78" / 96mm |
| Overall Depth | 3.46"/ 88 mm / 1.78" / 45mm |
| Front Mount Baffle Cutout | 7.2"/183 mm / 2.76" / 70mm |
| Mounting Depth | 3.22"/ 82mm / 1.57" / 40mm |
| Motor Diameter | 4.72" / 120mm / 2.76" / 70mm |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sold In Pair or Single | Pair |
| Filter (Bass Blocker) | N/A |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
| Diaphragm Material | Aluminum |
| Gross Single Unit Weight (lb) | 12 |
| Single Unit Box Dimensions W x L x H (Inches) | 21.75 x 9.5 x 4.5 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 51.5 |
| Master Carton Dimensions W x L x H (Inches) | 22.5 x 19.25 x 10 |
