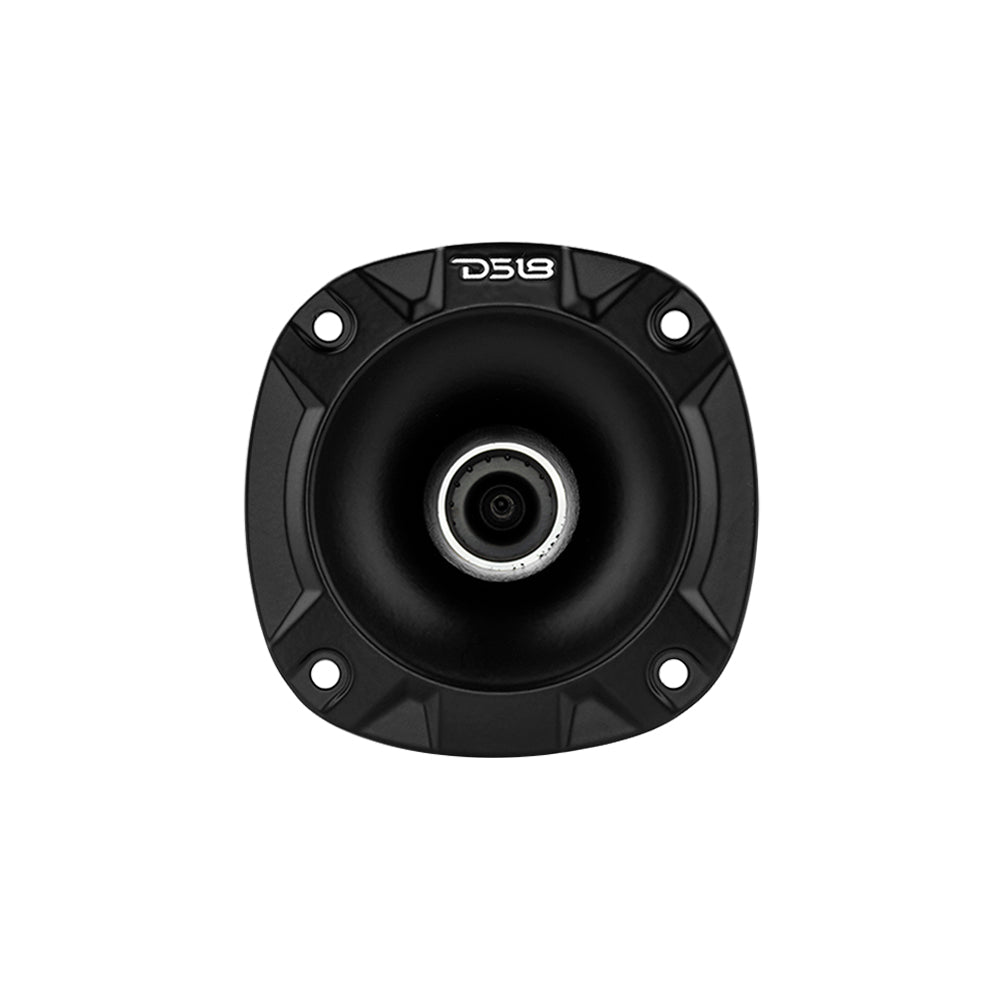

1" Neodymium Driver And Horn Kit 160 Watts 1.5" Polyimide 8-Ohm Vc
Product Overview DS18 PRO-DRNSC1.5DK 1" Neodymium Driver with 1.5" Composite Polyamide VC 8 Ohm With Horn The...
Vendor:
DS18
Manufacturer SKU
PRO-DRNSC1.5DK
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $104.95
- $104.95
- Unit price
- per
Subtotal:
$104.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

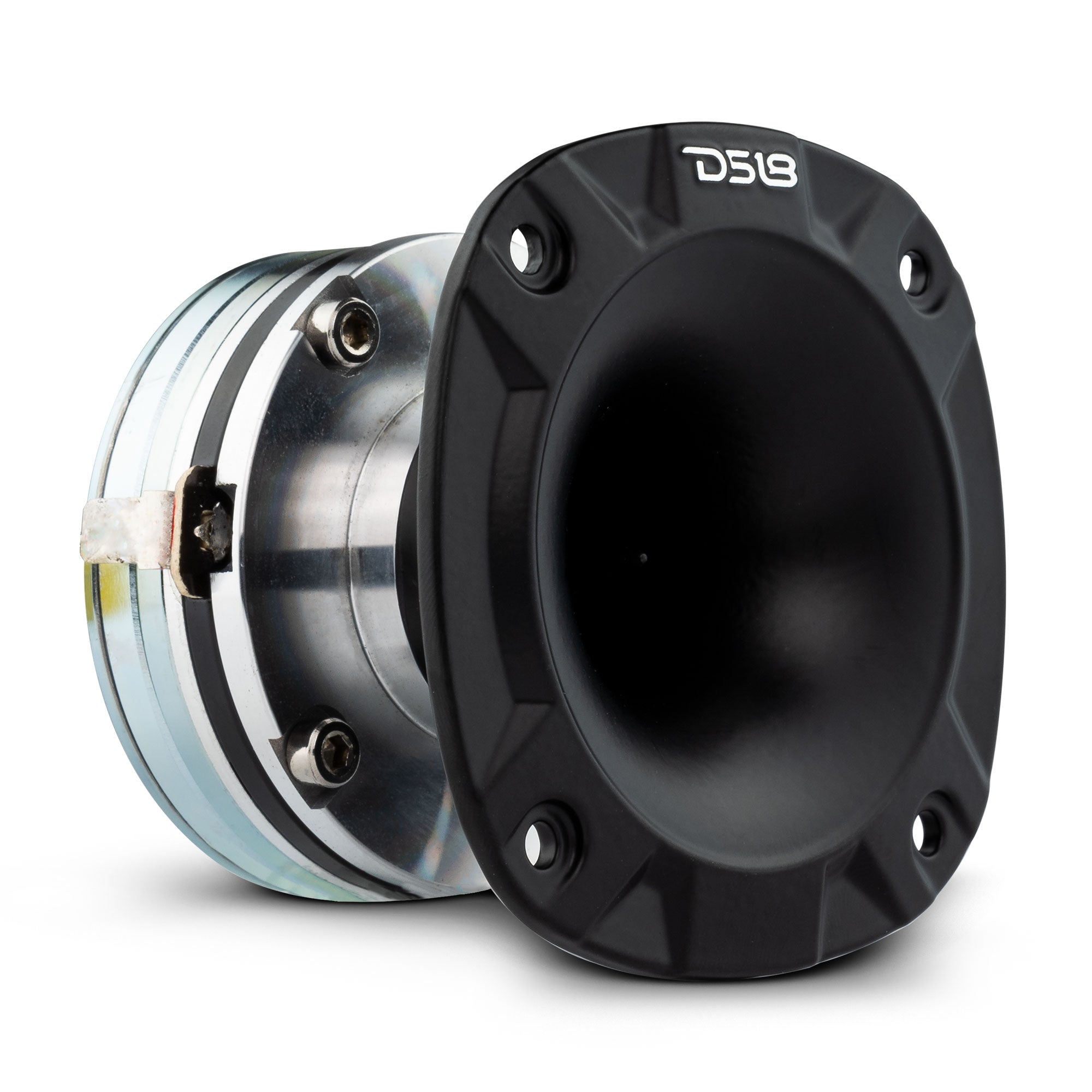

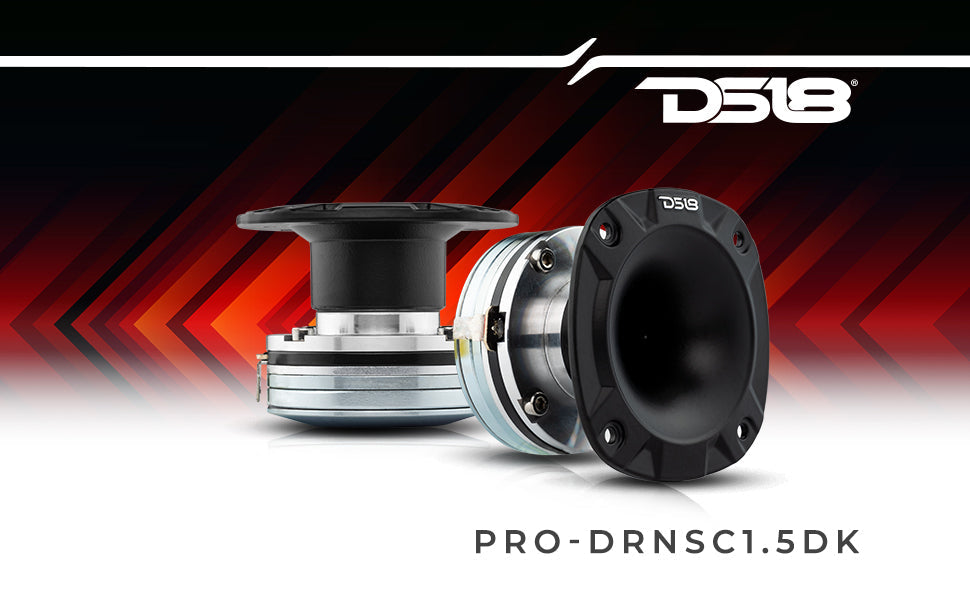

DS18 PRO-DRNSC1.5DK 1" Neodymium Driver with 1.5" Composite Polyamide VC 8 Ohm With Horn
The PRO-DRNSC1.5DK boasts unmatched power handling for the Pro Audio sound you love. This neodymium compression driver ensures unparalleled performance that delivers impressive sound with striking clarity and limitless depth. Equipped with a highly durable 1.5” voice coil, these drivers are guaranteed to perform at their maximum potential for the entirety of any jam session. This compression driver doesn’t draw an excessive amount of power from your amplifier & ensures long lasting performance from your equipment. This variation of the PRO-DRNSC includes a non-removable horn throat so that it is ready to be quickly installed.
Highlights

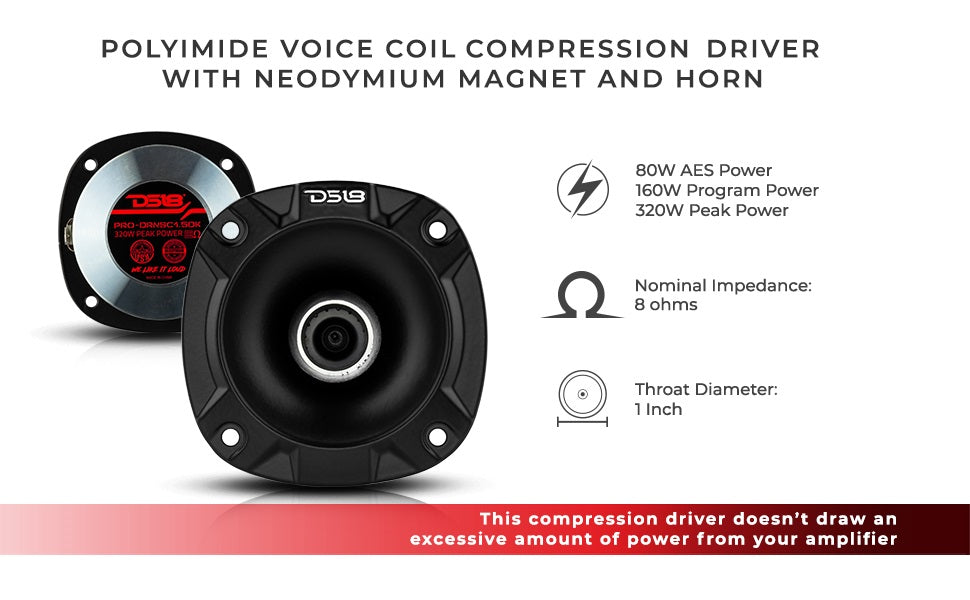

- 80W AES Power Handling; 160W Program Power Handling; 320W Peak Power Handling
- Drop-in voice coils for fast and easy repairs in the rare occasion they are overpowered
- Neodymium Magnets to ensure the highest efficiency, and power handling, without the bulk of traditional ferrite magnets
- Compact driver with functionality in spaces most drivers can’t fit
- Made to fit most standard thread on horn throats
- 109dB sensitivity for easy climbs to MAX volume

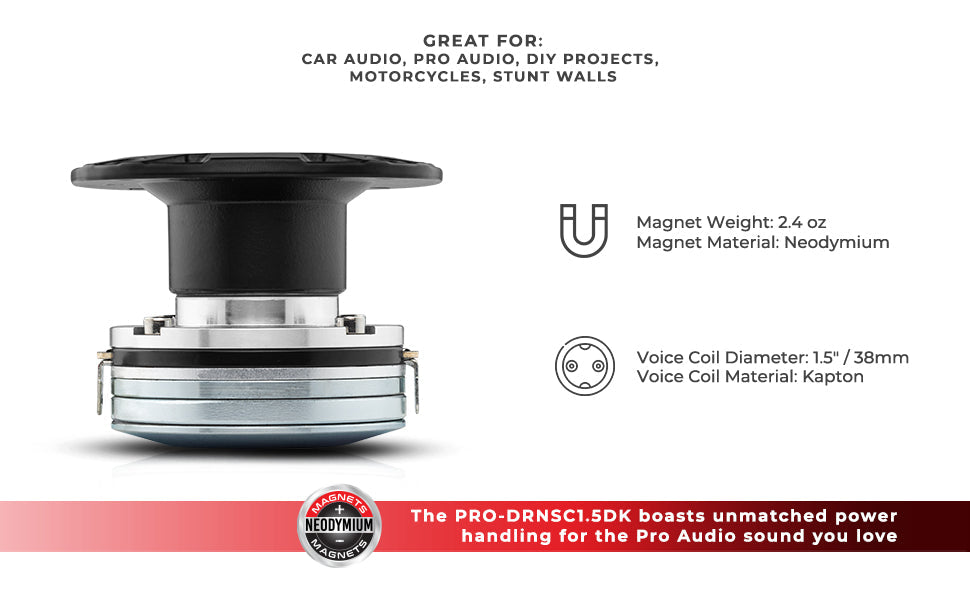

Great For

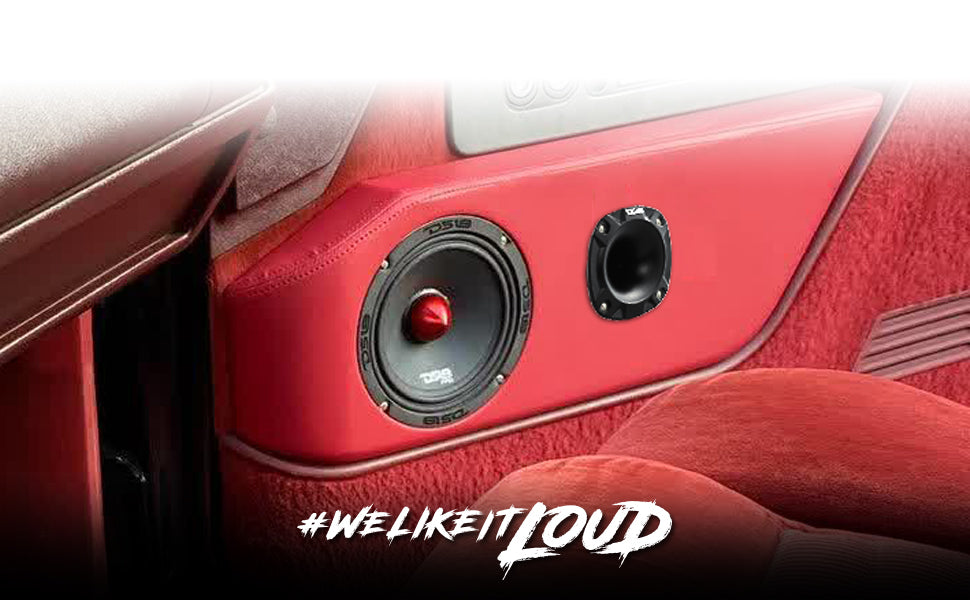

- Car Audio
- Pro Audio
- DIY Projects
- Motorcycles
- Stunt Walls
Technical Details
| SPECIFICATIONS | |
| Nominal Impedance | 8 ohm |
| AES Power handling | 80 W |
| Program Power Handling | 160 W |
| Peak Power handling | 320 W |
| Sensitivity (1w/1m) With Horn | 111 dB |
| Frequency Response | 1K-20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Pair or Single | Single |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium (N38H） |
| Magnet Weight | 2.4 oz |
| Body Color / Finish | Silver / Raw |
| Body Material | Aluminum |
| HORN SPECIFICATIONS | |
| Nominal Diameter | 3.15" / 80mm |
| Throat Diameter | 1" / 25.4mm |
| Sound Coverage | 60° (round) |
| Body Material | Aluminum |
| Color/Finish | Silver / Raw |
| MEASUREMENT | |
| Overall Diameter | 3.15" / 80mm |
| Overall Depth | 2.42" / 61.5mm |
| Mounting Depth | 2.22" / 56.5mm |
| Mounting Hole Diameter | 2.75" / 70mm |
| Bolt Pattern (Horn) | 2.13" / 54mm |
Key Features
- 1" Compression Driver with Horn
- RMS Power: 160 Watts(320 Watts Peak)
- Impedance: 8 Ohm
- Neodymium Magnet
- Composite Polyimide Diaphragm
- 111dB
Specifications
| SKU | PRO-DRNSC1.5DK |
|---|---|
| Nominal Impedance | 8 OHM |
| AES Power Handling | 80 Watts |
| Program Power Handling | 160 Wats |
| Peak Power Handling | 320 Watts |
| Sensitivity (1w/1m) | 111 dB |
| Frequency Response | 1K - 20KHz |
| Recommended Hi Pass Crossover | 2 KHz |
| Pair or Single | Single |
| Voice Coil Diameter | 1.5" / 38 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 2.4 Oz |
| Body Color | Finish | Silver | Raw |
| Body Material | Aluminum |
| Nominal Diameter | 3.15" / 180 mm |
| Throat Diameter | 1" / 25.4 mm |
| Sound Coverage | 60° (Round) |
| Color | Finish | Silver | Raw |
| Overall Diameter | 3.15" / 80 mm |
| Overall Depth | 2.42" / 61.5 mm |
| Mounting Depth | 2.22" / 56.5 mm |
| Mounting Hole Diameter | 2.75" / 70 mm |
| Bolt Pattern (Horn) | 2.13" / 54mm |
| Product Weight | 1.2 lbs |
| Product Dimensions | 3.25 x 3.25 x 3.5 |
| M/C Weight | 30 lbs |
| M/C Dimensions | 14 x 10.5 x 7.5 |
| M/C QTY | 24 |
| Sold as | Single |
