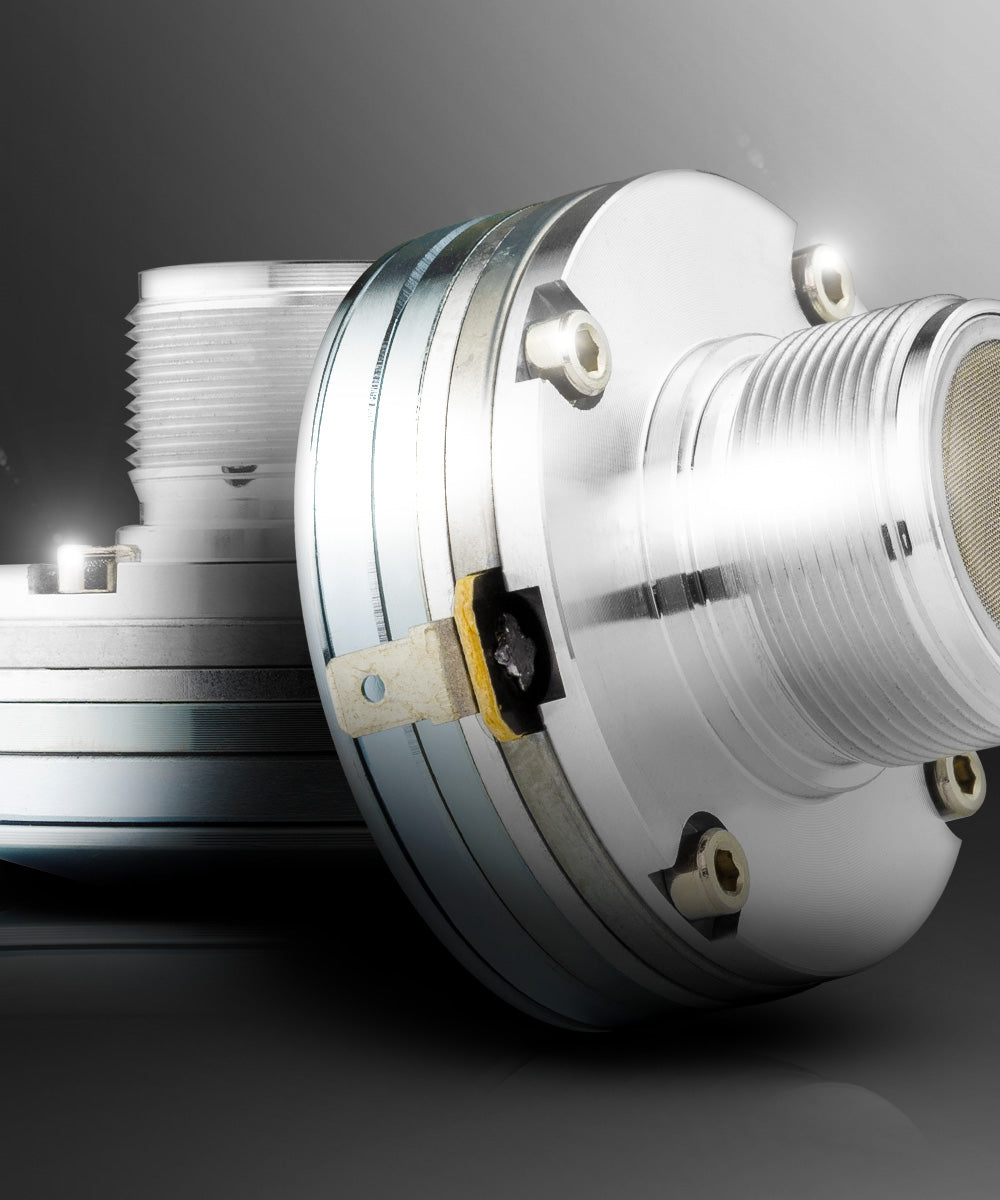

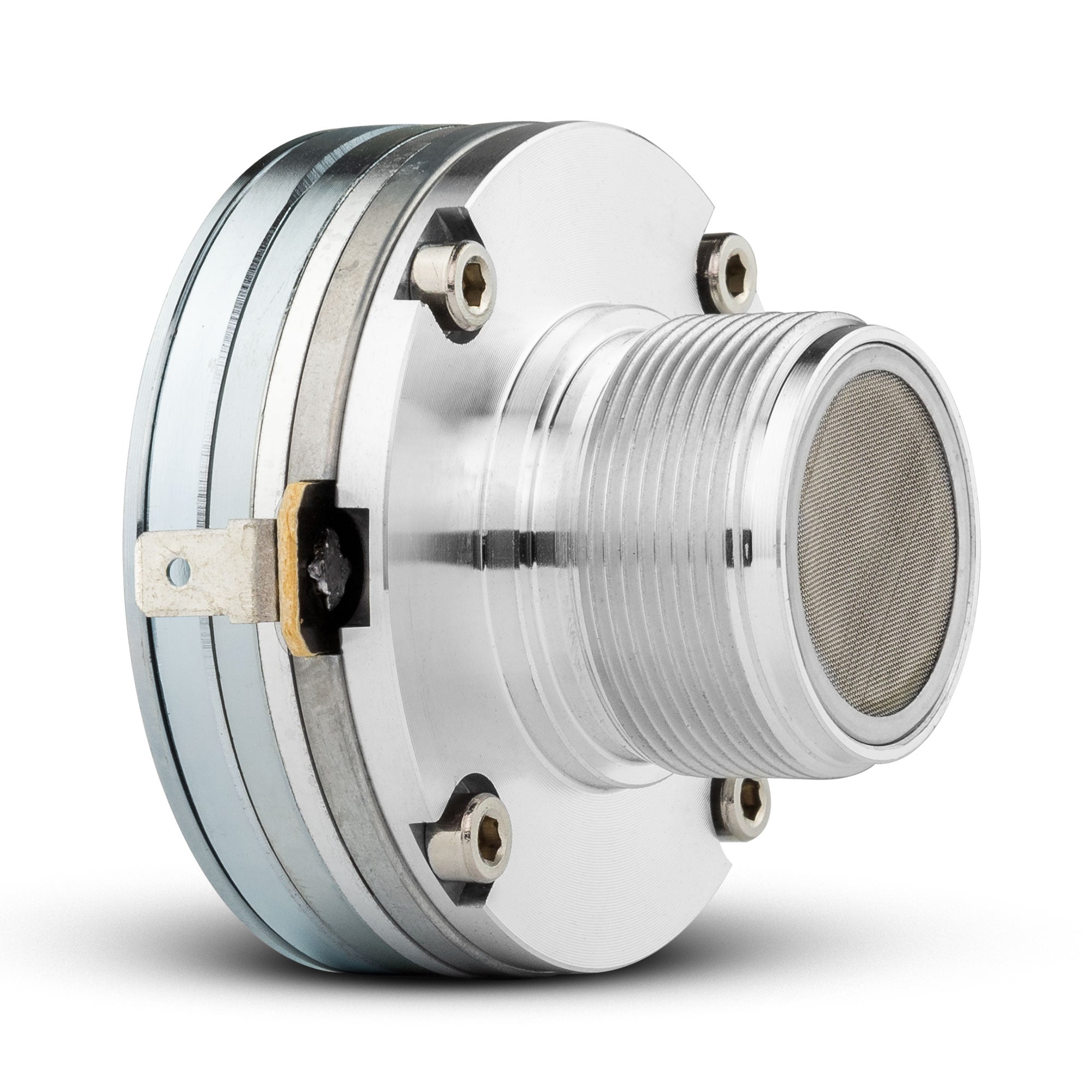

1" Throat Twist On Neodymium Driver 160 Watts 1.5" Composite Polyimide Vc 8-Ohm
Product Overview DS18 PRO-DRNSC1.5 1" Screw On Compression Driver with 1.5" Polyimide VC 8 ohm PRO-DRNSC1.5 The PRO-DRNSC1.5 boasts unmatched power...
Vendor:
DS18
Manufacturer SKU
PRO-DRNSC1.5
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $95.95
- $95.95
- Unit price
- per
Subtotal:
$95.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

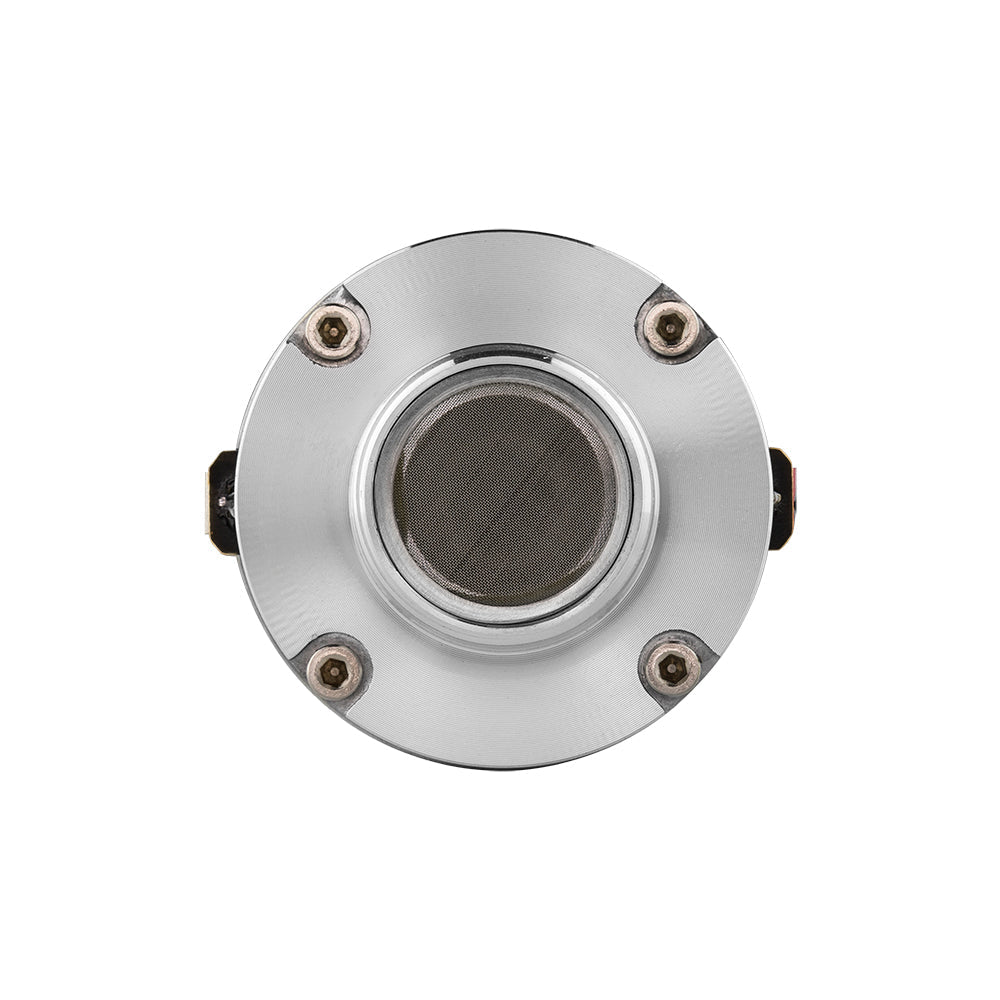

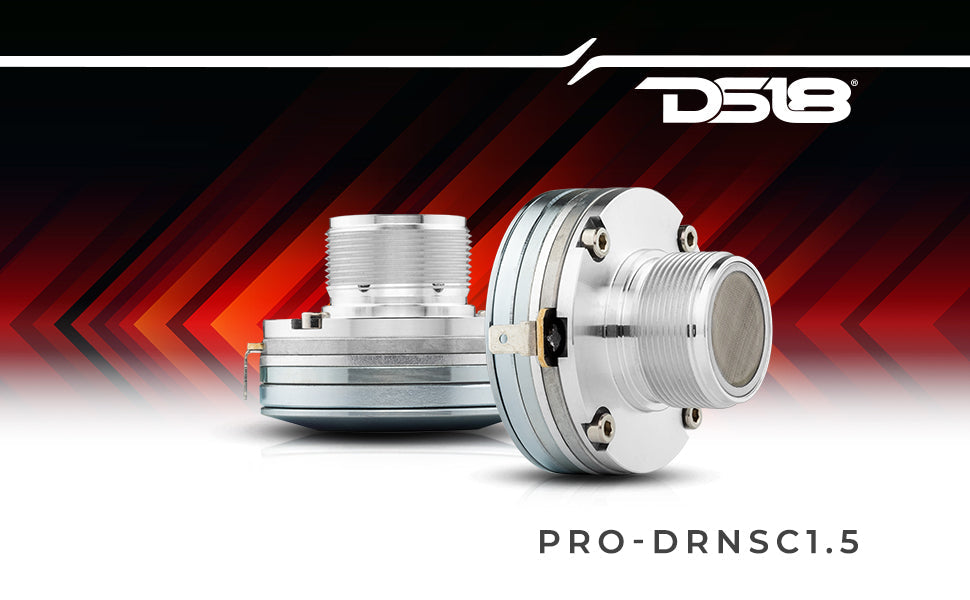

DS18 PRO-DRNSC1.5 1" Screw On Compression Driver with 1.5" Polyimide VC 8 ohm
PRO-DRNSC1.5
The PRO-DRNSC1.5 boasts unmatched power handling for the Pro Audio sound you love. This neodymium compression driver ensures unparalleled performance that delivers impressive sound with striking clarity and limitless depth. Equipped with a highly durable 1.5” voice coil, these drivers are guaranteed to perform at their maximum potential for the entirety of any jam session. This compression driver doesn’t draw an excessive amount of power from your amplifier & ensures long lasting performance from your equipment.
Highlights

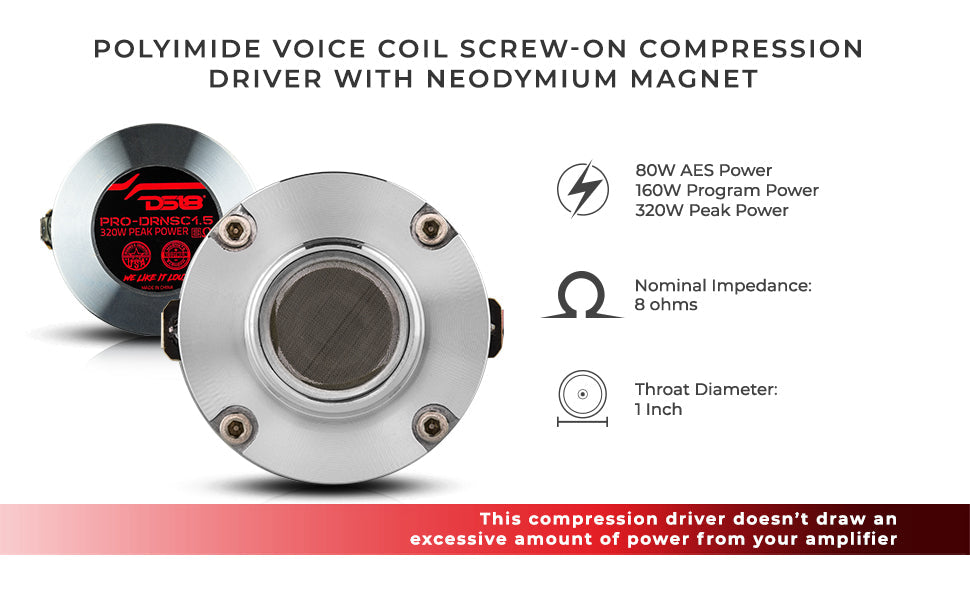

- 80W AES Power Handling; 160W Program Power Handling; 320W Peak Power Handling
- Drop-in voice coils for fast and easy repairs in the rare occasion they are overpowered

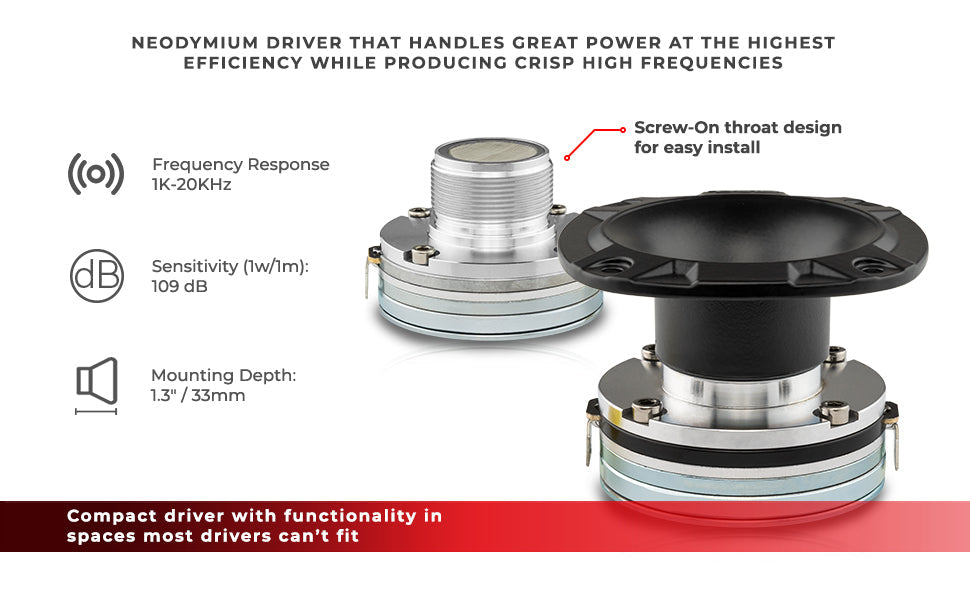

- Screw-On functionality for easy install
- Neodymium Magnets to ensure the highest efficiency, and power handling, without the bulk of traditional ferrite magnets
- Compact driver with functionality in spaces most drivers can’t fit
- Made to fit most standard thread on horn throats
- 109dB sensitivity for easy climbs to MAX volume

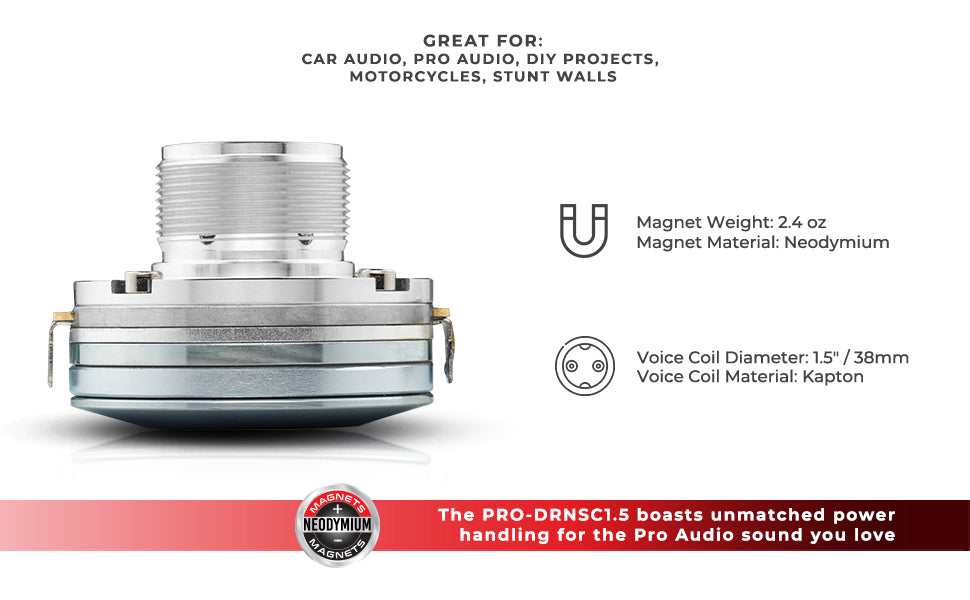

Great For
- Car Audio
- Pro Audio
- DIY Projects
- Motorcycles
- Stunt Walls
Technical Details
| SPECIFICATIONS | |
| Throat Diameter | 1" / 25.4mm |
| Installation Type | Screw-On |
| Nominal Impedance | 8 ohms |
| AES Power handling | 80 W |
| Program Power Handling | 160 W |
| Peak Power handling | 320 W |
| Sensitivity (1w/1m) | 109 dB |
| Frequency Response | 1K-20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Pair or Single | Single |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium (N38H） |
| Magnet Weight | 2.4 oz |
| Body Color / Finish | Silver / Raw |
| Body Material | Aluminum |
| MEASUREMENT | |
| Overall Diameter | 2.52" / 64mm |
| Overall Depth | 1.93" / 49.2mm |
| Bolt Pattern/Type | M34 - 1.34" |
| Mounting Depth | 1.3" / 33mm |
Key Features
- 1" Compression Driver
- RMS Power: 160 Watts(320 Watts Peak)
- Impedance: 8 Ohm ~ 109db
- Neodymium Magnet - Composite Polymide Diaphragm
- Twist On
- Easily Repaired With The PRO-DRNSC1.5VC
Specifications
| SKU | PRO-DRNSC1.5 |
|---|---|
| Throat Diameter | 1" / 25.4 mm |
| Installation Type | Screw-On |
| Nominal Impedance | 8 OHM |
| AES Power Handling | 80 Watts |
| Program Power Handling | 160 Watts |
| Peak Power Handling | 320 Watts |
| Sensitivity (1w/1m) | 109 dB |
| Frequency Response | 1K - 20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Voice Coil Diameter | 1.5" / 38 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 2.4 Oz |
| Body Material | Aluminum |
| Body Color/Finish | Silver | Raw |
| Overall Diameter | 2.52" / 64 mm |
| Overall Depth | 1.93" / 49.2 mm |
| Bolt Pattern | 2.75" / 70 mm |
| Mounting Depth | 1.3" / 33 mm |
| Product Weight | 1.1 lbs |
| Product Dimensions | 2.75 x 2.75 x 3 |
| M/C Weight | 26.5 lbs |
| M/C Dimensions | 11.5 x 8.5 x 6.5 |
| M/C QTY | 24 |
| Sold In | Piece |
