PRO 8" Shallow Carbon Fiber Water resistant Cone Mid-Bass Loudspeaker 275 Watts Rms 4-Ohm
Product Overview DS18 PRO-CF8.4SL PRO 8" Slim Carbon Fiber Water resistant Cone Mid-Bass Loudspeaker 550 Watts Max 4-Ohm The...
Vendor:
DS18
Manufacturer SKU
PRO-CF8.4SL
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $95.95
- $95.95
- Unit price
- per
Subtotal:
$95.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

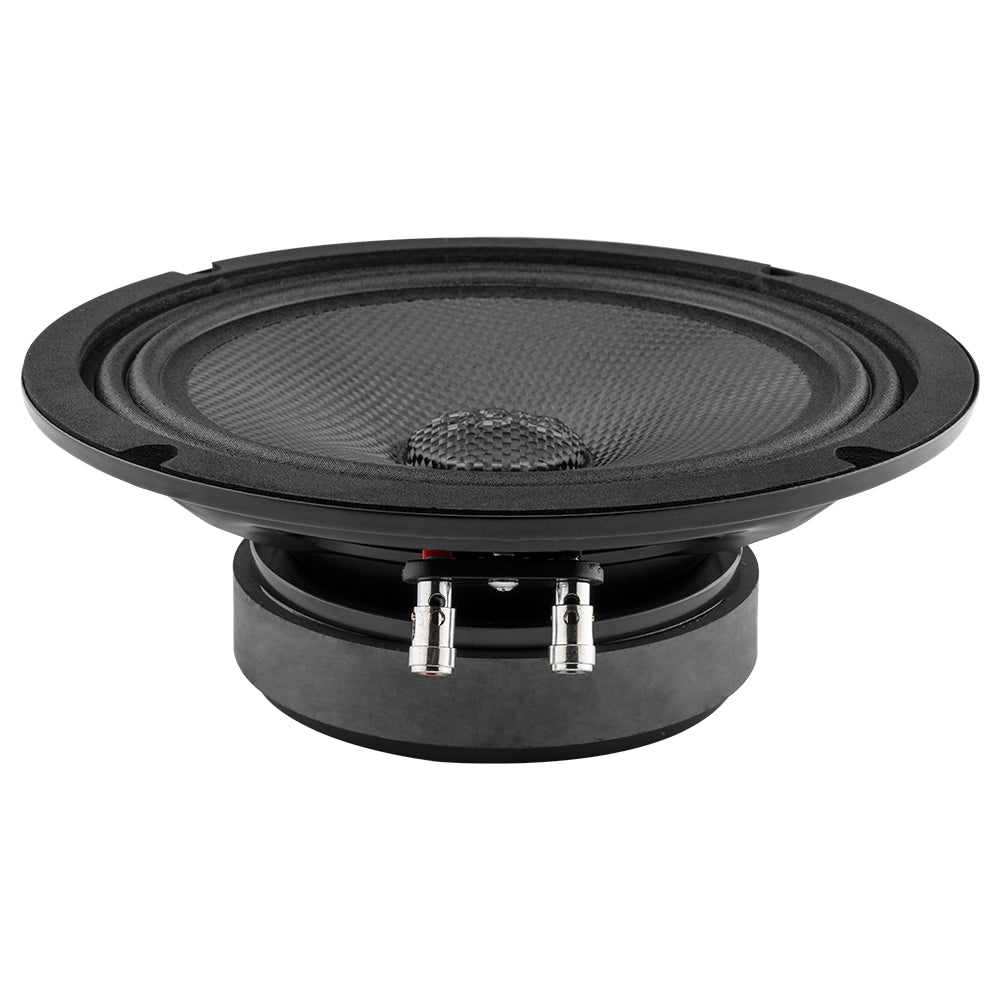

DS18 PRO-CF8.4SL PRO 8" Slim Carbon Fiber Water resistant Cone Mid-Bass Loudspeaker 550 Watts Max 4-Ohm
The PRO-CF8.4SL is a water-resistant Pro Audio loudspeaker with amazing highs and comparable low mid bass frequency responses. This speakers versatility allows it to hit frequencies as high as 12.5KHz and as low as 60 Hz providing for an extreme full range of frequencies that all listeners will notice and enjoy!
The PRO-CF8.4SL is designed to deliver LOUD audio with striking clarity and remain durable in the worst of the elements. DS18’s current waterproof carbon fiber cone design and super strong rubber surrounds protect these speakers from damage sustained by use in harsh environments. This also helps increase the sensitivity level on these speakers so they play LOUD and clear on every use.
Although the speakers components are waterproof, the speaker itself is only water resistant so use in rough conditions should be avoided as much as possible.

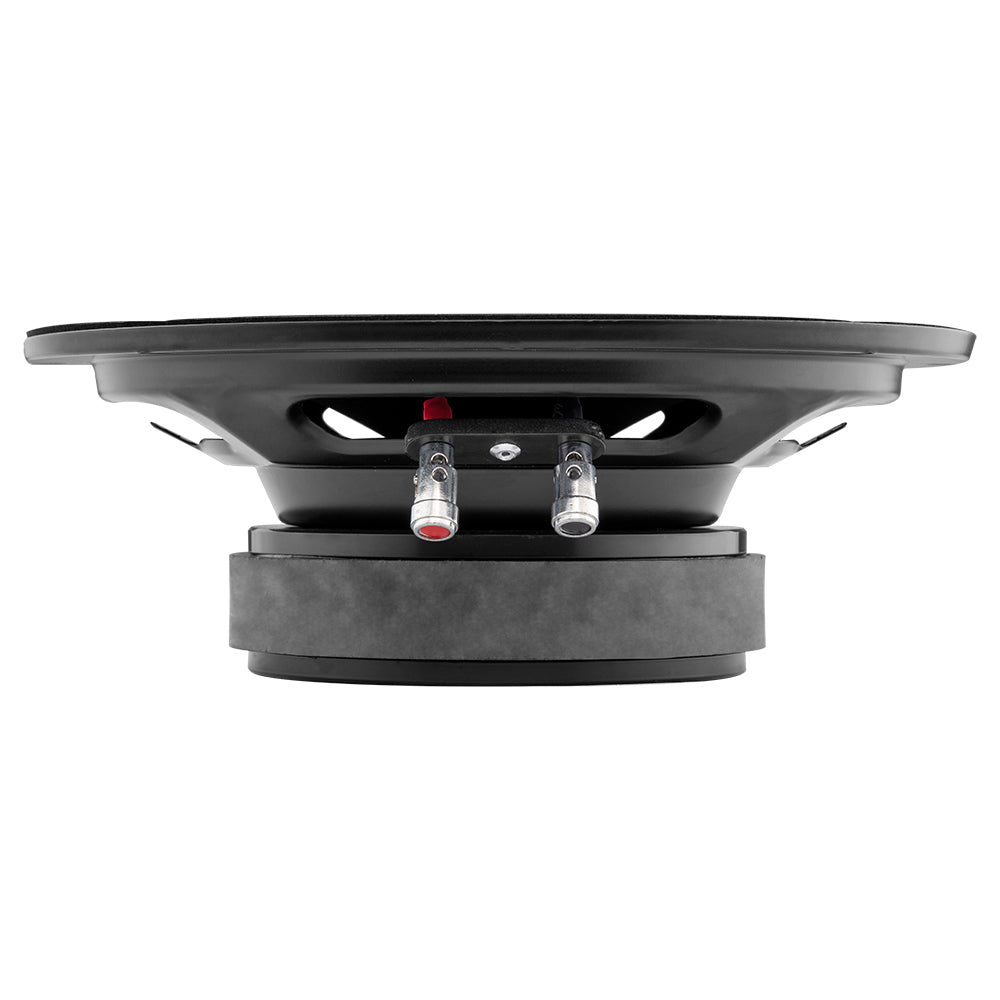

The size reduction on this speaker also gives it high levels of functionality in a variety of applications. Easy-to-use push terminals help protect and secure wires.
The PRO-CF8.4SL handles great power; rated at 275 watts RMS and 550 watts max, you know this powerhouse of a speaker can get loud and clear!
Highlights
- Awesome power handling and efficiency
- Operable in a wide array of applications

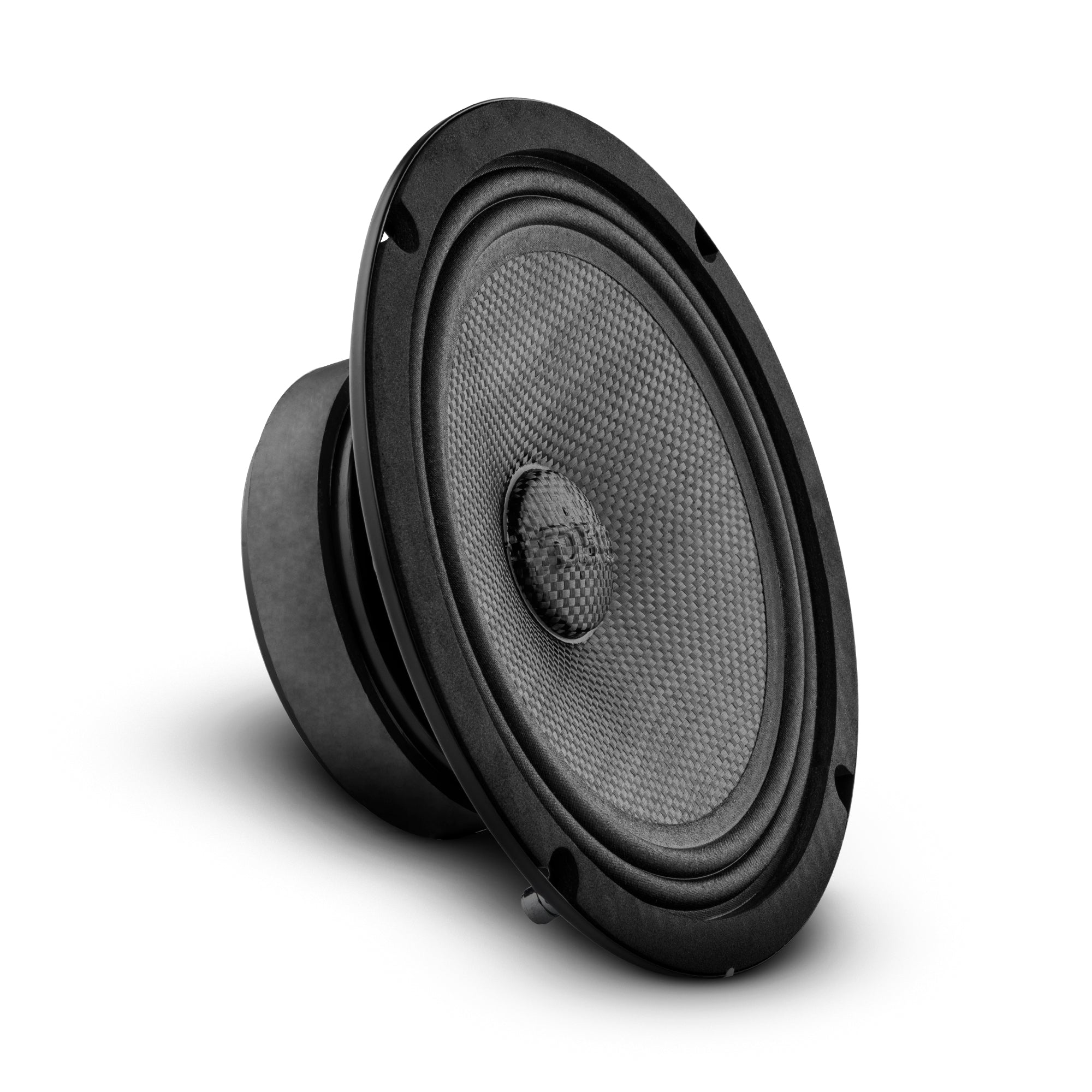

- The carbon fiber cone provides amazing style supported by a super strong rubber surround that will withstand the test of time!
Great For

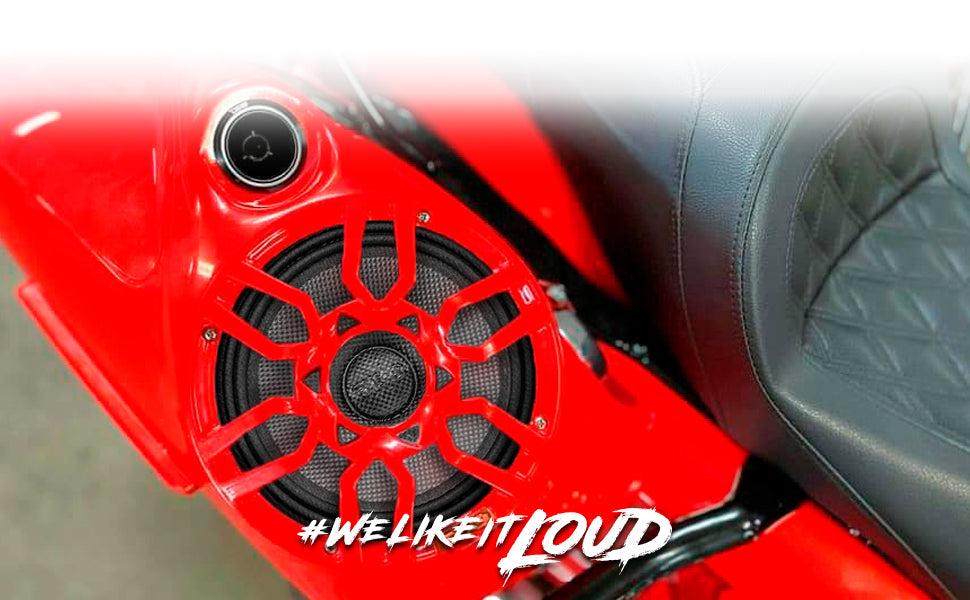

- Motorcycle Applications
- Marine Applications
- Off Road Applications
- Hi-Fi Installation
- Car Audio
- Home Studio
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 275W |
| MAX Power Handling | 550W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 60Hz-12.5KHz |
| Recommended HI Pass Crossover | 80Hz |
| Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Waterproof Carbon Fiber |
| Dust Cap Material | Waterproof Carbon Fiber |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Gloss Black |

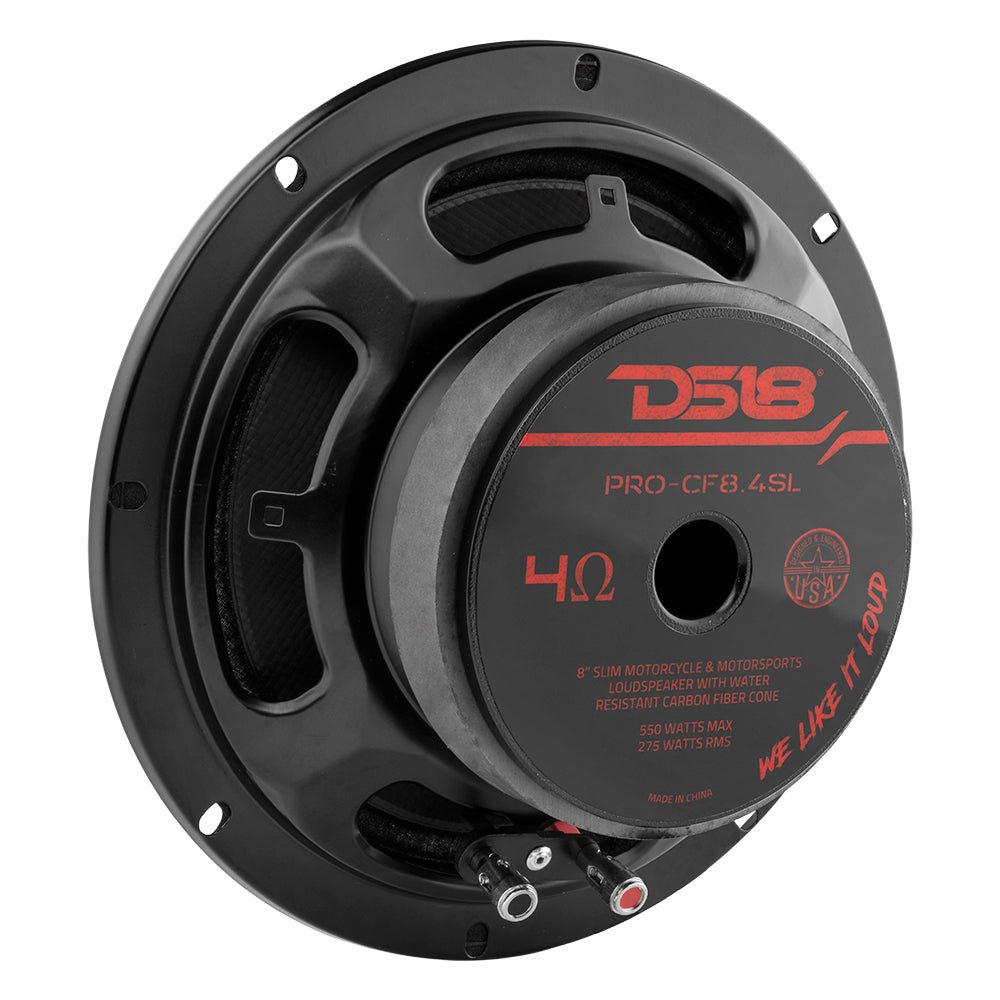

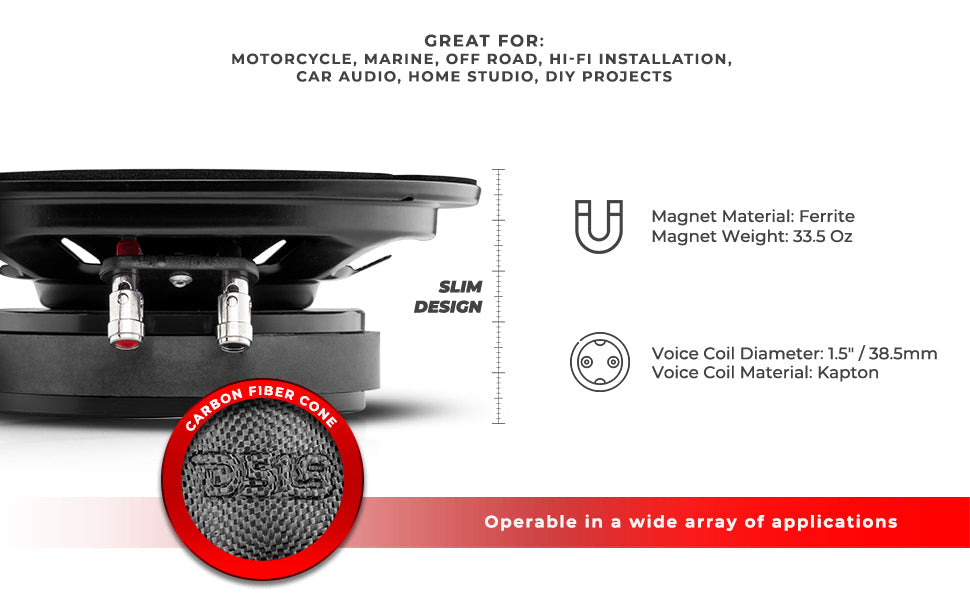

| Magnet Material | Ferrite |
| Magnet Weight | 33.5 Oz |
| MEASUREMENT | |

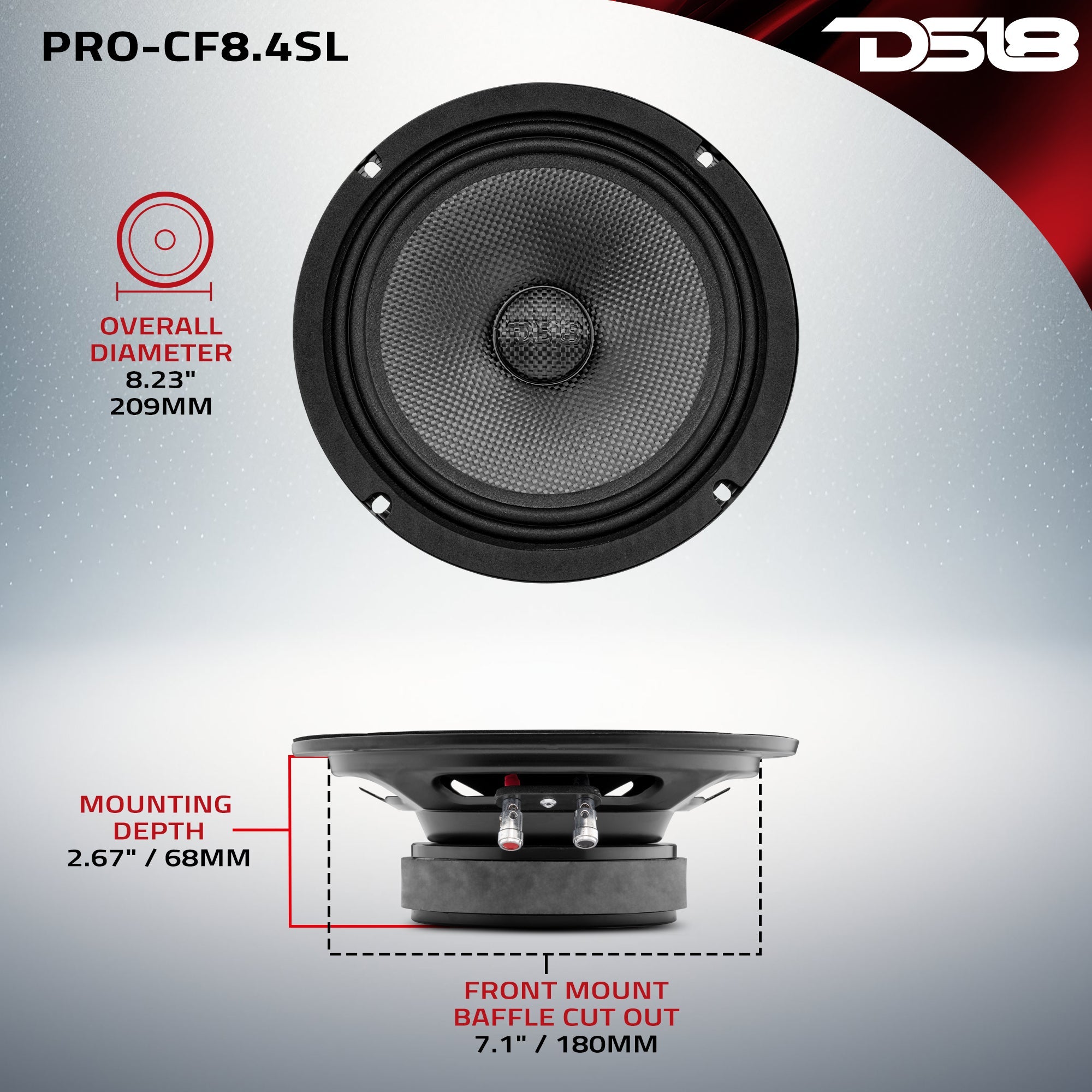

| Overall Diameter | 8.23" / 209mm |

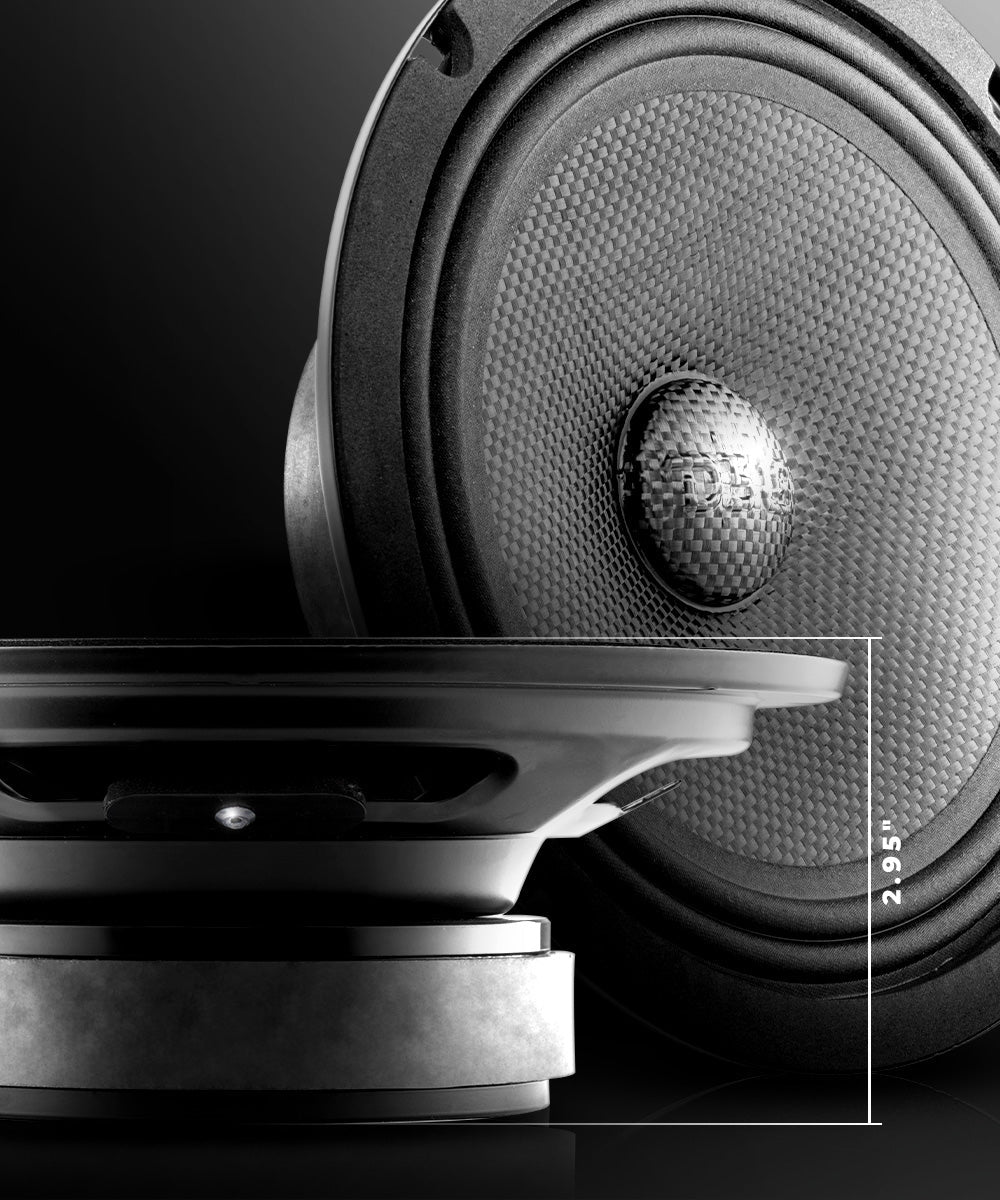

| Overall Depth | 2.95" / 75mm |
| Front Mount Baffle Cutout | 7.1" / 180mm |
| Mounting Depth | 2.67" / 68mm |
| Motor Diameter | 4.64" / 118mm |
Key Features
- 8" Shallow Mid-Bass
- Water Resistant Carbon Fiber Cone
- RMS Power 275 Watts(550 Watts Peak)
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB
Specifications
| SKU | PRO-CF8.4SL |
|---|---|
| Nominal Diameter | 8" / 203 mm |
| Nominal Impedance | 4 OHMS |
| RMS Power Handing | 275 Watts |
| Maximum Power Handing | 550 Watts |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 60Hz-12.5KHz |
| Recommended Hi Pass Crossover | 80 Hz |
| Voice Coil Diameter | 1.5" / 38.5 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 33.5Oz |
| Vas | 18.78 L / 0.663 ft3 |
| Xmax | 2.5 mm |
| Fs | 108 Hz |
| Qms | 19.02 |
| Qes | 0.928 |
| Qts | 0.88 |
| Re | 3.8 OHMS |
| Overall Diameter | 8.23" / 209 mm |
| Front Mount Baffle Cutout | 7.1" / 180 mm |
| Mounting Depth | 2.67" / 68 mm |
| Overall Depth | 2.95" / 75 mm |
| Product Weight | 5 lbs |
| Product Dimensions | 9 x 9 x 3.5 |
| M/C Weight | 41.5 lbs |
| M/C Dimensions | 18.5 x 18.5 x 8.5 |
| M/C QTY | 8 |
| Sold In | Piece |
