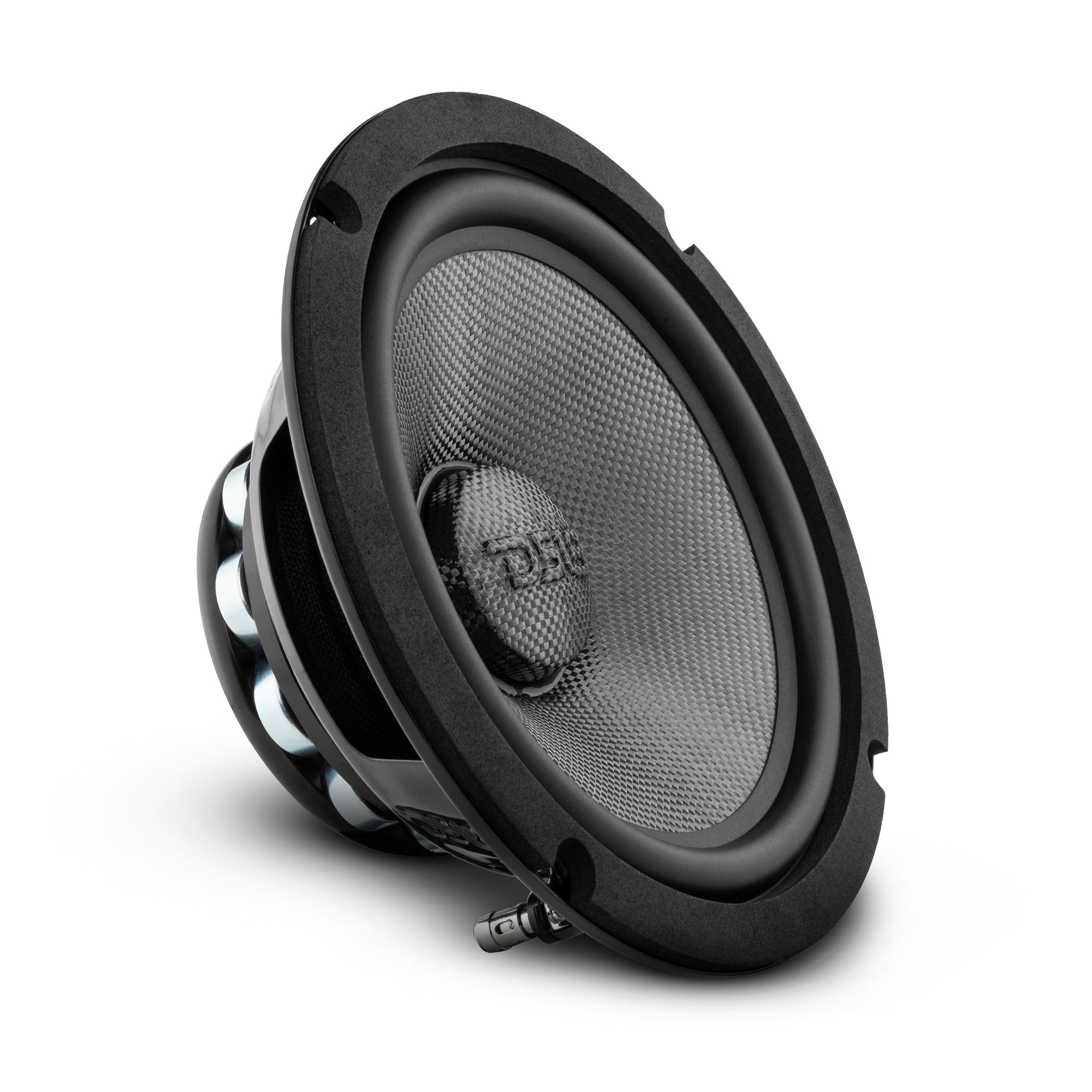

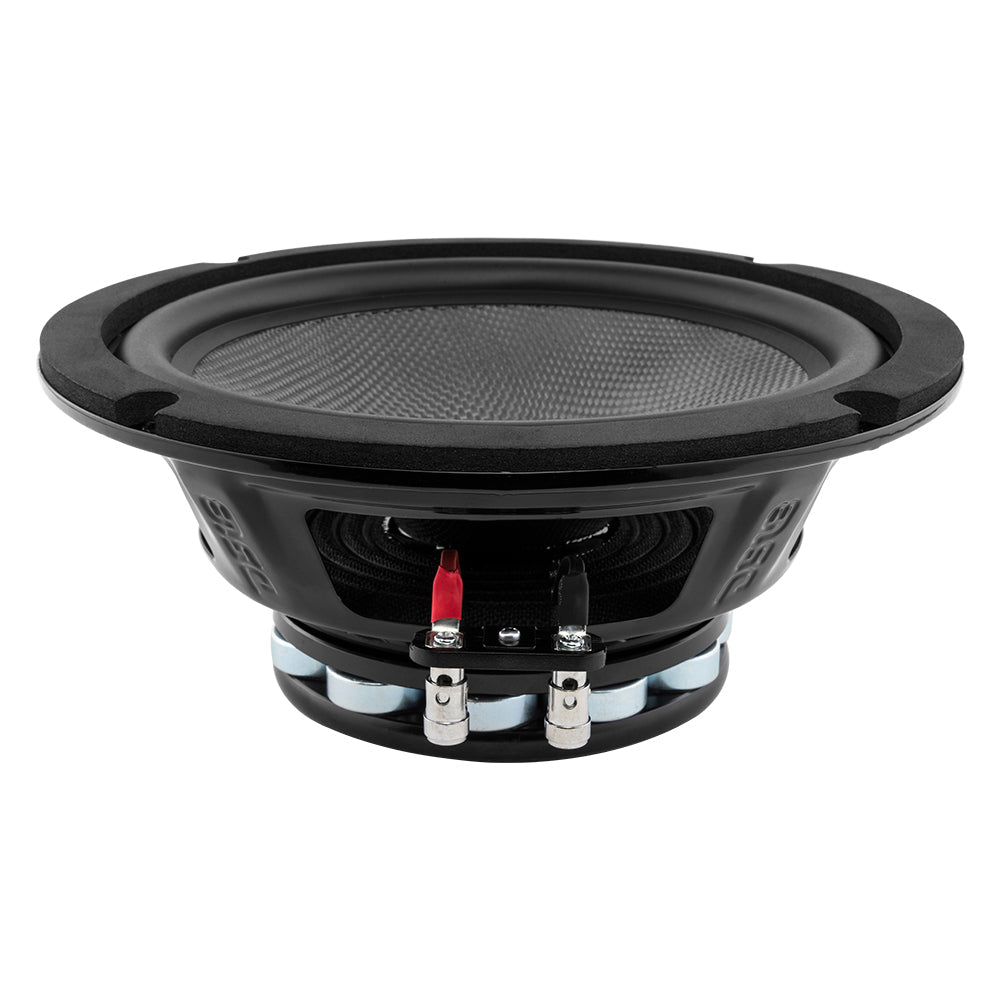

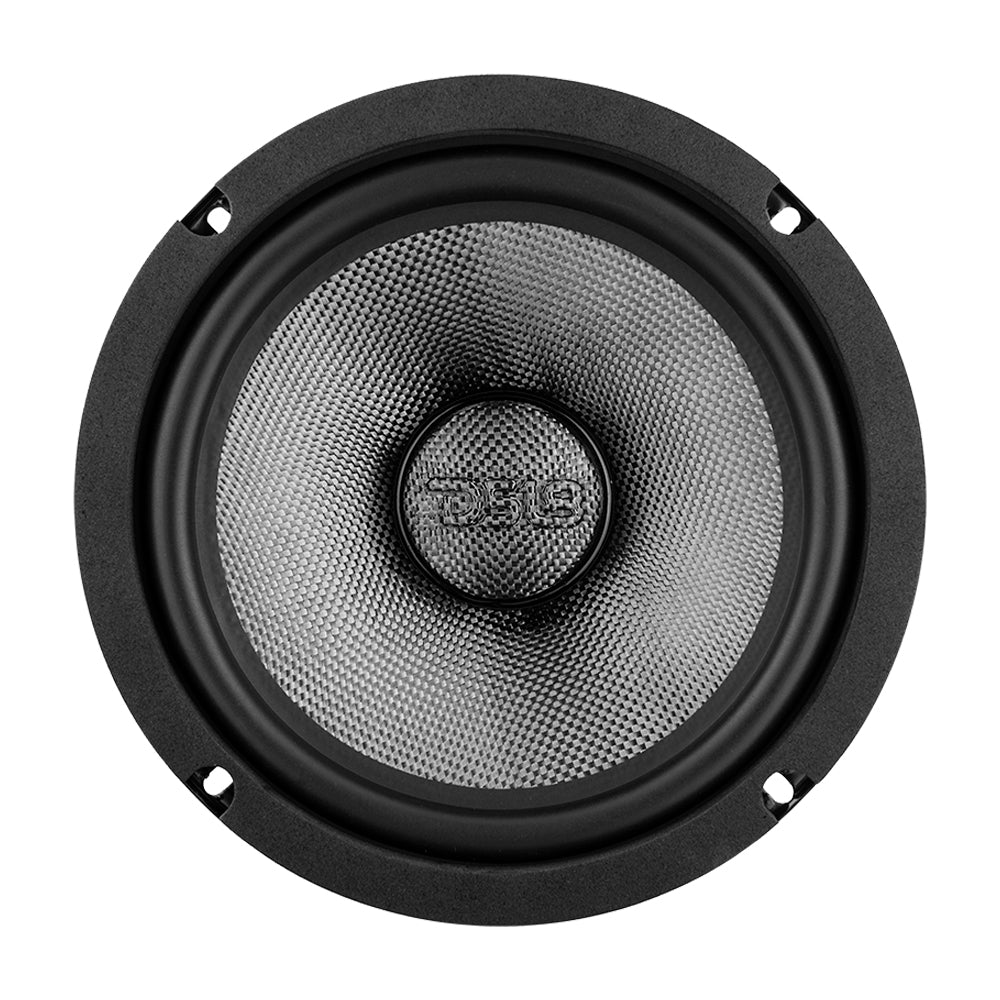

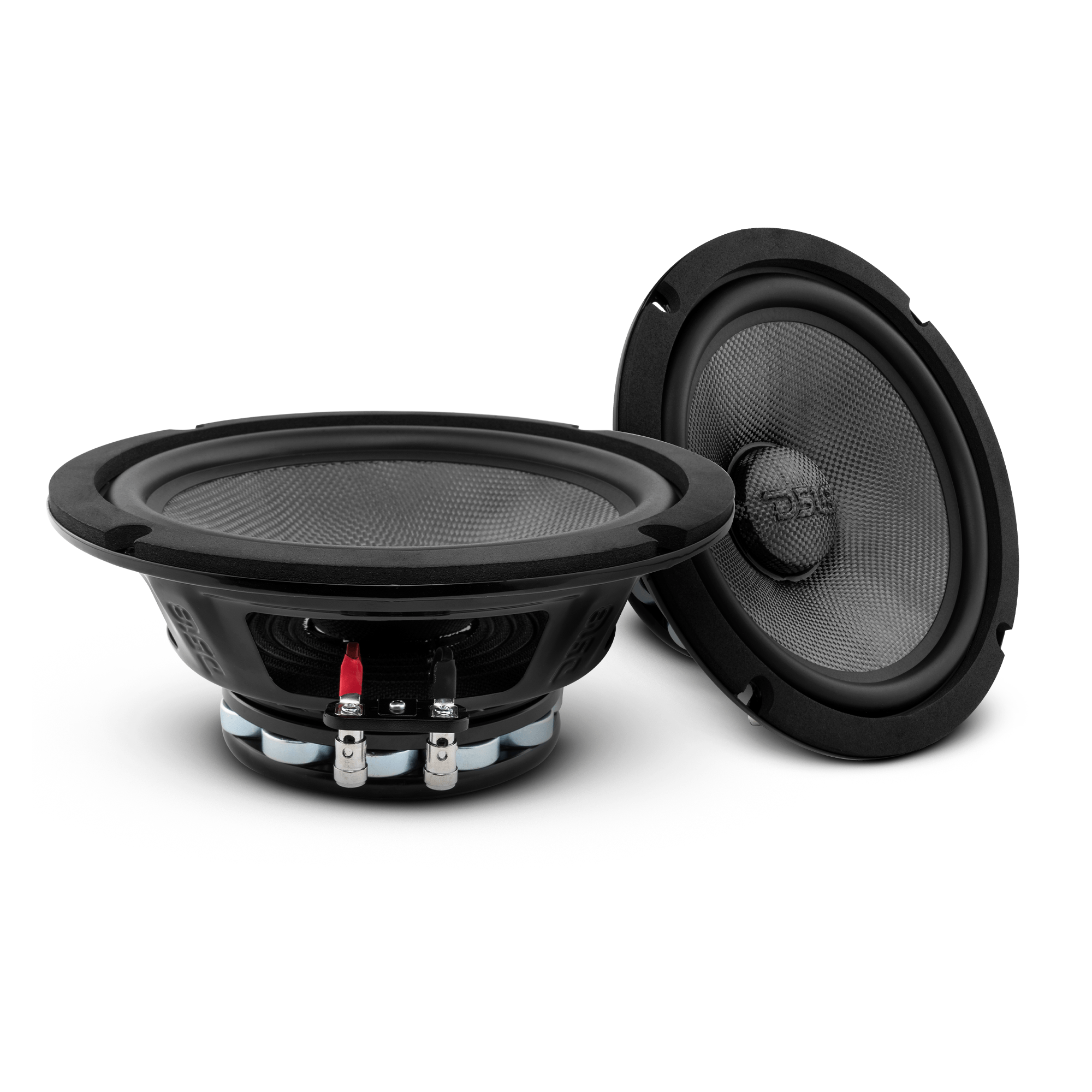

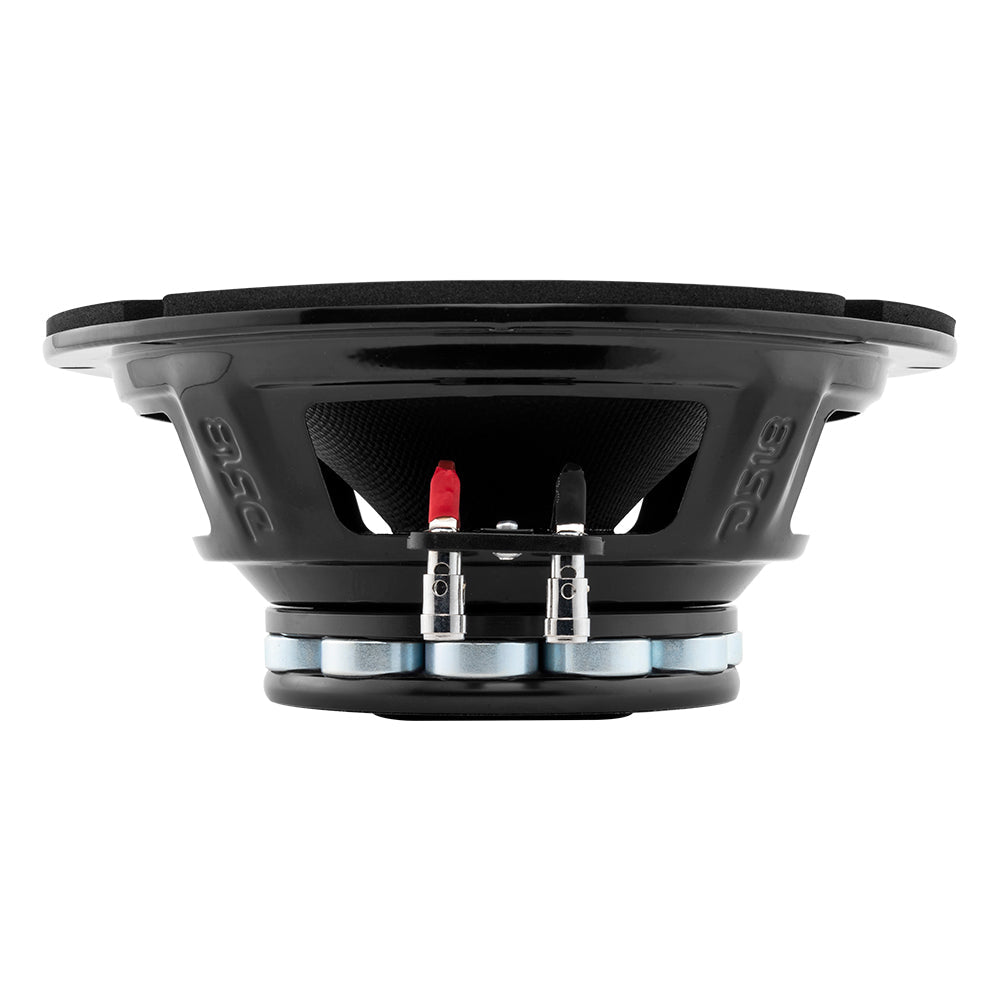

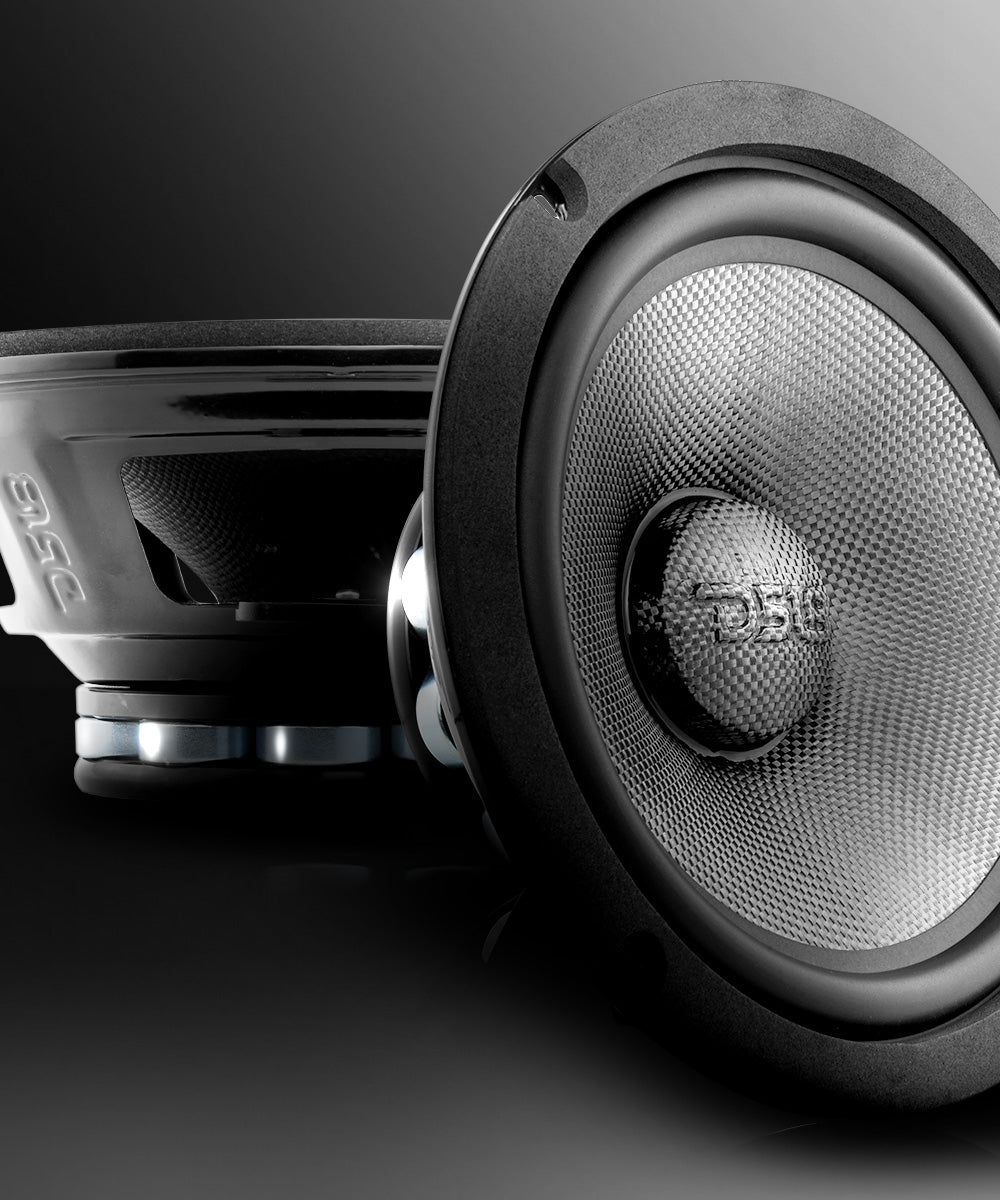

PRO 8" Neodymium Carbon Fiber Water resistant Cone Mid-Bass Loudspeaker 300 Watts Rms 2-Ohm
Product Overview DS18 PRO-CF8.2NR 8" Mid-Bass Loudspeaker with Water Resistant Carbon Fiber Cone and Neodymium Rings Magnet...
Vendor:
DS18
Manufacturer SKU
PRO-CF8.2NR
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $251.95
- $251.95
- Unit price
- per
Subtotal:
$251.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 PRO-CF8.2NR 8" Mid-Bass Loudspeaker with Water Resistant Carbon Fiber Cone and Neodymium Rings Magnet 600 Watts 2-Ohm
Neodymium is known for being the best option for magnets in your speaker motors which give the loudest and most efficient speaker.

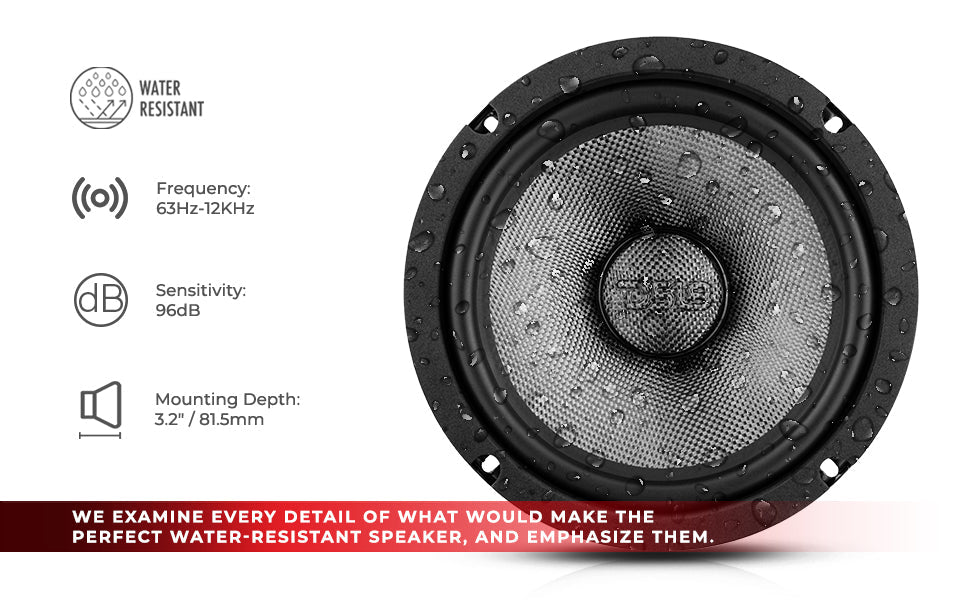

DS18 has an amazing line of loudspeakers that are not only water resistant, they are centered around a Neodymium magnet, with super strong rubber surround, and high tech carbon fiber cones that gives not only great looks, but very high sensitivity levels for an amazing water resistant speaker that you can play loud and clear out in the elements.
This super loudspeaker can be used for many applications, It can be used in motorcycles, cars, motorsports, home, and marine applications alike!
The PRO-CF8.2NR handles great power; rated at 300 watts RMS and 600 watts max, you know this powerhouse of a speaker can get loud and clear!
Highlights
- Awesome power handling and efficiency with the Neodymium motor structure that the pros use.
- Useable in a wide array of applications that need high powered water resistant speakers.

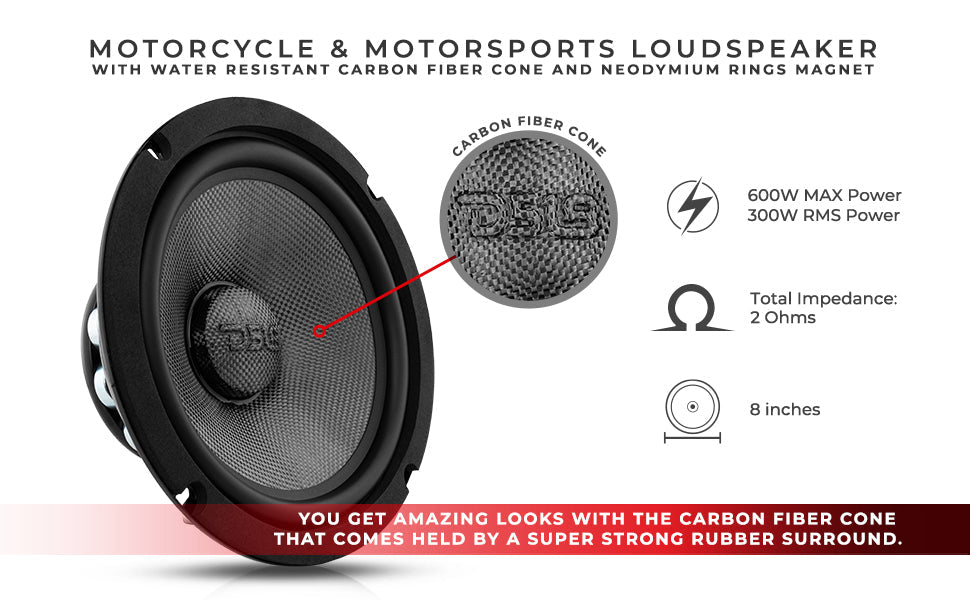

- Amazing looks with the carbon fiber cone that comes held by a super strong rubber surround that will last all your tests!
Key Features
- 8" Neodymium Water Resistant Loud Speaker
- Max Power Handling: 600 watts
- RMS Power Handling: 300 watts
- Frequency Response: 63Hz-12KHz
- Voice Coil Diameter: 2"
- Voice Coil Material: CCAW
- Impedance: 2-Ohms
- Sensitivity: (1W/1M) 96dB

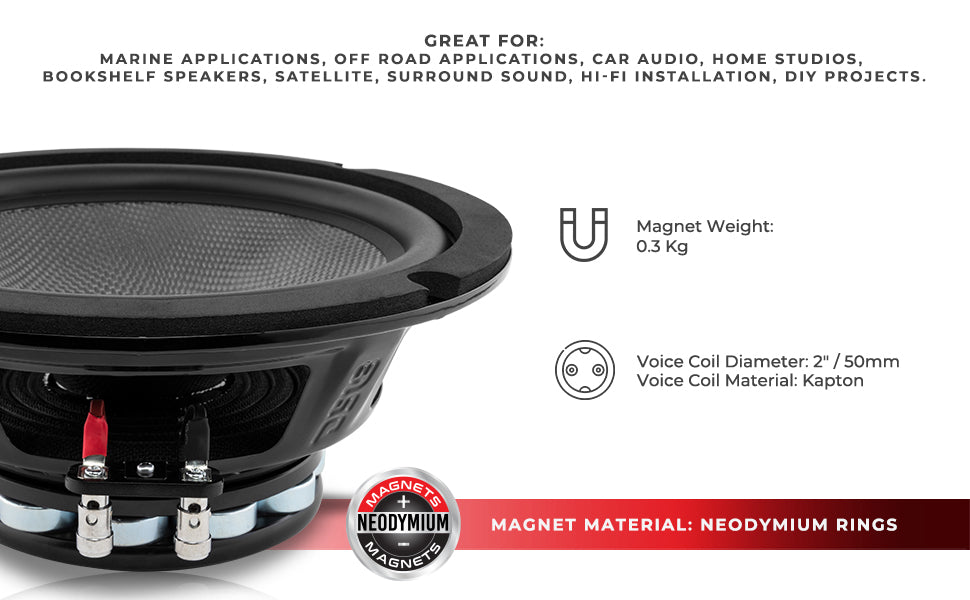

- Magnet Weight: 0.3 Kg
- Magnet Material: Neodymium
- Mounting Depth: 3.2"
Great For:
- Marine Applications
- Off Road Applications
- Home Studios
- Bookshelf Speakers
- Satellite
- Surround Sound
- Hi-Fi Installation
- Car Audio
- DIY Projects
Technical Details
PRO-CF8.2NR Product Manual
| SPECIFICATIONS | |
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 2 ohms |
| RMS Power Handling | 300W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 63Hz-12KHz |
| Recommended HI Pass Crossover | 80Hz |
| Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 2" / 50mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | WP Carbon Fiber |
| Dust Cap Material | WP Carbon Fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Gloss Black |
| Magnet Material | Neodymium Rings |
| Magnet Weight | 0.3Kg |

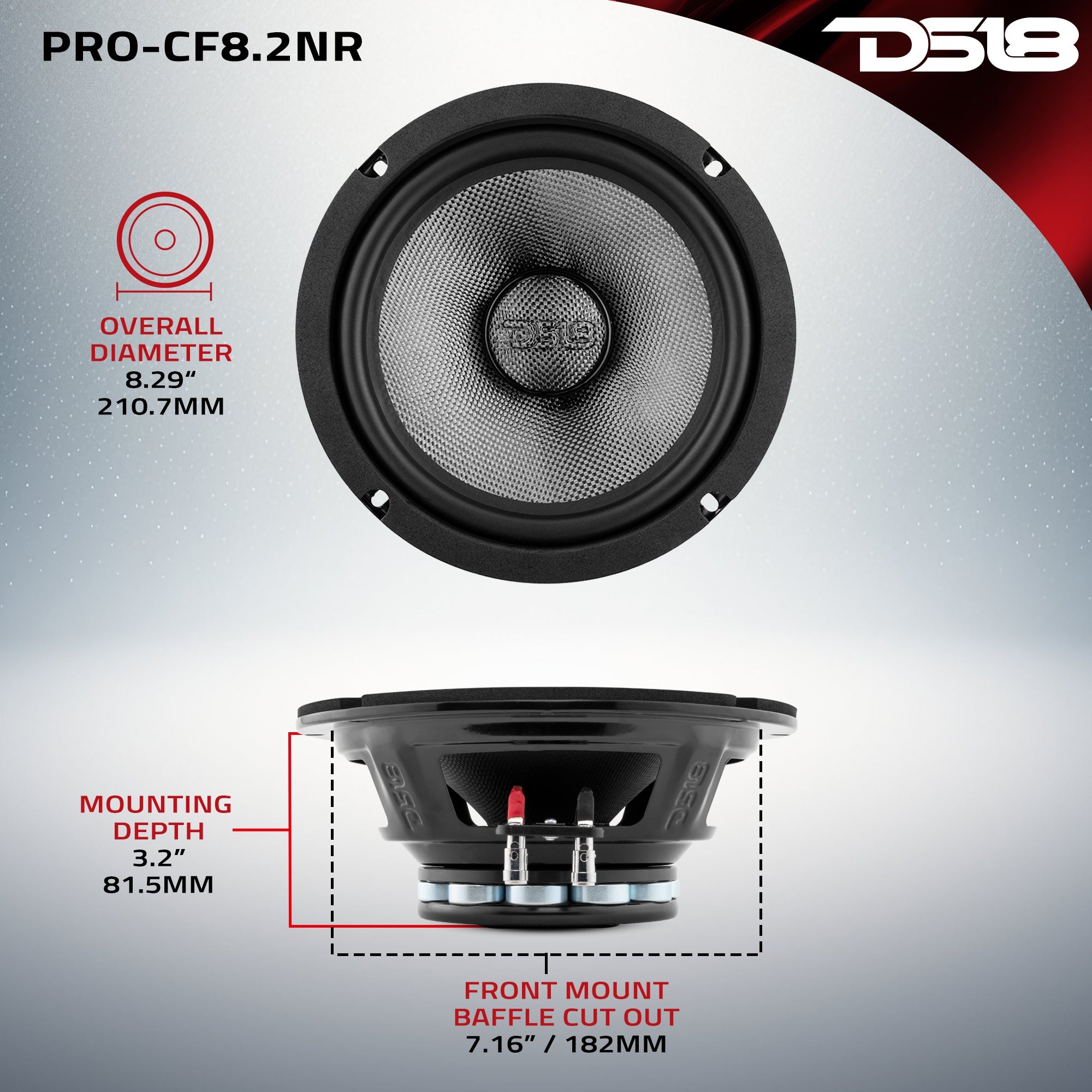

| MEASUREMENT | |
| Overall Diameter | 8.29" / 210.7mm |
| Overall Depth | 3.38" / 86mm |
| Front Mount Baffle Cutout | 7.16" / 182mm |
| Mounting Depth | 3.2" / 81.5mm |
| Motor Diameter | 4.45" / 113mm |
Key Features
- 8" Mid-Bass
- Water Resistant Carbon Fiber Cone
- RMS Power: 300 Watts(600 Watts Peak)
- Impedance: 2 Ohm
- Neodymium Magnet
- 96dB
Specifications
| SKU | PRO-CF8.2NR |
|---|---|
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 2 OHMS |
| RMS Power Handing | 300 WATTS |
| Maximum Power Handing | 600 WATTS |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 63Hz - 12KHz |
| Recommended Hi Pass Crossover | 80 Hz |
| Voice Coil Diameter | 2" / 50 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 10.5Oz / 0.3Kg |
| Vas | 44.8L / 1.584 ft3 |
| Xmax | 2.5 mm |
| Fs | 57 Hz |
| Qms | 10.343 |
| Qes | 0.434 |
| Qts | 0.416 |
| Re | 1.96 OHM |
| Overall Diameter | 8.29" / 210.7 mm |
| Front Mount Baffle Cutout | 7.16" / 182 mm |
| Mounting Depth | 3.2" / 81.5 mm |
| Overall Depth | 3.38" / 86 mm |
| Product Weight | 4.5 lbs |
| Product Dimensions | 9.75 x 9.75 x 4.75 |
| M/C Weight | 39 lbs |
| M/C Dimensions | 20.5 x 20.5 x 10 |
| M/C QTY | 8 |
| Sold In | Piece |
