PRO 6.5” Shallow Mid-Bass Loudspeaker with Carbon Fiber Water-Resistant Cone | 250W RMS 4-Ohm
Product Overview DS18 PRO-CF6.4SL PRO 6.5" Slim Carbon Fiber Water resistant Cone Mid-Bass Loudspeaker 500 Watts Max 4-Ohm...
Vendor:
DS18
Manufacturer SKU
PRO-CF6.4SL
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $83.95
- $83.95
- Unit price
- per
Subtotal:
$83.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

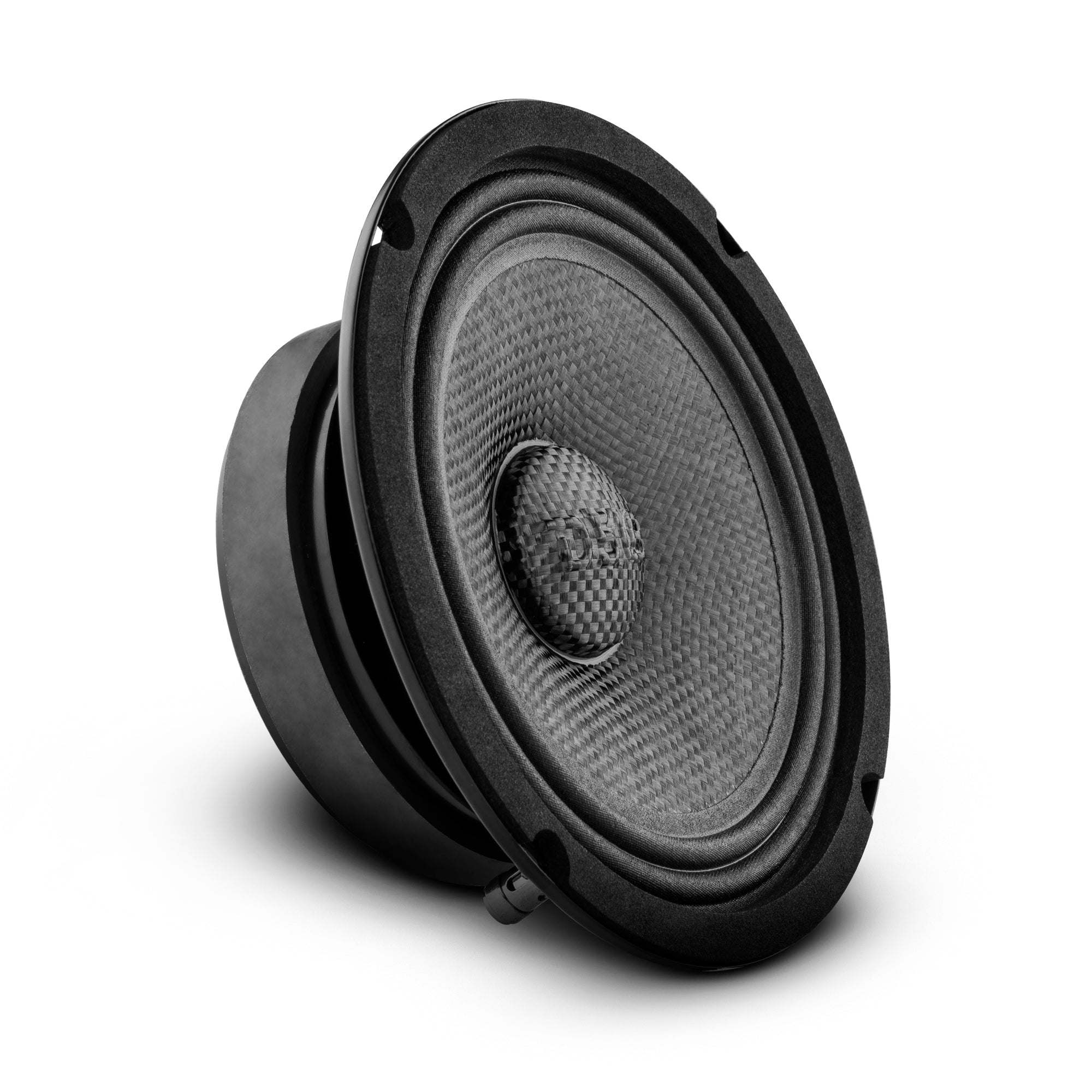

DS18 PRO-CF6.4SL PRO 6.5" Slim Carbon Fiber Water resistant Cone Mid-Bass Loudspeaker 500 Watts Max 4-Ohm

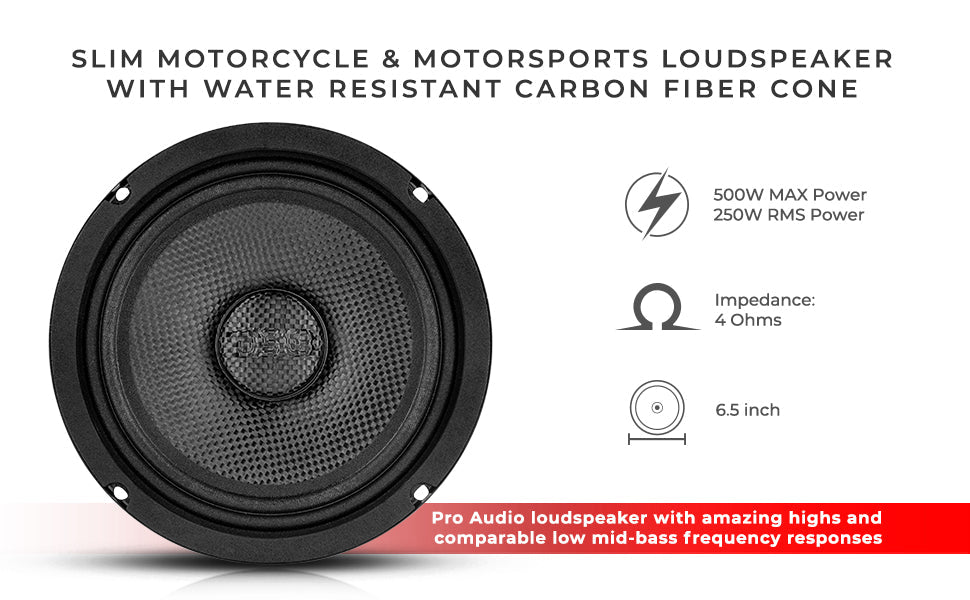

The PRO-CF6.4SL is a water-resistant Pro Audio loudspeaker with amazing highs and comparable low mid-bass frequency responses. This speakers versatility allows it to hit frequencies as high as 12.5KHz and as low as 80 Hz providing an extreme full range of frequencies that all listeners will notice and enjoy!

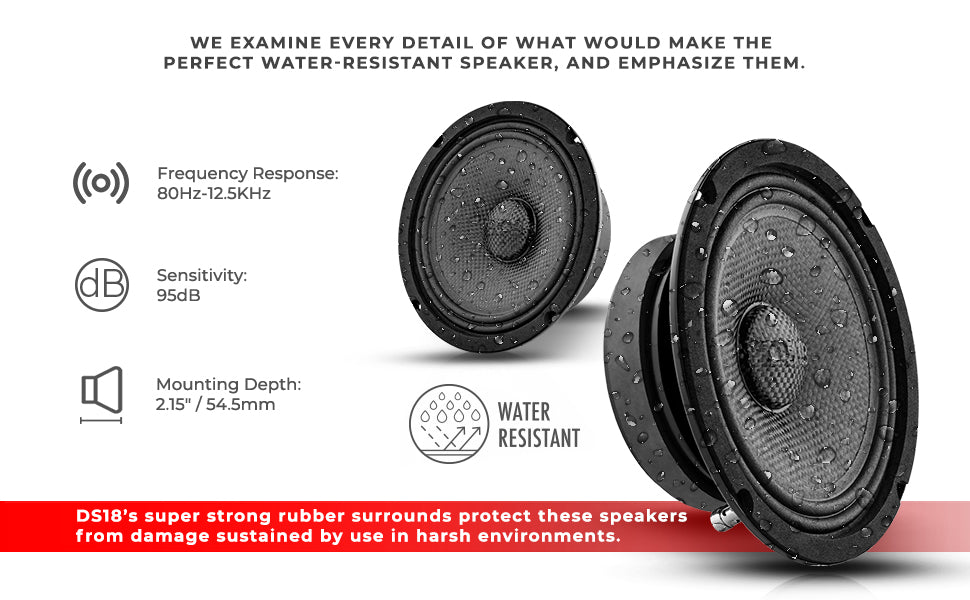

The PRO-CF6.4SL was designed to deliver LOUD audio with striking clarity and remain durable in the worst of the elements. DS18’s current waterproof carbon fiber cone design and super strong rubber surrounds protect these speakers from damage sustained by use in harsh environments. This also helps increase the sensitivity level on these speakers, so they play LOUD and clear on every use.
Although the speakers components are waterproof, the speaker itself is only water resistant so use in rough conditions should be avoided as much as possible.

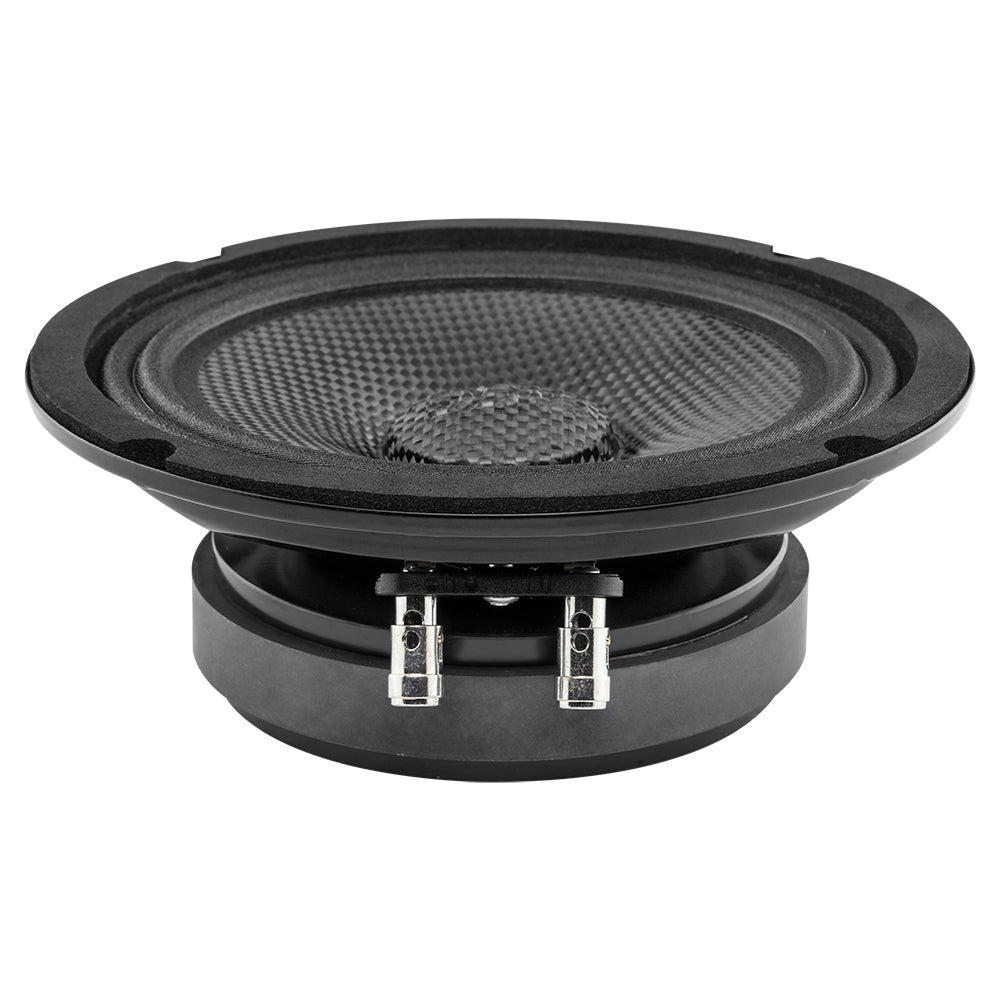

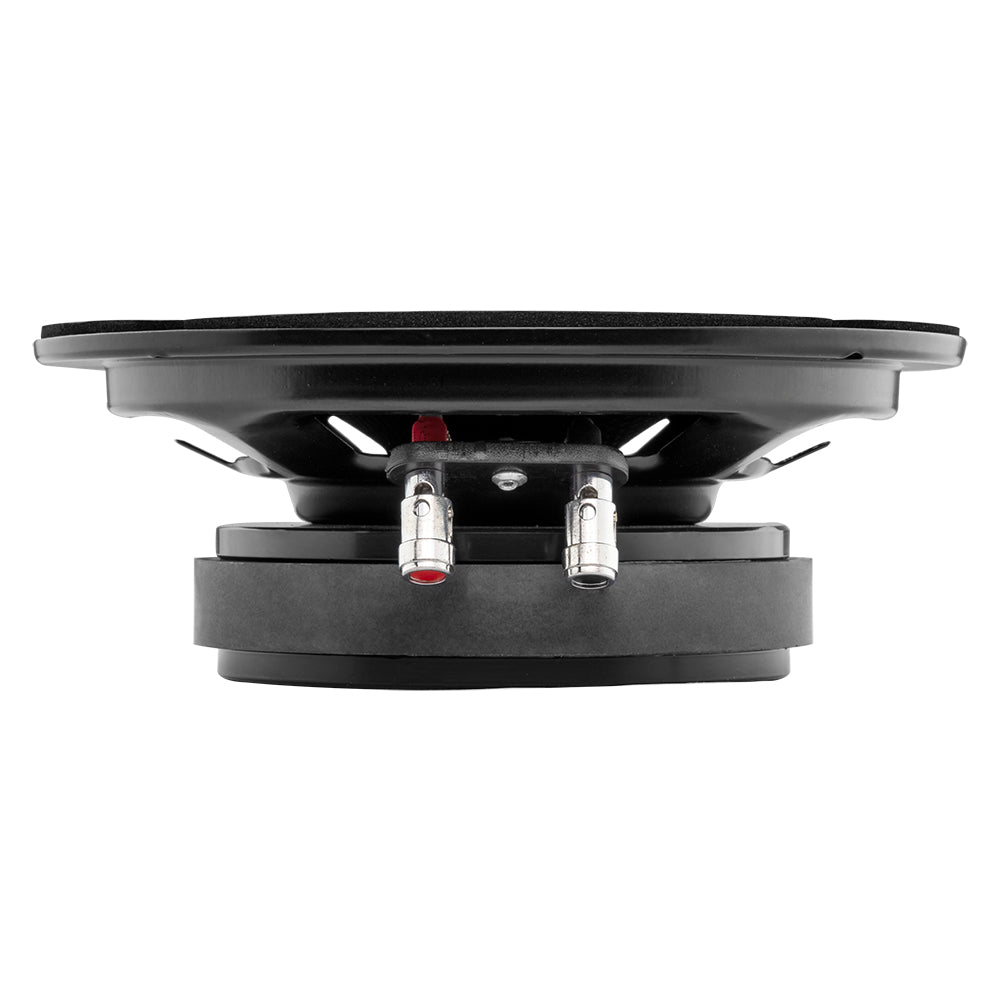

The size reduction on this speaker also gives it high levels of functionality in almost any application imaginable! Easy-to-use push terminals help protect and secure wires.
The PRO-CF6.4SL handles great power; rated at 250 watts RMS and 500 watts max, you know this powerhouse of a speaker can get loud and clear!
Highlights
- Awesome power handling and efficiency
- Operable in a wide array of applications
- The carbon fiber cone provides amazing style supported by a super strong rubber surround that will withstand the test of time!

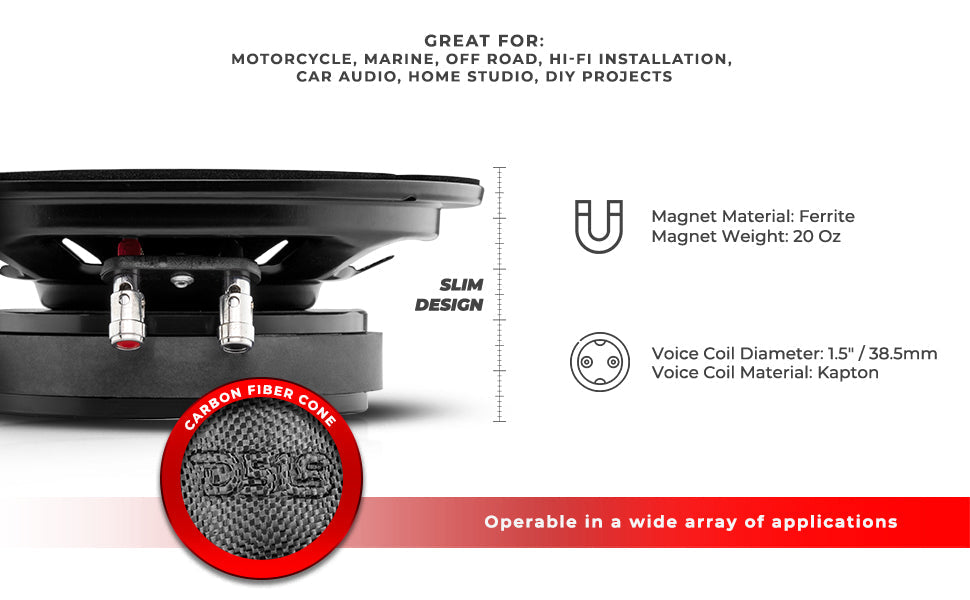

Great For

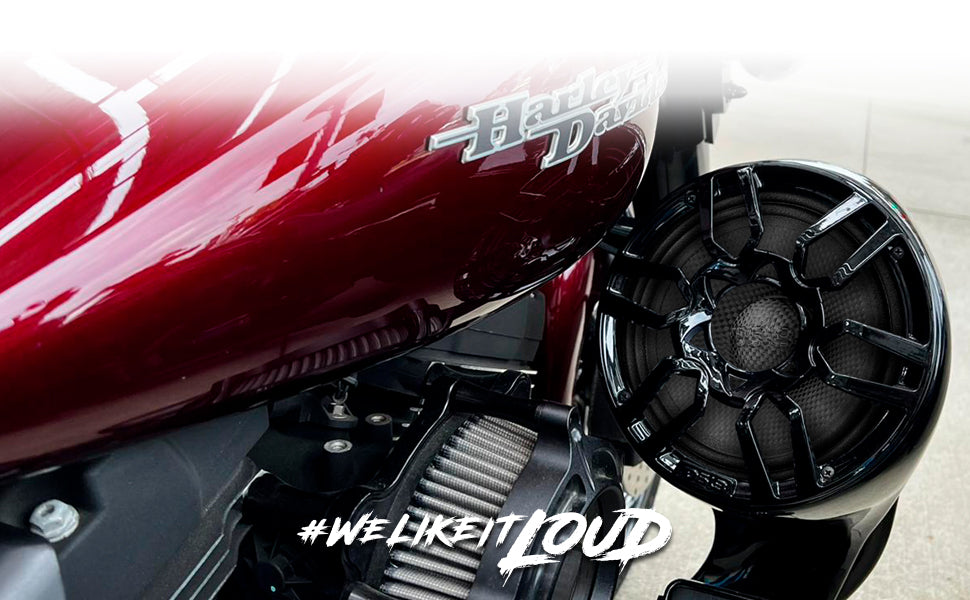

- Motorcycle Applications
- Marine Applications
- Off Road Applications
- Hi-Fi Installation

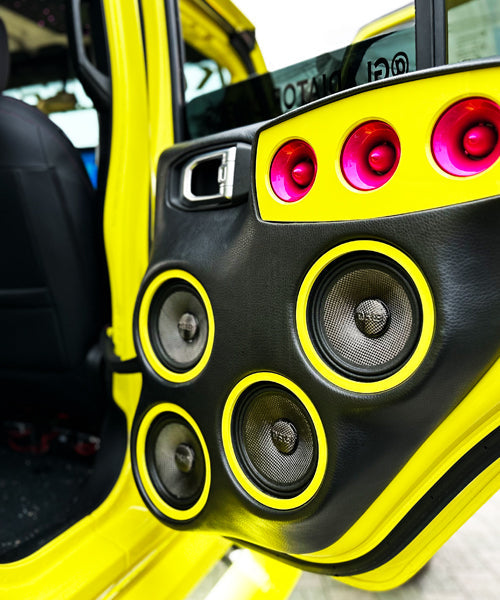

- Car Audio
- Home Studio
- DIY Projects
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 80Hz-12.5KHz |
| Recommended HI Pass Crossover | 100Hz |
| Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Waterproof Carbon Fiber |
| Dust Cap Material | Waterproof Carbon Fiber |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Gloss Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20 Oz |
| MEASUREMENT | |

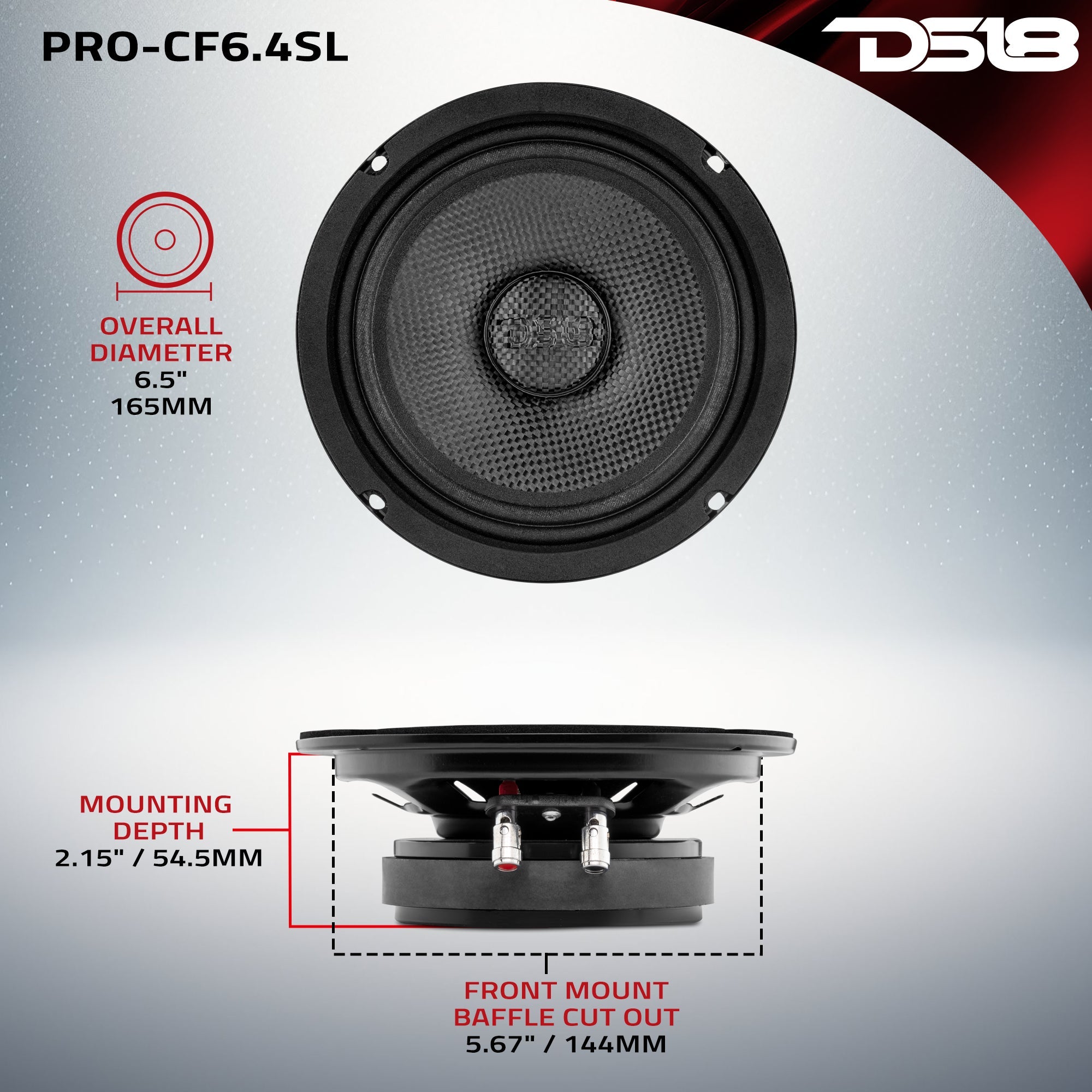

| Overall Diameter | 6.5" / 165mm |
| Overall Depth | 2.38" / 60.5mm |
| Front Mount Baffle Cutout | 5.67" / 144mm |
| Mounting Depth | 2.15" / 54.5mm |
| Motor Diameter | 4.33" / 110mm |
Key Features
- 6.5" Shallow Mid-Bass
- Water Resistant Carbon Fiber Cone
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4-Ohm
- Ferrite Magnet
- 95dB
Specifications
| SKU | PRO-CF6.4SL |
|---|---|
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 OHMS |
| RMS Power Handing | 250 Watts |
| Maximum Power Handing | 500 Watts |
| Sensitivity (1w/1m) | 95 dB |
| Frequency Response | 80Hz-12.5KHz |
| Recommended Hi Pass Crossover | 100 Hz |
| Voice Coil Diameter | 1.5" / 38.5 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 20Oz |
| Vas | 9L / 0.317 ft3 |
| Xmax | 2.5 mm |
| Fs | 128Hz |
| Qms | 15.55 |
| Qes | 0.891 |
| Qts | 0.842 |
| Re | 3.6 OHMS |
| Overall Diameter | 6.5" / 165 mm |
| Front Mount Baffle Cutout | 5.67" / 144 mm |
| Mounting Depth | 2.15" / 54.5 mm |
| Overall Depth | 2.38" / 60.5 mm |
| Product Weight | 3.5 lbs |
| Product Dimensions | 7 x 7 x 3 |
| M/C Weight | 30 lbs |
| M/C Dimensions | 14.8 x 14.5 x 7 |
| M/C QTY | 8 |
| Sold In | Piece |
