10th Anniversary Edition 8" Mid-Bass Loudspeaker 275 Watts Rms 4-Ohm
Product Overview DS18 PRO-84XA 8” 10th Anniversary Mid-Bass Loudspeaker 550 Watts Max 4-Ohm For 10 years now,...
- $83.95
- $83.95
- Unit price
- per
Subtotal:
$83.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

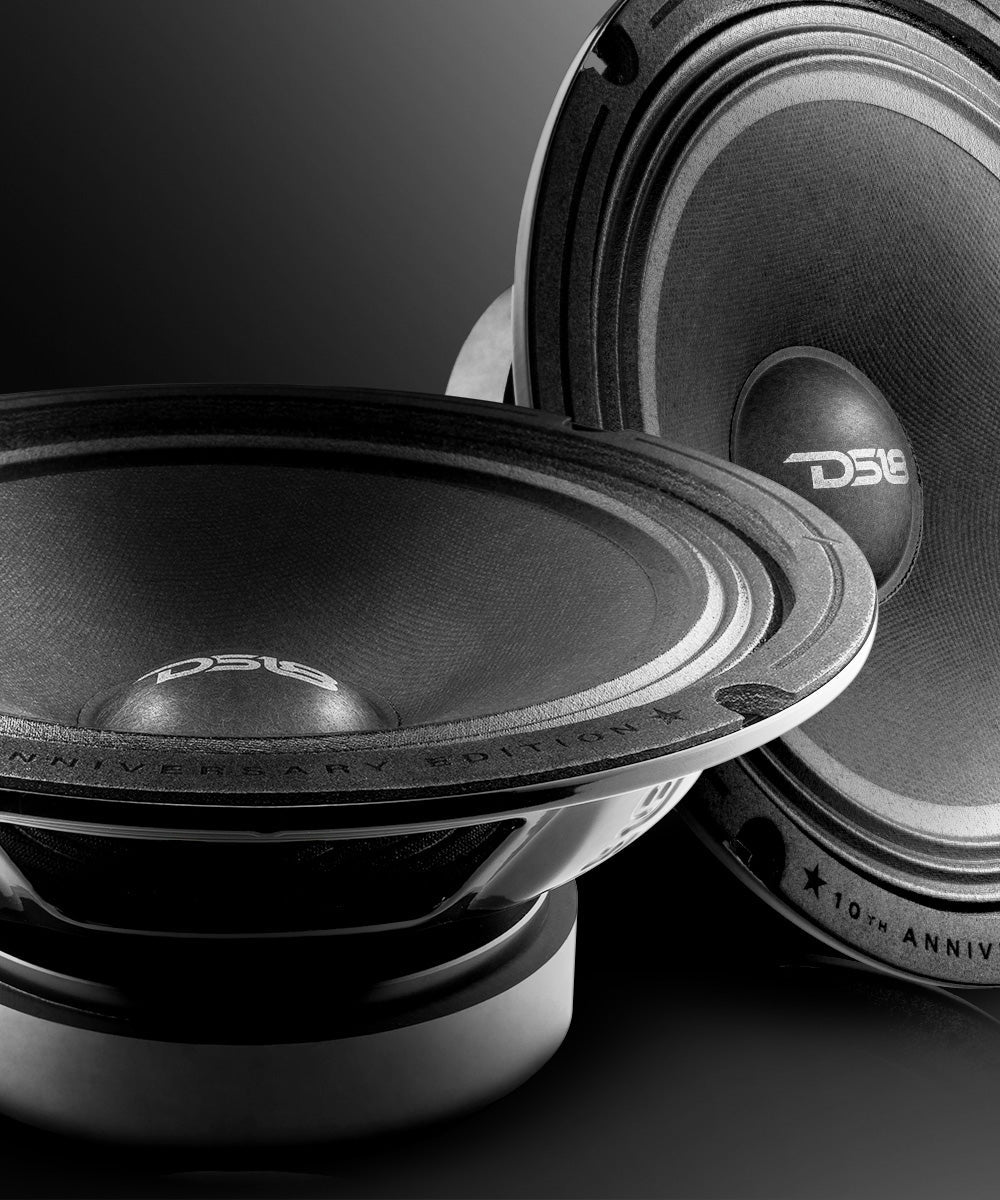

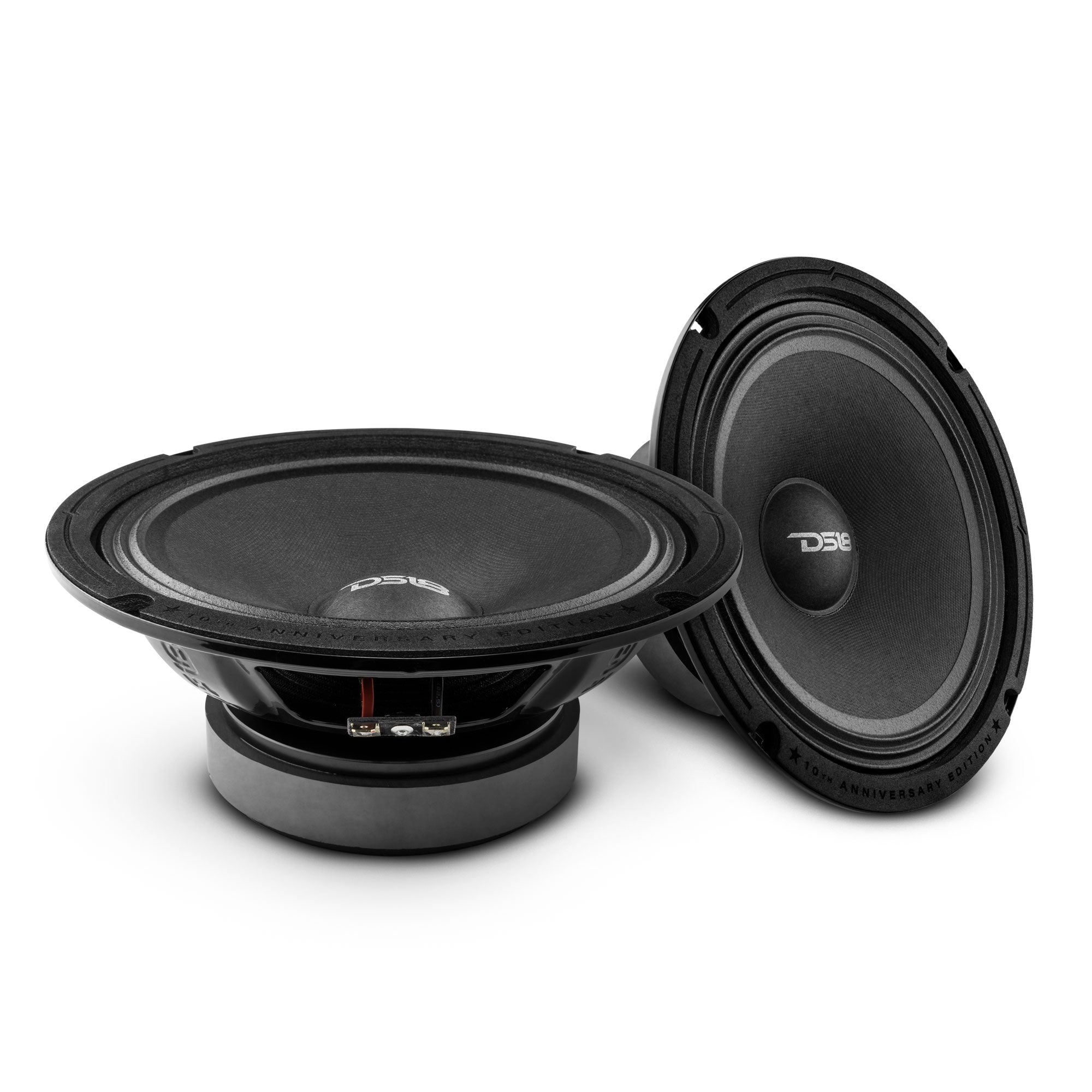

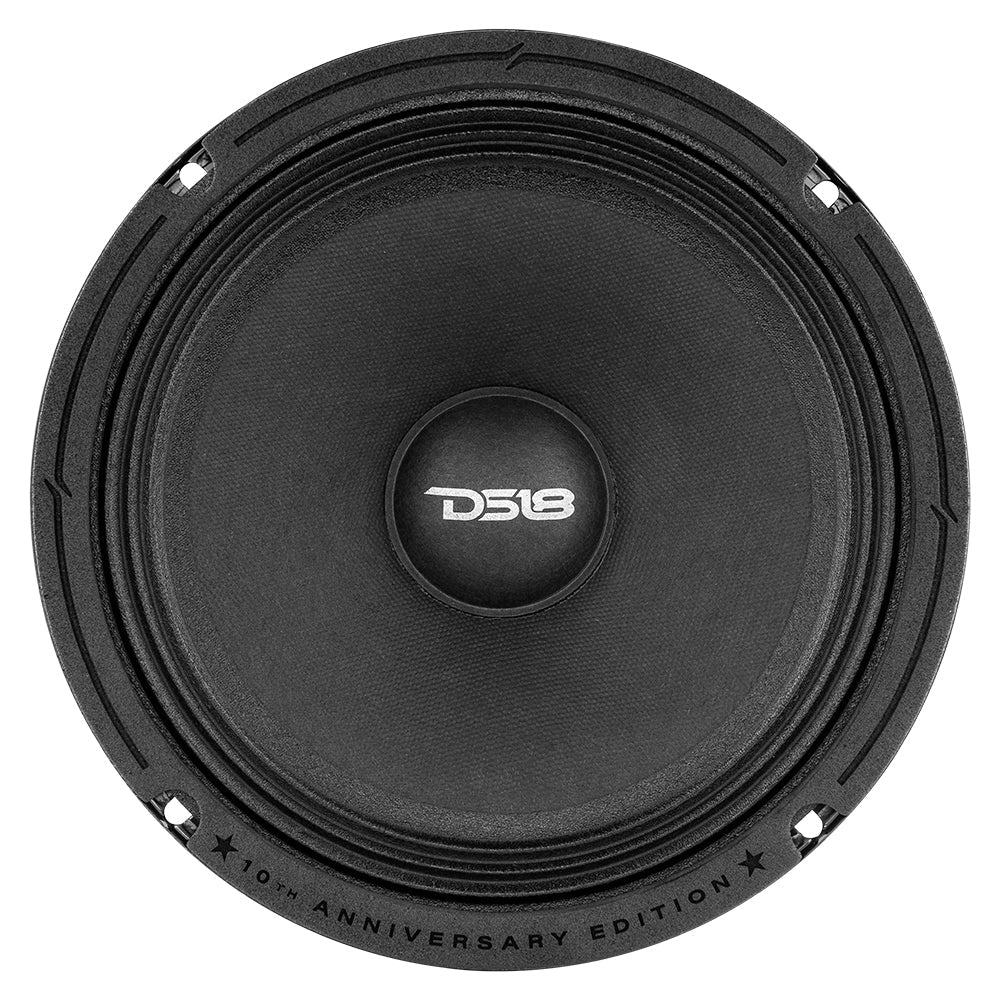

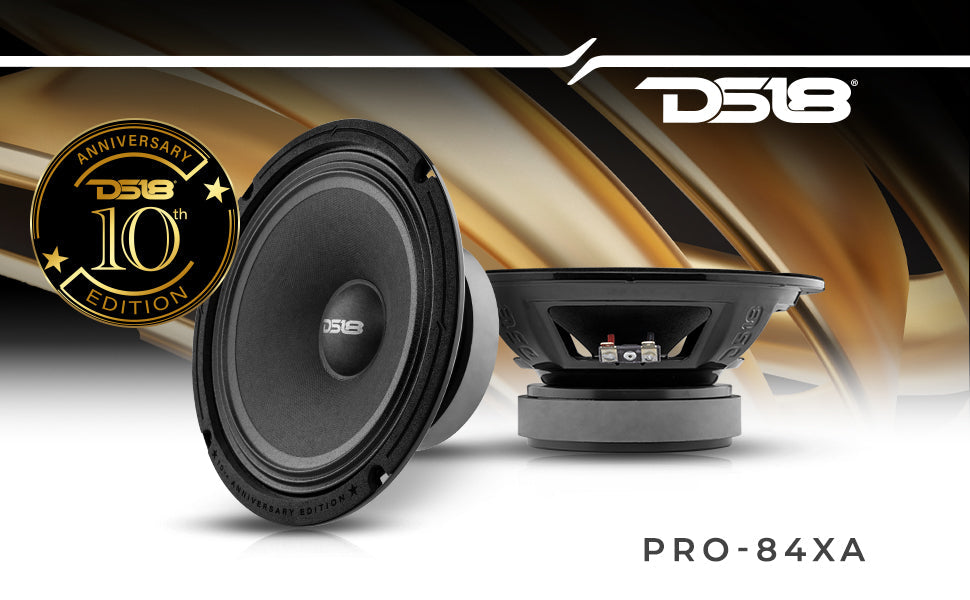

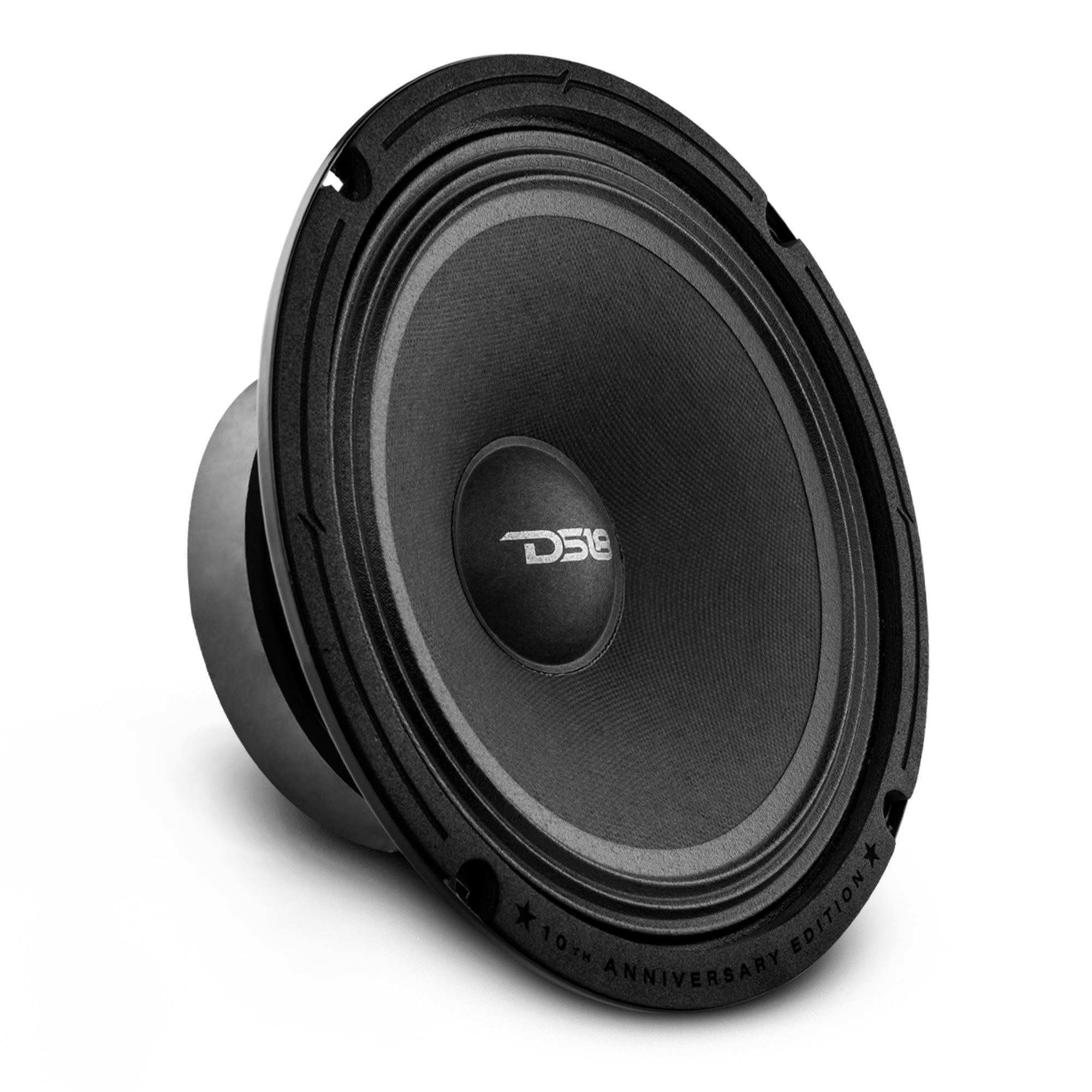

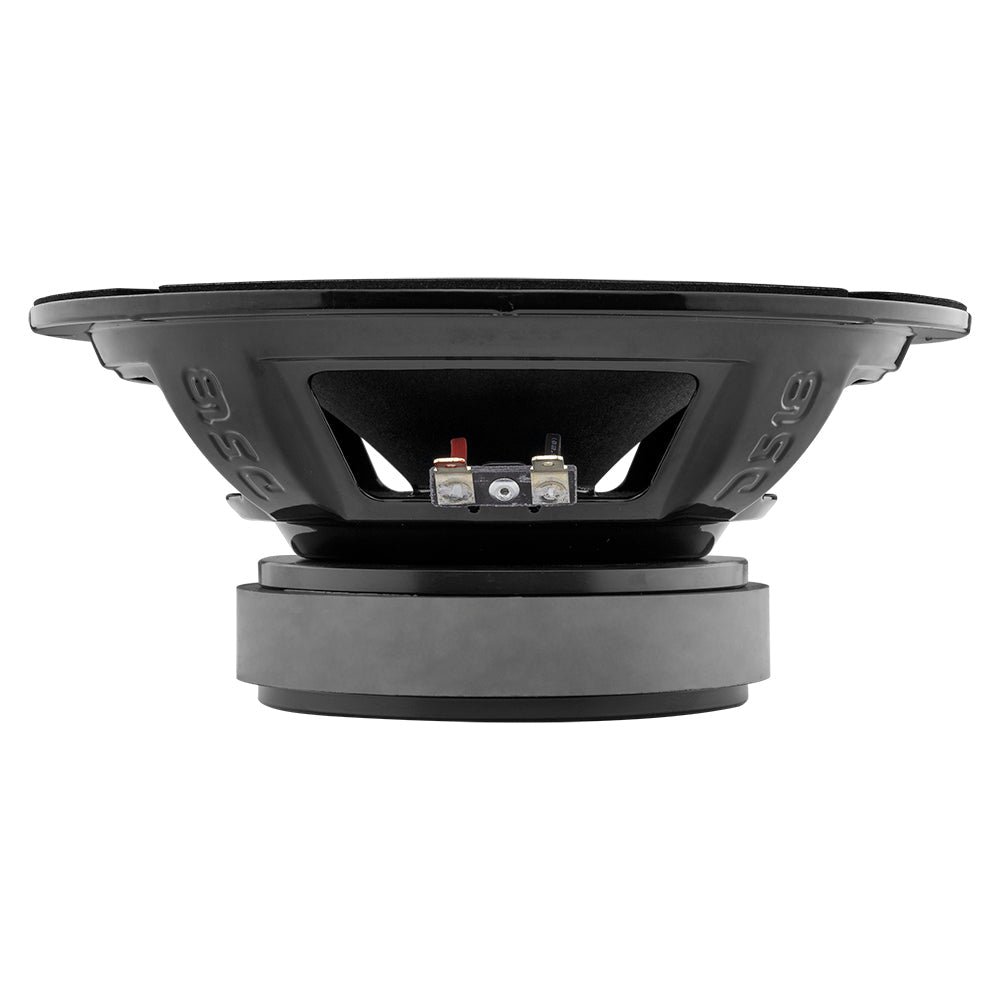

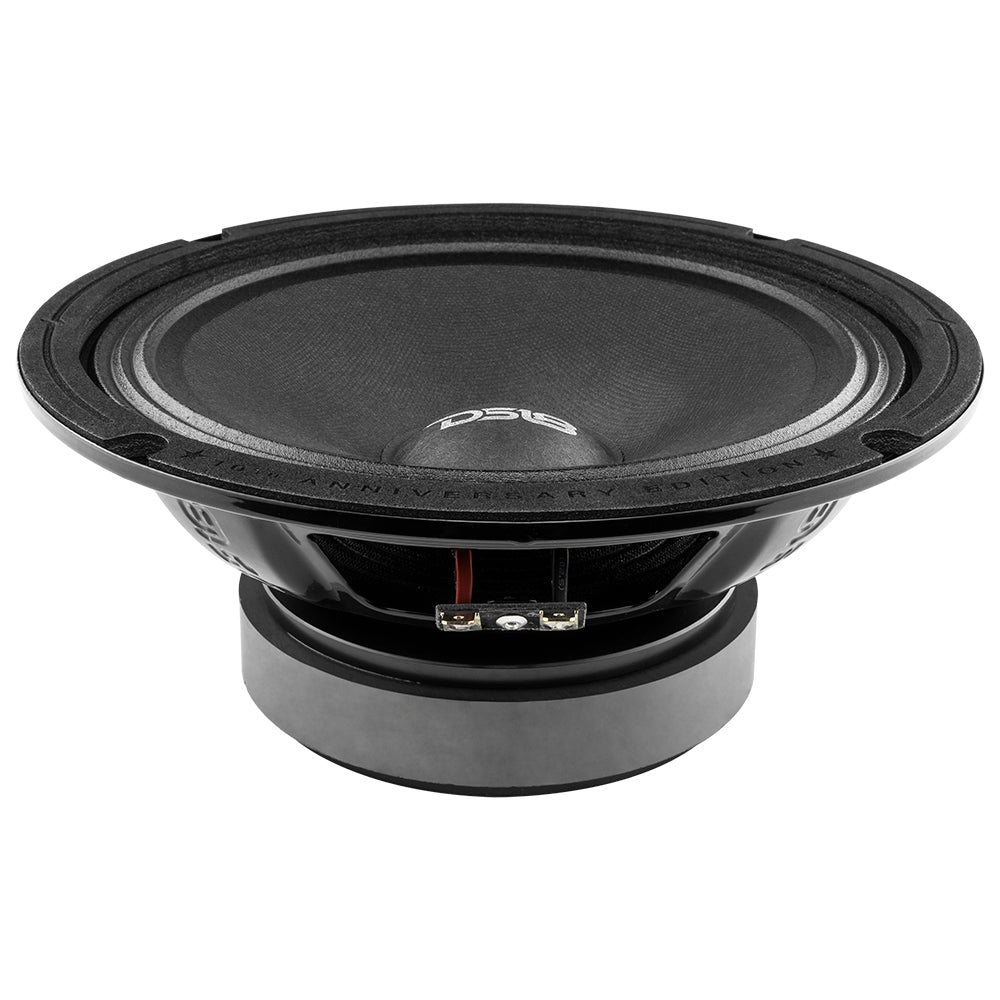

DS18 PRO-84XA 8” 10th Anniversary Mid-Bass Loudspeaker 550 Watts Max 4-Ohm

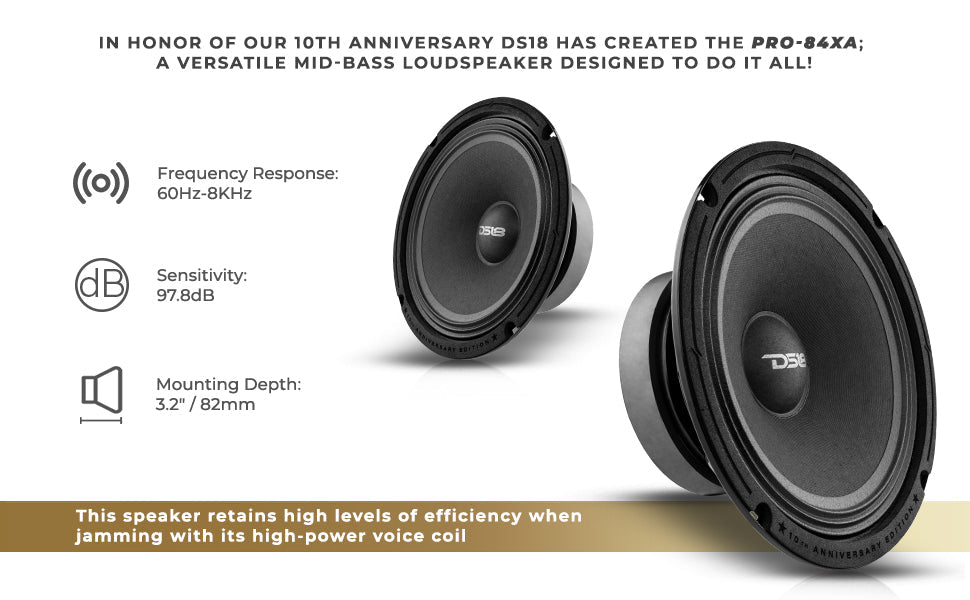

For 10 years now, DS18 has supplied all vehicles with the loudest and cleanest sound the streets have ever heard. In honor of our 10th anniversary DS18 has created the PRO-84XA; a versatile mid-bass loudspeaker designed to do it all!
This high-quality 8” mid-bass speaker was made for the listeners who like it LOUD just as much as we do!
The 97.8db sensitivity on these speakers allow them to take your sound system to an out of this world volume level!
The 4 ohm configuration of these speakers allow them to reach ridiculous sound levels, IF they are matched with a compatible amp that runs at the same impedance!

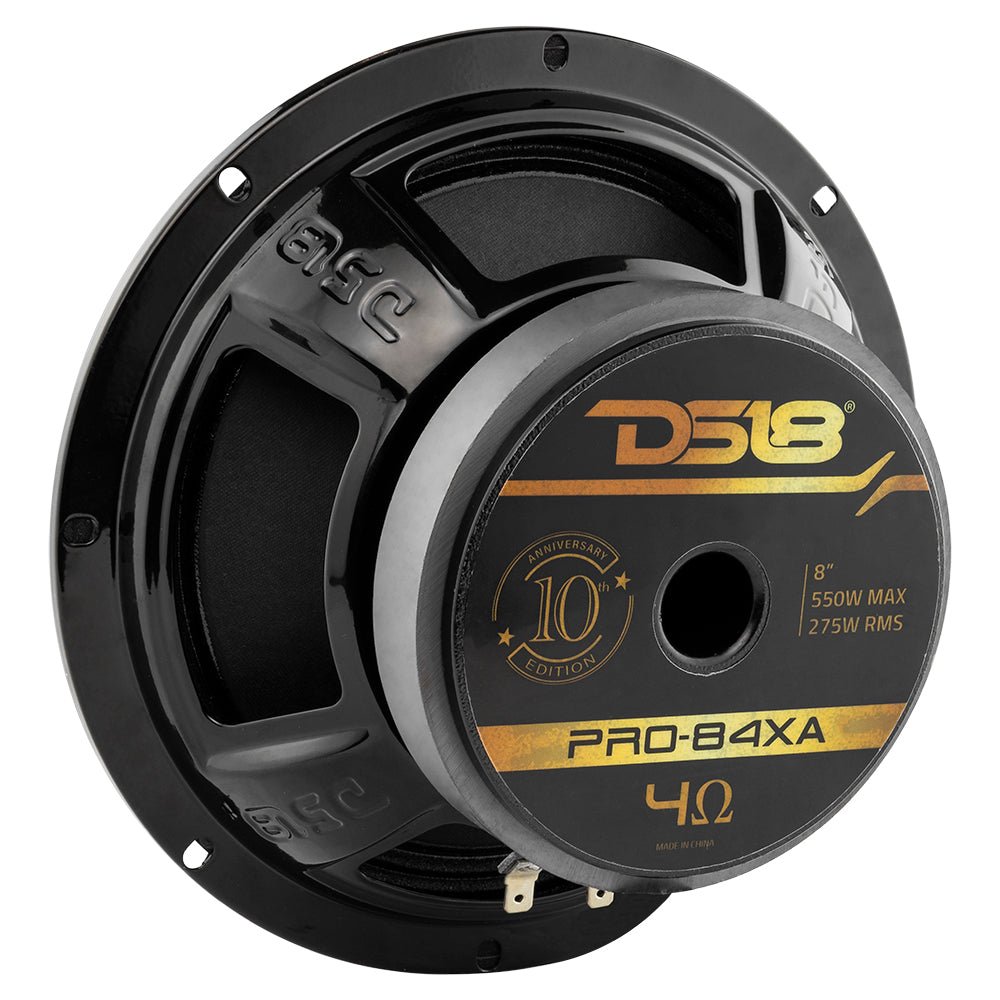

The classic DS18 design from the steel basket to the ferrite magnet is sure to create new memories for some of our oldest customers as we enter our 10th year of bringing LOUD products into every vehicle.
Highlights
- Steel basket for elevated style and durability
- The high powered voice coil on the PRO-84XA allows this speaker to retain high levels of efficiency for those never ending jam sessions.
- Crystal clear clarity you’ve loved and expect from DS18 for the last 10 years
Great For
- Car Audio
Technical Details
|
SPECIFICATIONS |
|
|
Nominal Diameter |
8" / 203mm |
|
Nominal Impedance |
4 Ohms |
|
RMS Power Handling |
275W |
|
MAX Power Handling |
550W |
|
Sensitivity (1w/1m) |
97.8dB |
|
Frequency Response |
60Hz-8KHz |
|
Recommended HI Pass Crossover |
80Hz |
|
Sold As Pair or Single |
Single |
|
Grill Included |
No |
|
MOTOR |
|
|
Voice Coil Diameter |
1.5" / 38mm |
|
Voice Coil Former Material |
Kapton |
|
Winding Material |
CCAW |
|
Cone Material |
Paper |
|
Bullet Material |
Paper |
|
Surround Material |
Cloth |
|
Basket Material |
Steel |
|
Basket Color/Finish |
Gloss Black |
|

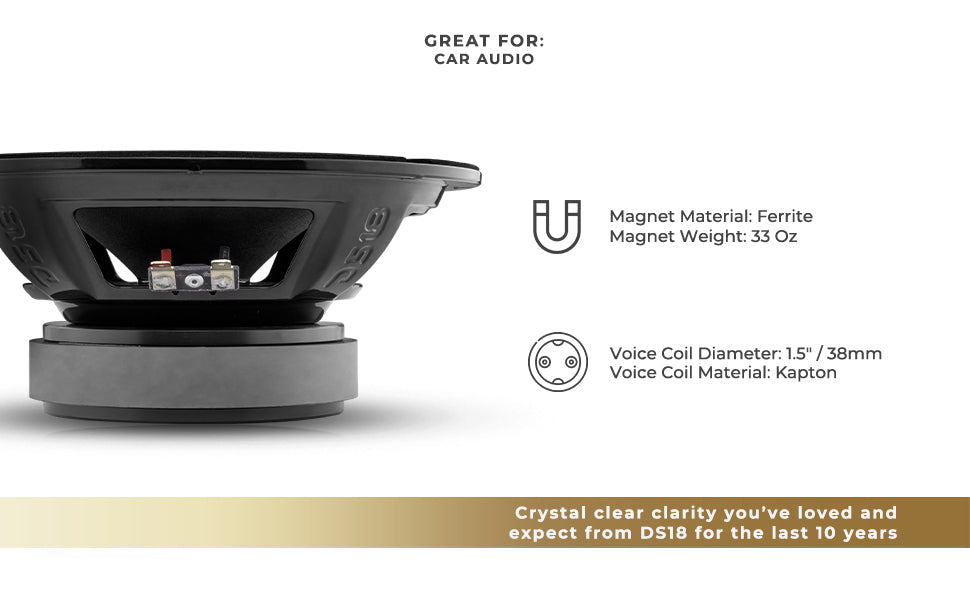

Magnet Material |
Ferrite |
|
Magnet Weight |
33oz |
|
MEASUREMENT |
|
|
Overall Diameter |
8.25" / 209.8mm |
|
Overall Depth |
3.45" / 88mm |
|
Front Mount Baffle Cutout |
7.25" / 184mm |
|
Mounting Depth |
3.2" / 82mm |
|
Motor Diameter |
4.7" / 120mm |

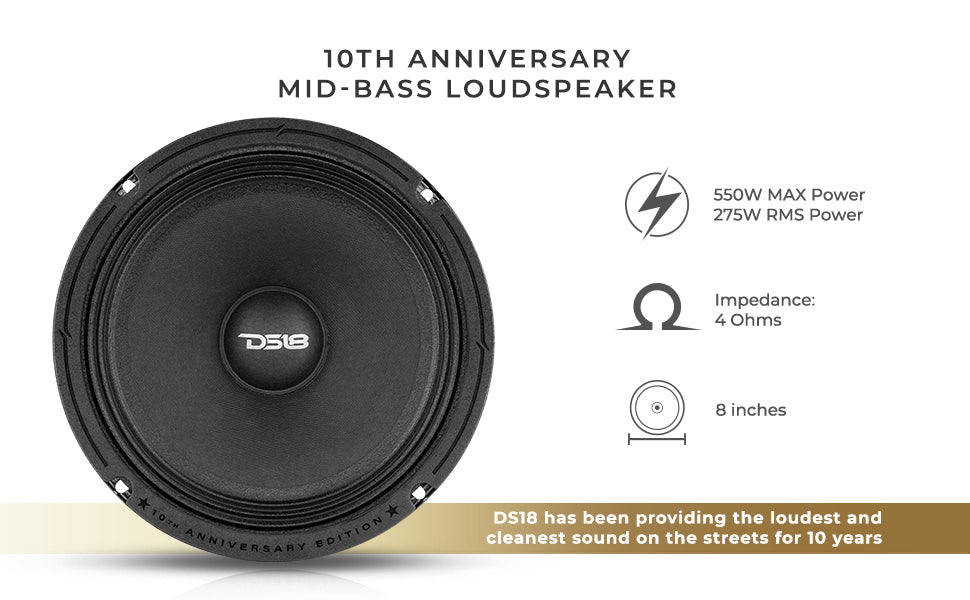

Key Features
- 8" Mid-Bass
- MAX Power: 550 Watts
- RMS Power: 275 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- Anniversary Edition
Specifications
| SKU | PRO-84XA |
|---|---|
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handing | 275W |
| Maximum Power Handing | 550W |
| Sensitivity (1w/1m) | 97.8dB |
| Frequency Response | 60Hz-8KHz |
| Recommended Hi Pass Crossover | 80Hz |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 33oz |
| Vas | 18.37L / 0.64ft3 |
| Xmax | 2.5mm |
| Fs | 82Hz |
| Qms | 10.34 |
| Qes | 0.63 |
| Qts | 0.6 |
| Re | 3.82ohms |
| Overall Diameter | 8.25" / 209.8mm |
| Front Mount Baffle Cutout | 7.25" / 184mm |
| Mounting Depth | 3.2" / 82mm |
| Overall Depth | 3.45" / 88mm |
| Product Weight | 5 lbs |
| Product Dimensions | 9 x 9 x 4.25 |
| M/C Weight | 43.5 lbs |
| M/C Dimensions | 18.5 x 18.5 x 9.25 |
| M/C QTY | 8 |
| Sold In | Piece |
