Jeep JL/JLU/JT 2018–2023 Overhead Bar System – Loaded 6.5” Plug & Play with PRO-JP6NEO & ZXI-T1
Jeep JL/JLU/JT 2018–2023 Overhead Bar System – Loaded 6.5” Plug & Play with PRO-JP6NEO & ZXI-T1
Product Overview

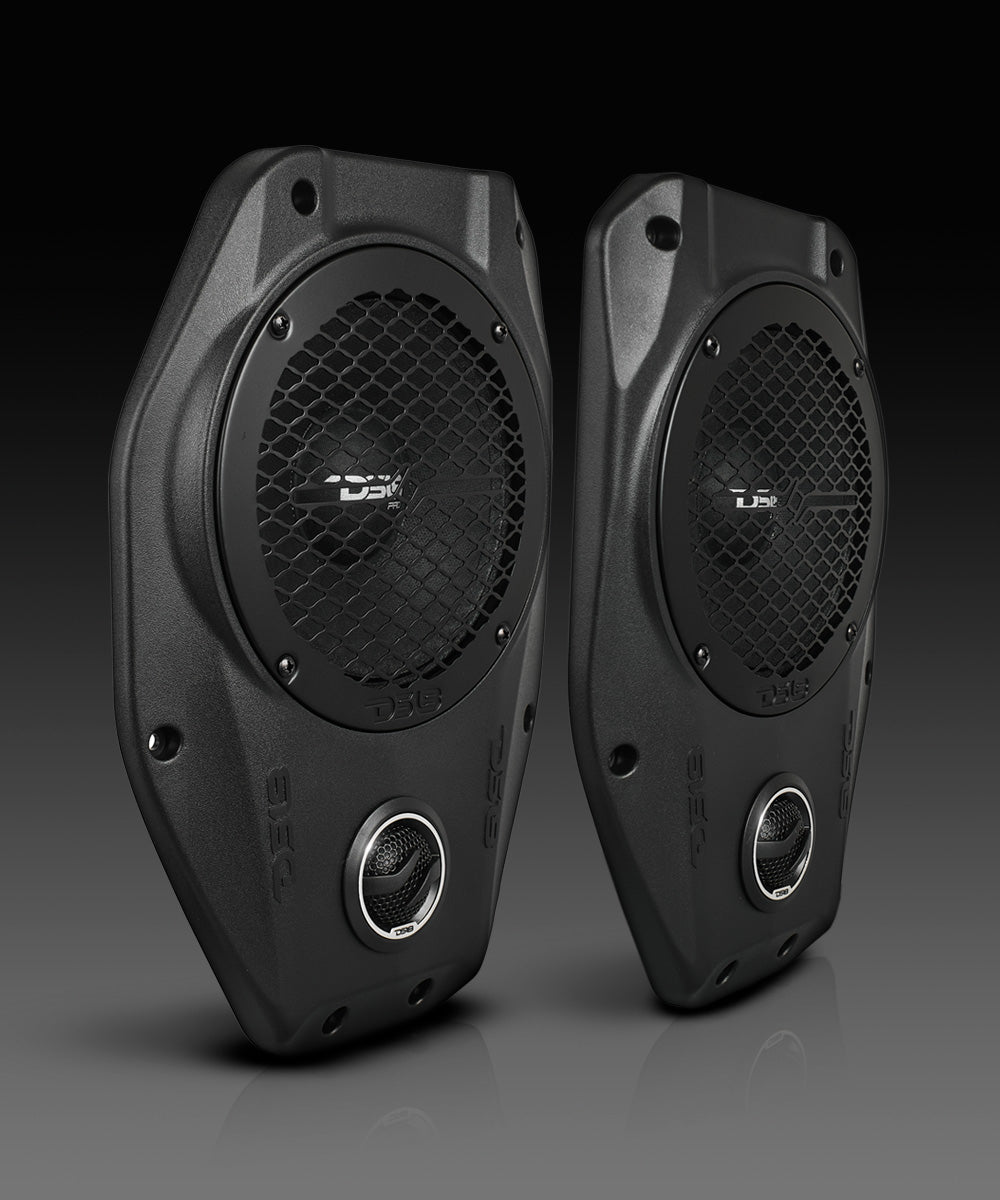

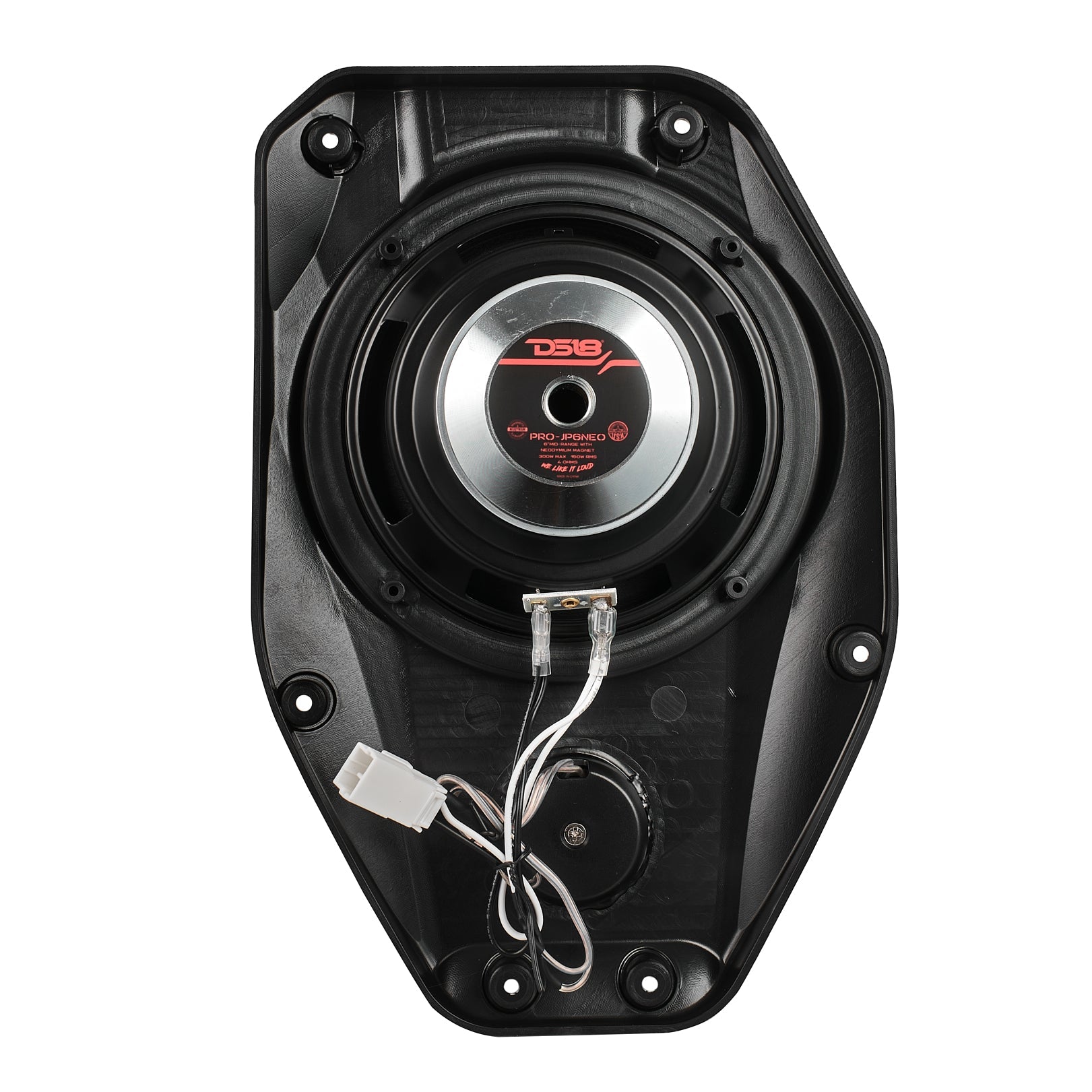

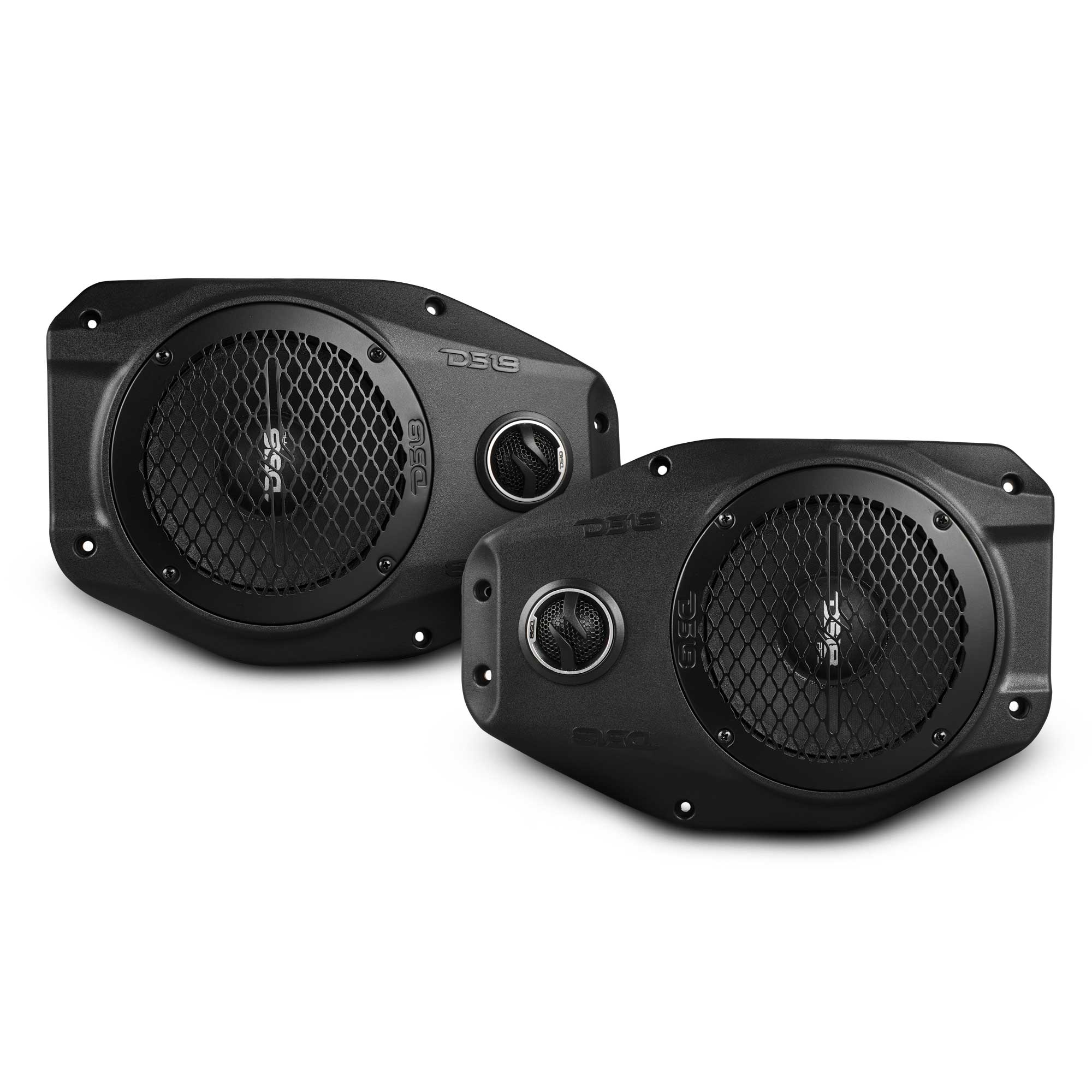

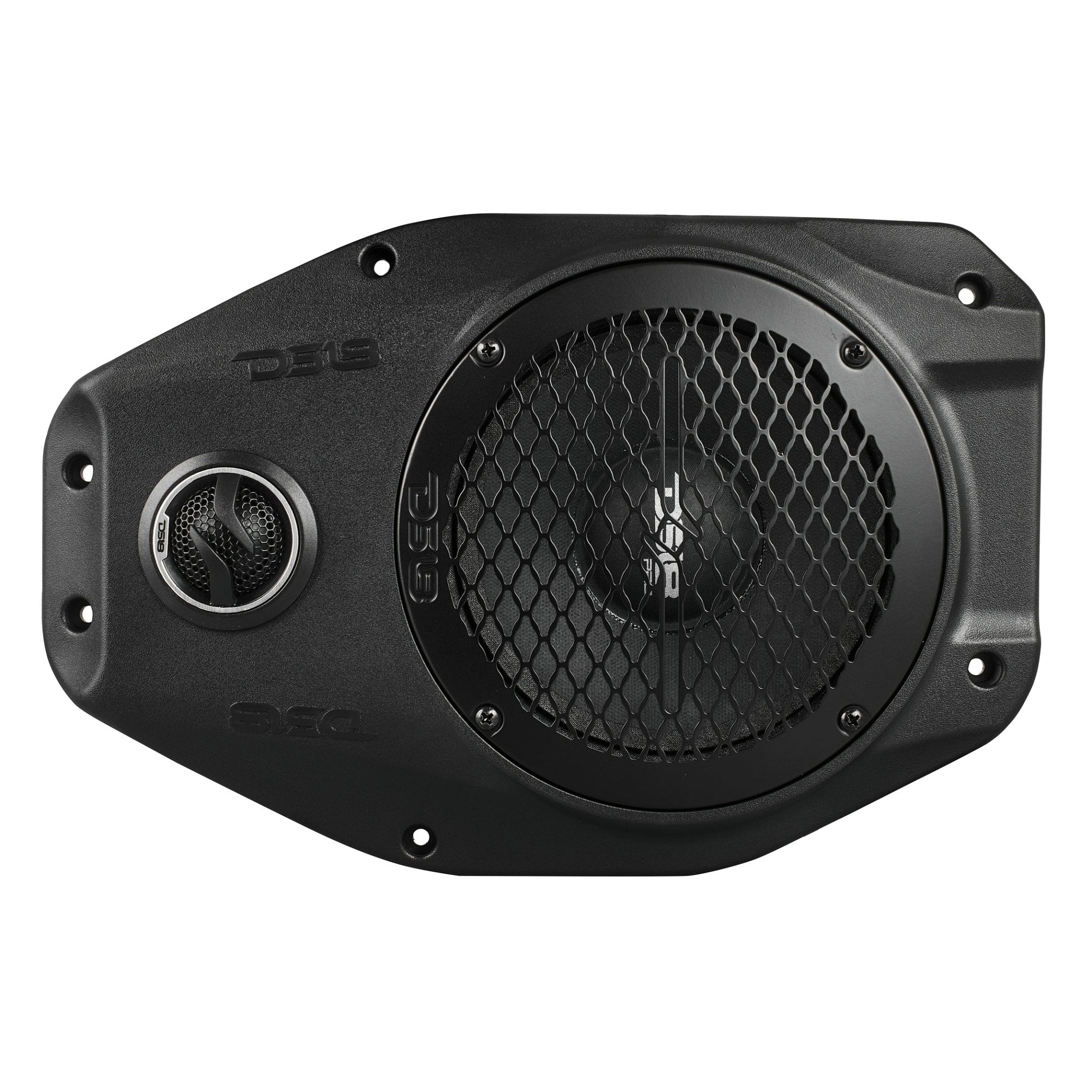

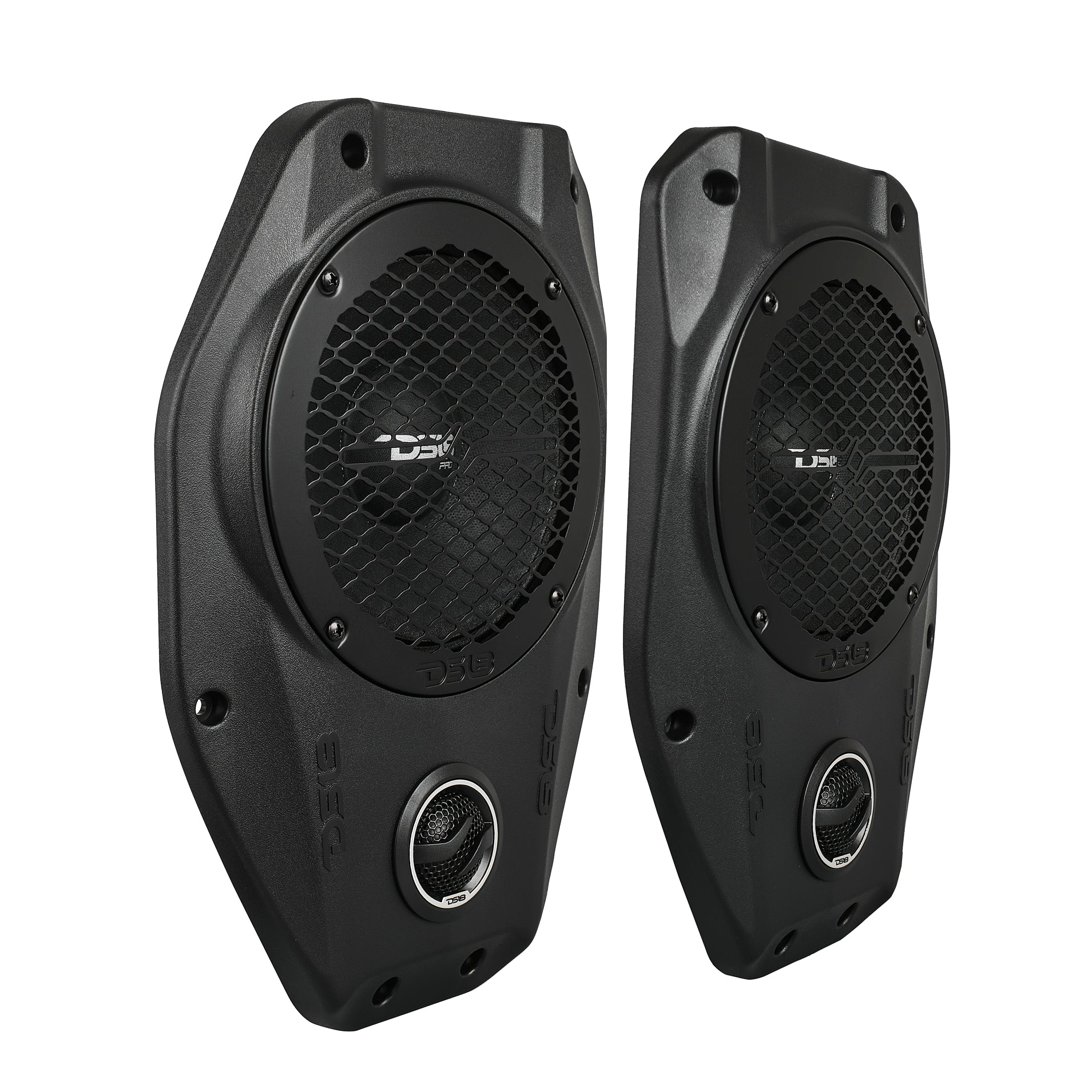

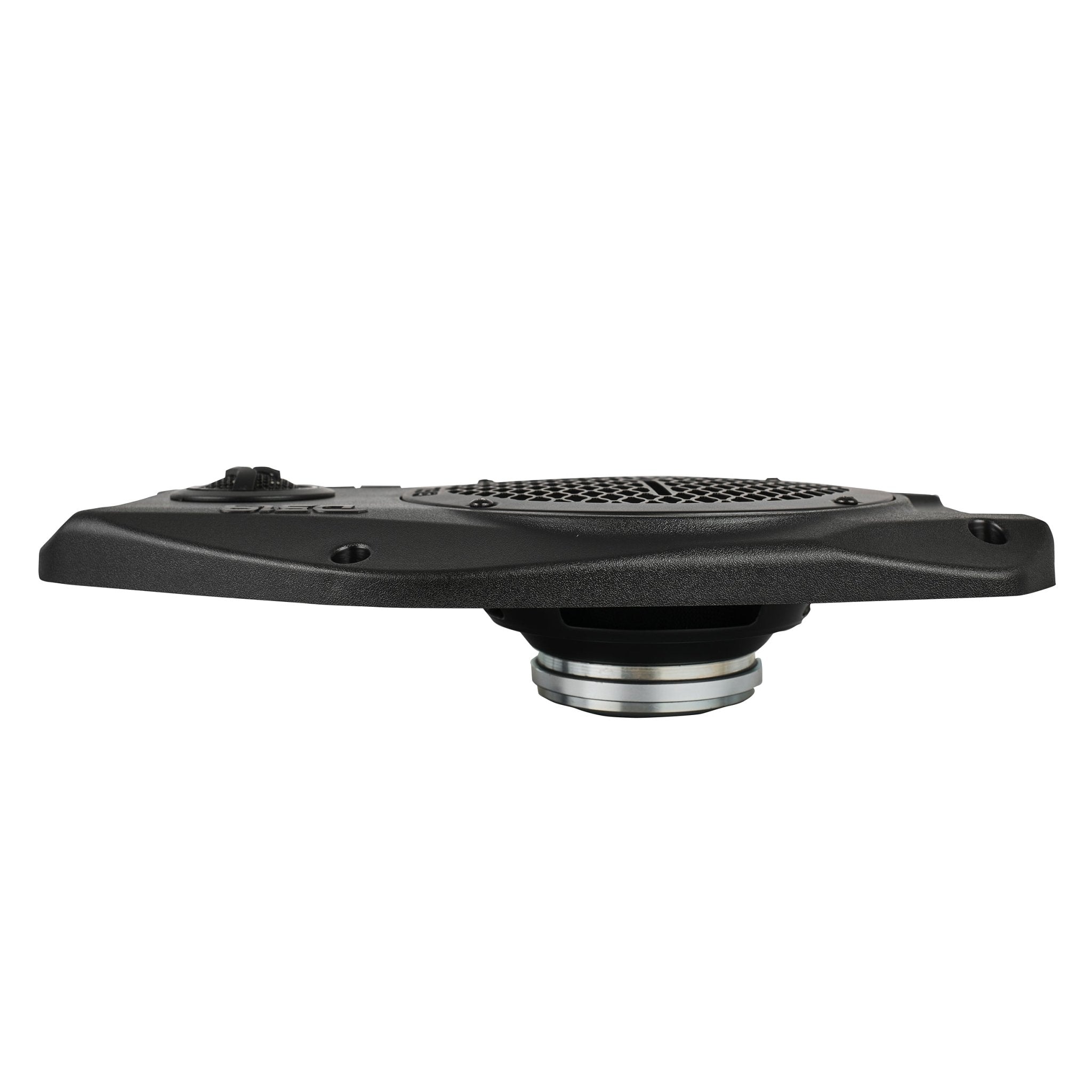

DS18 JL-SB6
Soundbar Enclosure Upgrade with 6.5” Neodymium Mid-Range and Tweeter For JL/JLU Jeep Wrangler | Gladiator JT Left And Right
Turn your JL/JLU/JT Jeep Wrangler into an audio beast with DS18’s JL-SB6 soundbar upgrade. Engineered for power, precision, and durability, the JL-SB6 has a powerful 6.5” neodymium midrange speaker and a crisp 1” dome tweeter, for supreme clarity, depth, and volume.
The new grills enhance the rugged look of your Jeep elevating this systems show-quality sound to a whole new level. Coming in a set of two for both the left and right sides, your entire ride gets a matching, badass upgrade.
Crafted from heavy-duty, injection-molded plastic, this soundbar can handle the roughest terrains while cranking out concert-level audio. This system requires cutting of the existing sound bar for installation- but plug-and-play connectors, mounting plates, and cutting templates make installation easy in your Jeep Wrangler JL/JLU and Gladiator JT models.
Ready to take it further? Hook up an external amp for bone-rattling sound that will make your off-road adventures feel like an audio thrill ride. Cut. Install. Get LOUD!
Key Features
- 150W RMS / 300W MAX power handling
- High-efficiency neodymium magnets
- Plug & play harnesses for fast installation
- Injection-molded ASA composite enclosure
- Steel protective grille with satin black finish
- Custom fit for Jeep Wrangler JL / JLU and Gladiator JT
- Includes mounting plates, cutting templates, and all hardware
Specifications
| SKU | JL-SB6 |
|---|---|
| Component Set | 2-Way |
| Nominal Speaker Diameter | 6.5" / 165mm |
| Nominal Tweeter Diameter | 1.7" / 43mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 150 watts |
| MAX Power Handling | 300 watts |
| Total Sensitivity (1w/1m) | 97 dB / 96 dB |
| Total Frequency Response | 60Hz-20KHz |
| Frequency Response | 60Hz-10KHz / 1KHz - 20KHz |
| Voice Coil Diameter | 1.5" / 38mm / 1" / 25.4mm |
| Voice Coil Former Material | Kapton / Aluminum |
| Winding Material | CCAW / SV |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Magnet Material | Neodymium |
| Magnet Weight | 3 Oz / 13g |
| Equivalent Volume Vas | 4.46L / 0.157ft3 |
| Excursion (one way) Xmax | 1.5mm |
| Free Air Resonance Fs | 138 Hz |
| Mechanical Factor Qms | 4.249 |
| Electrical Factor Qes | 0.977 |
| Total Factor Qts | 0.794 |
| Mechanical Mass Mms | 7.166g |
| Mechanical Compliance Cms | 148.927 u/M/N |
| BL Factor Bl | 4.767 |
| Voice Coil Inductance Le | 0.08696mH |
| Cone Area Sd | 145 cm? |
| DC Resistance Re | 3.2 ohm |
| Mechanical Mass w/o air Mmd | 6.159g |
| Sensitivity (1w/1m) | 92dB |
| HI Pass Crossover | 3.5Khz |
| Body Color / Material | Black / ABS |
| Diaphragm Material | PEI |
| Wiring / Connections | Plug & Play to factory Speaker Connector |
| Enclosure Material | Injection Molded ASA composite |
| Grill Material | Steel |
| Sold as Pair | Yes (Left and Right Set) |
| Color / Finish | Black / Satin |
| Overall Wide | 8.26" / 210mm |
| Overall Length | 12.36" / 314mm |
| Overall Depth | 3.27" / 83mm |
