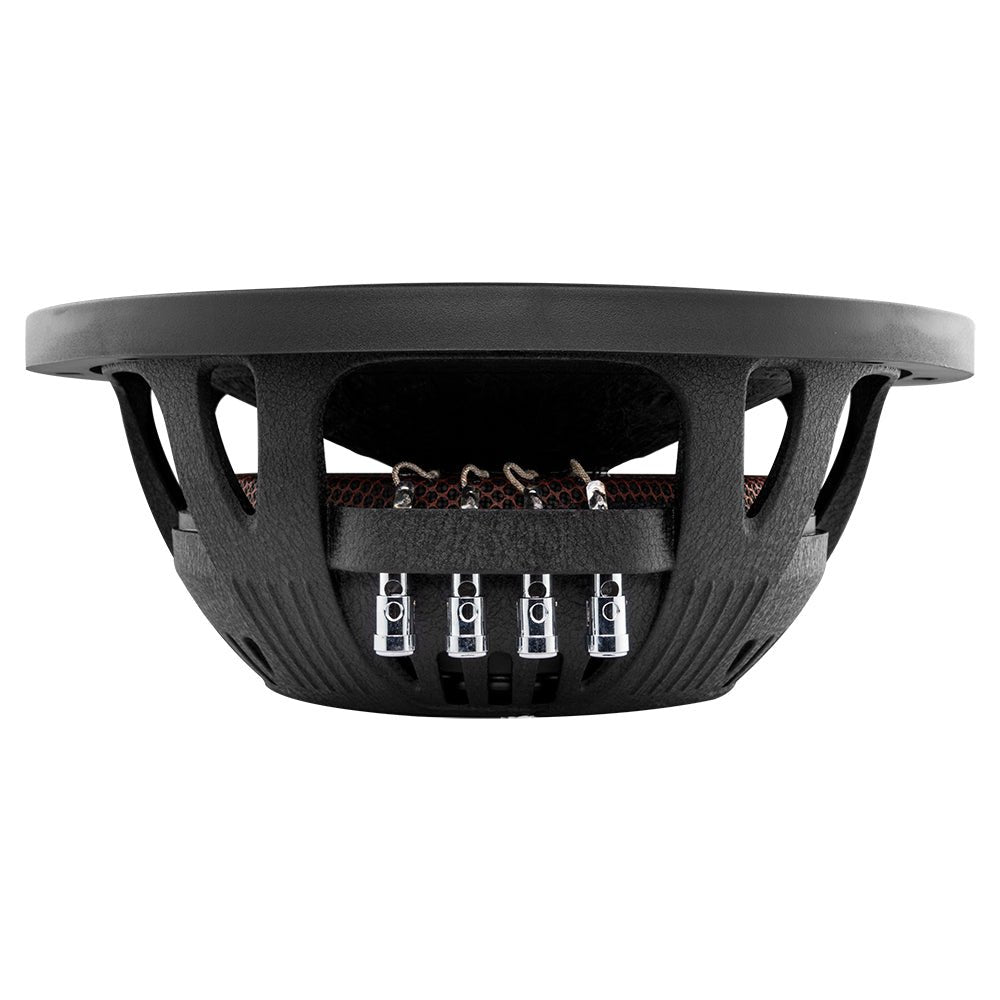

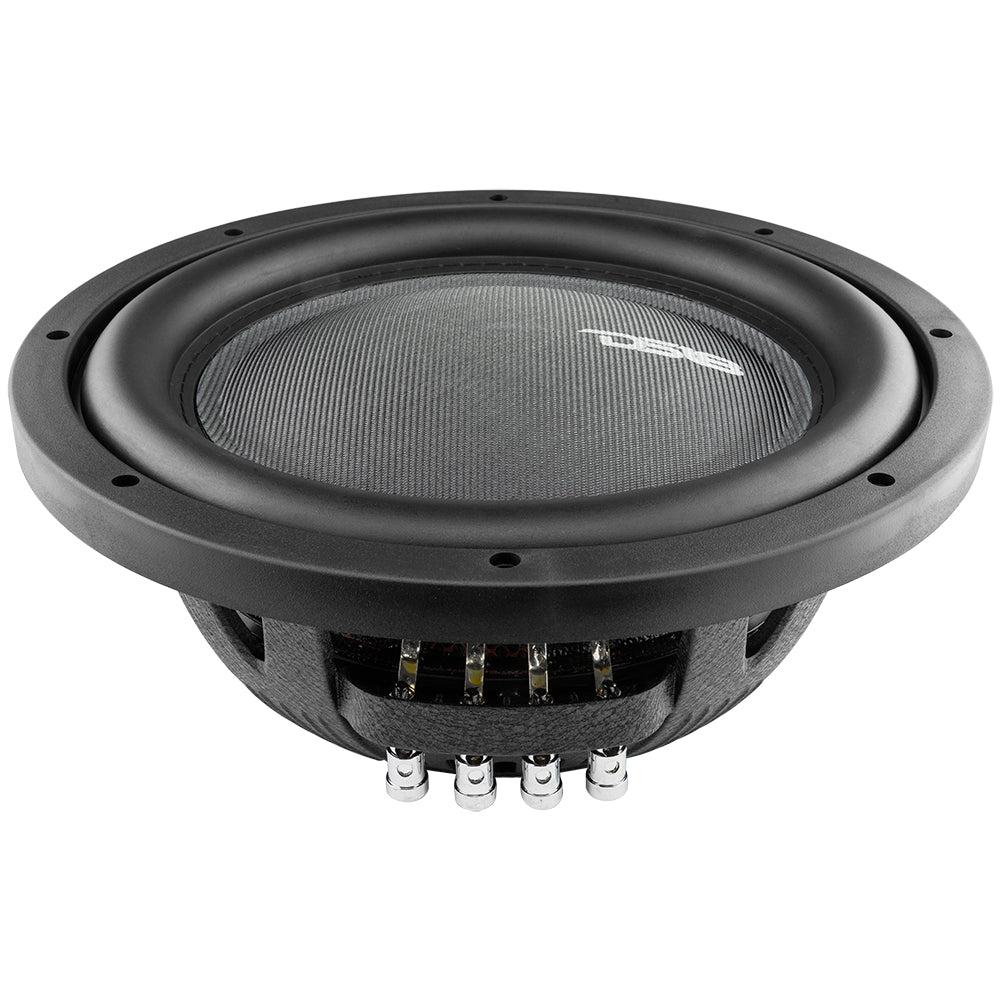

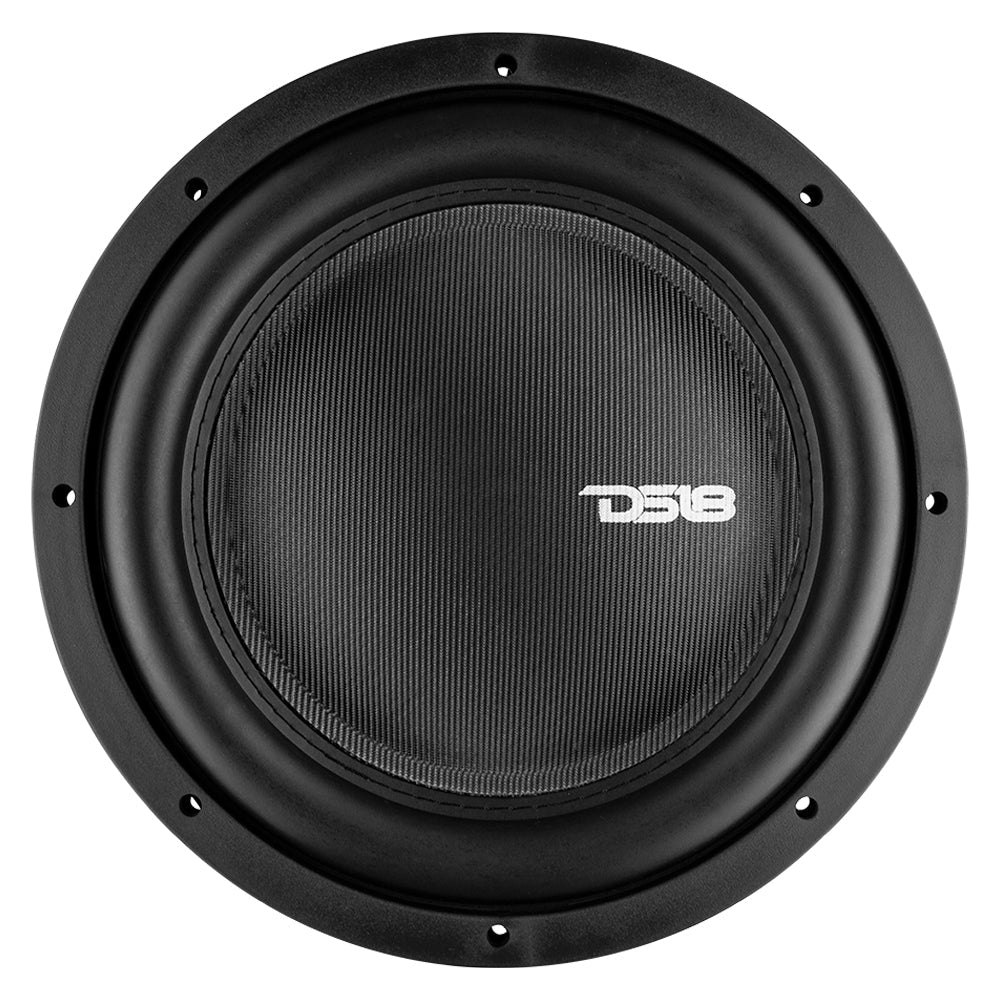

IXS Shallow-Mount 12" Fiber Glass Subwoofer 800 Watts Rms DVC 2-Ohm
Product Overview DS18 IXS12.2D 12" Car Subwoofer 1600 Watts 2-Ohm DVC Shallow Mount DS18’s IXS Line of...
- $263.95
- $263.95
- Unit price
- per
Subtotal:
$263.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 IXS12.2D 12" Car Subwoofer 1600 Watts 2-Ohm DVC Shallow Mount
DS18’s IXS Line of Shallow Mount Subwoofers are back with the IXS12.2D!
Built from our best selling SW slim subwoofer line the experts at DS18 took the SW line and made it even beefier for more bass.
This sub handles 800 W RMS and 1600 W MAX Power with a 84 dB sensitivity: high sensitivity for a shallow mount sub raising this model above and beyond the standard.
These Dual Voice Coil Subs are perfect for the listener looking to add more thump to their system.
Make the most of your space with the IXS12.2D!
Highlights

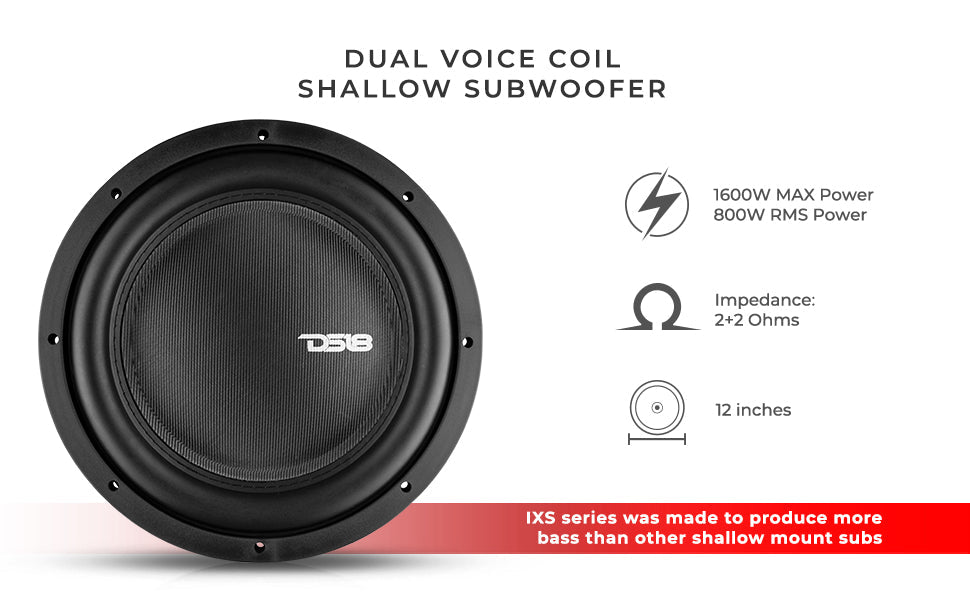

- IXS series was made to produce more bass than other shallow mount subs of it rating in ported or sealed boxes.

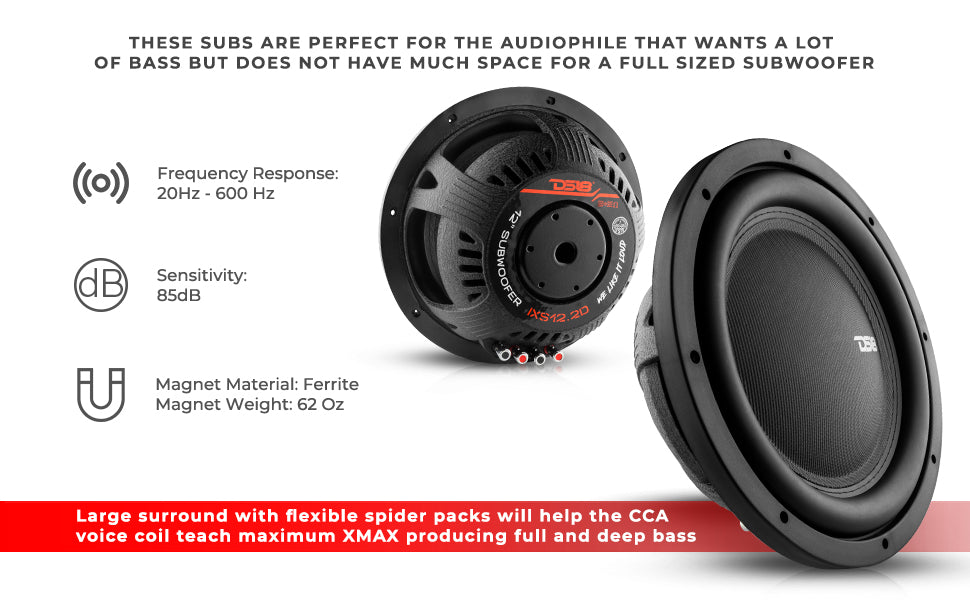

- Large surround with flexible spider packs will help the CCA voice coil maximum Xmax producing full and deep bass with a up to spec box.

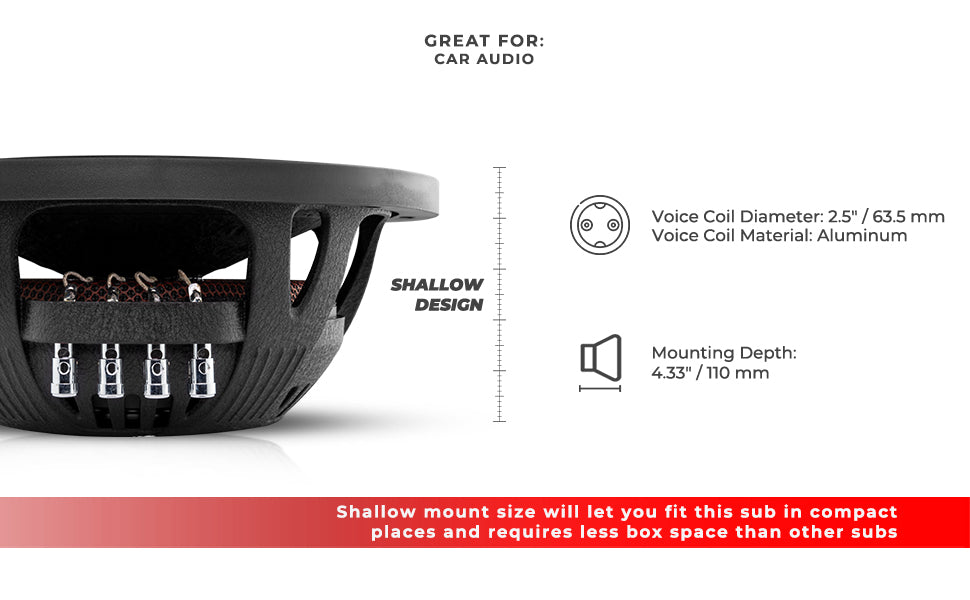

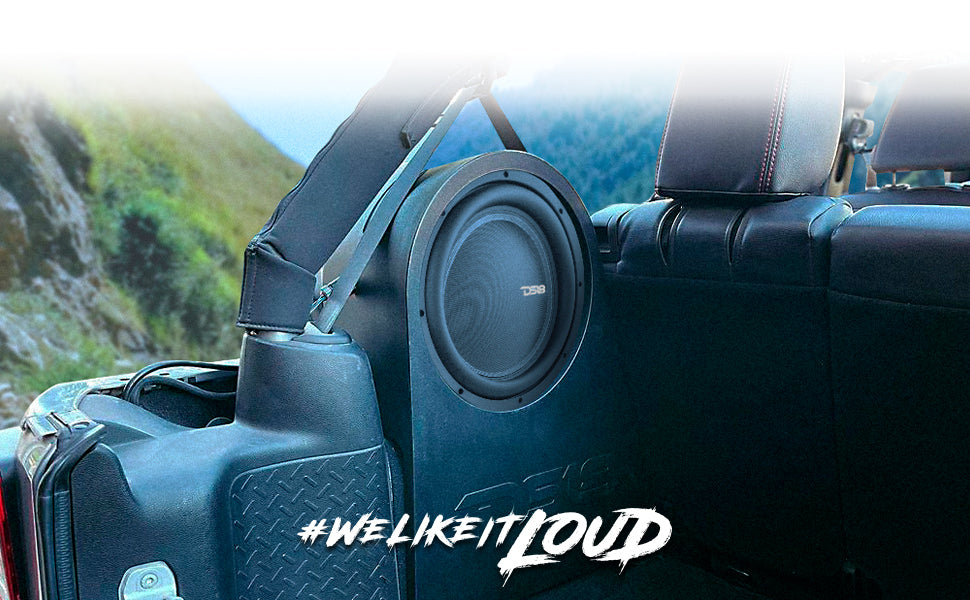

- Shallow mount size will let you fit this sub in compact places and requires less box space than other subs its size giving you many options in which to place it.
Great For
- Car Audio
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 12” / 304.8mm |
| Nominal Impedance | 2+2 ohms |
| RMS Power Handling | 800W |
| MAX Power Handling | 1600W |
| Sensitivity (1w/1m) | 85 dB |
| Frequency Response | 20 - 600 Hz |
| Recommended Lo Pass Crossover | 80 Hz |
| MOTOR | |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | Fiberglass |
| Surround Material | Stitched rubber |
| Basket Material | Aluminum |
| Basket Color/Finish | Corrugated Black |
| Magnet Material | Ferrite |
| Magnet Weight | 62 Oz |
| Displacement Volume | 0.93L / 0.033ft3 |
| MEASUREMENT | |

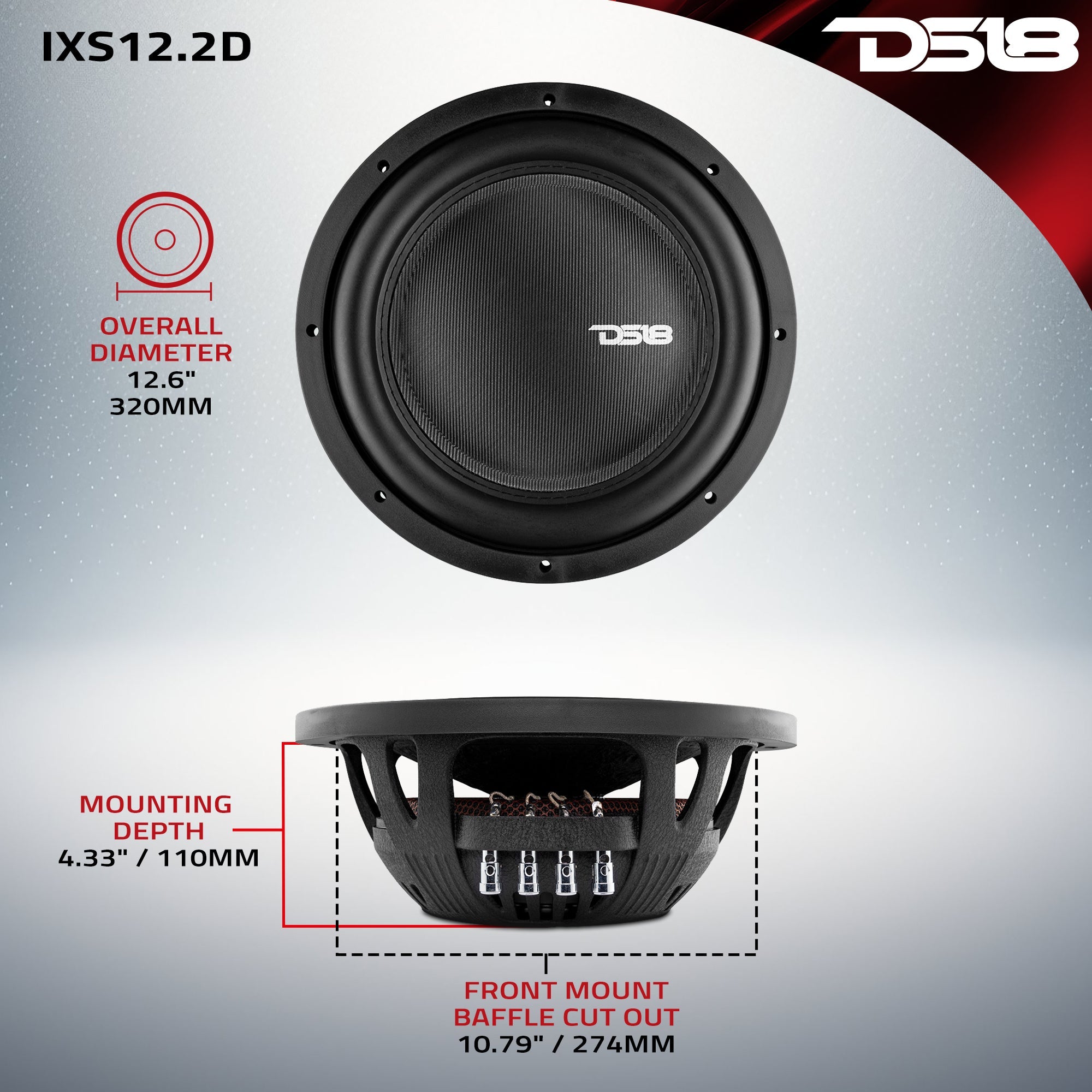

| Overall Diameter | 12.6" / 320 mm |
| Overall Depth | 5" / 129 mm |
| Front Mount Baffle Cutout | 10.79" / 274 mm |
| Mounting Depth | 4.33" / 110 mm |
| Motor Diameter | 6.3" / 160 mm |
Key Features
- 12" Shallow Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Ferrite Magnet
- 85dB
Specifications
| SKU | IXS12.2D |
|---|---|
| Nominal Diameter | 12" / 304.8mm |
| Nominal Impedance | 2+2 ohms |
| RMS Power Handling | 800W |
| Maximum Power Handling | 1600W |
| Sensitivity (1w/1m) | 85 dB |
| Frequency Response | 20 - 600 Hz |
| Recommended Lo Pass Crossover | 80 Hz |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | Fiberglass |
| Surround Material | Stitched rubber |
| Basket Material | Aluminum |
| Basket Color/Finish | Corrugated Black |
| Magnet Material | Ferrite |
| Magnet Weight | 62 Oz |
| Displacement Volume | 0.93L / 0.033ft3 |
| Equivalent Volume Vas | 38L / 1.34ft3 |
| Free Air Resonance Fs | 33 Hz |
| Mechanical Factor Qms | 4.83 |
| Electrical Factor Qes | 0.82 |
| Total Factor Qts | 0.7 |
| Moving Mass Mms | 261.6 g |
| Compliance Cms | 106.15 mm/N |
| Bl Factor BI | 14 |
| Voice Coil Inductance Le | 14.72 mH |
| Diaphragm Area Sd | 494.81 cm2 |
| DC Resistance Re | 1.6+1.6 ohms |
| Efficiency Bandwidth Product EBP | 36.5 |
| Sealed Internal Volume (minimum) | 28L / 1ft3 |
| Sealed Box Output Response F3 | 40Hz |
| Overall Diameter | 12.6" / 320 mm |
| Overall Depth | 5" / 129 mm |
| Front Mount Baffle Cutout | 10.79" / 274 mm |
| Mounting Depth | 4.33" / 110 mm |
| Motor Diameter | 6.3" / 160 mm |
| Gross Single Unit Weight (lb) | 16.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 13.25 x 13.5 x 6.5 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight (lb) | 34 |
| Master Carton Dimensions W x L x H (Inches) | 14 x 14 x 14 |
