INF-LTI20-13AH INFINITE 13 AH Lithium Battery YTX20 Case With Shake and Wake Technology and BMS - Perfect for Motorcycles
Product Overview DS18 INF-LTI20-13AH INFINITE 13 AH Lithium Battery YTX20 Case With Shake and Wake Technology and...
Vendor:
DS18
Manufacturer SKU
INF-LTI20-13AH
Availability:
Out Of Stock
Product Type:
Batteries & Power Cells
- $659.95
- $659.95
- Unit price
- per
Subtotal:
$659.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview
DS18 INF-LTI20-13AH INFINITE 13 AH Lithium Battery YTX20 Case With Shake and Wake Technology and BMS Perfect for Motorcycles
Boost your Motorcycle or Powersports vehicle with pure power from DS18’s INF-LTI20-13AH. Given 13AH of Lithium these batteries supply EIGHT TO TEN TIMES the power of an AGM battery at half the size.
This long-lasting Lithium Battery offers peak performance through the highest of temperatures, and strong starts through the lowest. These batteries come with the most reliable lithium battery chemistry on the market – LifePo4.
The INF-LTI20-13AH delivers over 1000-amps of starting power, 2500W of Burst Power, and quick recharge capabilities. This Lithium Battery is also equipped with a M6x1.0 bolt terminal for easy connectivity to most cables or distribution bars / blocks.
The Electronic Circuit Board in the INF-LTI20-13AH provides maximum safety protection with active cell balancing for long-lasting reliability.
Only to be maintained with the DS18 INF-LTI3.5 A battery maintainer. Any other charger or maintainer can damage the unit.
Order the INF-LTI20-13AH to increase the power of your Motorcycle or Powersports Vehicle!
Highlights
- 8” x 3.4” x 5.6” - L x W x H
- High Performance at High Temperatures
- Long Lasting Battery Life
- Very Fast Charge Rate
- Powerful Starts at Low Temperatures
- Shake And Wake Auto Start Technology
- Lightweight Design That Delivers Heavy Duty Power
- Group 20 Battery
- Cell Balancing Electronic Circuit Board
- 3V Nominal Voltage; 1000A Cranking Amps; 2500W Burst Power
Great For
- Motorcycle Audio
- Powersports Audio
- Car Audio
Technical Details
Download INF-LTI20-13AH Product Manual

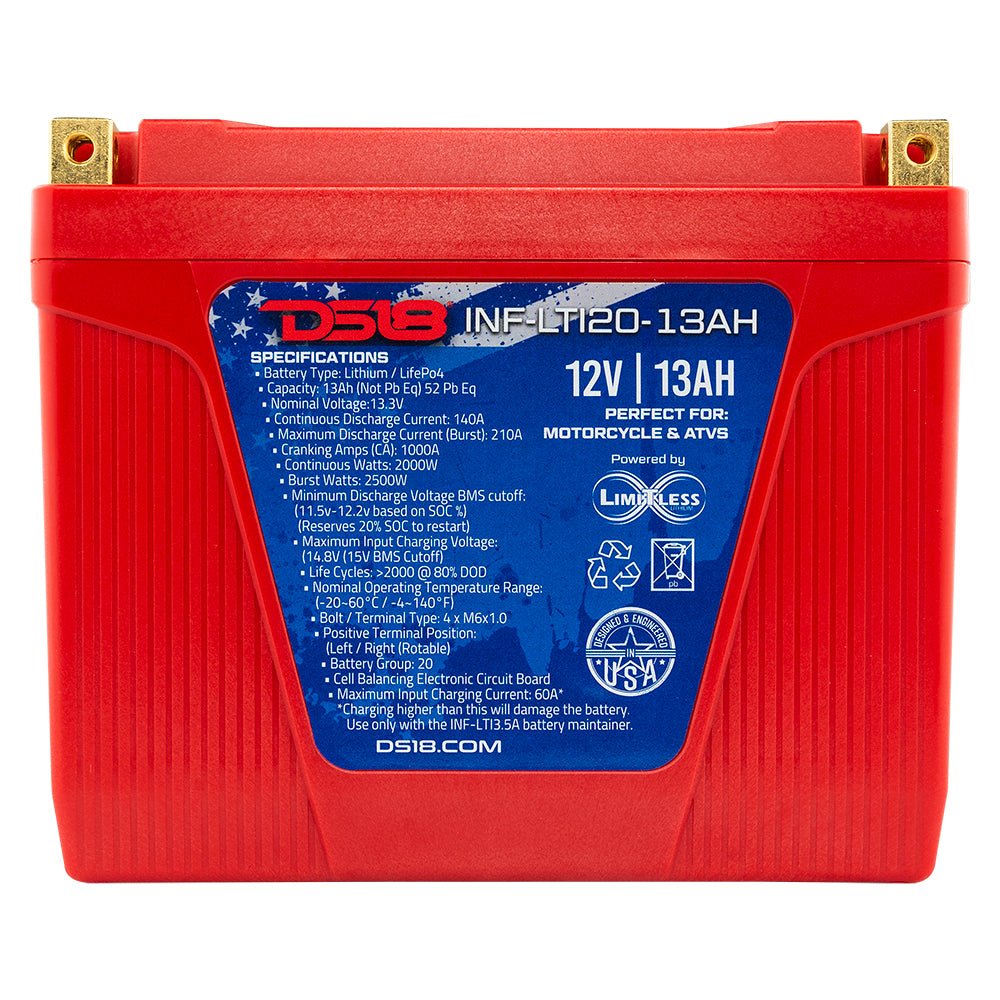

| SPECIFICATIONS | |
| Battery Type | Lithium / LifePo4 |
| Capacity | 13Ah (Not Pb Eq) 52 Pb Eq |
| Nominal Voltage | 13.3V |
| Continuous Discharge Current | 140A |
| Maximum Discharge Current (Burst) | 210A |
| Cranking Amps (CA) | 1000A |
| Continuous Watts | 2000W |
| Burst Watts | 2500W |
| Minimum Discharge Voltage (BMS cutoff) | 11.5v-12.2v based on SOC % (Reserves 20% SOC to restart) |
| Maximum Input Charging Current | 60A |
| Maximum Input Charging Voltage | 14.8V (15V BMS Cutoff) |
| Life Cycles | >2000 @ 80% DOD |
| Nominal Operating Temperature Range | -20~60°C / -4~140°F |

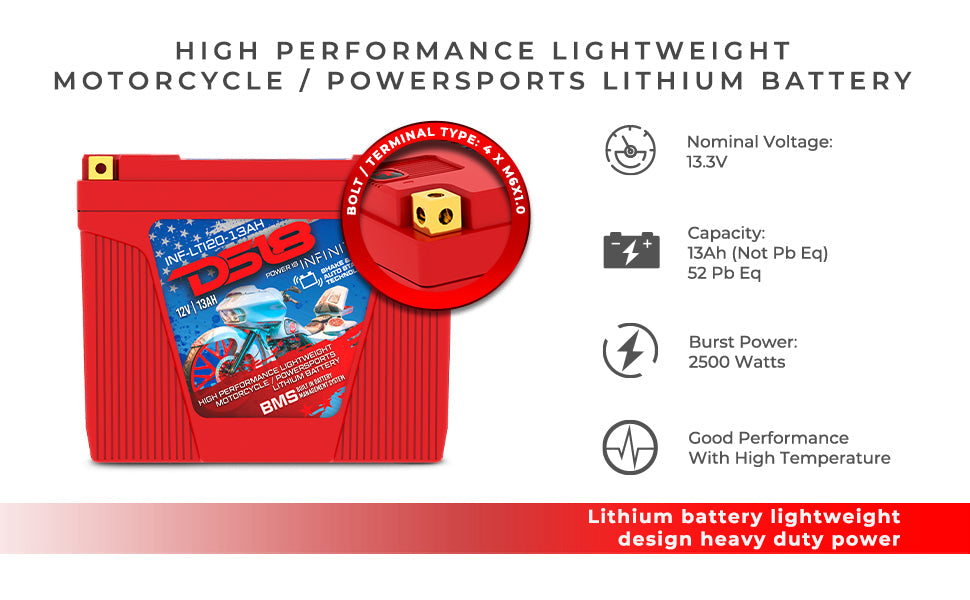

| Bolt / Terminal Type | 4 x M6 x 1.0 |
| Positive Terminal Position | Left / Right (Rotatable) |
| Battery Group | 20 |
| Features | |
| Battery Management System (BMS) | Yes |
| Shake & Awake Technology | Yes |
| Cell Balancing Electronic Circuit Board | Yes |
| Measurement | |

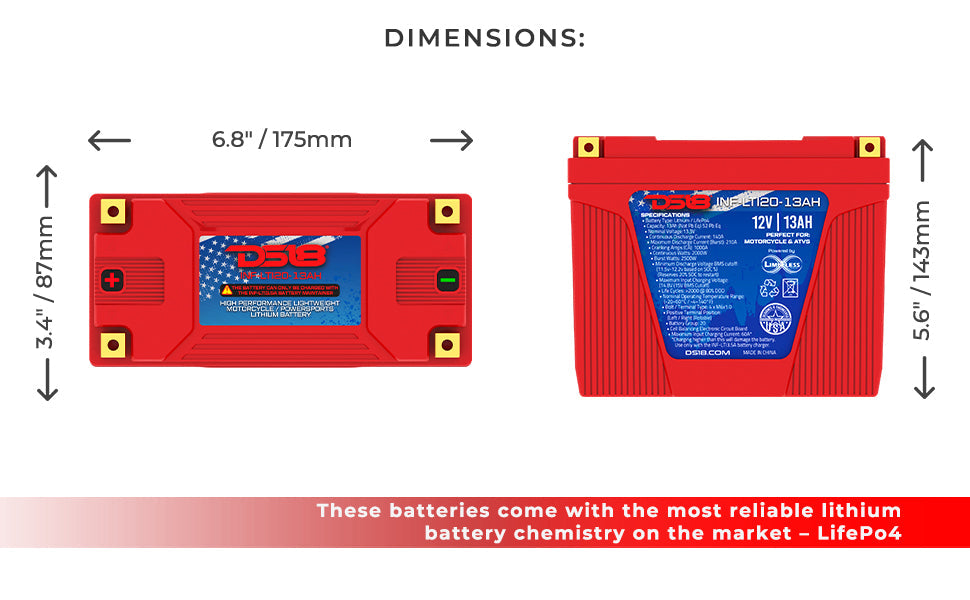

| Overall Length | 6.8" / 175mm |
| Overall Depth | 3.4" / 87mm |
| Overall Height | 5.6" / 143mm |
| Overall Height (Without Terminals) | 5.6" / 143mm |
| Weight | 4.62Lb / 2.1Kg |
Key Features
- 12 Volt Lithium Battery
- Shake & Wake Technology
- Built in Battery Management System(BMS)
- 2500 Watts of Burst Power
- 1000 Amps CCA
- Group 20
Specifications
| SKU | INF-LTI20-13AH |
|---|---|
| Battery Type | Lithium / LifePo4 |
| Capacity | 13Ah (Not Pb Eq) 52 Pb Eq |
| Nominal Voltage | 13.3V |
| Continuous Discharge Current | 140A |
| Maximum Discharge Current (Burst) | 210A |
| Cranking Amps (CA) | 1000A |
| Continuous Watts | 2000W |
| Burst Watts | 2500W |
| Spillable | Non Spillable |
| Minimum Discharge Voltage BMS cutoff | (11.5v-12.2v based on SOC %) (Reserves 20% SOC to restart) |
| Maximum Input Charging Current | 60A* (*Charging higher than this will damage the battery. Use only with the INF-LTI3.5A battery charger.) |
| Maximum Input Charging Voltage | 14.8V (15V BMS Cutoff) |
| Life Cycles | >2000 @ 80% DOD |
| Nominal Operating Temperature Range | -20~60°C / -4~140°F |
| Bolt / Terminal Type | 4 x M6x1.0 |
| Positive Terminal Position | Left / Right (Rotable) |
| Battery Group | 20 |
| Made In | Made In Vietnam |
| Overall Length | 6.8" / 175mm |
| Overall Depth | 3.4" / 87mm |
| Overall Height | 5.6" / 143mm |
| Overall Height (Without Terminals) | 5.6" / 143mm |
| Weight | 4.62Lb / 2.1Kg |
