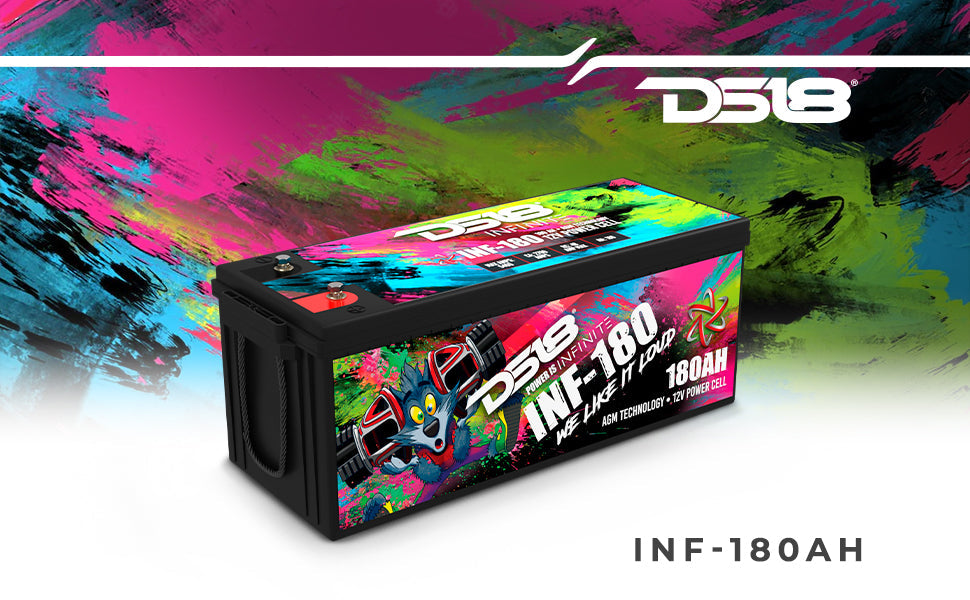

INFINITE 180 AH AGM Power Cell 12 Volt Battery
Product Overview DS18 INF-180AH INFINITE 180 AH 5000 Watts AGM Power Cell 12 Volt Battery Introducing the DS18...
Vendor:
DS18
Manufacturer SKU
INF-180
Availability:
Out Of Stock
Product Type:
Batteries & Power Cells
- $719.95
- $719.95
- Unit price
- per
Subtotal:
$719.95
Couldn't load pickup availability
Out of stock
Product Overview

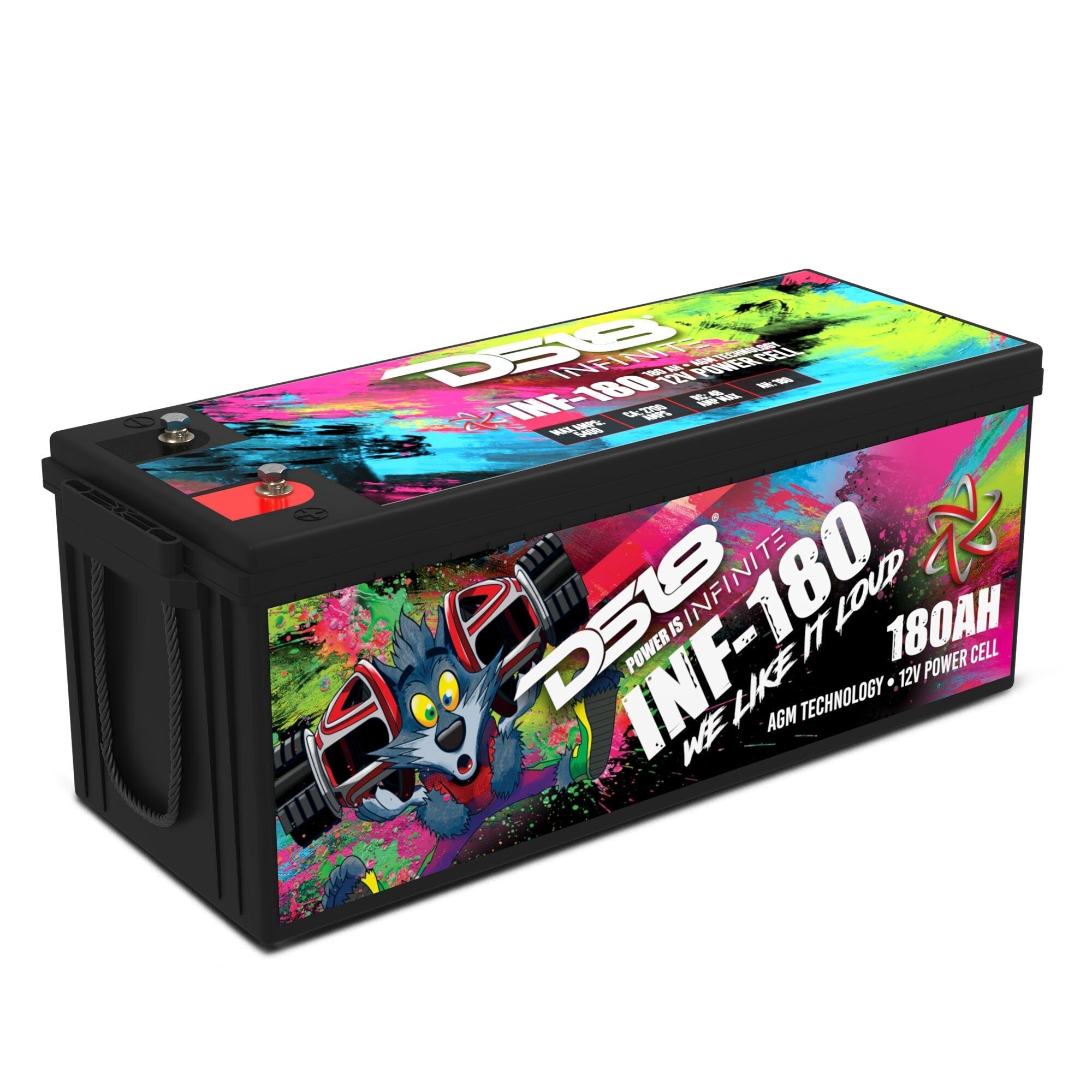

DS18 INF-180AH INFINITE 180 AH 5000 Watts AGM Power Cell 12 Volt Battery
Introducing the DS18 INF-180AH, the epitome of power and performance in the realm of car batteries. The INF-180AH AGM power-cell battery is a testament to DS18's unwavering commitment to excellence. Designed to withstand the harshest conditions, this battery will power your audio system to new heights.
The INF-180AH delivers over 2700-amps of starting power, 1300 Cold Cranking Amps, 5400W of Maximum Discharge Current, and quick recharge capabilities. With a float charging voltage range of 13.5 to 13.8 VDC per unit on average at 77 degrees Fahrenheit, the INF-180AH ensures that your battery remains consistently charged during extended periods of use, and extends this battery’s lifespan.

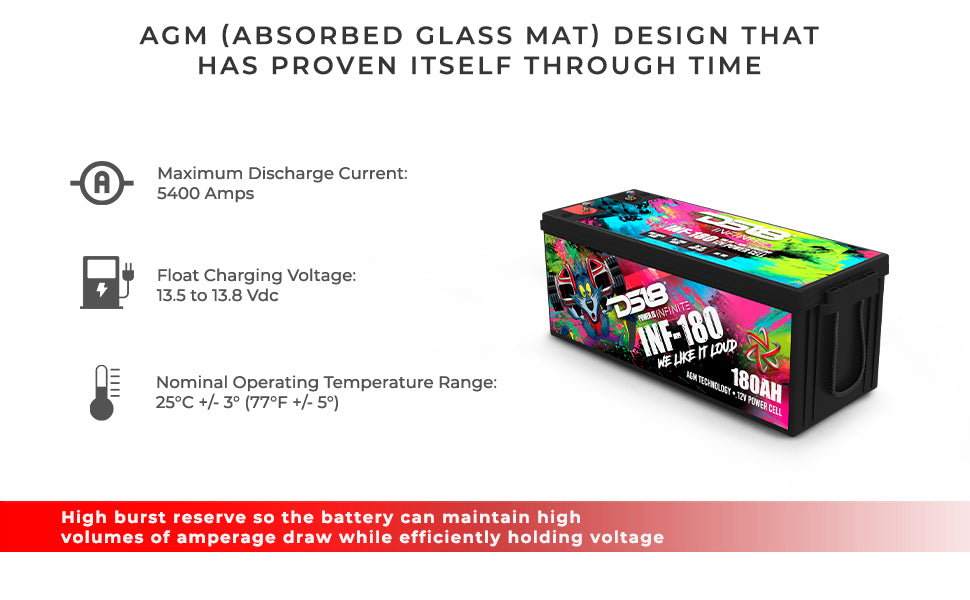

AGM (Absorbed Glass Mat) technology, the cornerstone of our INF-180AH, has been tried, tested, and trusted by enthusiasts worldwide. Its proven track record as the most cost-effective solution for high charging demands from any 12-volt source sets it apart from the competition. Embrace the power of the future and experience the pinnacle of performance.

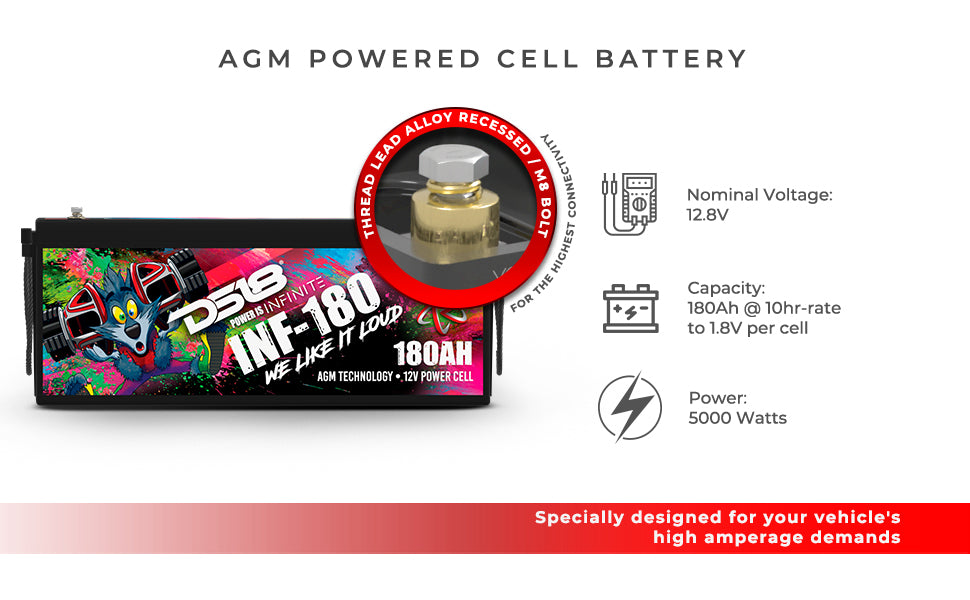

Connectivity is paramount in the world of car audio, and the INF-180AH excels in this realm. Equipped with secure Bolt M5 terminals, this battery guarantees a rock-solid connection. Not only do these terminals ensure optimal conduction, but it also opens a world of possibilities for add-on terminals and busbars. Customize your setup, elevate your connectivity, and unleash the full potential of your car audio system.
Highlights
- 13” x 6.88” x 8.62” = L x W x H
- High performance at High Temperatures
- Long Lasting Battery Life
- Very Fast Charge Rate
- Powerful Starts At Low Temperatures
- Lightweight Design That Delivers Heavy Duty Power
- Group 40 Battery
- Non Spillable Dry Cell Battery
Technical Details
| Specifications | INF-180 |
| Battery Type | AGM |
| Nominal Voltage | 12.8 V |
| Capacity | 180Ah @ 10hr-rate to 1.8V per cell @ 25°C (77°F) |
| Maximum Discharge Current | 1100 Amps |
| Watts | 5000W |
| Internal Resistance | Approx. 2.9 mΩ |
| Float Charging Voltage | 13.5 to 13.8 Vdc / unit average at 25°C (77°F) |
| Recommended Charging Current | 48 Amps |
| Nominal Operating Temperature Range | 25°C +/- 3° (77°F +/- 5°) |
| Bolt / Terminal Type | Theard Lead Alloy Recessed / M8 Bolt |
| Battery Group | 4D |
Key Features
- 12 Volt AGM Battery
- 180 AMP Hours
- Thread Lead Alloy Recessed / M8 Bolt
- Maintenance Free
- 5000 Power Watts
- Made in Vietnam
Specifications
| SKU | INF-180AH |
|---|---|
| Battery Type | AGM |
| Nominal Voltage | 12.8 V |
| Capacity | 180Ah @ 10hr-rate to 1.8V per cell @ 25°C (77°F) |
| Maximum Discharge Current | 5400 Amps |
| Cranking Amps (CA) | 2700 Amps |
| Cold Cranking Amps (CCA) | 1300 Amps |
| Watts (RMS) | 5000W |
| Internal Resistance | Approx. 2.9 mΩ |
| Float Charging Voltage | 13.5 to 13.8 Vdc / unit average at 25°C (77°F) |
| Recommended Charging Current | 48 Amps |
| Nominal Operating Temperature Range | 25°C +/- 3° (77°F +/- 5°) |
| Bolt / Terminal Type | Theard Lead Alloy Recessed / M8 Bolt |
| Battery Group | 4D |
| Overall Length | 21.75" |
| Overall Width | 9" |
| Overall Height | 11" |
| Weight | 111.11 lb |
