PRO 1-Channel Full-Range Class D Amplifier 8000 Watts Rms @ 1-Ohm
Product Overview DS18 GFX-8K1 – Full-Range Class D 1-Channel Monoblock Amplifier – 8000 Watts RMS, 1-Ohm A Whole...
- $563.95
- $563.95
- Unit price
- per
Subtotal:
$563.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview

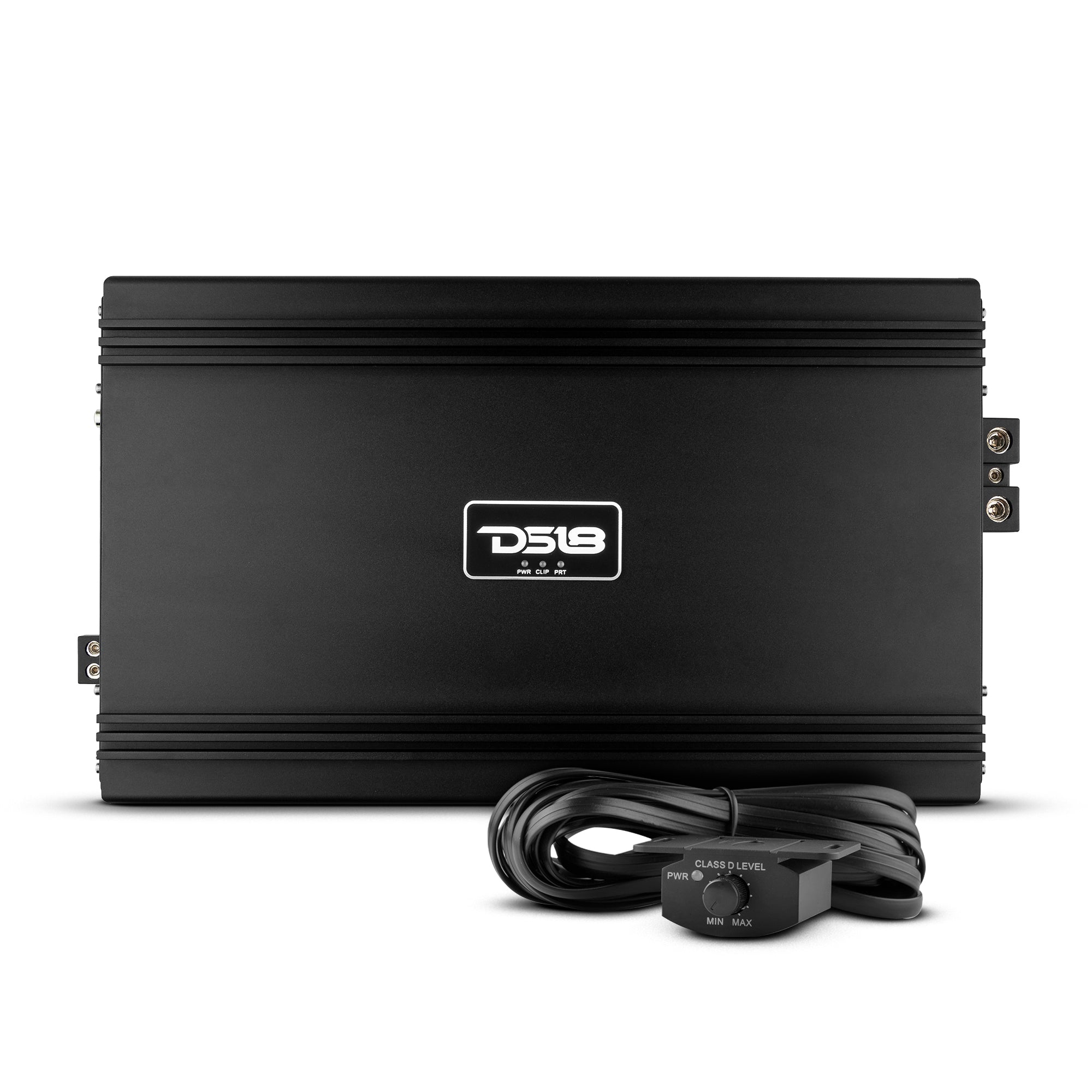

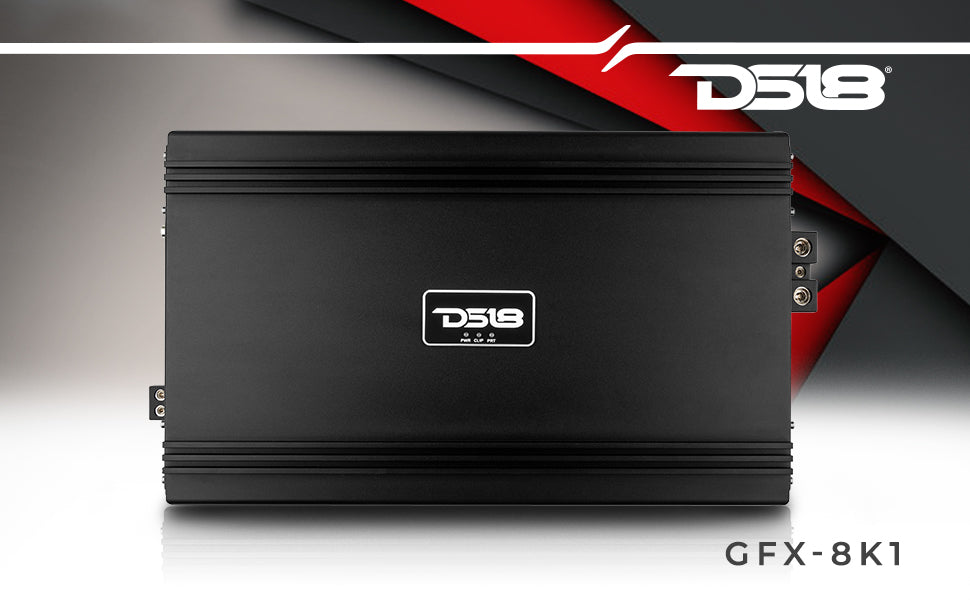

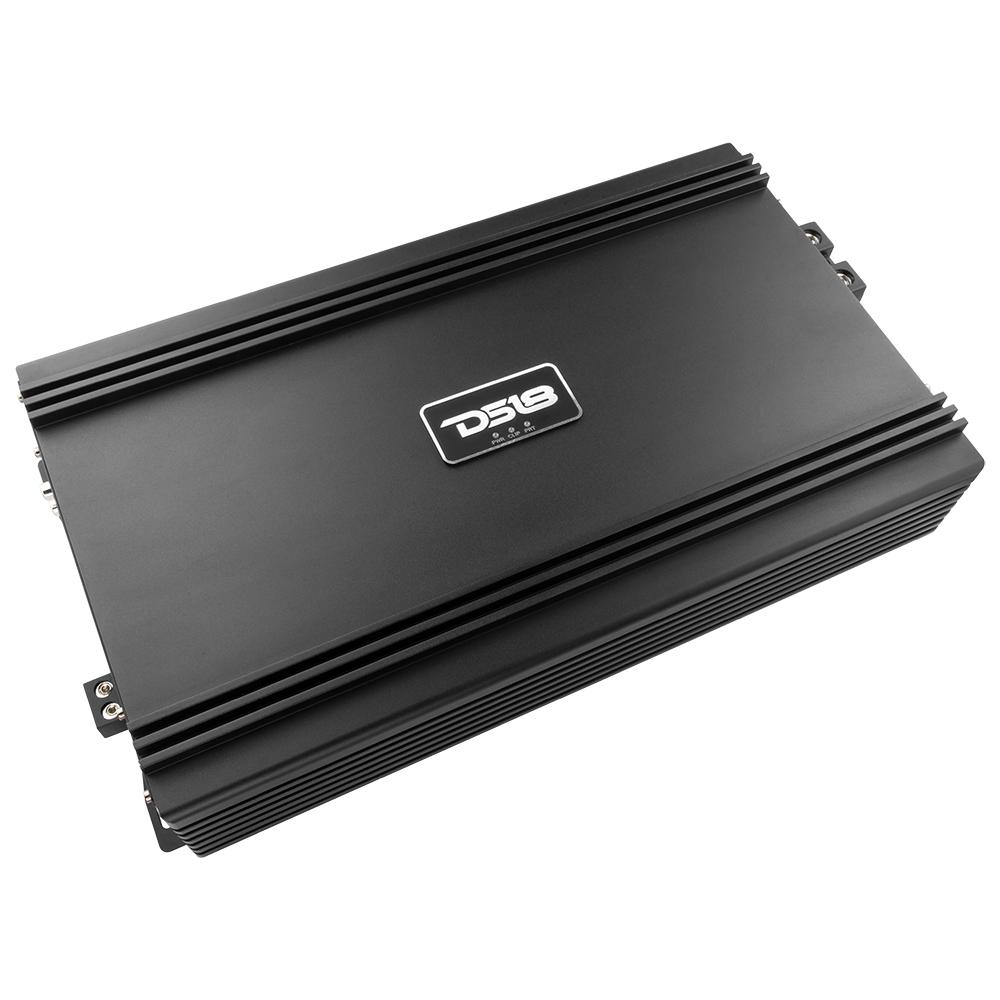

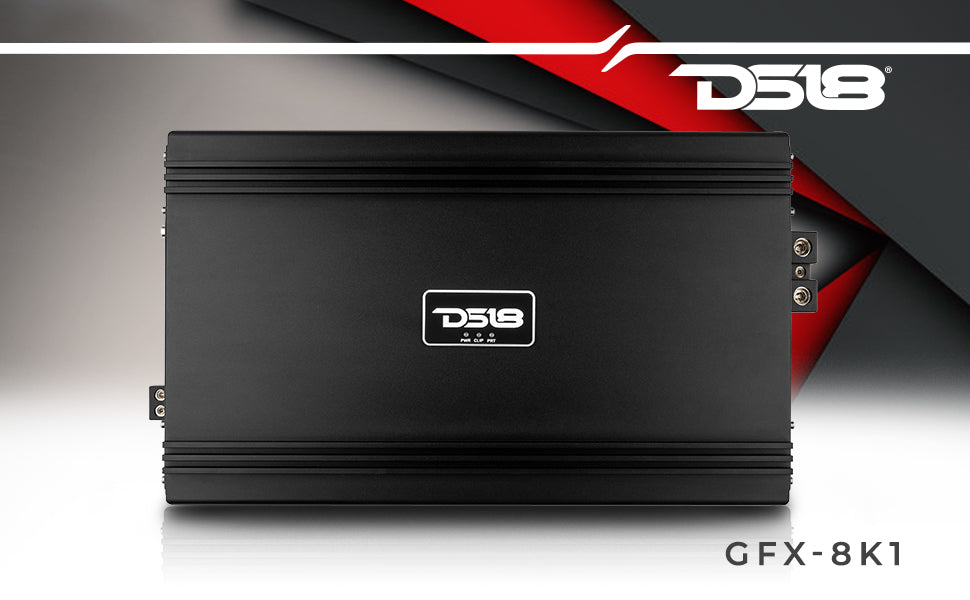

DS18 GFX-8K1 – Full-Range Class D 1-Channel Monoblock Amplifier – 8000 Watts RMS, 1-Ohm
A Whole Lot of Boom in One Package
The DS18 GFX-8K1 is an impressive car amplifier that delivers an astounding 8000 watts of power to a 1-Ohm load. It comes in a compact package without compromising on mind-blowing power. With its full bridge design, it optimizes the potential of top-notch components, while the heavy-duty heat-sink and integrated cooling system guarantee consistent and efficient performance. This amplifier is not only powerful and robust but also an excellent choice for driving subwoofers, ensuring exceptional audio quality and bass reproduction.
Order the DS18 GFX-8K1 today to own a compact car amplifier that will squeeze every possible watt out of your bass!
Maximum Power for Your Dollar
At DS18, we strive to provide the latest and greatest technology for our customers. The GFX-8K1 is no different! Guaranteed to give you maximum performance for your dollar, this full range amp is perfect for subwoofers. You can even adjust the amplifier’s volume with remote level inputs so you can fine tune the audio of each song you play! If you like it loud (like we do), then you can’t go wrong with the GFX-8K1.
Product Highlights
- Great power per size ratio packing in 8000w in a very small package
- Power rating of 3500 watts @ 4-Ohms, 5000 watts @ 2-Ohms, and 8000 watts @ 1-Ohm for great full range power at any of the recommended ohm loads.

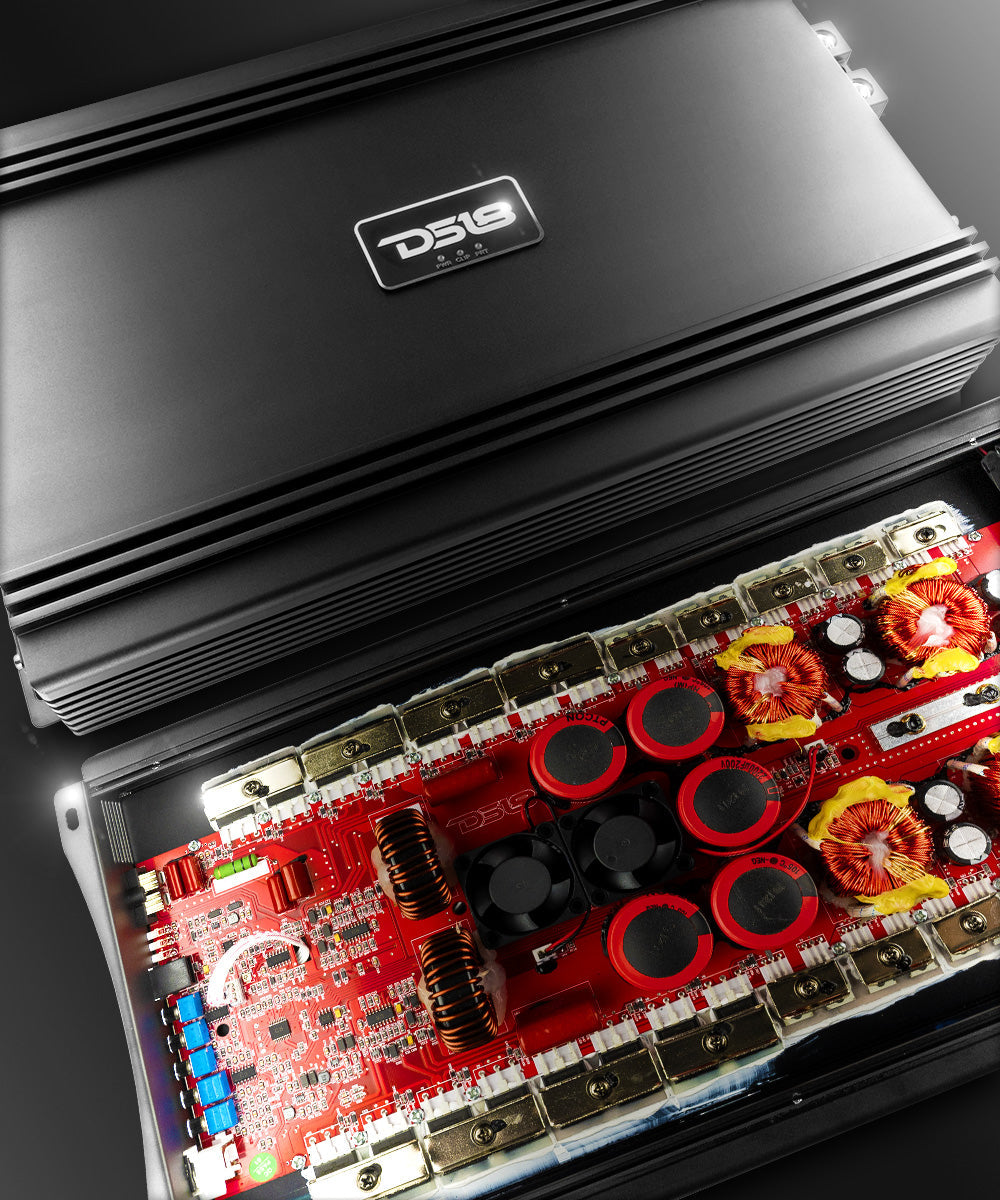

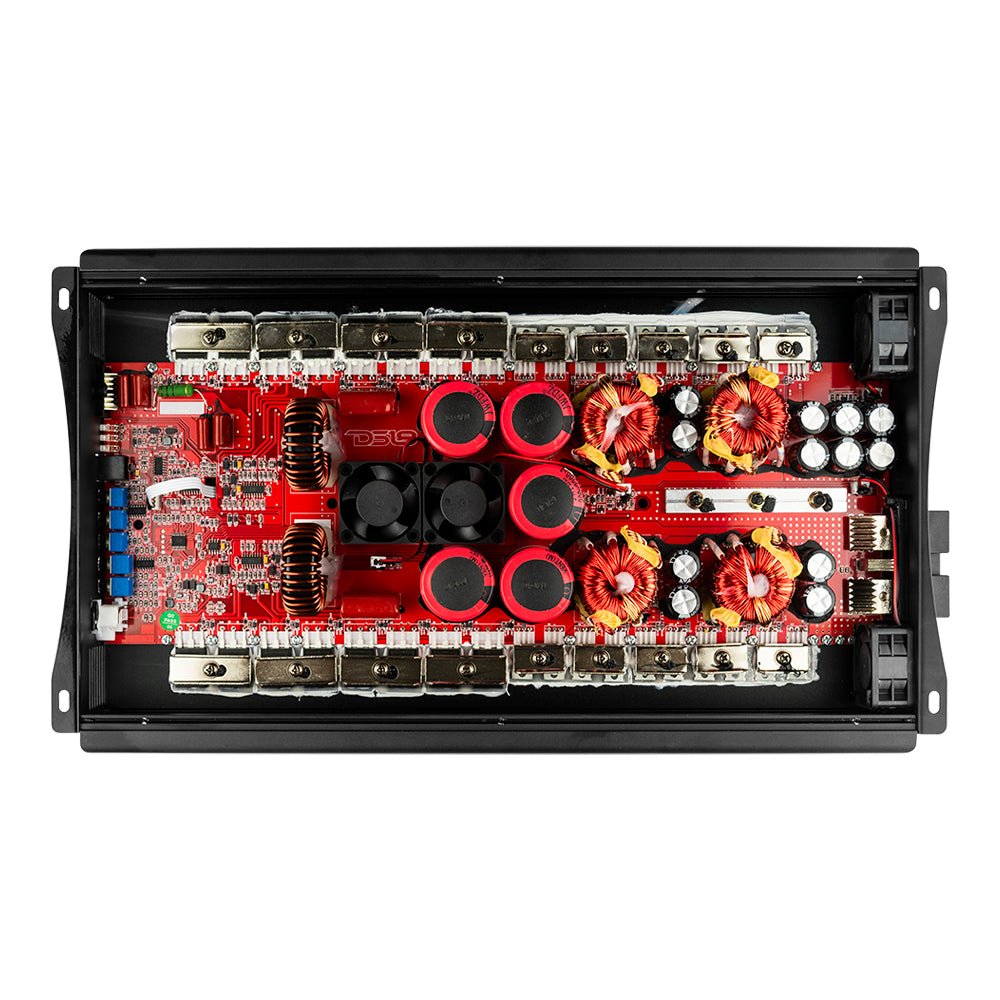

- Digital Monoblock Full bridge design maximizes power by using high quality components maximizing power and size

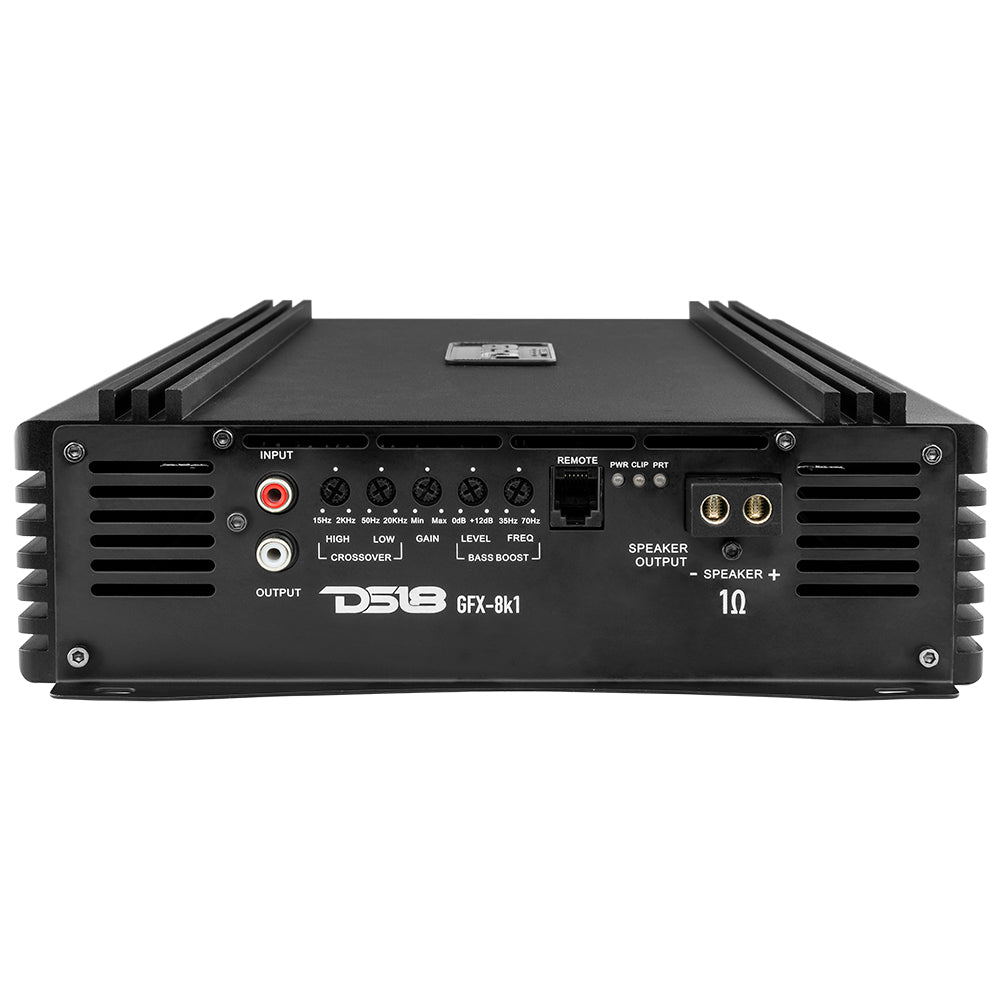

- Adjust crossover filters to get the perfect sound for your speaker combination

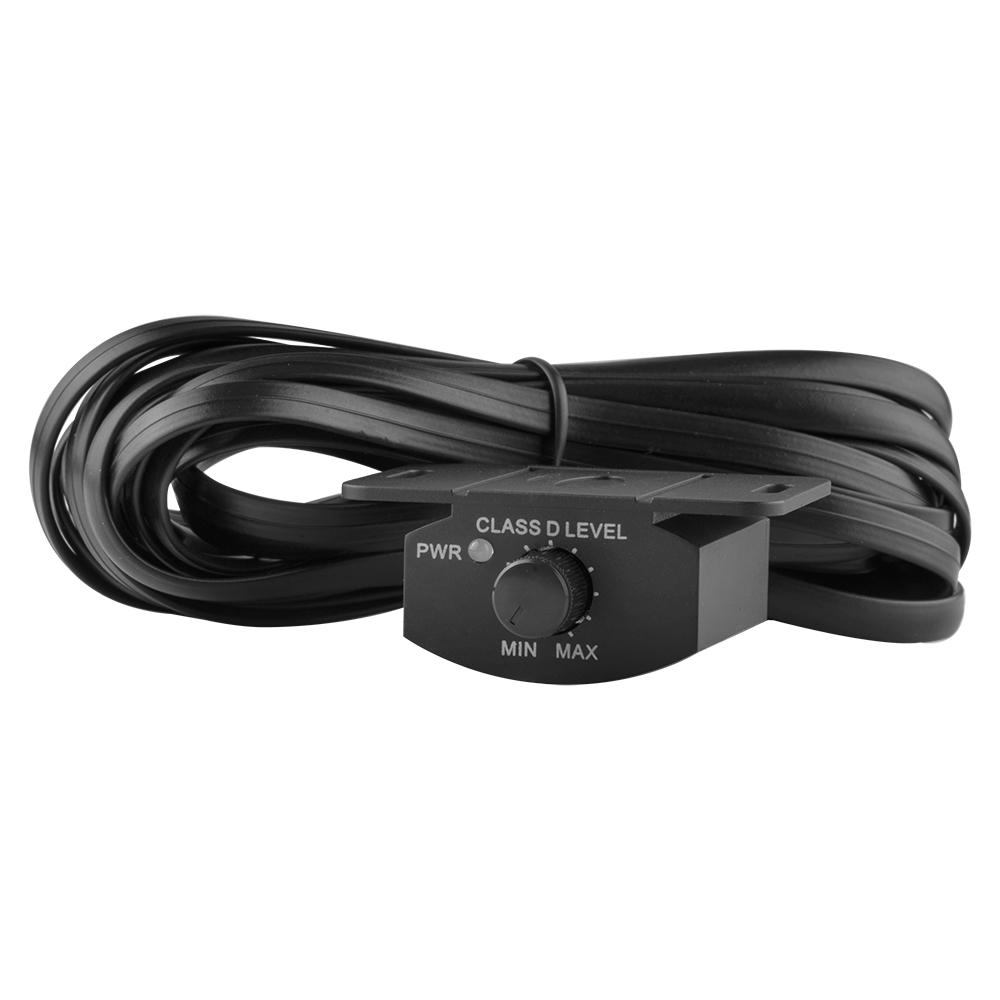

- Remote level inputs for easily adjusting amplifier volume on the go

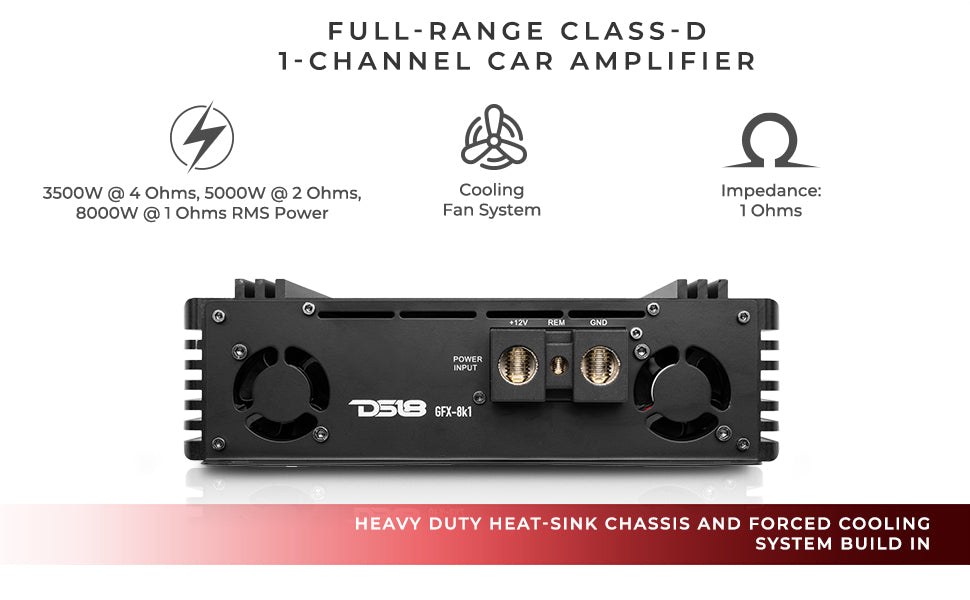

- Intelligent cooling fan system for powerful and reliable performance
- Frequency response of 15Hz-20KHz making it a great choice for Pro-Audio
- Built in High-Pass and Low-Pass filters to help you get the perfect sound
- Adjustable bass boost from 8-12dB with included Level control knob for on-the-go volume changes.

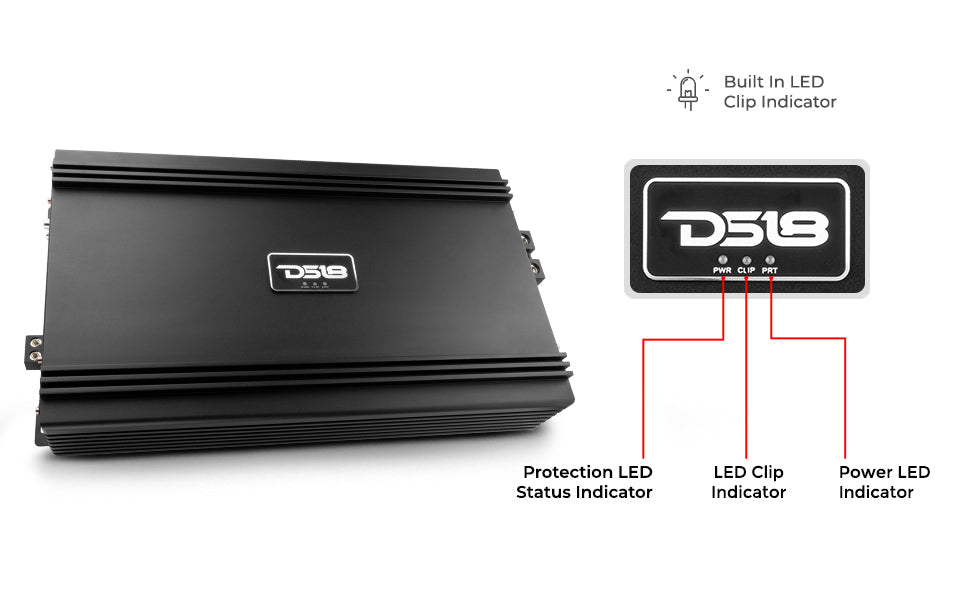

- Power, Protection, and Clipping indicators will help you monitor your amp easily with colored LEDs.
- Safety features that protect the amp from damage from clipping, thermal limits, over-load, Impedance, short-circuit and voltage failures.
Technical Details
| Model No. | GFX-8K1 |
| Power @ 1 ohms (14.4V) | 8000W |
| Power @ 2 ohms (14.4V) | 5000W |
| Power @ 4 ohms (14.4V) | 3500W |
| Minimum Speaker Load | 1 Ohms |
| THD | 1% |
| Input Sensitivity | 0.5-8V |
| Hi Pass Crossover (12dB/Oct) | 15Hz-2KHz |
| Lo Pass Crossover (12dB/Oct) | 50Hz-20KHz |
| Frequency Response | 15Hz-20KHz |
| Bass Boost | 0-12dB |
| Bass Boost Frequency | 35Hz-70Hz |
| Working Voltage | 9-15V |

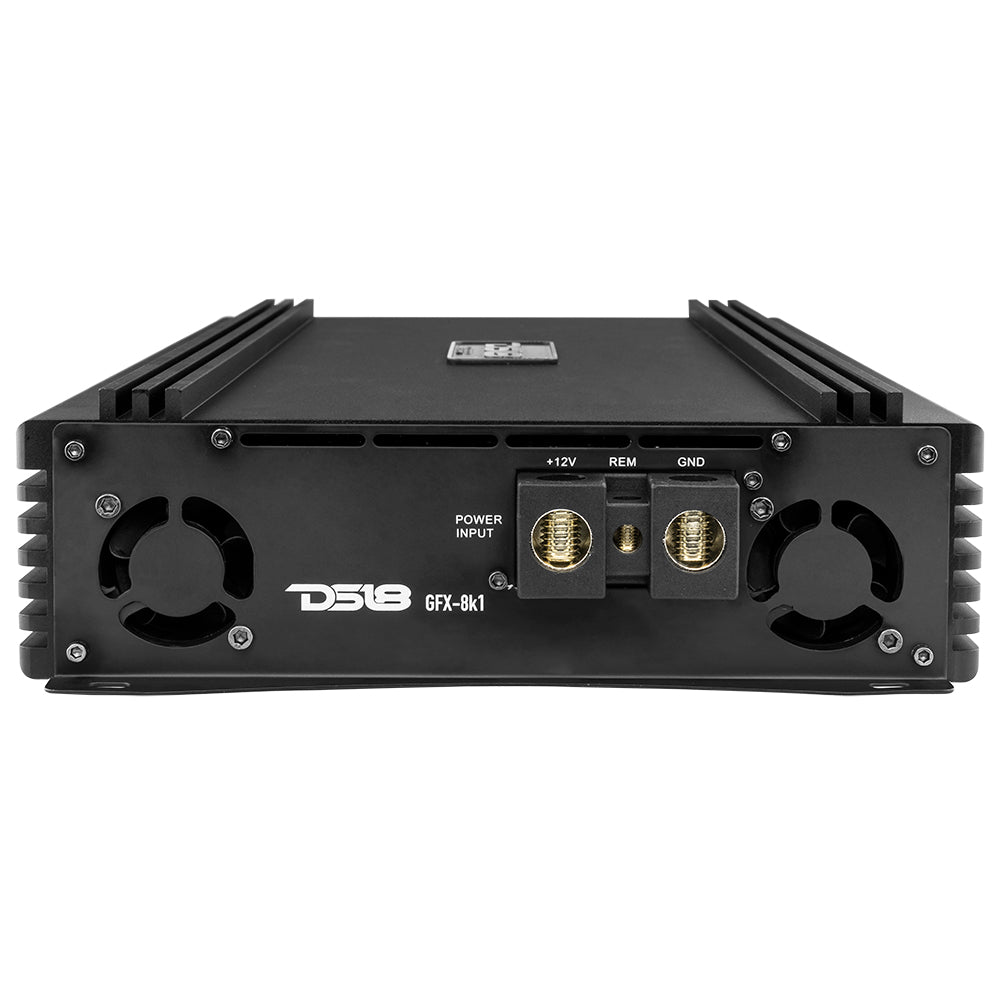

| Input Terminal Size | 1/0AWG |
| Output Terminal Size | 8 AWG |

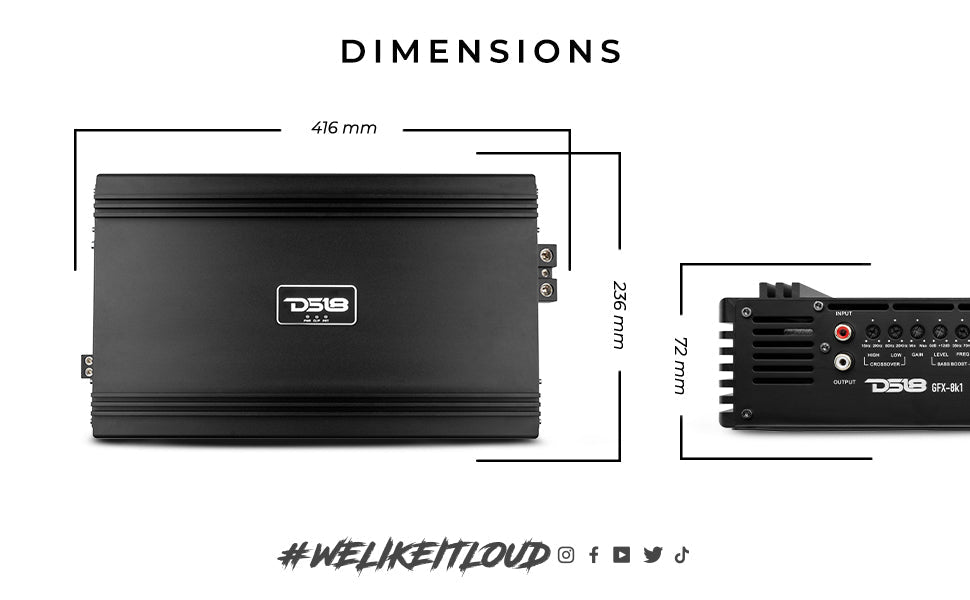

| Dimensions (mm) | 416 x 236 x 72 |
Key Features
- 1 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 8000 Watts @ 1 Ohm
- Clip/Protection Indicator

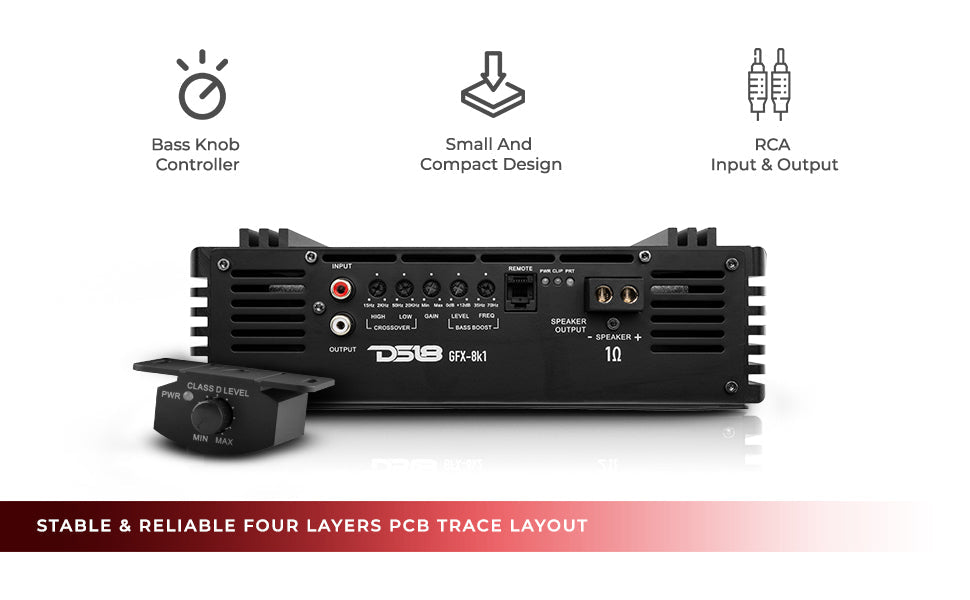

- Bass Control Knob
Specifications
| SKU | GFX-8K1 |
|---|---|
| Class | D |
| Channels | 1 |
| RMS Power @ 4 Ohm / 14.4VDC | 3500W |
| RMS Power @ 2 Ohm / 14.4VDC | 5000W |
| RMS Power @ 1 Ohm / 14.4VDC | 8000W |
| Speaker Impedance Range | 1-4 |
| Frequency Response | 15Hz-20KHz |
| Low Pass Filter | 50Hz - 20KHz |
| High Pass Filter | 15Hz - 2KHz |
| Subsonic | NO |
| Subsonic Frequency | N/A |
| Bass Boost | 0 - 12dB |
| Bass Frequency | 35Hz - 70Hz |
| High Level Input | NO |
| Input Sensitivity | 0.5V-8V |
| THD Distortion | 1 |
| Operation Voltage | 9 - 15V |
| Fuse Rating | 800A |
| Power Input Size | 1/0 GA |
| Speaker Output Size | 8GA |
| Dimensions (Inches) | 15.35 x 9.29 x 2.83 |
