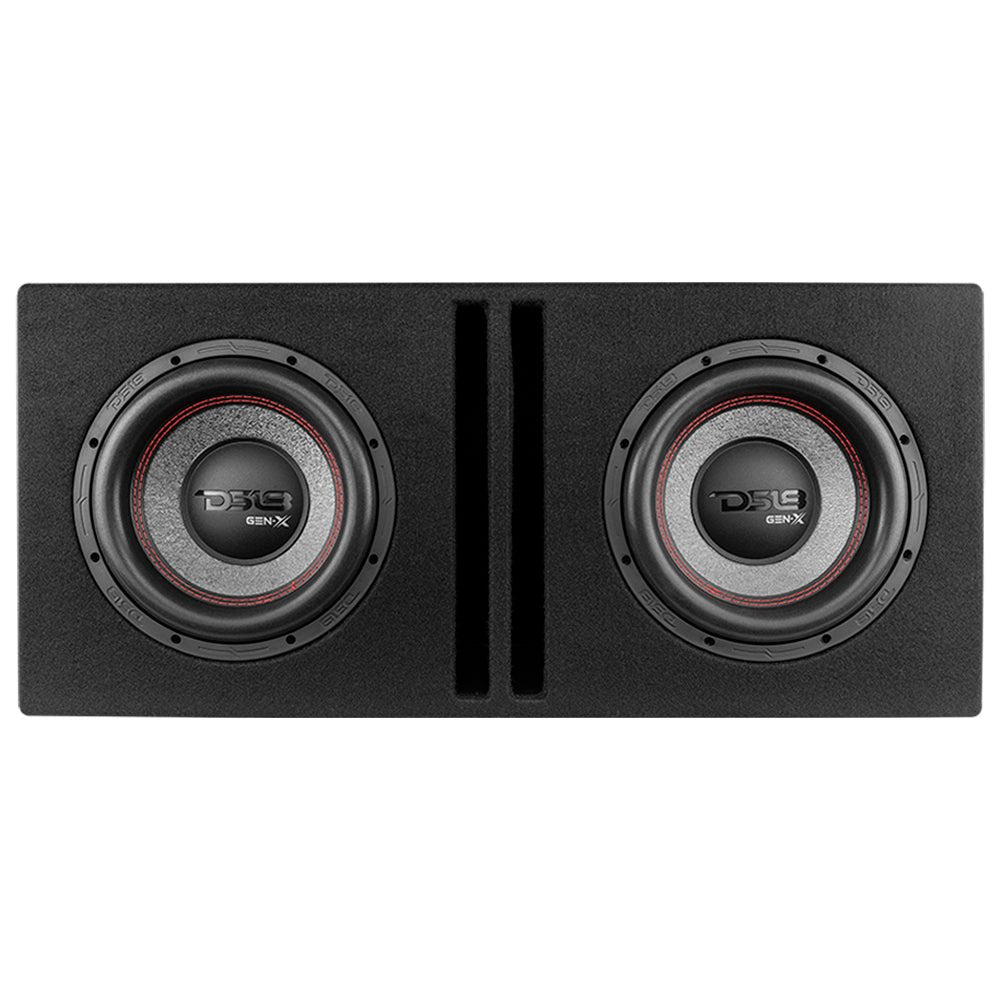

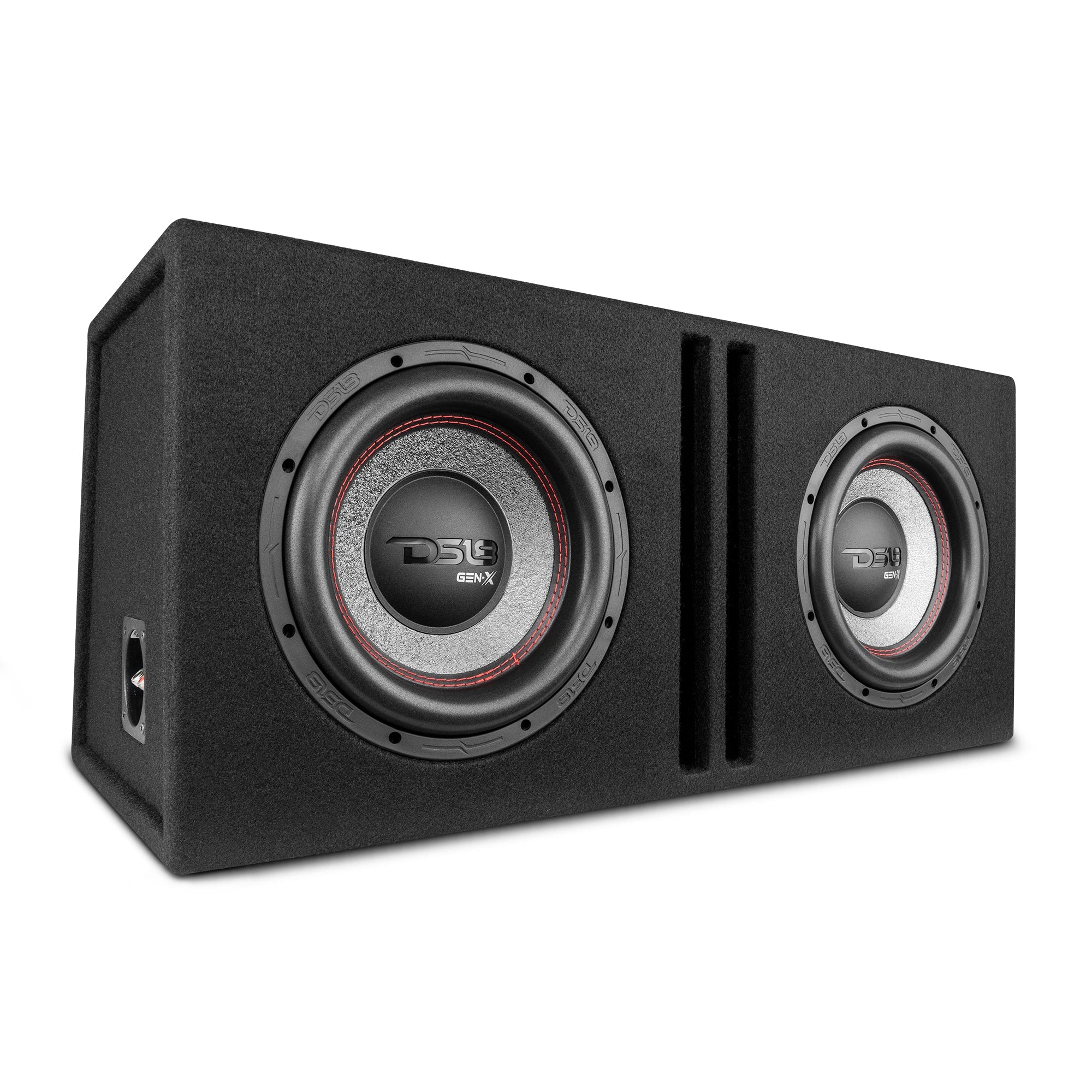

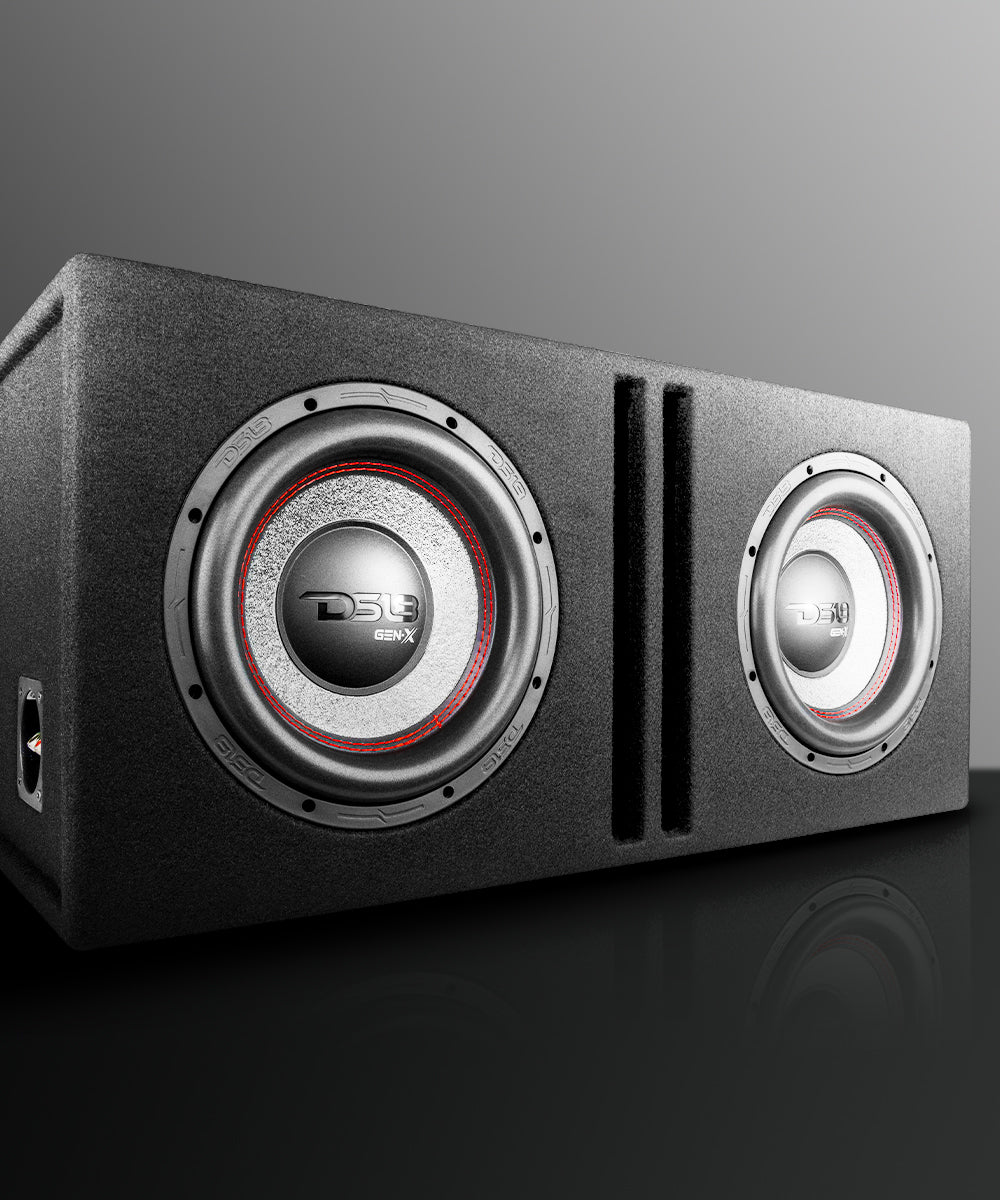

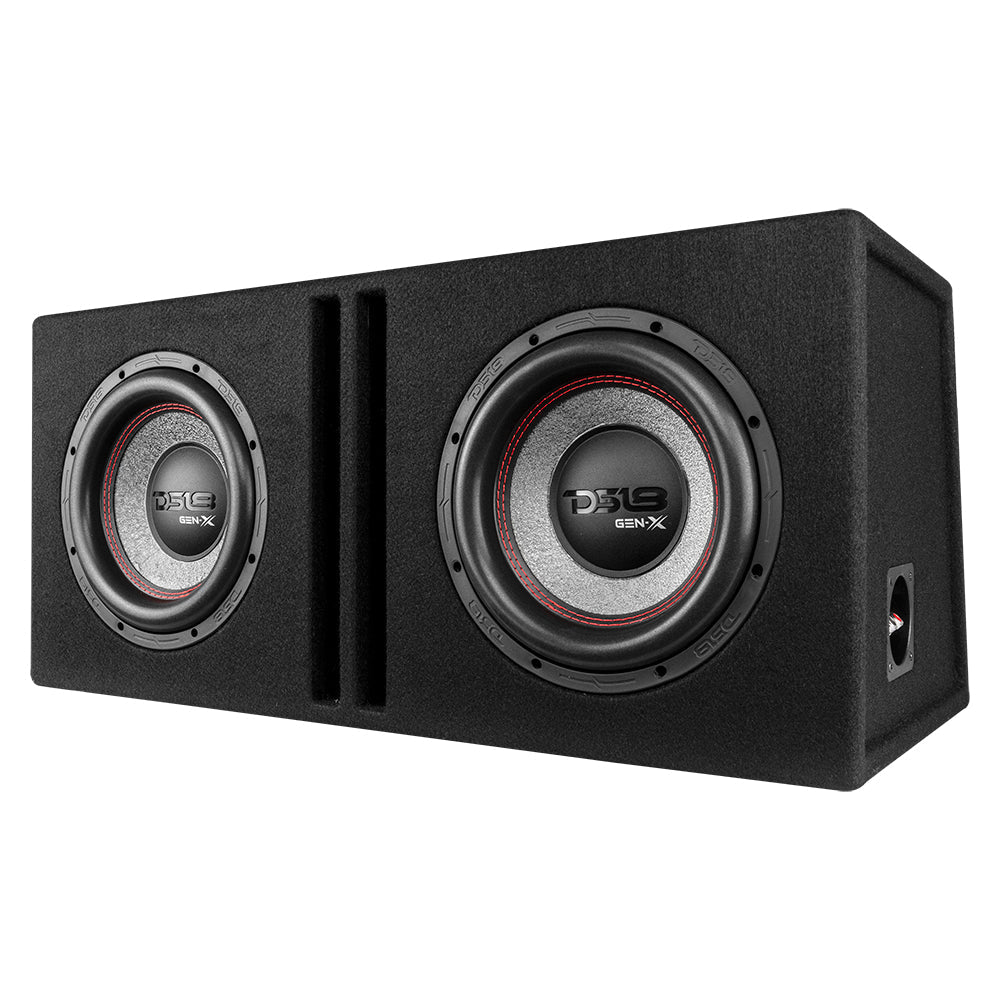

Dual 10" Loaded Subwoofer Ported Enclosure With GEN-X104D 800 Watts RMS
Product Overview GEN-X210LD Bass Package 2 x GEN-X104D 10" Subwoofers In a Ported Box 1600 Watts Buckle...
Vendor:
DS18
Manufacturer SKU
GEN-X210LD
Availability:
In Stock
Product Type:
Speaker Enclosures & Pods
- $419.95
- $419.95
- Unit price
- per
Subtotal:
$419.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
GEN-X210LD Bass Package 2 x GEN-X104D 10" Subwoofers In a Ported Box 1600 Watts
Buckle up and get ready to feel the rush of crystal-clear sound and bone-shaking bass with DS18’s GEN-X210LD.
Dual 10" Loaded Subwoofer Ported Enclosure With GEN-X104D 1600 Watts RMS
The GEN-X210LD transports you to the front row of your favorite concert, where you can feel the thumping bass in your chest. It's an experience that words can hardly capture but one that you’ll never forget.
With an internal volume of 2.6ft3, the GEN-X210LD creates the perfect environment for your subwoofer to thrive. The port tune (Fb) of 35Hz ensures deep, resonant bass that reverberates through your body. Constructed with 1/2" MDF and finished with black carpet, this enclosure is built to outlast any vehicle it’s installed into.
At the heart of the GEN-X210LD are two of DS18’s GEN-X104D Subwoofer. Crafted with meticulous attention to detail, these 10" powerhouses deliver a thunderous performance every session. Equipped with a 2" voice coil diameter and a black aluminum voice coil former, these subwoofers are built to handle intense power while maintaining exceptional thermal control.
With a dual 2-ohm voice coil configuration, wired in parallel, allowing for a nominal impedance of 4 ohm or 1 ohm, the GEN-X210LD’s design ensures various methods of power distribution and compatibility with a wide range of amplifiers, allowing you to extract every ounce of high quality bass performance from your car audio system. With a total RMS power handling of 800W and a MAX power handling of 1600W, the GEN-X210LD unleashes a surge of energy that will electrify your senses. Feel the bass resonating in your vehicle as you experience the true depth and impact of your favorite music.
Join the ranks of true audiophiles and let the GEN-X210LD become the heart and soul of your car audio system!
Highlights
- Dual GEN-X104D delivers bone-shaking bass and crystal-clear sound
- Experience the true depth and impact of your favorite music with a total RMS power handling of 800W and a maximum power handling of 1600W.
- The sleek and sophisticated enclosure with its front-ported design complements any vehicle interior and provides the ideal environment for optimal subwoofer performance.
Great For
- Car Audio
- Pro Audio
Technical Details
| GENERAL | |
| Speaker Type / Size | Dual 10" Subwoofer (GEN-X104D) |
| Total Impedance | 2+2 ohm |
| Total RMS Power Handling | 800W |
| Total MAX Power Handling | 1600W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 25 - 250Hz |
| Recommended Lo Pass Crossover | 120Hz |
| SPEAKER SPECIFICATIONS | |
| Voice Coil Diameter | 2” / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper & Fiber Glass |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 66 Oz |
| BOX SPECIFICATIONS | |
| Internal Volume | 72.6L / 2.6ft3 |
| Port Tune | 35Hz |
| Load Configuration | Parallel |
| Box Type | Front Ported |
| Box Material | 1/2" / 15mm MDF |
| Finish Material | Black Carpet |
| -3Db Dropping Point (F3) | 29Hz |
| MEASUREMENT | |
| Height | 13.78” / 350mm |
| Width | 30.71” / 780mm |
| Depth 1 | 11” / 280mm |
| Depth 2 | 14” / 356mm |
Key Features
- Gen-X Subwoofer Enclosure
- 2 X 10" ~ Gen-X104D
- RMS Power: 800 Watts(1600 Watts Peak)
- Impedance: 2 Ohm ~ 90dB
- 1/2" MDF with Black Carpet
- 35 HZ Ported Box
Specifications
| 2 x 10" Subwoofer | GEN-X104D |
|---|---|
| 1 Dual Ported Vented Box | GEN-X210LD |
| Nominal Diameter | 10" |
| Nominal Impedance | 2 + 2 Ohm |
| RMS Power Handling | 400W |
| MAX Power Handling | 800W |
| Sensitivity (1w/1m) | 90dB |
| Frequency Response | 29-250Hz |
| Recommended HI Pass Crossover | 120Hz |
| Magnet Weight | 66 oz |
| Magnet Material | Ferrite |
| Port Tune | 35Hz |
| Internal Volume | 90.6L |
| Load Configuration | Front Ported |
| Box Material | 1/2" MDF |
| Finish Material | Black Carpet |
| Measurement L x W x H (Inches) | 38.58 x 14 x 14 |
