Product Overview

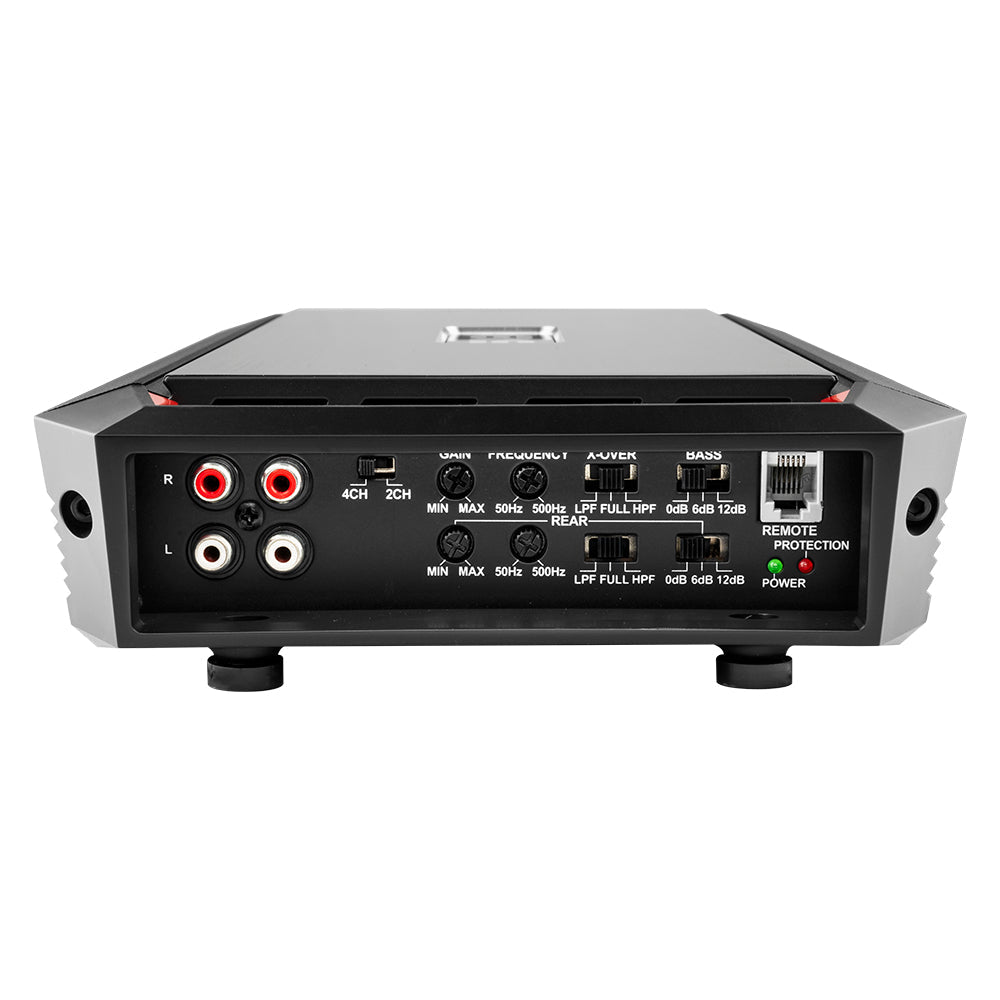

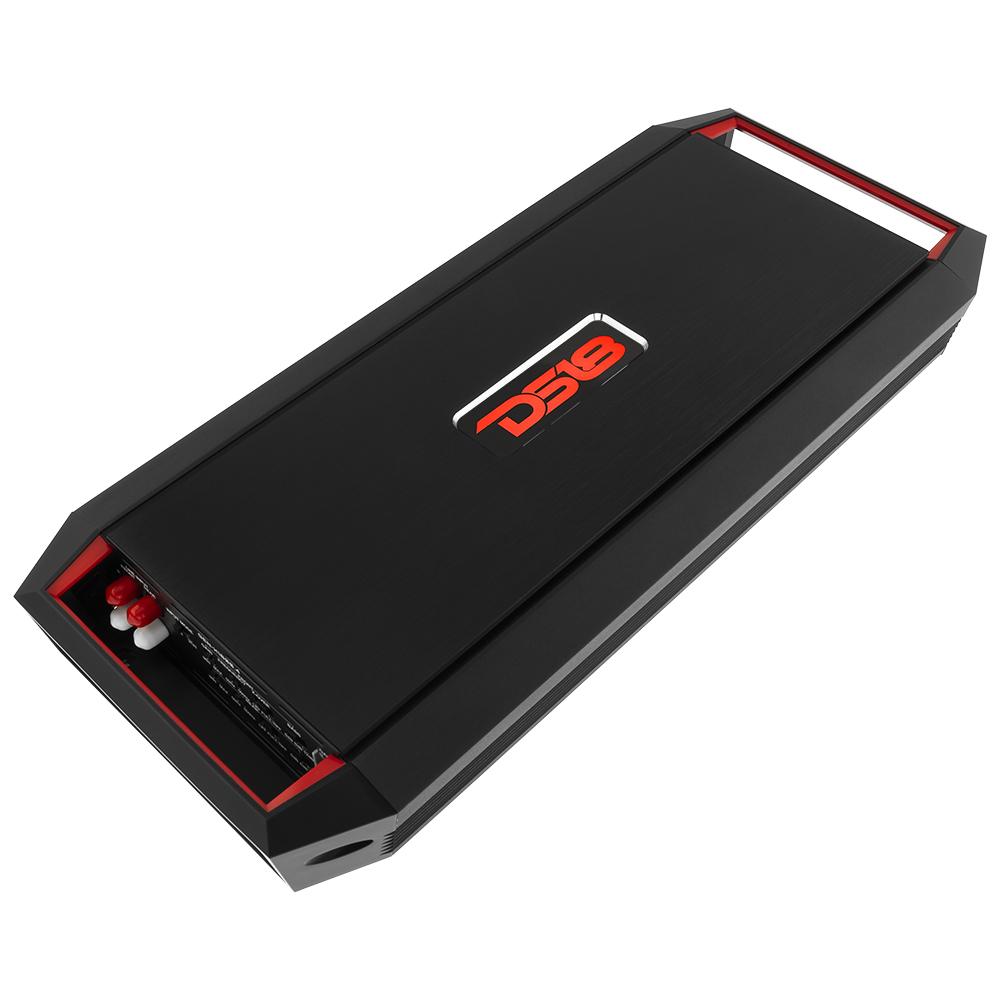

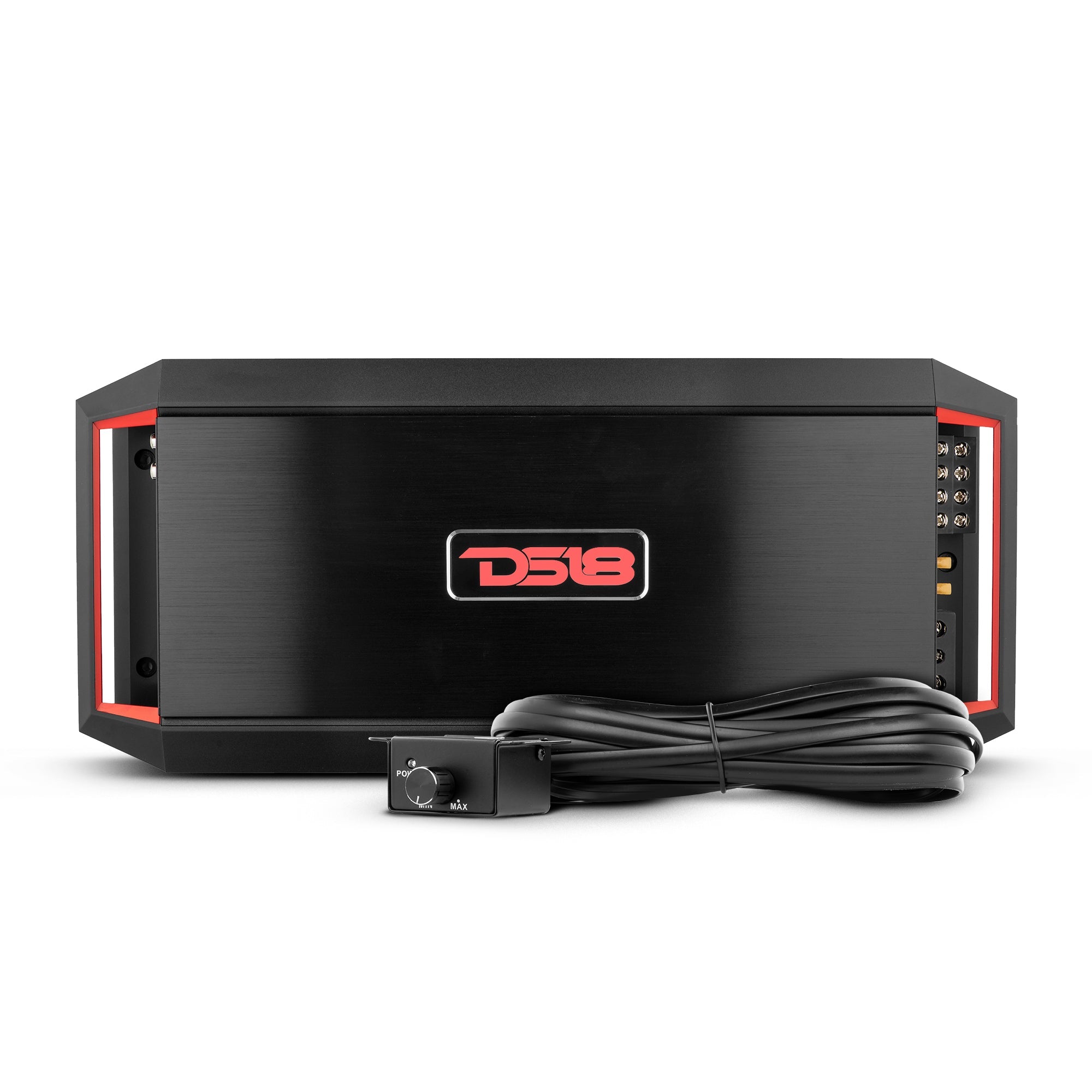

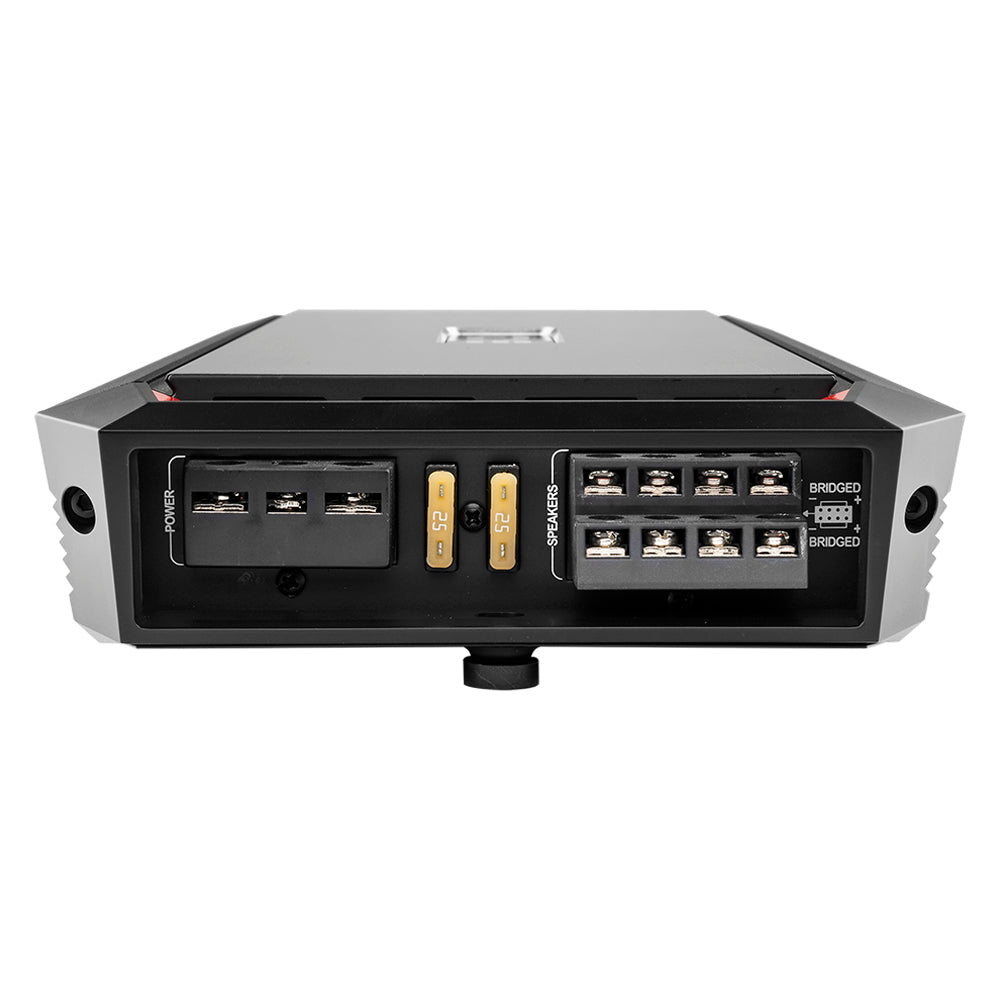

DS18 GEN-X1600.4 Full-Range Class AB 4-Channel Amplifier 1600 Watts
|
The DS18 Gen-X series of amps are very durable and provide maximum wattage for your budget. These stylish amps will fit just about anywhere and supply all the power you need with great efficiency. Top of the line internal technologies assure you are getting the best amp your money can buy with parts manufactured by DS18. The amps efficiency is so high that you can install multiple amps without the worry of having to install a high output alternator as well. We developed these amps with the customer in our minds and what the enthusiast would want, so here DS18 brings you all the versions of the Gen-X! |
Highlights
- Lightweight design that retains very high durability with incorporated high efficiency heat sync.

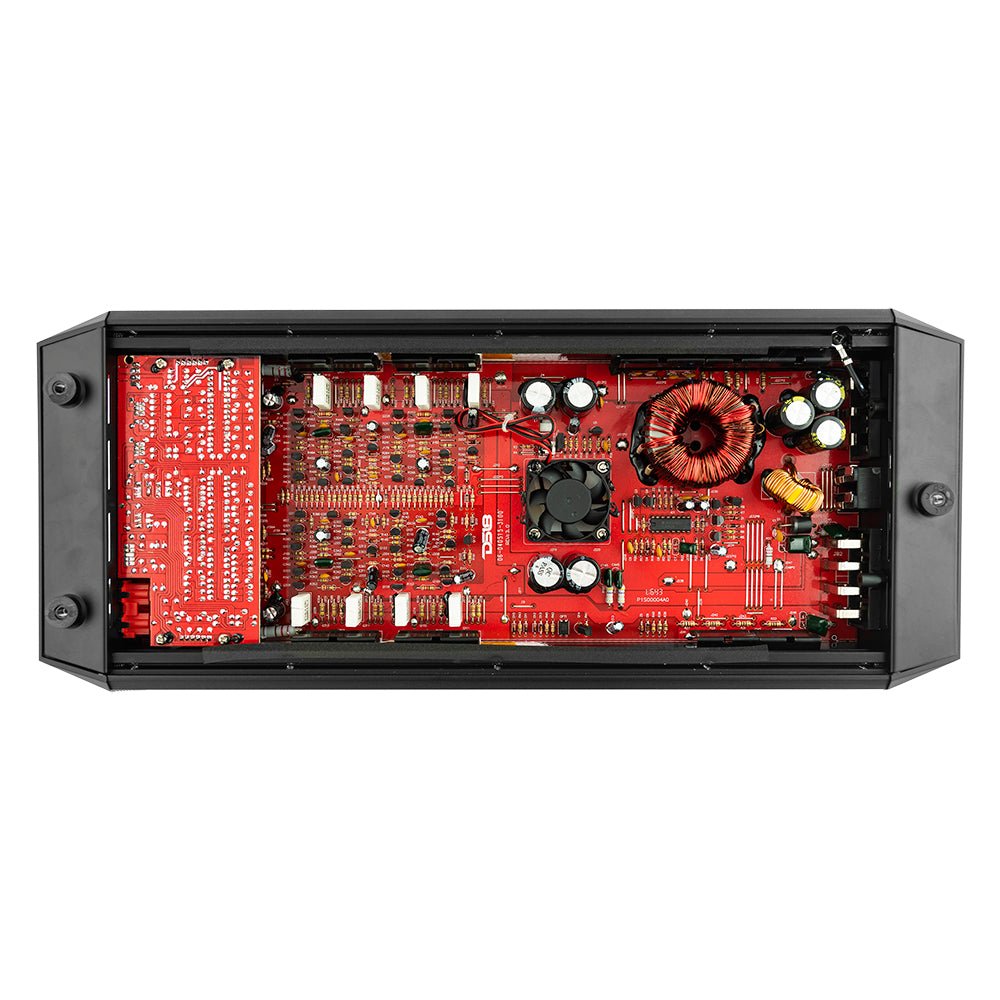

- High quality circuit board to give the most power with a high efficiency rate.
- Light up DS18 logo and fully adjustable crossover filters.
Technical Details
| Model: | GEN-X1600.4 |
| Number of Channels: | 4 |
| Frequency Response: | 20Hz - 20KHz |
| Max Power: | 1600W |
| 2 Ohms RMS Power (14.4V) Per Channel: | 4 x 120W |
| 4 Ohms RMS Power (14.4V) Per Channel: | 4 x 80W |
| 4 Ohms RMS Power Bridge (14.4V) Per Channel: | 2 x 200W |
| Speaker Impedance Range: | 2-4 Ohms |
| Input Sensitivity: | 0.2V-+6V |
| Low Pass Filter: | 50Hz - 500Hz |
| High Pass Filter: | 50Hz - 500Hz |
| Fuse Size: | 2 x 25A |
| Signal-to-Noise Ratio: | 98dB |
| THD: | 0.08% |
| Product Dimensions (L x W x H): | 430 x 190 x 55mm |
