Product Overview

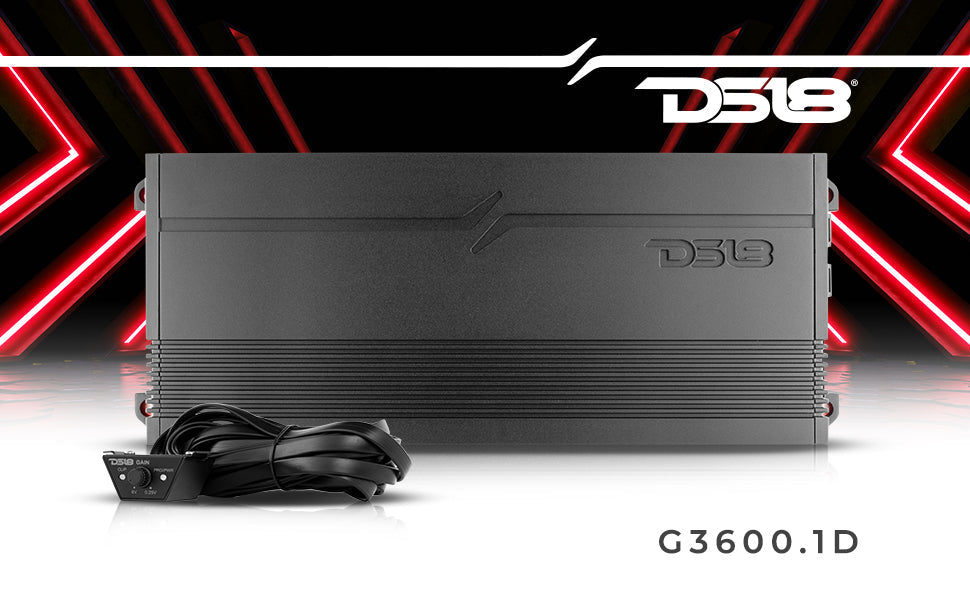

DS18 G3600.1D Monoblock Class D 1-Channel Car Audio Amplifier 3600 Watts
The Gen-X series has always been a DS18 staple with the public and been in countless system builds over the many years it was released.
We have completely redesigned the GEN-X series from the ground up to meet and audio enthusiasts high standards and complete their goals for the system of their dreams with great power, reliability, and efficiency.
The G3600.1D has a power rating of 1200w RMS and 3600 MAX at the minimum 1 ohm load it was designed for, giving you pure and clean power on demand.

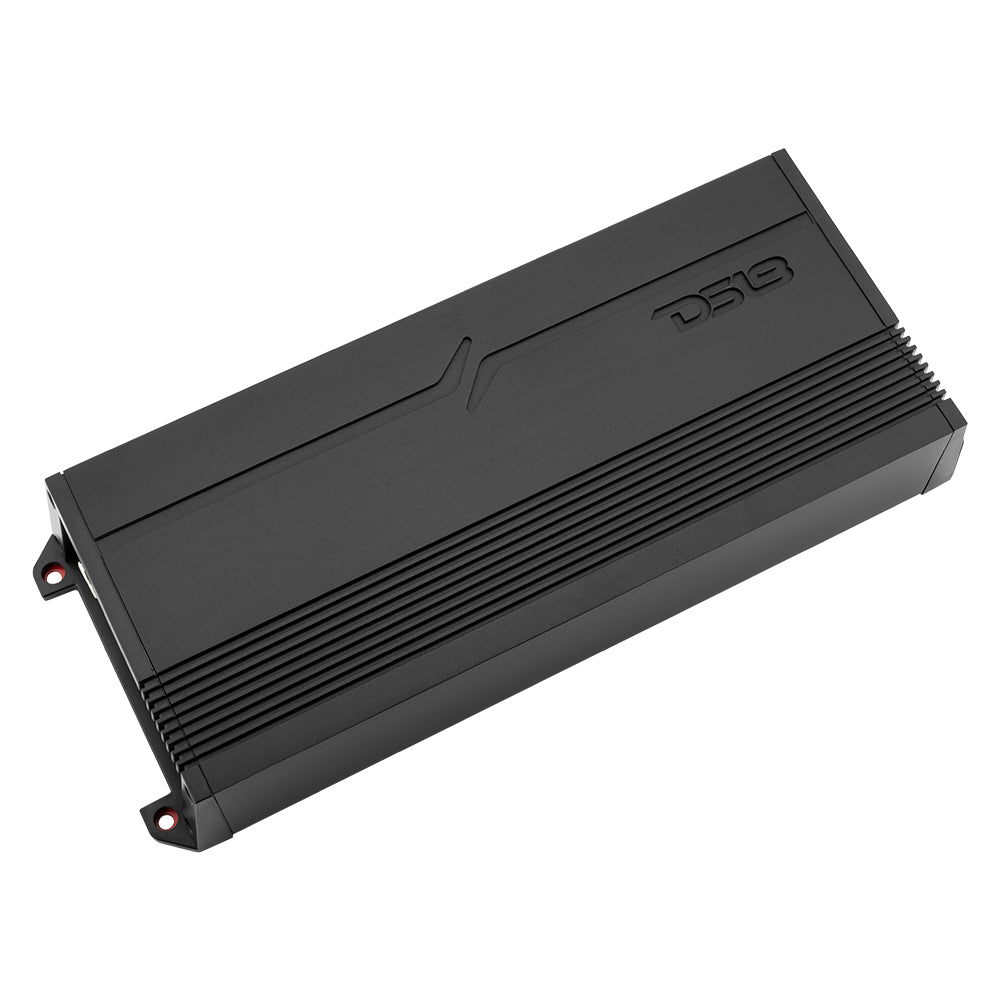

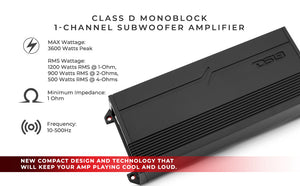

This amp has the power to drive your subwoofers but also not take up much space because of the new compact design and technology that will keep your amp playing cool and loud.
Highlights

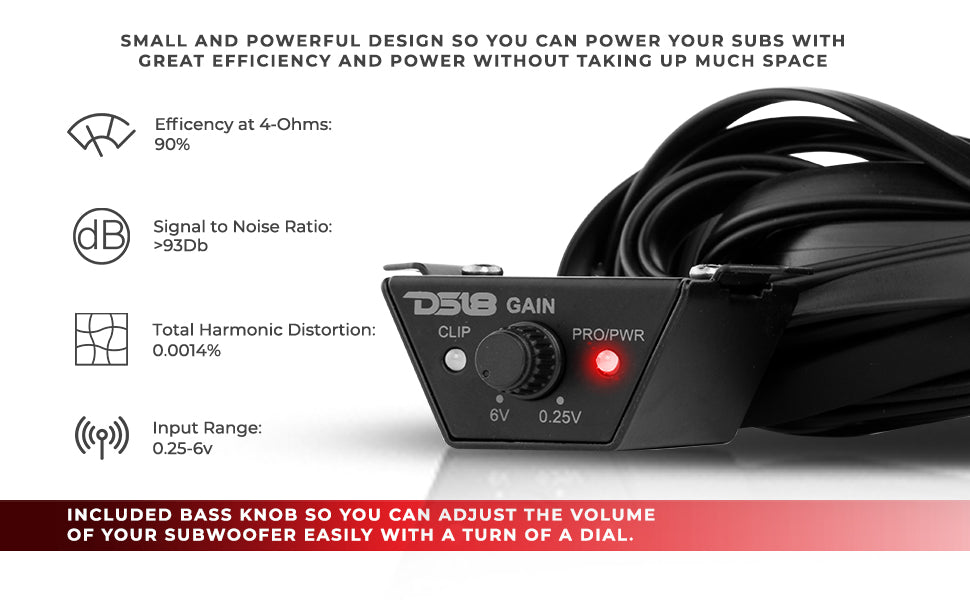

- Small and powerful design so you can power your subs with great efficiency and power without taking up much space

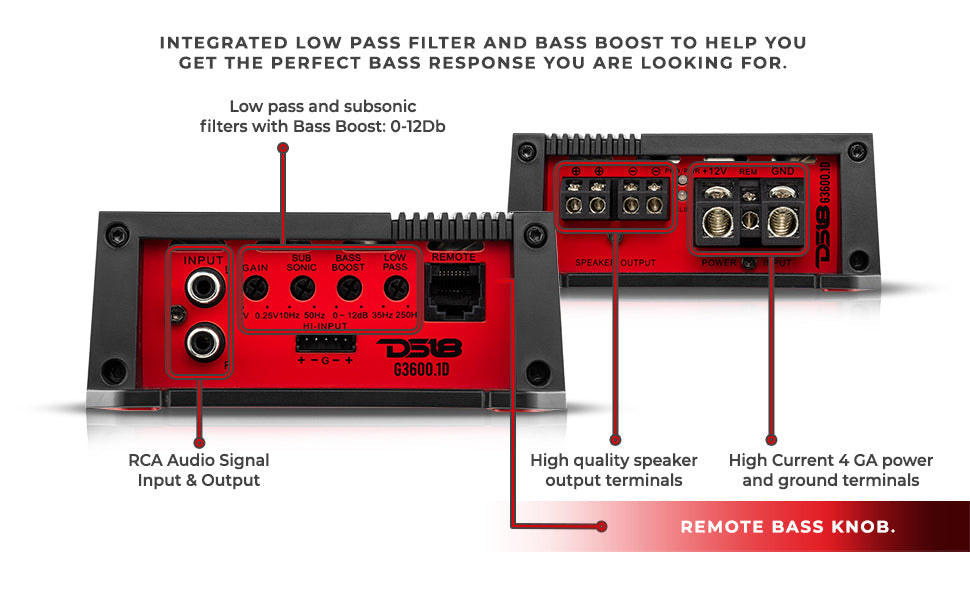

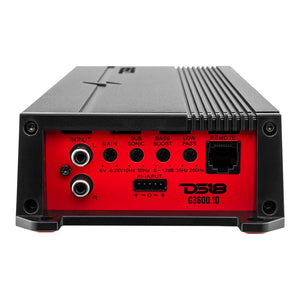

- Integrated low pass filter and bass boost to help you get the perfect bass response you are looking for.
- High quality terminals that look great and will transfer your power and signal with no loss.

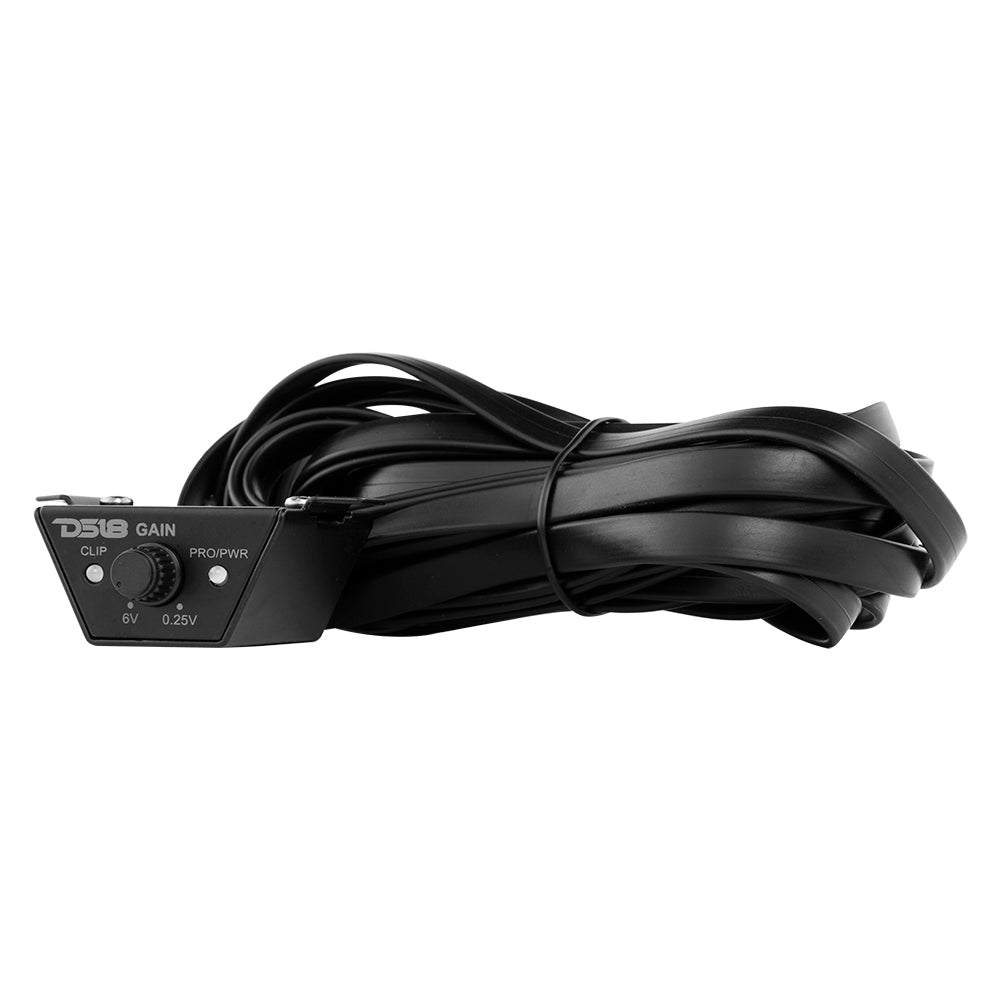

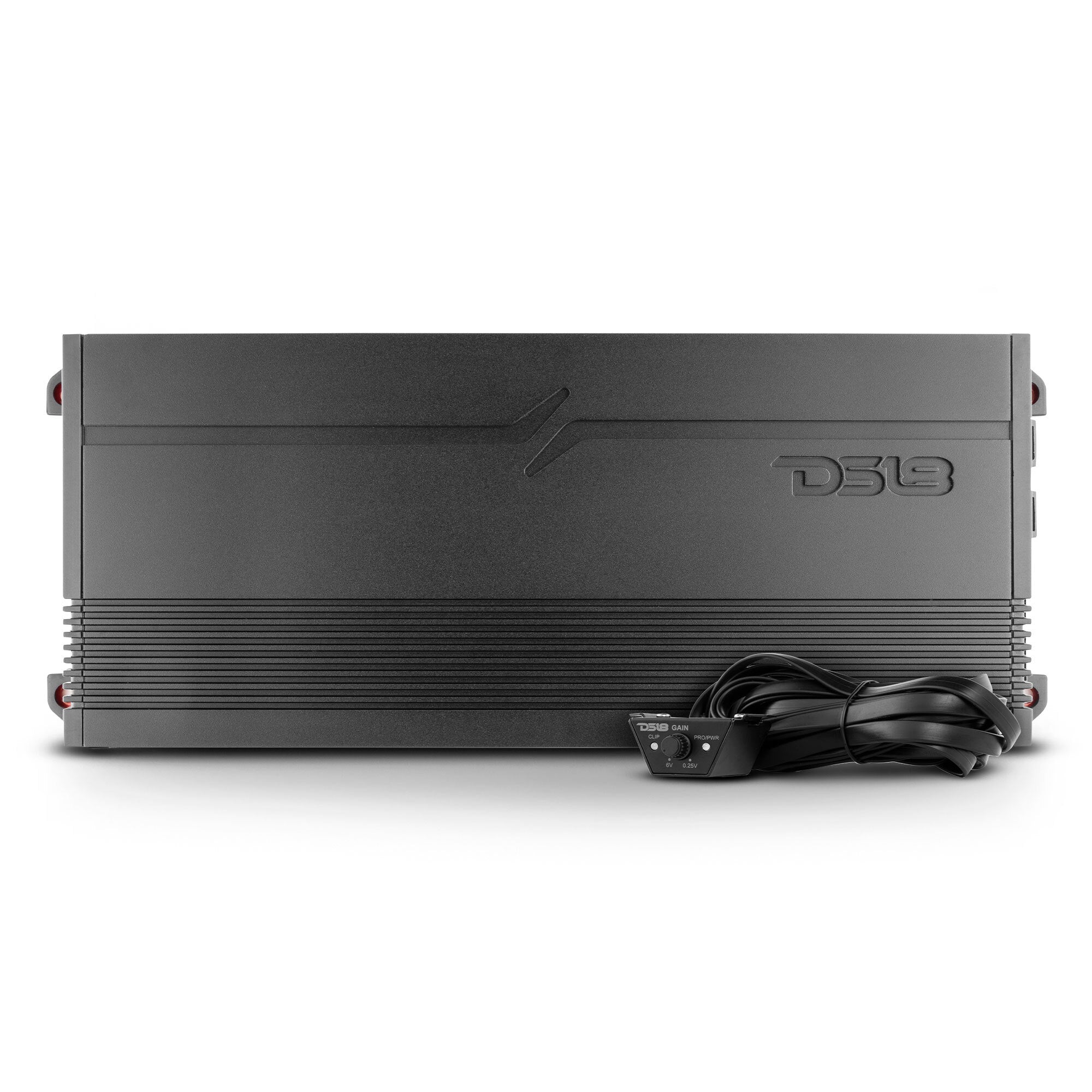

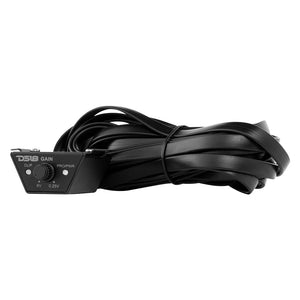

- Included bass knob so you can adjust the volume of your subwoofer easily with a turn of a dial.
Key Features

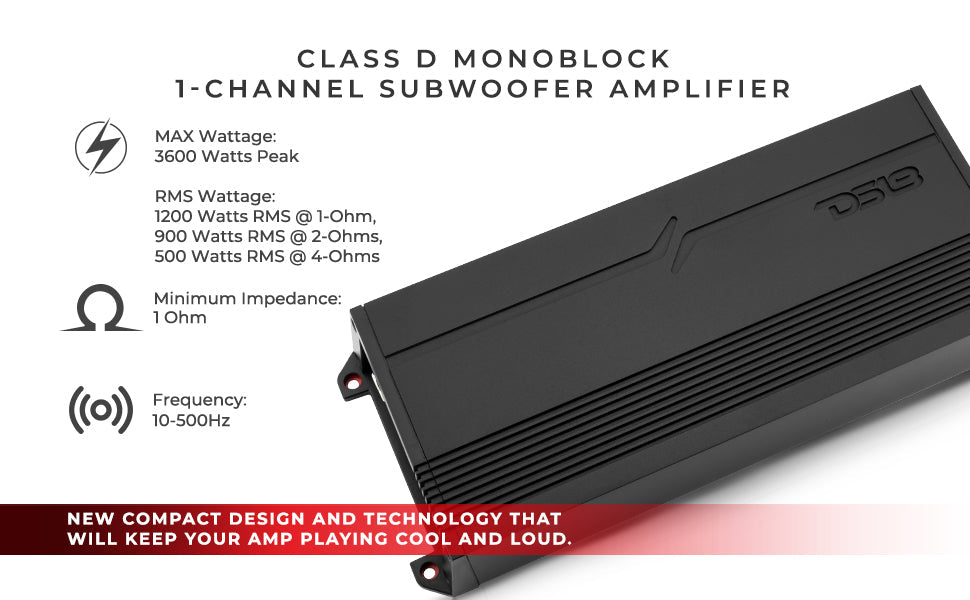

- Digital Class D Subwoofer Monoblock
- MAX Wattage: 3600w Peak
- RMS Wattage: 1200 Watts RMS @ 1 ohm, 900 Watts RMS @ 2 ohms, 500 Watts RMS @ 4 ohms
- Frequency Response: 10-500Hz
- Signal to Noise Ratio: >93dB
- Efficiency at 4 ohms: 90%
- Total Harmonic Distortion: 0.01%
- Input Range: .25-6v

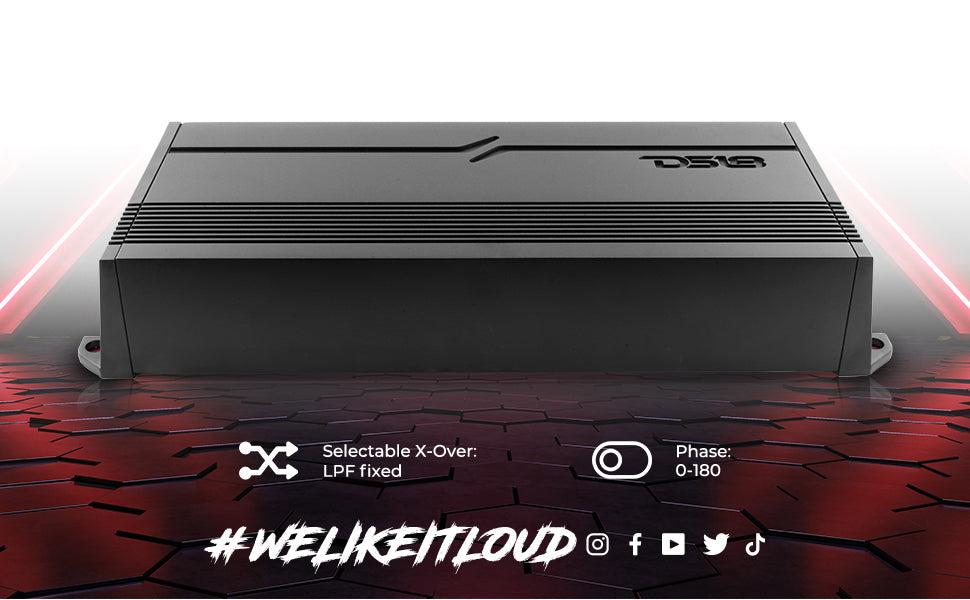

- Selectable X-over: LPF Fixed
- Bass Boost- 0-12dB
- Phase: 0-180
- Power and Ground Terminal: 4 GA
- Minimum Impedance: 1 ohm
Great For:
- Car Audio
- Pro Audio
- Motorcycles
- Hi-Fi installation
- Off-Road
- DIY Projects
Technical Details
| SPECIFICATIONS | |
| POWER | |
| Total Watts (Peak) | 3600W |
| RMS Power @ 4 ohm | 500W |
| RMS Power @ 2 ohm | 900W |
| RMS Power @ 1 ohm | 1200W |
| AUDIO | |
| Frequency Response | 10-500Hz |
| Signal to Noise Ratio | >93dB |
| Efficiency @ 4ohm | 90% |
| Damping Factor | 45 |
| Input Impedance | 22K |
| Channel Separation | N/A |
| Total Harmonic Distortion (THD) | 0.0014% |

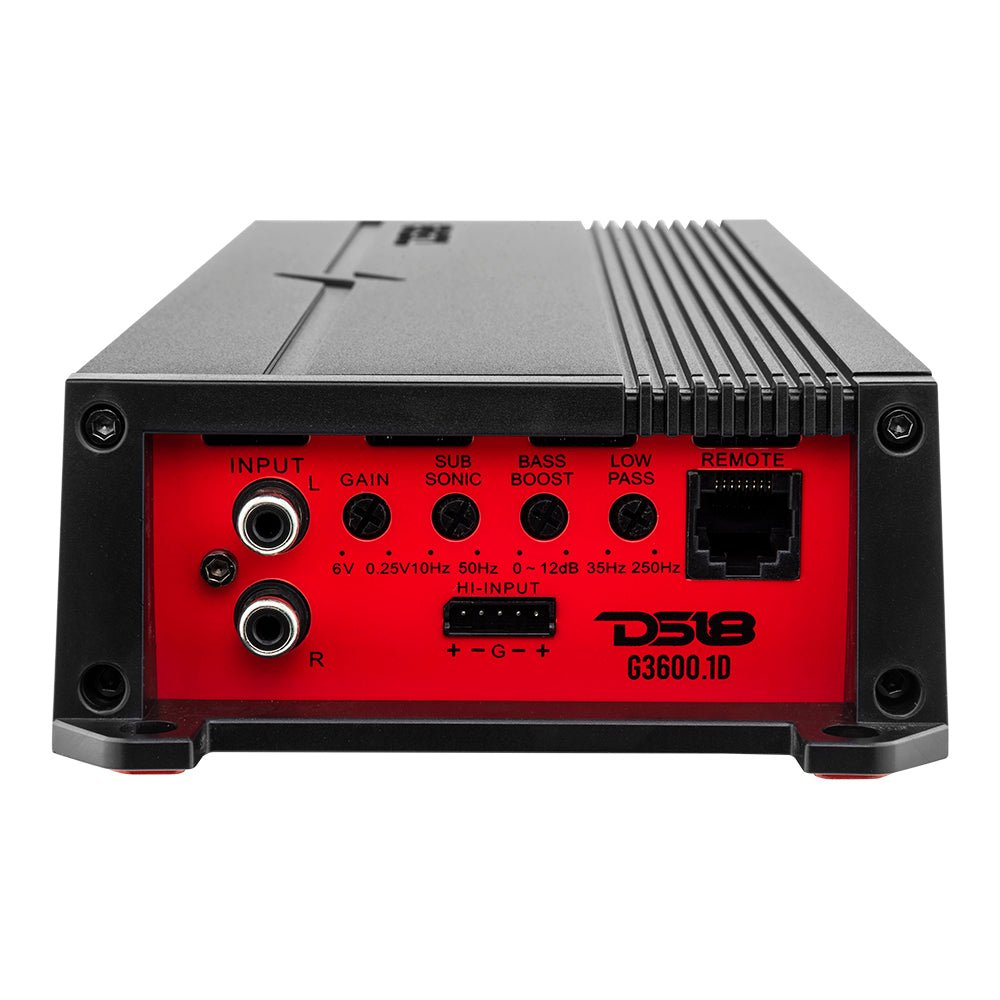

| Low Level Input Range | 0.25-6V |
| High Level Input | YES |
| Selectable X-Over | Fixed LPF |
| X-Over Filter Range | 35-250Hz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | Fixed @ 45Hz |
| Infrasonic Filter | 10-50Hz |
| Phase Selector | NO |
| FEATURES | |
| Amplifier Class | Digital (D) |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 ch |
| Minimum Impedance | 1ohm |
| Led Indicator | Power / Protection / Clip |
| Power Input Terminal Size | 4ga |
| Fuse Size | 120A |
| Remote Level Control | YES |
| Cooling Fan | NO |
| Voltmeter | NO |
| Thermal Protection | YES |
| Over-Load Protection | NO |
| DC Output Protection | YES |
| Short Circuit Output Protection | YES |
| Voltage Input Protection | YES |
| Clipping Protection | YES |
| Body Color / Finish | Matte black |
| MEASUREMENT | |
| Overall Length | 12" / 305mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 1.96" / 50mm |
| Heatsink Length | 10.15" / 258mm |
| Gross Single Unit Weight | 1.992KG |
Key Features
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Specifications
| SKU | G3600.1D |
|---|---|
| Class | D |
| Amplifier Type | Monoblock Subwoofer |
| Channels | 1 |
| Peak Power | 3600W |
| RMS Power @ 4 Ohm/14.4V | 500W |
| RMS Power @ 2 Ohm/14.4V | 900W |
| RMS Power @ 1 Ohm/14.4V | 1200W |
| Minimum Impedance | 1 Ohm |
| Operation Voltage | 9 - 15V |
| Frequency Response | 10Hz - 500Hz |
| Signal/Noise Ratio | >93dB |
| Low Pass Filter | 35Hz - 250Hz |
| High Pass Filter | N/A |
| Subsonic | Yes |
| Subsonic Frequency | 10Hz - 50Hz |
| Efficiency @ 4 Ohm | 90% |
| Damping Factor | 45 |
| THD % | 0.0014 |
| Input Sensitivity | 0.25V - 6V |
| X-Over Filter Range | 35 - 250 Hz |
| Bass Boost Range | 0 - 9dB |
| Bass Boost Frequency | 45Hz |
| Phase Selector | NO |
| High Level Input | Yes |
| Selectable X-Over | Fixed LPF |
| Led Indicator | Power | Protection | Clip |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Thermal Protection | Yes |

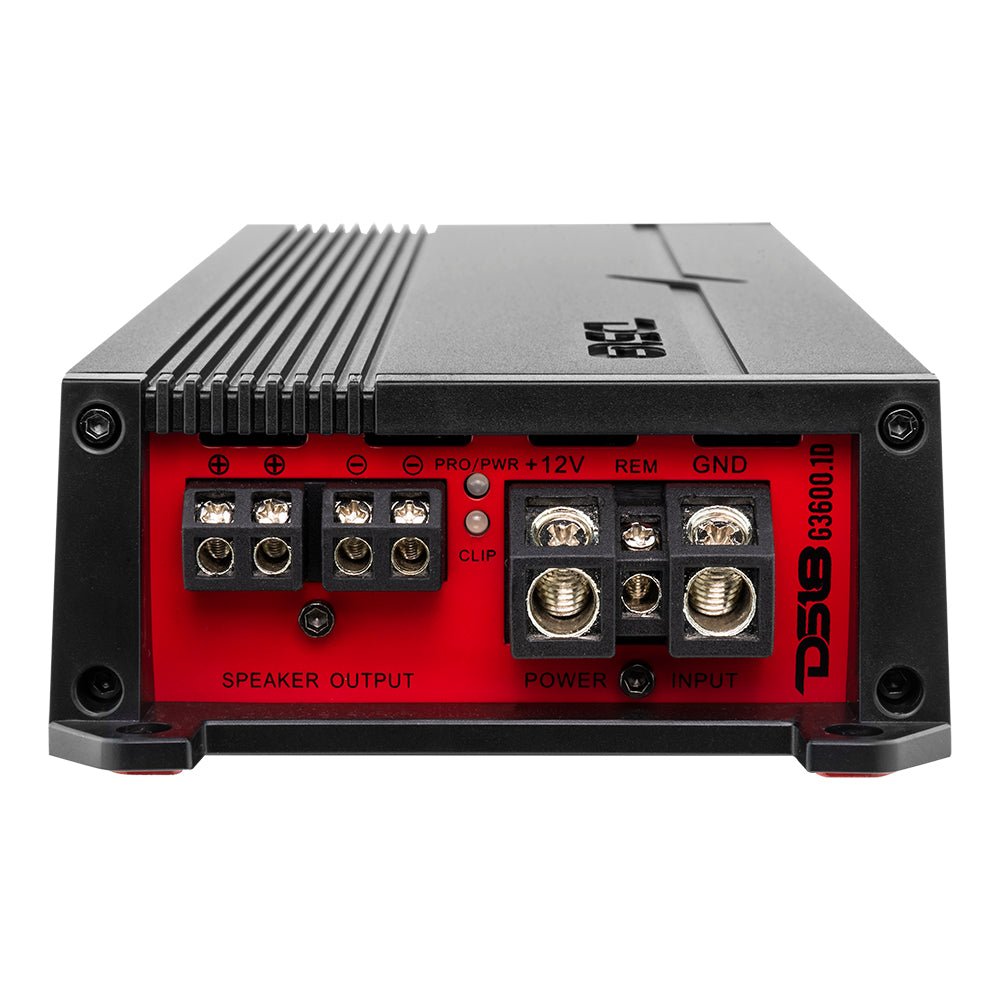

| Speaker Output Size | 8GA |
| Power Input Size | 4GA |
| Fuse Rating | 120A |
| Remote Level Control | Yes |
| Body Color / Finish | Matte Black |
| Product Weight (lb) | 5.5 |
| Product Dimensions L x W x H (Inches) | 14.25 x 7.25 x 3.25 |
| M/C Weight (lb) | 33.5 |
| M/C Dimensions L x W x H (Inches) | 15.25 x 15.25 x 10.75 |
| M/C Qty | 6 |
| Sold in | Single |
