Product Overview

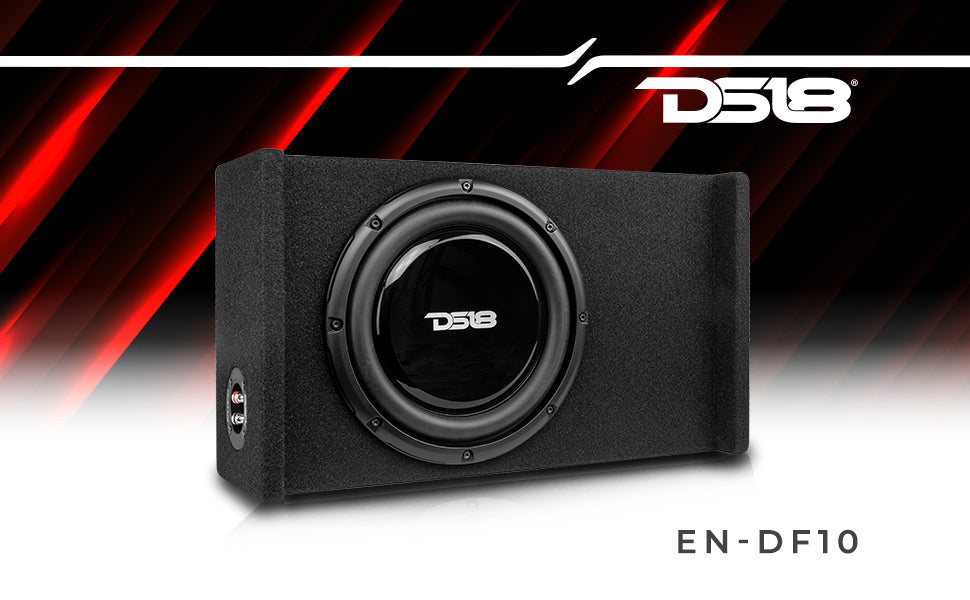

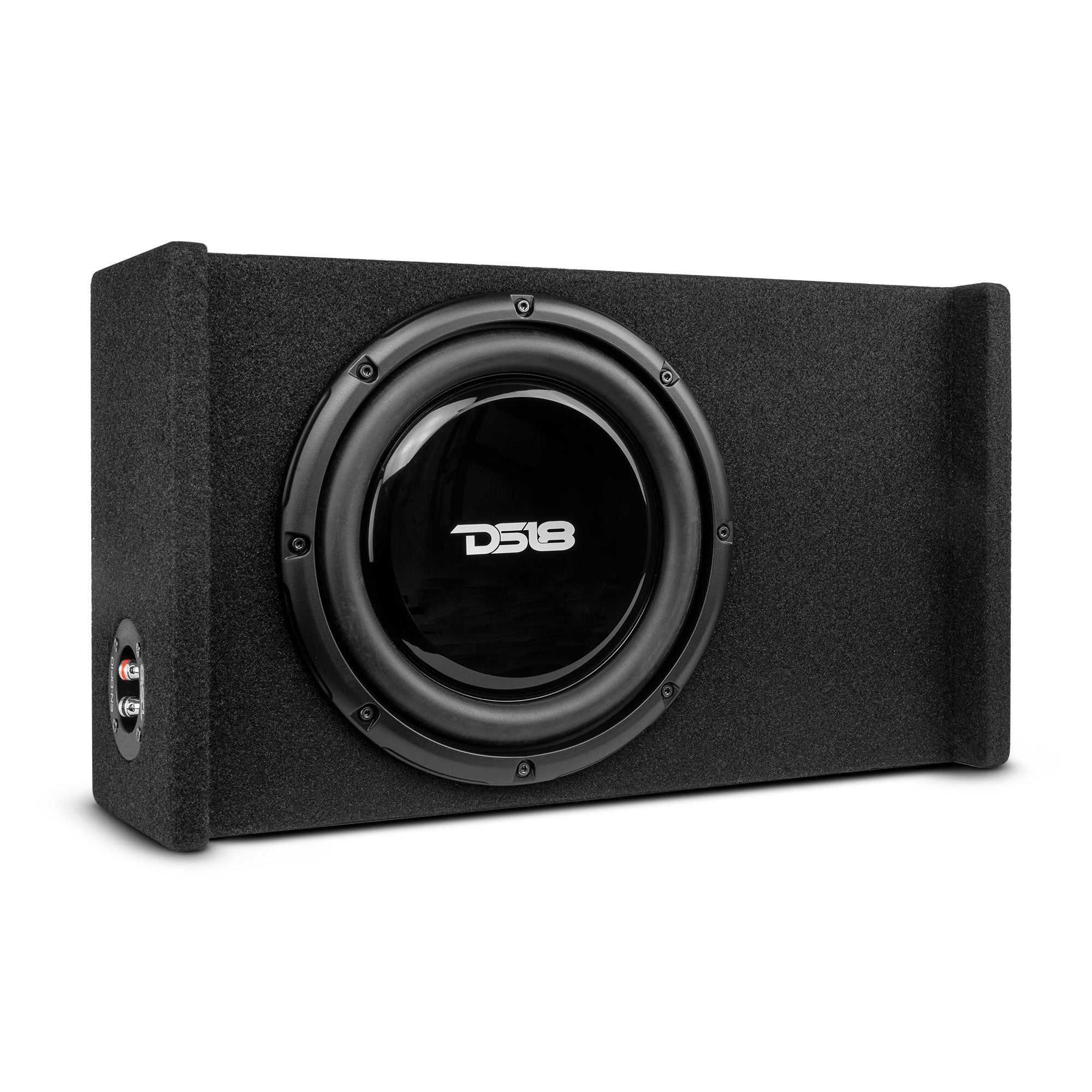

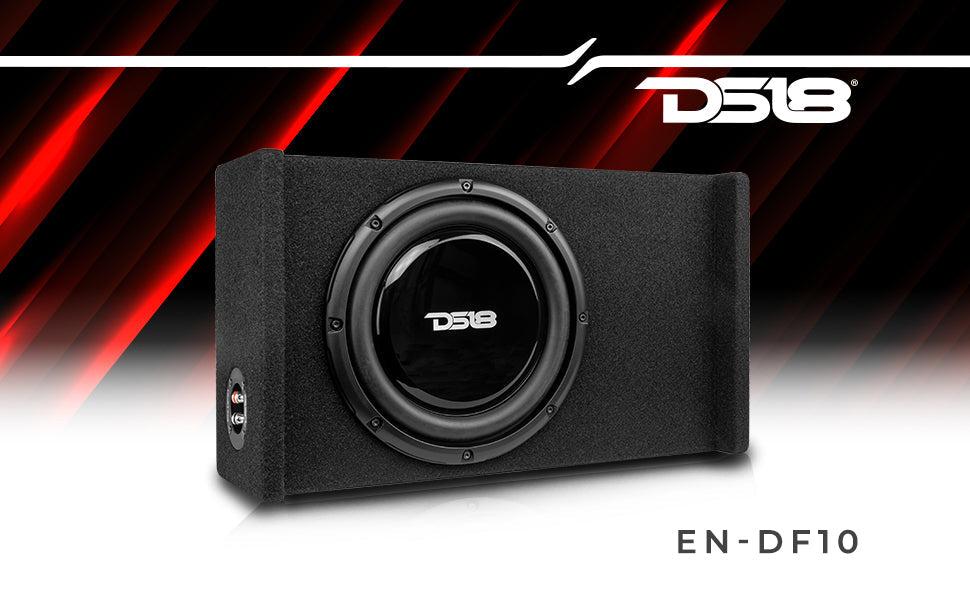

DS18 EN-DF10 10" Shallow Down Firing Subwoofer Enclosure 600 Watts
Designed to add magnificent bass to vehicles with minimal amounts of room for larger sized subs and boxes.

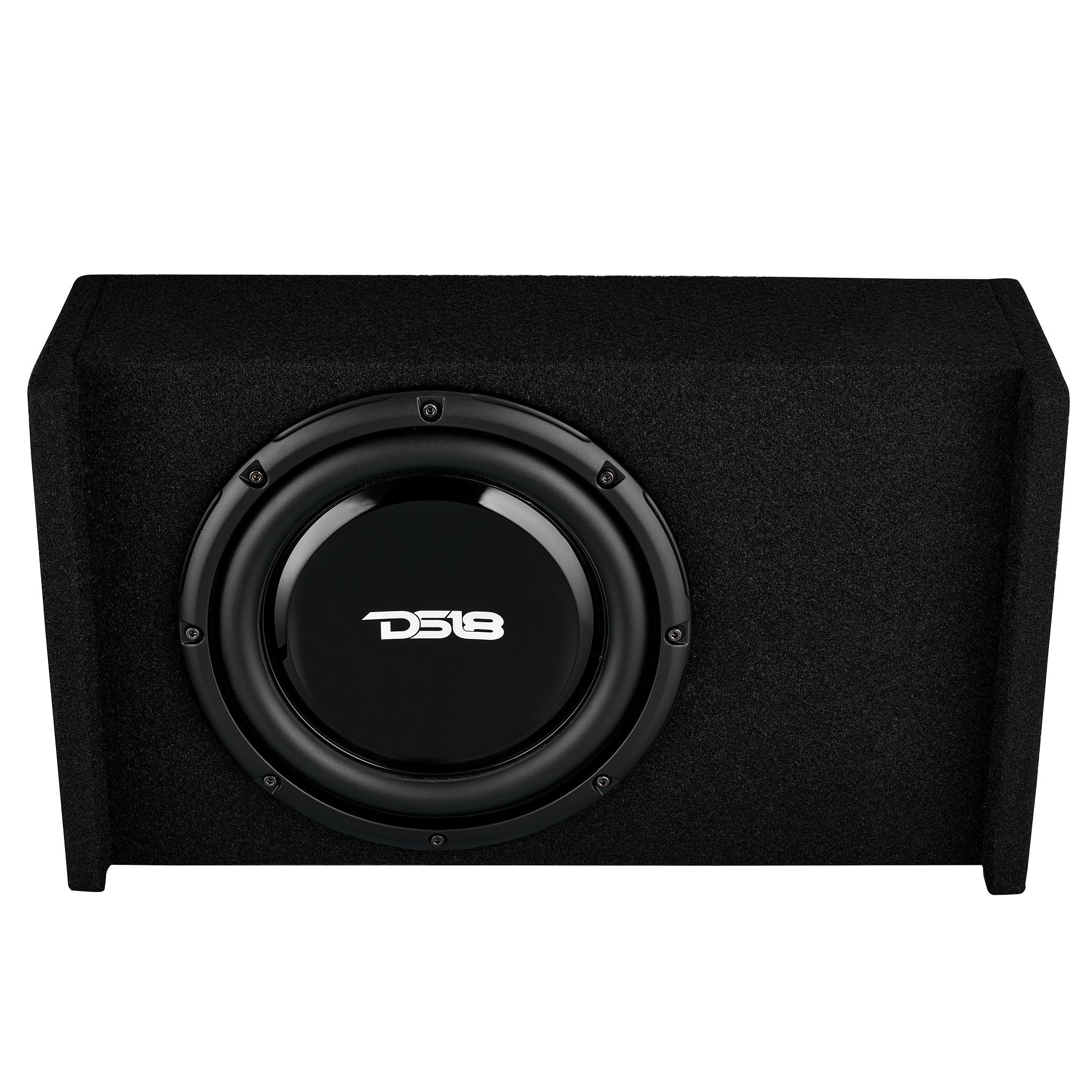

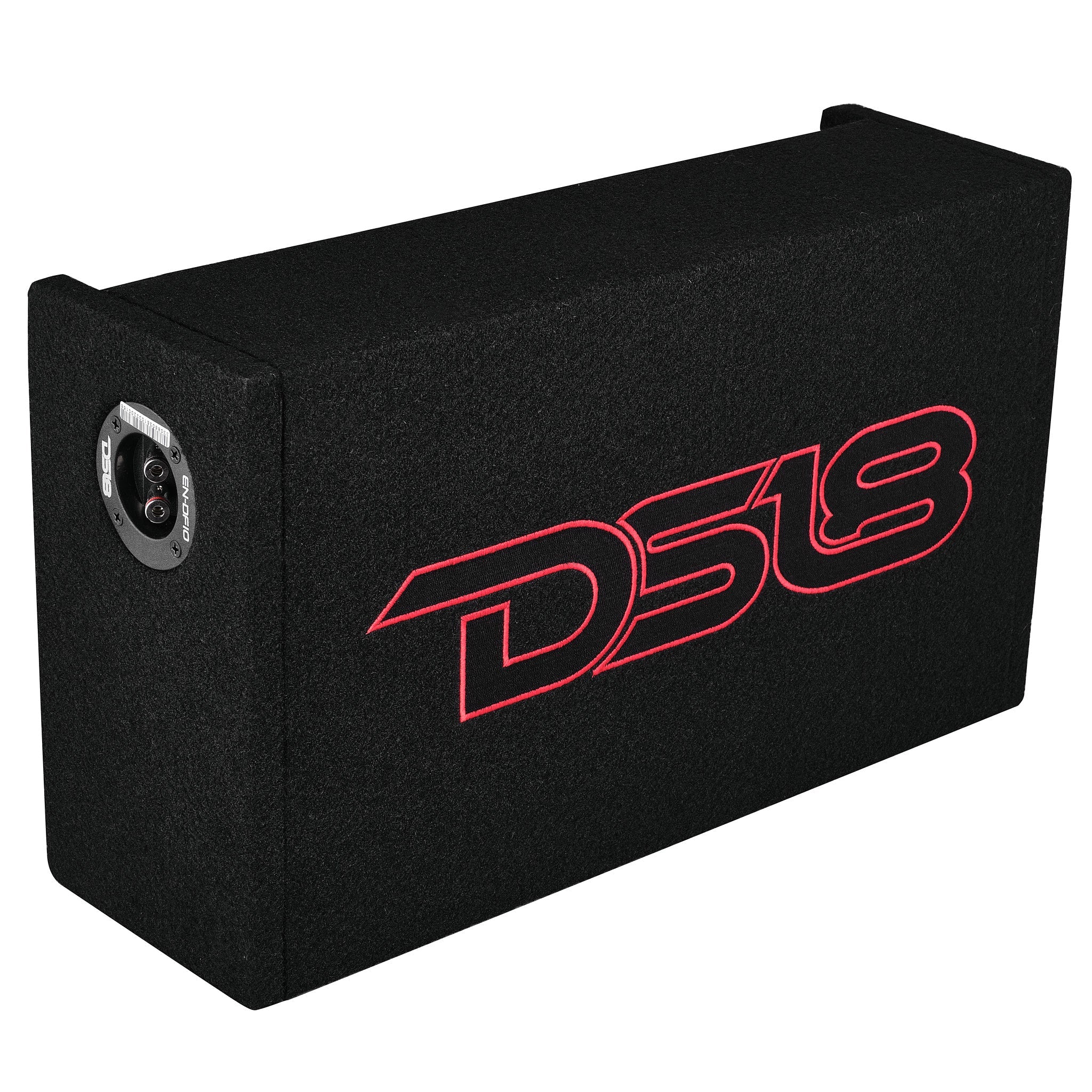

The EN-DF10 utilizes a 10 inch subwoofer in a compact enclosure

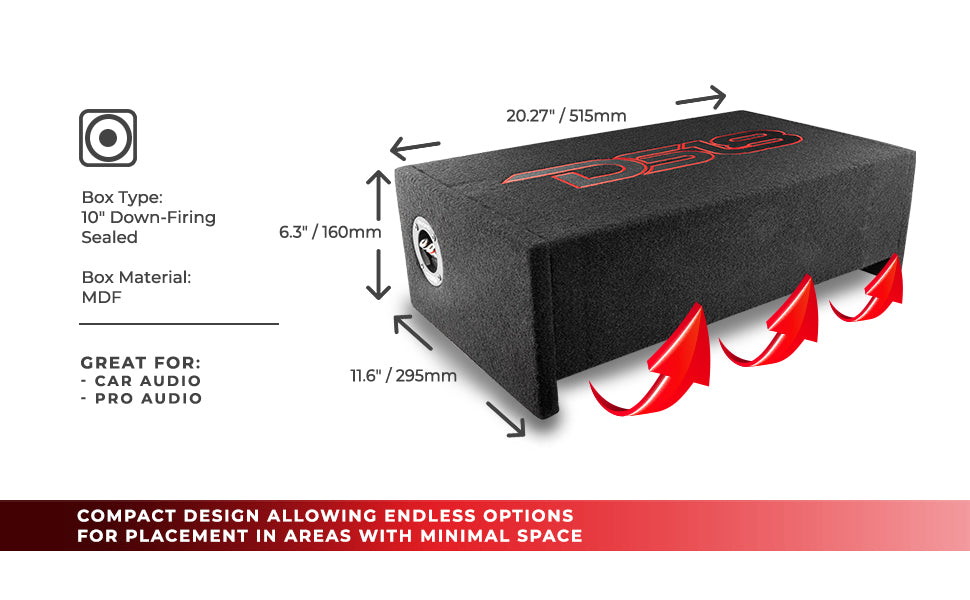

(sized at 20” x 11” x 6”) to help extend and elaborate the bass for your music!

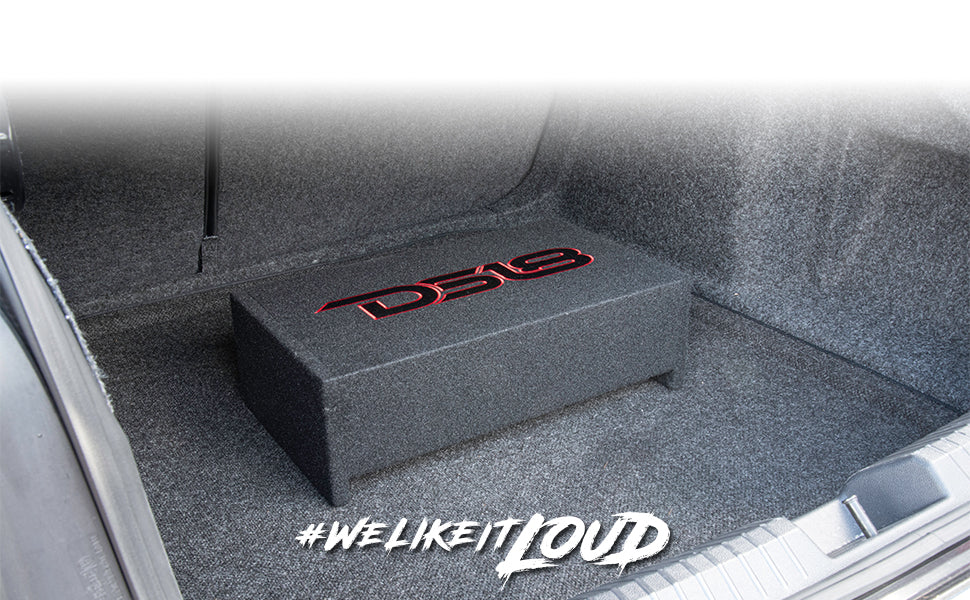

This subwoofer requires an external amp to feed the 300w RMS 600w Max it needs at 4 ohms. This unit fits behind most conventional car seating, rear cubby, or small sized storage compartments so you can have clear and vibrant bass without sacrificing massive amounts of space.
This enclosure housed subwoofer is sure to bring nothing but good vibes when the beat drops.
Highlights
- Compact design allowing endless options for placement in areas with minimal space.
- Specially designed 10 inch subwoofer that maximizes bass response in spaces that are not typically designed for subwoofers.
Great For
- Pro Audio
- Car Audio





Technical Details
| GENERAL | |
| Speaker Type / Size | 10" Passive Subwoofer |
| Total Impedance | 4 ohms |
| Total RMS Power Handling | 300W |
| Total MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 25-250Hz |
| Recommended Lo Pass Crossover | 80Hz |
| SPEAKER SPECIFICATIONS | |
| Voice Coil Diameter | 1.52" / 38.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Cooper |
| Cone Material | Injection PP Cone |
| Dust Cap Material | / |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 40 Oz |
| MEASUREMENT | |

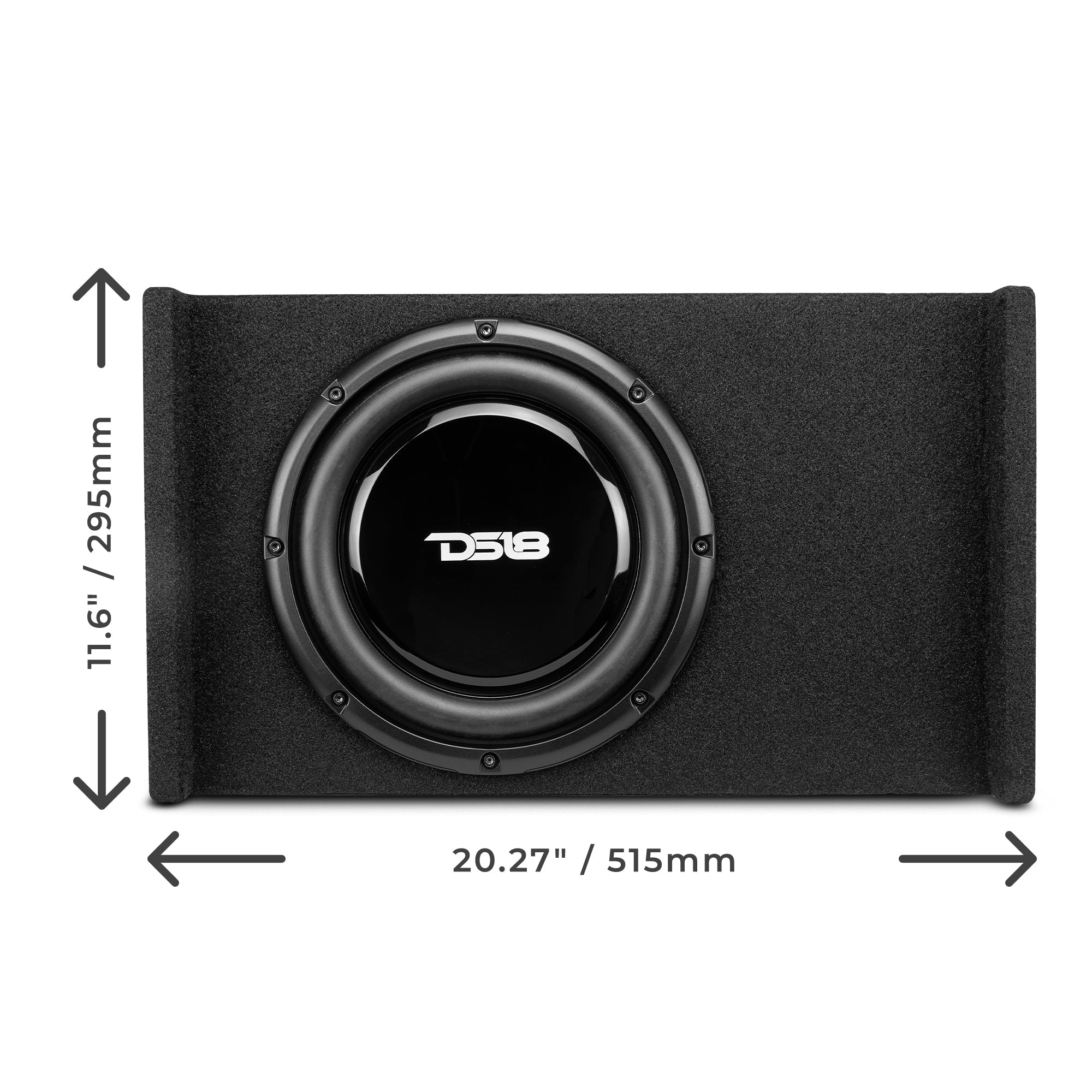

| Overall Height | 11.6" / 295mm |
| Overall Width | 20.27" / 515mm |
| Overall Depth | 6.3" / 160mm |
| EXTRA FEATURES | |
| Very Strong Wood (MDF) Box for better sound | Yes |
| High Efficiency Digital Amplifier Built-In | No |
| Auto Turn-On Function when using Hi-Level Input for easier installation | No |
| Remote Level Knob to get easy amount of Bass control | No |
Key Features
- Subwoofer Enclosure
- 1 X 10"
- RMS Power: 300 Watts(600 Watts Peak)
- Impedance: 4 Ohm ~ 86dB
- 5/8" MDF with Black Carpet

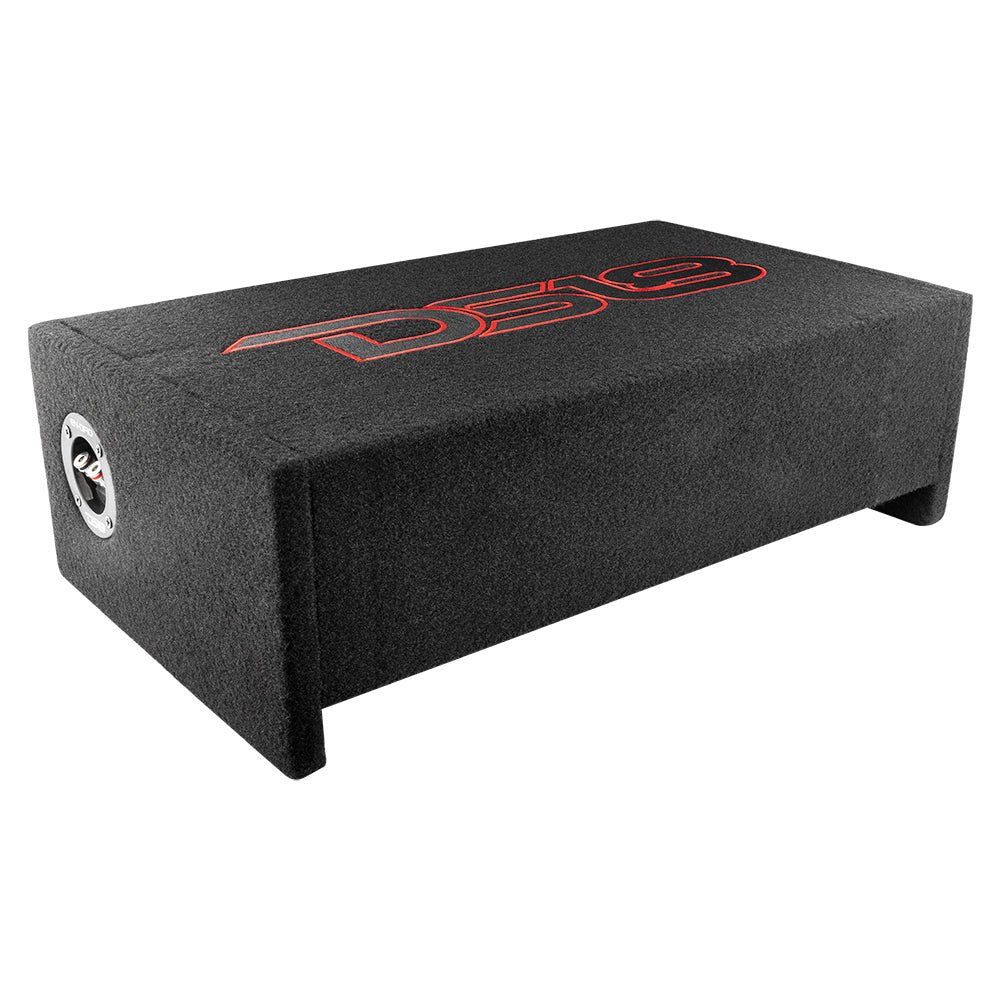

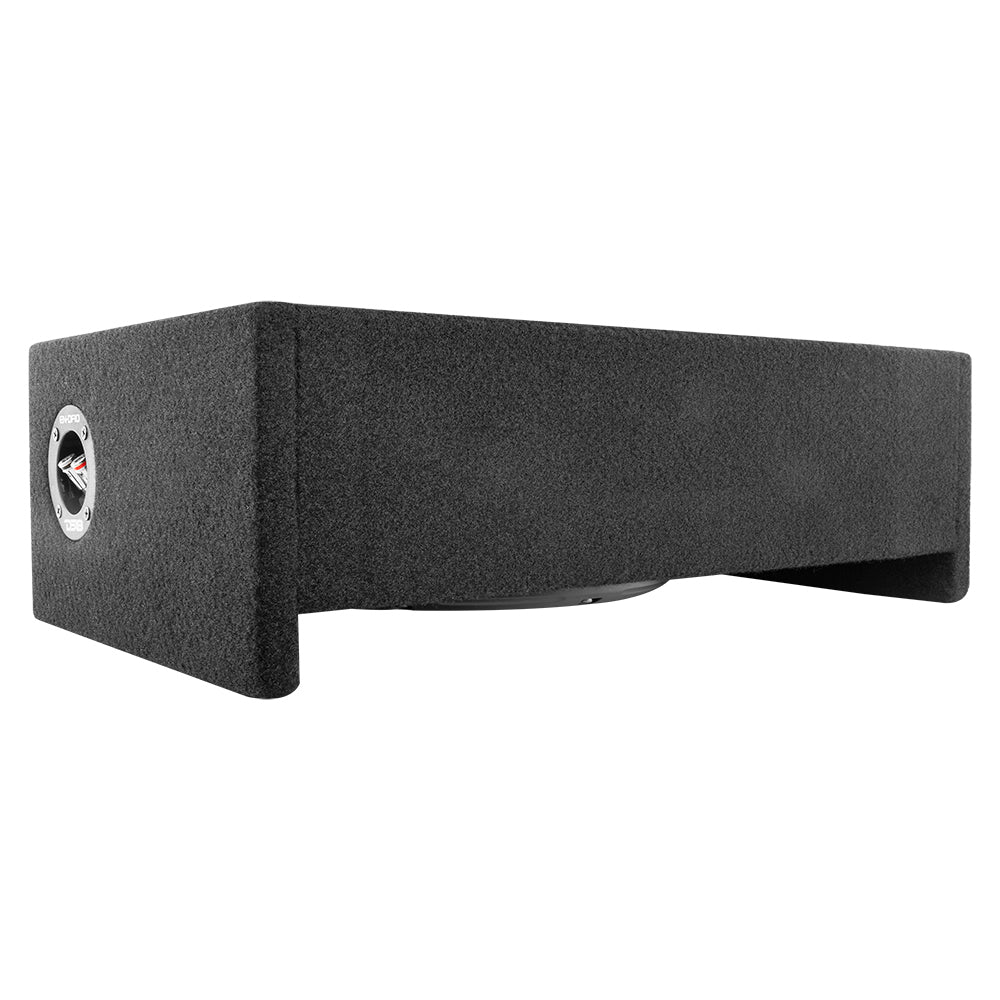

- Shallow Down Firing
Specifications
| SKU | EN-DF10 |
|---|---|
| Speaker Type / Size | 10" Passive Subwoofer |
| Total Impedance | 4 Ohm |
| Total RMS Power Handling | 300W |
| Total MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 25-250Hz |
| Recommended Lo Pass Crossover | 80Hz |

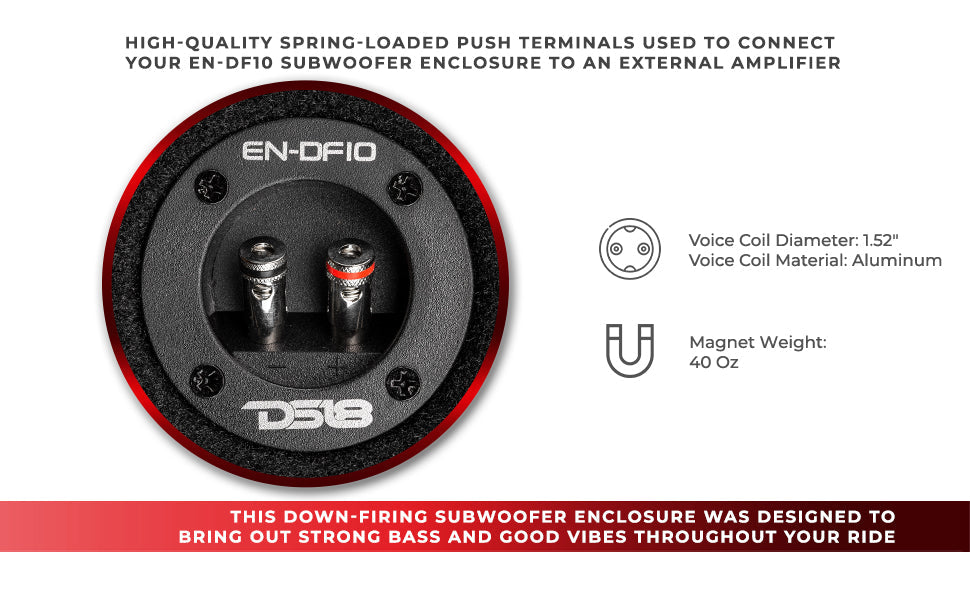

| Voice Coil Diameter | 1.52" / 38.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Cooper |
| Cone Material | Injection PP Cone |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 40 Oz |
| Internal Volume | 12L / 0.42ft3 |
| Load Configuration | Single 4 Ohm |
| Box Type | 10" Down-Firing Sealed |
| Box Material | MDF (5/8" / 15mm) |
| Finish Material | Black Carpet |
| -3Db Dropping Point F3 | 39Hz |
| Overall Height | 11.6" / 295mm |
| Overall Width | 20.27" / 515mm |
| Overall Depth | 6.3" / 160mm |
| Gross Single Unit Weight | 8.0KG |
| Single Unit Box Dimensions W x L x H | 556mm x 206mm x 314mm |
| Quantity of Units in Master Carton | 1 PCS/CTN |
| Gross Master Carton Weight | 9.2KG |
| Master Carton Dimensions W x L x H | 576mm x 226mm x 335mm |
| MDF Box for better sound | Yes |
| High Efficiency Digital Amplifier Built-In | No |
| Auto Turn-On Function when using Hi-Level Input for easier installation | No |
| Remote Level Knob to get easy amount of Bass control | No |
