NXL 10" 2-Way Coaxial Marine Speaker With LED RGB Lights 200 Watts Rms 4-Ohm -Black Carbon Fiber

Availability: Out of stock SKU: CF-10M
Sale price $524.95

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Product Overview

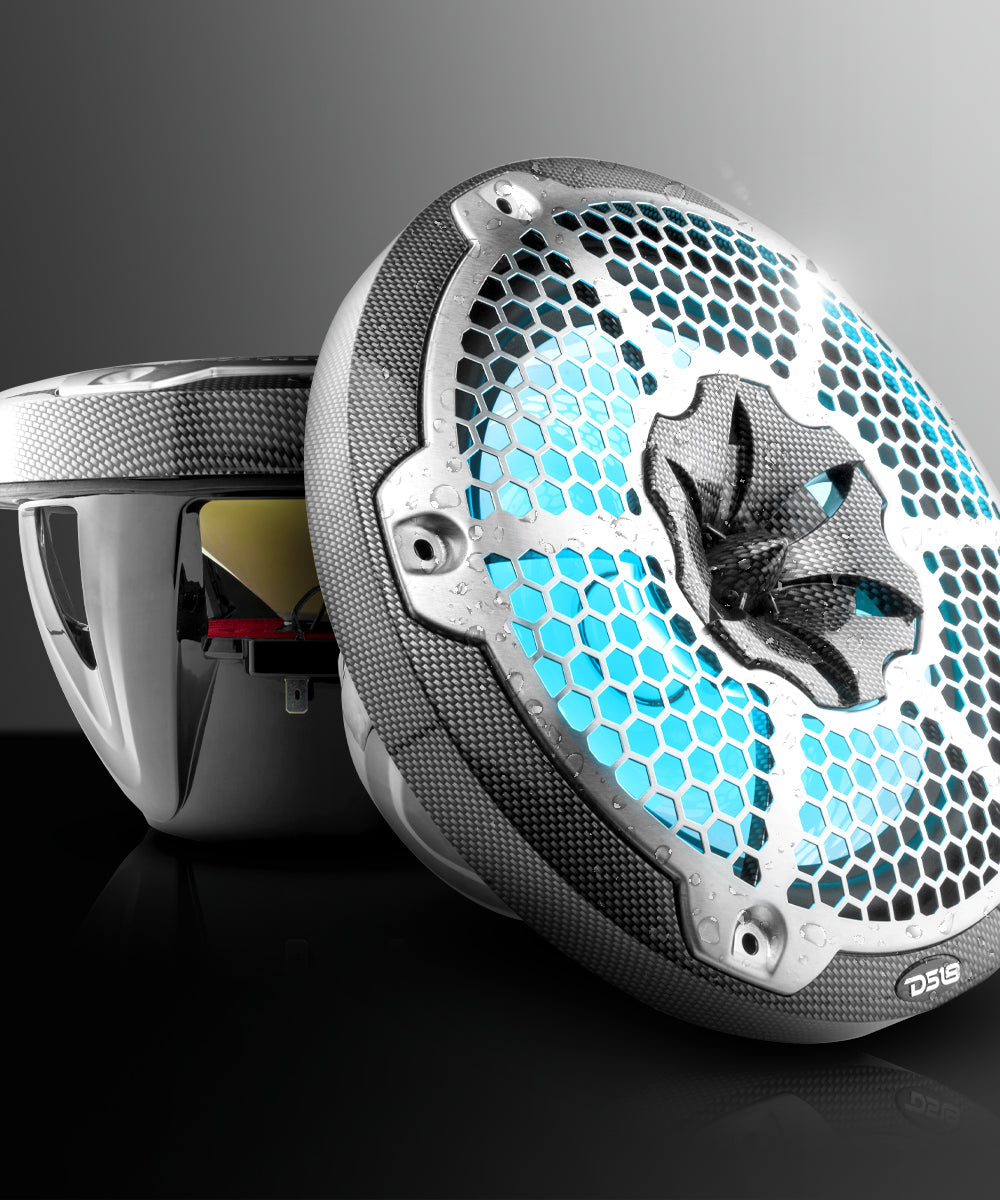

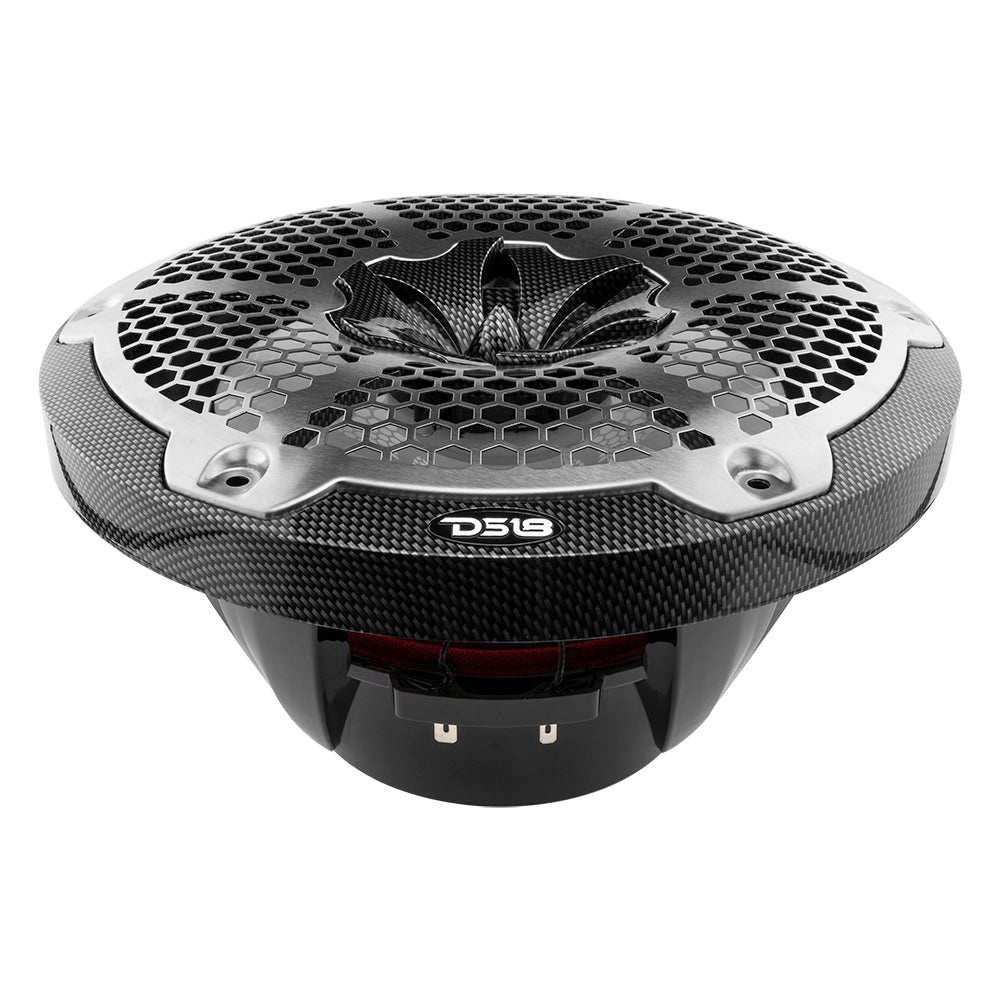

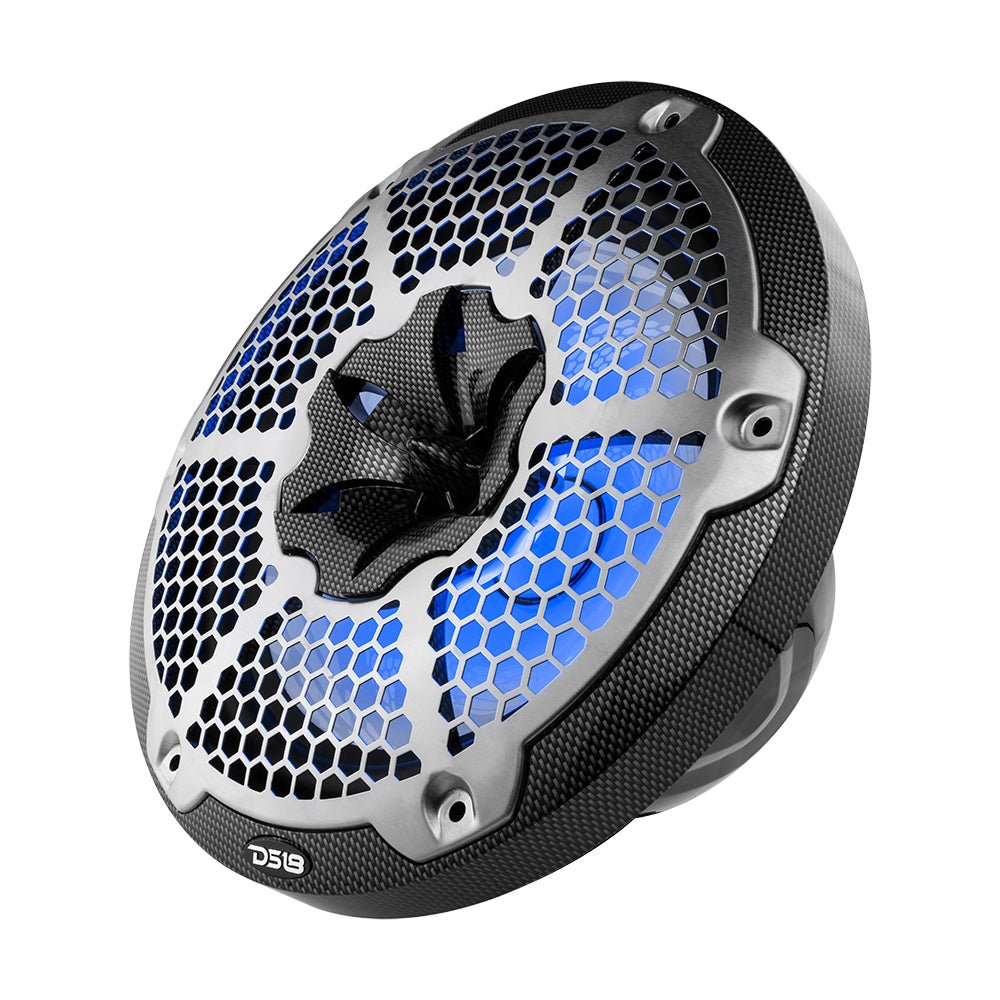

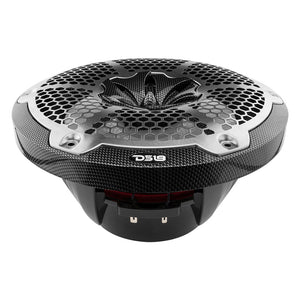

DS18 CF-10M HYDRO 10" 2-Way Marine Speakers with Bullet Tweeter And Integrated RGB LED Lights Carbon Fiber

DS18 continues to dominate the marine scene with our innovative brand of marine speaker, the CF-10M.

This line of marine speakers is a true sight to see! They come in 2-way configurations and carry an IP65 waterproof rating, so you know they are durable for the elements. Each speaker comes with carbon fiber laminate with protective layers coating it.

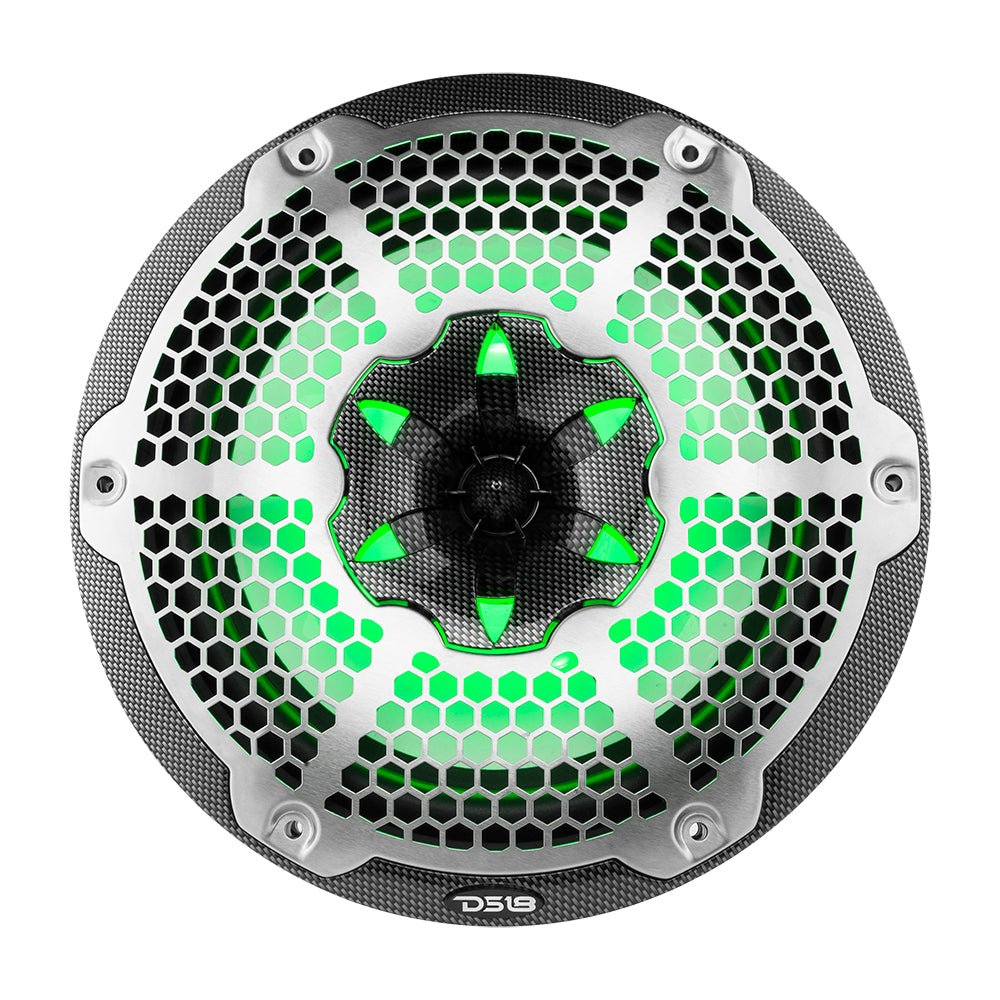

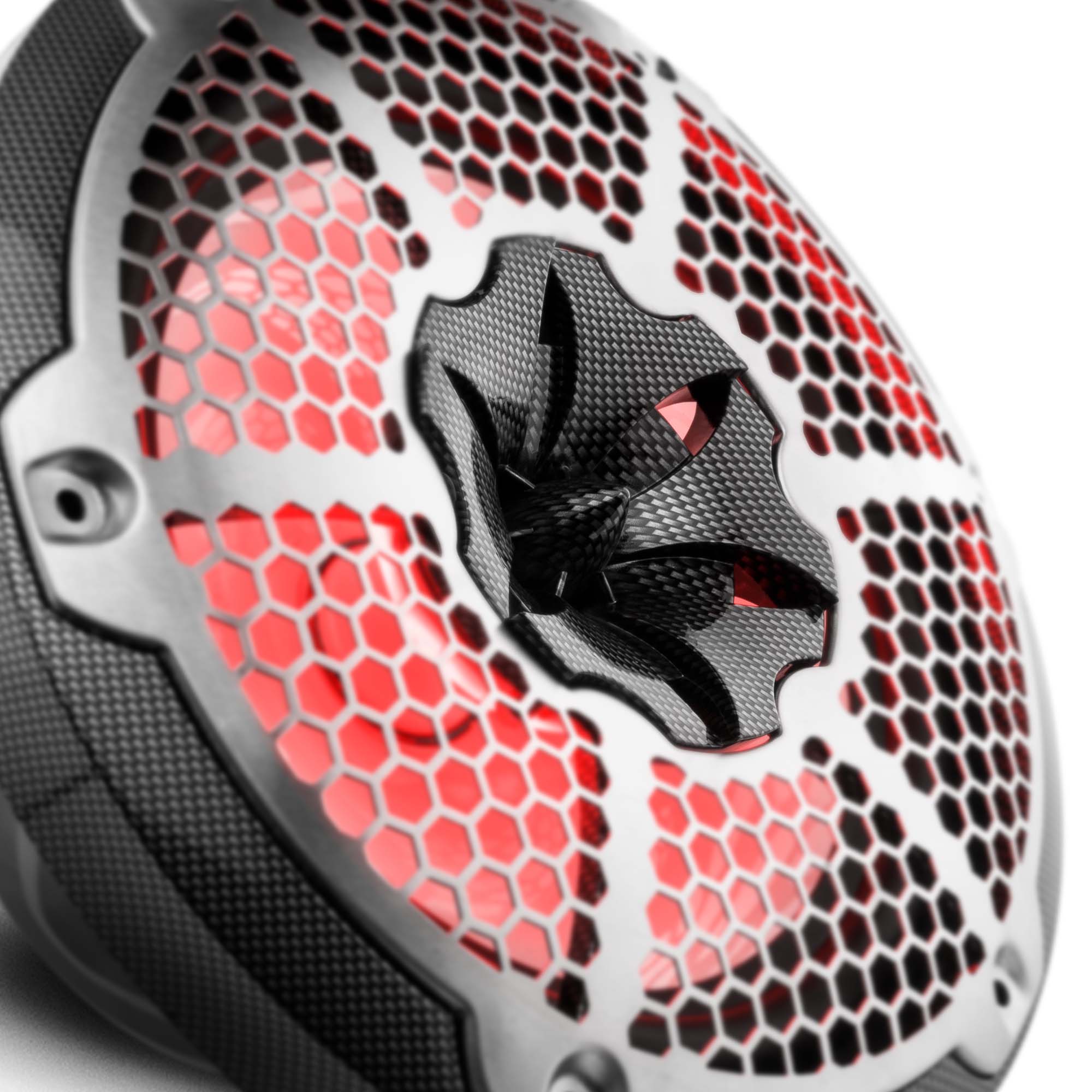

They come with their own integrated RGB lighting on the metal mesh grill that shines down on the waterproof cones to complete your color scheme perfectly. These speakers produce a very full and rich sound that is very hard to replicate in open air environments like out on the water, but DS18 does it flawlessly.

With these 10 inch speakers, you can make sure you get the complete sound you crave and have perfect acoustical music on your command.


Highlights

  • DS18 Hydro design to withstand extreme elements and keep you playing.

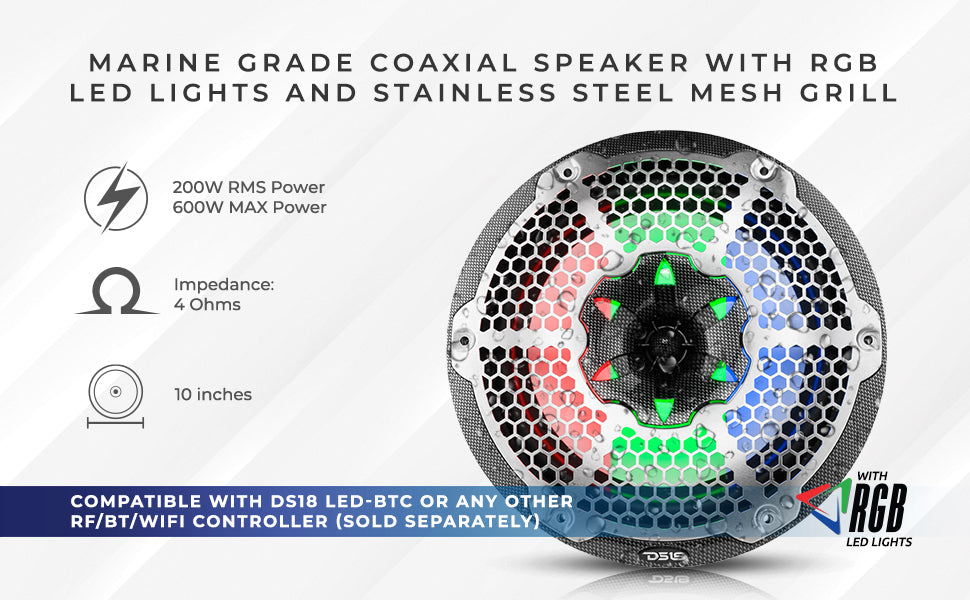

  • RGB LED design to brighten up your system through the night all while displaying whatever color you want with our (sold separately) LED BTC.

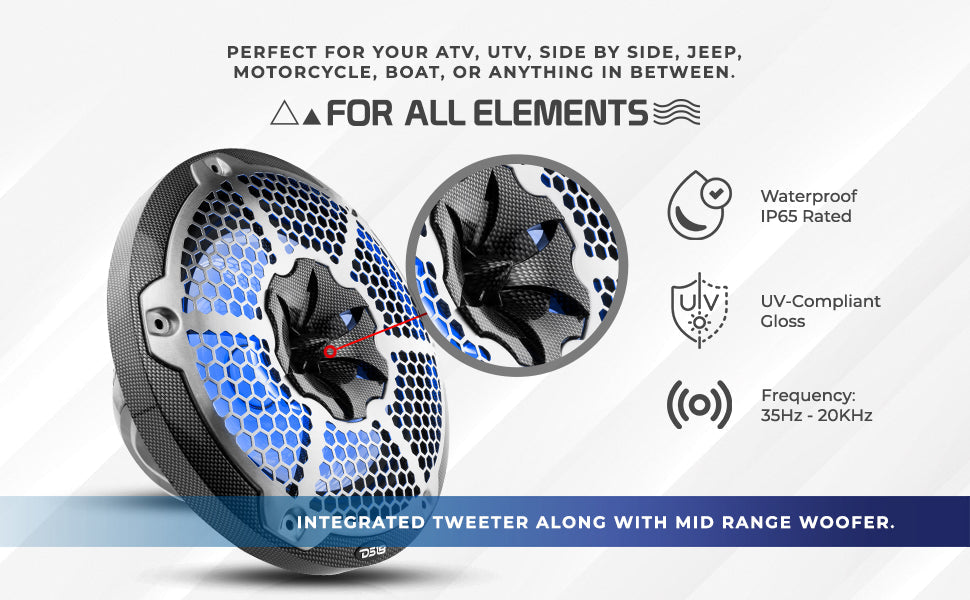

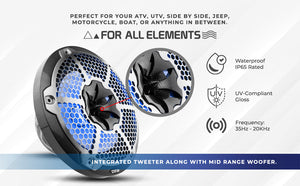

  • Integrated tweeter along with mid range woofer so you get an amazing range of frequencies and very high sound quality.
  • Exclusive metal mesh grill design for ultimate protection.

Technical Details
                             CF-10M Product Manual
Specifications
Nominal Diameter 10" / 254mm
Nominal Impedance 4 ohms
RMS Power Handling 200W
MAX Power Handling 600W
Sensitivity (1w/1m) 94.3dB
Frequency Response 35Hz-20Khz
Recommended HI Pass Crossover 50Hz
Body / Features
UV Compliant Yes, 100% Stable
Marine Grade Type IP65
RGB LED Yes, RGB integrated
Grill Type Injection Molded Composite with 316 Stainless Steel mesh
Sold in Pair Yes
Color / Finish Carbon Fiber Texture / Gloss
Woofer Specifications
Voice Coil Diameter 1.5" / 38.6mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Injection Molded Polypropylene + UV Compliant
Surround Material Butyl (Rubber)
Basket Material High Temp Injection Molded Composite with UV Protection coating
Magnet Material Ferrite (Y35) + Neodymium (N35)
Magnet Weight 50oz + 0.56oz
Tweeter Specifications
Voice Coil Diameter 1" / 25.4mm
Voice Coil Former Material Kapton
Winding Material CCAW
Diaphragm Material PEN
Magnet Material Neodymium (N38H)
Magnet Weight 0.51oz

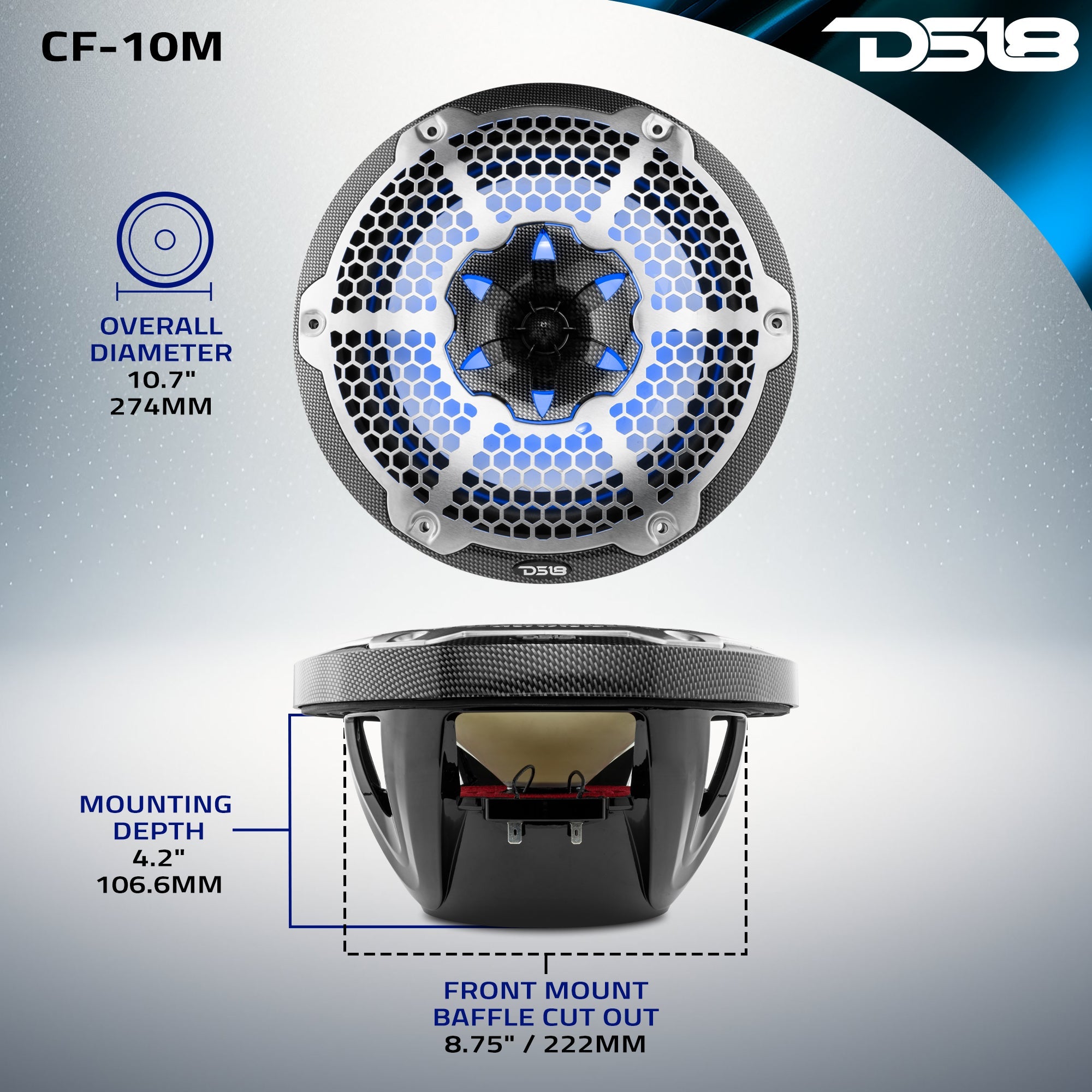

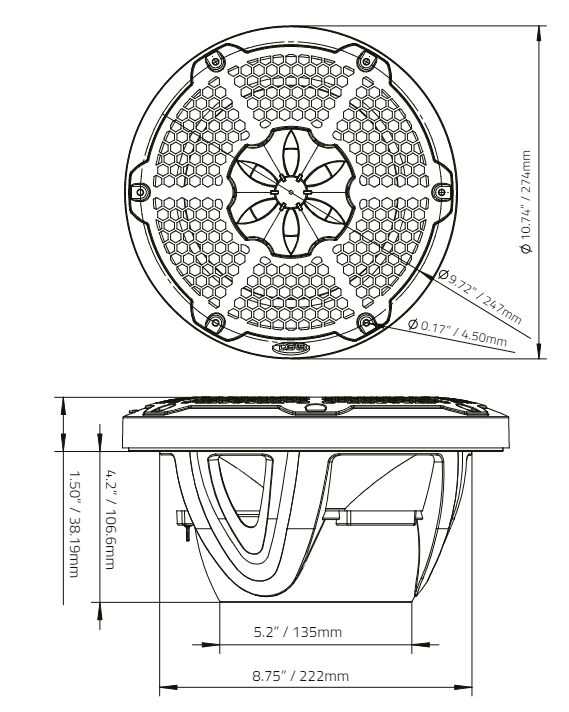

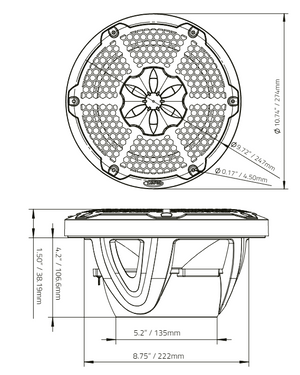

Speaker Measurement
Overall Diameter 10.7” / 274mm
Overall Depth 5.7” / 144.7mm
Front Mount Baffle Cutout 8.75" / 222mm
Mounting Depth 4.2″ / 106.6mm
Motor Diameter 5.3” / 135mm

Technologies
Wiring Wizard

test info

Key Features

  • 10" 2-Way Marine Speaker
  • RMS Power: 200 Watts
  • Ferrite & Neodymium Magnets
  • Impedance: 4 Ohm
  • RGB LED Lights ~ Metal Mesh Grill
  • Water Resistant IP65

Specifications

SKU CF-10M
Nominal Diameter 10" / 254mm
Nominal Impedance 4 Ohm
RMS Power Handling 200W
MAX Power Handling 600W
Sensitivity (1w/1m) 94.3dB
Frequency Response 35Hz-20Khz
Recommended HI Pass Crossover 50Hz
UV Compliant Yes, 100% Stable
Marine Grade Type IP65
RGB LED Yes, RGB integrated
Grill Type Injection Molded Composite (ASA) with 316 Stainless Steel mesh
Pair Yes
Color / Finish Carbon Fiber Texture / Gloss
Voice Coil Diameter 1.5" / 38.6mm / 1" / 25.4mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Injection Molded Polypropylene + UV Compliant
Surround Material Butyl (Rubber)
Basket Material High Temp Injection Molded Composite with UV Protection coating
Magnet Material Ferrite (Y35) + Neodymium (N35) / Neodymium (N38H)
Magnet Weight 50oz + 0.56oz / 0.51oz
Diaphragm Material PEN
Equivalent Volume Vas 197.13L / 6.96ft3
Excursion (one way) Xmax 6mm
Free Air Resonance Fs 42Hz
Mechanical Factor Qms 6.874
Electrical Factor Qes 0.838
Total Factor Qts 0.747
Moving Mass Mms 11.37g
Compliance Cms 1.264mm/N
Bl Factor Bl 3.4
Voice Coil Inductance Le 0.60712mH
Cone Area Sd 333.29 cm2
DC Resistance Re 3.2ohms
Efficiency Bandwidth Product EBP 50.12
Overall Diameter 10.7" / 274mm
Overall Depth 5.7" / 144.7mm
Front Mount Baffle Cutout 8.75" / 222mm
Mounting Depth 4.2" / 106.6mm
Motor Diameter 5.3" / 135mm
Gross Single Unit Weight (lb) 20.5
Single Unit Box Dimensions W x L x H (Inches) 23 x 12.75 x 7.5
Quantity of Units in Master Carton 2
Gross Master Carton Weight (lb) 42
Master Carton Dimensions W x L x H (Inches) 23.5 x 14 x 16
