Product Overview

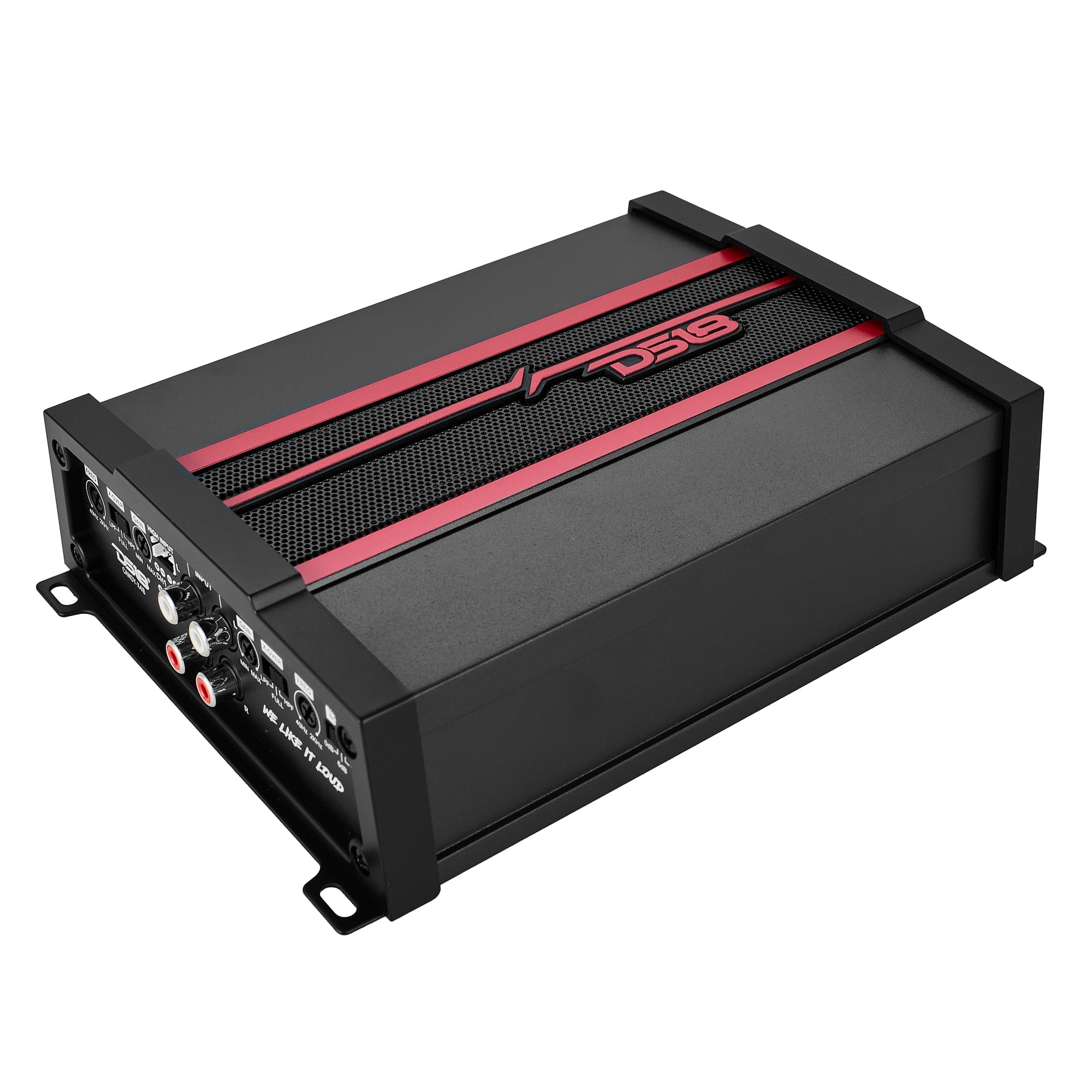

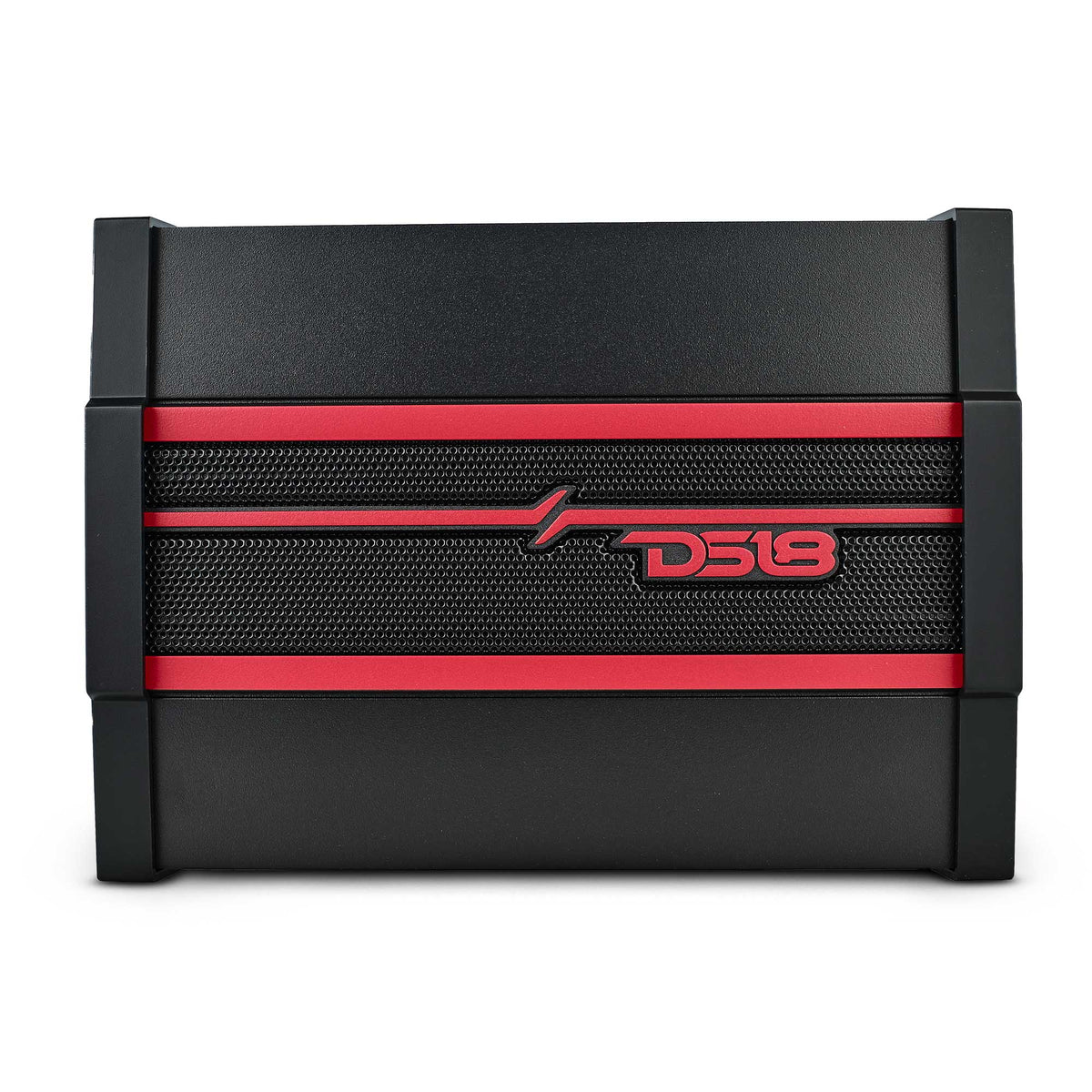

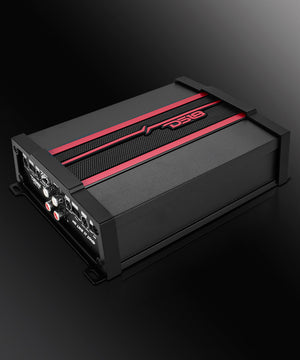

DS18 CANDY-X4B Compact Full-Range Class D 4-Channel Car Amplifier 1600 Watts
Small, compact, and powerful is what the DS18 Candy amps are all about! Just like edible candy, we have many different flavors to choose from to give audio enthusiasts goosebumps when they turn it up! Instead of making your mouth tingle, DS18 Candy makes your ears tingle with pleasure when you hook them up to any of our abundant lines of pro audio, marine, and power sports audio.
These amps not only have the power to keep your speakers at maximum wattage efficiently, they are very small and compact in design so they can be mounted almost anywhere and still not have to worry about room! These mini amps come in 2 channel stereo, 4 channel, 1 channel, 5 channels, and even 6 channel configurations so the setup of your entire audio system is easy and painless to match up.
These amps are perfect for people who want a very small audio footprint with also having all the benefits of a huge amplifier putting out lots of power in a small package.
Highlights
- One of our most popular models because of its power output to size ratio.
- Small and powerful design that gives it a wide range of versatility because of its size.

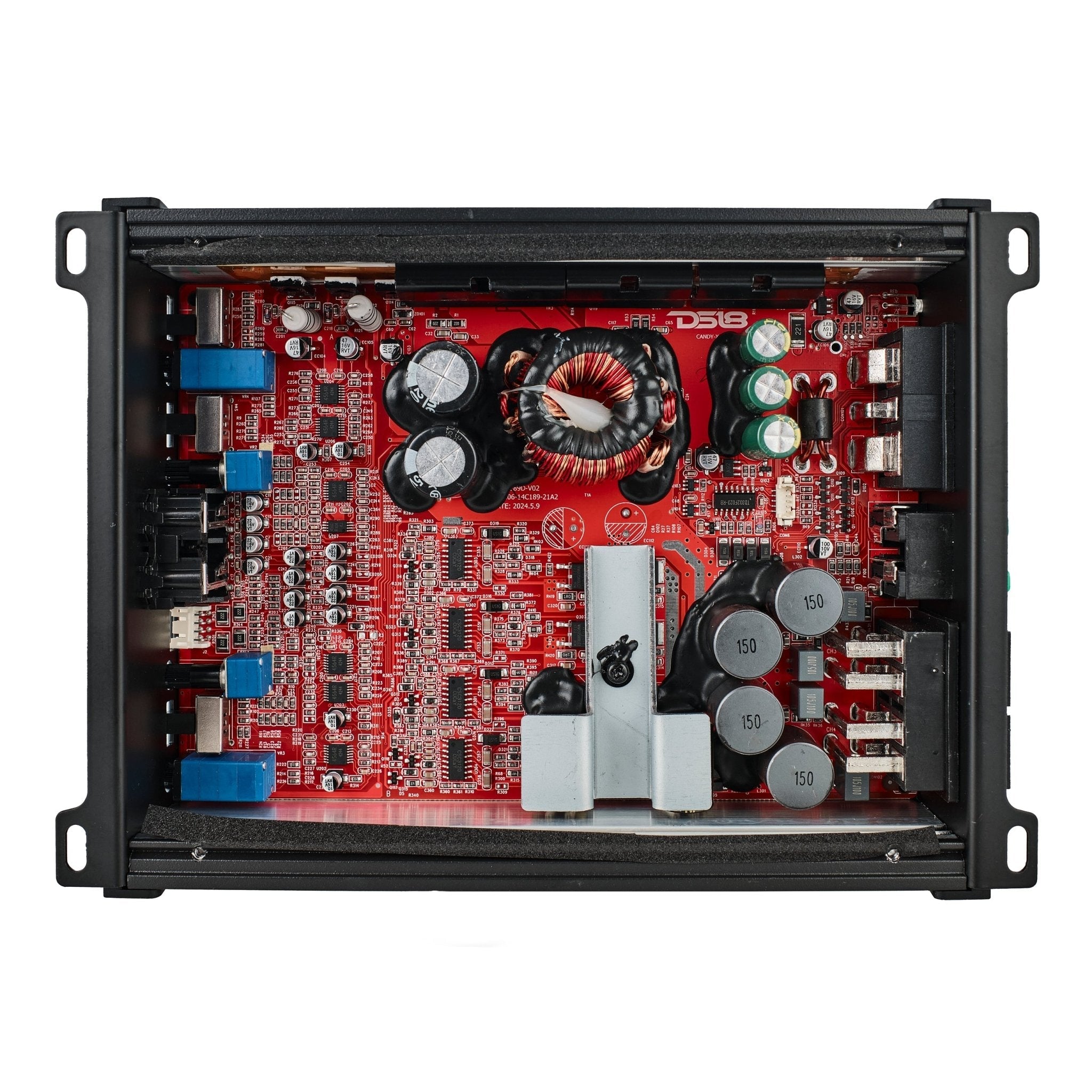

- High grade components made to stand the test of time and give you loud sound on demand.

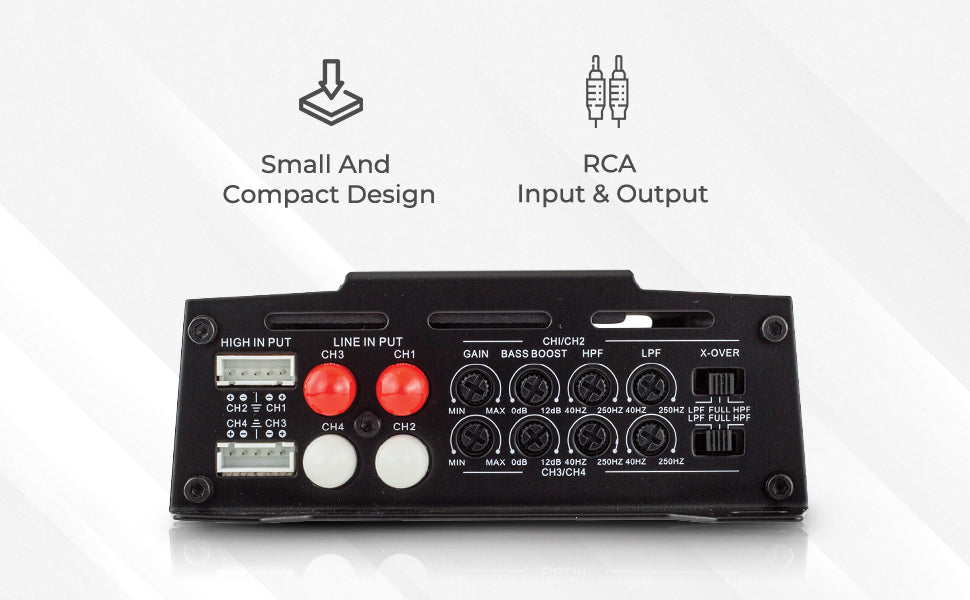

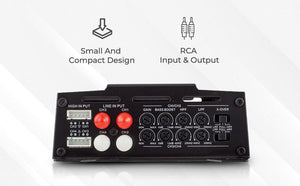

- RCA and Hi/Lo inputs so you can integrate this amp into your factory audio system easily.
Technical Details
| Model: | CANDY-X4B |
| Number of Channels: | 4 |
| Frequency Response: | 20Hz - 20KHz |
| 2 Ohms RMS Power (14.4V) Per Channel: | 4 x 120W |
| 4 Ohms RMS Power (14.4V) Per Channel: | 4 x 80W |
| Bridged 4 Ohms RMS Power (14.4V) Per Channel: | 2 x 240W |
| Speaker Impedance Range: | 2 Ohms |
| Input Sensitivity: | 0.2V-+6V |
| Low Pass Filter: | 40Hz - 250Hz |
| High Pass Filter: | 40Hz - 250Hz |
| Signal-to-Noise Ratio: | 100 dB |
| THD: | 0.01% |
| Bass Boost: | 0dB -+12dB |

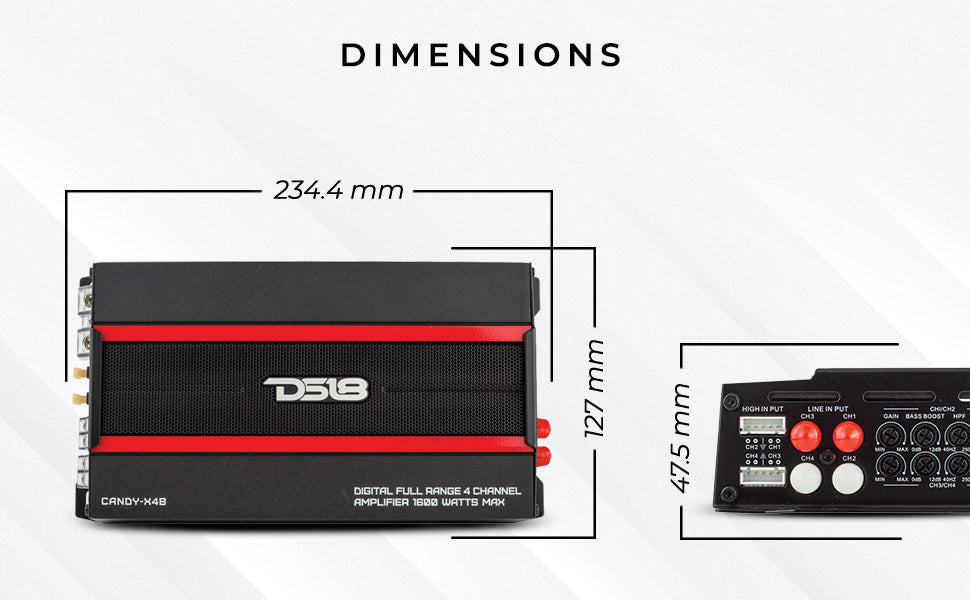

| Product Dimensions: | 234.4x127x47.5mm |
Key Features
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Specifications
| SKU | CANDY-X4B |
|---|---|
| Total Watts (Peak) | 1600W |
| RMS Power @ 4 Ohm | 120W x 4 |
| RMS Power @ 2 Ohm | 200W x 4 |
| RMS Power @ 4 Ohm Bridge | 350W x 2 |
| Frequency Response | 20Hz-20Khz |
| Signal to Noise Ratio | >70 dB |
| Efficiency @ 4ohm | >75% |
| Damping Factor | 26 |
| Input Impedance | 10K ohm |
| Channel Separation | 50 dB |
| Total Harmonic Distortion (THD) | 0.5% |
| Low Level Input Range | 0.2-6V |
| High Level Input | Yes |

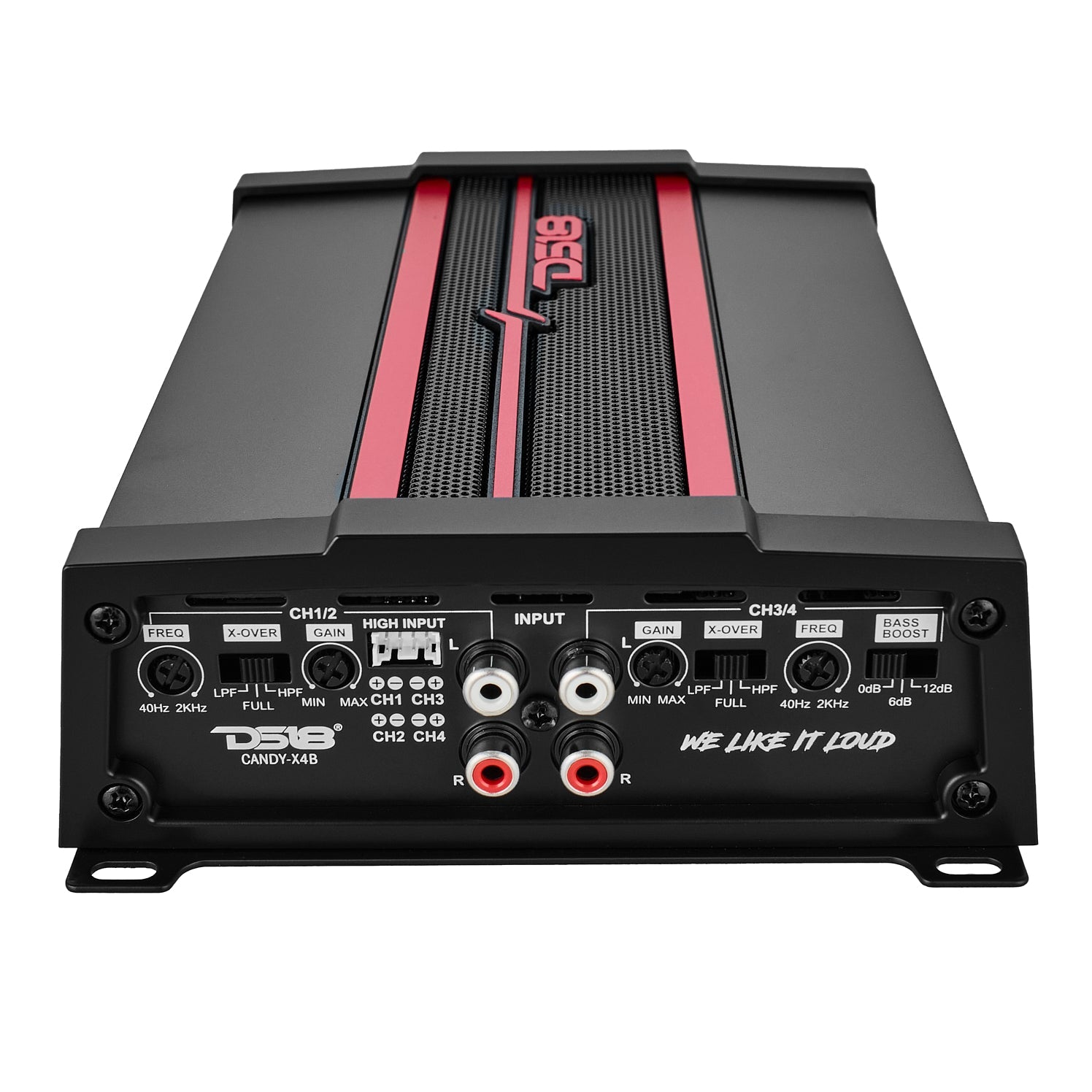

| Selectable X-Over | LPF/FULL/HPF |
| X-Over Filter Range | 40Hz-2kHz |
| Bass Boost Range | 0dB~12dB |
| Bass Boost Frequency | Fixed 50Hz |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 ohm |
| Led Indicator | Power / Protection |

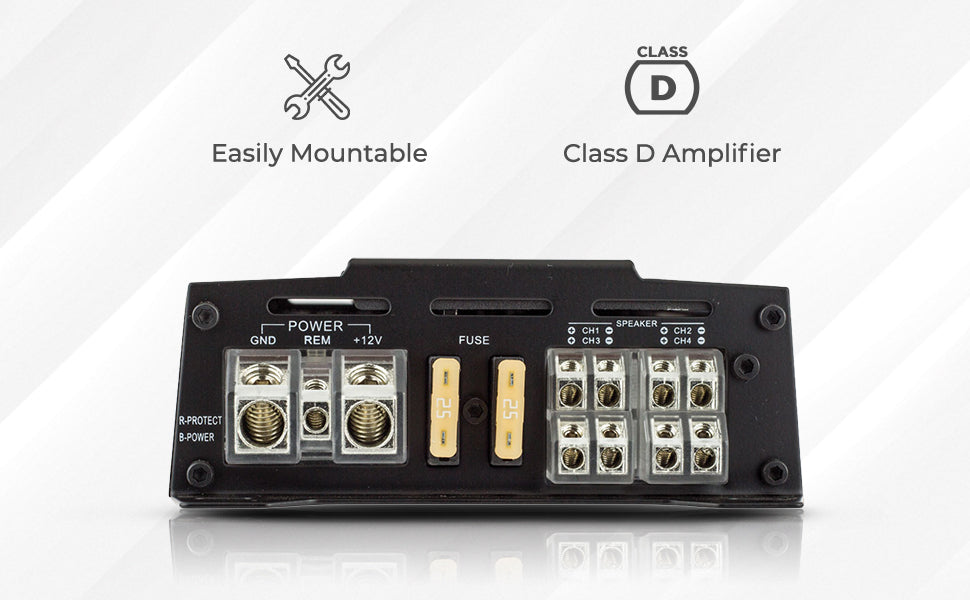

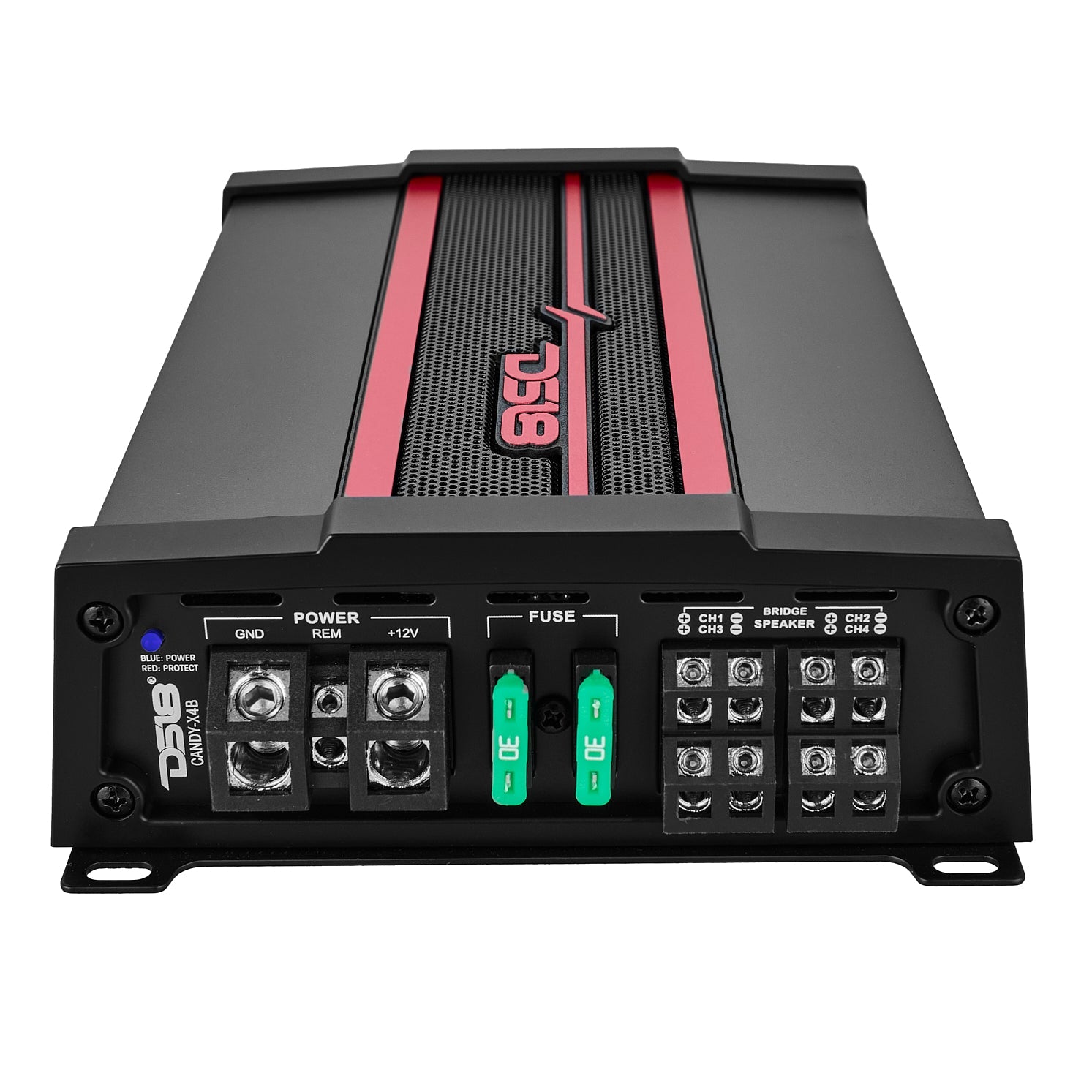

| Power Input Terminal Size | 4Ga |
| Fuse Size | 25A x 2 |
| Remote Level Control | No |
| Cooling Fan | No |
| Thermal Protection | Yes (>158F) |
| Over-Load Protection | Yes |
| DC Output Protection | No |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (9-16v) |
| Clipping Protection | No |
| Body Color / Finish | Black Matte |
| Overall Length | 8.3" / 211mm |
| Overall Width | 5.9" / 150mm |
| Overall Height | 2.16" / 47.5mm |
| Heatsink Length | 7" / 228mm |
| Gross Single Unit Weight | 3 |
