Octagonal 8" Mid-Range Loudspeaker 400 Watts Rms 8-Ohm
Product Overview DS18 8OCT400-8 PRO 8" Octagon Mid-Range Loudspeaker 800 Watts Max 8 Ohm Get your system...
- $137.95
- $137.95
- Unit price
- per
Subtotal:
$137.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

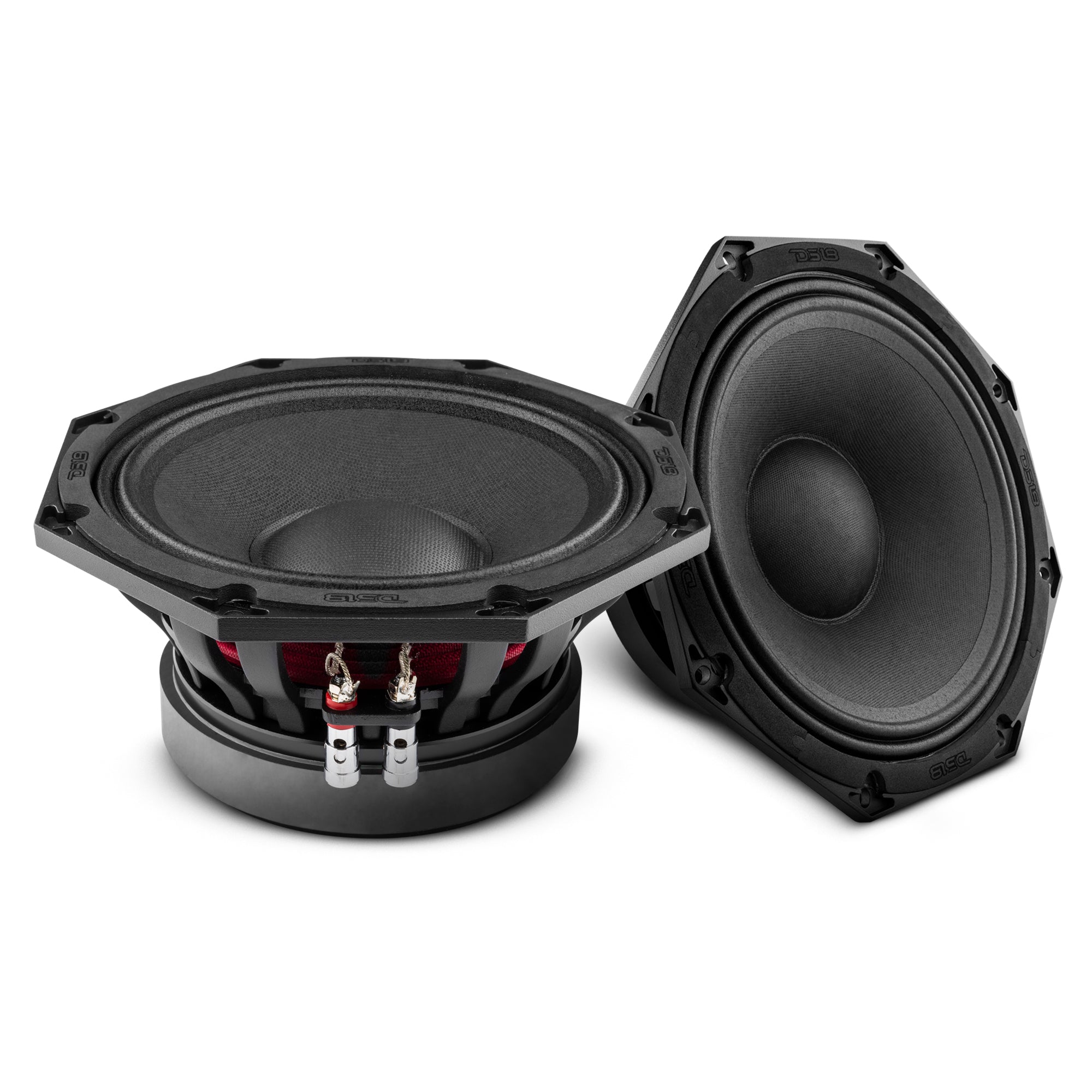

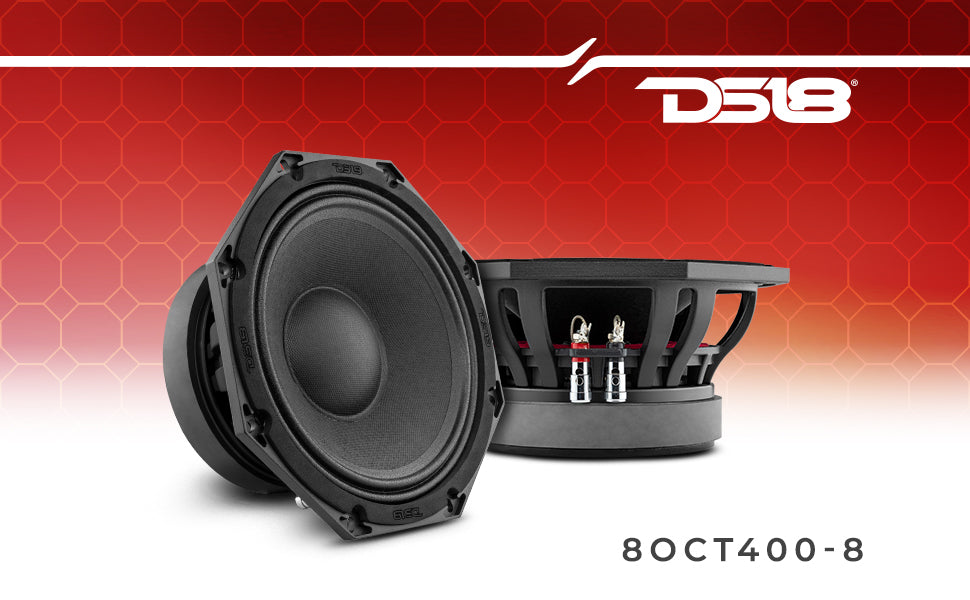

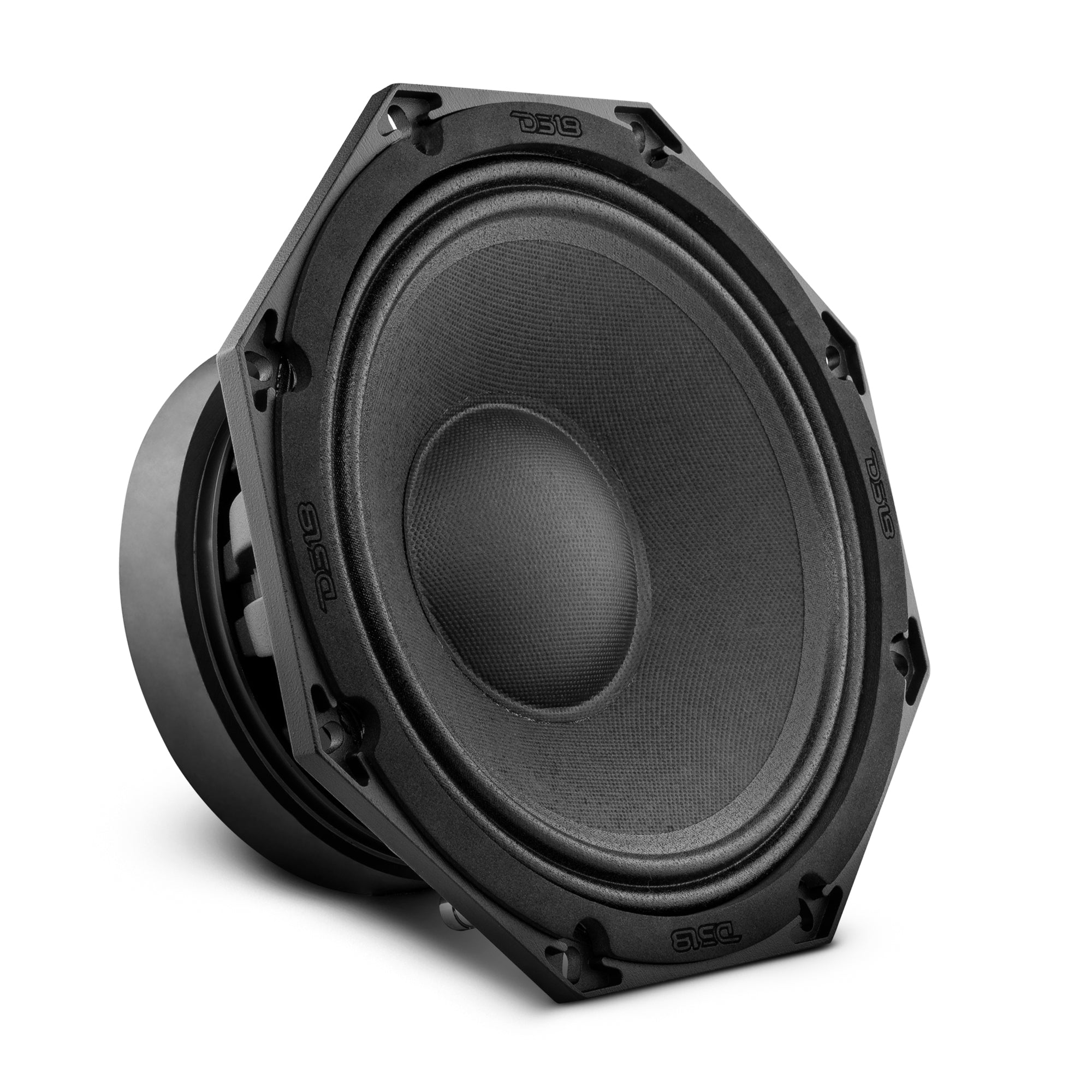

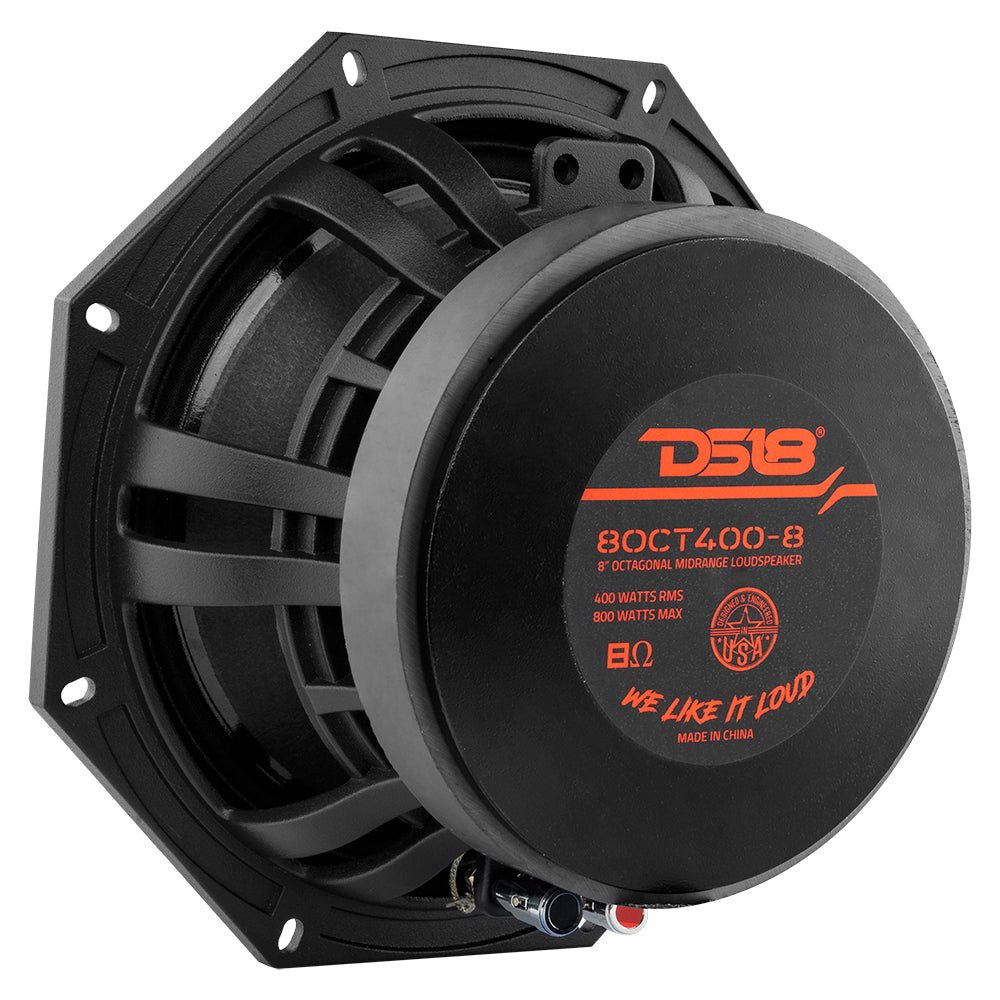

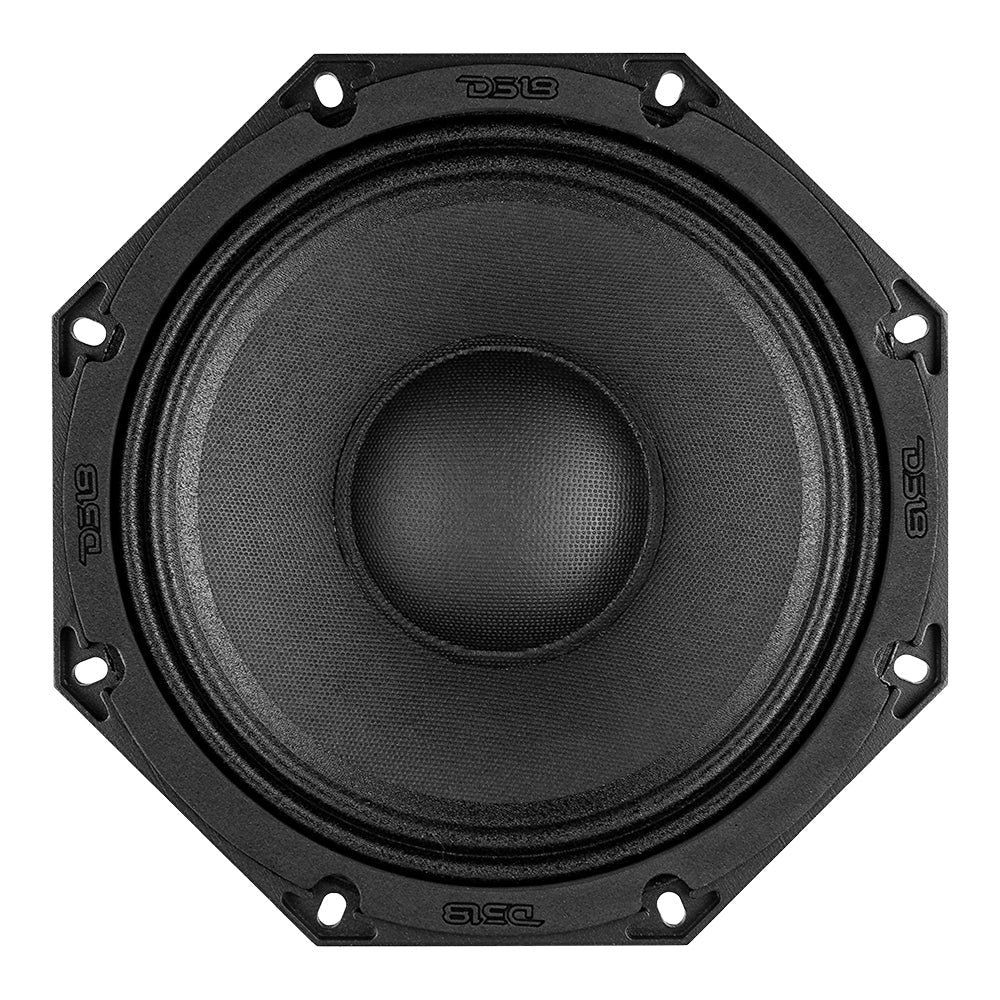

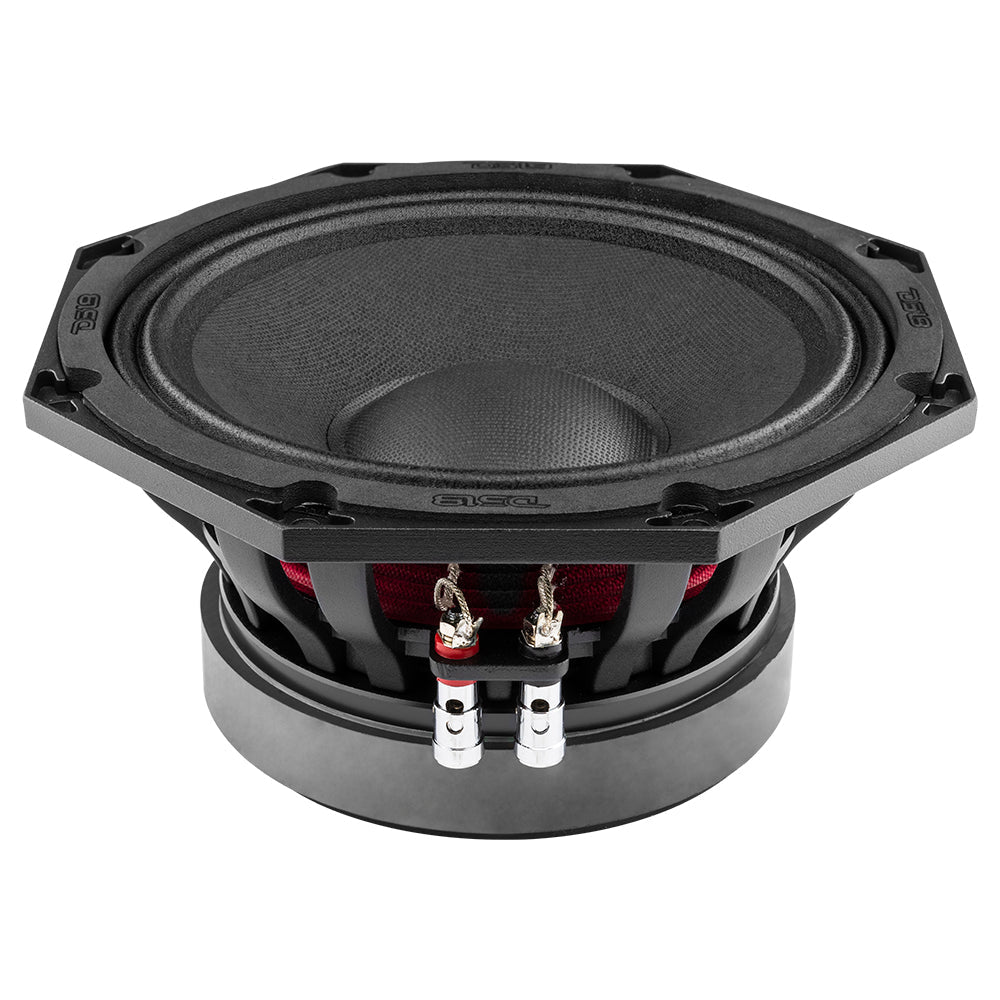

DS18 8OCT400-8 PRO 8" Octagon Mid-Range Loudspeaker
800 Watts Max 8 Ohm
Get your system in shape with DS18’s new 8OCT400-8!
This 8” octagonal midrange loudspeaker offers better frequency response than your usual round speakers and can reproduce frequencies as low as 63Hz and as high as 10KHz!

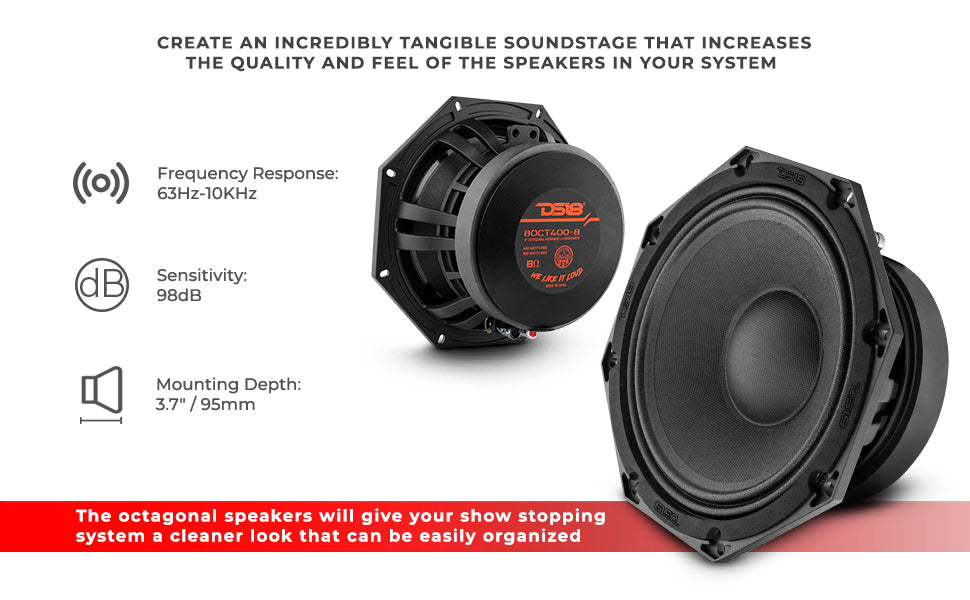

Create an incredibly tangible soundstage that increases the quality and feel of the speakers in your system and sound created by them!

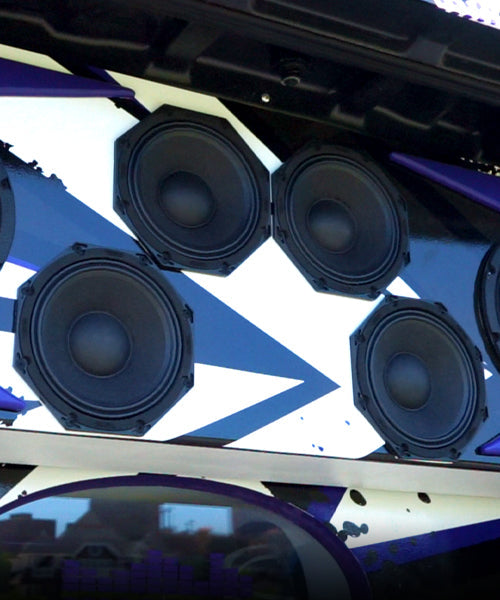

For our competitors, the octagonal speakers will give your show stopping system a cleaner look that can be easily organized for precise reproduction when you need it most.
It’s high sensitivity, rated at 95 dB, allows it to handle powers of 400 W RMS and 800 W MAX. These speakers get LOUD easily, just the way we like it!

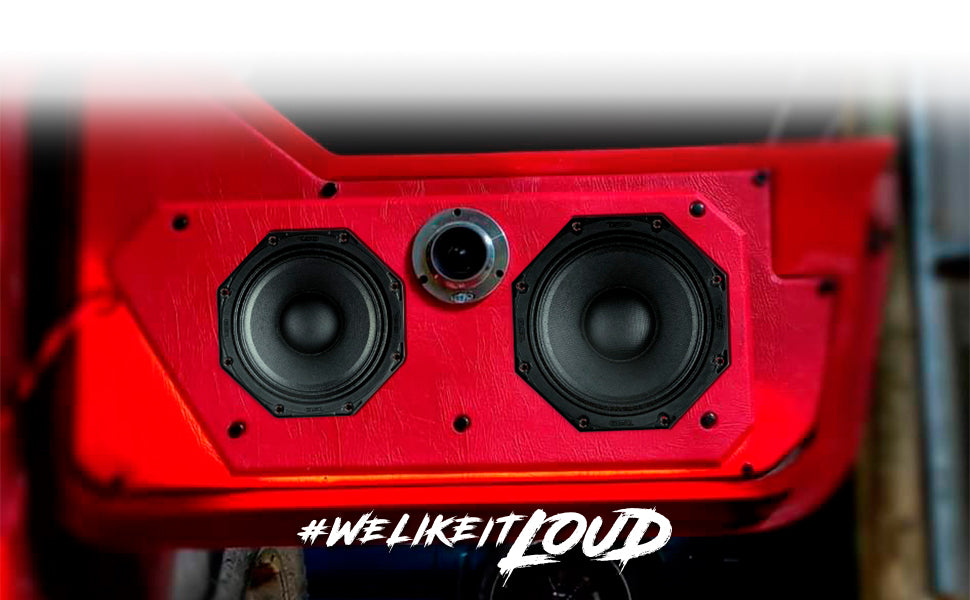

Install these 8 ohm speakers into your sound system correctly and enjoy intense volume that never fades!
Highlights

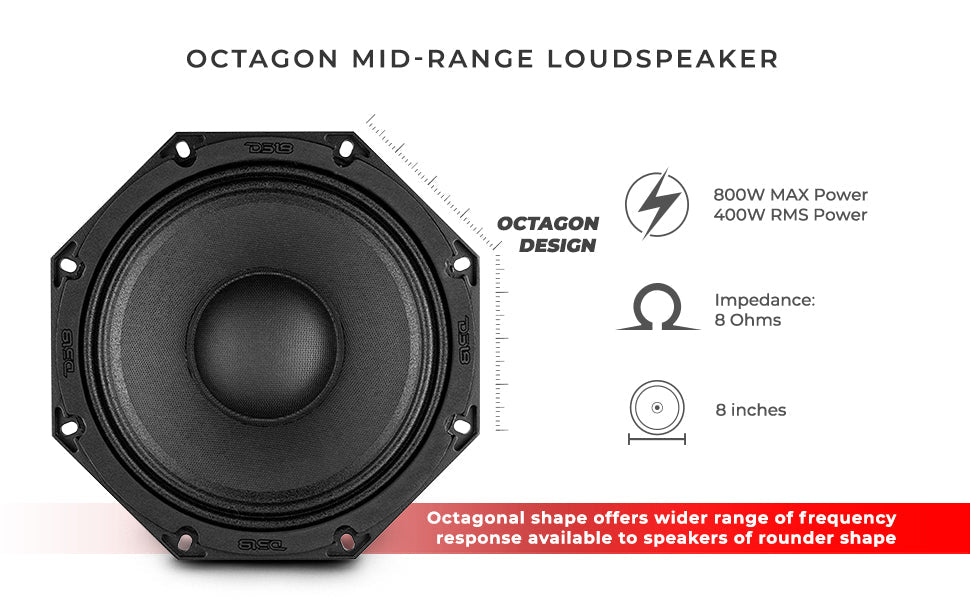

- Octagonal shape offers wider range of frequency response available to speakers of rounder shape
- Easier organization of the equipment in your system
- 400 RMS Power Handling
- 800 MAX Power Handling
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 400W |
| MAX Power Handling | 800W |
| Sensitivity (1w/1m) | 98dB |
| Frequency Response | 63Hz-10KHz |
| Recommended HI Pass Crossover | 100Hz |
| Sold As Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | TIL |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |

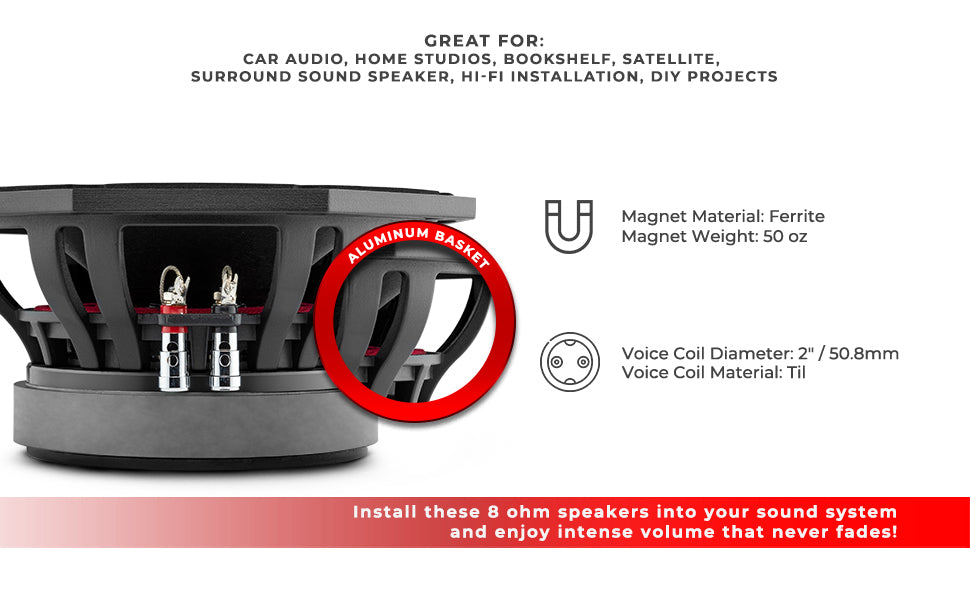

| Basket Material | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 50 oz |
| Displacement Volume | 0.062L / 0.0021ft3 |
| MEASUREMENT | |

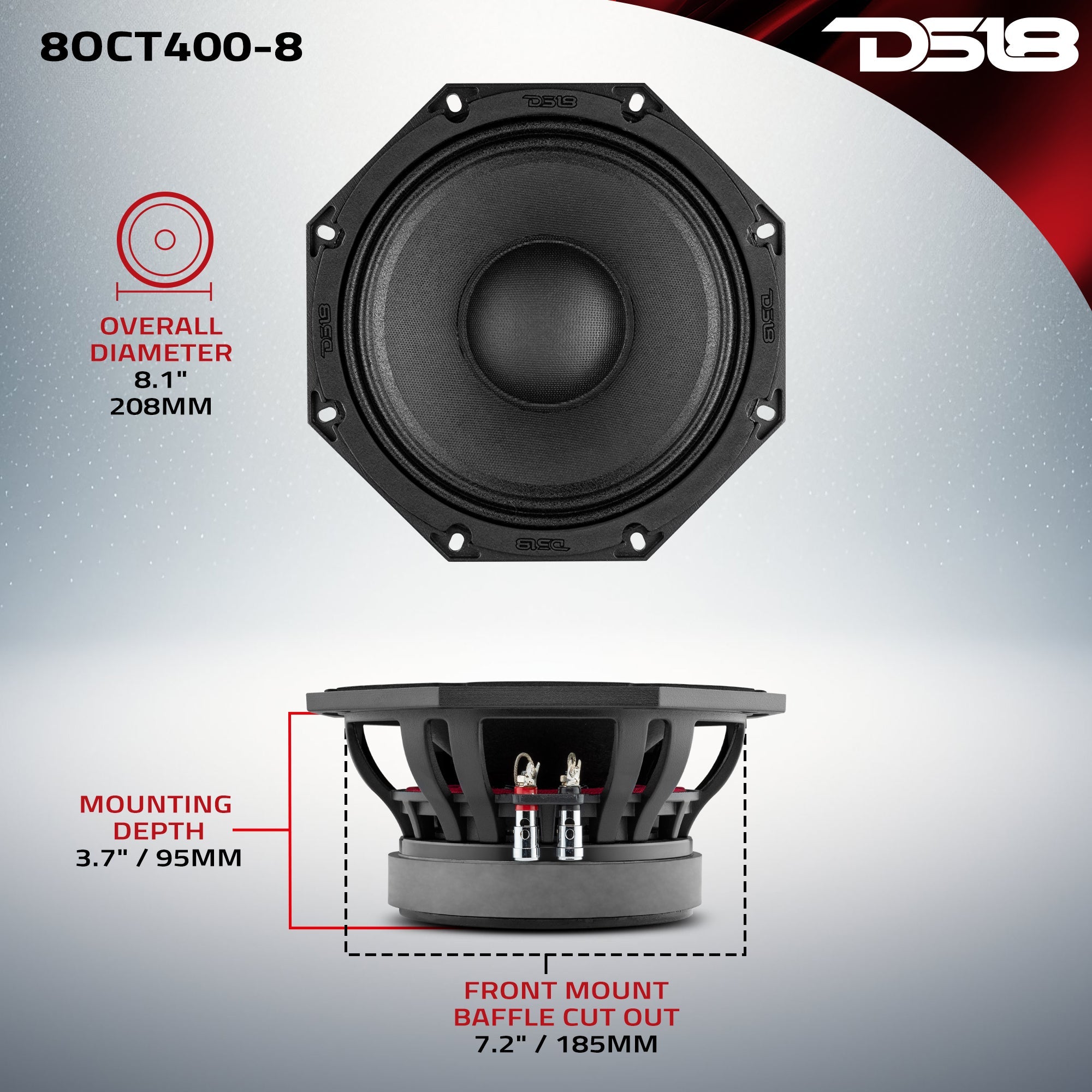

| Overall Diameter | 8.1" / 208mm |
| Overall Depth | 4.1" / 105mm |
| Front Mount Baffle Cutout | 7.2" / 185mm |
| Mounting Depth | 3.7" / 95mm |
| Motor Diameter | 5.7" / 145mm |
Key Features
- 8" Octagon Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
Specifications
| SKU | 8OCT400-8 |
|---|---|
| Nominal Diameter | 8" / 203 mm |
| Nominal Impedance | 8 OHMS |
| RMS Power Handing | 400 Watts |
| Maximum Power Handing | 800 Watts |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 63Hz-10KHz |
| Recommended Hi Pass Crossover | 100 Hz |
| Voice Coil Diameter | 2" / 50.8 mm |
| Voice Coil Former Material | TIL |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 50 Oz |
| Vas | 39.8 L / 1.4 ft3 |
| Xmax | 4 mm |
| Fs | 80 Hz |
| Qms | 5.008 |
| Qes | 0.545 |
| Qts | 0.492 |
| Re | 5.73 OHMS |
| Overall Diameter | 8.1" / 208 mm |
| Front Mount Baffle Cutout | 7.2" / 185 mm |
| Mounting Depth | 3.7" / 95 mm |
| Overall Depth | 4.1" / 105 mm |
| Product Weight | 9.5 lbs |
| Product Dimensions | 9.25 x 9.25 x 5 |
| M/C Weight | 40 lbs |
| M/C Dimensions | 19.5 x 10 x 10.75 |
| M/C QTY | 4 |
| Sold In | Piece |
