8" Neodymium Coaxial Hybrid Mid-Bass Water resistant Carbon Fiber Cone Loudspeaker with Built-in Driver 400 Watts Rms 8-Ohm
Product Overview DS18 8HD800NCFD-8 8" Water Resistant Carbon Fiber Mid-Bass With Built in Coaxial Hybrid Driver Neodymium Magnet...
Vendor:
DS18
Manufacturer SKU
8HD800NCFD-8
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $719.95
- $719.95
- Unit price
- per
Subtotal:
$719.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

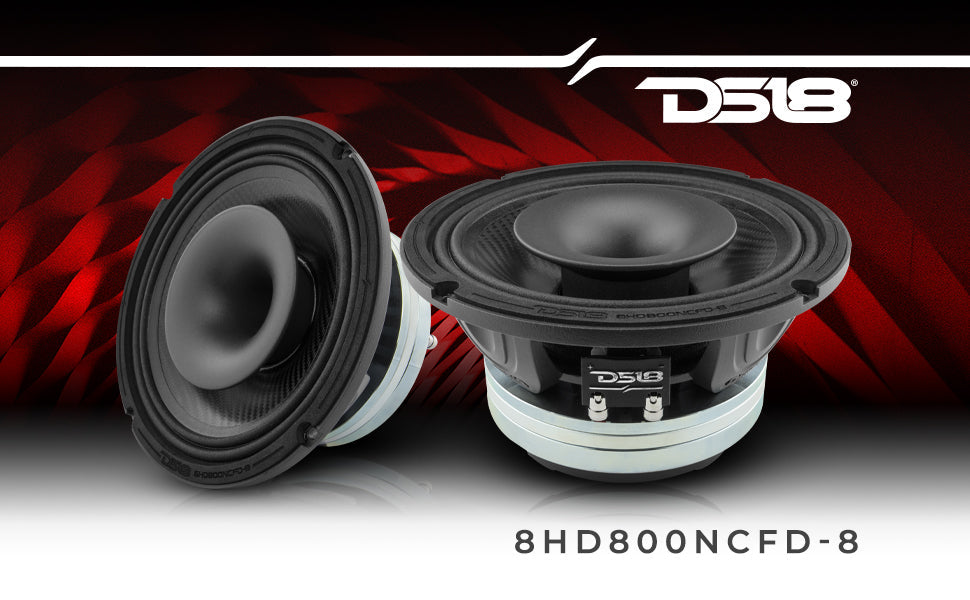

DS18 8HD800NCFD-8 8" Water Resistant Carbon Fiber Mid-Bass With Built in Coaxial Hybrid Driver Neodymium Magnet 800 Watts
Get intense volume and unmatched durability with DS18’s 8HD800NCFD-8; the newest addition to our line of hybrid loudspeakers with built in compression horn driver!
DS18’s high powered hybrid pro audio speaker combines the extreme volume of our 8” mid-ranges with built-in high wattage compression drivers for the full range of frequencies on every session.
The driver produces the high range frequencies with a much higher intensity that only a pro audio driver can provide! This makes these speakers louder than any coaxial, paired with an insane driver with the vocal power of two. The Driver is backed up by a powerful carbon fiber 8-inch midrange loudspeaker that will for sure fill out the complete frequency range giving you extremely loud Mids, Voice, and Highs with extreme loudness and crystal clarity.

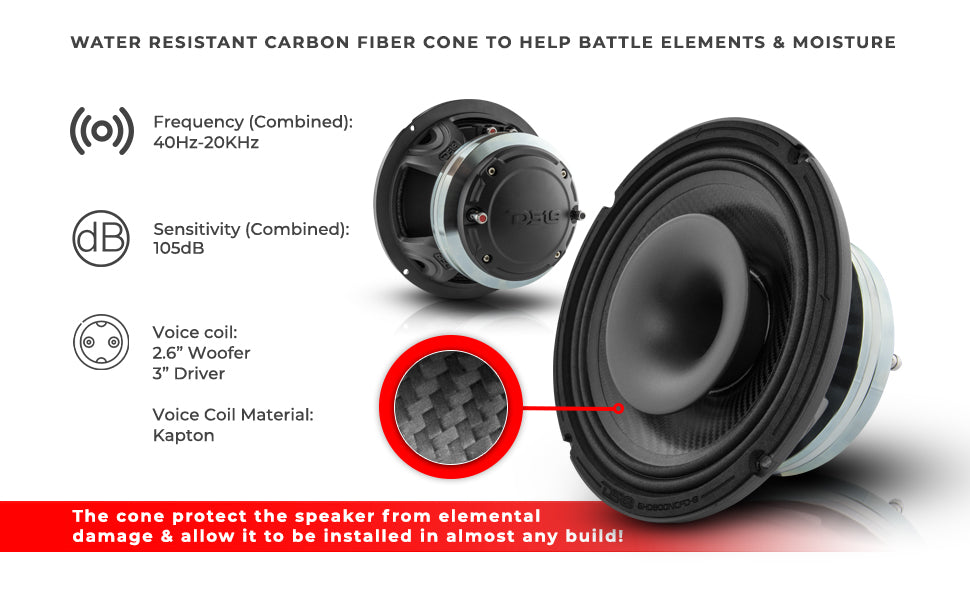

Add these speakers to any build! The water-resistant carbon fiber cone these speakers come equipped with protect them from elemental damage resulting from moisture and allow them to be installed in almost any build!
Get the best of both worlds combined into one pro audio hybrid speaker with the 8HD800NCFD-8!

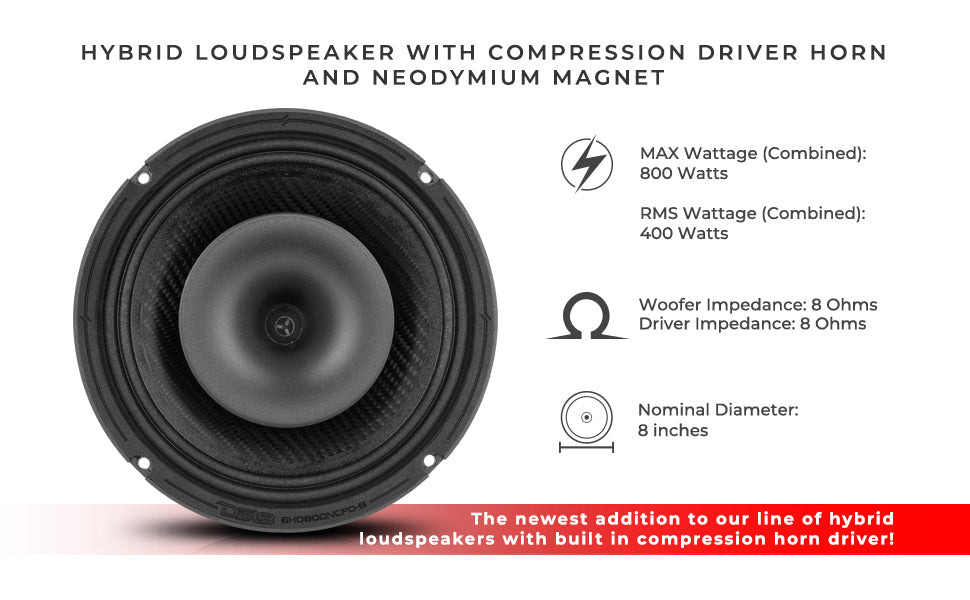

Highlights
- Hybrid design combines high wattage midrange and driver together in one beautiful frame.
- High volume 8" midrange and 3" driver rated at 400w RMS and 800 Max for crazy loud volume in a full range of frequencies.
- Midrange speaker is 8 ohms and driver is 8 ohms
- Water resistant carbon fiber cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too

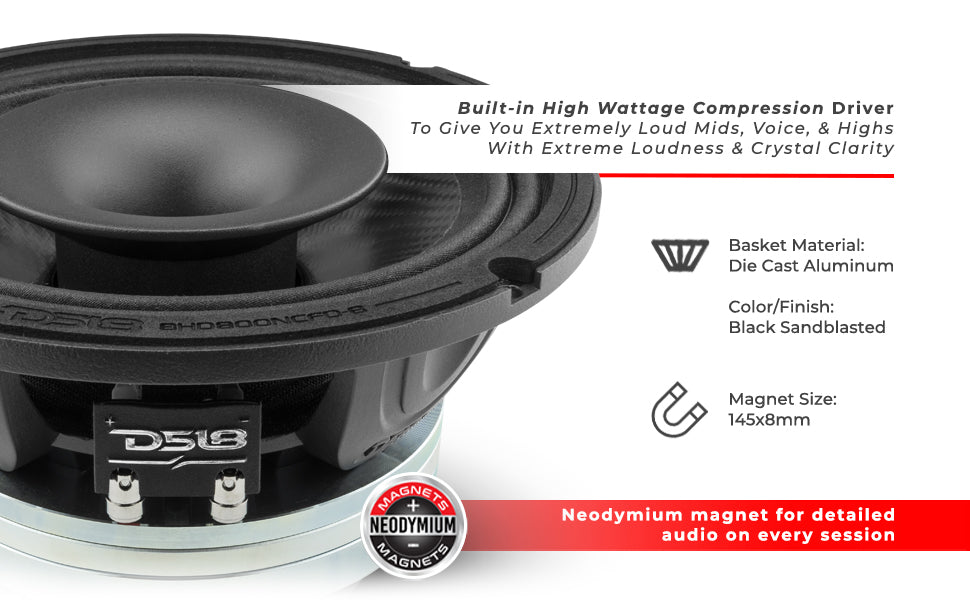

- High quality design including Diecast aluminum painted black basket with DS18 molded into the frame and high quality push terminals

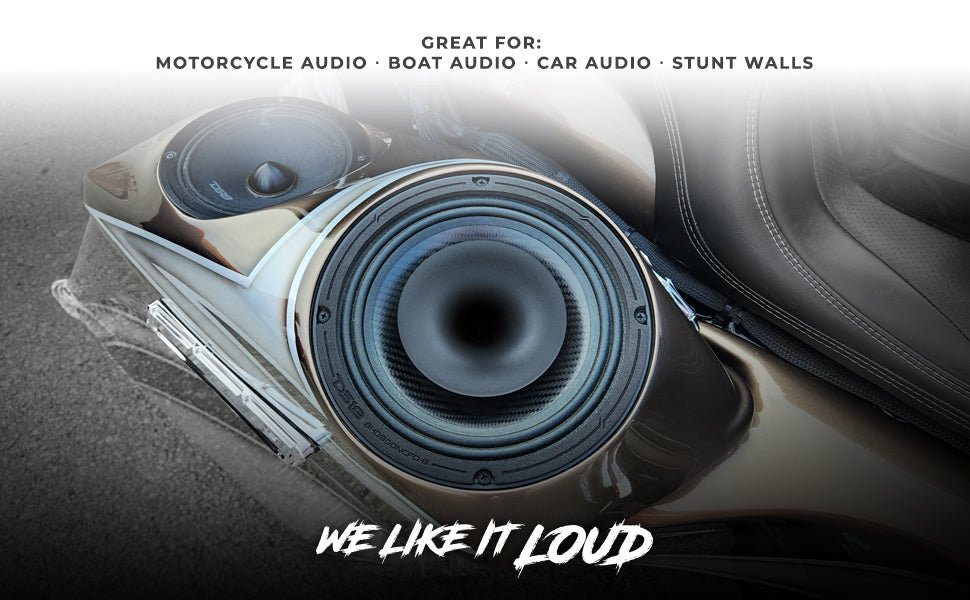

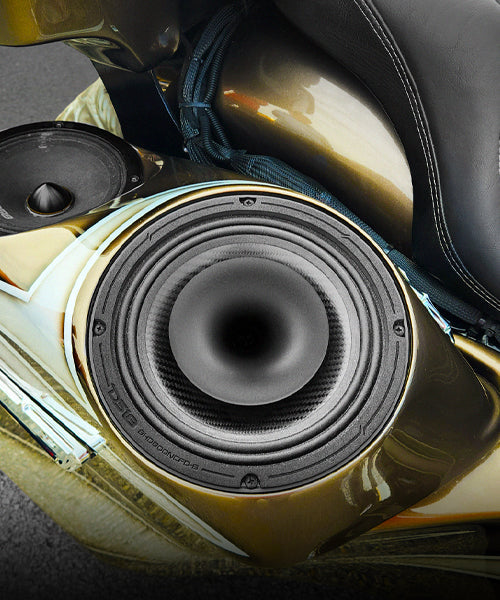

Great For
- Motorcycle Audio
- Boat Audio
- Car Audio
- Stunt Walls
Technical Details
| GENERAL SPECIFICATIONS | |
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance (Woofer / Driver) | 8 Ohms |
| RMS Power Handling (Combined) | 400W |
| MAX Power Handling (Combined) | 800W |
| Sensitivity (1w/1m) (Combined) | 105dB |
| Frequency Response (Combined) | 40Hz-20KHz |
| Number of Ways | 2 |
| Sold in Pair or Single | Singles |
| Grill Included | No |
| WOOFER SPECIFICATIONS | |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 96.5dB |
| Frequency Response | 40Hz-10KHz |
| Recommended Band-Pass Crossover | 80Hz-900Hz |
| Voice Coil Diameter | 2.6" / 66mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCAW |
| Cone Material | Water Resistant Carbon Fiber |
| Surround Material | Treated Cloth |
| Basket Material | Die Cast Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Neodymium |
| Magnet Size | 145x8mm |
| DRIVER SPECIFICATIONS | |
| AES Power handling | 150W |
| Program Power Handling | 300W |
| Sensitivity (1w/1m) | 100.5dB |
| Frequency Response | 315Hz-20KHz |
| Recommended Hi Pass Crossover | 900Hz |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCA |
| Diaphragm Material | Titanium with Polymer Edge |
| Magnet Material | Neodymium |
| Horn Diameter | 4.13" / 105mm |

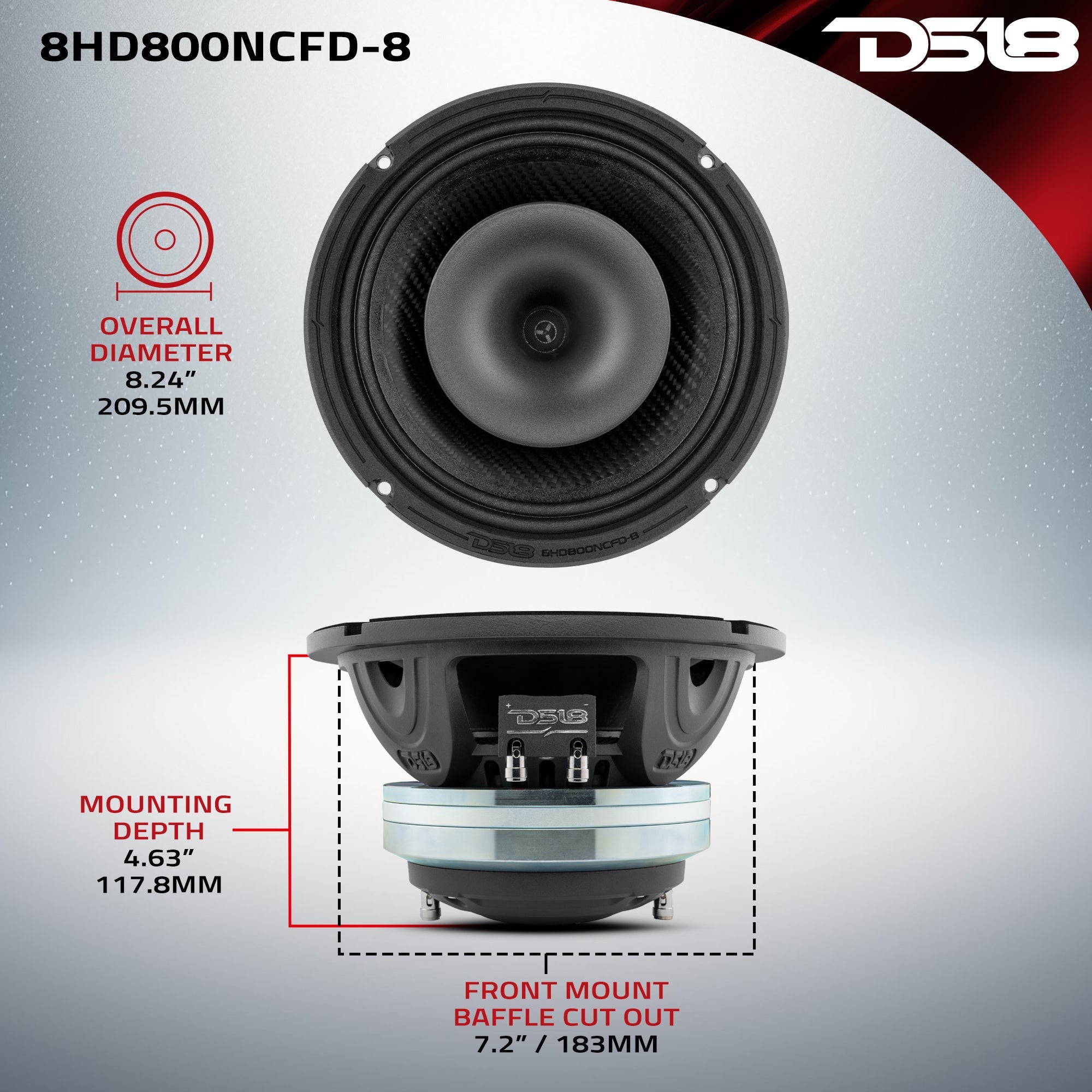

| SPEAKER MEASUREMENT | |
| Overall Diameter | 8.24" / 209.5mm |
| Overall Depth | 5" / 127.8mm |
| Front Mount Baffle Cutout | 7.2" / 183mm |
| Mounting Depth | 4.63" / 117.8mm |
| Motor Diameter | 5.7" / 145mm |
Key Features
- 8" Hybrid Mid-Bass w/Coaxial Driver
- RMS Power: 400 Watts(800 Watts Peak)
- Impedance: 8 Ohm(W) 8 Ohm(D)
- Neodymium Magnet
- Water Resistant Carbon Fiber Cone
- 105dB
Specifications
| SKU | 8HD800NCFD-8 |
|---|---|
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance (Woofer / Driver) | 8 / 8 Ohms |
| RMS Power Handling (Combined) | 400W |
| MAX Power Handling (Combined) | 800W |
| Sensitivity (1w/1m) (Combined) | 105dB |
| Frequency Response (Combined) | 40Hz-20KHz |
| Number of Ways | 2 |
| Sold in Pair or Single | Singles |
| Grill Included | No |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 96.5dB / 100.5dB |
| Frequency Response | 40Hz-10KHz / 315Hz-20KHz |
| Recommended Band-Pass Crossover | 80Hz-900Hz |
| Voice Coil Diameter | 2.6" / 66mm / 3" / 76.2mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCAW / CCA |
| Cone Material | Water Resistant Carbon Fiber |
| Surround Material | Treated Cloth |
| Basket Material | Die Cast Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Neodymium |
| Magnet Size | 145x8mm |
| Equivalent Volume - Vas | 7L / 0.247ft3 |
| Excursion (one way) - Xmax | 3.5mm |
| Free Air Resonance - Fs | 105Hz |
| Mechanical Factor - Qms | 22.78 |
| Electrical Factor - Qes | 0.4 |
| Total Factor - Qts | 0.4 |
| Mechanical Mass - Mms | 22.26g |
| Mechanical Compliance - Cms | 0.10mm/N |
| BL Factor - BL | 14.5 |
| Voice Coil Inductance - Le | 0.12mH |
| Cone Area - Sd | 219.04cm2 |
| DC Resistance - Re | 5.2 ohms |
| Mechanical Mass w/o air - Mmd | 24.32g |
| AES Power handling | 150W |
| Program Power Handling | 300W |
| Recommended Hi Pass Crossover | 900Hz |
| Diaphragm Material | Titanium with Polymer Edge |
| Horn Diameter | 4.13" / 105mm |
| Overall Diameter | 8.24" / 209.5mm |
| Overall Depth | 5" / 127.8mm |
| Front Mount Baffle Cutout | 7.2" / 183mm |
| Mounting Depth | 4.63" / 117.8mm |
| Motor Diameter | 5.7" / 145mm |
