12" Mid-Bass Loudspeaker 700 Watts Rms 8-Ohm

Availability: In stock SKU: 12PRO1400MB-8
Sale price $275.95

12" Mid-Bass Loudspeaker 700 Watts Rms 8-Ohm - DS18

12" Mid-Bass Loudspeaker 700 Watts Rms 8-Ohm

$275.95

Product Overview

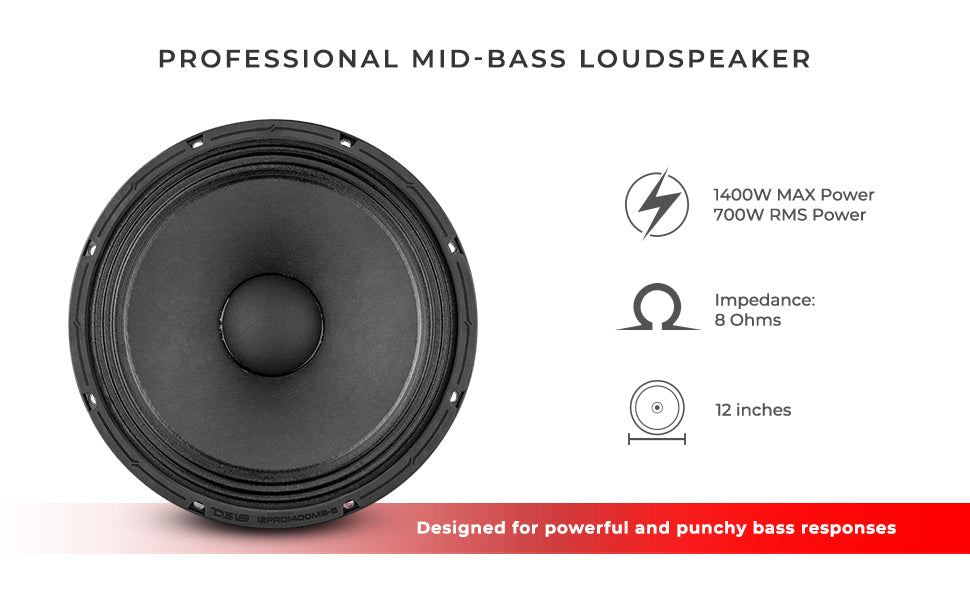

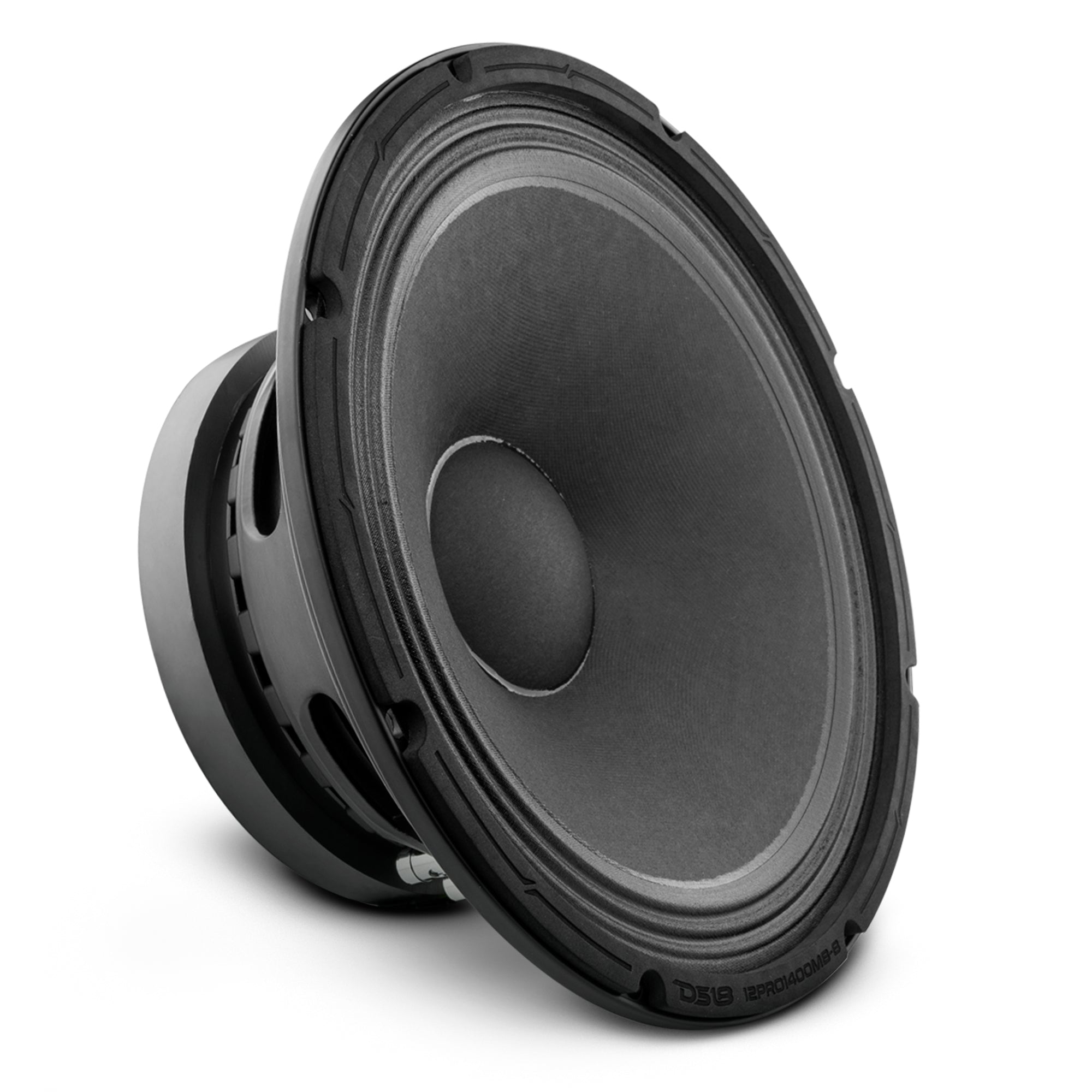

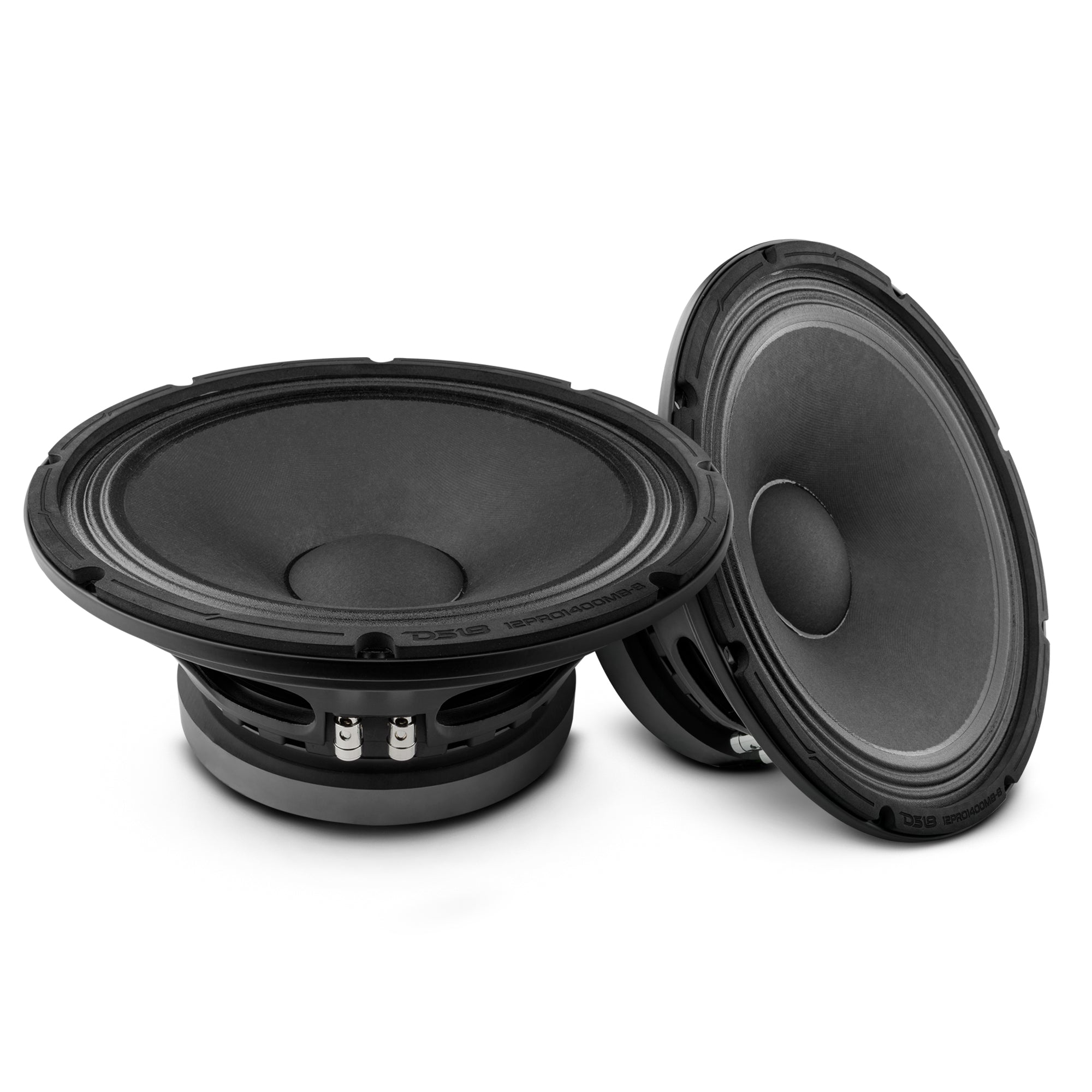

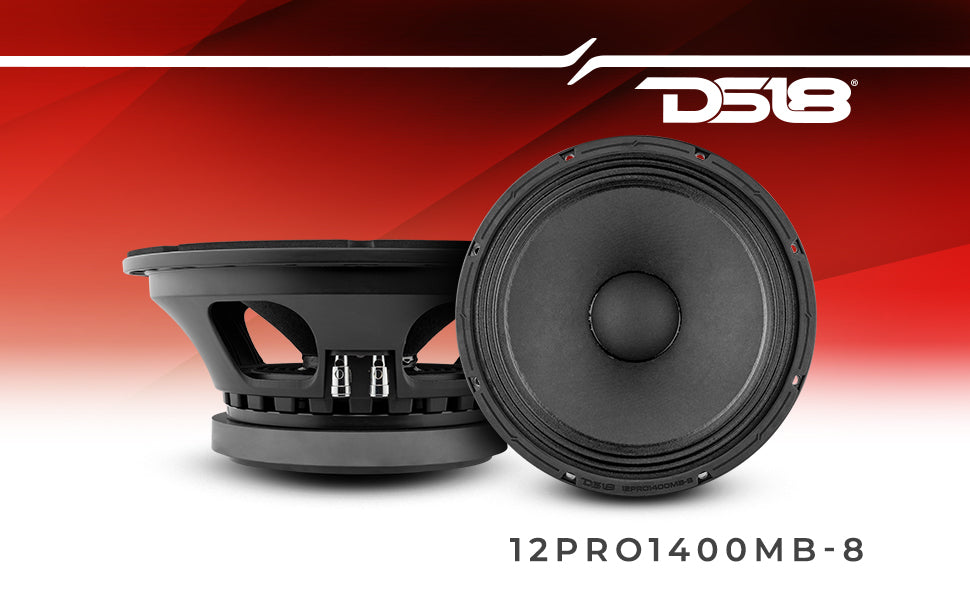

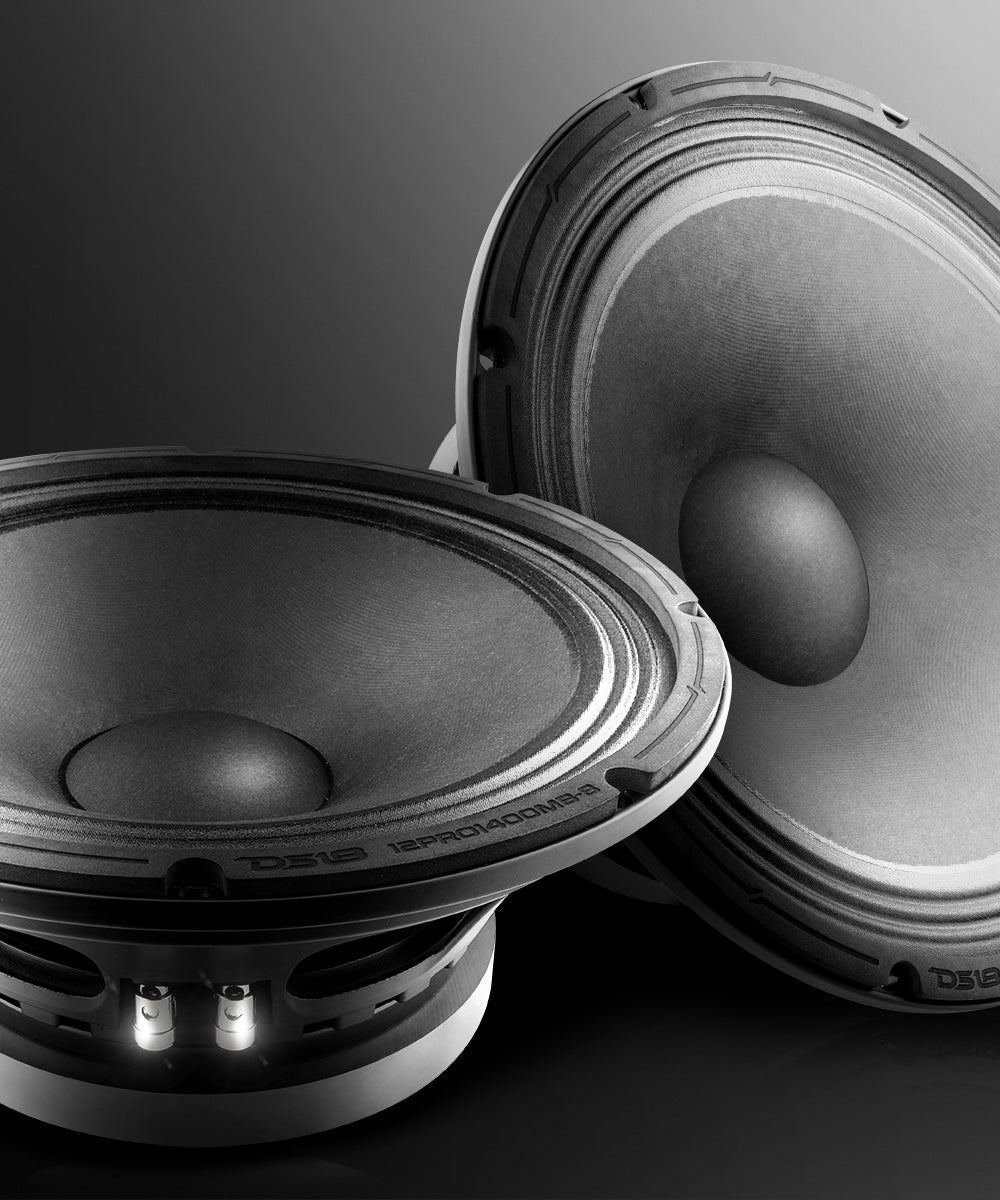

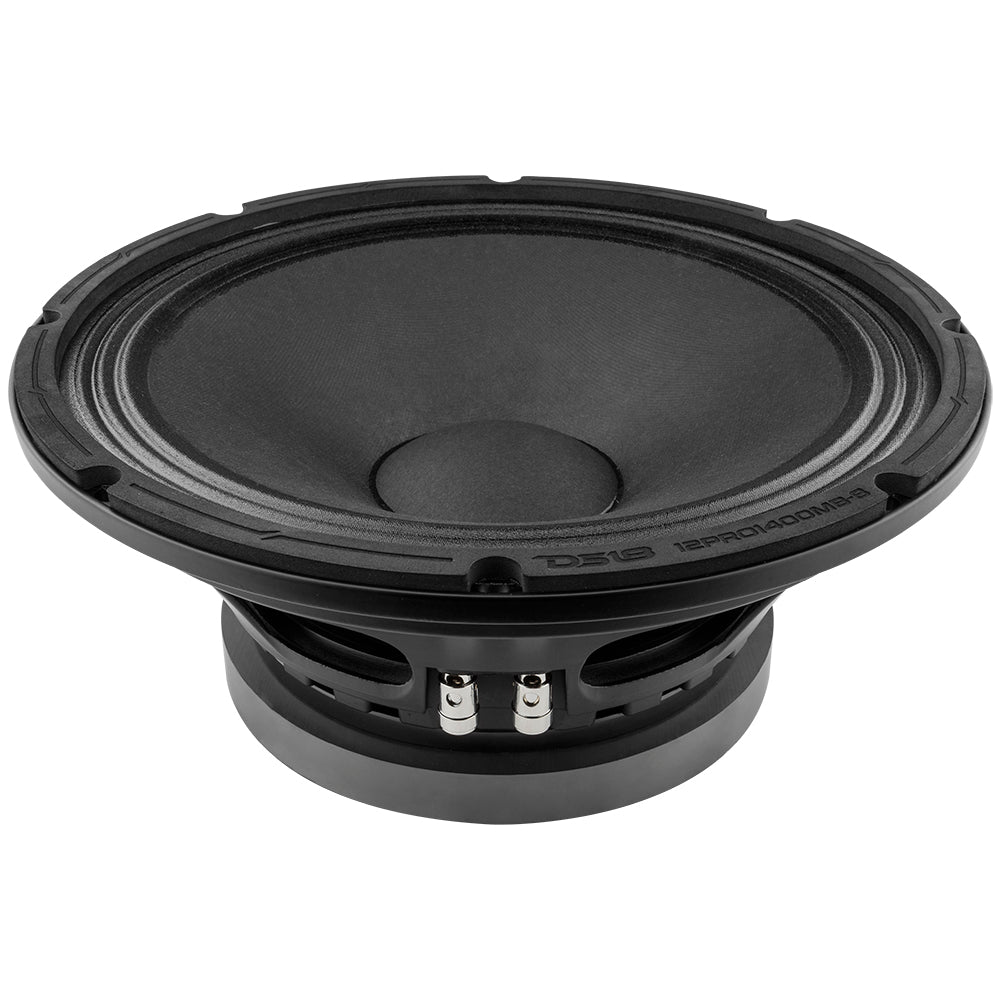

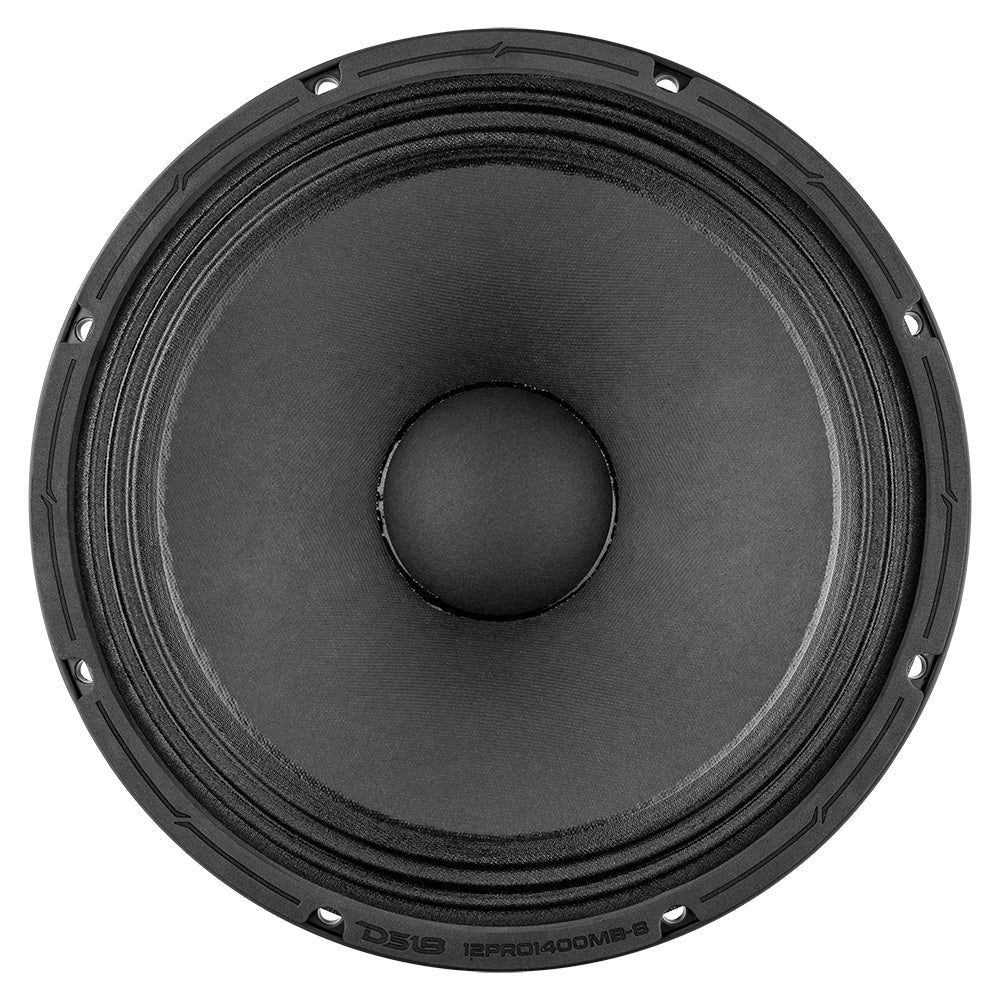

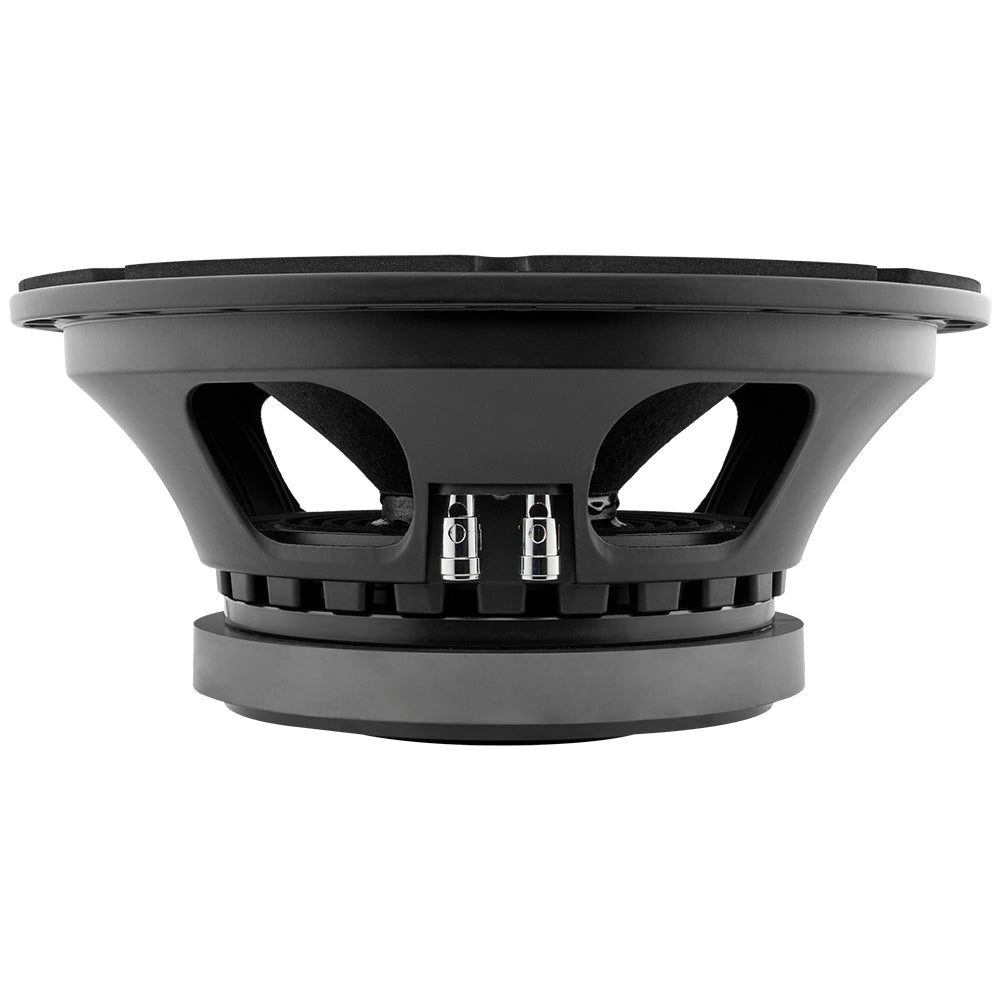

DS18 12PRO1400MB-8 12" Mid-Bass Loudspeaker 1400 Watts 8-Ohm

Immerse yourself in a world of crisp, powerful sound with DS18’s 12PRO1400MB-8! Professional Audio speakers should be engineered to slay their respective frequency ranges, and when it comes to the mid-bass range, the 12PRO1400MB-8 reigns supreme!

Featuring a design that prioritizes powerful and punchy bass responses, the 12PRO1400MB-8 can deliver crystal-clear sound without any distortion, making it an ideal choice for anyone who likes their music LOUD!

One of the standout features of these speakers is their impressive frequency response range, which spans from 50Hz to 5KHz. This means you can expect a solid mid-bass response from the 12PRO1400MB-8, essential for reproducing the lower frequencies of your music with crystal-clear clarity and impactful bass notes that truly resonate.

With an 8-ohm impedance, the 12PRO1400MB-8 reduces overall power consumption and heat generated by your system. The 12PRO1400MB-8’s interleaved (ISV) 3” voice coil handles 700W RMS and 1400W MAX power levels, an impressively manageable power setting for a speaker with an incredibly high 100 dB sensitivity! The ISV configuration on the 12PRO1400MB-8’s voice coil increases the magnetic field strength, reduces distortion, and handles higher power levels with ease. These speakers also feature double demodulating rings in their motor structure, intended to reduce intermodulation between signals and distortion.

If you're on the hunt for a professional audio speaker that plays mid-bass notes with authority, then look no further than DS18’s 12PRO1400MB-8! Don't settle for less than the best - the 12PRO1400MB-8 is the speaker you need to take your music to the next level!

Highlights

  • Double Demodulating Rings (DDR) employed to improve overall performance and quality of speakers
  • 3” interleaved sandwich voice coil (ISV) configuration employed to enhance speakers performance

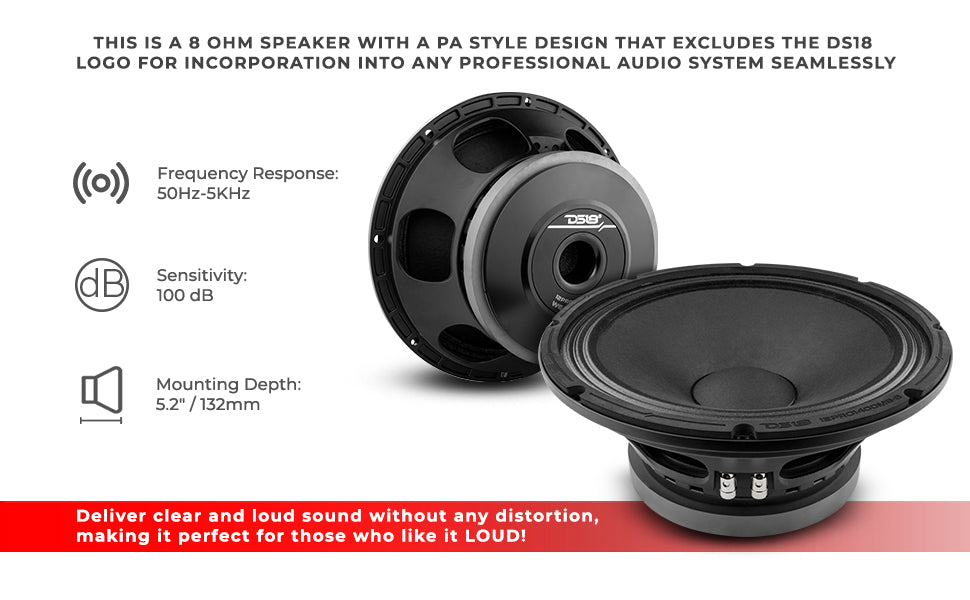

  • 50Hz – 5KHz frequency range for a multitude of tuning options to fit any systems mid-bass needs
  • Reach MAX Volume easily with an insanely high 100dB sensitivity
  • No Front Facing Logo for easy integration in all competitive builds

Great For

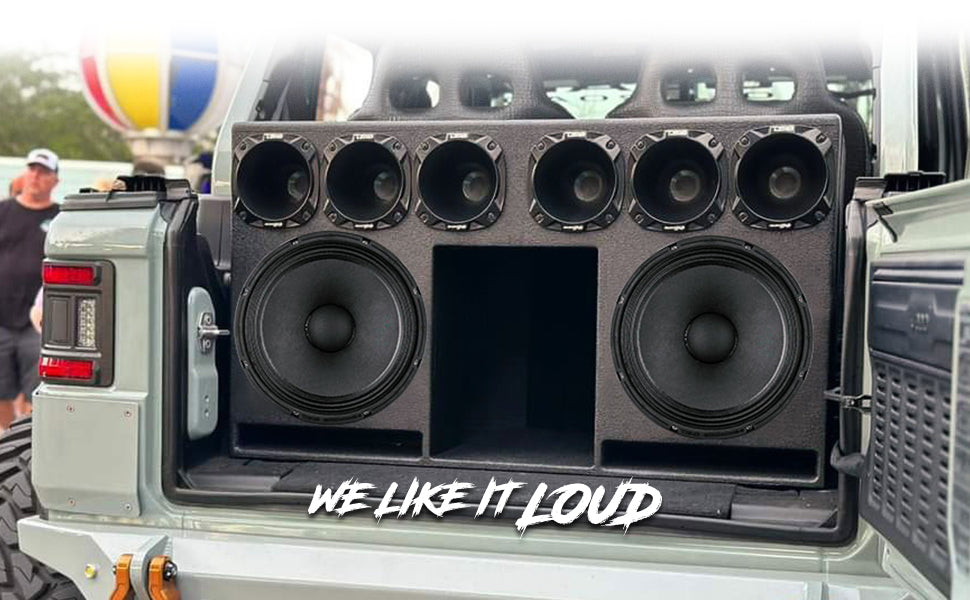

  • Car Audio
  • Pro Audio


Technical Details
SPECIFICATIONS
Nominal Diameter  12” / 300mm
Nominal Impedance  8 ohms
RMS Power Handling  700W
MAX Power Handling  1400W
Sensitivity (1w/1m)  100dB
Frequency Response 50Hz-5KHz
Recommended HI Pass Crossover 60Hz
Sold in Pair or Single single
Grill Included No
MOTOR
Voice Coil Diameter 3" / 76.2mm
Voice Coil Former Material  Fiberglass
Winding Material  Alumium
Cone Material Non-Pressed Paper
Dust Cap Material Paper
Surround Material Cloth
Basket Material  Die cast Alumium
Basket Color/Finish Black

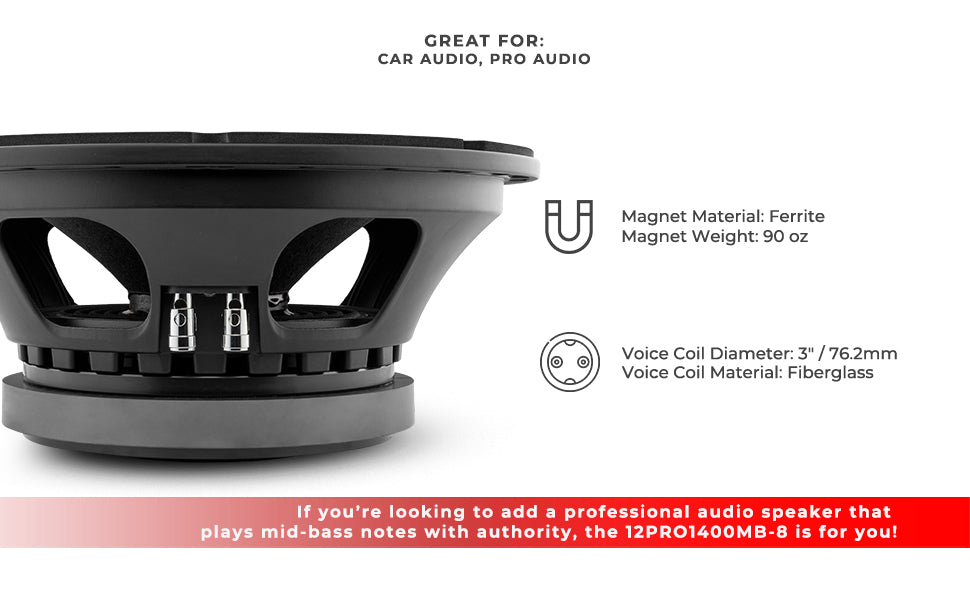

Magnet Material Ferrite
Magnet Weight 90 Oz
Displacement Volume 2.64L / 0.093ft3
MEASUREMENT

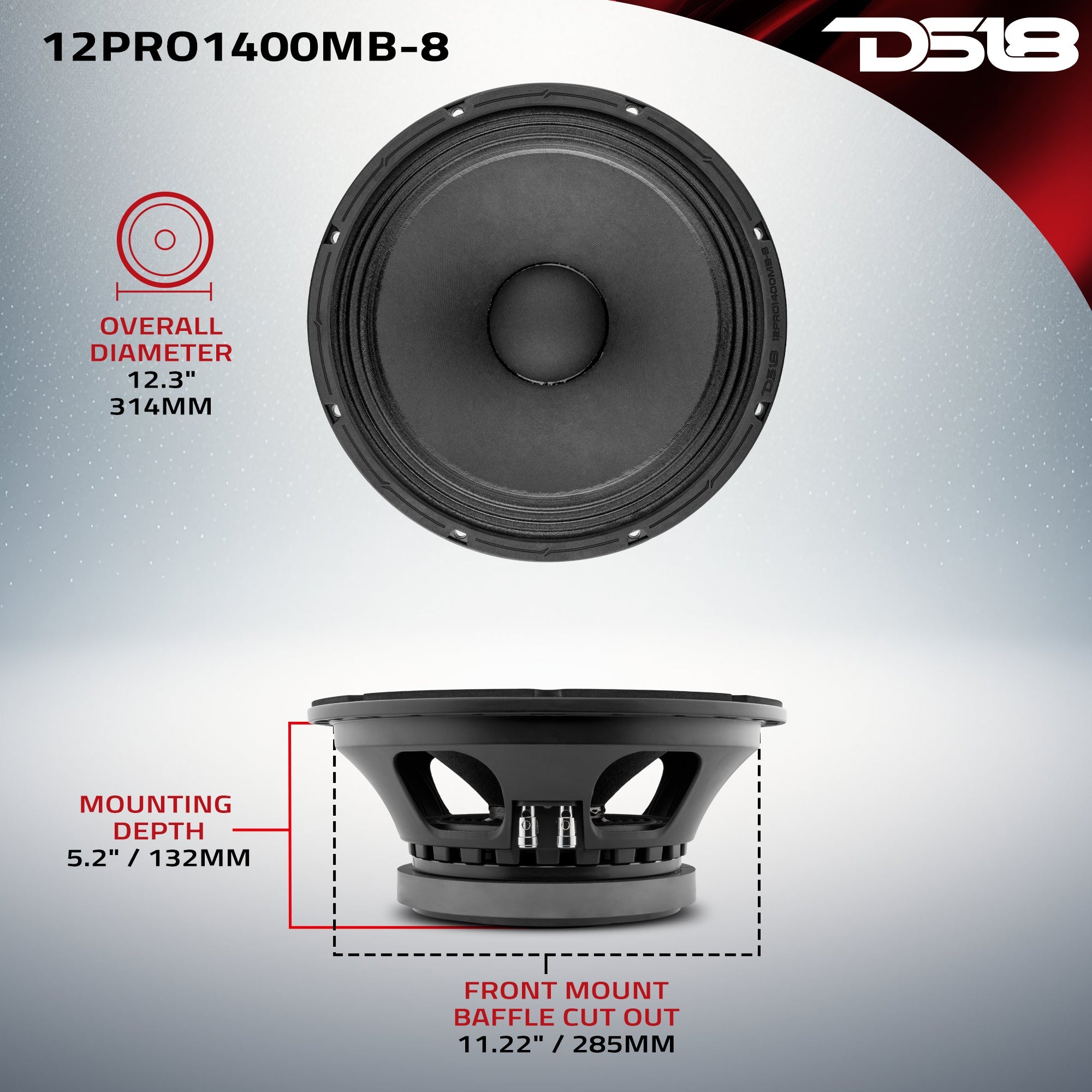

Overall Diameter 12.3" / 314mm
Overall Depth 5.74" / 146mm
Front Mount Baffle Cutout 11.22" / 285mm
Mounting Depth 5.2" / 132mm
Motor Diameter 7.87" / 200mm



Key Features

  • 12" Mid-Bass
  • MAX Power: 1400 Watts
  • RMS Power: 700 Watts
  • Impedance: 8 Ohm
  • Ferrite Magnet
  • 100dB
  • Easy repair with 12PRO1400MB-8RCK

Specifications

SKU 12PRO1400MB-8
Nominal Diameter 12" / 300mm
Nominal Impedance 8 Ohm
RMS Power Handling 700W
Maximum Power Handling 1400W
Sensitivity (1w/1m) 100dB
Frequency Response 50Hz-5KHz
Recommended HI Pass Crossover 60Hz
Sold in Pair or Single Single
Grill Included No
Double Demodulating Rings (DDR) Yes
Interleaved Sandwich Voice coil (ISV) Yes
Improved Heat Dissipation Yes
Cone Shape Curvilinear
Voice Coil Diameter 3" / 76.2mm
Voice Coil Former Material Fiberglass
Winding Material Aluminum
Cone Material Non-Pressed Paper
Dust Cap Material Paper
Surround Material Cloth
Basket Material Die cast Aluminum
Basket Color/Finish Black
Magnet Material Ferrite
Magnet Weight 90 Oz
Displacement Volume 2.64L / 0.093ft3
Equivalent Volume Vas 97.4L / 3.43ft3
Excursion (one way) Xmax 4.5 mm
Free Air Resonance Fs 49 Hz
Mechanical Factor Qms 9.08
Electrical Factor Qes 0.41
Total Factor Qts 0.39
Mechanical Mass Mms 41.619 g
Mechanical Compliance Cms 0.214 mm/N
BL Factor BL 14.64
Voice Coil Inductance Le 0.89 mH
Cone Area Sd 522.79 Cm2
DC Resistance Re 5.2 Ohm
Mechanical Mass w/o air Mmd 34.4 g
Overall Diameter 12.3" / 314mm
Overall Depth 5.74" / 146mm
Front Mount Baffle Cutout 11.22" / 285mm
Mounting Depth 5.2" / 132mm
Motor Diameter 7.87" / 200mm
Gross Single Unit Weight 8.8 Kg
Single Unit Box Dimensions W x L x H 340 x 340 x 172 mm
Quantity of Units in Master Carton 2 pcs
Gross Master Carton Weight 19.5 Kg
Master Carton Dimensions W x L x H 360 x 358 x 361 mm
