Black Diamond 1-Channel Class D Monoblock Amplifier | 2500W RMS @ 1 Ohm
Product Overview Black Diamond DIA-P2500X1DClass D Monoblock Amplifier | 2500W RMS @ 1 Ohm Get ready to...
- $299.95
- $299.95
- Unit price
- per
Subtotal:
$299.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
Black Diamond DIA-P2500X1D
Class D Monoblock Amplifier | 2500W RMS @ 1 Ohm
Get ready to feel the earth shake with the DIA-P2500X1D. This Class D monoblock amplifier delivers a massive 2500W RMS at 1 ohm, with peaks up to 7500W. Run 900W RMS at 4 ohms or 1600W RMS at 2 ohms, and bring distortion-free bass that hits deep.
Precise Sound Control

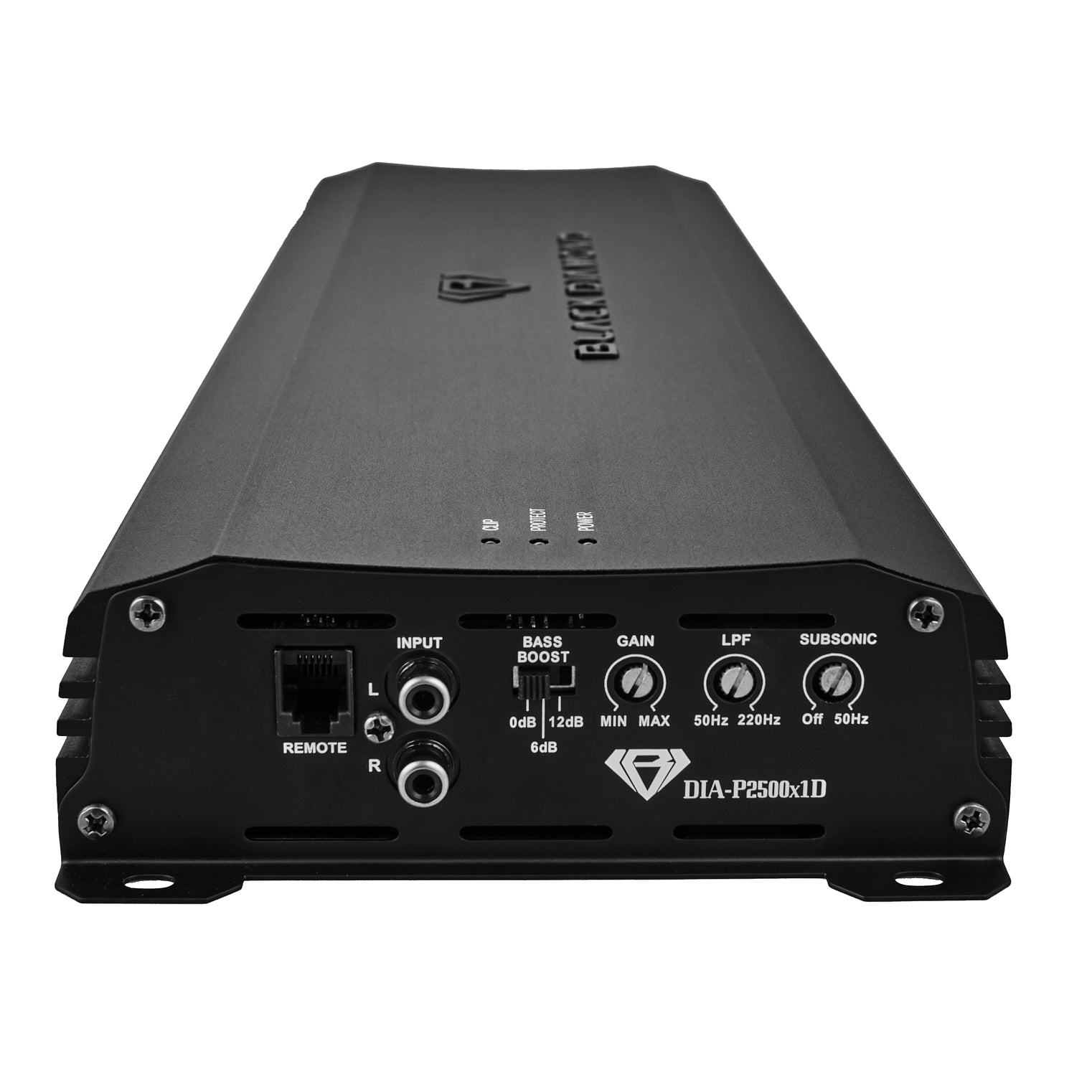

The selectable bass boost lets you dial in 0, 6, or 12dB of added punch. Plus, with adjustable subsonic (10Hz–50Hz) and low-pass filters (50Hz–220Hz), your subwoofer reproduces sound tailored to your unique vibe.
Black Diamond Durability
Engineered for stability at 1 ohm, the DIA-P2500X1D thrives in high-demand SPL setups. Its rugged monoblock design features a massive heatsink for superior cooling during marathon sessions. Thermal, overload, DC output, and short circuit protections keep your system safe and sound.
Compact Yet Powerful
Measuring just 21.2” long with a 19.68” heatsink, this amp fits easily in most car builds. It’s the perfect blend of brute power and smart design.
DS18’s DIA-P2500X1D is the ultimate weapon for bringing chest-rattling lows to your ride!
Key Features
- RMS Power: 900W RMS @ 4 Ohms / 1600W RMS @ 2 Ohms / 2500W RMS @ 1 Ohm
- Built for SPL
- Sound Customization
- Compact & Rugged
- Efficient Class D Technology
Specifications
| Total Watts (Peak) | 7500W |
|---|---|
| RMS Power @ 4 ohm | 900W |
| RMS Power @ 2 ohm | 1600W |
| RMS Power @ 1 ohm | 2500W |
| RMS Power @ 4 ohm Bridge | - |
| Frequency Response | 10 - 300Hz |
| Signal to Noise Ratio | >95dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2v - 6v |
| High Level Input | No |
| Selectable X-Over | Fixed LPF |
| X-Over Filter Range | 50~220 Hz |
| Bass Boost Range | 0/6/12 dB |
| Bass Boost Frequency | 40Hz |
| Infrasonic Filter | 10~50 Hz |
| Amplifier Class | Digital |
| Amplifier Type | MonoBlock Subwoofer |
| Number of Channels | 1 Channel |
| Minimum Impedance | 1 ohm |
| Led Indicator | Power/Protect/Clipping |

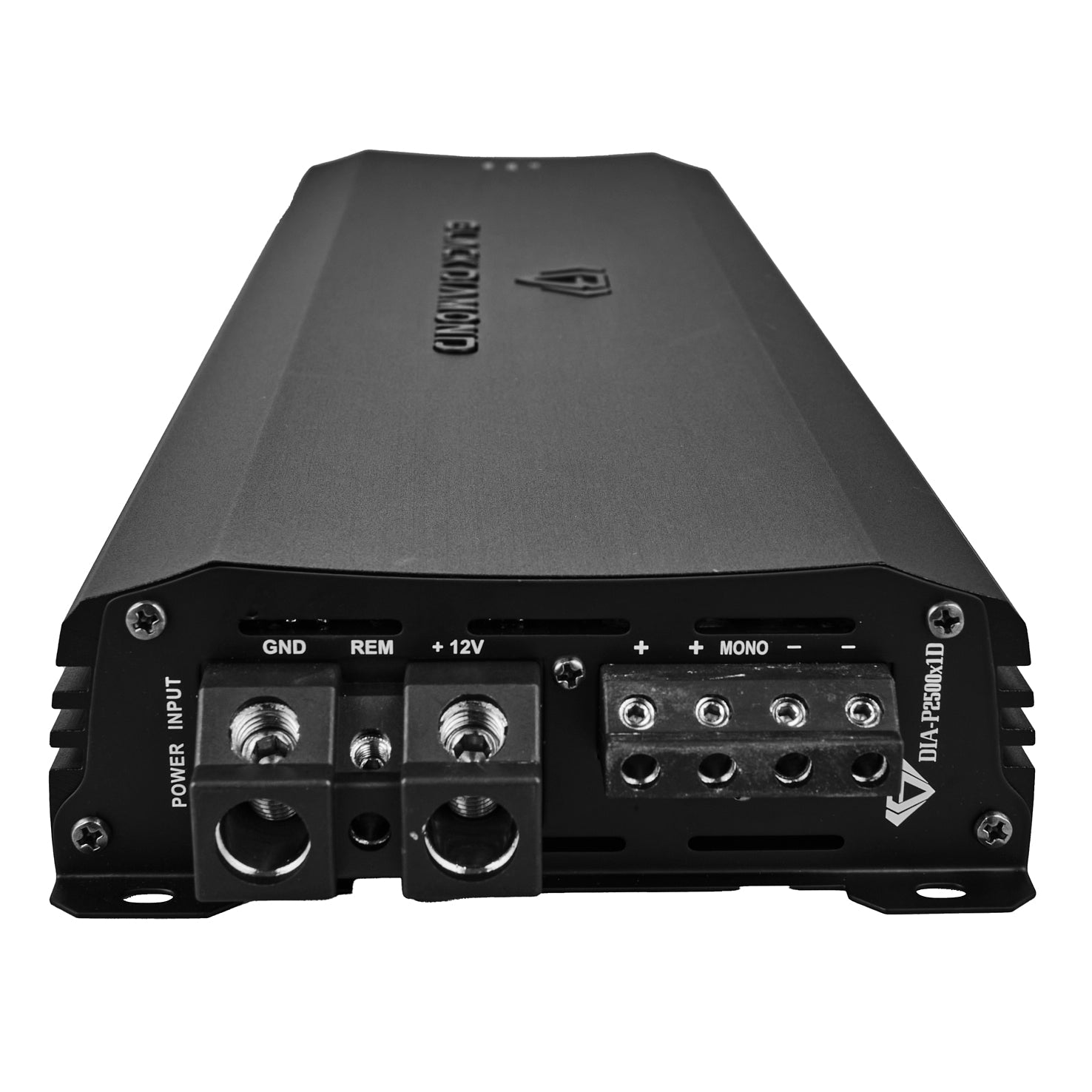

| Power Input Terminal Size | 2/0Ga |
| Fuse Size | 250A |

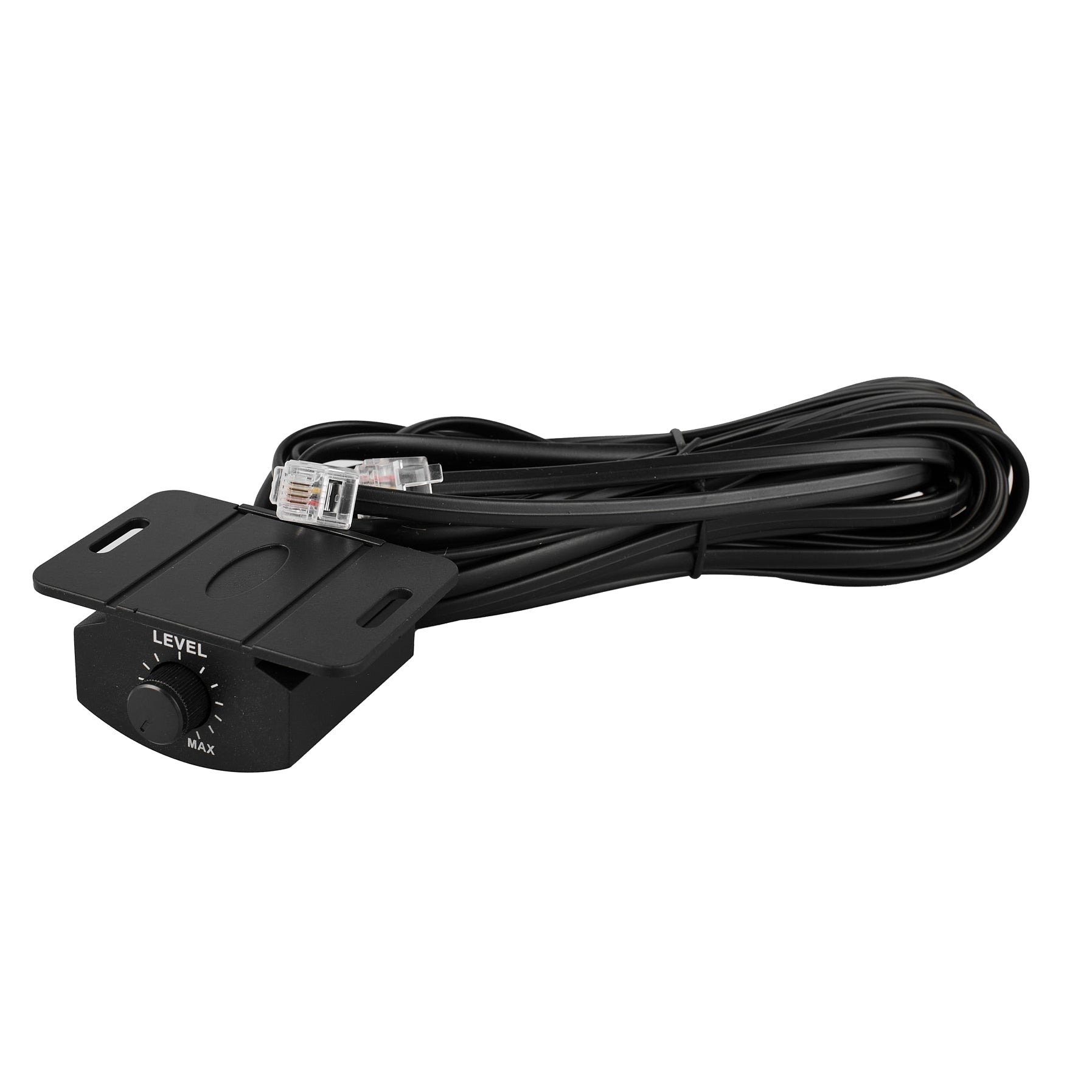

| Remote Level Control | Yes / Dash Mount |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes <9 / >16 Volts |
| Clipping Protection | Yes |
| Body Color / Finish | Black / Satin |
| Overall Length | 21.2" / 540mm |
| Overall Wide | 6.18" / 157mm |
| Overall Height | 2" / 52.8mm |
| Heatsink Length | 19.68" / 500mm |
