DX 6.5" 3- Way Component Speaker System With Kevlar Cone 290 Watts Rms 4-Ohm
Product Overview DS18 DX3 Kevlar 6.5” 3 Way Premium Quality Car Component Speaker System 580 Watts 4-Ohm...
Vendor:
DS18
Manufacturer SKU
DX3
Availability:
Out Of Stock
Product Type:
Component Speaker Systems
- $699.95
- $699.95
- Unit price
- per
Subtotal:
$699.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview

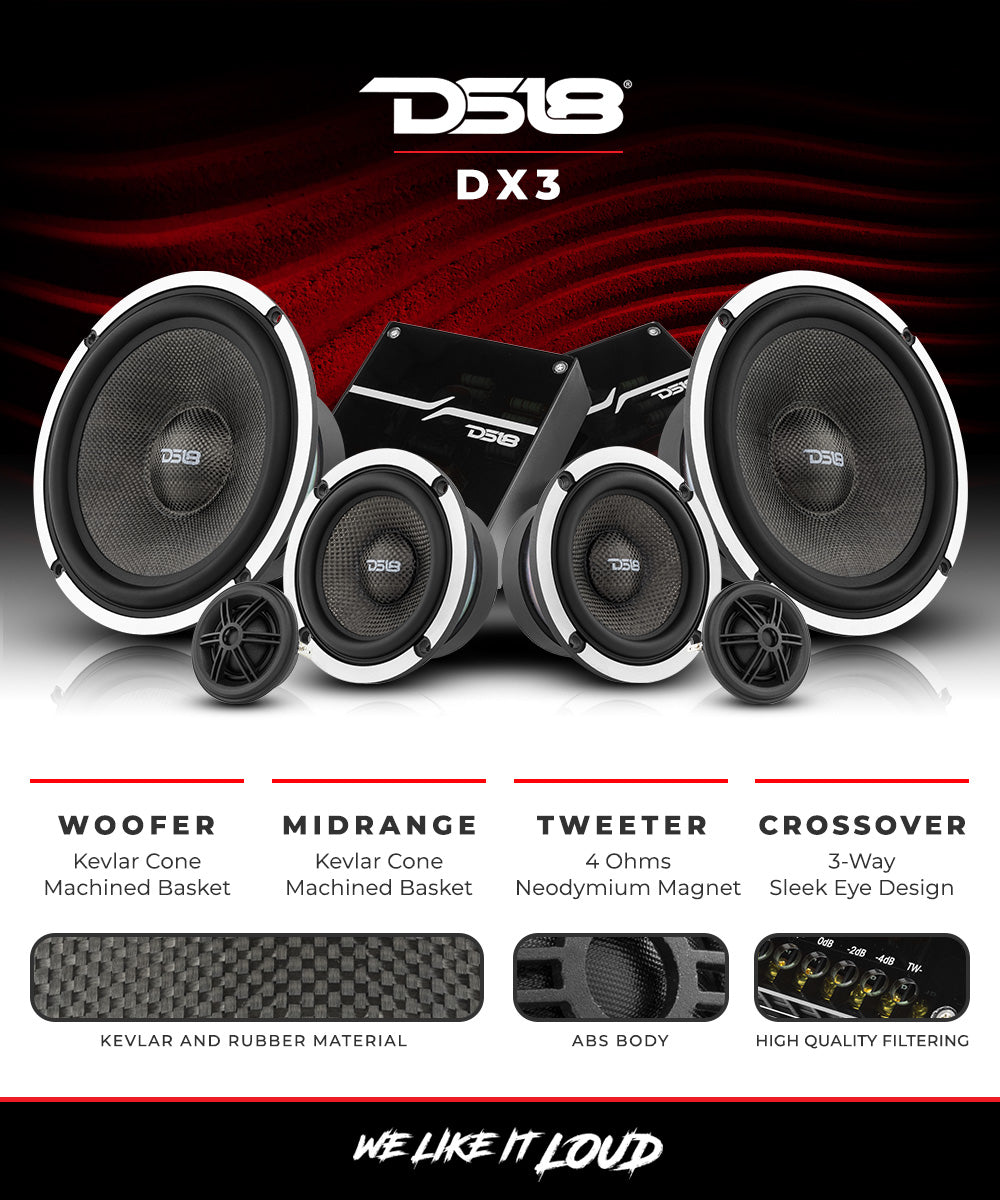

DS18 DX3 Kevlar 6.5” 3 Way Premium Quality Car Component Speaker System 580 Watts 4-Ohm
It’s the ultimate package for superior sound quality in your Car. Every piece of equipment you need to properly blast your Tunes comes included in this DS18 DX3 6.5” 3 Way Premium Quality Car Component Speaker System. Support for low frequencies is handled by two DX3W 6.5-inch woofers covered in Kevlar with an aluminum basket and ferrite motor. Handling the highs are two DX3T 1.18" Neodymium tweeters that complement sound with crisp and clear audio that will rock your socks off. Let’s not forget about the DX3M 3.5" mid which ushers in the best and purest vocals to complete the experience. Everything is in your control with the DX3C 3-way passive crossover which separates sounds from each individual device. Wattage and frequency are clearly distinct so each component can produce its best possible sound.
Highlights

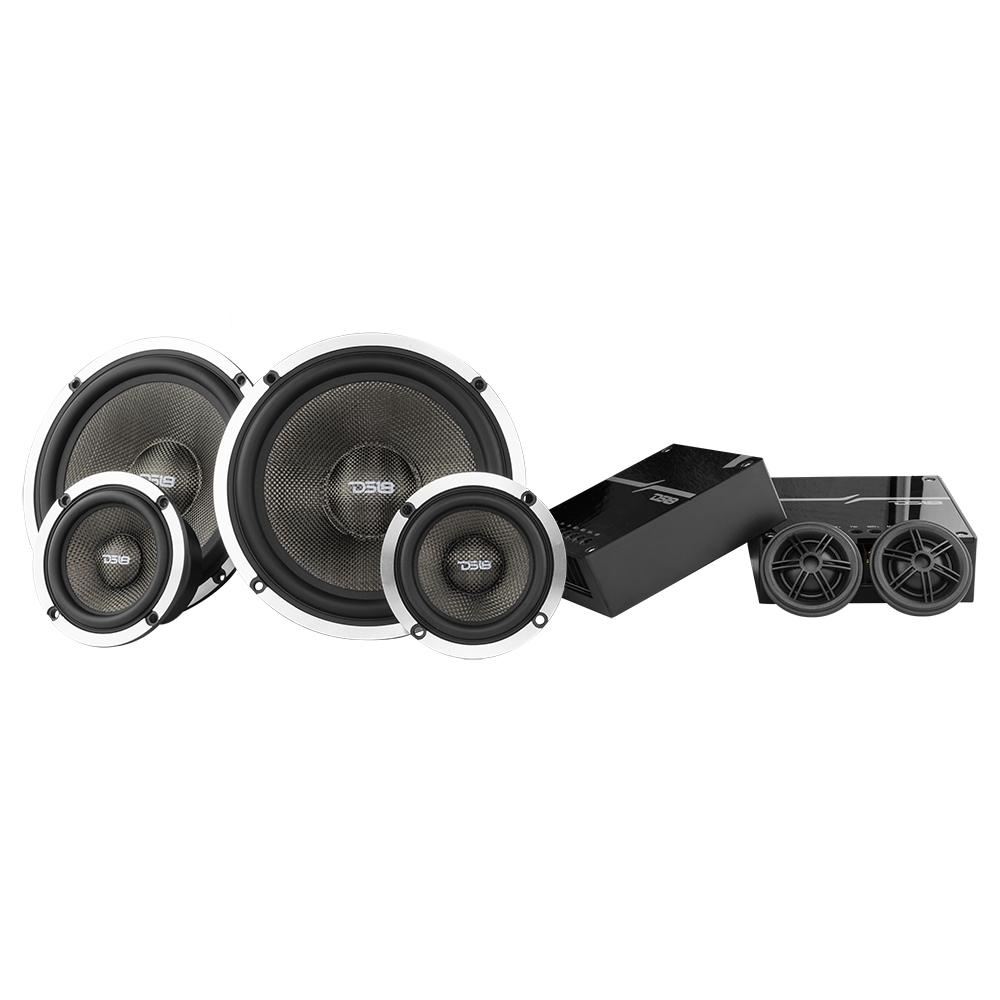

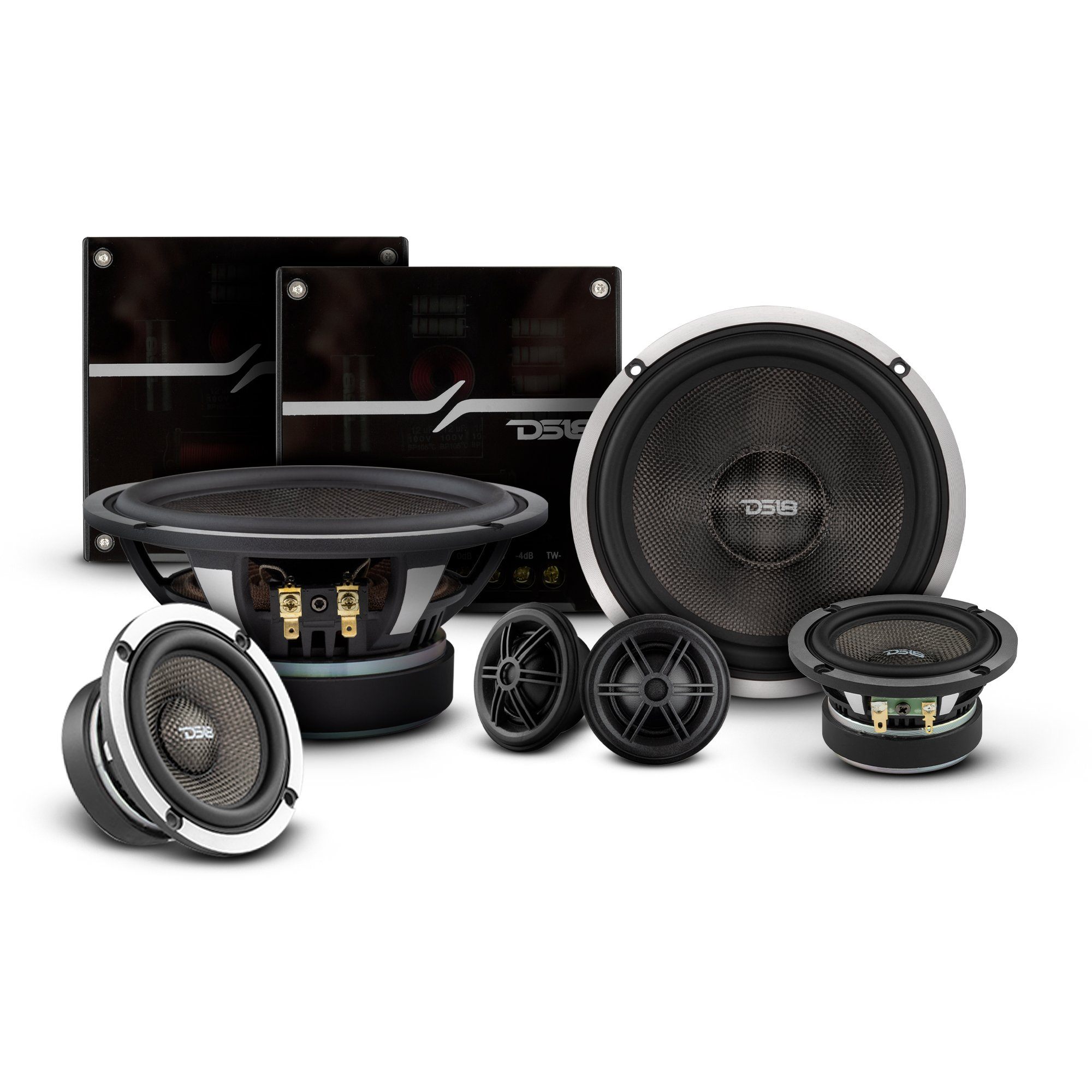

- Comes with two DX3W 6.5-inch woofers, two DX3T 1.18" tweeters, two DX3M 3.5 inch midranges, and two DX3C passive 3-way crossovers
- Sound is separated to allow for premium audio production from each component
- Made from quality Kevlar and rubber material that will last a lifetime
- Tweeter Uses Neodymium magnets which boost clarity and power

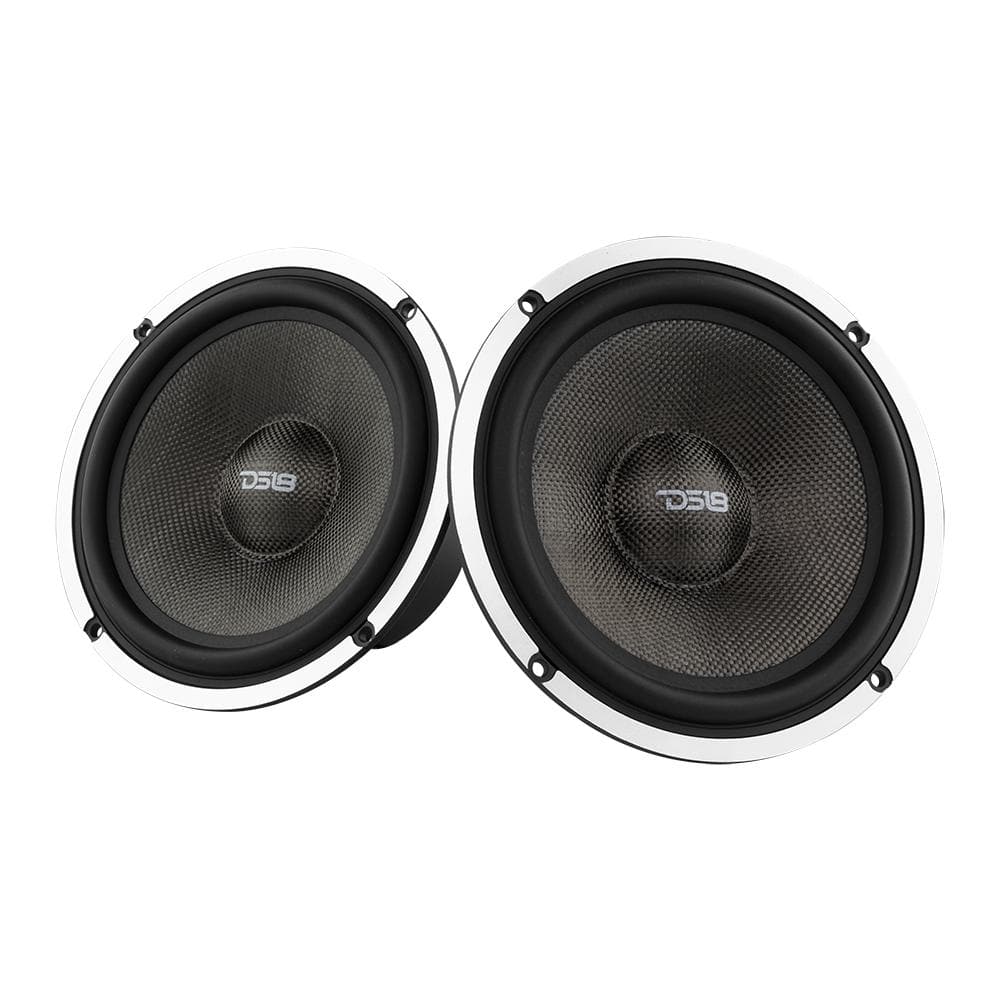

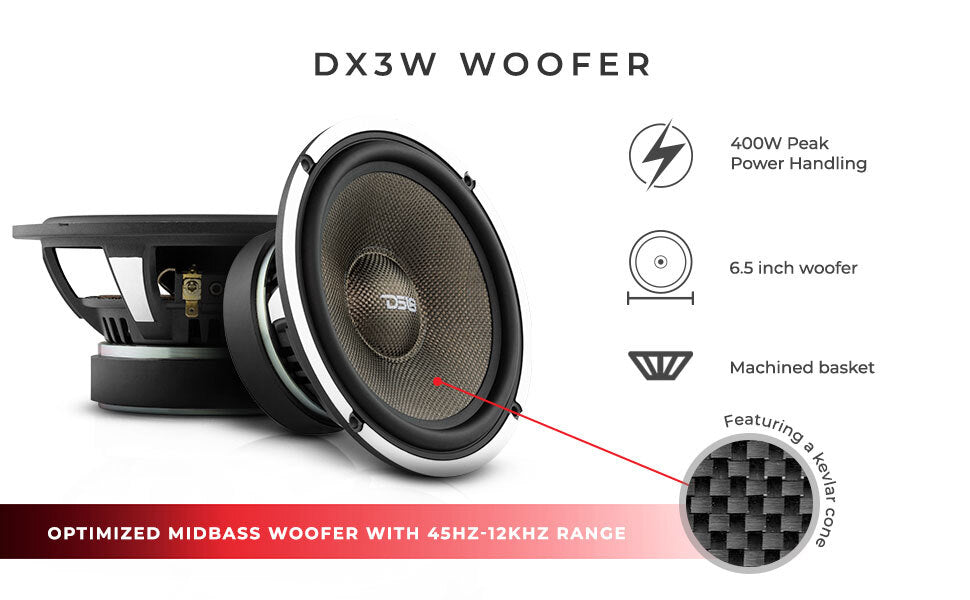

DX3W Woofer Key Features
- 6.5” Kevlar Woofer
- Peak Power Handling: 400 Watts
- AES Power Handling: 100 Watts
- Frequency Response: 50Hz-12Khz
- Voice Coil Diameter: 1.2”
- Impedance: 4-Ohms
- Sensitivity (1W/1M): 89dB
- Magnet Weight: 20 Oz
- Magnet Material: Ferrite
- Mounting Depth: 2.85”

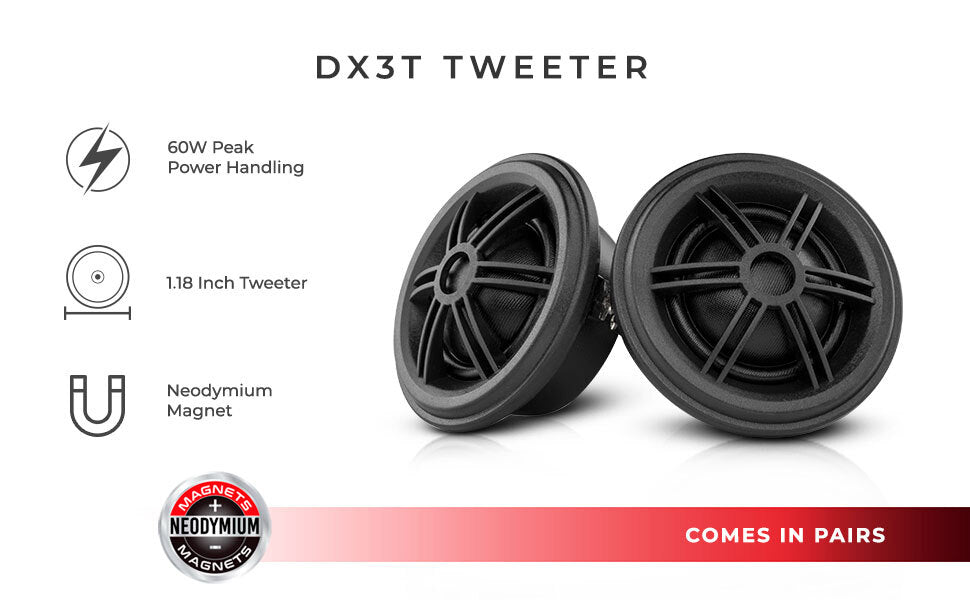

DX3T Tweeter Key Features
- 1.18” Tweeter
- Peak Power Handling: 60 Watts
- AES Power Handling: 15 Watts
- Frequency Response: 800Hz-20Khz
- Voice Coil Diameter: 0.98”
- Impedance: 4-Ohms
- Sensitivity (1W/1M): 90dB
- Magnet Weight: 14 Oz
- Magnet Material: Neodymium
- Mounting Depth: 0.7”

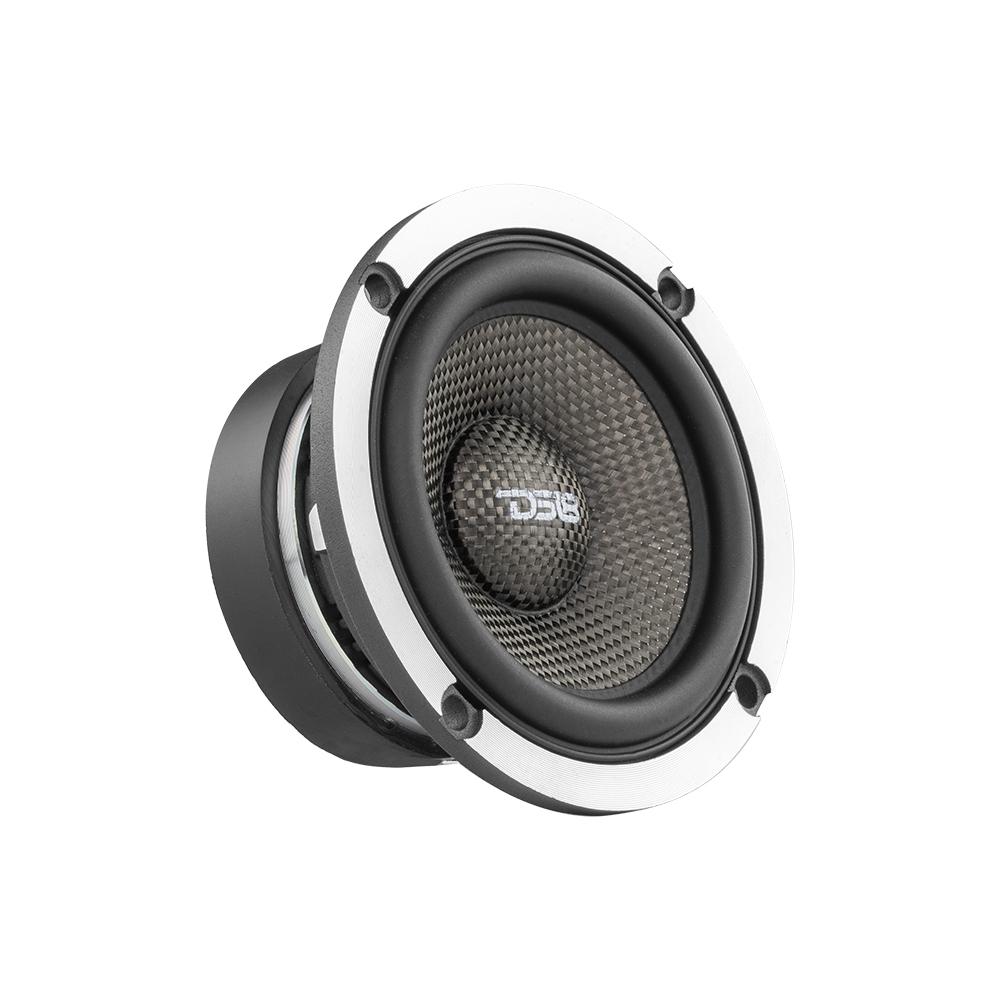

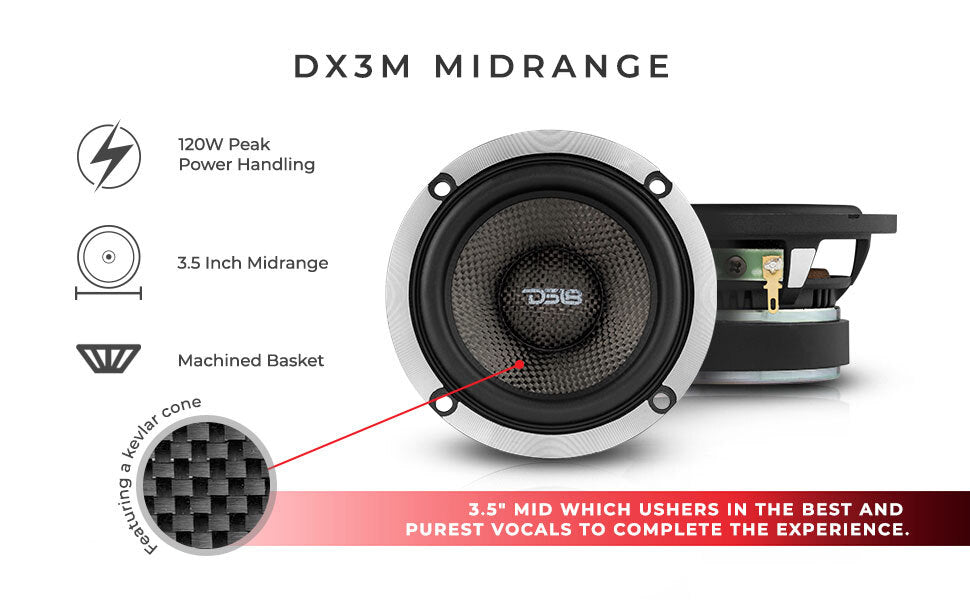

DX3M Midrange Key Features
- 3.5” Midrange
- Peak Power Handling: 120 Watts
- AES Power Handling: 30 Watts
- Frequency Response: 85Hz-20Khz
- Voice Coil Diameter: 1”
- Impedance: 4-Ohms
- Sensitivity (1W/1M): 89.4dB
- Magnet Weight: 5.5 Oz
- Magnet Material: Ferrite
- Mounting Depth: 1.59”

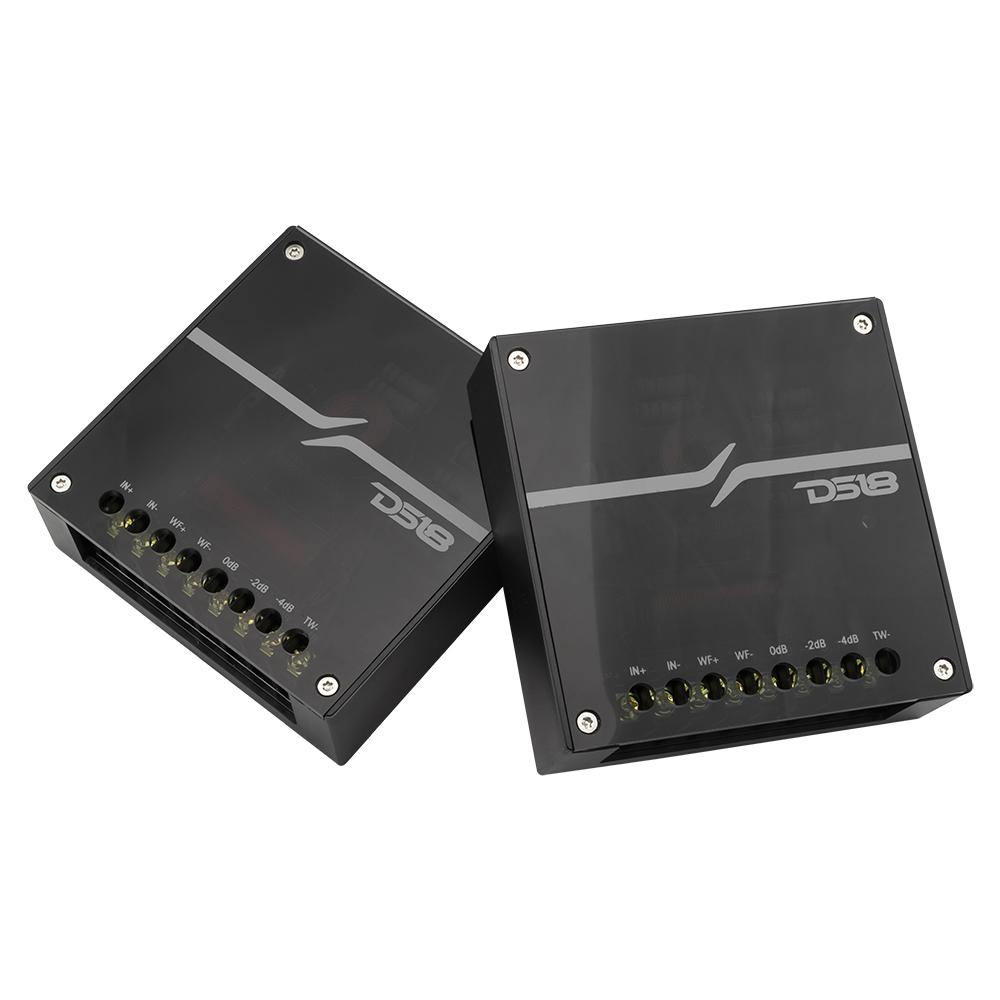

DX3C Crossover Key Features
- Passive Crossover Ways: 3 Ways
- Frequency Crossover: 800HZ (Mid) 3.8 Khz (Tw)
- Power Handling: 300 Watts
- Cut Off Slope: 6dB (Mid) 12dB (Tw)/ Oct
- Tweeter Attenuation: (+/-) 3dB
Enjoy rich and quality audio with the DX3 3 Way Premium Quality Car Component Speaker System and order yours today!
Technical Details
Ecl07056tj000001s6h66c5hc5EKey Features
- 6.5" 3-Way Component System
- MAX Power: 580 Watts
- RMS Power: 290 Watts
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Pair ~ Crossover ~ 89dB
Specifications
| Diameter | 6.5" / 1.18” / 3.5” |
|---|---|
| Peak Power Handling | 400 Watts / 60 Watts / 120 Watts |
| Program Power Handling | 200 Watts / 30 Watts / 60 Watts |
| AES Power Handling | 100 Watts / 15 Watts / 30 Watts |
| Frequency Response | 50Hz-12Khz / 800Hz-20Khz / 85Hz-20Khz |
| Voice Coil Diameter | 1.2” / 0.98” / 1” |
| Impedance | 4 Ohm |
| Sensitivity (1W/1M) | 89dB / 90dB / 89.4dB |
| Magnet Weight | 20.2 Oz / 14 Oz / 5.5 Oz |
| Magnet Material | Ferrite / Neodymium |
| Mounting Depth | 2.85” / 0.7” / 1.59” |
| Passive Crossover Ways | 3 Ways |
| Frequency Crossover | 800HZ (Mid) 3.8 Khz (Tw) |
| Power Handling | 300 Watts |
| Cut Off Slope | 6dB (Mid) 12dB (Tw)/ Oct |
| Tweeter Attenuation | (+/-) 3dB |
