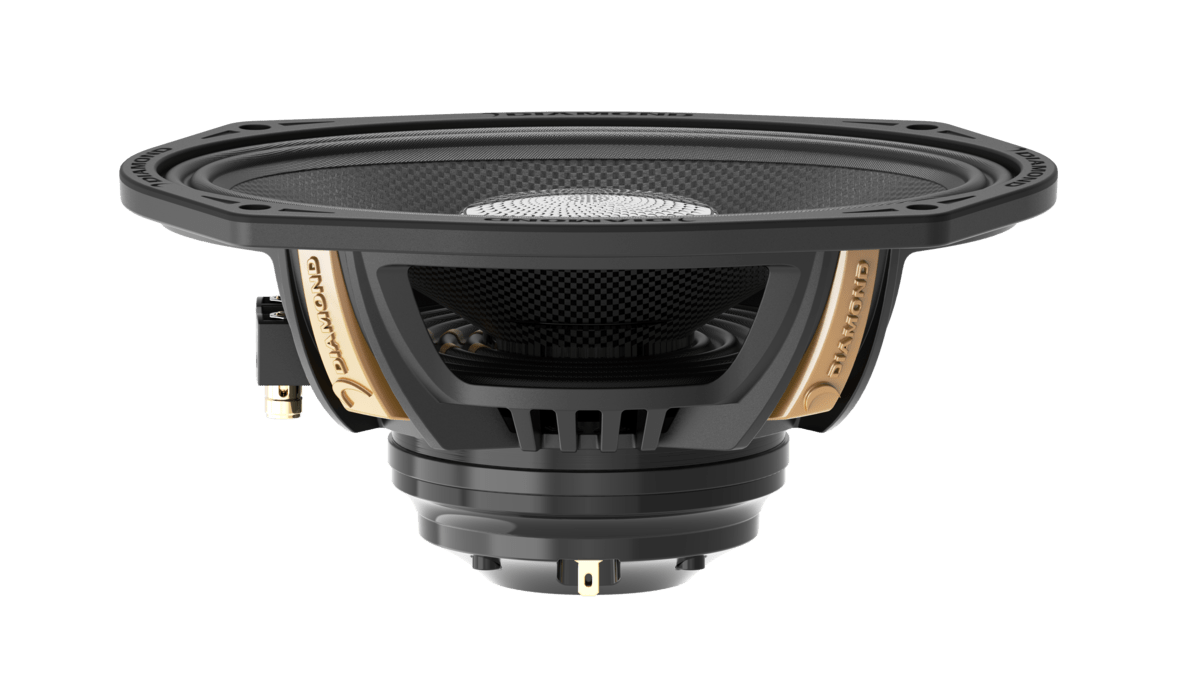

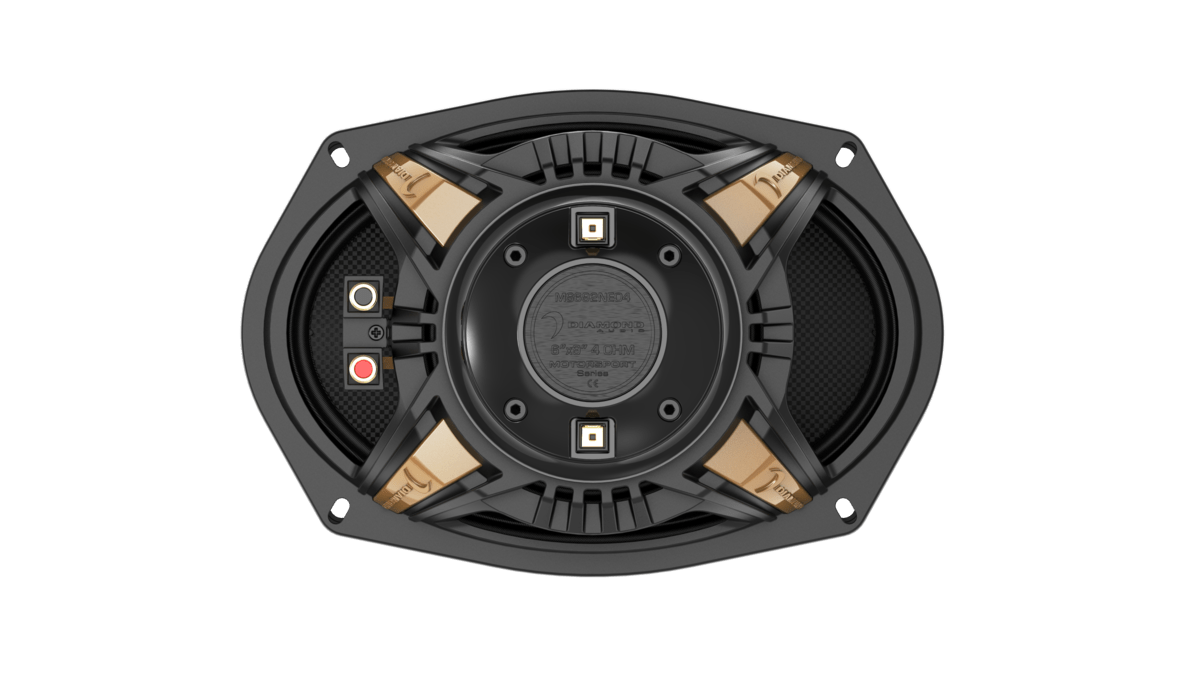

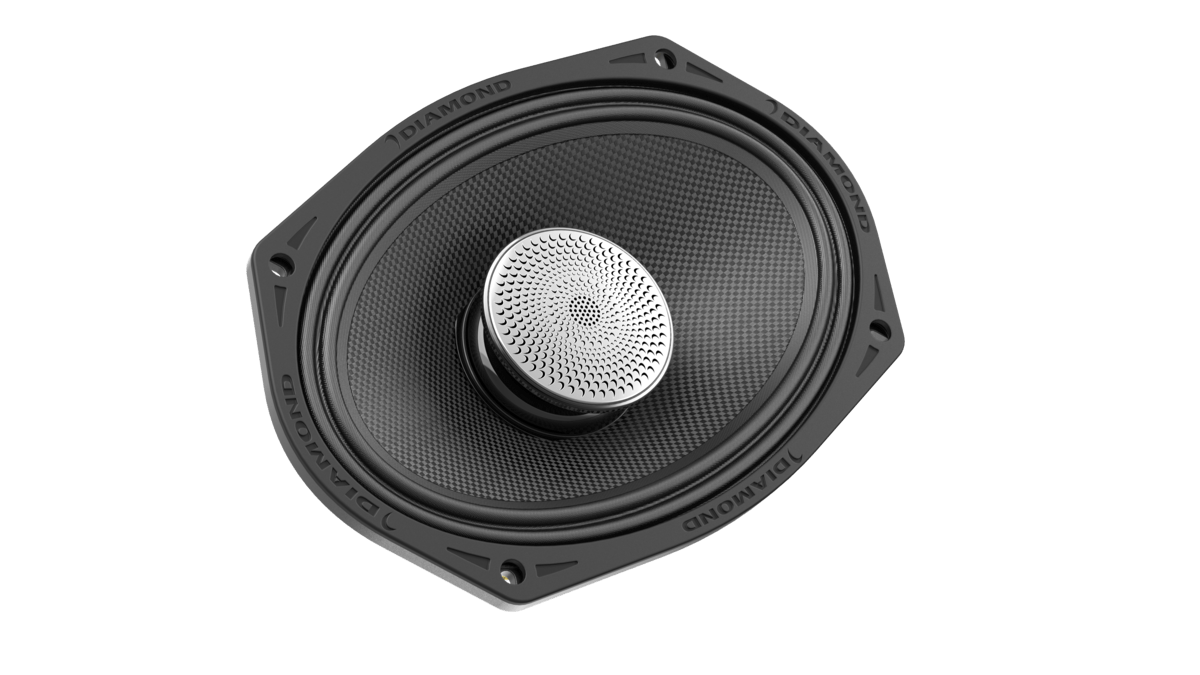

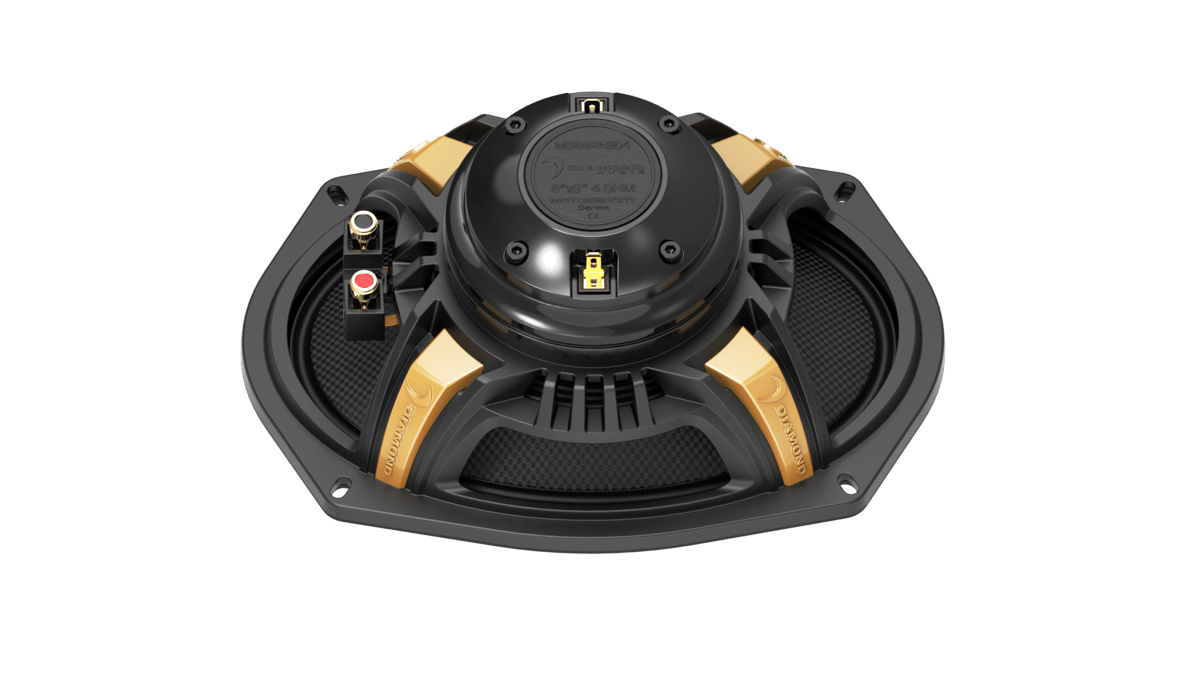

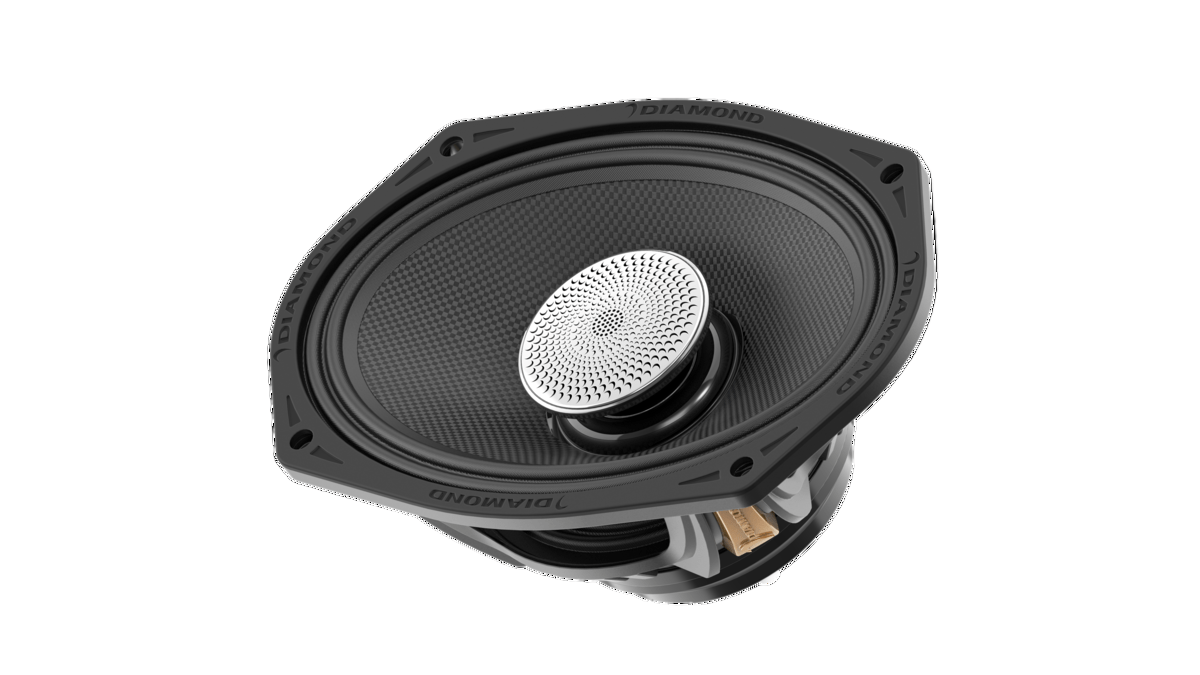

MS692NEO4 - NEO SERIES 6"x9" 2-WAY CO-AXIAL SPEAKERS (4 ohm )

Step into the future of sound with Diamond Audio's NEO Series Coaxial Drivers - the pinnacle of audio innovation. At Diamond Audio, we're driven by a relentless passion for perfect sound. That's why we've reimagined the legendary Coaxial horn driver with our latest NEO Series, combining the best features of our NEO midbass and midrange drivers with our exclusive waterproof horn technology. The result? Unparalleled sound quality, exceptional output, and effortless installation.

Every element of these drivers is crafted to the highest standards, from the premium voice coils and advanced motor structures to the rock-solid basket design, flexible bi-amp capabilities, and waterproof components. These speakers don't just play music - they transform your listening experience into something extraordinary. If you've heard our MS NEO drivers before, get ready for a whole new level of sonic brilliance.

Don't settle for ordinary sound. Choose Diamond Audio's NEO Series Coaxial Drivers - because your music deserves the best.

Features

Specifications

SENSITIVITY (1W/1M): 94
RE ( ohm ) [SERIES]: 3.2
QMS: 7.368
QES: 0.597
QTS: 0.552
FS (HZ): 104
VAS (L): 9
CMS (MM/N): 0.148
MMS (G): 15.6
SD (M2): 206.84
BL (T*M): 7.418
XMAX (MM): 1.2
POWER HANDLING RMS: 200
POWER HANDLING MAX: 400
MOUNTING DEPTH: IN.(MM):3.74" (95mm)
CUT OUT DIAMETER IN.(MM): 8.58 X 5.75(218mmn X 146mm)
OVER ALL DIAMETER IN.(MM): 9.19 X 6.38(233.5mm X 162mm)
OVER ALL HEIGHT IN.(MM):4.08" (103.7MM)
