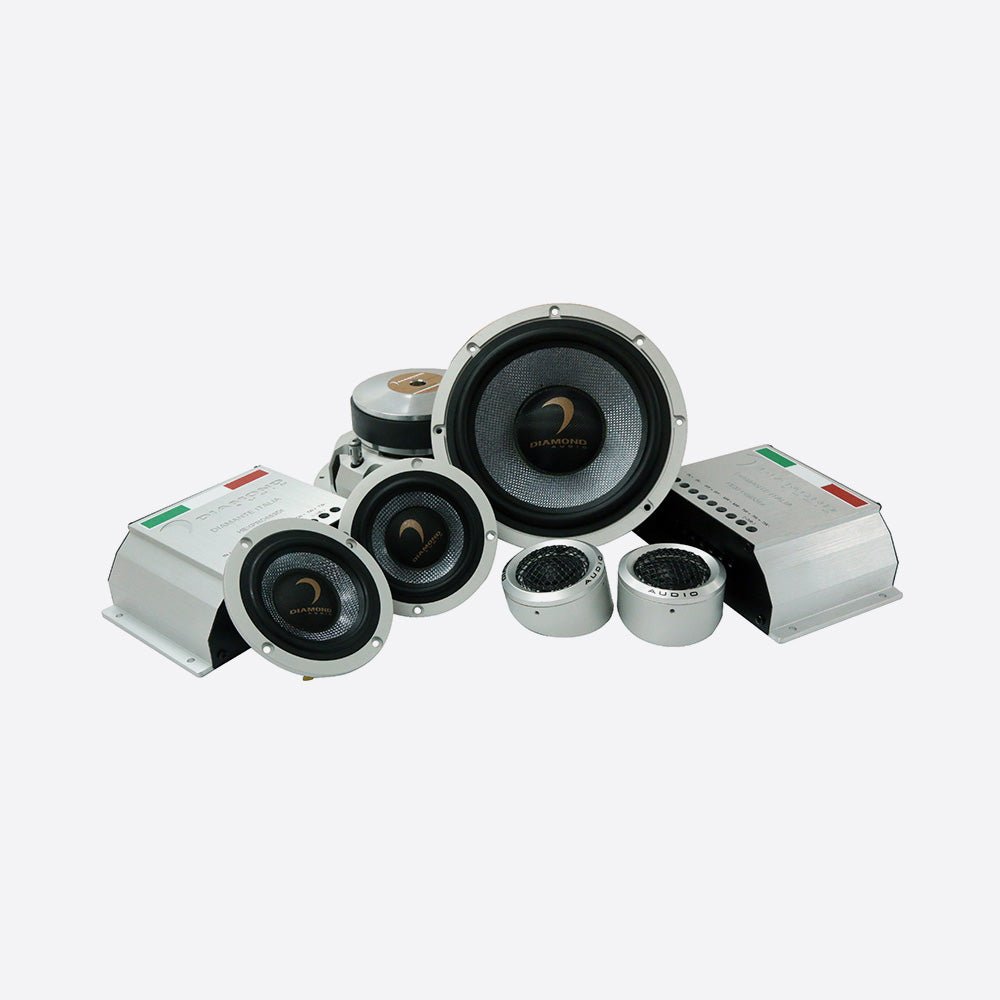

HXPRO653DI - HEX PRO Diamante Italia Edition 6.5" 3-Way Component Set

The HEX PRO Diamante Italia Edition 3-way component speakers from Diamond Audio were developed and engineered at its acoustic research center and speaker manufacturing operations situated in the Italian region of Tuscany, the home of the likes of Leonardo da Vinci, Modigliani, and Galileo.

Utilizing some of the best acoustical and audio engineers in the world with more than 100 years of combined experience in the audio field, this challenging yet fulfilling project has resulted in one of the finest sounding speakers in the industry! The HEX PRO Diamante Italia 3-way component speaker system was designed and engineered to mimic the sonic and tonal qualities of musical instruments with vocals being reproduced as naturally as possible.

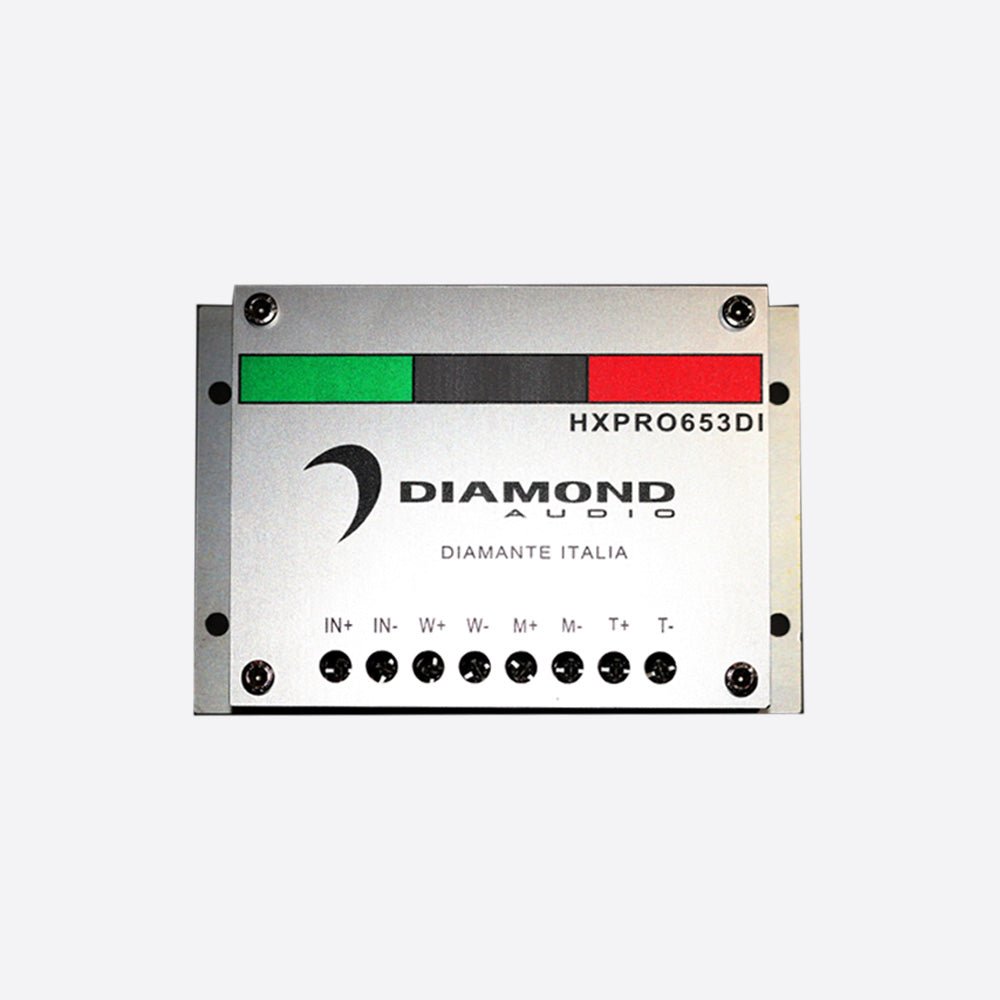

The speakers deliver the widest band of mid range frequency, superior mid-bass response, and vocals that exudes the fidelity of a live performance. Cost was never an option with this flagship speaker as the basket foundation was constructed from a solid block of precision CNC machined aluminum not only for the mid range speakers, but the tweeter and external crossover casing as well.

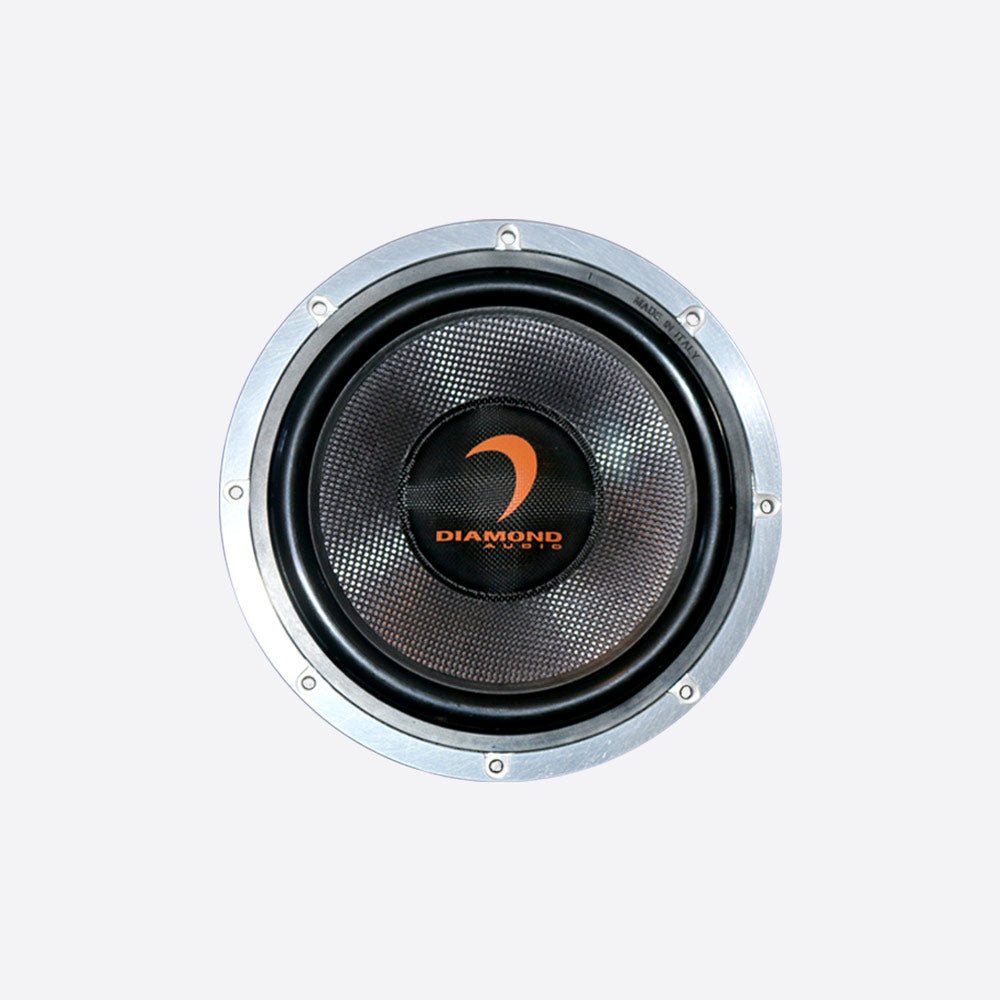

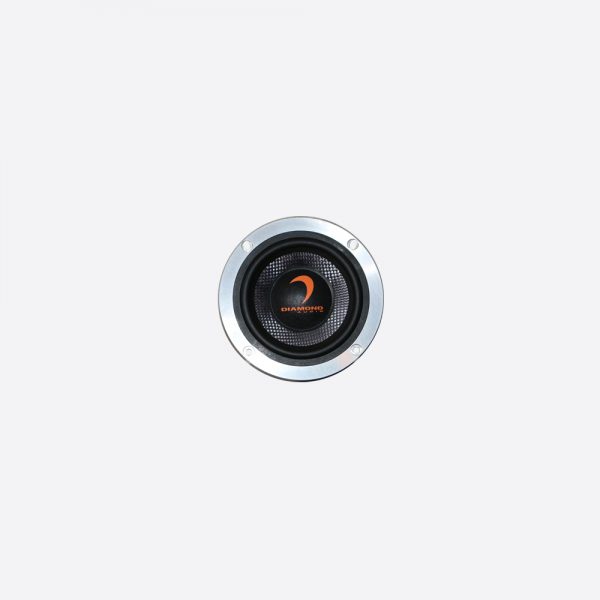

The soul of the speaker comes from a proprietary formulated double layer cone consisting of treated "Aluminum glass" and the best quality of cotton fiber fineness and length handcrafted in Italy for superior stiffness while being ultra-lightweight for tremendous response. The 6.5" mid bass speaker utilizes a 1.25" voice coil while the accompanying 3" mid range speaker utilizes a 1" voice coil for superior power handling capabilities.

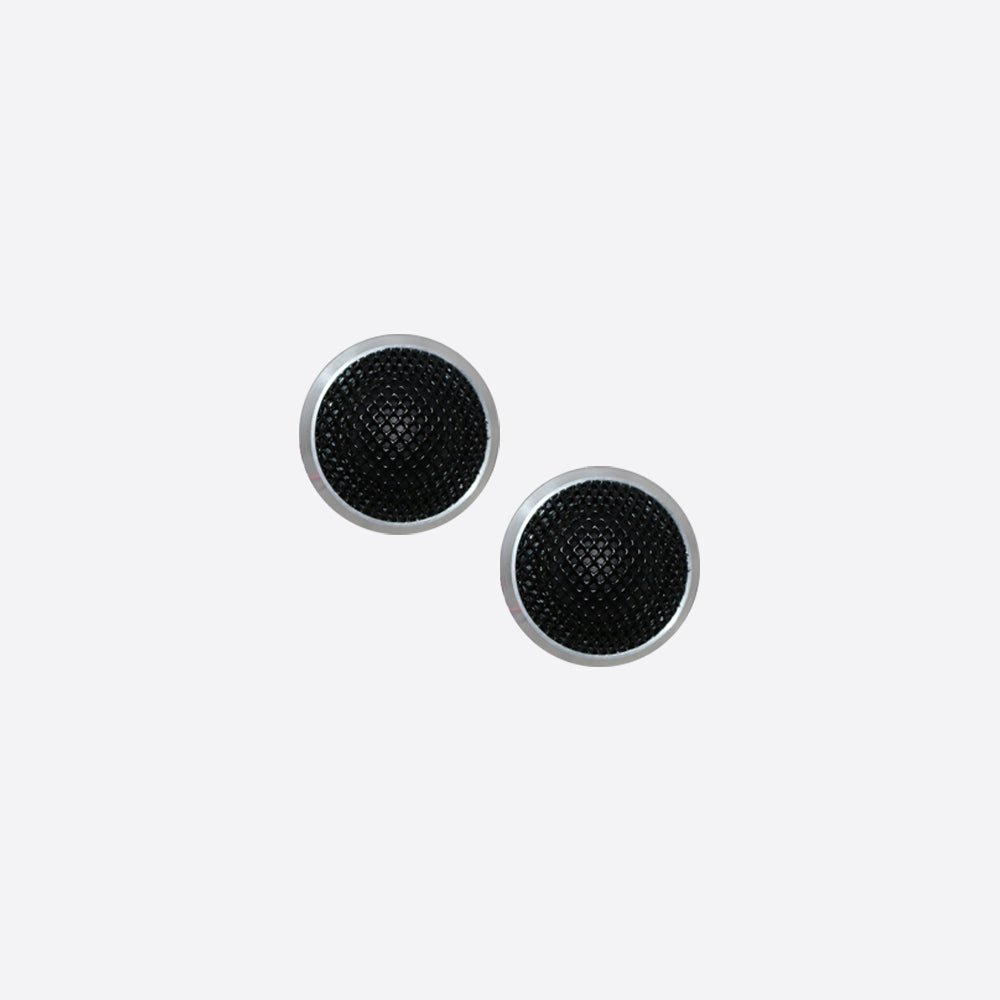

The HEX PRO Diamante Italia tweeters combine a natural 1" silk dome encompassed with a Kapton former and a neo-magnet motor structure for the perfect sonic reproduction making music sound as much like the real thing as possible!

Features

Specifications

Power Handling: 180W RMS
Sensitivity: 89dB (1W/1m)
Frequency response: 45Hz-20kHz
Nominal Impedance: 3.3 ohm
Crossover Frequencies: 500Hz-5000Hz (12dB/Oct)
Cotton Spider: For long lasting performances
Kapton Former: Very light for optimal response and clear highs
3.3 Ohms Voice Coil: For easier handling of the electrical impulse and for higher level of sound output without dropping below dangerous impedance levels.
HBNR Rubber Surround: For longer duration in extreme weather and years of long lasting performance.

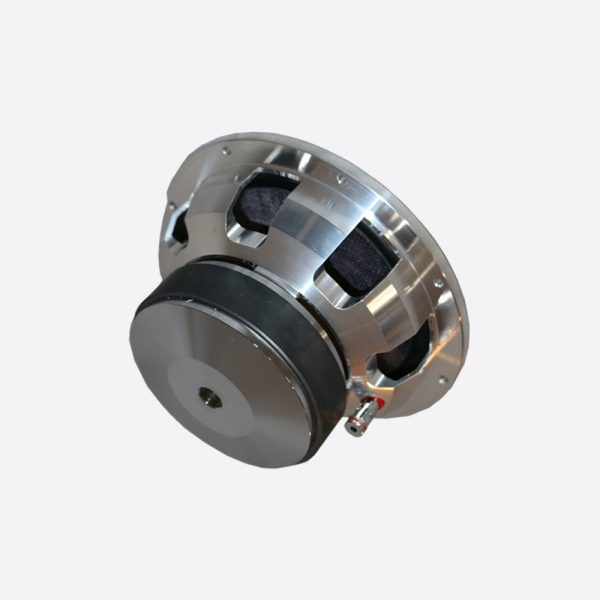

CNC Basket (From Single Solid Piece of Aluminum): For maximum rigidity and bass performance. Aerodynamically shaped to have a constant 360 natural flow of the air.
CNC Tweeter Housing (From Single Piece of Aluminum): To cancel resonances, dissipate heat, and stabilize the emission of the sound.
Alumiglass Cone: Aluminum-fiberglass and cotton fiber composite cone for powerful bass and very delicate midrange output
Copper-Clad Aluminum Wire: commonly abbreviated as CCAW or CCA, is an electrical conductor composed of an inner aluminum core and outer copper cladding. The primary application of this conductor revolves around weight reduction requirements. These applications consists of high quality coils
Manufactured In: Italy
