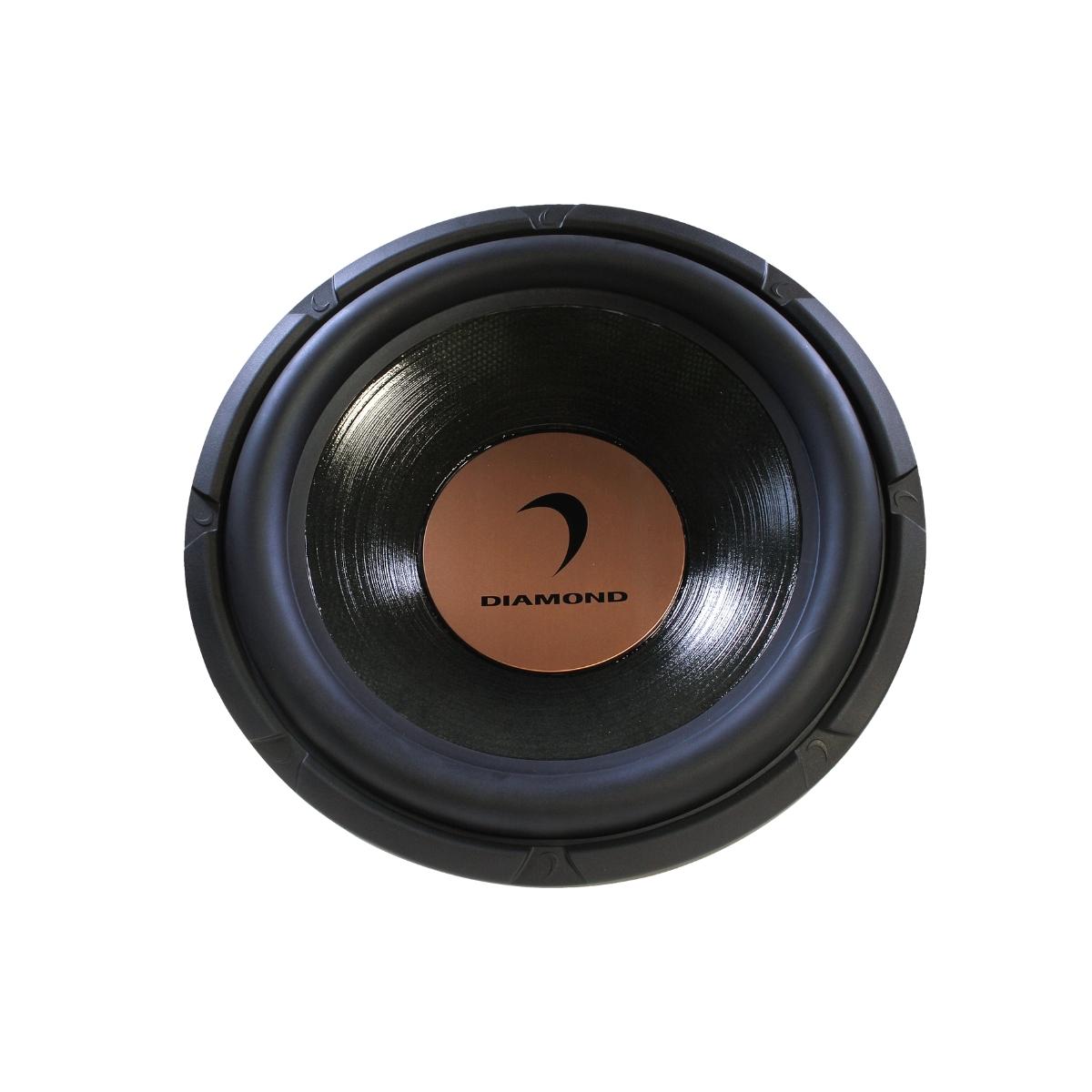

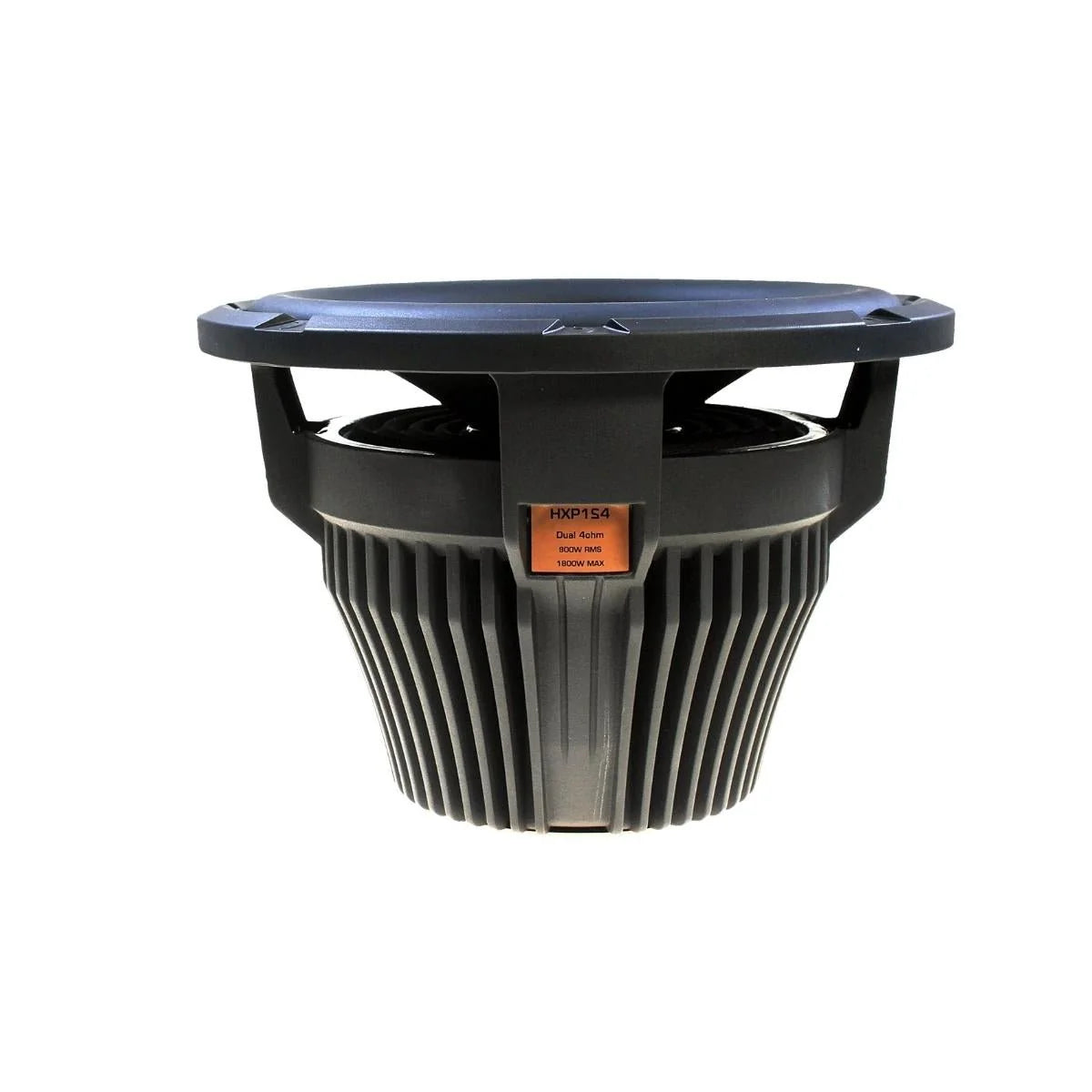

HXP154 - HEX Pro 15" Dual Voice coil Subwoofer (4 ohm ) 1100W RMS

HXP154 - HEX Pro 15" 4 ohm Dual Voice coil Subwoofer

Unleash extreme low-frequency performance with the Diamond Audio HXP154 HEX PRO 15" 4 ohm Dual Voice Coil Subwoofer, engineered for serious SPL output and audiophile-grade precision. Designed for enthusiasts who demand crushing bass and uncompromising reliability, the HEX PRO 15-inch subwoofer sets a new benchmark in high-performance car audio.

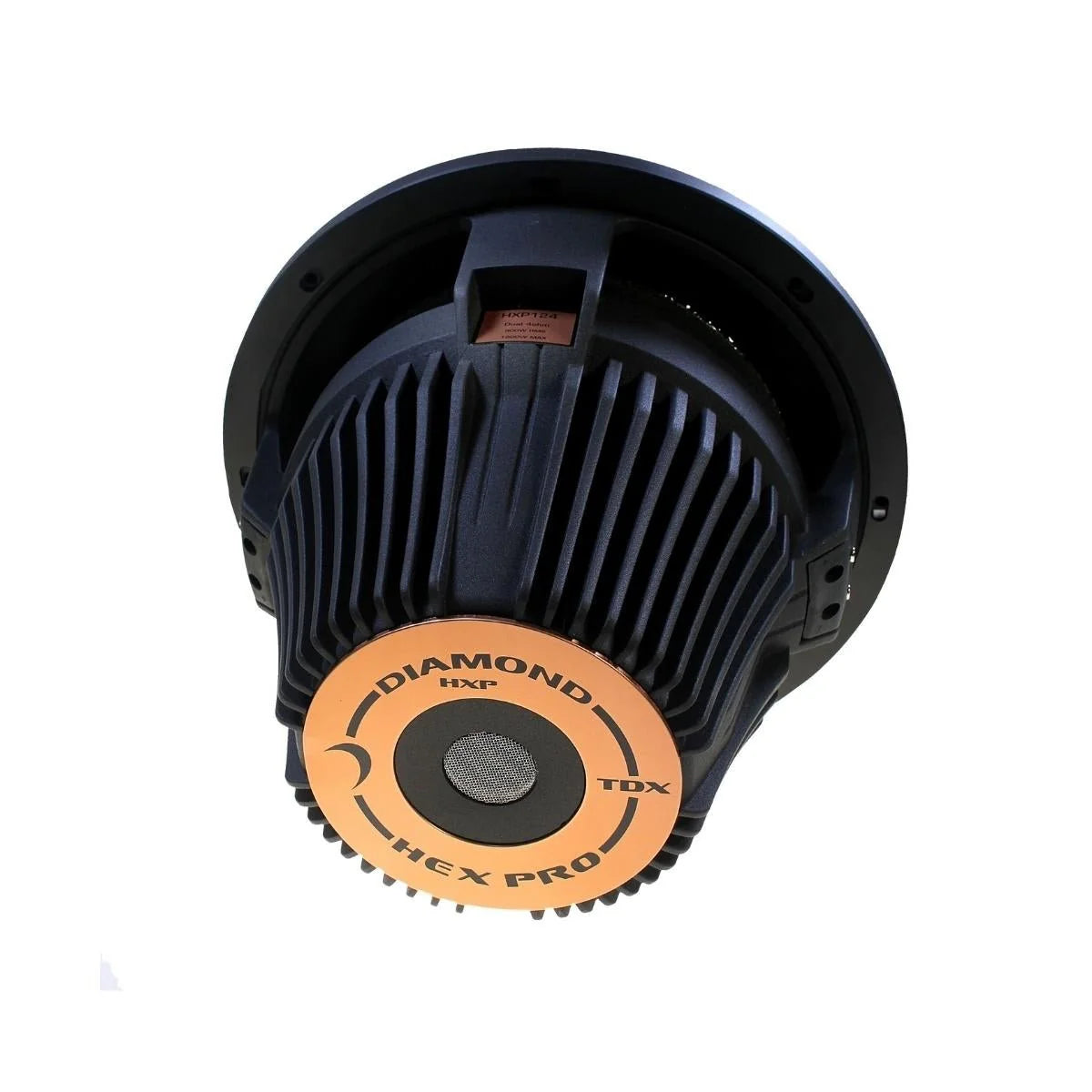

At the core of the HXP154 is Diamond Audio's patented TDX Technology (Thermal Dyne Extreme), seamlessly integrating the advanced motor structure into a rugged cast aluminum frame for superior thermal heat dissipation. This innovative design allows the subwoofer to play longer at high SPL levels while maintaining stability, efficiency, and long-term durability.

With nearly 3 inches of linear excursion, the HEX PRO 15" subwoofer moves massive amounts of air, delivering deep, authoritative bass with exceptional control. The 4 ohm dual voice coil configuration provides flexible wiring options for custom amplifier matching, making it ideal for competition systems and high-output daily drivers alike.

Engineered to reproduce a wide range of low bass frequencies with accuracy and power, the HXP154 delivers hard-hitting impact without sacrificing musical detail.

For those seeking maximum output, extreme excursion, and professional-grade bass performance, the Diamond Audio HEX PRO 15" subwoofer is built to dominate.

Features

Specifications

Power: 1100W RMS/2200W MAX
Mounting Diameter:  14.2"(360mm)
Mounting Depth: 9.5" (241mm)
Magnet Diameter: 7.2" (183mm)
Displacement: 0.22 ft (6.23 liter)
SPL (dB) @2.83v: 85.7
Z( ohm ) (series): 8
Re ( ohm ) (series): 6.0
Qms: 3.0
Qes: 0.56
Qts: 0.47
Fs (Hz): 23.0
Vas (liters): 84.6
Sd (cm2): 819
BL (T*M): 29.3
Xmax (mm): 21.0
Pwr (W) nom/max: 1100/2200
RECOMMENDED ENCLOSURES:
Optimum Vb(ft): 1.5
F3(Hz): 38
Qtc: 0.71
Pe(W): 1100
Large Vb(ft): 2.5
F3(Hz): 39
Qtc: 0.62
Pe(W): 1000
Vented:
All Around: Vb(ft): 2.75
Fb/F3(Hz): 29/25
Port (Diameter X Length): 4.5"X16"
Pe(W): 1100
