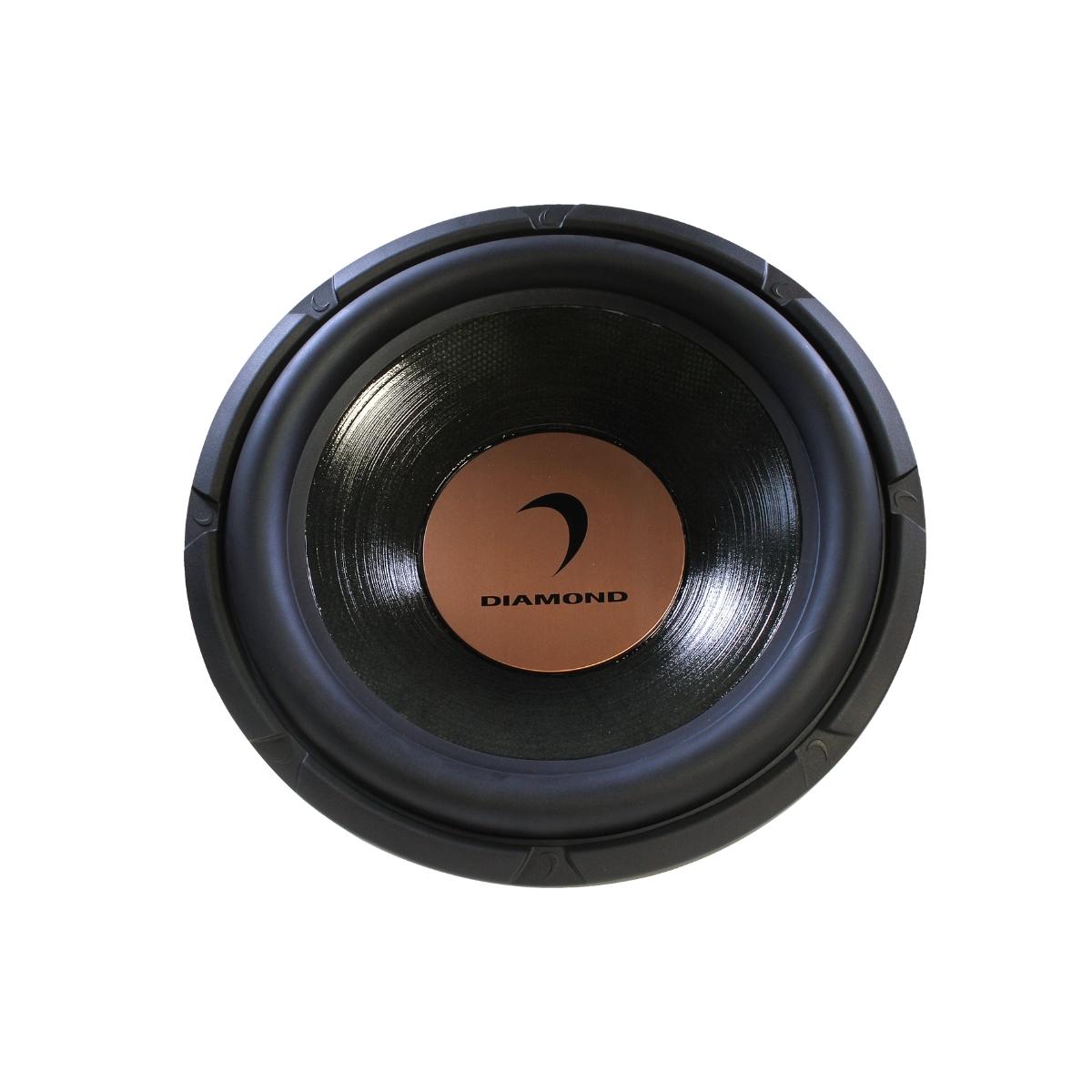

HXP152 - HEX Pro 15" 2 ohm Dual Voice Coil Subwoofer

The HXP152 HEX PRO Series 15-inch subwoofer from Diamond Audio is engineered for enthusiasts and professionals who demand uncompromising bass performance, extreme durability, and precision sound control. Built as part of Diamond Audio's flagship HEX PRO lineup, the HXP152 delivers competition-level output with advanced thermal management and musical accuracy.

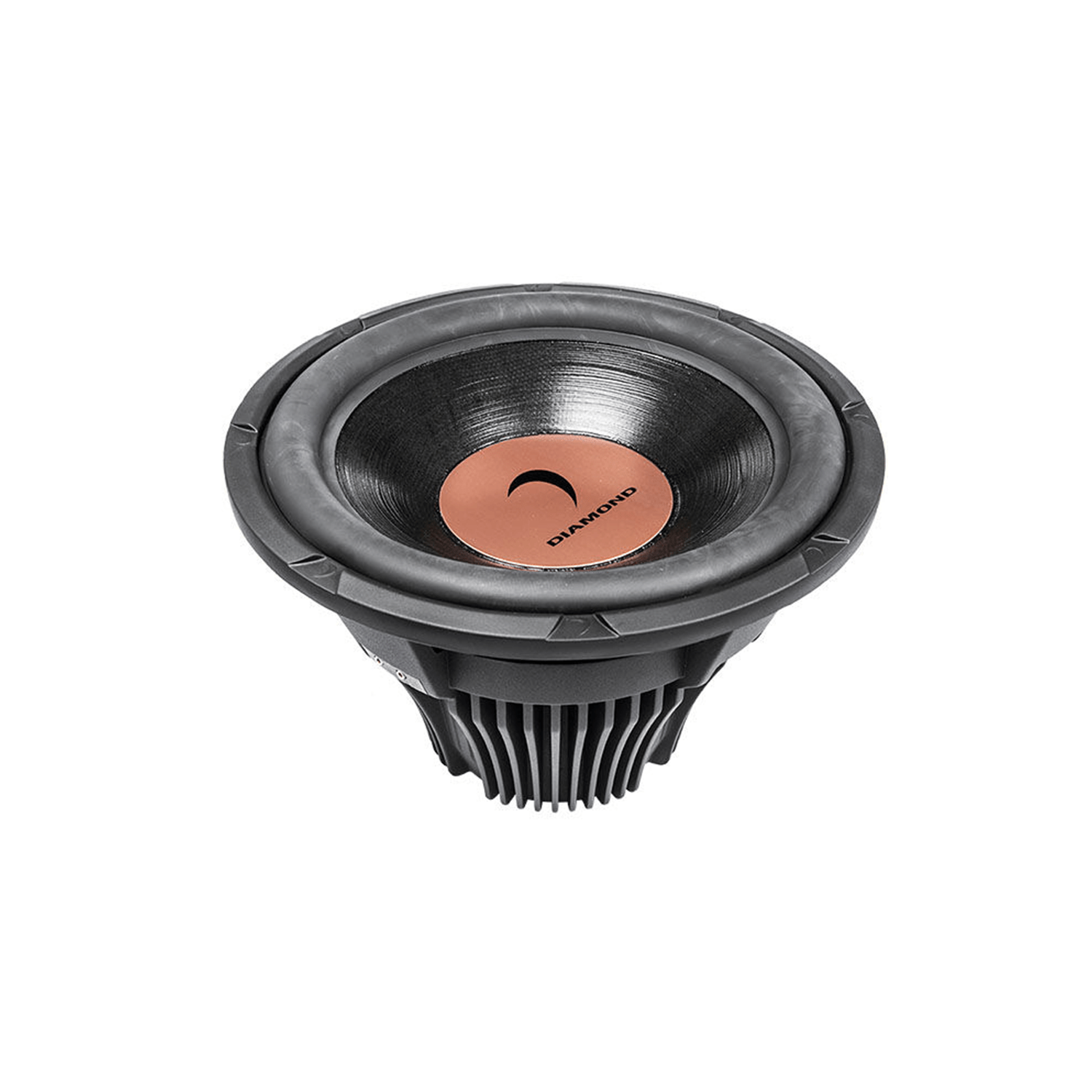

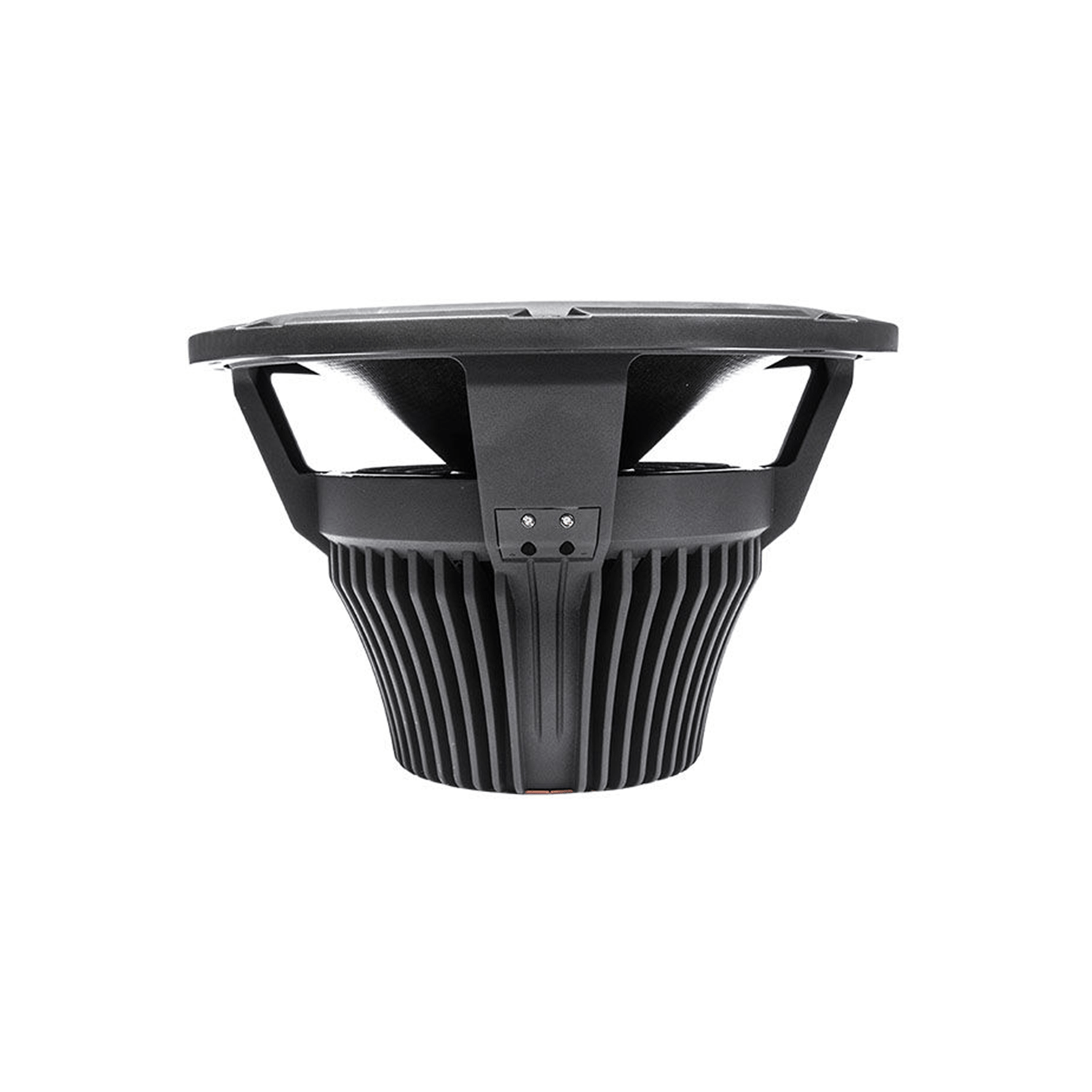

At the core of the HXP152 is Diamond Audio's patented TDX (Thermal Dyne Extreme) Technology, where the motor structure is seamlessly integrated into a rigid cast aluminum frame. This innovative design maximizes heat dissipation, allowing the subwoofer to play louder for longer at high SPL levels while reducing power compression and extending component life.

Featuring nearly 3 inches of linear excursion, the HEX PRO Series subwoofers are capable of producing massive low-frequency output while maintaining tight control and clarity. This high-excursion design enables deeper bass extension and a broader low-frequency range, delivering bass that is both aggressive and musical.

With a dual 2-ohm voice coil configuration for flexible wiring options, the HXP152 is ideal for high-performance car audio systems seeking extreme bass, reliability, and long-term performance. Experience bass engineered to dominate.

Features

Specifications

Impedance: 2 ohm
Power: 1100W RMS/2200W MAX
Mounting Diameter:  14.2"(360mm)
Mounting Depth: 9.5" (241mm)
Magnet Diameter: 7.2" (183mm)
Displacement: 0.22 ft (6.23 liter)
SPL (dB) @2.83v: 88.0
Z( ohm ) (series): 4
Re ( ohm ) (series): 3.85
Qms: 4.0
Qes: 0.46
Qts: 0.41
Fs (Hz): 22.0
Vas (liters): 84.6
Sd (cm2): 819
BL (T*M): 26.0
Xmax (mm): 20.5
Pwr (W) nom/max: 1100/2200
RECOMMENDED ENCLOSURES:
Optimum Vb(ft): 1.5
F3(Hz): 38
Qtc: 0.71
Pe(W): 1100
Large Vb(ft): 2.5
F3(Hz): 39
Qtc: 0.62
Pe(W): 1000
Vented:
All Around: Vb(ft): 2.75
Fb/F3(Hz): 29/25
Port (Diameter X Length): 4.5"X16"
Pe(W): 1100
