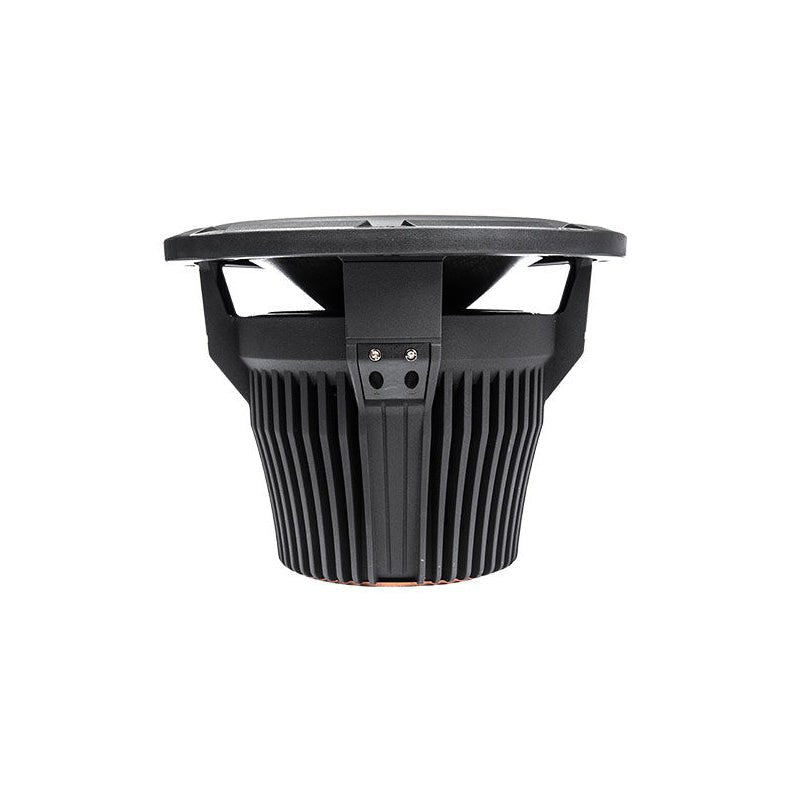

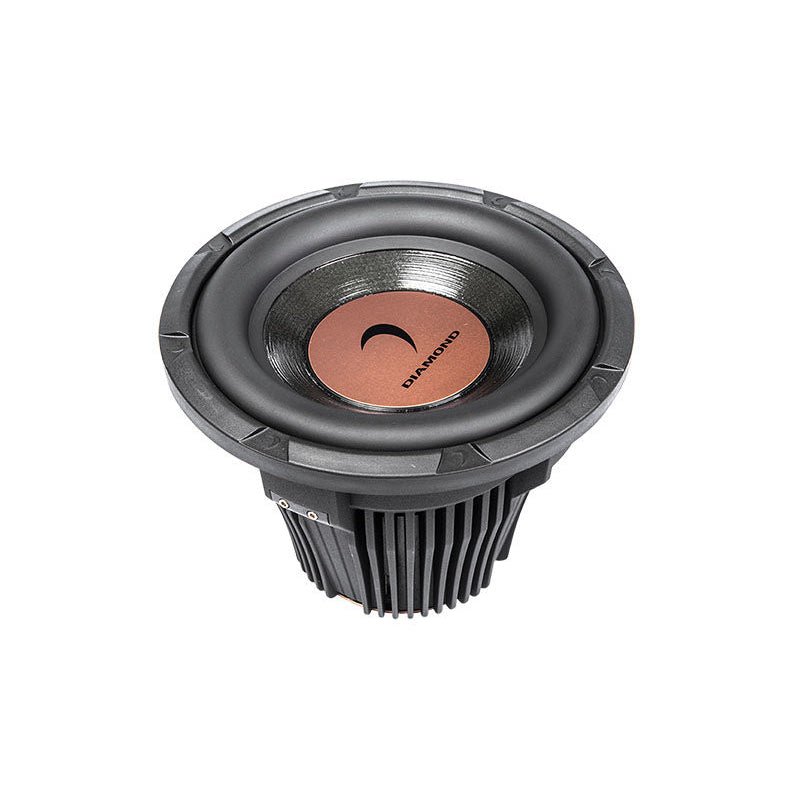

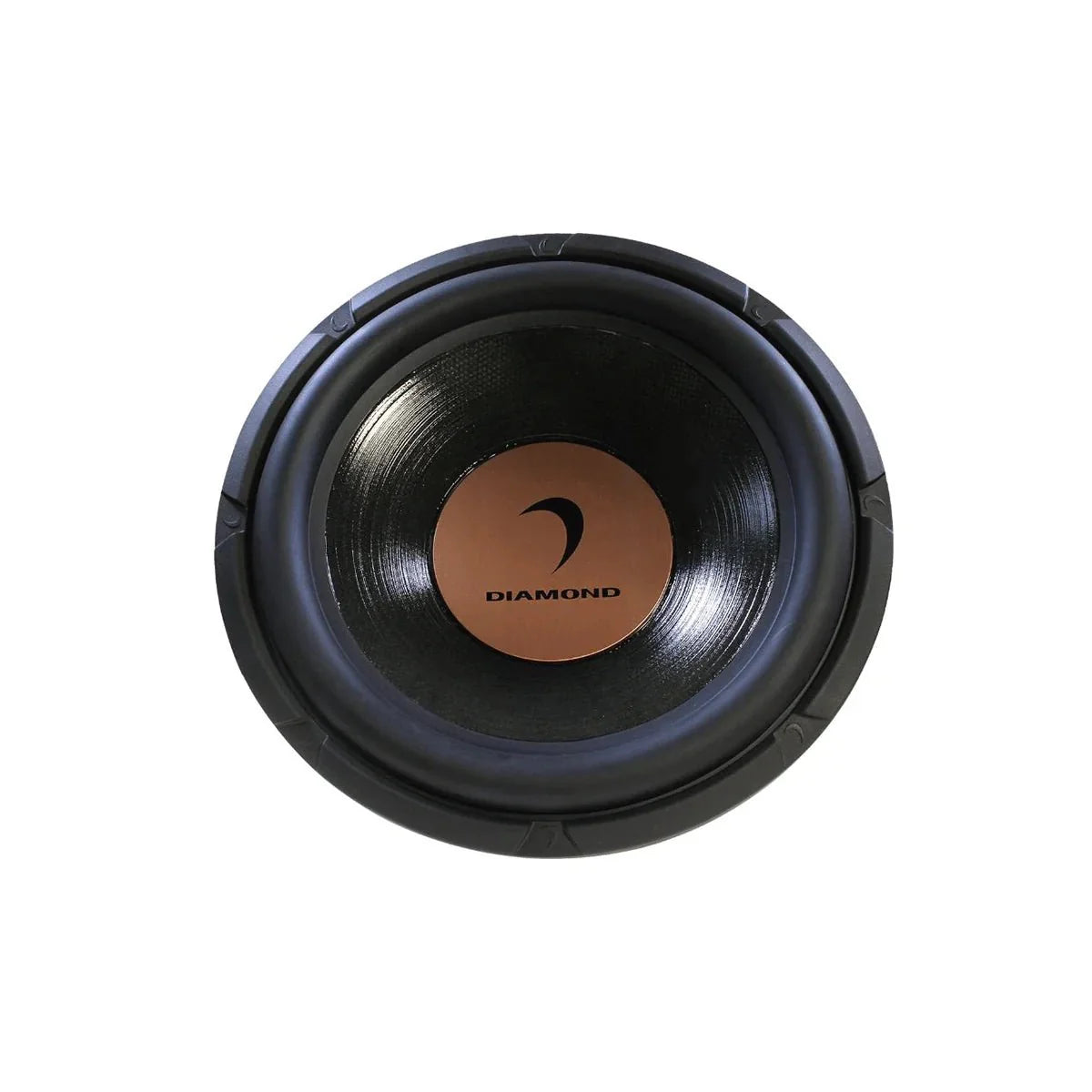

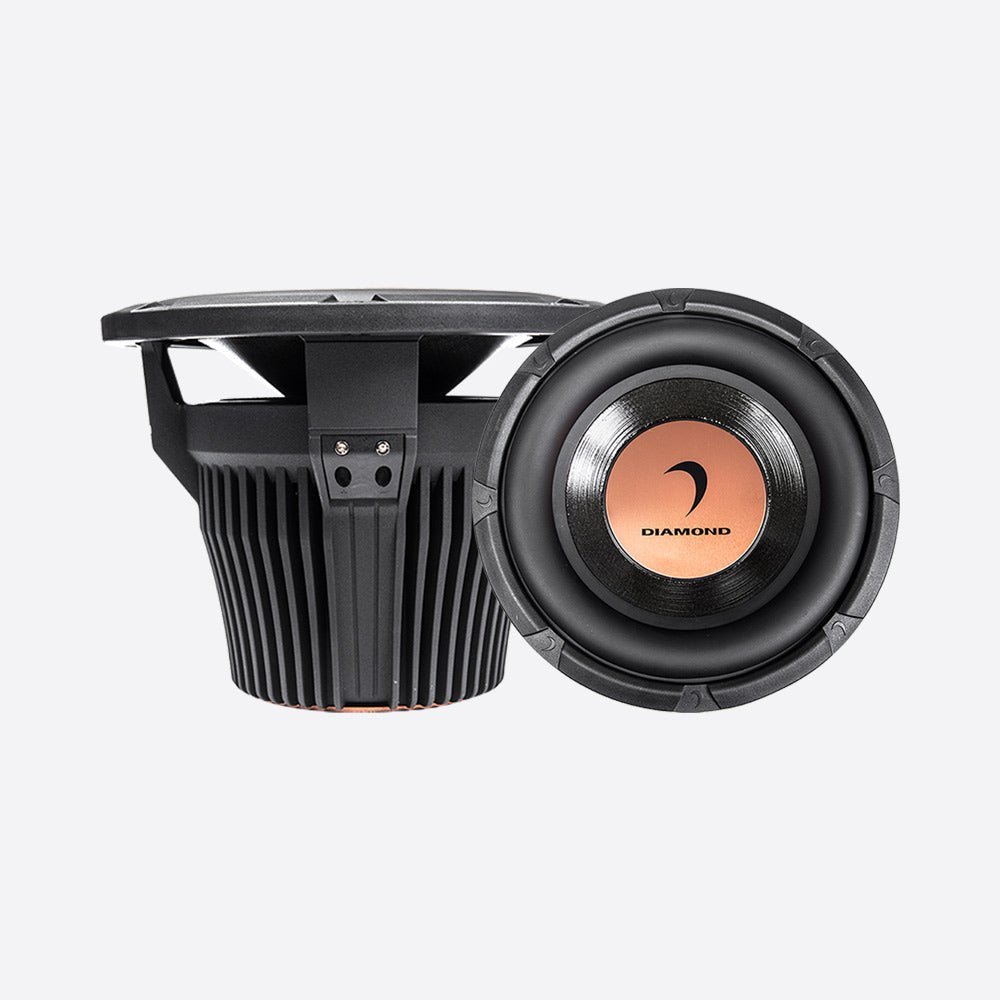

HXP102 - HEX Pro 10" 2 ohm Dual Voice Coil Subwoofer

The HXP102 HEX PRO Series 10-inch subwoofer from Diamond Audio is engineered for enthusiasts who demand extreme output, precision control, and uncompromising reliability. Built as part of Diamond Audio's flagship HEX PRO lineup, the HXP102 delivers competition-level performance with advanced thermal management and exceptional sound quality.

At the heart of the HXP102 is Diamond Audio's patented TDX (Thermal Dyne Extreme) Technology, where the motor structure is seamlessly integrated into a rigid cast aluminum frame. This design maximizes heat dissipation, allowing the subwoofer to play louder for longer at high SPL levels while reducing power compression and extending component life.

Designed for both power and musical accuracy, the HEX PRO Series features nearly 3 inches of linear excursion, enabling massive low-frequency output without sacrificing control or detail. The high-excursion design allows the HXP102 to reproduce deeper bass notes across a wider frequency range, delivering bass that is both aggressive and refined.

With its dual 2-ohm voice coil configuration for flexible wiring options, the HXP102 is ideal for high-performance car audio systems seeking extreme bass, durability, and long-term reliability. Experience bass engineered without compromise.

Features

Specifications

Impedance: 2 ohm
Power: 700W RMS/1400W MAX
Mounting Diameter: 9.4" (239mm)
Mounting Depth: 7.5" (191mm)
Magnet Diameter: 5.8" (147mm)
Displacement: 0.11 ft (3.11 liter)
SPL (dB) @2.83v: 83.2
Z( ohm ) (series): 4
Re ( ohm ) (series): 3.85
Qms: 4.0
Qes: 0.54
Qts: 0.48
Fs (Hz): 26.1
Vas (liters): 20.0
Sd (cm2): 332
BL (T*M): 18.5
Xmax (mm): 16..7
Pwr (W) nom/max: 700/1400
RECOMMENDED ENCLOSURES:
Optimum Vb(ft): 0.65
F3(Hz): 40
Qtc: 0.70
Pe(W): 700
Large Vb(ft): 1.25
F3(Hz): 41
Qtc: 0.62
Vented:
Optimum Vb(ft): 1.25
Fb/F3(Hz): 36/28
Port (Diameter X Length): 3.5" X 14"
Pe(W): 700
