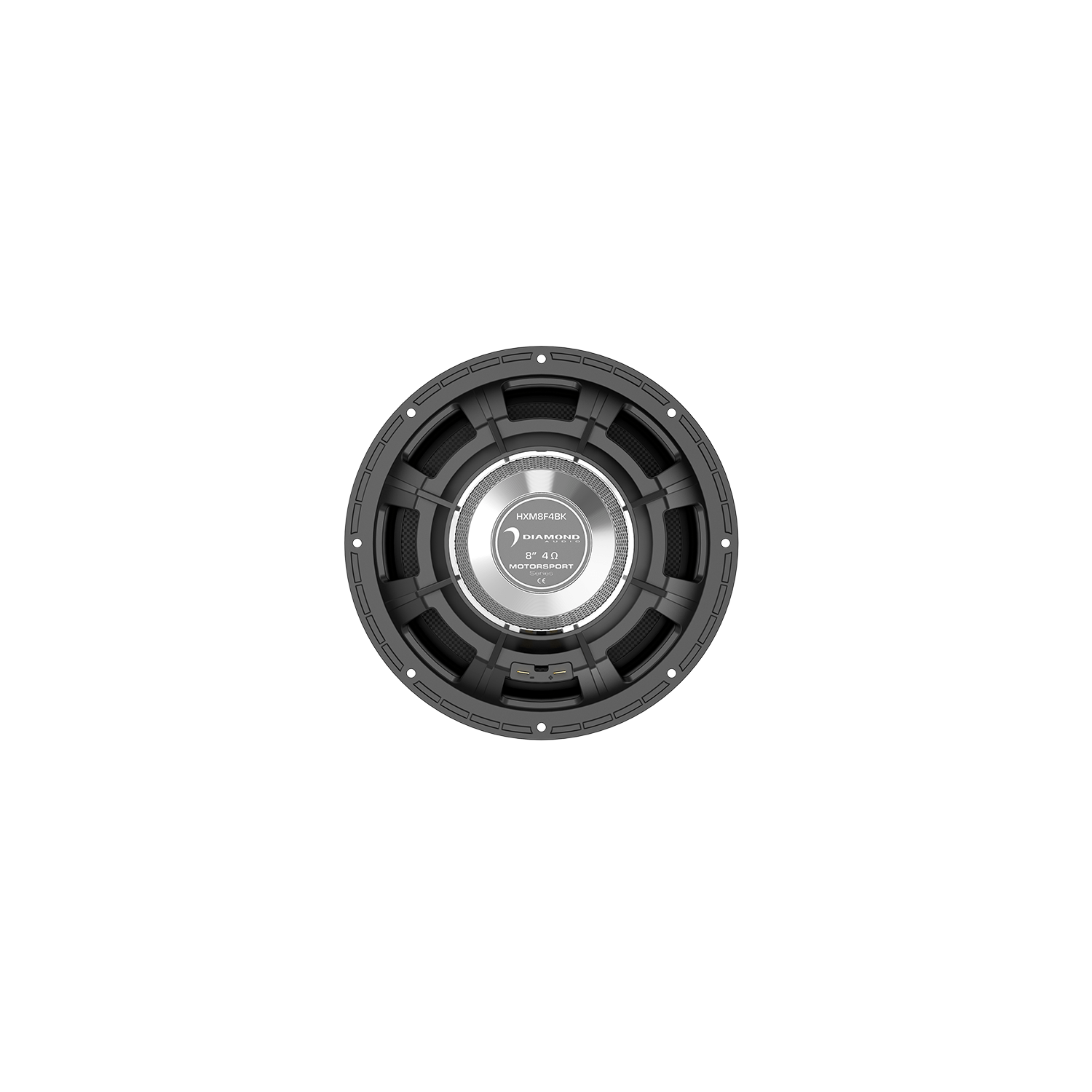

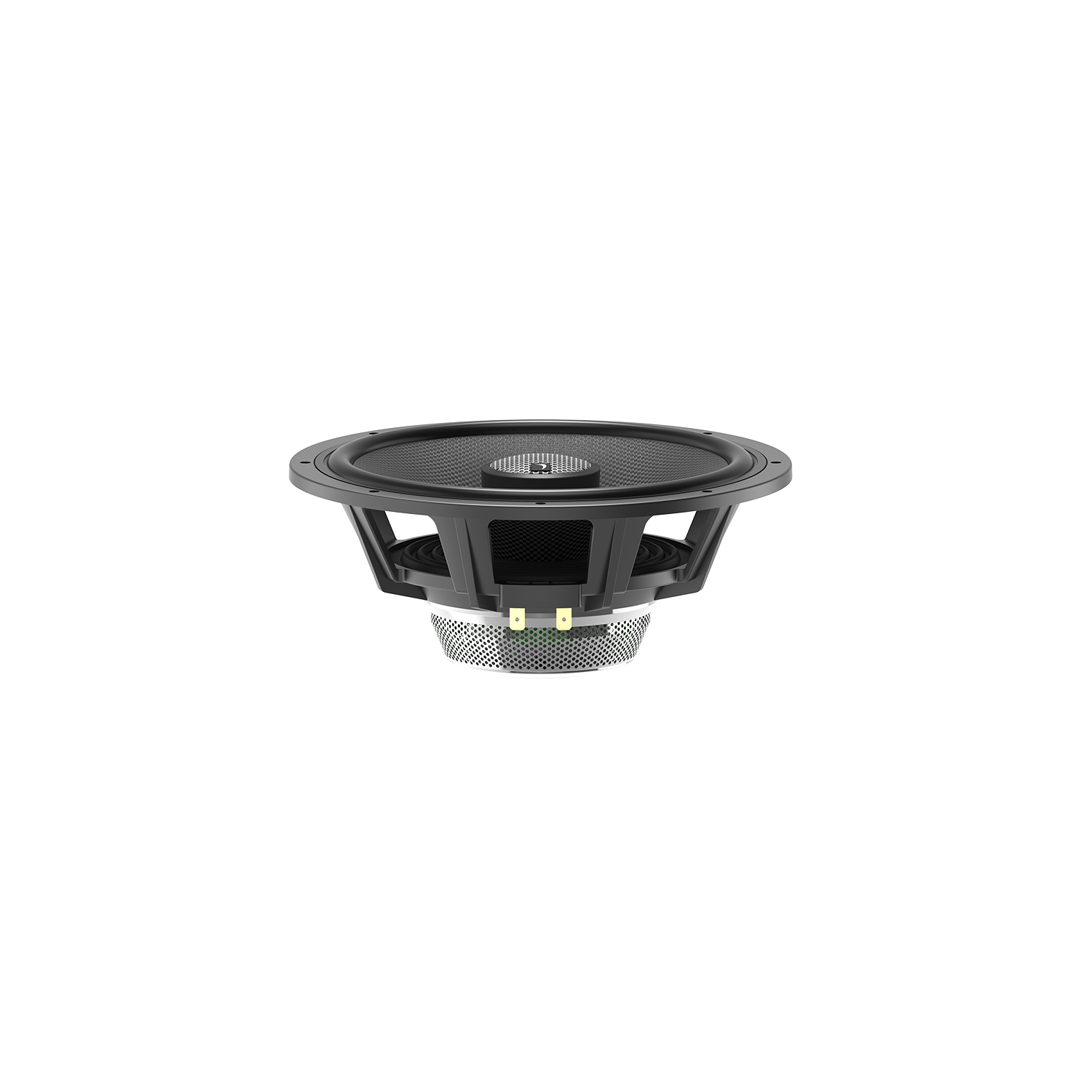

HXM8F4BK - 8" 2-WAY HIGH 0UTPUT MARINE SPEAKER (4 ohm )

HXM8F4BK - 8" - 4 ohm HIGH 0UTPUT, WATERPROOF, CARBON CONE, OVERSIZED TWEETER

Diamond Audio's is proud to release it's new and improved HXMF Black Series Coaxial Drivers. Building on the features of the HXM and HXMF platforms, the new HXMFB series increases performance where it counts. Higher output, more impactful bass response, and more high-end with new larger 1.5" Titanium tweeters. At Diamond Audio, we're driven by a relentless passion for perfect sound. That's why we've reimagined the legendary HXM and HXMF series to expand it with the new HXMFB Series, combining the best features of the HXM and HXMF drivers and improving both the output performance and low-end response. Available in both 2 ohm and 4 ohm models to really optimize system design. The result? Class-leading sound quality, exceptional output, and that trademark Diamond Audio quality.
These drivers' elements are crafted to the highest standards, from the premium voice coils and advanced Neodymium motor structures to the rock-solid fiber-reinforced composite basket design, oversized titanium tweeters, and carbon fiber cones. These speakers don't just play music - they transform your listening experience into something extraordinary. Don't settle for ordinary sound. If you're looking for quality, high-performance speakers for your next Marine or Motorsports application. Choose Diamond Audio'ss HXMB Series Coaxial Drivers - because your music deserves the best.

Features

Specifications

SENSITIVITY (1W/1M): 95
RE ( ohm ) [SERIES]: 1.9
QMS: 3.873
QES: 0.472
QTS: 0.421
FS (HZ): 83
VAS (L): 16.072
CMS (MM/N): 0.23
MMS (G): 16.04
SD (M2): 221.671
BL (T*M): 5.797
XMAX (MM): 3.25
POWER HANDLING RMS: 175
POWER HANDLING MAX: 600
MOUNTING DEPTH: IN.(MM):3.11" (78.9MM)
CUT OUT DIAMETER IN.(MM):7.02" (178.38MM)
OVER ALL DIAMETER IN.(MM):8.31" (211MM)
OVER ALL HEIGHT IN.(MM):3.56" (90.32MM)
