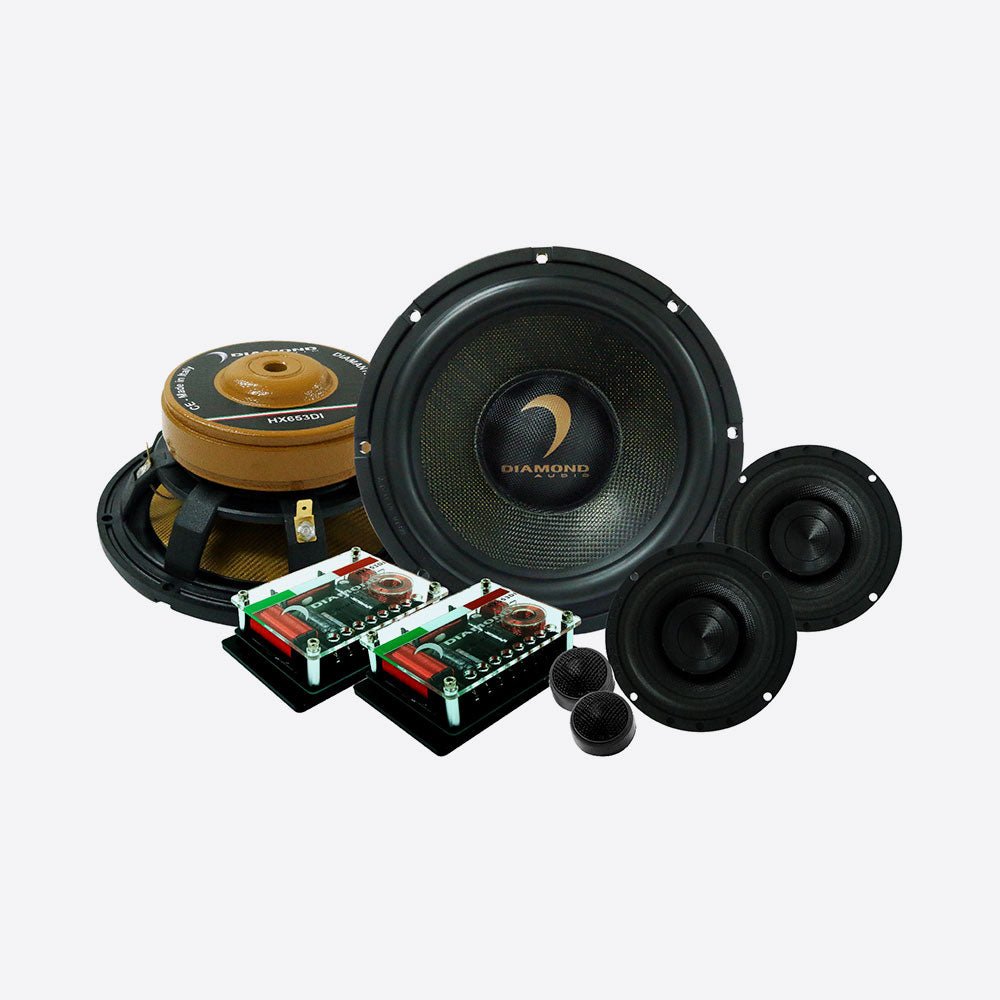

HX653DI - HEX Diamante Italia Edition 6.5" 3-Way Component Set w/1" Silk Dome Tweeter

HX653DI - HEX Diamante Italia Edition Series 6.5" 3-Way Component Set

The HEX Diamante Italia Edition 3-way component speaker system provides superior value for the acoustical high-end performance that it delivers! With similar technologies trickling down from the HEX PRO Diamante Italia model, this super speaker carves its own niche with a proprietary composite fiberglass cone that is thermally bonded with special bronze fibers creating a rigid yet lightweight speaker cone that delivers broad and smooth frequency response.

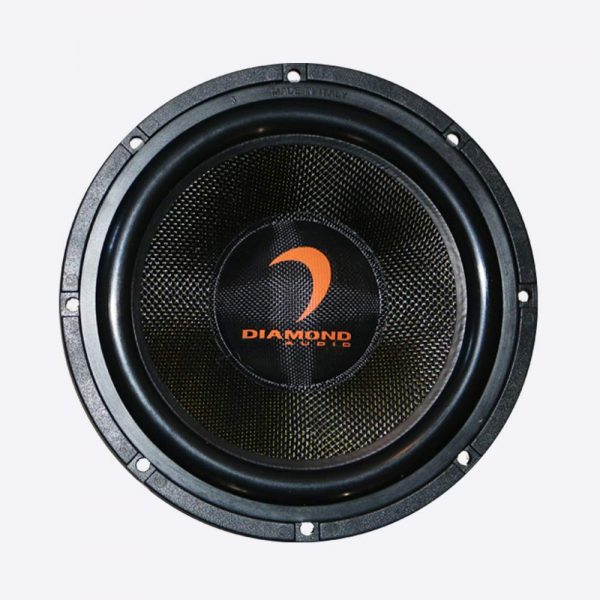

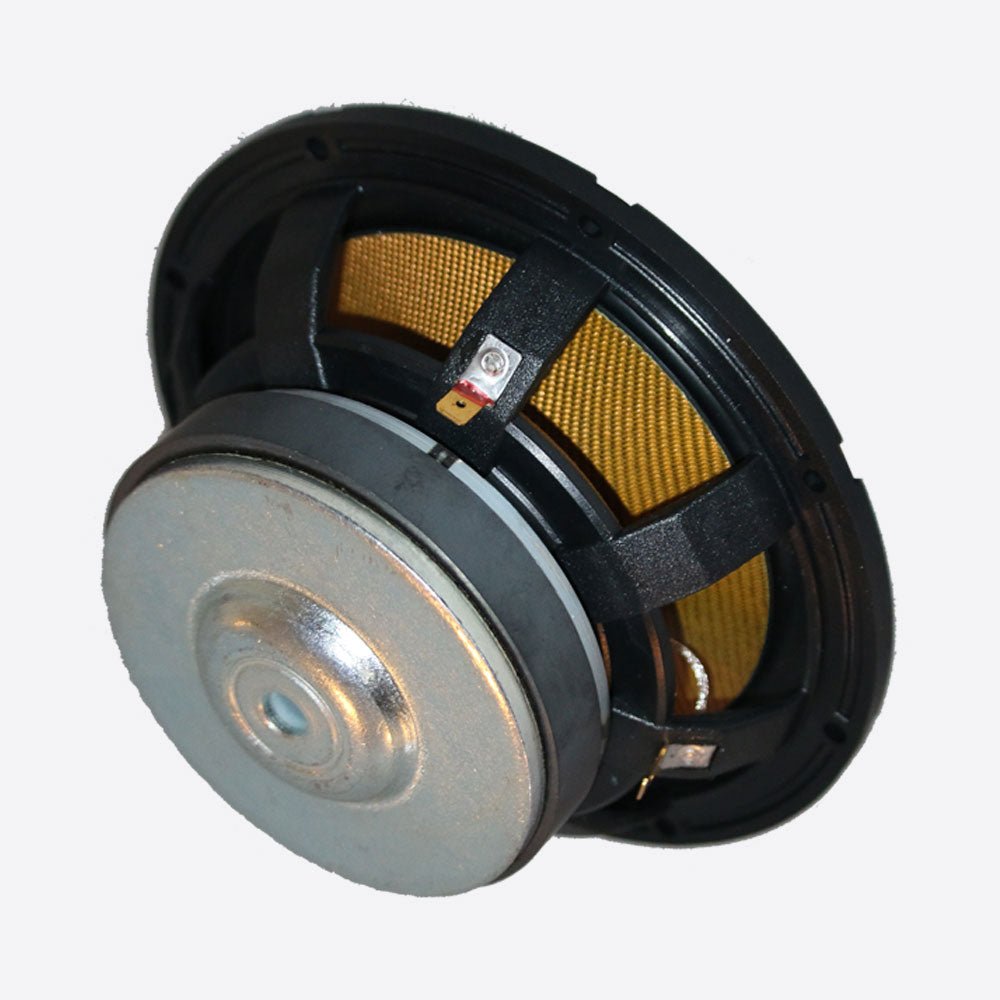

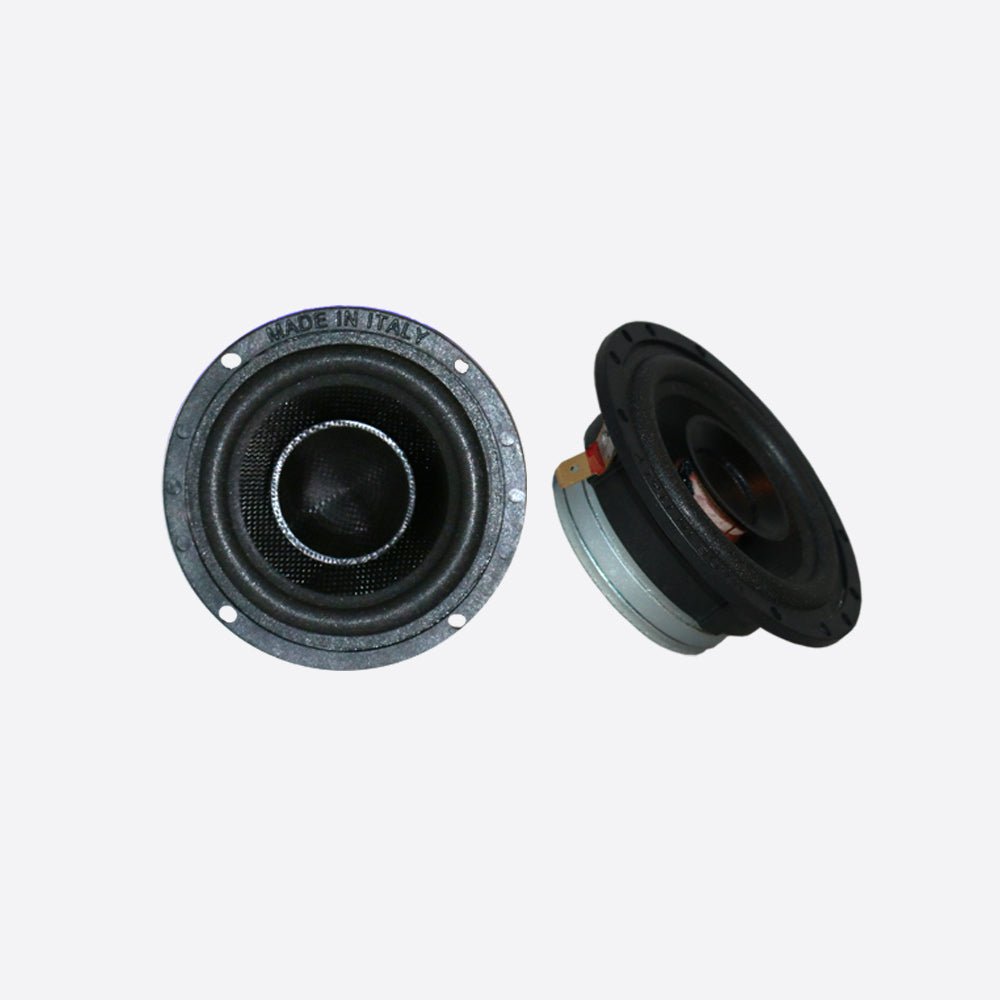

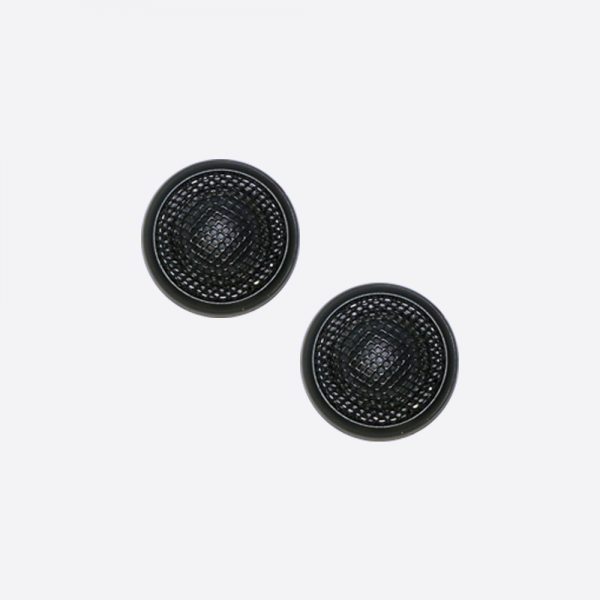

The HEX 6.5" mid-bass speaker utilizes a 1" voice coil while the accompanying 2.5" midrange speaker utilizes a .75" voice coil for substantial power handling. A natural 1" silk dome tweeter delivers innate highs and a special composite fiber basket completely dulls out any unwanted noise by completely reducing any vibration and resonance in order for this super speaker system to reproduce tonal harmonic accuracy and pinpoint imaging.

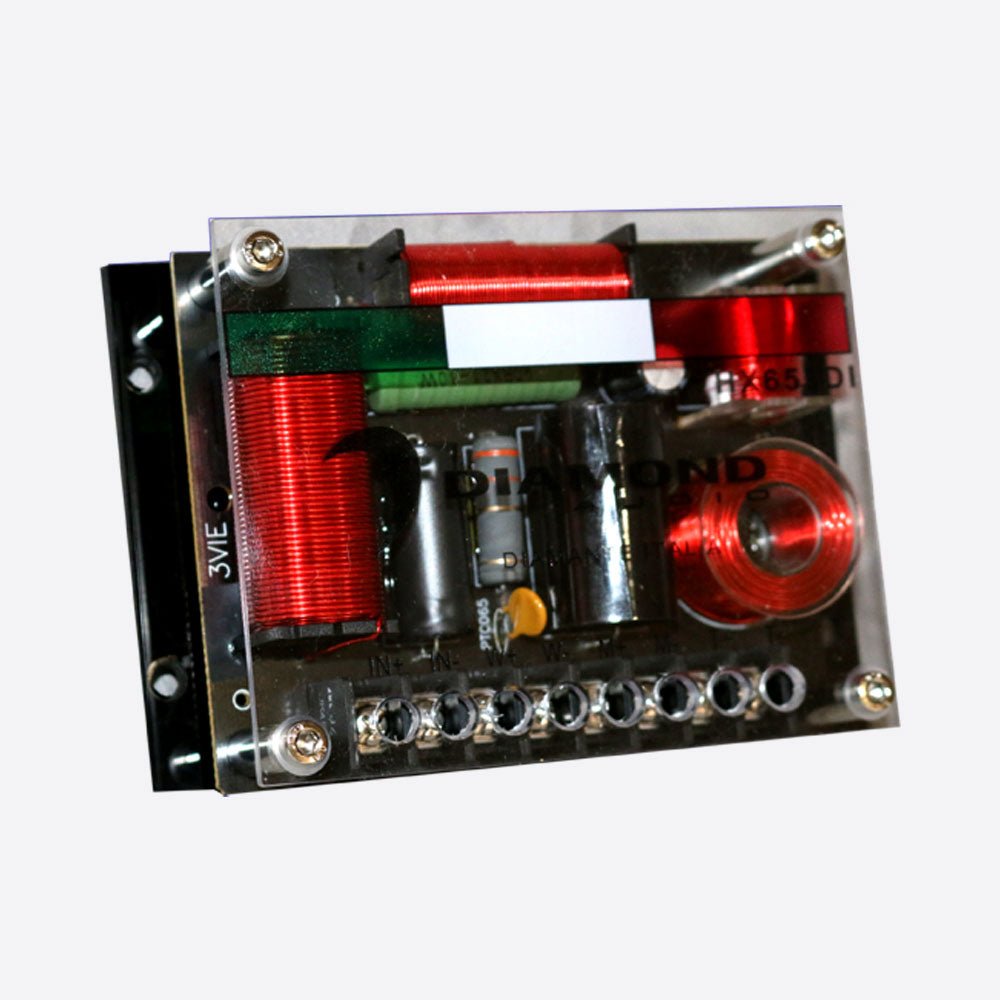

The external crossover is constructed with a transparent plexiglass cover to showcase the selected premium grade components that adhere to less than 1% tolerance stability for superior performance.

Features

Specifications

Power Handling: 150W RMS
Sensitivity: 90dB (1W/1m)
Frequency response: 45Hz-20kHz
Nominal Impedance: 3.3 ohm
Crossover Frequencies: 500Hz-5000Hz (12dB/Oct)
Cotton Spider: For long lasting performances.
Kapton Former: Very light for optimal response and clear highs.
3.3 Ohms Voice Coil: For easier handling of the electrical impulse and for higher level of sound output without dropping below dangerous impedance levels.
Fiberglass Phase Cone: For maximum off-axis dispersion.
HBNR Rubber Surround: For longer duration in extreme weather and years of long lasting performance.
Composite Fiber Basket: To cancel resonances. Aerodynamically shaped to have a constant 360 natural flow of the air.
Bronze Fiberglass Cone: Double layer cone made with bronze and fiberglass fibers. Rigid yet light.
Copper-Clad Aluminum Wire: commonly abbreviated as CCAW or CCA, is an electrical conductor composed of an inner aluminum core and outer copper cladding. The primary application of this conductor revolves around weight reduction requirements. These applications consists of high quality coils.
Manufactured In: Italy
