HDTSR14 - BREAK OUT HARNESS FOR MSHD14 WHEN 10CH OF 5V RCA OUTPUTS ARE REQUIRED
HDTSR14 - Breakout Harness for MSHD14 with 10-Channel 5V RCA Outputs The HDTSR14 Breakout Harness from Diamond...
Vendor:
Diamond Audio
Manufacturer SKU
HDTSR14
Availability:
Many In Stock
Product Type:
Motorcycle Audio
- $109.99
$109.99- $109.99
- Unit price
- per
Subtotal:
$109.99
Couldn't load pickup availability

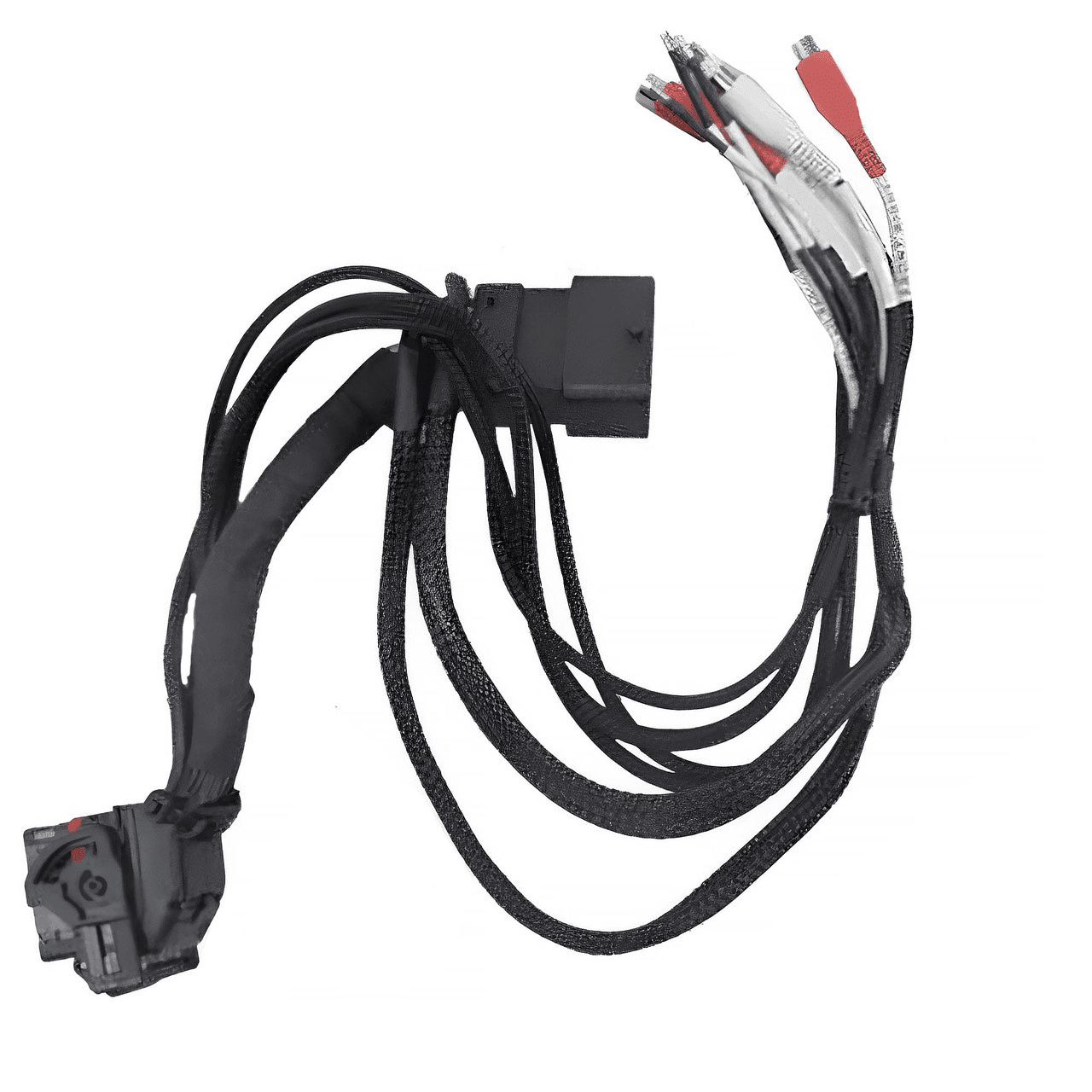

HDTSR14 - Breakout Harness for MSHD14 with 10-Channel 5V RCA Outputs
The HDTSR14 Breakout Harness from Diamond Audio is engineered to unlock the full potential of the MSHD14 receiver by expanding its output capabilities for advanced motorcycle audio systems. Designed specifically for applications requiring more than the standard six low-level outputs, this harness enables access to up to 10 channels of 5V RCA signal , allowing installers to fully utilize the additional DSP channels built into the receiver.
The HDTSR14 connects directly to the MSHD14 using factory-style connectors, eliminating the need for re-pinning, cutting, or modifying the OEM harness. A built-in "T" split design provides four additional RCA outputs when extra amplifier channels are required, making it ideal for complex multi-amplifier or multi-speaker Harley-Davidson audio builds.
This signal input/output harness includes four additional RCA connectors for seamless amplifier integration, along with an output speaker wire harness for added flexibility. Please note that the RCA outputs carry a high-level signal, so amplifiers must support high-level input through RCA connections.
Built for clean integration, scalability, and professional installation, the HDTSR14 is the essential solution for expanding and optimizing your MSHD14-powered audio system.
Features
Specifications
Tech Support:
- NOTE: This is still a high-level signal. Please make sure your amplifier can handle high-level input using RCA jacks.
The Kaos Run Down
- Manufacturer SKU: HDTSR14
- Product Type: Processor
- Audio Type: Processor
