DMD Series 10" Active Low Profile Subwoofer - DPRS10

DPRS10 - DMD Series 10" Active Low Profile Subwoofer

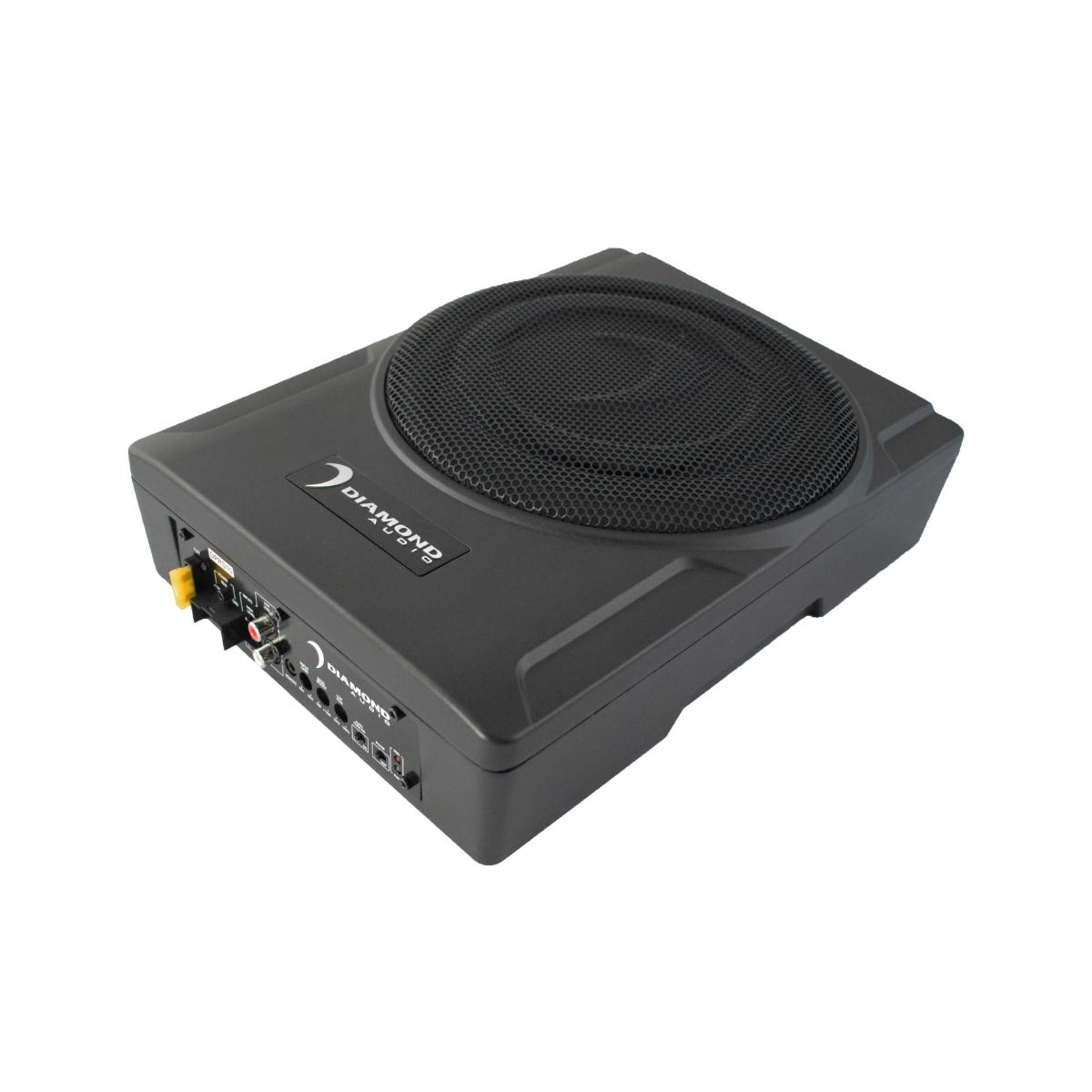

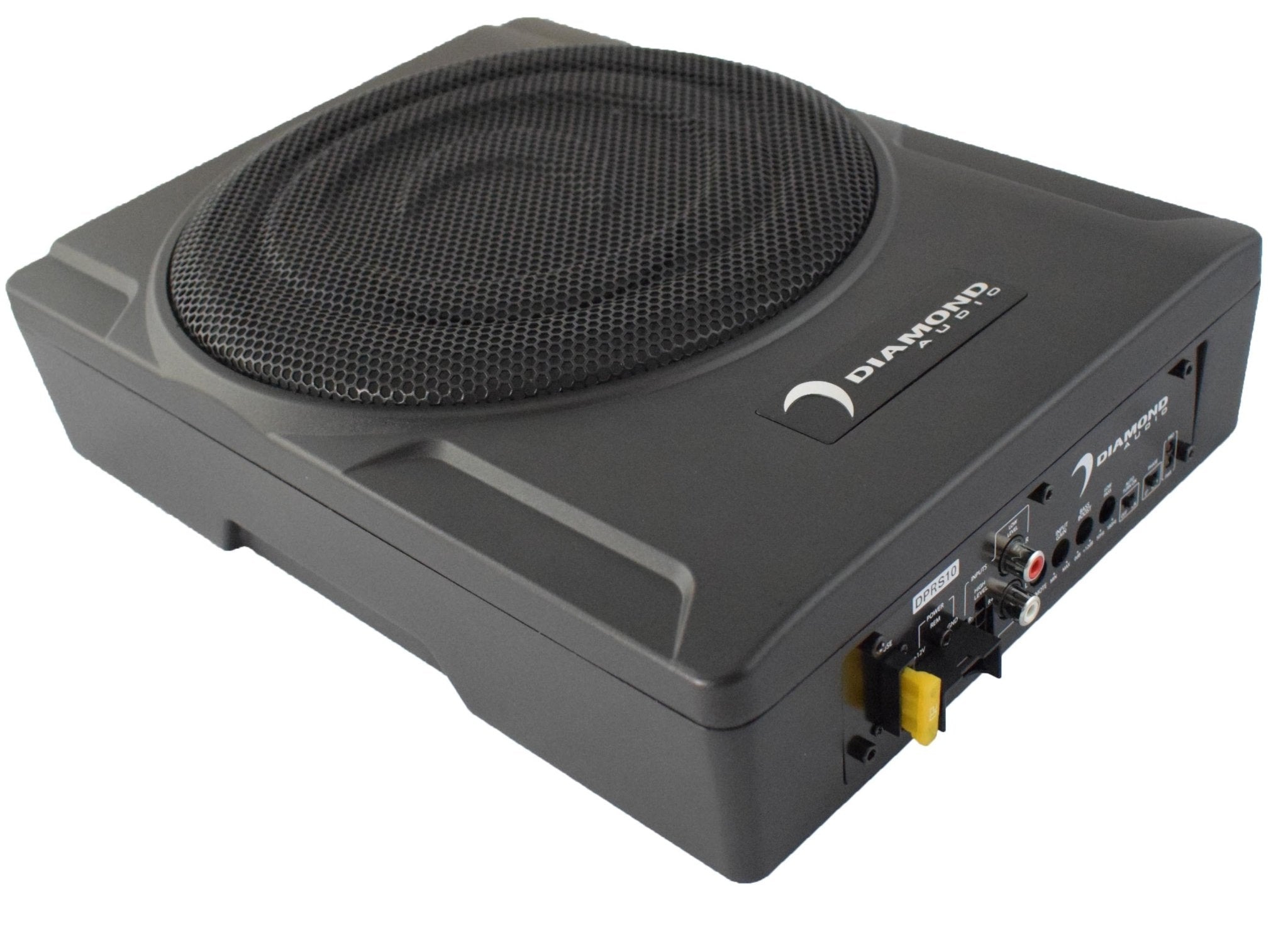

The DPRS10 Active Low-Profile Subwoofer from Diamond Audio is a compact, all-in-one bass solution designed to deliver clean, extended low-frequency performance in vehicles where space is limited. Part of the DMD Series, the DPRS10 is engineered for effortless integration with both factory and aftermarket audio systems.

This powered subwoofer features a 10-inch driver driven by a 120-watt RMS amplifier, housed in a ported enclosure with an integrated passive radiator. This design enhances low-end output and efficiency, producing deep, rich bass with improved clarity and impact compared to traditional sealed enclosures.

Built for tight installations, the DPRS10 utilizes a rugged die-cast aluminum enclosure measuring just 12.2" x 9" x 3". Its ultra-slim profile allows for discreet placement under seats or inside vehicle compartments without sacrificing performance or interior space. The rigid aluminum construction also helps reduce resonance and heat buildup for consistent, distortion-free bass.

Ideal for cars, trucks, and SUVs, the DPRS10 offers a simple, ready-to-install solution for adding powerful bass. Upgrade your system with the Diamond Audio DPRS10 and experience premium low-profile bass performance with maximum convenience.

Features

Specifications

Power: 120 WRMS/300 WMAX
THD: <0.5%
Signal-to-noise ratio: >90dB
Frequency response: 20Hz-180Hz
Input sensitivity, high level: 1.0V
Input sensitivity, low level: 300V
Low Pass Filter: 50Hz-180Hz
Bass Boost: 0dB TO +12dB
Subsonic Filter: 20Hz
Subwoofer: 10" (4 ohm )
Fuse rating: 20A
Dimensions (L x W x H) inches/mm: 12.2"(310) x 9"(230)x 3"(78)
