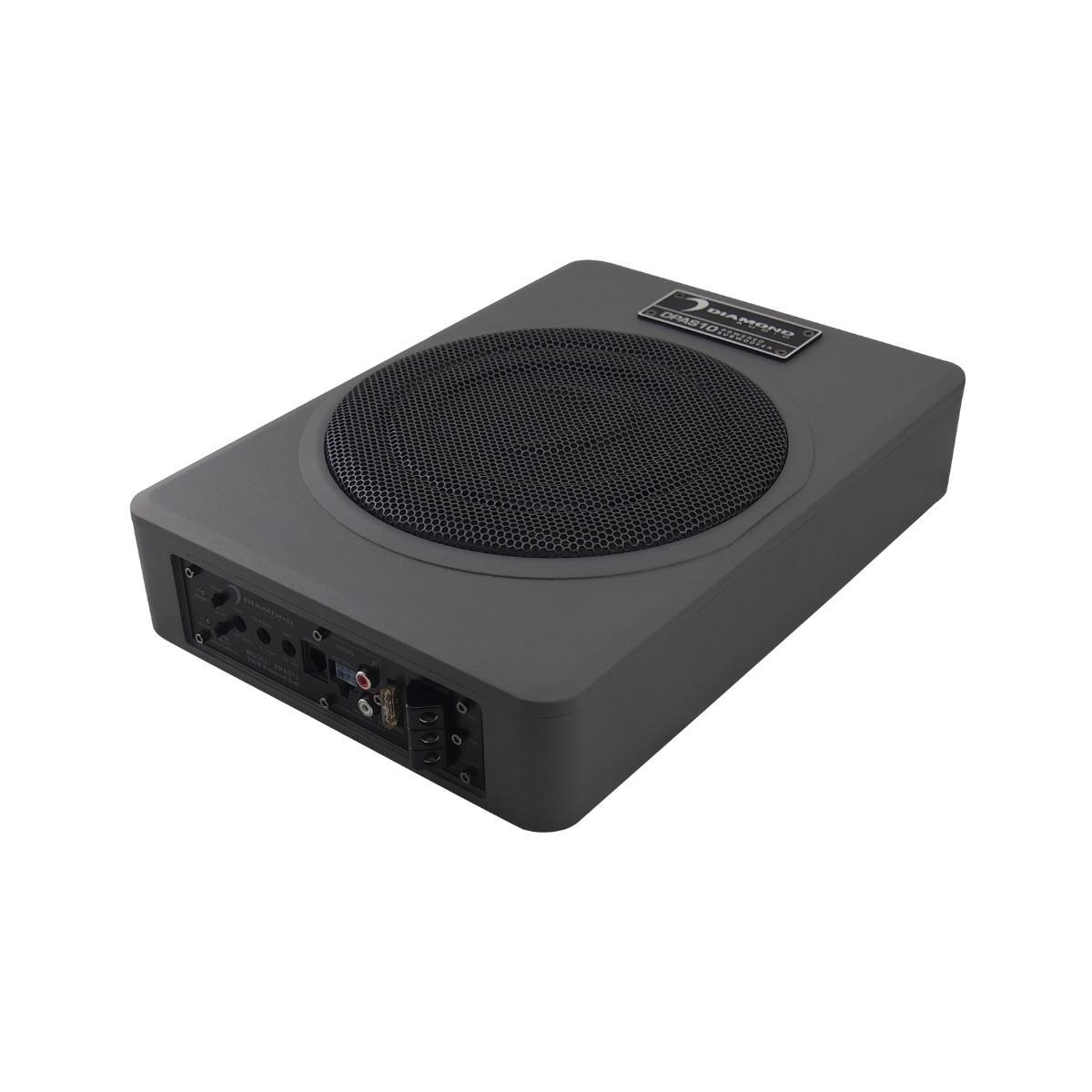

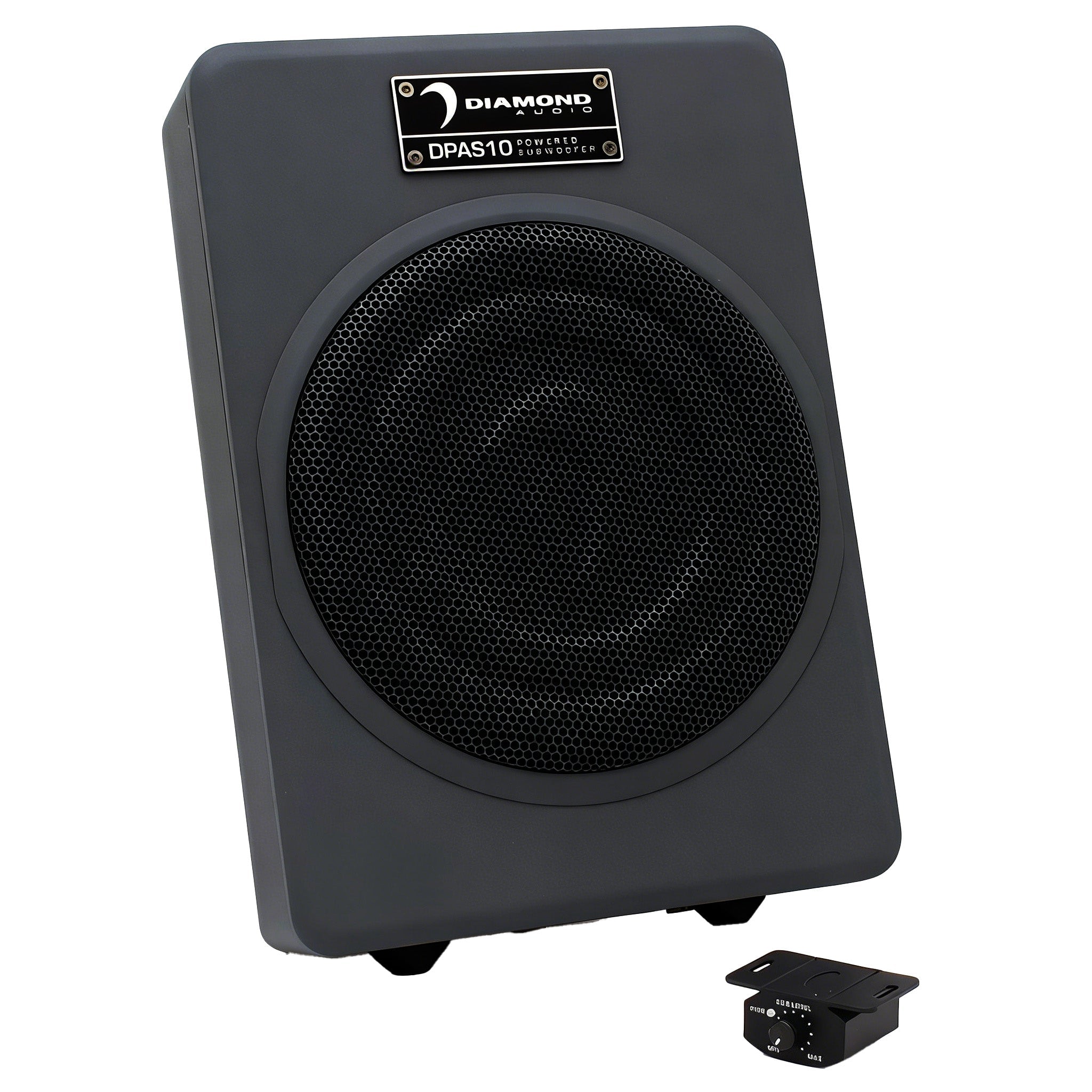

DPAS10 - DMD Series 10" Active Compact Subwoofer

Upgrade your vehicle's sound system with the Diamond Audio DPAS10 DMD Series 10" Active Compact Subwoofer, engineered to deliver powerful, clean bass in an ultra-slim design. Producing up to 300 watts of dynamic power, this 10-inch powered subwoofer is housed in a precision-tuned ported enclosure with an integrated passive radiator, providing deep, extended low-frequency response with impressive clarity and impact.

Designed for modern vehicles with limited space, the DPAS10 features a rugged die-cast aluminum enclosure measuring just 13.6" x 9.6" x 2.6". Its low-profile footprint allows for seamless installation under seats or inside tight interior compartments without sacrificing output or performance. The durable aluminum chassis also enhances heat dissipation and structural integrity for long-term reliability.

Ideal for both factory and aftermarket audio systems, the DPAS10 powered subwoofer integrates easily to add tight, punchy bass that transforms your listening experience. Whether you enjoy hip-hop, rock, electronic, or country, this compact subwoofer fills in the low end with authority and balance.

For drivers seeking a space-saving 10-inch active subwoofer with strong output, efficient performance, and premium build quality, the Diamond Audio DPAS10 delivers powerful bass in a compact, easy-to-install package.

Features

Specifications

Power: 150W RMS/300W MAX
THD: <0.4%
Signal-To-Noise Ratio: >90dB
Frequency Response: 30Hz-150Hz
High Level Input Sensitivity: 0.9V
Low Level Input sensitivity: 300mV
Low Pass Filter: 85Hz-150Hz
Bass Boost: 0dB-12dB
Subsonic Filter: 30Hz
Subwoofer: 10" (2 ohm )
Fuse rating: 25A
Dimensions (LxWxH): 13.6"x9.6"x2.6"(345mm x 245mm x 68mm)
