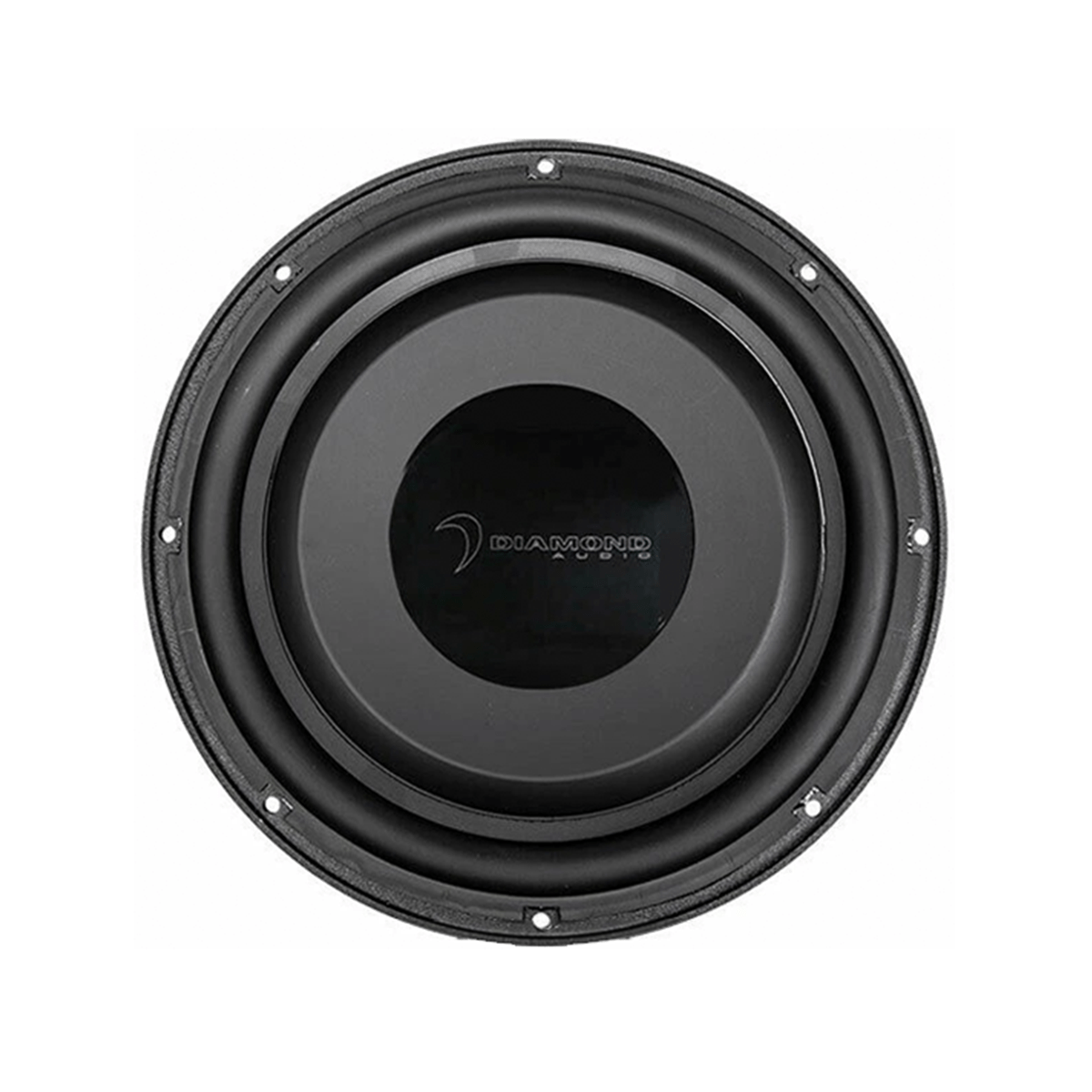

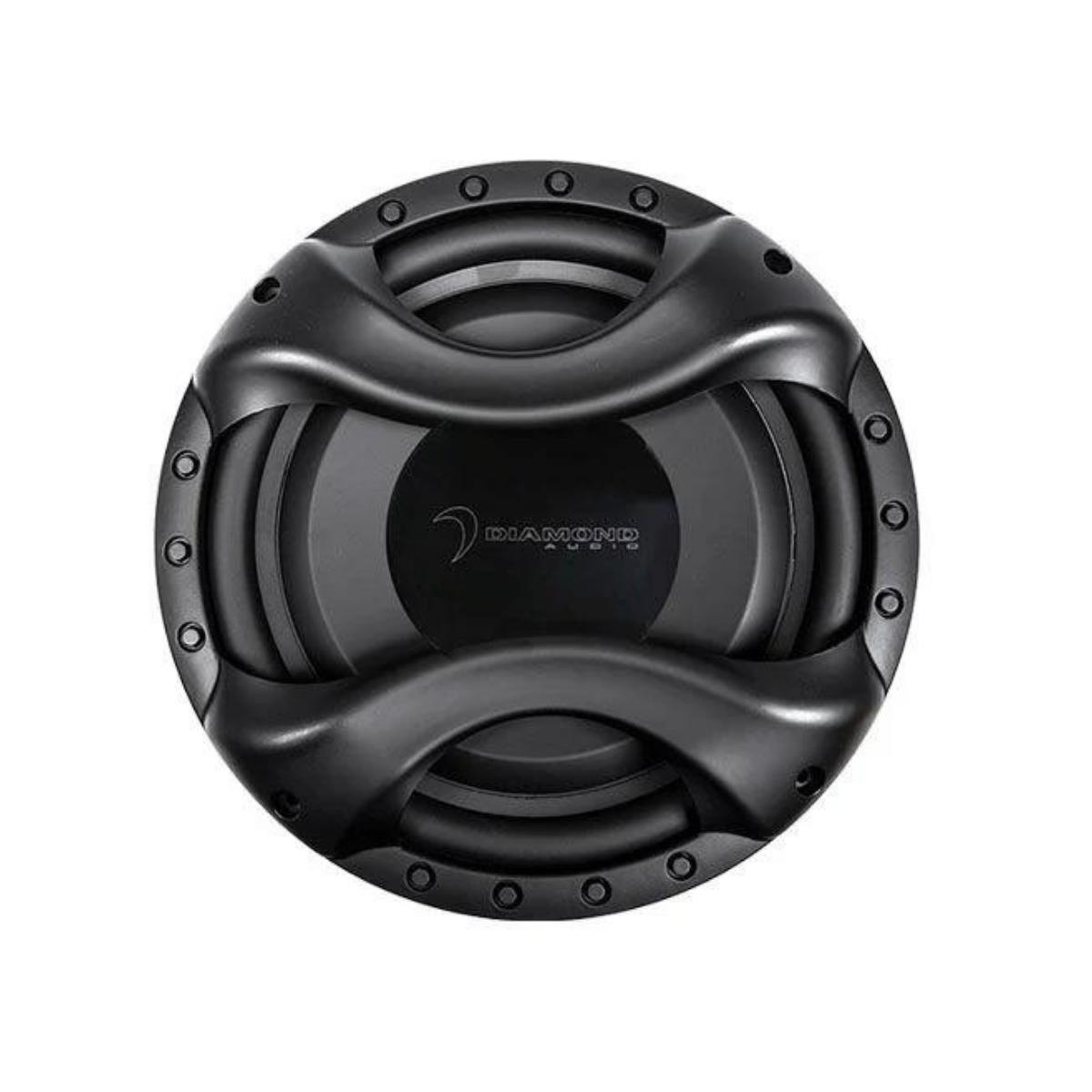

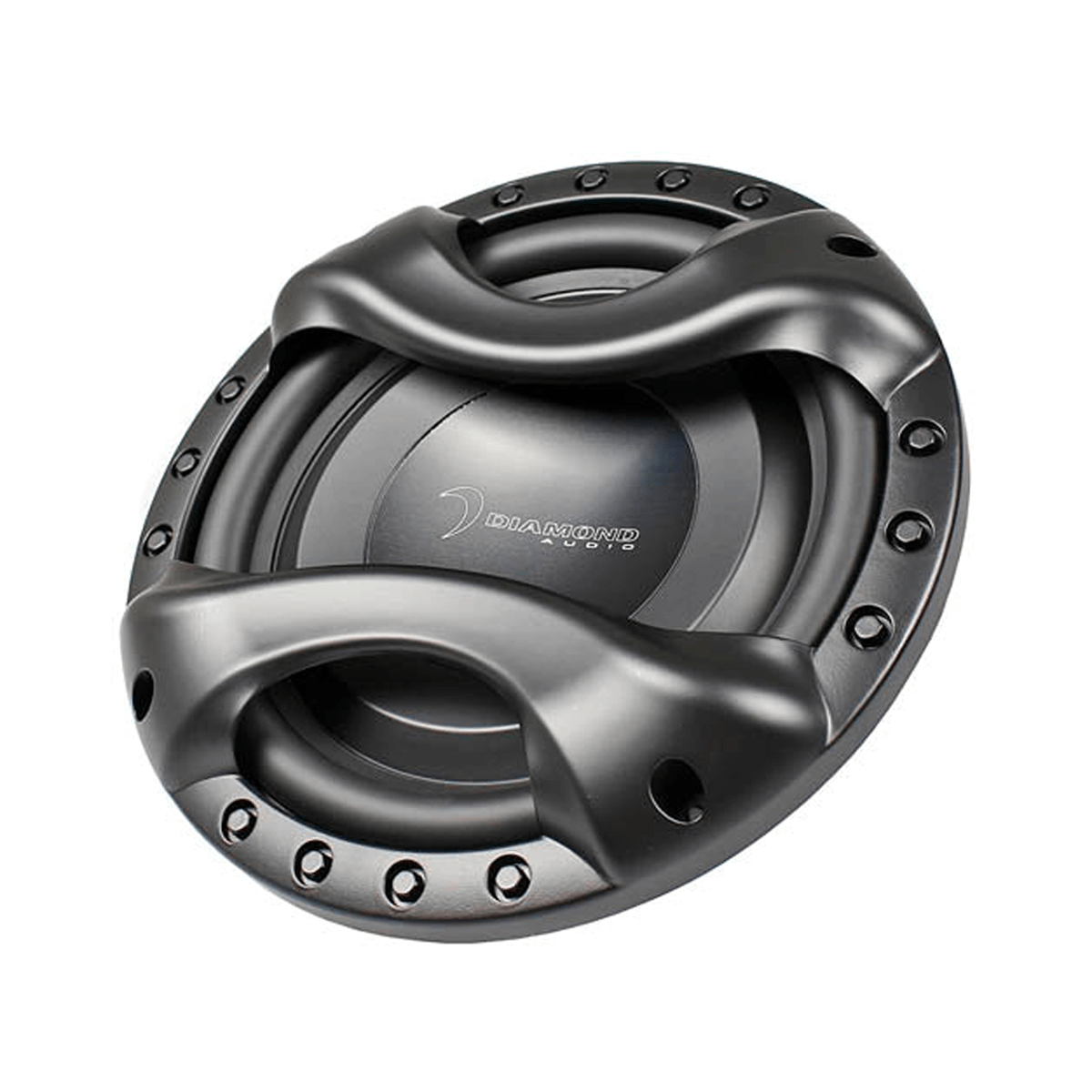

DMD124SH - DMD Series 12" Shallow Dual Voice Coil Subwoofer (4 ohm )

DMD124SH - 12" Shallow Dual Voice Coil Subwoofer (4 ohm )

The DMD124SH Shallow Mount Subwoofer from Diamond Audio is the ideal solution for car audio systems where space is limited but powerful bass is still a priority. Designed for tight installations in trucks, cars, and custom enclosures, this 12-inch shallow subwoofer delivers impressive low-frequency performance with an ultra-slim mounting depth of just 3 inches.

Part of the proven DMD Series, the DMD124SH is engineered to perform best in sealed enclosures, delivering tight, controlled bass that rivals traditional full-size subwoofers while taking up significantly less space. Its dual 4-ohm voice coil configuration provides wiring flexibility, making it easy to match with a wide range of amplifiers for optimal power delivery.

For maximum bass output and efficiency, Diamond Audio recommends using two DMD shallow subwoofers in a compact 1-cubic-foot enclosure. This setup allows you to achieve deep, impactful bass without sacrificing valuable cargo or interior room.

Whether upgrading a daily driver or building a custom space-saving system, the DMD124SH offers big bass performance in an ultra-shallow, installer-friendly design built for modern vehicles.

Features

Specifications

Power: 300W RMS/600W MAX
SPL(dB): 86.8
Re( ohm ): 6.0
Qms: 9.0
Qes: 1.02
Qts: 0.91
Fs(Hz): 46.5
Vas(L): 31.0
Cms(mm/N): 0.075
Mms(g): 156.0
Sd(cm): 0.0539
BL(T*M): 16.4
Xmax(mm): 8.8
Diameter: 12.83"(326mm)
Mounting Diameter: 11.06"(281mm)

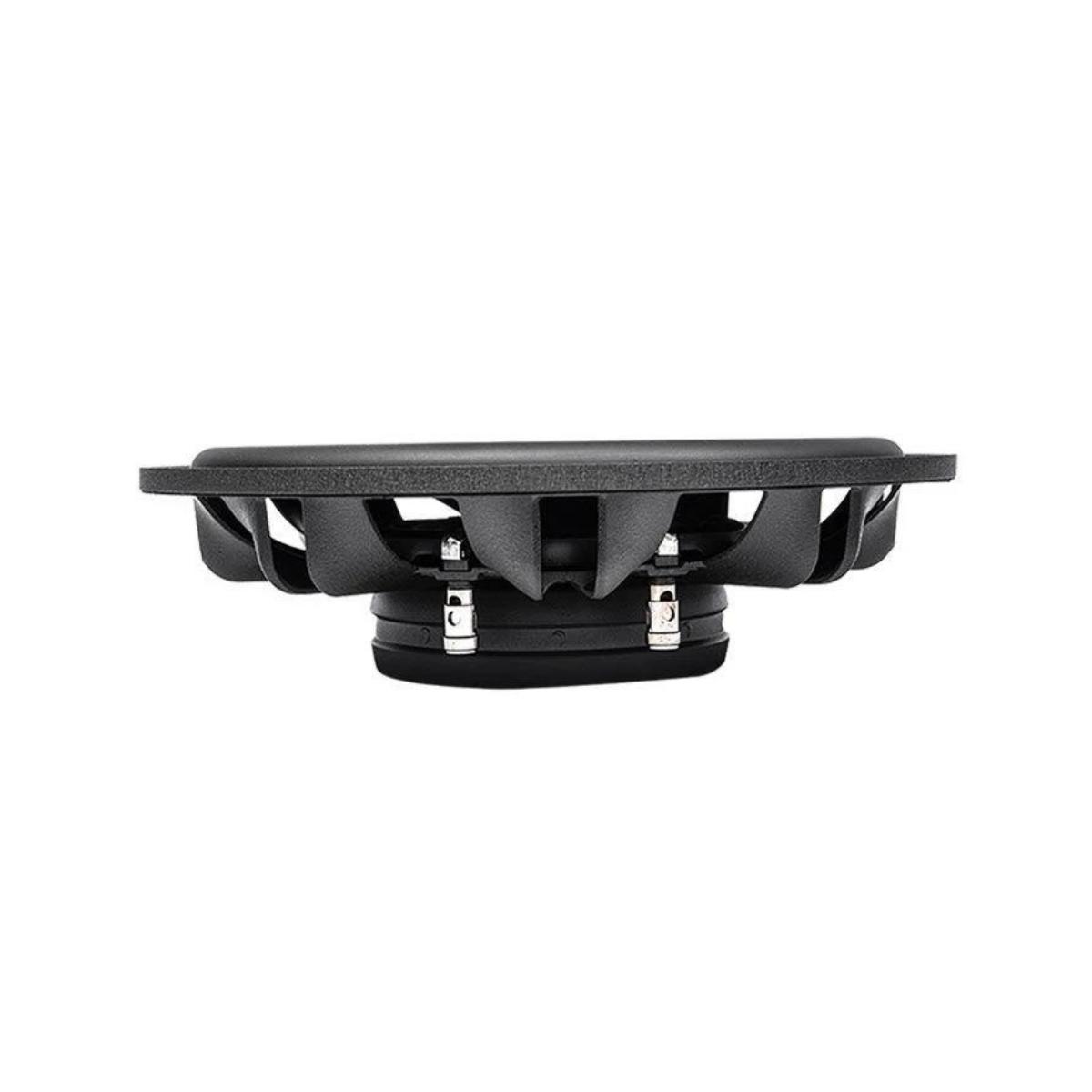

Mounting Depth: 3"(76mm)
Magnet Diameter: 5.69"(144.5)
Vb (ft3): 0.75
F3 (Hz): 55
QTC: 1.00
Pe (W): 300
Vb (ft3): 1.50
Fb(Hz): 43
F3(Hz): 37
Port (Diameter x Length): 4.3"(109.22mm) x 10"(254mm)
Pe (W): 300
